Compaq Evo n1005v - Notebook PC User manual

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 1

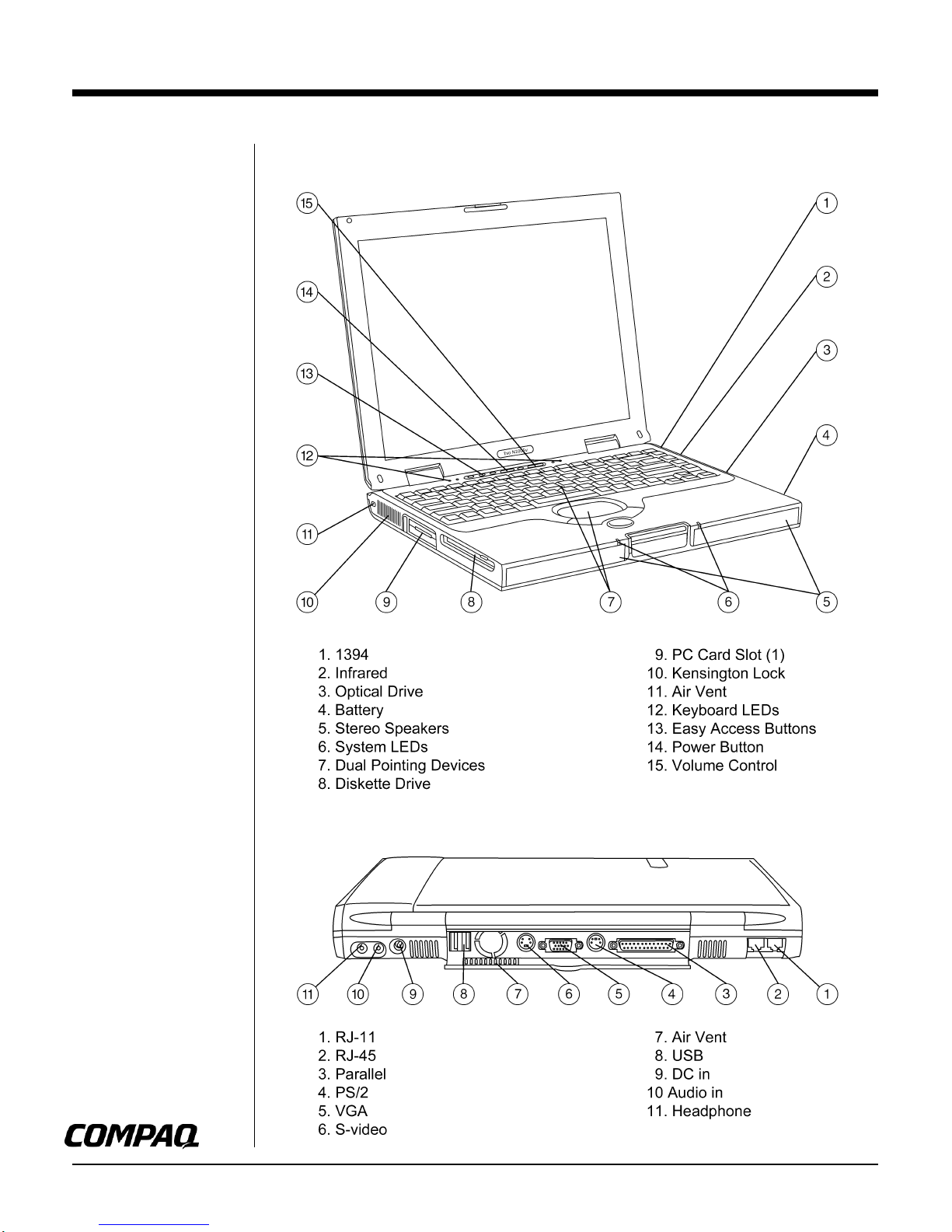

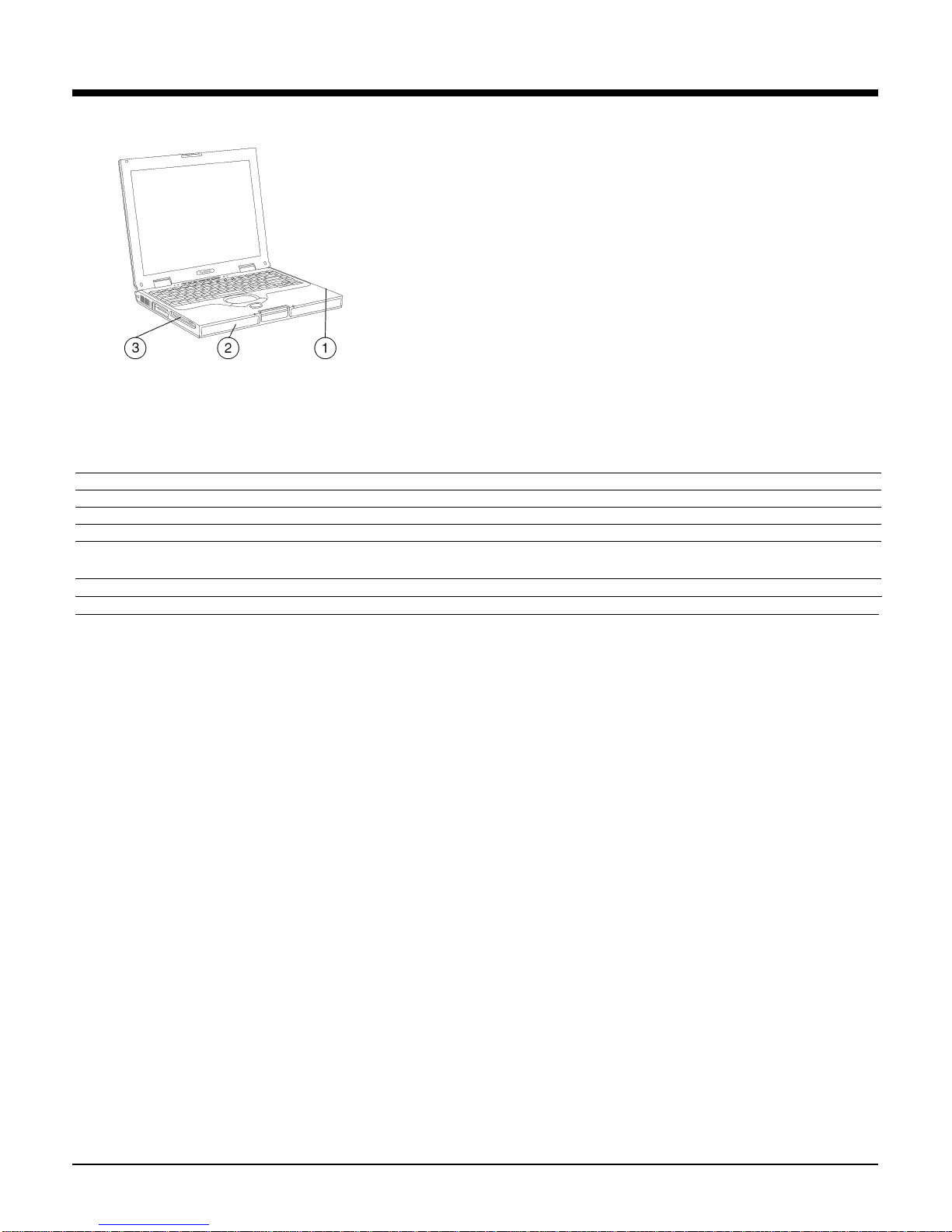

Overview
What's New
•Mobile AMDAthlon XP
Processor – up to 1700+
•266-MHzbus
•4X AGP Graphics
•MultiPort wireless communication
options
•Sophisticated design elements
•1394 Digital interface
At A Glance
•Mobile AMDAthlon XP
Processor – up to 1800+
•15-inch XGA, SXGA+ and
14.1-inch XGA display
•Magnesium enclosure for the
15-inch panels
•Configurations as light as
6.6 lb/2.99 kg weight
(14-inch panel)
•1.55 in/3.95 cm thin
•256-MB DDR SDRAM
(266 MHz), Upgradeable to
1024 MB
•Up to 40-GB/5400 rpm SMART
hard drives
•Mini PCI modem and integrated
NIC
•Full-size keyboard
•MicrosoftWindowsXP Pro or
Home preinstalled and support
for Windows 2000
•Includes a One-year, Worldwide
Warranty—Certain restrictions
and exclusions apply. Consult
the Compaq Customer Support
Center for details.
What’s Special
•All-in-one convenientdesign
•High-end ATI Radeon graphics
and large panel
•1394 DigitalInterface
•Large hard drives
•Wirelessfeaturesthrough
Award-Winning MultiPort

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 2
Standard Features
Processor and Panel 15-inch color TFT SXGA+ with 1400 x 1050 resolution (up to 16.7M colors internal)
15-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal)
14.1-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal)
One of the following: AMD Athlon XP 1800+ (Quanti speed architecture running at 1.53 GHz) with 256-KB L2 cache
AMD Athlon XP 1700+ (Quanti speed architecture running at 1.47 GHz) with 256-KB L2 cache
AMD Athlon XP 1600+ (Quanti speed architecture running at 1.40 GHz) with 256-KB L2 cache
AMD Athlon XP 1500+ (Quanti speed architecture running at 1.30 GHz) with 256-KB L2 cache
AMD Athlon XP 1500+ (Quanti speed architecture running at 1.30 GHz) with 256-KB L2 cache
NOTE: Mobile AMD Athlon XP supports enhanced AMD’s PowerNow™ technology.
Memory
Standard/Maximum 128 MB (266 MHz) DDR SDRAM
256 MB (266 MHz) DDR SDRAM
512 MB (266 MHz) DDR SDRAM
1024 MB (266 MHz) DDR SDRAM
NOTE:Due to the non-industry standard nature of some third-party memory modules, we recommend Compaq
branded memory to ensure compatibility.
Communications 10/100 NICis integrated on the system board (LOM)
Type III Mini PCI 56K (V.92) modem
NOTE: Designed only to allow faster downloads from V.92 compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions.
NOTE: Modem availability is subject to country regulatory approval
Keyboard 102-key compatible keyboard with isolated, inverted-T cursor control keys, and right-control key, special feature
hotkeys for instant access to power conservation, toggle between internal and external, or simultaneous displays,
and control brightness and contrast.
Easy Access Internet
Buttons The EvoNotebook N1005v features three Easy Access Buttons (EAB) designed to increase customer productivity by providing one-touch access to helpful Compaq information, favorite Internet destinations, or default
e-mail application. The EAB portion of the keyboard deck also includes dedicated hardware volume control and a
quick-launch button for CD/DVD play.
Pointing Device TouchPad with 4-way scroll
PC Card Slots One Type II PC Card Slot which supports both 32-bit CardBusand 16-bit PC Cards
Storage Primary Hard Dive 40-GB 4200 RPM
30-GB 4200 RPM
20-GB 4200 RPM
Diskette Drives 1.44 MB Floppy Drive
Optical Drives DVD/CD-RW Combo Drive
8X DVD-ROM Drive or
24X CD-ROM Drive

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 3
Standard Features
Multimedia JBL Pro Speakers with bass reflex and 16-bit stereo sound
Dedicated Hardware volume controls
Headphone-out port
Microphone in port
Software MPEG1 support, MPEG2 and DVD
8X DVD/CD-RW Combination Drive (on select models)
8X DVD-ROM Drive with movie playback software (on select models)
24X CD-ROM Drive (on select models)
S-video Port
IEEE 1394 Port
4X AGP graphics
Interfaces PC Card One Type II
Enhanced Parallel EPP/ECP 1
S-Video 1
VGA 1
1394 1
Headphone/Line-out 1
Microphone in 1
DC Power 1
RJ-11 (modem) 1
RJ-45 (NIC) 1
Infrared Port 1 (4 Mb/s support)
(IrDA 4 MB compliant. IR performance will vary depending on performance of IR
peripherals and application used.)
USB Port 2
LED status indicators 6
Graphics ATI Radeon IGP video graphics with user configurable 16-, 32- or 64-MB VRAM video memory for increased
color depth and graphics performance
Display (External) Up to 32-bit per pixel color depth
Supports 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1400 x 1050, 1600 x 1200 resolutions up to 160-Hz
refresh rate, dependent upon monitor capability, resolution and color depth settings
Display (Internal) 15-inch color TFT SXGA+ with 1400 x 1050 resolution (up to 16.7M colors internal)
15-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal)
14.1-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal)
Operating System Microsoft Windows XP Pro or Home preinstalled with support for Windows
Software Diagnostics for Microsoft Windows
DVD Playback Software
Compaq Power Management
Compaq Security Management
Safety and Comfort Guide
AcrobatReader
Reference Guide
Norton Internet Security
Compaq Easy Access Button Software

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 4
Standard Features
System Recovery Each unit is shipped with a series of CD’s kit for quick OS recovery (erases hard disk and restores manufacturer
installed image) and software recovery (installs only selected standard software).
Security Configuration Control Hardware
Memory Change Alert
Ownership Tag
Set-up Password
Power-On Password
Enabled for PC SmartCard options
Kensington Lock
Power Supply External AC adapter, 6-foot/1.8-meter power cord included. Total length including External AC adapter is 12
feet/3.66 meter
Battery The Evo Notebook N1005v provides up to three hours of battery life using the standard 8-cell Lithium-Ion battery.
NOTE:Actual results may vary with product model, configuration, and individual usage. Compaq results of 3:01
(hr:min) were achieved running the Business Winstone 2001 Battery Mark1.0.1 on a N1005v with a
AMD Athlon XP 1600+ CPU, 15-inch XGA panel, 128-MB RAM, 20-GB HDD, 8X DVD, 8-cell Lithium-Ion
battery, and NIC/modem. System parameters were set according to eTesting Labs’ recommendations:
panel brightness 50%, power management timers turned off.
NOTE: This test was performed without independent verification by eTesting Labs Inc. eTesting Labs Inc. makes
no representations or warranties as to the result of the test. BatteryMark is a trademark of Ziff Davis
Publishing Holdings Inc., and affiliate of eTesting Labs Inc., in the U.S. and other countries.
Power Conservation Hibernation
Instant-on via Standby
Pop-ups with three presets
One custom level of power conservation
ACPI compliant
MultiPort
MultiPort is a flexible, innovative solution providing customers the ability to connect to their choice of wireless standards such as 802.11b or Bluetooth™. This can be achieved by simply changing out the high-performance
wireless module, which is integrated in the top of the notebook. The award-winning MultiPort offers a cost
effective means to migrate to future wireless standards as they become available.
Service and Support Compaq Services includes a one-year, Worldwide Limited Warranty, pick-up or carry in; upgraded warranty and
toll-free 7 x 24 hardware technical phone support is available.
NOTE: Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 5
Standard Features

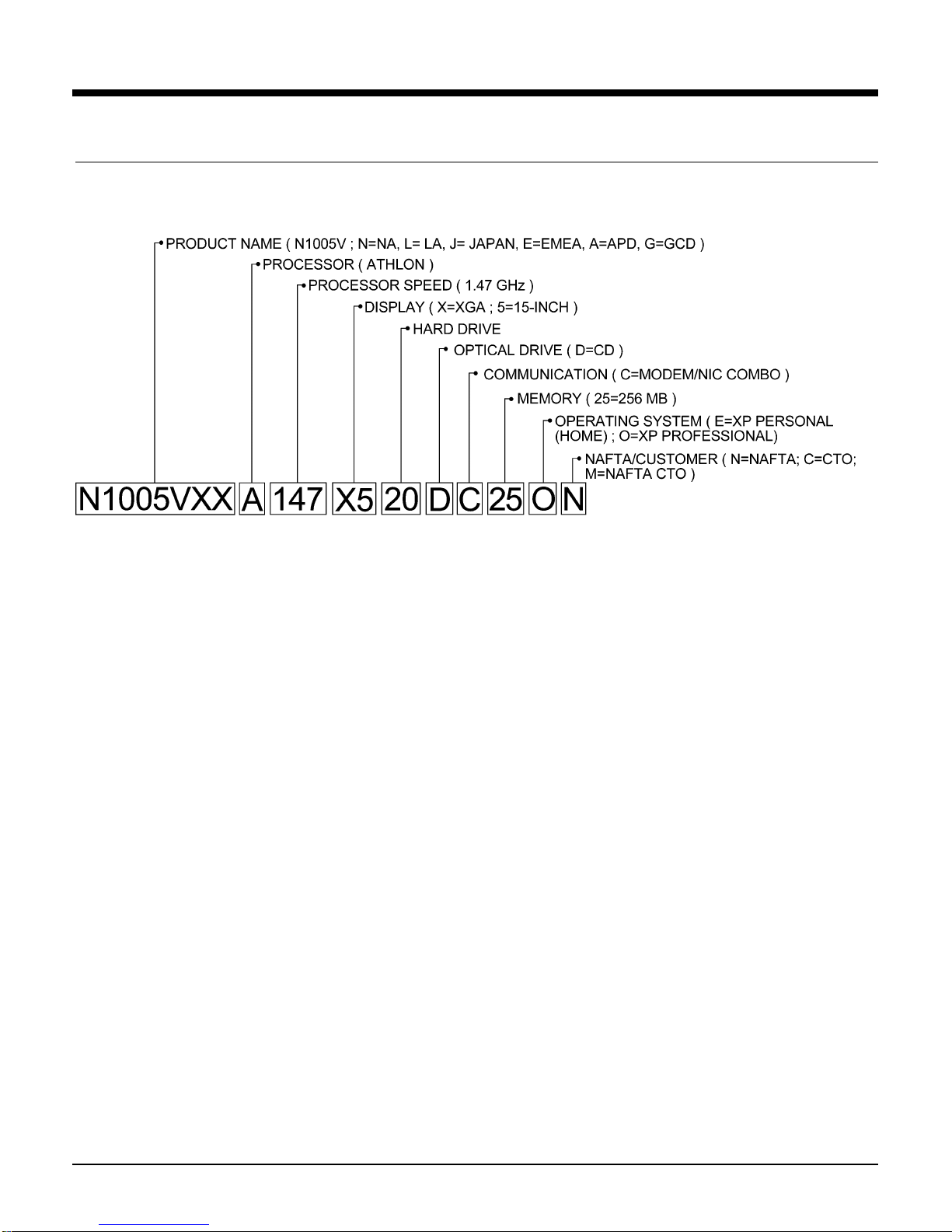

Naming Convention The Etymology of a Model name:

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 6
Standard Features
MODELS
Display 15-inch color TFT XGA
Processor Athlon XP 1700+ (1.4 GHz)
Cache Memory 256-KB L2 Cache
N1005VA147X520DC25E0
Memory Standard 256 MB (133 MHz) DDR SDRAM
Maximum 1024 MB (133 MHz) DDR SDRAM
Optical Drive DVD
Hard Drive 20-GB SMART
Communications Type III Mini PCI 56K (V.92) modem, (LOM) integrated 10/100 NIC
Graphics ATI Mobility Radeon
Video Memory 16-MB shared VRAM memory
Audio JBL Pro Speakers with bass reflex and 16-bit stereo sound
Operating System Microsoft Windows XP PRO
Pointing Device Touchpad
Display 15-inch color TFT SXGA+
Processor Athlon XP 1800+ (1.53 GHz)
N1005VA147X530DC250
Cache Memory 256-KB L2 Cache
Memory Standard 256 MB (133 MHz) DDR SDRAM
Maximum 1024 MB (133 MHz) DDR SDRAM
Optical Drive DVD/CD-RW
Hard Drive 30-GB SMART
Communications Type III Mini PCI 56K (V.92) modem, (LOM) integrated 10/100 NIC
Graphics ATI Mobility Radeon
Video Memory 16-MB shared VRAM memory
Audio JBL Pro Speakers with bass reflex and 16-bit stereo sound
Operating System Microsoft Windows XP PRO
Pointing Device Touchpad

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 7
Options
Memory 512-MB (266 MHz) DDR SDRAM Memory Upgrade 269087-B25
256-MB (266 MHz) DDR SDRAM Memory Upgrade 269086-B25
128-MB (266 MHz) DDR SDRAM Memory Upgrade 269085-B25
Monitors TFT8030 Flat Panel Color 18-inch (carbon/silver) 234362-xxx
TFT7020 Flat Panel Color 17-inch with integrated speakers (carbon/silver) 253217-xxx
TFT5015 Flat Panel Color 15-inch (carbon/silver) 234044-xxx
TFT5030 Flat Panel Color 15-inch (carbon/silver) 228134-xxx
V720 17-inch CRT (carbon/silver) 232944-xxx
S720 17-inch CRT (carbon/silver) 239287-xxx
V570 15-inch CRT (carbon/silver) 228113-xxx
Other Storage Devices IBM1-GB Microdrive(PC card Device) 217390-B25
USB Disk-on-Key – 8 MB 249552-B25
USB Diskette Drive 230330-B25
Connectivity Compaq Type III Mini PCI 56K (V.90) Modem 225640-B31
Compaq Type III Mini PCI 56K (V.90) Modem plus 10/100 NIC Combo 225642-B31
100BaseTX Ethernet Upgrade 225435-001
1394 PC Card 177593-B25
NOTE: Designed only to allow faster downloads from V.90 compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions.
Wireless Connectivity 802.11b MultiPort Wireless LAN module 233412-001
Bluetooth MultiPort module 228057-B21
Compaq WL110 Wireless LAN PC Card 191808-B21
Compaq WL510 Wireless Enterprise Access Point 216709-001
Compaq WL410 Wireless SMB Access Point 191811-001
Compaq WL310 Home Office Access Point 191813-001
Compaq Range Extender Antenna 230268-B21
CDPD WWAN PC Card (U.S. Only) 238111-001
Expansion Bases Targus USB Port Replicator 239172-001
Power Evo Notebook N1005v 8-cell primary battery (4 Ah) 291369-B21
Common Power Solutions External Battery Charger 265603-xxx
AC Adapter 65W 265602-xxx
Auto Power Adapter/Charger 65W 265649-B25
Aircraft Power Adapter 386504-B21
AC Line Cord (10-ft/3.1 m) 217932-xx2
Input Devices External Enhanced III Keyboard (carbon) 118003-008
Compaq 2 Button Mouse (carbon) 103180-B21
USB 2 Button Scroll Mouse (carbon) 195255-B25
External 10-Key Numeric Keypad (carbon) 294317-B21
USB EZ Access Keyboard 222726-xxx
Wireless Keyboard and Mouse 251385-xx8

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 8
Options
Security Biometric PC Card 146805-B25
Security Cable Lock 294316-B21
Compaq Smart Card PC Card Reader 135646-B25
Useful Accessories Compaq iPAQ Microportable Projector MP1200 261966-xxx
Compaq iPAQ Microportable Projector MP3800 262839-xxx
Compaq iPAQ Microportable Projector MP4800 257524-xxx
Lamp Module L20 for MP1200 266631-B24
Lamp Module L30 for MP3800 266633-B24
Home Theatre Kit HT150 for MP3800 292187-B24
Carrying Case for MP1200 295731-B24
Lamp Replacement Kit for MP1600 118052-001
Lamp Module for MP1800, MP1400 189789-001
Lamp Module for MP2800, MP2810 215464-001
Home Theater Kit HT110 for MP1410 246161-001
Multimedia Adapter & Remote Control Kit MMA110 for MP1410 246162-001
Multimedia Adapter & Remote Control Kit for MP1400, MP1800 174963-001
Deluxe Carrying Case for MP Series projectors 253364-001
Lamp Module for MP1410, MP1810 253365-001
Lamp Module L90 for MP4800 257892-001
Home Theater Kit HT180 for MP1200, MP4800 281729-001
CeilingMount Kit CM10 for MP1200, MP4800 281730-001
hp digital projector sb21 L1510A
hp digital projector xb31 L1511A
Ceiling Mount Kit for xb31 L1513A
M1-A to component/USB video cable for sb21, xb31 L1523A
M1-D to DVI/USB cable for sb21, xb31 L1529A
Lamp Module for sb21 L1515A
Lamp Module for xb31 L1516A

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 9
Memory
Compaq Evo N1005v
STANDARD MEMORY PLUS OPTIONAL MEMORY
Support for up to 1024 MB of DDR SDRAM memory is available with the installation of optional DDR SDRAM Memory Kits.
Memory Slot 1 Slot 2
256 MB 256 MB --
384 MB 256 MB 128 MB
512 MB 512 MB --
768 MB 512 MB 256 MB
1024 MB 512 MB 512 MB
NOTE:This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory
modules, we strongly recommend using only Compaq branded memory modules to ensure compatibility.
Following are memory options available from Compaq:
•512-MB (266 MHz) DDR SDRAM Memory Upgrade 269087-B25
•256-MB (266 MHz) DDR SDRAM Memory Upgrade 269086-B25
•128-MB (266 MHz) DDR SDRAM Memory Upgrade 269085-B25

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 10
Storage
1. Dedicated Optical Drive
2. Primary Hard Drive
3. Dedicated Disk Drive
DRIVE SUPPORT
System Drive Support Quantity
Supported Drive Bay Supported
1.44-MB Diskette Drive 1 Dedicated Disk Drive
DVD/CD-RW Combo Drive 1 Dedicated O
p
tical Drive
DVD-ROM Drive 1 Dedicated O
p
tical Drive
CD-ROM Drive 1 Dedicated O
p
tical Drive
Hard Drives
40-GB SMART Hard Drive 1 Dedicated Hard Drive Bay
30-GB SMART Hard Drive 1 Dedicated Hard Drive Bay
20-GB SMART Hard Drive 1 Dedicated Hard Drive Bay

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 11
Technical Specifications
System Unit Dimensions (H x W x D) 15-inch and 14.1-inch TFT panel
displays 1.55 x 12.89 x 10.53 in/3.95 x 32.75 x 26.75 cm
Weight 14.1-inch LCD,,CD-RW, DVD or
CD-ROM, 1 SODIMM 6.60 lb/2.99 kg
15-inch LCD, CD-RW, DVD or
CD-ROM, 1 SODIMM 6.87 lb/3.12 kg
NOTE: * = Weight varies by configuration.
Stand-Alone Power
Requirements Nominal Operating Voltage
(Li-Ion) 14.4 V (8-cell)
Average Operating Power 15.8 W
Peak Operating Power 38W
Power in suspend mode < 800 mW
Power in hibernation mode < 100 mW
Power Supply Rated Input Voltage 90 to 264 VAC (auto-switching)
Rated Input Current < 60 W
Rated Frequency 50 to 60 Hz
Temperature Operating 50°to 95°F/10°to 35°C
Non-operating 14°to 140°F/–10°to 60°C
Relative Humidity Operating 10% to 90% relative humidity, non-condensing
Non-operating 5% to 90% relative humidity, 101.6°F/38.7°C
Maximum wetbulb temperature
Shock Operating 10 G, 11 ms, half-sine
Non-operating 60 G, 11 ms, half-sine
Vibration Operating 0.5 G zero-to-peak, 10 to 500 Hz, 0.25 oct/min
sweep rate
Non-operating 1.0 G, zero-to-peak, 10 to 500 Hz, 0.5 oct/min
sweep rate
Operating 0 to 10,000 ft/0 to 3,048 m
Maximum Altitude
(unpressurized) Non-operating 0 to 30,000 ft/0 to 9,144 m

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 12
Technical Specifications
Dimensions (H x W)11.24 x 8.43 in/28.6 x 21.4 cm
Diagonal Size 14.1 in/35.7 cm
14.1-Inch Color TFT XGA Display
Mounting Internal Panel Supports, Side Mounted
Number of Colors Up to 16.8M
Contrast Ratio 150:1
Brightness 150nt typ
Pixel Resolution Pitch 0.264 x 0.264 mm
Format 1024 x 768
Configuration RGB stripe
Backlight Edge Lit
Character Display 80 x 25
Total Power Consumption 4.2 W
Dimensions (H x W)11.8 x 9 in/30.4 x 22.8 cm
Diagonal Size 15 in/38 cm
15-Inch Color TFT SXGA+ Display
Mounting Internal Panel Supports, Side Mounted
Number of Colors Up to 16.8M
Contrast Ratio 150:1
Brightness 150nt typ
Pixel Resolution Pitch 0.218 x 0.218 mm
Format 1280 x 1024
Configuration RGB stripe
Backlight Edge Lit
Character Display 80 x 25
Total Power Consumption 5.75 W

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 13
Technical Specifications
Dimensions (H x W)11.8 x 9 in/30.4 x 22.8 cm
Diagonal Size 15 in/38 cm
15-Inch Color TFT XGA Display
Mounting Internal Panel Supports, Side Mounted
Number of Colors Up to 16.8M
Contrast Ratio 150:1
Brightness 150nt typ
Pixel Resolution Pitch 0.297 x 0.297 mm
Format 1024 x 768
Configuration RGB stripe
Backlight Edge Lit
Character Display 80 x 25
Total Power Consumption 5 W
Hard Drives
Capacity 40 GB
Height 0.374 in/9.5 mm
40 GB
Width 2.75 in/70 mm
Interface ATA-5
Transfer Rate Synchronous (maximum) 100 MB/s (Drive Capability)
Security ATASecurity
Single Track 3 ms
Seek Time
(typical reads, including settling) Average 13 ms
Maximum 25 ms
Rotational Speed 4200 rpm
Logical Blocks 78,140,160
Operating Temperature 41°to 131°F/5°to 55°C

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 14
Technical Specifications
Hard Drives (continued)
Capacity 30 GB
Height 0.374 in/9.5 mm
30 GB
Width 2.75 in/70 mm
Interface ATA-5
Transfer Rate Synchronous (maximum) 100 MB/s (Drive Capability)
Security ATASecurity
Single Track 2.5 ms
Seek Time
(typical reads, including settling) Average 12 ms
Maximum 23 ms
Rotational Speed 4200 rpm
Logical Blocks ~ 58,605,120
Operating Temperature 41°to 131°F/5°to 55°C
Capacity 20 GB
Height 0.374 in/9.5 mm
20 GB
Width 2.75 in/70 mm
Interface ATA-5
Transfer Rate Synchronous (maximum) 100 MB/s (Drive Capability)
Security ATASecurity
Single Track 2.5 ms
Seek Time
(typical reads, including settling) Average 12 ms
Maximum 23 ms
Rotational Speed 4200 rpm
Logical Blocks ~39,070,080
Operating Temperature 41°to 131°F/5°to 55°C

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 15
Technical Specifications
Diskette Size 3.5 in
Activity Indicator On system
Diskette Drive
Height 0.5 in/12.7 mm
Bytes per Sector 512
Sectors per track High density 18 (1.44 MB)/15 (1.2 MB)
Low density 9
Tracks per side High density 80 (1.44 MB)/80 (1.2 MB)
Low density 80
Read/Write heads 2
Access Times Track-to track (high/low) 3 ms/6 ms
Average (high/low) 94 ms/174 ms
Settling time 15 ms
Latency average 100 ms
External AC Adapter Weight 0.6 lb/0.272 kg
Power Supply (Input) Operating Watts 65
Operating Voltage 110 to 240 VAC RMS
Operating Current 1.7 A RMS
Operating Frequency Range 47 to 63 Hz AC
Maximum Transient 4/50 kV
Lithium-Ion Battery Pack (8-cell) Dimensions (L x W x D) 4.95 x 3.46 x 0.8 in/12.5 x 8.8 x 2 cm
Weight 0.96 lb/0.43 kg
Energy Voltage 14.8 V
Amp-hour capacity Minimum 3.7 Ah
Typical 3.9 Ah
Watt-hour capacity Minimum 53.2 Wh
Typical 56.1 Wh
Temperature Operating 32°to 108°F/0°to 42°C
Non-operating 32°to 140°F/0°to 60°C

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 16
Technical Specifications
DVD/CD-RW Drive Center Hole Diameter 15 mm
Disk Diameter 12 cm, 8 cm
Disk Thickness 1.2 mm
Track Pitch 1.6 µm
Random CD < 120 ms
Access Times
(typical reads, including settling) Full-Stroke CD < 175 ms
Audio Output Level 0.7-0.9 Vrms
Cache Buffer 2 Mbytes (minimum)
Data Transfer Rate
(typical, including settling) CD-ROM, CD-R Read Speed 3600 Kb/s
Audio Output Level DVD-ROM Read Speed 8100 Kb/s
Cache Buffer CD-R, CD-RW Write Speeds Sustained 1200 KB/s (8X CLV)
Start-up Time Single < 7 seconds (typical)
Multi-Session < 30 seconds (typical)
Stop Time < 3 seconds (typical)
Center Hole Diameter 0.59 in/1.5 cm
DVD-ROM Drive
Disc Diameter 12 cm/8 cm
Disc Thickness 1.2 mm
Track Pitch 0.74 µm
Random (typical) < 125 ms DVD Media
Full-Stroke (typical) < 225 ms DVD Media
Random (typical) < 100 ms CD Media
Access Times
(typical reads, including settling)
Full-Stroke (typical) < 175 ms CD Media
Cache Buffer 512 KB/s (minimum)
Max 24X CD 3600 KB/s (150 KB/s at 1X CD rate)
Data Transfer Rate
(typical, including settling) Max 8X DVD 10,800 KB/s (1352 KB/s at 1X DVD rate)
Normal PIO Mode 4
(single burst) 16.6 MB/s
Start-up Time < 12 seconds
Stop Time < 3 seconds

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 17
Technical Specifications
24X CD-ROM Drive Applicable Disk CD-ROM (Mode 1, 2 and 3), CD-XA ready (Mode 2, Form 1 and 2), CD-I ready
(Mode 2, Form 1 and 2), CD-R (read only), CD Plus, Photo CD (Single and
Multi-session), CD-Extra, Video CD, CD-WO (fixed packets only), CD-Bridge
Center Hole Diameter 0.59 in/15 mm
Disk Diameter 12 cm, 8 cm
Disk Thickness 0.047 in/1.2 mm
Track Pitch 1.6 µm
Random < 110 ms
Access Times
(typical reads, including settling) Full-Stroke < 220 ms
Audio Output Level Line-out 0.7-0.9 Vrms
Cache Buffer 128 KB
Data Transfer Rate
(typical, including settling) CD-ROM 3600 KBs/Maximum
Start-up Time < 10 seconds
Stop Time < 5 seconds
Form Factor Compaq ″MultiPort″
Weight 0.22 lb/100 g (maximum)
Operating Temperature Operating 14°to 149°F/–10°to 65°C
Storage Temperature Non-operating –40°to 176°F/–40°to 80°C
Humidity Operating 10 to 90%
Non-operating 5 to 95%
Altitude Operating 0 to 15,000 ft/4,572 m
Non-operating 0 to 40,000 ft/12,192 m
Plug and Play USB 1.1 compliant
Microsoft Windows Plug and Play compliant
RF Network Standard IEEE 802 Part 11b (802.11b)
Frequency Band 2,4000 to 2.4835 GHz
2,4465 to 2.4835 GHz (France)
2,4000 to 2,4697 GHz (Japan)
Worldwide Certification
United States (FCC) 11
France (FR) 4
Japan (JP) 14
Number of Selectable
Sub-channels
Other countries 13
Data Rates 1, 2, 5.5, 11 Mbps
Antenna type Internally integrated within module (with special polarization diversity)
WEP Security 64-bit encryption keys compliant to IEEE 802.11
128-bit encryption key compliant to IEEE 802.11
Ability to enter keys manually or via pass-phrase
Network Architecture Models Ad-hoc (Peer to Peer)
802.11b MultiPort Module
Infrastructure (Access Points Required)

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 18
Technical Specifications
802.11b MultiPort Module
(continued) Modulation Technique Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK
11 Mbps: -85 dBm
Receiver Sensitivity –
Bit Error Rate (1E-5) 5.5 Mbps: -87 dBm
2 Mbps: -91 dBm
1 Mbps: -94 dBm
Maximum Receive Level –4 dBm
Output Power (approximately) 18 dBM
Operating Voltage 5V power operation
Power Management Keystroke Fn+F2 Power On/Off control
Power Consumption Transfer mode: < 600 mA, maximum
Receive mode: > 400 mA, maximum
Standby mode: > 1 mA, maximum
Transmit Power 10 to 100mW
It is preferable to have the user configurable output power to save battery life for
laptop users or in high AP coverage areas
Power Saving Option 802.11 Compliant Power Saving
PowerSaving Mode selectable through the configuration utility
ACPI compliant power management
Media Access Protocol CSMA/CA (Collision Avoidance) with ACK
OS Support Microsoft Windows 98/98SE
Microsoft Windows 2000
Microsoft Windows Millennium
Microsoft Windows XP Home
Microsoft Windows XP Pro
Protocols Supported TCP/IP
IPX/SPX
UDP
LED Activity Flashing LED – AP Search Mode
Solid LED – On
LED Off – Power Off

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 19
Technical Specifications
Throughput Data Rate Operating Distance
Throughput, Data Rate and Operating
Distance > 4.5 Mbps 11 Mbps •1000 feet – Open sight
•100 feet – Closed space
(Steel Space)
> 2 Mbps 5.5 Mbps •1100 feet – Open sight
•200 feet – Closed space
(Steel Space)
> 700 Kbps 1 Mbps •1200 feet – Open sight
•300 feet – Closed space
(Steel Space)
Form Factor Compaq ″MultiPort″
Bluetooth 1.1 Compliant
Dimensions 2.2 x 6.6 x 0.55 in/5.6 x 16.7 x 1.4 cm
Weight 0.22 lb/100 g (maximum)
Temperature Operating 50°to 104°F/10°to 40°C
Non-operating –4°to 140°F/–20°to 60°C
Humidity Operating 10 to 90%
Non-operating 5 to 95%
Altitude Operating 0 to 10,000 ft/3,048 m
Non-operating 0 to 30,000 ft/9,144 m
Plug and Play USB 1.1 compliant
Microsoft Windows Plug and Play compliant
Frequency Band 2,4000 to 2.4835 GHz
Number of Available Channels79 (1 MHz) available channels
Data Rates and throughput 1 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 723.2 kbps/57.6 kbps asymmetric or 433.9
kbps symmetric
Antenna type Internally integrated within module (with special polarization diversity)
Range 328 ft/100 m
Bluetooth MultiPort Module
Profile Support General Access Profile
Service Discovery Application Profile
Serial Port Profile
Generic Object Exchange Profile
File Transfer Profile
Synchronization Profile
Dial-Up Networking Profile
LAN Access Profile
Object Push Profile

QuickSpecs Compaq Evo Notebook N1005v
DA-11388 World Wide —Version 2 — September 16,2002 20
Technical Specifications
Bluetooth MultiPort Module
(continued) Usage Models Service Discovery
(determine what Bluetooth devices are within range and support authorization)
Synchronization:
PDAs to PCs
Portable to Desktop
File Transfer:
File and directory browsing and navigation on another Bluetooth device.
File copying
Object manipulation – including add, delete, create new folders etc.
Wireless link to Corporate LAN using several Bluetooth devices sharing the same
Access Point:
Corporate email, network neighborhood, access to LAN applications, file transfer, ftp,
Internet browsing, etc, using TCP/IP
Wireless link to WAN thru cell phone
GSM/SMS, PCS, PHS, DECT, RAM, ARDIS, CDPD, etc.
Agnostic to WAN technology
Send/receive SMS messages
Wireless link to Printer
Adhoc peer to peer networking (two computers) or Personal Area Networking (PAN)
using NDIS (< 7 computers)
Adhoc Bluetooth Pico-networking (point to multi-point)
Object Push – Business card or appointment exchange
Transmit Power < 20 dBM (Bluetooth Class 1)
Receive Sensitivity Better than –70 dBM at 0.1 % raw bit error rate
Link Topology Point to Point, Multipoint Pico Nets up to 7 slaves
Security Full support of Bluetooth Security Provisions
Network Architecture ModelsAd-hoc (Peer to Peer)
Infrastructure (Access Points Required)
Power Requirement Peak < 1500 mW
Average < 500 mW
Standby < 250 mW
Power Management Microsoft Windows ACPI, and USB Bus Support
Keystrokes Fn+F2Power On/Off control
Self configurable to optimize power conservation in all operating modes, including
Standby, Hold, Park, and Sniff
OS Support Microsoft Windows 98/98SE
Microsoft Windows 2000
Microsoft Windows Millennium
Microsoft Windows XP Home
Microsoft Windows XP Pro
Protocols Supported TCP/IP
IPX/SPX
UDP
LED Activity Solid Blue LED – On
LED Off – Power Off
Certifications All necessary regulatory approvals for countries we support including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
