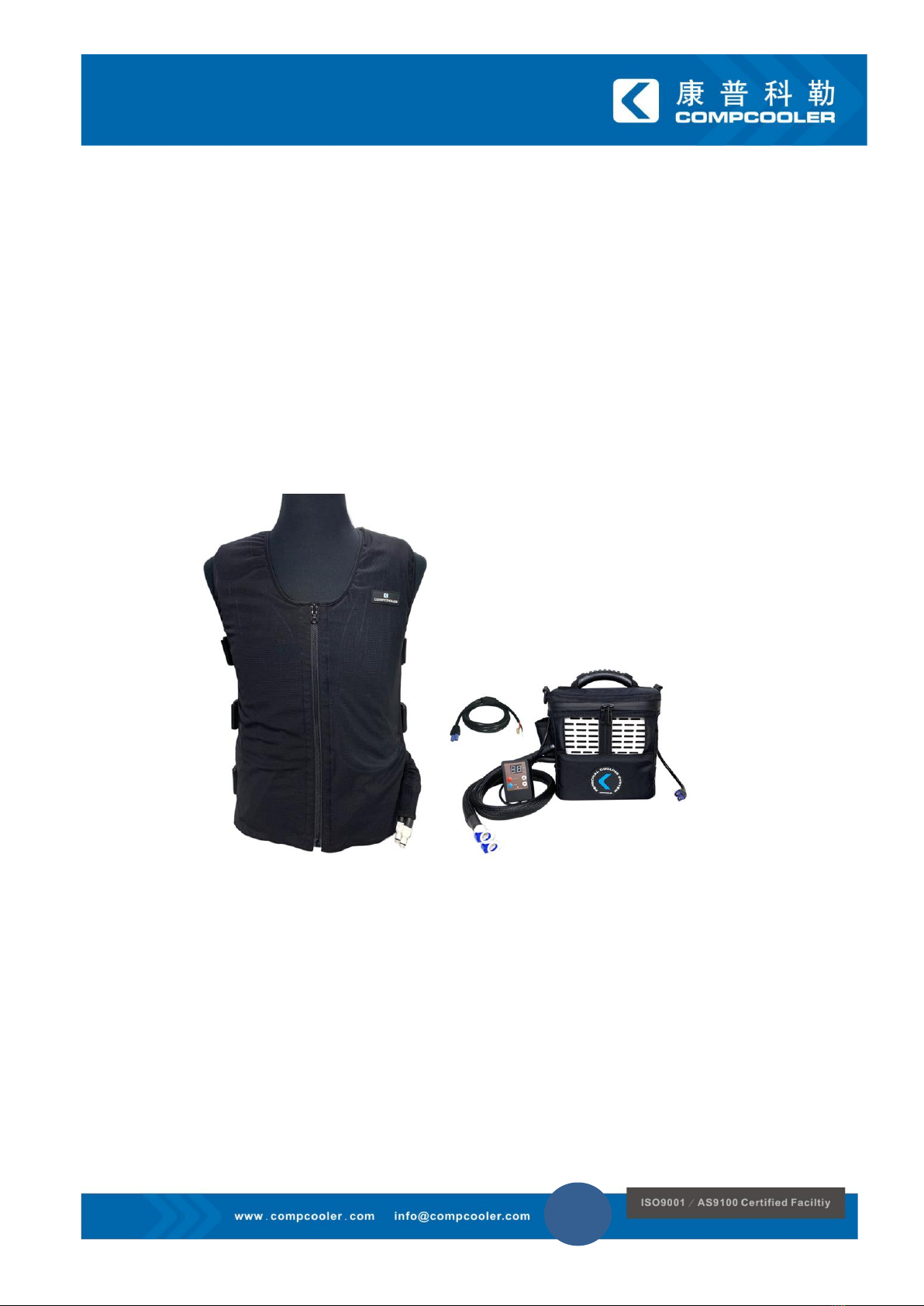

Compcooler COMP-MLCS-12200 User manual

Compcooler, keep your body cool and comfortable in harsh conditions.
1
Motorcycle Rider Liquid Chiller System
Model: COMP-MLCS-12200
Rev: A
Operation Manual

Compcooler, keep your body cool and comfortable in harsh conditions.
2
COMPCOOLER Introduction:
Compcooler Technology specializes in working for personal cooling & heating systems for harsh
conditions. Compcooler has established its resume as a manufacturer for Military, Electronic,
Medical cooling equipment. The employees at Compcooler’s state of the art manufacturing facility
have been producing liquid heating & cooling systems over 15 years. Quality system: ISO9001 and
AS9100 registered facility. Certifications for major items: CE, FCC, UL, PSE, CB, FDA.
Product Categories
1. ICE Water Circulation Systems
2. Micro Refrigeration Chiller Units
3. Liquid Heating Systems
4. Liquid Cooling & Heating Garment and Pad
5. Customized Cooling Systems
6. Industrial Chiller or Cooling Module
Certifications for major items
Quality System for facility

Compcooler, keep your body cool and comfortable in harsh conditions.
3

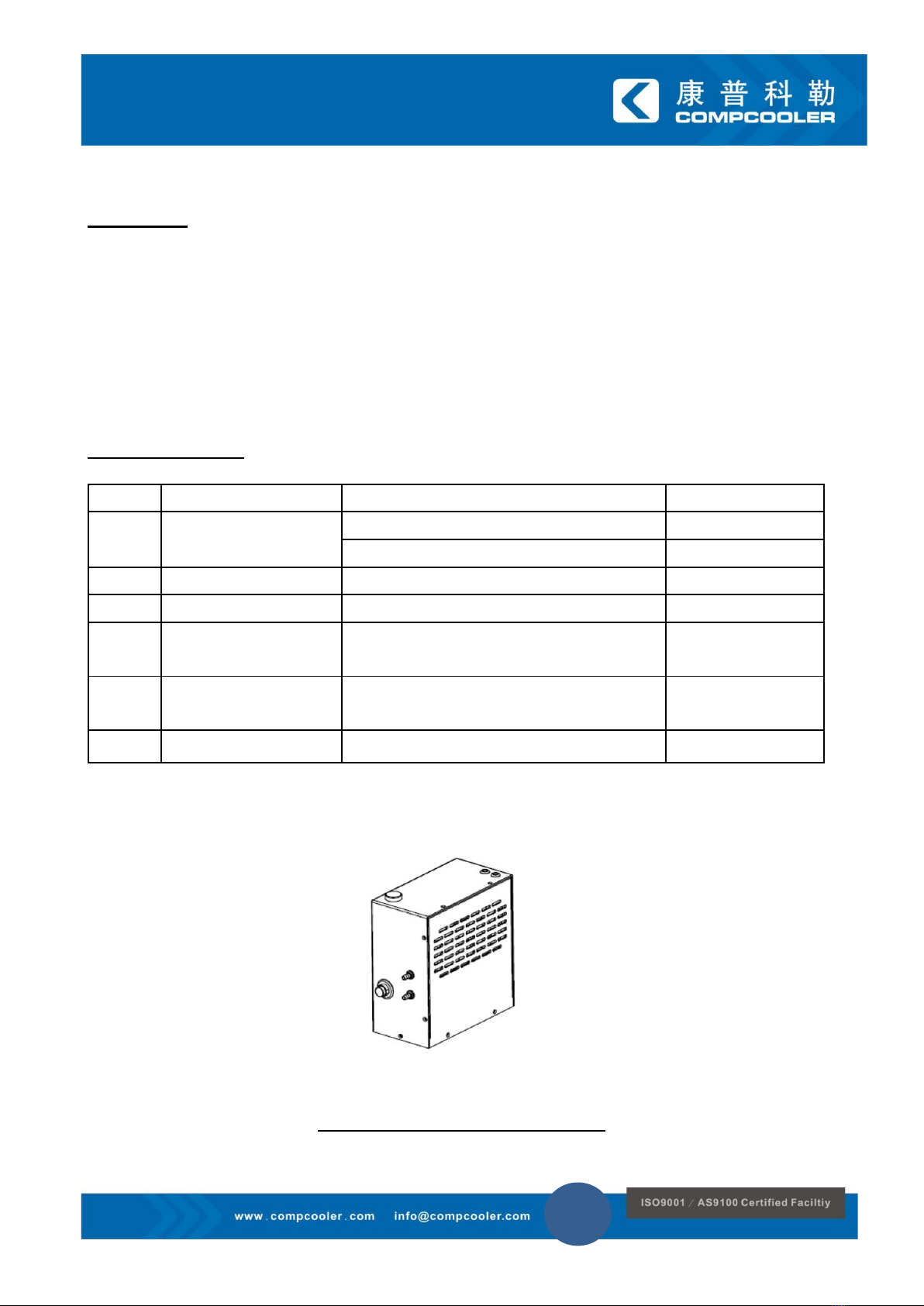

Motorcycle Rider Liquid Chiller System
Model: COMP-MLCS-12200V
Description:
Compcooler Motorcycle Rider Liquid Chiller System (MLCS) was designed for the body cooling of
riders. MLCS uses 12V DC rotary compressor refrigeration system to cool the liquid, pump
circulates the cold liquid to cooling vest, then flow back to reservoir after heat exchanged. MLCS
delivers 400W cooling capacity, power by DC12V vehicle power or rechargeable battery. temp
control -5℃to 30℃(23℉to 86℉), accuracy +/-1℃(2℉), once circulation liquid reaches to set
point temperature, system intellectually control the cooling capacity to that temperature. User
may pre-cool the unit and get the coldest liquid as he needs, iceless cooling unit, maintain free.
Components List:
Item
Part number
Description
Quantity
1
COMP-HLCU
Handcarry Liquid Chiller Cooling Unit
1
DC Connection Power Cord EC5
1
2
COMP-ET1M
Extension Tubing 1 meters
1
3
COMP-MLCV-BK
Mesh liquid cooling vest black
1
4
COMP-RB1210
12V 10A rechargeable battery with
vehicle power charging and AC charging
Optional
5
COMP-RB1220
12V 20A rechargeable battery with AC
charging only
Optional
6
Operation Manual
1
Chiller Unit Technical Datasheet

Compcooler, keep your body cool and comfortable in harsh conditions.
4
Cooling Capacity (Ambient Temp. 40℃)
W
200
Cooling Capacity (Ambient Temp. 104℉)
Btu
682
Max Cooling Capacity
W
300
Power Supply
Rated Voltage V
12
Operation
Voltage Range
12-16V
Operation Current
A
12
Max Current
A
15
Max Power Consumption
W
200
Refrigerant
Type
R134a
Temp Control
℃
-5 to 30
℉
23-86
Coolant
Anti-freeze liquid
Yes
Rotary Compressor (Samsung)
Qty
PC
1
Voltage
V DC
12
Discharge
CC
1.9
Speed
RPM
2000-6500
Fan
Qty
PC
2
Voltage
V DC
12
Air Flow
CFM
30
Pump
Voltage
V DC
12
Water flow
L/Min
1
Lift
M
2
Power Connector
Type
DC
EC5
Operation Ambient
Max
℃
-10 to 60
Storage Temp
℃
-20 to 70
Noise
Max
dBA
58
Color
White or Black
Dimension
L x W x H
mm
220x180x100
Inch
8.6x7.1x3.9
Weight
KGS
4
LBS
8.8
Compressor Start Curves:

Compcooler, keep your body cool and comfortable in harsh conditions.
5
System Operation Control: Chiller unit will intellectually control the cooling capacity (compressor
speed) to setting temperature. Power consumption or operation current may be changed for
different ambient.
Chiller Unit Performance Curves
Operation ambient for chiller unit is -10 to 60℃
Cooling capacity could be difference based on ambient and liquid temp setting.
0
50
100
150
200
250
300
510 15 20 25
Cooling Capacity (W)
Coolant Temperature (℃)
Performance Curves
Ambient 20℃
Ambient 30℃
Ambient 40℃
0
2
4
6
8
10
12
14
16
18
020 40 60 80 100
Current of Chiller
DC 12V Operation, Time Seconds
Compressor Start Curves

Compcooler, keep your body cool and comfortable in harsh conditions.
6

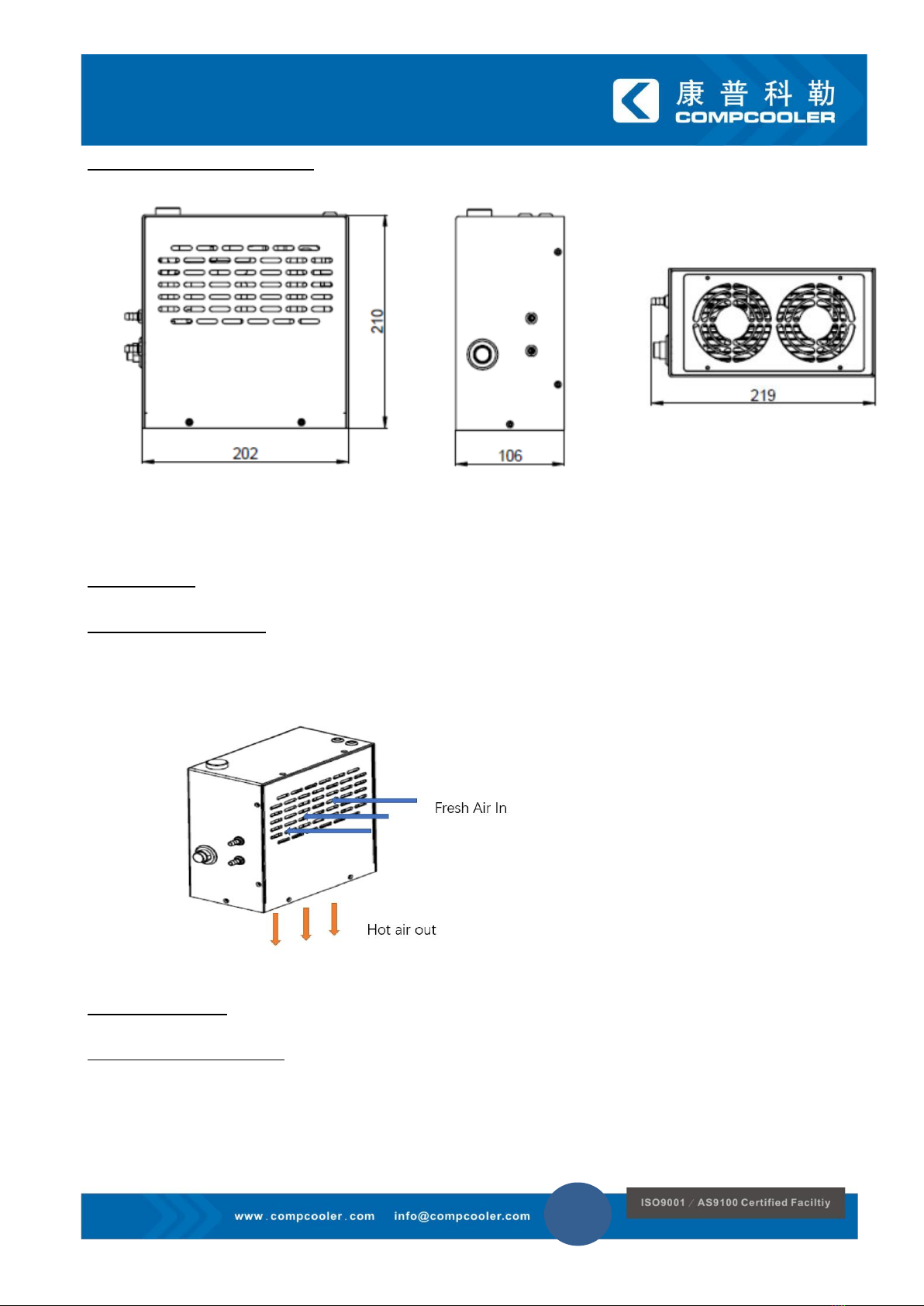

Dimension of Chiller Unit
Operation Instruction
Preparation
Chiller Unit Installation:
Unit could be fixed on the rear or side of motorcycle, make sure it is a well-ventilated area, no
blocks for fresh air inlet and outlet.
Power Connection
Vehicle Power connection
One DC power cord EC5 was provided with chiller, user may connect it with Vehicle power 12-
16V.

Compcooler, keep your body cool and comfortable in harsh conditions.
7
DC Battery Connection
User may connect EC5 connector with rechargeable battery.
COMP-RB1220, 12V 20A battery can support 2 hours operation
COMP-RB1210, 12V 10A battery can support 1hour operation, connect with vehicle 12V charging
will extend the cooling time.
Power Adapter Connection
User may connect it with Power adapter COMP-PA280-11012, powered by AC110V wall plug.
Cooling Garment Connection
User may connect the chiller with Compcooler Cooling Vest or Cooling pad by quick release
fittings. One extension tubing was provided with chiller.
Chiller unit is compatible with all Compcooler garment, if you want to try other brand garment,
please remove the quick fitting from extension hose and replace the new fittings to compatible
with other cooling garment.

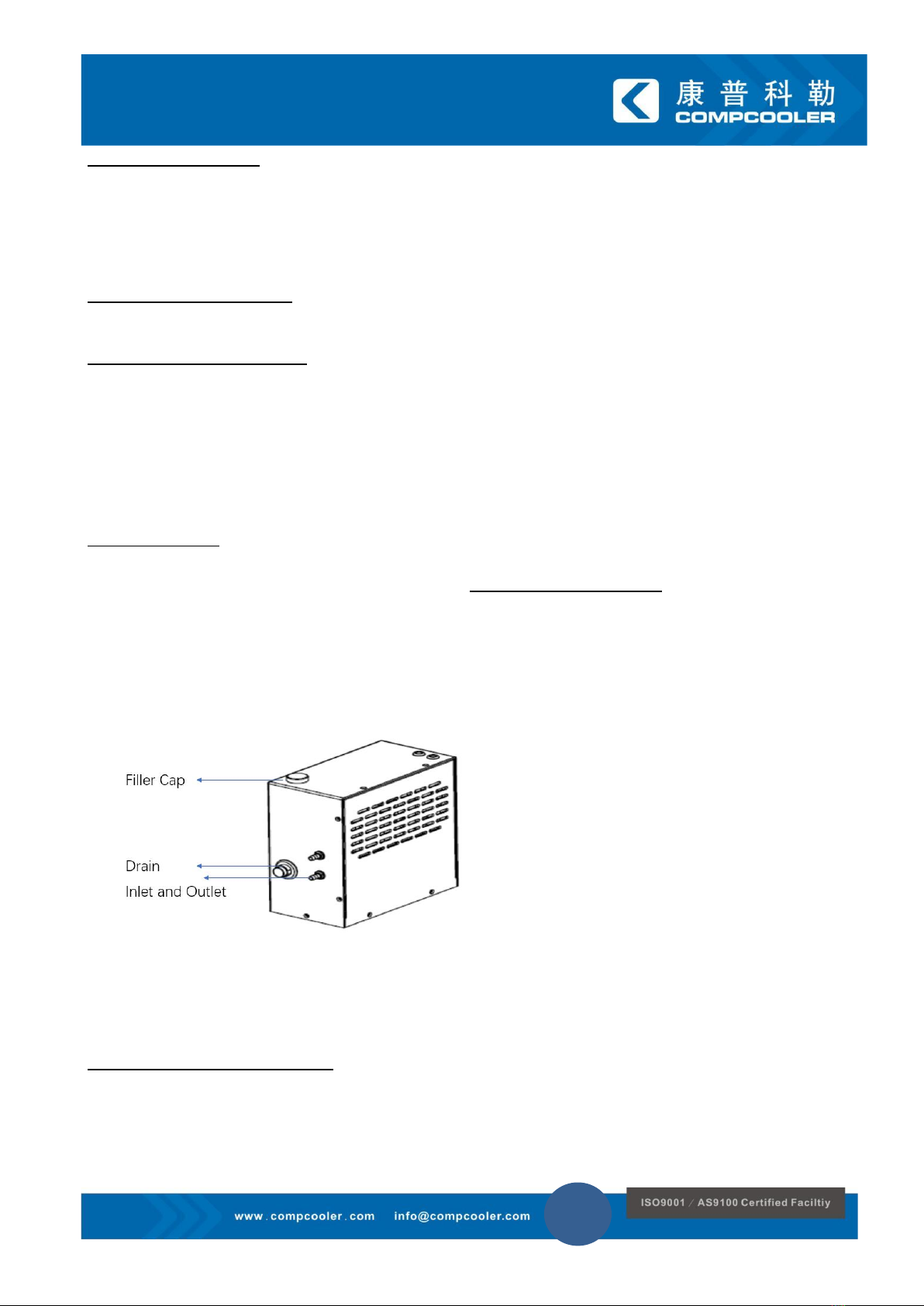

Circulation Liquid
User needs to fill circulation liquid by twice.
The first time, remove the filler cap from top side, add liquid to full by funnel, connect the cooling
garment, turn on the pump and circulates the liquid from reservoir to cooling garment.
The second time, keep running and allow the liquid cooling garment fill with water for 30-60
seconds (without cooling), refill again to full (maybe couple times, be patient), then tight the filler
cap.
Clean or distilled water is fine if ambient more than 1℃
Deionized water for isolation request.
Anti-freeze liquid for ambient below 0℃.
DO NOT use salt water, caustic, corrosive or flammable fluids!
Refrigeration or Pre-cool Testing
User may turn on the system and start refrigeration, no pump circulation, temperature will down
in minutes. Cooling unit will be in standby mode once liquid temperature reaches to setting point.

Compcooler, keep your body cool and comfortable in harsh conditions.
8

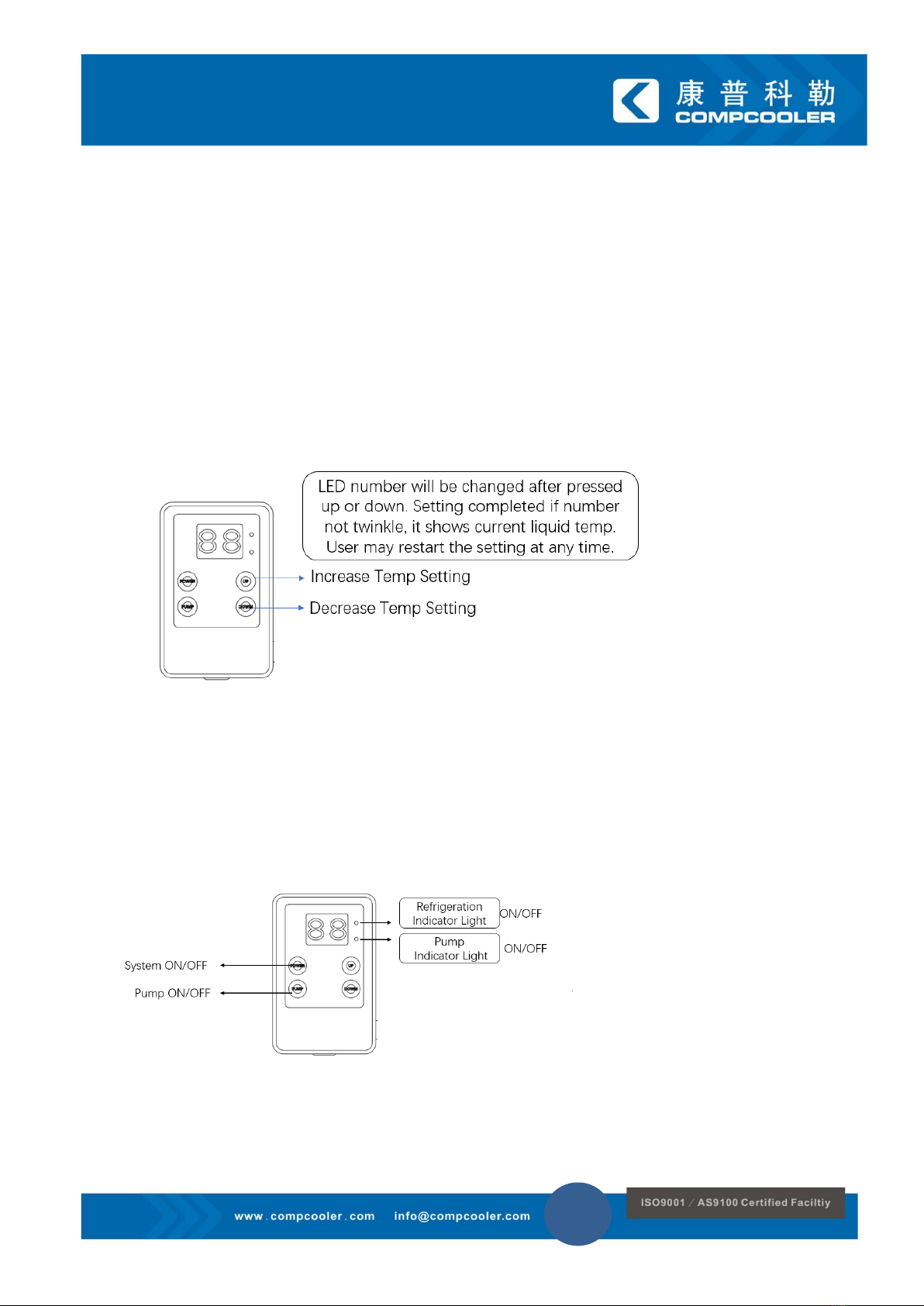

Operation Processes
1. Garment or Pad connection: Connect the extension tubing with liquid heating unit. Connect the
liquid cooling garment or pad from the other end.
Once you hear a click, it’s in position.
2. Power Connection: connect with power EC5 connection, light the controller
The cooling unit will be in standby mode.
3. Start cooling: user may press ON/OFF to start chiller, liquid temperature will go down to set
point in minutes.
pump is not working at this time.
4. Temp setting: user may press up and down to set up the temp for circulation liquid as need.
5. Start circulation:
User may press the pump to start or stop circulation. Please make sure the tubing is connected
(no kinks) before circulation.

Compcooler, keep your body cool and comfortable in harsh conditions.
9
Clean and Maintenance
Chiller Unit:
Unplugged the power, use a clean damp cloth to clean the outside of chiller unit.
Use compressed air to remove dust and debris.
Reservoir cleaning
Please disconnect the extension tubing from chiller unit.
Empty the remain water or liquid from drain cap on the bottom, and open for dry.
Condenser clean
To keep the system at optimum cooling capacity, the condenser should be kept free of dust and
dirt, user may check and clean it if necessary.
Open the side panel and remove the fans, use 50-100psi compressed air to clean the
contamination.
Charging Refrigerant
(not recommend for uncertified operator)
If cooling capacity was decreased because of lack of refrigerant, user may vacuum the unit and
recharge 150g R134a refrigerant.
Liquid Heating & Cooling garment:
Prefer to clean by hand wash then hang dry.
Machine wash by Laundry bag: wash liquid heating and cooling vest using a front-loading wash
machine with cold water on a gentle/delicate cycle.
Note: DO NOT BLEACH, NO IRON, NO DRYER, TUMBLE DRY ON LOW
Chiller Unit Storage:
1. Turn off chiller unit, disconnect the power cord.
2. Disconnect the extension tubing.
3. Empty the circulation water from chiller unit by open bottom drain cap, then clean and
disinfect the reservoir, then tight the cap after open dry.
4. Pack the unit for storage.
Restart: after long term storage, please fill in clean water with less degerming agent, run system
over 10 minutes with cooling vest connection. Then empty the system and re-fill in the liquid as
need.

Compcooler, keep your body cool and comfortable in harsh conditions.
10
Fault Code
Item
Code
Description
1
E1
Wrong Polarity or reverse connection from power input
2
E2
Low voltage protection, less than 11V
3
E3
High voltage protection, more than 18V
4
P1
No liquid temp signal from sensor
Trouble shoot
Item
Problem Description
Root Cause
Trouble Shoot
1
No Cooling Performance
Compressor locked,
Overheat protection,
Low Voltage
Check the compressor drive,
yellow light means normal, red
light means abnormal.
No liquid circulation
Check if cooling garment be
connected, check if pump be
turned on
Power connection
Check if power connection loose
or not.
2
Less cooling capacity
Less heat exchange rate
for evaporator
Check if circulation water inside
reservoir is enough or not?
Lack of refrigerant
Check if hot air out from
condenser air outlet
Low compressor speed
Check compressor speed setting
Low voltage
Check unit input voltage
3
No pumping
Pump ON/OFF
Check if pump be turned on
Quick fitting connection
Check quick fitting connection
loose or not
Pump blocked
Check if pump be blocked
4
Remote controller can’t
operate
Connection loose
Check if the connection loose or
not
Controller LED vague or
twinkle
Check the unit input voltage
5
Temp sensor
No feedback, P1 on the
panel
Check if the connection loose or
not

Compcooler, keep your body cool and comfortable in harsh conditions.
11
Cautions:
1. Please confirm vehicle voltage is 12-16V before operation.
2. Please make sure vehicle power can stand 200W before operation.
3. Please do not turn ON/OFF to run to stops system frequently within a short period, it may
affect the refrigeration system, and significant enhance power consumption.
4. Please do not block air inlet and outlet, it may cause the problem of compressor overheat or
less cooling capacity.
5. Please make sure cooling garments or vest be connected before start pump circulation, it may
cause unit leak because of pump pressure.
6. Please use anti-freeze liquid if temperature setting lower than 0℃
7. Please do not run the system close to fire or under water.
8. Max operation temp is 60℃, unit could be overheated protection in hot ambient.
9. Please stop operation and disconnect the power if high vibration or abnormal noise.
Safety:
It is important to become thoroughly familiar with the manual and operating characteristics of the
unit. It is the owner’s responsibility to assure proper operator training, installation, operation and
maintenance of the unit. Observe all warning can result in injury to the operator and severe
mechanical damage to the unit.
Warranty:
Compcooler Warrants to the original Purchaser that products sold shall be free from defects
material and workmanship for warranty period not exceed one year from the date of shipment.
Compcooler agrees to correct for the original user of this product, either by repair, or at the
manufacturer’s election by replacement. This warranty shall not apply if the defect or malfunction
was caused by accident, neglect, unreasonable use, improper service, or other causes not arising
out of defects in material or workmanship. The manufacturer’s sole obligation under this warranty
is limited to the repair or replacement of a defective product and shall not in any event be liable
for any incidental or consequential damages of any kind resulting from use or possession of this
product.
