Con-form Walkway Installation guide

Walkway
Assembly Instruction Manual
© Copyright Con-form Group 2021
[email protected]
con-formgroup.com.au

Contents
Walkway - no handrails
Walkway - with handrails
Tools required
N
Pãã
01
02
03

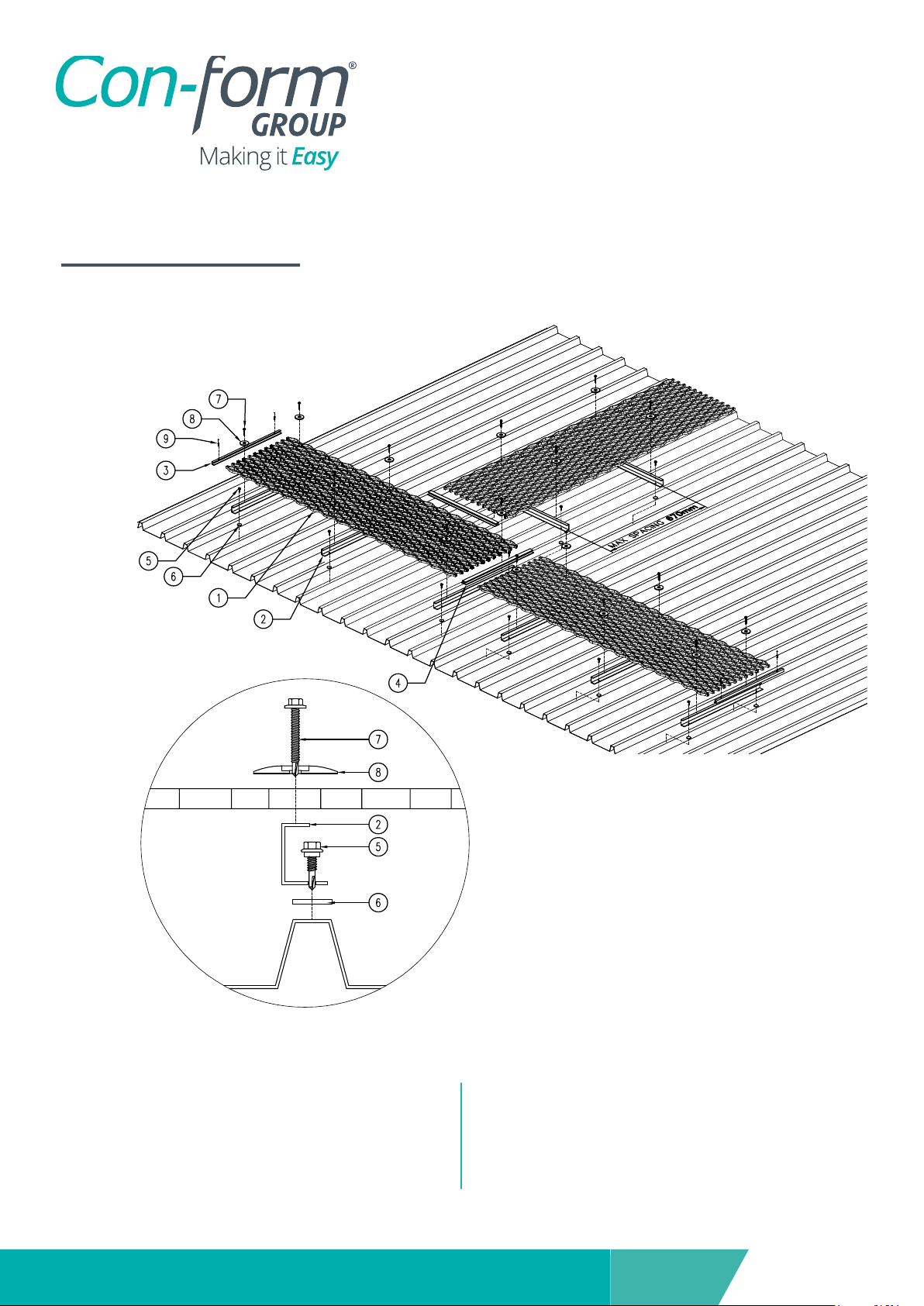

WALKWAY
No handrails
02
TYP SECTIONSIDE
Components
1. Walkway mesh 600mm wide
2. Walkway Batten 600m
3. Walkway Edge Bar 600mm
4. Walkway Joiner Bar 600mm
5. Tek Screw Gal 12-14 x 20mm with Neo Washer
6. Foam Rubber Tape
7. Tek Screw Gal 12-14 x 35mm With Neo Washer
8. Walkway Fixing Disc

03
WALKWAY
With Handrails
Components
1. Handrail Post 1080
2. Post Stabiliser Strut 500mm
3. Walkway Mesh 600mm wide
4. Handrail Tube
5. Kneerail Tube
6. Handrail End Cap
7. Kneerail End Cap
8. Support Channel
9. Tek Screw Gal 12-14 x 20mm with Neo Washer
10. Tek Screw Gal 12-14 x 35mm with Neo Washer
11. Walkway Fixing Disc
12. Edge Bar
13. Walkway Batten
1
13
DETAIL A
SCALE 1:5
4
5
4
5
6
1
2
2
2
10
11
5
11
12
3
9
9
8
3
7
9
9
9
3
A
