Condair ABS3 User manual

INSTALLATION AND OPERATING INSTRUCTIONS
Adiabatic Atomiser Humidifier
2546634 EN 1112
Condair ABS3

2

3
Contents
1 Introduction 4
1.1 To the very beginning 4
1.2 Notes on the installation and operating instructions 4
2 For your safety 6
3 Product overview 8
3.1 Unit construction 8
3.2 Principle of operation 8
3.3 Identicationoftheunit 9
3.4 Accessories and options 9
3.5 Standard delivery 10
3.6 Storing/Transportation/Packaging 10
4 Mounting and installation work 11
4.1 Important notes for mounting and installation work 11
4.2 Mounting the unit 12

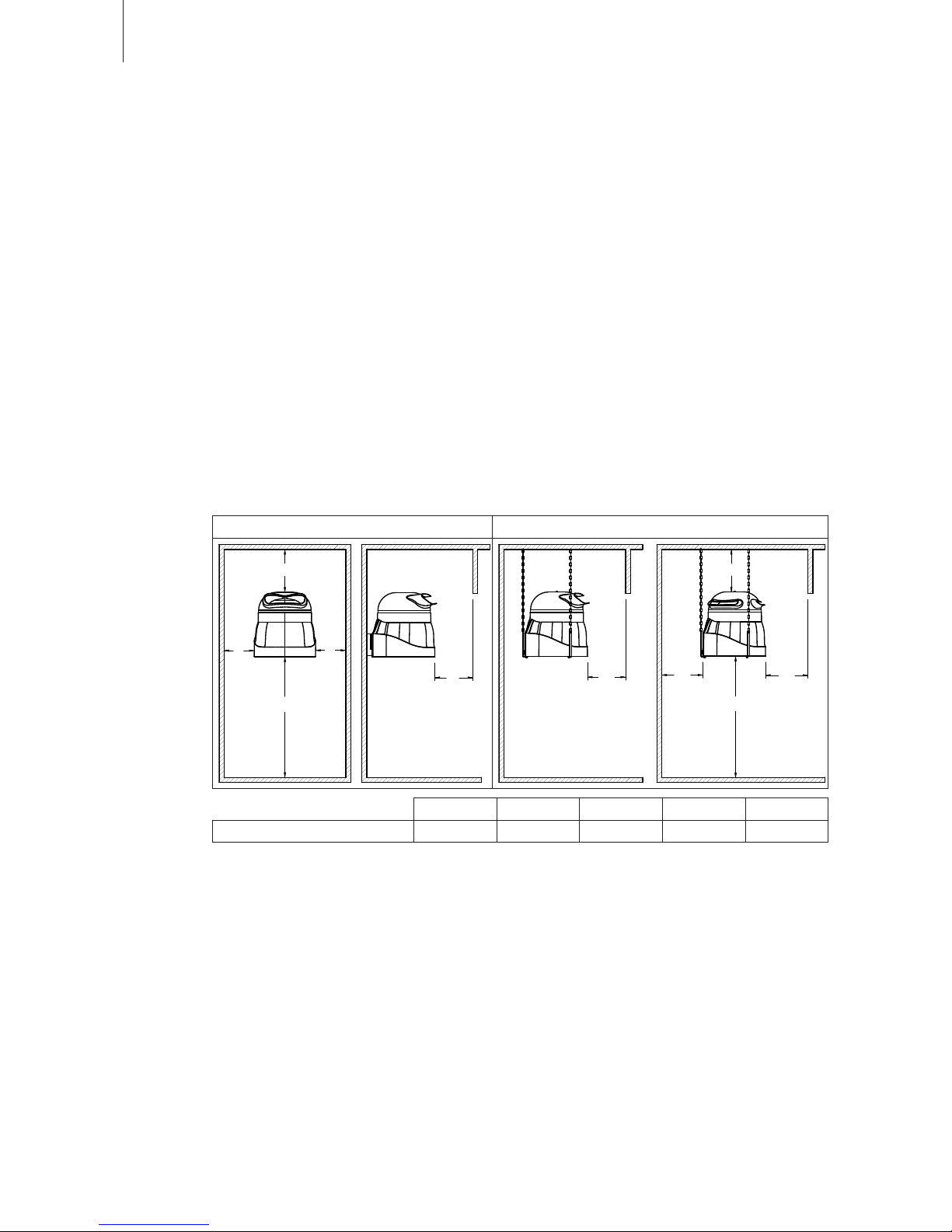

4.2.1 Notes on unit location 12

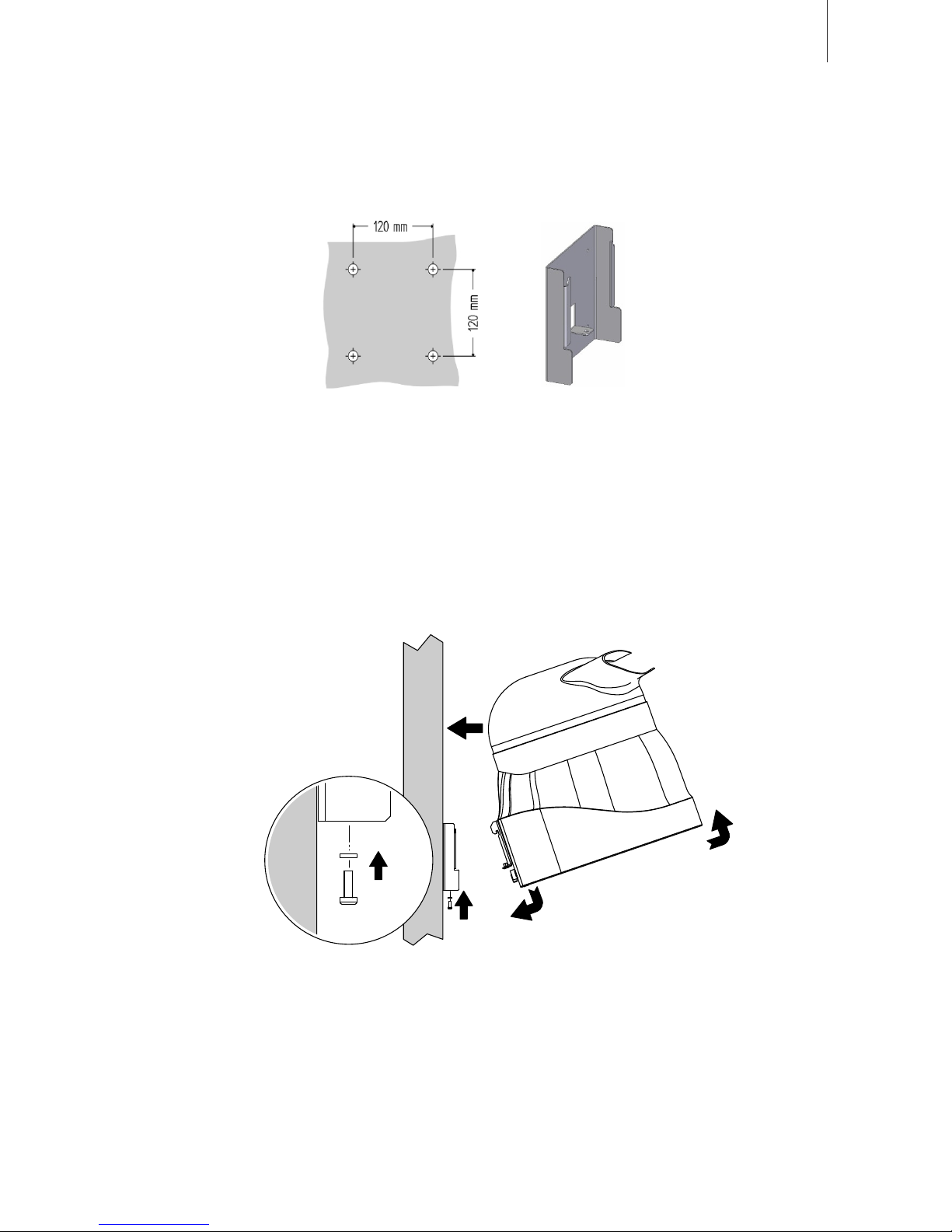

4.2.2 Wall mounting 13
4.2.3 Ceiling mounting (hanging installation) 14
4.3 Water installation 15
4.3.1 Overview water installation 15
4.3.2 Notes on water installation 16
4.4 Electric installation 17
4.4.1 Wiring diagram Condair ABS3 17
4.4.2 Notes on electric installation 18
4.4.3 Dismounting and mounting the electric
connection box 19
4.4.4 Notes regarding the cabling 20
4.4.5 Conguration 21
4.4.5.1Settingtheushingcycles 21
4.4.5.2Settingthehumidicationcapacitylimitation 21
5 Operation 22
5.1 Setting the unit into operation 22
5.2 Inspections during operation 22
5.3 Taking the unit out of operation 23
6 Maintenance 24
6.1 Important notes on maintenance 24
6.2 Maintenance intervals 24
6.3 Maintenance work 25
7 Troubleshooting 26
7.1 Important notes on troubleshooting 26
7.2 Malfunction list 26
8 Taking out of service/Disposal 27
8.1 Taking out of service 27
8.2 Disposal/Recycling 27
9 Productspecications 28
9.1 Technical data 28
9.2 Dimensions 28
9.3 Declaration of conformity 29

4
Limitation
The subject of these installation and operating instructions is the adiabatic atomiser humidier
Condair ABS3. The various accessories are only described insofar as this is necessary for proper
operation of the equipment. Further information on accessories can be obtained in the respective
instructions.
These installation and operating instructions are restricted to the installation, commissioning,
operation, servicing, and trouble-shooting of the Condair ABS3 and is meant for well trained
personnel being sufciently qualied for their respective work.
The installation and operating instructions are supplemented by various separate items of docu-
mentation. Where necessary, appropriate cross-references are made to these publications in the
installation and operating instructions.
1 Introduction
We thank you for having purchased the adiabatic atomiser humidier Condair ABS3.
The Condair ABS3 incorporates the latest technical advances and meets all recognized safety
standards. Nevertheless, improper use of the adiabatic air humidier Condair ABS3 may result in
danger to the user or third parties and/or impairment of material assets.
To ensure a safe, proper, and economical operation of the Condair ABS3, please observe and comply
with all information and safety instructions contained in the present installation and operating instruc-
tions as well as in the separate documentations of the components installed in the humidication
system.
If you have questions, which are not or insufciently answered in this documentation, please contact
your Condair supplier. They will be glad to assist you.
1.2 Notes on the installation and operating instructions
1.1 To the very beginning

5
Symbols used in this manual
CAUTION!
The catchword “CAUTION” designates notes in this installation and operating instructions that, if
neglected, may cause damage and/or malfunction of the unit or other material assets.
WARNING!
The catchword “WARNING” used in conjunction with the general caution symbol designates safety
and danger notes in this installation and operating instructions that, if neglected, may cause to
injury to persons.
DANGER!
The catchword “DANGER” used in conjunction with the general caution symbol designates safety
and danger notes in this installation and operating instructions that, if neglected, may lead to severe
injury or even death of persons.
Safekeeping
Please safeguard these installation and operating instructions in a safe place, where they can be
immediately accessed. If the equipment changes hands, the documentation must be passed on to
the new operator.
If the documentation gets mislaid, please contact your Condair supplier.
Language versions
These installation and operating instructions are available in various languages. Please contact your
Condair supplier for information.
Copyright protection
The present installation and operating instructions is protected under the Copyright Act. Passing-on
and reproduction of the manual (or part thereof) as well as exploitation and communication of the
contents are prohibited without written permission by the manufacturer. Violation of copyright terms
is subject to legal prosecution and arises liability for indemnication.
The manufacturer reserves the right to fully exploit commercial patent rights.

6
2 For your safety
General
Every person working with the Condair ABS3 must have read and understood the installation and
operating instructions before carrying out any work.
Knowing and understanding the contents of the installation and operating instructions is a basic
requirement for protecting the personnel against any kind of danger, to prevent faulty operation, and
to operate the unit safely and correctly.
All ideograms, signs and markings applied to the unit must be observed and kept in readable
state.
Qualication of personnel
All work (installation, operating, servicing , etc.) described in these installation and operating instruc-
tions may only be carried out by specialist who are well trained and adequately qualied and
are authorized by the customer.
For safety and warranty reasons any action beyond the scope of this manual must be carried out
only by qualied personnel authorised by the manufacturer.
It is assumed that all persons working with the Condair ABS3 are familiar and comply with the ap-
propriate regulations on work safety and the prevention of accidents.
Intended use
The adiabatic atomiser humidier Condair ABS3 are intended exclusively for air humidication
within the specied operating conditions (see chapter 9 “Product specications”. Any other type
of application, without the written consent of your Condair supplier, is considered as not conforming
with the intended purpose and may lead to the Condair ABS3 becoming dangerous.
Operation of the equipment in the intended manner requires that all the information in these in-
structions are observed (in particular the safety instructions).

7
Danger that may arise from the unit
DANGER! Danger of electric hazzard
One may get in touch with live parts when the wiring box is open. Touching live parts may
cause severe injury or danger to life.
Prevention: before carrying out any work set the Condair ABS3 out of operation as described in
chapter 5.4 (switch off the unit, disconnect it from the mains and stop the water supply) and secure
the unit against inadvertent power-up.
WARNING!
Badly maintained humidiers can endanger the health. If the unit is insufcient maintained
ill-making germs may grow in the water reservoir of the Condair ABS3 and may can affect the air
passing through the humidier.
Prevention: the Condair ABS3 must be cleaned in the prescribed intervals according to the infor-
mation given in chapter 6 “Maintenance". The cleaning works must be carried out correctly and
the air lter must be replaced after their prescribed lifetime has elapsed.
Behaviour in case of danger
If it is suspected that safe operation is no longer possible, then the Condair ABS3 should imme-
diately be shut down and secured against accidental power-up according to chapter 5.4. This
can be the case under the following circumstances:
– if the Condair ABS3 is damaged
– if the Condair ABS3 is no longer operating correctly
– if connections and/or piping are not sealed
– if electrical cables are defective
– if the Condair ABS3 is no longer fastened correctly.
All persons working with the Condair ABS3 must report any alterations to the unit that may affect
safety to the owner without delay.
Prohibited modications to the unit
No modications must be undertaken on the Condair ABS3 without the express written consent
of the manufacturer.
For the replacement of defective components use exclusively original accessories and spare parts
available from your Condair supplier.

8
3 Product overview
3.1 Unit construction
1 Air lter (EU3/C3)
2 Electrical connection box
3 Water reservoir
4 Cone with fan
5 Atomiser disk
6 Motor
7 Discharge hood, rotatable
3.2 Principle of operation
The Condair ABS3 operates according to the atomization principle.
The water is drawn in through cone (4) from the water reservoir (3) and is hurled from the atomiser
disk (5) against the atomiser collar (8), thereby producing aerosols (fog). The level in the water res-
ervoir is monitored and controlled with the oat switch (10).
The fan attached to the cone draws in room air through the air lter (1) on the bottom of the base
unit. This air transports the aerosols to the atomiser outlet (7) and distributes them in the room.
The humidier is controlled via an external On/Off humidistat or an external 0-10V continuous humid-
ity controller which opens and closes the inlet valve. When controlled via the external continuous
humidity controller the inlet valve is opened and closed cyclically, depending on the control signal.
8 Atomiser collar
9 Water supply
10 Level switch
11 Water drain
12 Siphon
13 Unit housing
7
6
5
4
1
2
310
13
11
12
9
8

9
Condair AG
8808 Pfäffikon
Condair ABS3 120 230V
F3003
Januar 09
Zerstäuber
Atomizer
Atomiseur
08/S01776/00001
2543376
Serial Nr.
230 V ~, 50/60 Hz, 230 W (300 W)
The indication of the unit as well as the most important unit data are found on the type plate:
Type designation
Outlet angle in degrees
Unit voltage
Unit voltage/power consumption
3.3 Identication of the unit
Serial number
Month/Year
3.4 Accessories and options
Accessories
Designation Code Description
Filter valve Z261 Filter valve with G 1/2" internal thread connectors for
the installation in the water supply line.
Room humidistat HSC On/Off room humidistat
Room humidistat H5 / H5V On/Off room humidistat (Note: this humidistat can be
used as a maximum humidistat).
Room humidity controller RCC 0-10 V continuous humidity controller with sensor
Options
Designation Code Description
Anti-freeze kit AFP Anti-freeze kit for the operation of the Condair ABS3
up to a temperature of -2 °C. The anti-freeze kit
consist of a heating element connected to the con-
trol board. The Condair ABS3 is prepared for the
installation of the anti-freeze kit. The control of the
heating element is established via the temperature
sensor built into the unit. The temperature sensor
switches the heating element on if the ambient tem-
perature drops below 1°C.
Approval symbols

10
3.5 Standard delivery
The standard delivery includes:
– Adiabatic atomiser humidier ABS3 with options according delivery note.
– Ordered accessories with operating instructions, packed separately
– Installation and operating instructions (this document).
– Fixing set for the wall mounting of the unit (1 pc. wall bracket, 4 screws with dowels ø8 mm, 1 pc.
safety screw M6x20 with washer ø6x12)
– Fixing set for the hanging installation (3 pcs. angle brackets)
– Water supply pipe (L: 1.5 m, with G 3/4" union nuts)
– Adapter G 1/2" - G 3/4"
– Water drain pipe (L: 1.5 m, internal diameter: 10 mm)
– 2 pcs. cable straps
– Spare parts list
3.6 Storing/Transportation/Packaging
Storing
Store the unit in the original packaging in a protected area meeting the following requirements:
– Room temperature: 1 ... 40 °C
– Room humidity: 10 ... 75 %rh
Transportation
For optimum protection always transport the unit in the original packaging.
If possible, always transport the unit with the help of another person.
Packaging
Keep the original packaging of the Condair ABS3 for later use.
In case you wish to dispose of the packaging, observe the local regulations on waste disposal. Never
dispose of the packaging to the environment.

11
4 Mounting and installation work
4.1 Important notes for mounting and installation work
Qualication of personnel
All mounting and installation work must be carried out only by well qualied personnel, which is
familiar with the Condair ABS3.
All work concerning the electric installation must be performed only by adequately qualied personnel
(electrician or workman with equivalent training).
Safety
The Condair ABS3 may be connected to electric mains only after all installation work has been
completed.
The local regulations relating job safety must be followed and complied with for all installation and
mounting work.
General notes
All statements relating to the positioning and installation of the ABS3 as well as to the water and
electrical installation must be followed and complied with.
Observe and comply with all local regulations dealing with water and electrical installations.
When installing individual components use the xing materials supplied with the unit. If xing
with the materials supplied is not possible in your particular case, select a method of xing that is of
similar stability. In case of doubt, please contact your Condair supplier.
The connection of the water supply pipe and the water drain pipe on the unit (see chapter 4.3) as
well as the connection of the main cable and the cable of the external humidistat/humidity controller
in the unit (see chapter 4.4) can be done before the unit is mounted to the wall/ceiling.

12
4.2 Mounting the unit
4.2.1 Notes on unit location
In order to ensure the correct function of the humidier and the accessibility for maintenance, please
observe the following locating instructions:
– The Condair ABS3 humidiers are designed for wall mouting or ceiling mounting (hanging instal-
lation). Make sure that the structure (wall, pillar, ceiling, etc.) on which the unit is to be mounted
has sufcient carrying capacity and can accommodate the fastening elements.
– In order to ensure the correct function, the Condair ABS3 must be installed exactly horizontal
(with the air lter facing downward against the oor).
– Locate the unit such that the aerosol stream can spread freely. The obstruction of the aerosol
stream by objects such as tubular racks, machines, supports, etc., will result in stagnation and
the formation of turbulence which could cause condensation. Since the discharge hood of the
humidier can be turned horizontally, the aerosol stream can be directed to bypass any obstruc-
tions.
In the following table you nd the minimum distances (appoximate values), which must be
maintained when positioning the Condair ABS3. The dimensions relate to a room temperature of
20 °C and a relative humidity of 45 %. At lower temperatures and/or higher relative humidity larger
minimum distances must be maintained
Wall mounting Ceiling mounting
E
C
D
D
B
EA A
B
C
A B C D E
Minimum distance in m ≥ 3.0 ≥ 1.0 ≥ 1.5 ≥ 1.0 ≥ 5.0
– Mount the unit such that there is sufcient room for maintenance. Also make sure that the unit
is readily accessible and that there is no accident risk during maintenance.
– If units are to be installed facing each other, make sure that they are at least 10 m apart.
– Insulate cold water piping in the vicinity of the aerosol stream (risk of condensation).
– The evaporation process extracts heat from the ambient air. Make sure, therefore, that the aerosol
stream is not directed at persons.

13
4.2.2 Wall mounting
To x the humidier to the wall, use the wall bracket, screws and dowels provided. The wall bracket
can be used as template for the xing holes.
Mounting the wall bracket
1. Mark the xing holes on the wall using the wall bracket as template. Make sure the wall bracket
is aligned exactly horizontal before marking the holes.
2. Drill the four xing holes (ø8 mm, 45mm deep).
3. Clean the holes and insert the dowels.
4. Fix the wall bracket with four screws to the wall (position of the bracket as shown in the gure
above). Before tightening the screws align the wall bracket exactly horizontal.
Mounting the unit
1. Lift the unit above the wall bracket and swivel it slightly towards the wall.
2. Move the unit towards the wall into the wall bracket.
3. Swivel the unit to the horizontal position until both brackets are perfectly coupled.
4. Secure the unit in the wall bracket with the safety screw M6x20 and the washer ø6x12 supplied
(mandatory).
2.
1.
3.
4.
4.

14
4.2.3 Ceiling mounting (hanging installation)
Ceiling mounting is done with the angle brackets supplied as standard.
The three chains for hanging up the unit must be provided by the customer.
The chains must be xed at the ceiling exactly perpendicularly above the
three angle brackets xed to the unit. The xing points and the chains must
have a sufcient load-bearing capacity, in order to carry the weight of the
unit (see chapter 9.1 “Technical data”).
Use chains made of steel (preferably corrosion-resistant steel).The dimension
of the chain links must meet to the specications in the adjacent gure.
1. Undo the 4 screws “V”, and remove the
mounting plate “A” on the backside of the
unit.
Note: Store the mounting plate “A” for a
possible later use.
Now, you have 5 screws with washers (4
from the just removed mounting plate and
the safety screw provided). Ret two of the
screws and washers into the xing holes
“F”.
2. Fix the three angle brackets (for hanging
installation) with the screws and washers to
the unit, as shown in the adjacent gure.
3. Hook the unit with the angle brackets into the chains and check again that the device hangs
exactly horizontal.

15
4.3 Water installation
4.3.1 Overview water installation
A Water supply pipe (included in the delivery, L: 1.5 m, G 3/4")
B Stop valve (by client)
C Water lter (accessory Z261, installation recommended, by client)
D Drain pipe (included in the delivery, L: 1.5 m) with constant downward slope >10°
E Open drain funnel with siphon (by client)
Connector water supply G 3/4"
Water supply pipe
Connector
water drain ø10 mm
Drain pipe
ø12/10 mm

16
4.3.2 Notes on water installation
Water supply
The water supply is to be carried out according to the gure found in chapter 4.3.1 and the applicable
local regulations for water installations. The indicated connection specications must be observed.
– The installation of a stop valve (mandatory) and a water lter (accessory “Z261”, installation
recommended) should be made as close as possible to the unit.
– Notes on water quality:
– For the water supply of the Condair ABS3, use exclusively untreated drinking water or fully
demineralised water.
– The use of additives such as corrosion inhibitors, disinfectants, etc. is not allowed, since
these additives may endanger health and affect proper operation.
– The connection material must be pressure-proof and certied for use in drinking water systems.
– Important! Before connecting the water line, the line should be well ushed out.
CAUTION!
The thread at the humidier connection is made of plastic. To avoid overtightening, the union
nut of the water pipe must be tightened by hand only..
Water drain
The water drain is to be carried out according to the gure found in chapter 4.3.1 and the applicable
local regulations for water installations. The indicated connection specications must be observed.
– Make sure that the drain line is routed with a constant downward slope >10° to the drain funnel
of the building.
Important: The drain pipe must be prevented from sagging; support with brackets, if neces-
sary.
– Make sure that the minimum inside diameter of 10 mm is maintained throughout the entire length
of the drain pipe and that the pipe is not kinked.
– Make sure that the drain pipe is correctly xed and easily accessible for inspections and cleaning
purposes.
When operating the Condair ABS3 with fully demineralised water:
Fully demineralised water is aggressive! For this reason, use exclusively installation material
made of corrosion-resistant steel (min. DIN 1.4301) or plastic.

17
4.4 Electric installation
4.4.1 Wiring diagram Condair ABS3
A1 Continuous humidity controller 0...10 V
A2 On/Off humidistat
A3 Maximum humidistat (not mandatory, required contact load: 230V/2A or 115V/4A)
S1 Temperature sensor (to switch the optional heating H1 on and off)
S2 Level switch
H1 Heating (option anti-freeze kit)
F1 Internal fuse transformer (315 mA, slow acting)
F2 External fuse voltage supply (2.5 A, slow acting)
M Fan motor
Q2 External service switch (with a minimum contact clearance of 3 mm)
SW1 DIP switches for setting the ushing cycles
SW2 Rotary switch for setting the power limit
Y1 Inlet valve
K1
SW1
SW2
Off On
50
0100
NL1 K2 K3
24V LEVELGND IN
24VIN
NTC
M
MIN
1.1 l/h MAX
6.5 l/h
1
2
Q2
F2
F1
115 V / 50/60Hz
230 V / 50/60Hz
S1 S2
Y1
H1
A2
A1
– +
P / PI
ON-OFF
A3
ON-OFF
24 VDC / 60 mA
internal
external

18
4.4.2 Notes on electric installation
The electric installation must be carried out according to the wiring diagram in chapter 4.4.1 and
the applicable local regulations. All information given in the wiring diagram must be followed and
observed.
The electrical installation of the Condair ABS3 includes:
Installation
Power supply 230V/50-60Hz or 115V/50-60Hz
Connection of power supply to terminals L1 and N according to the wiring diagram. The service
switch Q2 (disconnects all 2 wires with a minimum contact clearance of 3 mm) and the fuses F2
(2.5 A, slow acting) are mandatory.
Cable section according to the applicable local regulations.
CAUTION!
Before connecting the power supply cable make sure the local mains voltage meet the value
stated on the rating plate of the Condair ABS3.
External humidity controller (A1) or external On/Off humidistat (A2)
Connect the external humidity controller 0...10V to terminals IN (+) and GND (–) or connect the
external On/Off humidistat to terminals IN and 24V.
Note: In locations with electromagnetic interferences use shielded connecting cables.
Maximum humidistat (A3), not mandatory
Connect the switching contact of the maximum humidistat to supply line L1 according to the wiring
diagram.
Required contact load: 230V/2A or 115V/4A
Note: In order to connect the mains cable and the cable of the external humidistat/humidity control-
ler to the control board, the electric connection box in the unit must be dismounted and opened.
For this purpose please observe the notes in chapter 4.4.3 and the notes regarding the cabling in
chapter 4.4.4.

19
2. Push xing clip “C” sidewards and carefully pull connection box out of the unit.
3. Undo the four screws of the connection box and remove the cover.
Now you can connect the cables on the control board or congure the control.
CAUTION!
The electronic components inside the electric connection box are very sensitive to electro-
static discharge. When the unit is open for installation work, appropriate measures must be
taken to protect these components against damage caused by electrostatic discharge
(ESD protection).
Mounting the electric connection box
1. Re-attach the cover of the connection box and x it with the four screws.
4.4.3 Dismounting and mounting the electric connection box
Dismounting the electric connection box
1. Undo the three screws at the air lter assembly and remove the air lter assembly.
2. Replace the connection box into the receptacle in the unit and x it with the xing clip.
3. Set the air lter assembly (grid-lter-grid) into the bottom of the unit an x it with the three
screws.
C

20
4.4.4 Notes regarding the cabling
Pass the power supply cable through the cable gland “1a” into the unit and through the cable gland
“1b” into the electric connection box and connect it to the control board according to the wiring dia-
gram.
Pass the cable of the external controller/humidistat through the cable gland “2a” into the unit and
through the cable gland “2b” into the electric connection box and connect it to the control board ac-
cording to the wiring diagram.
Fix both cables with the cable straps provided to the existing cables at the places marked with ar-
rows. Finally, tighten the four cable glands.
K1
SW1
SW2
Off On
50
0100
NL1 K2 K3
24V LEVELGND IN
24VIN
NTC
MIN
1.1 l/h MAX
6.5 l/h
1
2
Q2
F2
F1
115 V / 50/60Hz
230 V / 50/60Hz A2
A1
– +
P / PI
ON-OFF
1b 2b
2b
A1 / A2
max. 46 mm
1b
115 V / 50/60Hz
230 V / 50/60Hz
max. 53 mm
1a
1b 2b
2a
dismantling
dismantling
