Condair EL User manual

EN 1603
Humidication and Evaporative Cooling
PLANNING- AND
INSTALLATION MANUAL
Steam humidifier
Condair EL

Thank you for choosing Condair
Installation date (MM/DD/YYYY):
Commissioning date (MM/DD/YYYY):
Site:
Model:
Serial number:
Manufacturer
Condair Group AG
Talstrasse 35-37, CH-8808 Pfäfkon
Ph. [phone], Fax [phone]
[e-mail], www.condair.com
Proprietary Notice
This document and the information disclosed herein are proprietary data of Condair Group AG. Neither this document,
nor the information contained herein shall be reproduced, used, or disclosed to others without the written authori-
sation of Condair Group AG, except to the extent required for installation or maintenance of recipient's equipment.
Liability Notice
Condair Group AG does not accept any liability due to incorrect installation or operation of the equipment or due
to the use of parts/components/equipment that are not authorised by Condair Group AG.
Copyright Notice
Copyright 2016, Condair Group AG All rights reserved.
Technical modications reserved

3Contents
Contents
1 Introduction 5
1.1 To the very beginning 5
1.2 Notes on the installation manual 5
2 For your safety 7
3 Product Overview 9
3.1 Calculating the maximum required steam capacity 9
3.2 Models overview 10
3.2.1 Single units Small ("S"), EL 5...15 and Medium ("M"), EL 20...45 10
3.2.2 Single units Large ("L"), EL 50...90 11
3.2.3 Double units (2 x "M"), EL 35...90 12
3.2.4 Linkup systems (3 x "M"), EL 70...135 13
3.2.5 Linkup systems (4 x "M"), EL 105...180 14
3.3 Product designation 15
3.4 Options 17
3.4.1 Option details 18
3.5 Accessories 19
3.5.1 Accessory details 20
3.5.1.1 DV41-..., DV61-... and DV81-... steam distribution pipes 20
3.5.1.2 OptiSorp steam distribution system 21
3.5.1.3 Blower pack 22
4 Receiving and storage 23
4.1 Inspection 23
4.2 Storage and Transportation 24
5 Mounting and installation work 25
5.1 Safety notes on mounting and installation work 25
5.2 Installation overviews 26
5.3 Mounting the unit 28
5.3.1 Notes on locating the unit 28
5.3.2 Mounting the humidier 30
5.3.3 Inspecting the installed unit 32
5.4 Steam installation 33
5.4.1 Overview steam installation for duct humidication 33
5.4.2 Positioning of the steam distributor 35
5.4.3 Installing the steam distributors 40
5.4.4 Positioning and mounting of the blower packs (accessory BP) 41
5.4.5 Installing the steam and condensate lines 42
5.4.6 Common steam and condensate line errors 46
5.4.7 Inspecting the steam installation 47
5.5 Water installation 48
5.5.1 Overview water installation 48
5.5.2 Notes on water installation 50
5.5.3 Inspecting the water installation 51

4Contents
5.6 Notes on humidity control systems/humidity control 52
5.6.1 System 1 – Room humidity control 52
5.6.2 System 2 – Room humidity control with continuous limitation of the supply air humidity 52
5.6.3 System 3 – Supply air humidity control with continuous output limit ation 53
5.6.4 Which humidity control system for which application 53
5.6.5 Admissible control signals 54
5.7 Electrical installation 55
5.7.1 Notes on electrical installation 55
5.7.2 Wiring diagram Condair EL 5...45 - Single units "S" and "M" 56
5.7.3 Wiring diagram Condair EL 50...90 - Single units "L" 57
5.7.4 Wiring diagram Condair EL 35...90 - Double units 2 x "M" 58
5.7.5 Wiring diagram EL 70...180 - Linkup systems 3 x "M" or 4 x "M" 59
5.7.6 Installation work external connections 61
5.7.7 Inspecting the electrical installation 68
6 Productspecication 69
6.1 Performance data / Fuses "F3" heating voltage supply 69
6.2 Operating data 71
6.3 Connections/Dimensions/Weights 71
6.4 Certicates 71
7 Appendix 72
7.1 Unit dimensions 72
7.1.1 Unit dimensions Condair EL 5 - 15, unit size "S" 72
7.1.2 Unit dimensions Condair EL 20 - 45 and 35 - 180, unit size "M" 73
7.1.3 Unit dimensions Condair EL 50 - 90, unit size "L" 74
7.2 EC Declaration of conformity 75
7.3 h,x diagram 76

5Introduction
1 Introduction
1.1 To the very beginning
We thank you for having purchased the CondairELsteamhumidier.
The Condair EL steam humidier incorporates the latest technical ad van ces and meets all recognized
safety standards. Nevertheless, improper use of the Condair EL steam humidier may result in danger
to the user or third parties and/or damage to property.
To ensure a safe, proper, and economical operation of the Condair EL steam humidier, please observe
and comply with all information and safety instructions contained in the present documentation as well
as in the separate documentations of the components installed in the humidication system.
If you have questions after reading this documentation, please contact your Condair representative.
They will be glad to assist you.
1.2 Notes on the installation manual
Limitation
ThesubjectofthisinstallationmanualistheCondairELsteamhumidierinitsdifferentversions.
The various options and accessories are only described insofar as is necessary for proper operation
of the equipment. Further information on options and accessories can be obtained in their respective
instructions.
This installation manual is restricted to the installation of the Condair EL steam humidier and is meant
for welltrainedpersonnelbeingsufcientlyqualiedfortheirrespectivework.
This installation manual is supplemented by various separate items of documentation (operation manual,
spare parts list, etc.), which are included in the delivery. Where necessary, appropriate cross-references
are made to these publications in the installation manual.

6Introduction
Symbols used in this manual
CAUTION!
The catchword "CAUTION" used in conjunction with the caution symbol in the circle designates notes
in this installation manual that, if neglected, may cause damage and/or malfunction of the unit or
damage to property.
WARNING!
The catchword "WARNING" used in conjunction with the general caution symbol designates safety
and danger notes in this installation manual that, if neglected, may cause injury to persons.
DANGER!
The catchword "DANGER" used in conjunction with the general caution symbol designates safety and
danger notes in this installation manual that, if neglected, may lead to severe injury or even death
of persons.
Safekeeping
Please safeguard this installation manual in a safe place, where it can be immediately accessed. If the
equipment changes hands, the documentation must be passed on to the new operator.
If the documentation gets misplaced, please contact your Condair representative.
Language versions
This installation manual is available in other languages. Please contact your Condair representative for
information.

7For your safety
2 For your safety
General
Every person, who is in charge of the installation work on the Condair EL must have read and understood
this installation manual and the Condair EL operation manual before carrying out any work.
Knowing and understanding the contents of the installation manual and the operation manual is a basic
requirement for protecting personnel against any kind of danger, to prevent faulty operation, and to
operate the unit safely and correctly.
All icons, signs and markings applied to the Condair EL must be observed and kept in readable state.
Qualicationofpersonnel
All installation work described in this installation manual may only be carried out by specialists who
arewelltrainedandadequatelyqualiedandareauthorisedbythecustomer.
For safety and warranty reasons any action beyond the scope of this manual must be carried out only
by qualied personnel authorised by the manufacturer.
It is assumed that all persons working with the Condair EL are familiar and comply with the appropriate
regulations on work safety and the prevention of accidents.
Intended use
The Condair EL steam humidier is intended exclusively for air humidication via a steam distributor
or blower pack approved by Condair within specied operating conditions (see Condair EL operation
manual). Any other type of application, without the written consent of Condair, is considered as not
conforming with the intended purpose and may lead to dangerous operation and will void any warranty.
Operation of the equipment in the intended manner requires that all the information contained in this
installation manual are observed (in particular the safety instructions).
Danger that may arise from the Condair EL:
DANGER!
Danger of electric shock!
The Condair EL is mains powered. Live parts may be exposed when the unit is open. Touching
live parts may cause severe injury or danger to life.
Prevention: The Condair EL must be connected to the mains only after all mounting and installation
work has been completed, all installations have been checked for correct workmanship and the covers
are closed and fastened properly.

8For your safety
Preventing unsafe operation
All persons working with the Condair EL are obliged to report any alterations to the unit that may affect
safety to the owner without delay and to secure the Condair EL against accidental power-up.
Prohibitedmodicationstotheunit
Nomodicationsmustbeundertaken on the Condair EL without the express written consent of Condair.
For the replacement of defective components use exclusively original accessories and spare parts
available from your Condair representative.

9Product Overview
mD= •(x2-x1)
V•p
1000 mD= •(x2-x1)
V
1000 •ε
oder
3 Product Overview
3.1 Calculatingthemaximumrequiredsteamcapacity
The maximum required steam capacity must be calculated based on one of the following formulas:
mD: maximum steam demand in kg/h
V: volume of supply air portion per hour in m3/h (for indirect room humidication) or room volume to
be humidied per hour in m3/h (for direct room humidication)
ρ: specic gravity of air in kg/m3
ε: specic volume of air in m3/kg
x2: desired absolute room air humidity in g/kg
x1: minimum absolute supply air humidity in g/kg
The values for ρ,ε,x2and x1 can be gathered from the h,x-diagram or the Carrier-Diagram for moist
air respectively.

10 Product Overview
3.2 Models overview
Condair EL steam humidiers are available as single units with different housing sizes (S, M and
L), as double units (2 x "M") and as Linkup systems (3 x "M" or 4 x "M") with different heating
voltages and steam capacities ranging from 5 kg/h up to a maximum of 180 kg/h.
3.2.1 Single units Small ("S"), EL 5...15 and Medium ("M"), EL 20...45
Housing
size Condair EL
200V/1~ 230V/1~ 240V/1~ 200V/3~ 230V/3~ 400V/3~ 415V/3~ 440V/3~ 460V/3~ 480V/3~ 500V/3~ 600V/3~
kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h
S
...5... 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0
...8... 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0
...10... –– 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0
...15... –– –– –– 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0
M
...20... –– –– –– 20.0 20.0 20.0 20.0 20.0 20.0 20.0 20.0 20.0
...24... –– –– –– 24.0 24.0 24.0 24.0 24.0 24.0 24.0 24.0 24.0
...30... –– –– –– 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0 30.0
...35... –– –– –– –– –– 35.0 35.0 35.0 35.0 35.0 35.0 35.0
...40... –– –– –– –– –– 40.0 40.0 40.0 40.0 40.0 40.0 40.0
...45... –– –– –– –– –– 45.0 45.0 45.0 45.0 45.0 45.0 45.0
I/O
Driver board
Module A
Control
board
RFI
Heating voltage
Module A
Control voltage
Control signal
External enable
Limiter signal
Safety chain
Remote indication
Main
Module A
Main unit Module A

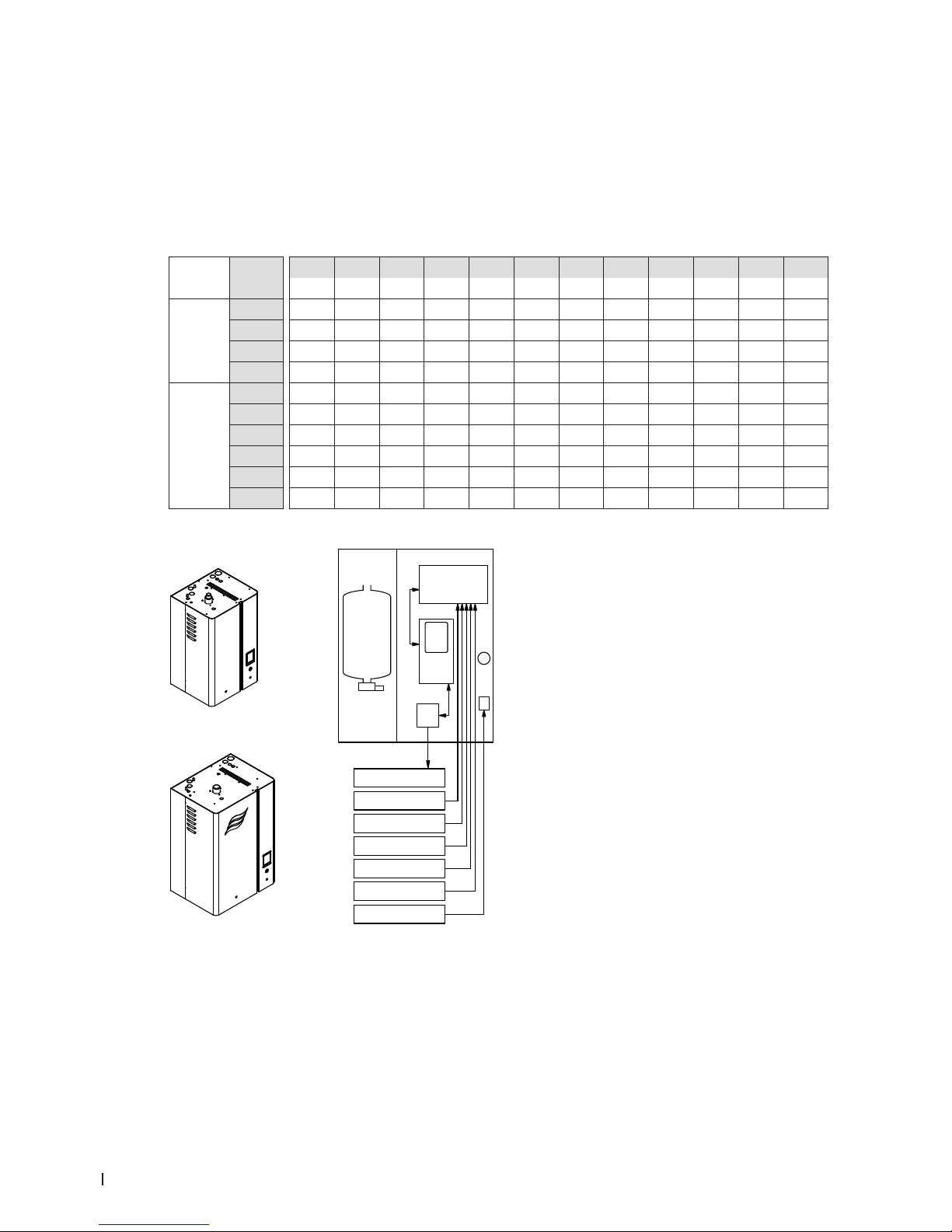

Fig. 1: Overview single units Small ("S") and Medium ("M")

11Product Overview
3.2.2 Single units Large ("L"), EL 50...90
Housing
size Condair EL
200V/1~ 230V/1~ 240V/1~ 200V/3~ 230V/3~ 400V/3~ 415V/3~ 440V/3~ 460V/3~ 480V/3~ 500V/3~ 600V/3~
kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h
L
...50... –– –– –– –– –– 50.0 50.0 –– –– –– –– ––
...60... –– –– –– –– –– 60.0 60.0 –– –– –– –– ––
...70... –– –– –– –– –– 70.0 70.0 –– –– –– –– ––
...80... –– –– –– –– –– 80.0 80.0 –– –– –– –– ––
...90... –– –– –– –– –– 90.0 90.0 –– –– –– –– ––
Module
B
Module
A
I/O
B
A
Driver board
Module A
Driver board
Module B
Control
board
RFI
Main
Module A
Main
Module B
Heating voltage
Module A / B
Control voltage
Control signal
External enable
Limiter signal
Safety chain
Remote indication
Main unit Module A and B
Fig. 2: Overview single units Large ("L")

12 Product Overview

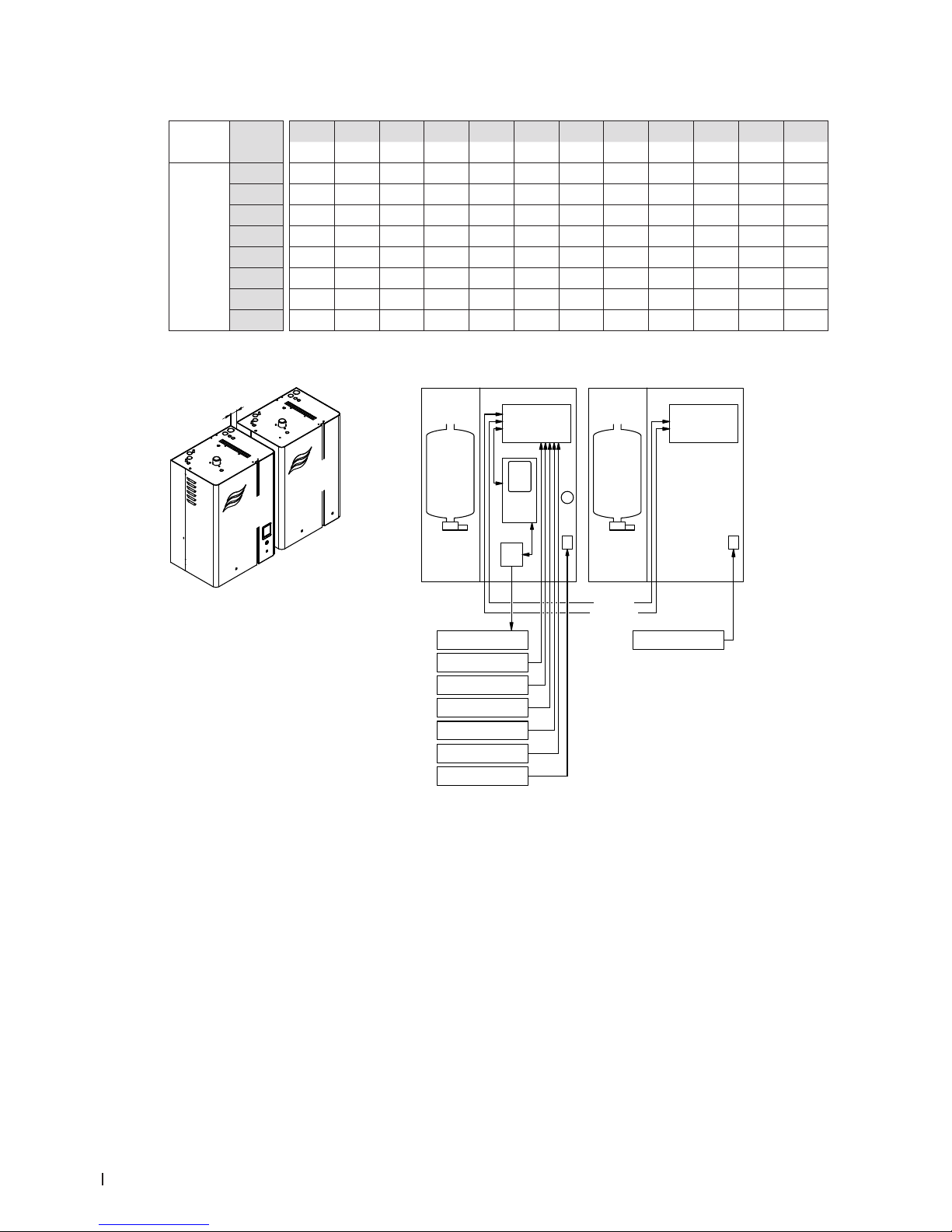

3.2.3 Double units (2 x "M"), EL 35...90
Housing
size Condair EL
200V/1~ 230V/1~ 240V/1~ 200V/3~ 230V/3~ 400V/3~ 415V/3~ 440V/3~ 460V/3~ 480V/3~ 500V/3~ 600V/3~
kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h
2*M
...35... –– –– –– 2*17.5 2*17.5 –– –– –– –– –– –– ––
...40... –– –– –– 2*20.0 2*20.0 –– –– –– –– –– –– ––
...45... –– –– –– 2*22.5 2*22.5 –– –– –– –– –– –– ––
...50... –– –– –– 2*25.0 2*25.0 2*25.0 2*25.0 2*25.0 2*25.0 2*25.0 2*25.0 2*25.0
...60... –– –– –– 2*30.0 2*30.0 2*30.0 2*30.0 2*30.0 2*30.0 2*30.0 2*30.0 2*30.0
...70... –– –– –– –– –– 2*35.0 2*35.0 2*35.0 2*35.0 2*35.0 2*35.0 2*35.0
...80... –– –– –– –– –– 2*40.0 2*40.0 2*40.0 2*40.0 2*40.0 2*40.0 2*40.0
...90... –– –– –– –– –– 2*45.0 2*45.0 2*45.0 2*45.0 2*45.0 2*45.0 2*45.0
Main
Module B
Main
Module A
50 mm
I/O
Driver board
Module A
Driver board
Module B
Control
board
RFI
Heating voltage
Module A
Heating voltage
Module B
Control voltage
Control signal
External enable
Limiter signal
Safety chain
Remote indication
Main
Module A
Main
Module B
Data cable
Supply cable
Main unit Module A Main unit Module B
Fig. 3: Overview Double units (2 x "M")

13Product Overview
3.2.4 Linkup systems (3 x "M"), EL 70...135
Housing
size Condair EL
200V/1~ 230V/1~ 240V/1~ 200V/3~ 230V/3~ 400V/3~ 415V/3~ 440V/3~ 460V/3~ 480V/3~ 500V/3~ 600V/3~
kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h
3*M
...70... –– –– –– –– 3*23.3 –– –– –– –– –– –– ––
...80... –– –– –– –– 3*26.7 –– –– –– –– –– –– ––
...90... –– –– –– –– 3*30.0 –– –– –– –– –– –– ––
...105... –– –– –– –– –– 3*35.0 3*35.0 –– –– –– –– ––
...120... –– –– –– –– –– 3*40.0 3*40.0 –– –– –– –– ––
...135... –– –– –– –– –– 3*45.0 3*45.0 –– –– –– –– ––
Extension
Module A
Main
Module B
Main
Module A
50 mm 50 mm
I/OI/O
Driver board
Main A
Driver board
Main B
Control
board
RFI
Heating voltage
Main A
Heating voltage
Main B
Control voltage
Control signal
External enable
Limiter signal
Safety chain
Remote indication
Main
Module A
Main
Module B
Extension
Module A
Data cable
Supply cable
Driver board
Extension A
Control
board
Heating voltage
Extension A
Control voltage
Extension
Linkup cable
Main unit
Module A
Main unit
Module B
Extension unit
Module A

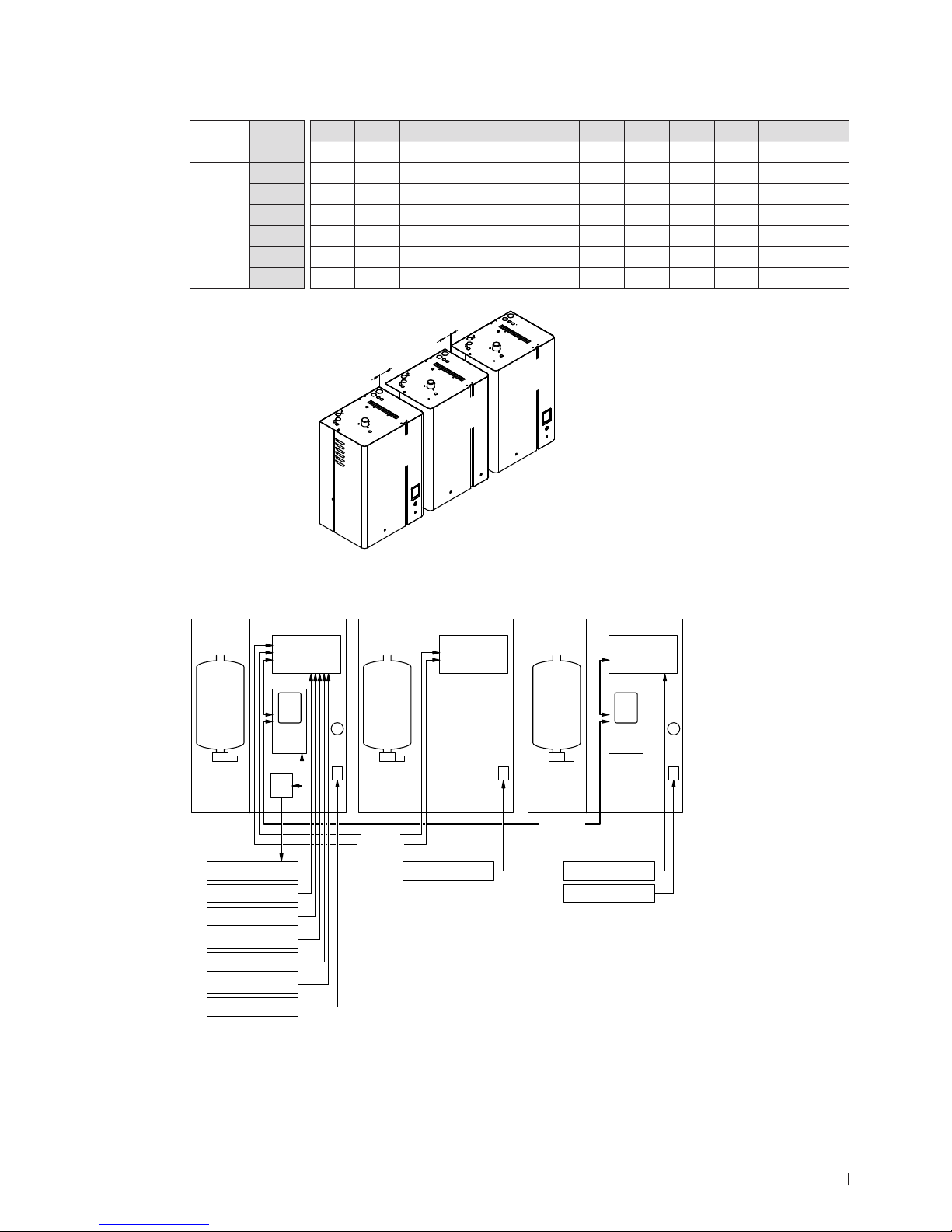

Fig. 4: Overview Linkup systems (3 x "M")

14 Product Overview
3.2.5 Linkup systems (4 x "M"), EL 105...180
Housing
size Condair EL
200V/1~ 230V/1~ 240V/1~ 200V/3~ 230V/3~ 400V/3~ 415V/3~ 440V/3~ 460V/3~ 480V/3~ 500V/3~ 600V/3~
kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h kg/h
4*M
...105... –– –– –– –– 4*26.3 –– –– –– –– –– –– ––
...120... –– –– –– –– 4*30.0 –– –– –– –– –– –– ––
...152... –– –– –– –– –– 4*38.0 4*38.0 –– –– –– –– ––
...160... –– –– –– 4*40.0 4*40.0 –– –– –– –– ––
...180... –– –– –– –– –– 4*45.0 4*45.0 –– –– –– –– ––
Extension
Module A
Extension
Module B
Main
Module B
Main
Module A
50 mm 50 mm 50 mm
I/OI/O
Driver board
Main A
Driver board
Main B
Control
board
RFI
Heating voltage
Main A
Heating voltage
Main B
Heating voltage
Extension B
Control voltage
Control signal
External enable
Limiter signal
Safety chain
Remote indication
Main
Module A
Main
Module B
Extension
Module A
Extension
Module B
Data cable Data cable
Supply cable Supply cable
Driver board
Extension A
Driver board
Extension B
Control
board
Heating voltage
Extension A
Control voltage
Extension
Linkup cable
Main unit
Module A
Main unit
Module B
Extension unit
Module A
Extension unit
Module B

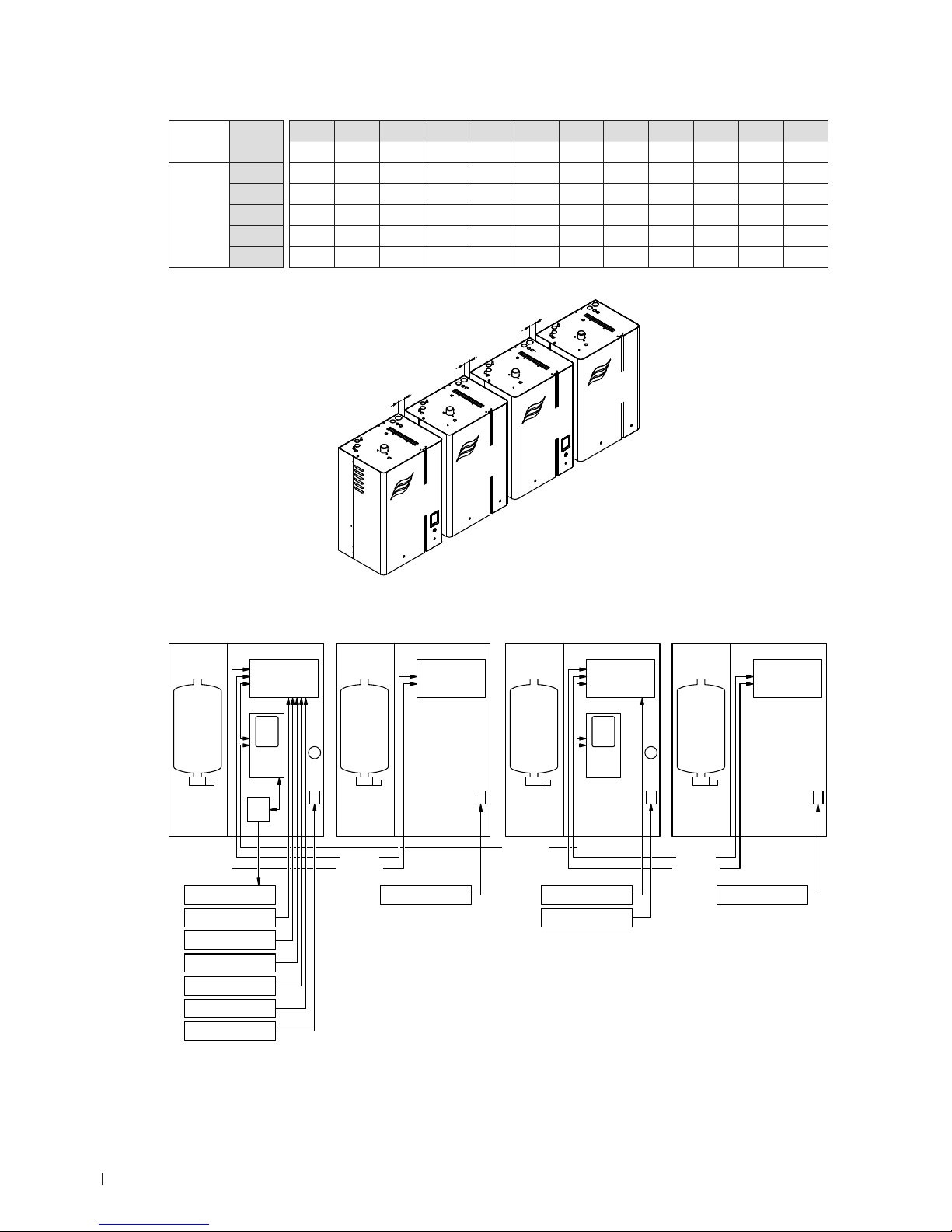

Fig. 5: Overview Linkup systems (4 x "M")

15Product Overview
3.3 Product designation
The identication of the unit is found on the specication label.
Fig. 6: Location of the specication label
Condair Ltd, Talstrasse 35-37, CH-8808 Pfäfkon
Type: Condair EL 400V3 Serial: XXXXXXX 07.15
Voltage: 400V 3~ / 50...60Hz El. Power: 30.0 kW / 43.3 A
Steam capacity: 40.0 kg/h Steam humidier
Water press.: 100..1000 kPa (1..10 bar) Main Unit / Module A
Made in Switzerland
Production
Month/Year
Serial number (7 digits)Type designation
Heating voltage
Maximum steam capacity
Admissible water supply pressure
Field with certication symbols
Power consumption
Device type
Module designation
(shown on specication label of double units and Linkup systems only)

16 Product Overview
Key model designation
Example:
Condair EL 50 L 400V/3~
Product designation
Unit model:
Housing size:
L: large housing
Heating voltage:
230V/1~/50...60Hz: 230V/1~
200V/3~/50...60Hz: 200V/3~
230V/3~/50...60Hz: 230V/3~
400V/3~/50...60Hz: 400V/3~
415V/3~/50...60Hz: 415V/3~
440V/3~/50...60Hz: 440V/3~
460V/3~/50...60Hz: 460V/3~
480V/3~/50...60Hz: 480V/3~
500V/3~/50...60Hz: 500V/3~
600V/3~/50...60Hz: 600V/3~

17Product Overview
3.4 Options
Voltage Condair EL
200...240V/1~ 5...8 10 --- --- --- ---
200V/3~ 5...8 10...15 20...30 35...60 --- ---
230V/3~ 5...8 10...15 20...30 35...60 70...90 105...120
400...415V/3~ 5...8 10...15 20...30 50...90 105...135 152...180
440...600V/3~ 5...8 10...15 20...45 50...90 --- ---
Cleanable steam cylinder
Cleanable steam cylinder as an alternative to the
disposable steam cylinder built in as standard (see
details in chapter 3.4.1).
1x D3.. 1x D4.. 1x D6.. 2x D6.. 3x D6.. 4x D6..
Accessory board
PCB with relay contacts for the connection of remote
fan enable (cylinder A/B) as well as remote enable
of an external hygiene ush ush valve in the water
supply line (cylinder A/B).
1x ACC 1x ACC 1x ACC 1x ACC 2x ACC 2x ACC
Pressure compensation kit
Assembly kit for the installation of the lling cup on
the equipment cover, for the operation of the steam
humidier in installations with duct air pressures up
to 10’000 Pa.
1x OPS 1x OVP 1x OPS 2x OPS 3x OPS 4x OPS
Control voltage supply for 3 phase single volt-
age supply 400...415 V with neutral conductor
Kit including terminal strip and tranformer for the
control voltage supply for sites with 3 phase single
voltage supply with neutral conductor. Only available
for supply voltages 400...415 V/3~N/ 50..60 Hz.
1x CVI-S 1x CVI-S 1x CVI-M 2x CVI-M 2x CVI-M 2x CVI-M
Control voltage supply for 3 phase single voltage
supply 400...415 V without neutral conductor
Kit including terminal strip and transformer for the
control voltage supply for sites with 3 phase single
voltage supply without neutral conductor. Only avail-
able for supply voltages 400...415 V/3~/ 50..60 Hz.
1x TR 1x TR 1x TR 1x TR 2xTR 2x TR
LonWorks board
Supplementary board to connect the Condair EL
to a building management system via LonWorks.
1x LW 1x LW 1x LW 1x LW 1x LW 1x LW
Drain water cooling
Kit including double inlet valve and hose set for drain
water cooling below 60°C.
1x DWC 1x DWC 1x DWC 2x DWC 3x DWC 4x DWC

18 Product Overview
3.4.1 Option details
Steam cylinder
The steam humidier is available with two different types of steam cylin ders:
– Exchangeable steam cylinder type A... (standard version)
– Cleanable steam cylinder type D... (option)
The following tables present an overview of the steam cylinders used in the different models.
Condair EL ... 200...240V V/1~/50...60 Hz 5...10
For water conductivity from 125 to 1250 µS/cm
Exchangeable steam cylinder 1xA342
Cleanable steam cylinder 1xD342
Condair EL ... 200...230 V/3~/50...60 Hz 5...8 10...15 20 24...30 35…45 50…60 70...90 105...120
For water conductivity from 125 to 1250 µS/cm
Exchangeable steam cylinder 1xA343 1xA444 1xA654 1xA644 2xA654 2xA644 3xA644 4xA644
Cleanable steam cylinder 1xD343 1xD444 1xD654 1xD644 2xD654 2xD644 3xD644 4xD644
Condair EL ... 400...415 V/3~/50...60 Hz 5...8 10...15 20...30 35...45 50...60 70...90 105...135 152...180
For water conductivity from 125 to 1250 µS/cm
Exchangeable steam cylinder 1xA363 1xA464 1xA674 1xA664 2xA674 2xA664 3xA664 4xA664
Cleanable steam cylinder 1xD363 1xD464 1xD674 1xD664 2xD674 2xD664 3xD664 4xD664
For low water conductivity <125 µS/cm
Exchangeable steam cylinder 1xA343 1xA444 1xA654 1xA644 2xA644 1xA654 3xA644 4xA644
Cleanable steam cylinder 1xD343 1xD444 1xD654 1xD644 2xD644 1xD654 3xD644 4xD644
Condair EL ... 440...600 V/3~/50...60 Hz 5...8 10...15 20...30 35...45 50...60 70...90
For water conductivity from 125 to 1250 µS/cm
Exchangeable steam cylinder 1xA363 1xA464 1xA674 1xA664 2xA664 2xA674
Cleanable steam cylinder 1xD363 1xD464 1xD674 1xD664 2xD664 2xD674
If you have questions regarding the steam cylinders please contact your Condair representative.

19Product Overview
3.5 Accessories
Voltage Condair EL
200...240V/1~ 5...8 10 --- --- --- ---
200V/3~ 5...8 10...15 20...30 35...60 --- ---
230V/3~ 5...8 10...15 20...30 35...60 70...90 105...120
400...415V/3~ 5...8 10...15 20...30 50...90 105...135 152...180
440...600V/3~ 5...8 10...15 20...45 50...90 --- ---
Steam distribution pipe
Steam distribution pipe for steam distribution
inside a air duct (see details in chapter 3.5.1.1).
1x DV41 1x DV61 1xDV81 2xDV81 3xDV81 4xDV81
Steam distribution system OptiSorp
Steam distribution system for steam distribution
inside a air duct for reduced absorption distances
(see details in chapter 3.5.1.2).
System 1 System 2 System 3 System 4
Blower pack
Blower pack for direct room humidication. The
blower pack can be mounted either directly onto the
Condair EL or separated from the unit to the wall
(see details in chapter 3.5.1.3).
1x BP 2x BP 3x BP 4x BP
Support for steam distribution pipe
Support for vertical mounting of the steam
distribution pipe DV...
1xVS-DV41 1xVS-DV61 1xVS-DV81 2xVS-DV81 3xVS-DV81 3xVS-DV81
Steam hose / Meter 1x DS22 1x DS60 1x DS80 2x DS80 3x DS80 4x DS80
Condensate hose (ø12/8 mm) / meter 1x KS10 1x KS10 1x KS10 2x KS10 3x KS10 4x KS10
Filter valve
Filter valve for the installation in the water supply line.
1xZ261 2xZ261 3xZ261 4xZ261
Mounting rack
Mounting rack for Condair EL
1x MR-S 1x MR-S 1x MR-M 2x MR-M
or
1xMR-L
for units "L"
3x MR-M 4x MR-M

20 Product Overview
3.5.1 Accessory details
3.5.1.1 DV41-..., DV61-... and DV81-... steam distribution pipes
The steam distribution pipes are selected on the basis of the duct width "B" (for horizontal installation)
or the duct height "H" (for vertical installation) and the capacityofthesteamhumidier.
Important! Always select the longest possible steam distribution pipe (opti mum humidication distance).
Steam distribution pipes made of CrNi steel Duct width (B)/
Duct height (H)
Max. Steam
capacity
Type DV41-.. Type DV61-.. Type DV81-.. Length (L) in mm *** in mm in kg/h
DV41-200 200 210...400 10
DV41-350 DV61-350 DV81-350 * 350 400...600 30
DV41-500 DV61-500 DV81-500 ** 500 550...750 30
DV41-650 DV61-650 DV81-650 650 700...900 50
DV41-800 DV61-800 DV81-800 800 900...1100 50
DV41-1000 DV61-1000 DV81-1000 1000 1100...1300 50
DV41-1200 DV61-1200 DV81-1200 1200 1300...1600 50
DV61-1500 DV81-1500 1500 1600...2000 50
DV61-1800 DV81-1800 1800 2000.2400 50
DV61-2000 DV81-2000 2000 2200...2600 50
DV81-2300 2300 2500...2900 50
DV81-2500 2500 2700...3100 50
* for units with steam capacities up to a maximum of 10 kg/h only
** for units with steam capacities up to a maximum of 30 kg/h only
*** Special length on request
Note: for further information regarding the DV41-..., DV61-... and DV81-... steam distribution pipes please
refer to the separate installation and operating instructions of this product.
L
B
H
