Condair HumiLife RE Series User manual

Installation Manual
Condair HumiLife – The economic solution for forced air heating
Condair RE
READ AND SAVE THESE INSTRUCTIONS
2598377_A_EN_2005_Condair-RE_IM
Humidification and Evaporative Cooling

Thank you for choosing Condair
Proprietary Notice
This document and the information disclosed herein are proprietary data of Condair Ltd. Neither this
document, nor the information contained herein shall be reproduced, used, or disclosed to others
without the written authorization of Condair Ltd., except to the extent required for installation, operation
or maintenance of the customer's equipment.
Liability Notice
Condair Ltd. does not accept any liability due to incorrect installation, maintenance or operation of the
equipment, or due to the use of parts/components/equipment that are not authorized by Condair Ltd.
Copyright Notice
Copyright 2020, Condair Ltd., All rights reserved.
Technical modification rights reserved.

Contents
Condair RE Contents |3
Contents 3
1 Introduction 5
1.1 Getting Started 5
1.2 General 5
1.2.1 Limitations of the Manual 5
1.2.2 Symbols Used in This Manual 5
1.2.3 Storage of Manual 5
1.3 Receiving and Storage 6
1.3.1 Inspection 6
1.3.2 Storage, Packaging, and Transportation 6
1.4 Safety Precautions 6
1.5 Compliance 6
2 For Your Safety 7
3 Product Description 9
3.1 General Description 9
3.2 Functional Description 10
4 Product Specifications 12
4.1 Technical Data 12
4.1.1 Capacity 12
4.1.2 Weights 12
4.1.3 Dimensions 12
5 Installation and Planning 13
5.1 General 13
5.1.1 Installation Overview 13
5.2 Location Requirements 13
5.3 Clearance Requirements 13
5.4 Site Requirements 14
5.4.1 Water Supply Requirements 14
5.4.2 Drainage Requirements 14
5.4.3 (Ambient) Air Supply Requirements 14
5.4.4 Power Supply Requirements 15
5.5 Installation 15
5.5.1 Safety 15
5.5.2 Mounting the Condair HumiLife RE 15
5.5.3 Installing the Bypass Duct 17
5.5.4 Connecting the Water Supply 18
5.5.5 Tapping into an Existing Water Line 19
5.5.6 Connecting the Drain Line 20
5.5.7 Installing the Electrical Connections 21
5.5.7.1 Installing External Electrical Connections 22
6 Connecting to the Condair HumiLife App 24
6.1 Downloading the Condair HumiLife App 24
6.2 Connecting to the Condair HumiLife App 24

Page intentionally left blank

1 Introduction
Condair RE Introduction |5
1.1 Getting Started
Thank you for purchasing the Condair HumiLife RE.
The Condair HumiLife RE incorporates the latest technical advances and meets recognized safety
standards. Improper use of the Condair HumiLife RE may result in danger to the user or third parties,
and/or damage to property.
To ensure safe, proper, and efficient operation of the Condair HumiLife RE, please observe and comply
with all information and safety instructions contained in this manual, as well as all relevant
documentation of components of the installed humidification system.
If you have additional questions, please contact us by visiting www.condairhumilife.com .
1.2 General
1.2.1 Limitations of the Manual
The subject of this manual is the Condair HumiLife RE humidifier in its different versions. The various
options and accessories that are described in this manual pertain to the proper operation of the
equipment. Additional information and instructions are supplied with the options and accessories.
This manual is restricted to the installation of the Condair HumiLife RE humidifier. This manual is
intended for competent personnel suitably qualified for their respective tasks. The specifications are
supplemented by various separate items of documentation (such as the parts list). Where necessary,
appropriate cross-references are made to these publications in the specification.
1.2.2 Symbols Used in This Manual
CAUTION!
The word "CAUTION" in conjunction with the general caution symbol is used to provide safety
instructions that, if neglected, may cause damage or malfunction of the unit, or damage to property.
WARNING!
The word "WARNING" in conjunction with the general warning symbol is used to provide safety
instructions that, if neglected, may cause injury to personnel. Other specific warning symbols may also
be used in place of the general symbol.
Danger!
The word "DANGER" in conjunction with the general danger symbol is used to provide safety
instructions that, if neglected, may cause severe injury to personnel or even death. Other specific
danger symbols may also be used in place of the general symbol.
1.2.3 Storage of Manual
Keep this manual in a place where it is safe and readily accessible. If the equipment is moved to
another location, please ensure that it remains with the equipment.
If the manual is lost or misplaced, please contact Condair for a replacement.

6|Introduction Condair RE
1.3 Receiving and Storage
1.3.1 Inspection
After receiving the shipment, inspect the goods as follows:
lInspect the shipping boxes for damage. Report any shipping box damages to the shipping
company without delay.
lCheck the goods against the packing slip to ensure that all items have been delivered. Report
any shortages to Condair within 48 hours of receipt of the goods. Condair does not assume
responsibilities for any shortages beyond this period.
lUnpack the parts/components and check for any damage. If parts/components are damaged,
notify the shipping company immediately.
lVerify the model type on the specification label to ensure that it is suitable for your installation.
1.3.2 Storage, Packaging, and Transportation
Storage
Store the Condair HumiLife RE in its original packaging inside a protected area that meets the following
requirements until it is installed, or if it needs to be stored for an extended period of time:
lRoom temperature: 41 to 104 °F (5 to 40 °C)
lRoom humidity: 10 to 75% RH (non-condensing)
Transportation
For optimum protection always transport the unit and components in their original packaging.
Packaging
Keep the original packaging of the unit/components for later use.
If the packaging needs to be disposed, observe local regulations on waste disposal. Please recycle
packaging where possible.
1.4 Safety Precautions
Regard all safety precautions described in this manual. Refer to "For Your Safety" on page7.
1.5 Compliance
Follow all local guidelines and regulations regarding the installation and operation of the unit; this
includes (and not limited to) mounting, plumbing, water, gas, ventilation, and electrical connections.
Please consult Condair to learn more.

2 For Your Safety
Condair RE For Your Safety |7
General
Every person who is tasked with the installation, operation and/or maintenance of the Condair HumiLife
RE must read and understand this manual, as well as any respective installation, operation and/or
maintenance manuals before performing any work. Knowing and understanding the contents of these
manuals is a basic requirement for protecting personnel against any kind of danger, preventing faulty
operation, and operating the unit safely and correctly.
All labels, signs and markings applied to unit must be observed, kept in a readable state, and NOT
removed or altered.
Intended Use
The Condair HumiLife RE is intended exclusively for air humidification using Condair-approved parts
within specified operating conditions. Refer to the Operation and Maintenance manual and "Site
Requirements" on page14 for details. Any other type of application, without the express written consent
of Condair, is considered to be NOT conforming to its intended purpose, and may lead to dangerous
operation and will void the warranty.
In order to operate the equipment in the intended manner all information contained in this manual, in
particular the safety instructions, must be observed closely.
Safety Precautions that Must be Observed
CAUTION: Servicing
nDisconnect power before any servicing.
nElectrical compartment contains low voltage components.
nCondair does not accept any liability for installations of humidity equipment installed by unqualified personnel, or the
use of parts, components, or equipment that are not authorized or approved by Condair.
CAUTION: Electrical
nAll electrical work should be done according to all applicable local and national codes.
CAUTION: Plumbing
n(Recommended) Plumbing to be performed by a licensed plumber.
nAll plumbing work should be done according to local plumbing code.
CAUTION: Installation
nDo NOT mount in area where freezing can occur.
nDo NOT mount on vibrating surface.
nDo NOT mount on the floor.
n(Recommended) Install an air proving switch.

8|For Your Safety Condair RE
Preventing Unsafe Operation
All personnel working with the Condair HumiLife RE must immediately report to the customer any
alterations or changes to the unit that may affect safety, and secure the unit against accidental power-up.
If it is suspected that the unit cannot be operated safely for any of the reasons listed below, shut it down
immediately.
Alterations and changes that may affect safe operation include:
ldamage to the unit
lloose or damaged electrical connections
limproper operation
lleaks in the distribution system
Modifications to the Unit Prohibited
Modifications are NOT permitted on the Condair HumiLife RE without the express written consent of
Condair.

3 Product Description
Condair RE Product Description |9
3.1 General Description
The Condair HumiLife RE bypass humidifier uses the pressure difference between the supply air from
your furnace and the return air into your home. This pressure difference forces air through the humidifier
thereby increasing the humidity of the air leaving the unit. This allows the humidifier to consume very
little energy to improve the comfort of your home.
The Condair RE package comes with:
lCondair RE complete with ceramic media.
lInstallation components such as power supply, saddle valve, supply water hose (with quick
connect adapter), drain hose, and associated hardware.
lTechnical documentation
1
2
3
4
5
8
7
9
6
24 VDC
120 VAC
Figure 1 - Typical set-up
1. Air duct
2. Condair HumiLife RE
3. Round duct
4. Water supply
5. Duct RH sensor (optional)
6. Water drain
7. Furnace
8. Power supply
9. Wall RH sensor (optional)

10 |Product Description Condair RE
6
5
10
7
3
2
1
4
8
9
11

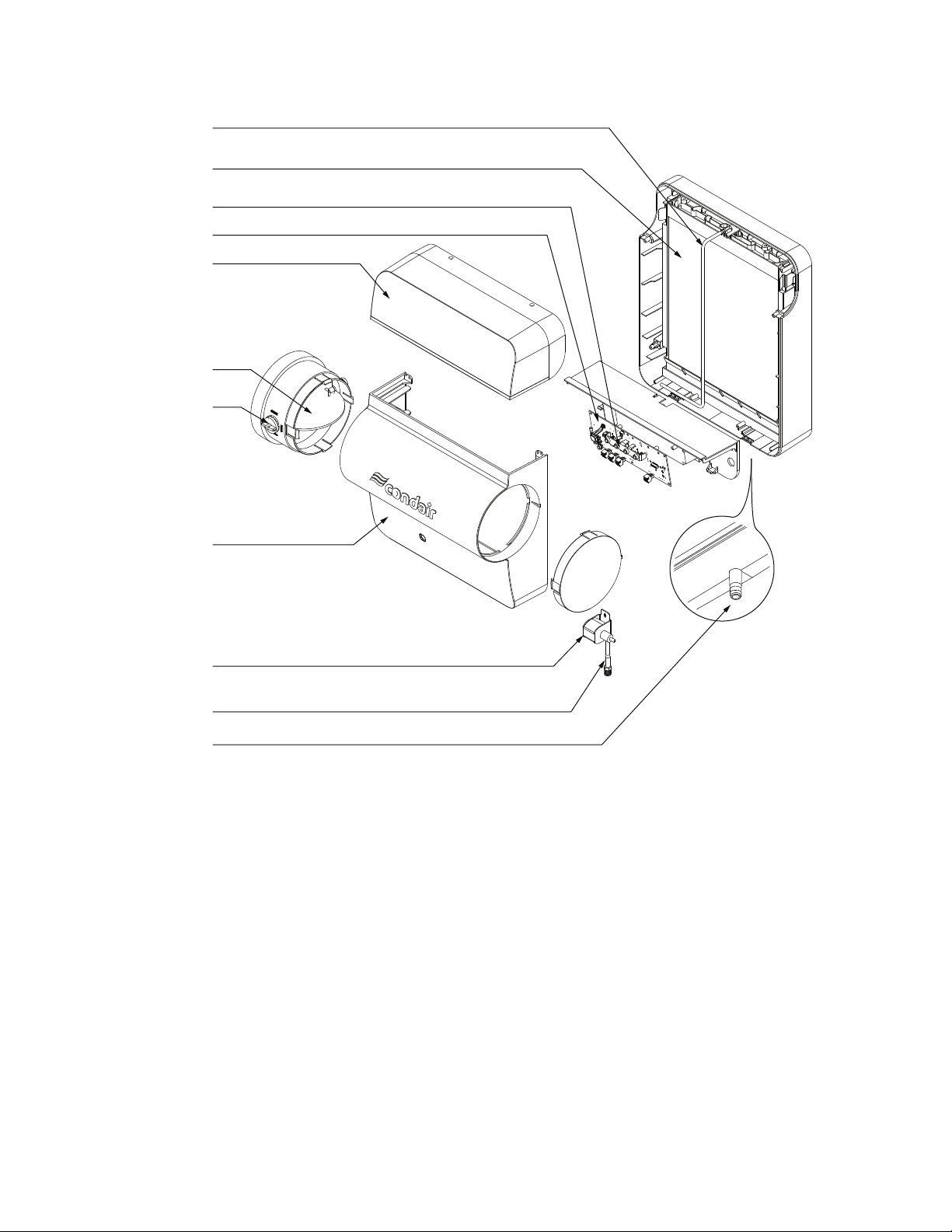

Figure 2 - Components
1. Damper adjuster
2. Damper (winter/summer mode)
3. Top cover
4. Bottom cover
5. Ceramic media
6. Inner supply water hose
7. Control board
8. Solenoid valve
9. Water supply
10. LED indicator
11. Water drain
3.2 Functional Description
The Condair HumiLife RE is a bypass humidifier that attaches to the duct of the furnace ventilation
system. It may be installed on either the supply duct or on the return duct. A small opening is created in
the duct where some of the furnace air is directed through the Condair HumiLife RE. Water vapor
leaving the unit then re-enters the duct where it mixes with the rest of the furnace air, before a fan
directs the air into your home.
This solution relies on the pressure differential provided by the furnace fan. The humidifier will achieve
increased efficiency when the furnace is in heating mode.

By installing a bypass duct between the supply and return air, a small amount of warm air passes over a
wet ceramic media in the humidifier. The warm air evaporates the water, and water vapor exits the
humidifier at a downstream location in the return duct.
When there is a humidification requirement from an external signal, the solenoid valve in the unit
activates and allows water to run through the ceramic media. When humidity reaches the setpoint, the
solenoid valve turns off, shutting off the water supply. This process repeats as needed to maintain the
humidity around the setpoint.
Figure 3 - Working principle of the humidifier
Condair RE Product Description |11

4 Product Specifications
Product Specifications |12 Condair RE
4.1 Technical Data
4.1.1 Capacity
lHumidification capacity at 86 °F (30 °C), 20% RH: 4.4 lb/h (2 kg/h), 12.7 gal/day (48 kg/day).
lMaximum humidified area: 3000 sq. ft (279 m2), assuming ceiling: 10 ft (3 m).
4.1.2 Weights
Weight (mass): 9 lb (4.1 kg)
4.1.3 Dimensions
lCeramic media W x H x D: 10.2 x 12.6 x 1.2 in (260 x 320 x 30 mm)
15.75 in
400 mm
13.15 in
334 mm
9.94 in
252 mm
9.45 in
240 mm
1.61 in
41 mm
1.28 in
32 mm
7.68 in
195 mm
2.05 in
52 mm 6.57 in
167 mm
11.91 in
303 mm
9.41 in
239 mm
Ø5.98 in
152 mm
15.35 in
390 mm
Figure 4 - Dimensions

5 Installation and Planning
Condair RE Installation and Planning |13
5.1 General
Strictly observe and perform all installation tasks including the mounting of the unit and connection of
the water and power supplies as described in this manual. Observe and comply with all local and
national codes dealing with water and electrical installations. Condair does not accept any liability for
installation of humidification or dehumidification equipment by unqualified personnel, or the use of
equipment and parts that are not authorized by Condair.
Personnel Qualifications
All installation work must be performed only by licensed personnel authorized by the customer. It is the
customer’s responsibility to verify qualifications of the personnel.
5.1.1 Installation Overview
Components included:
lCondair HumiLife RE Humidifier
l24 VDC power supply
lMounting template
lSaddle valve
lInlet hose
lDrain hose
lClip for drain hose
lQuick connector
lSelf-tapping screws
Tools (suggested):
lProtective eye-wear
lWork gloves
lElectric drills and drill bits
lScrew drivers
lWrench (adjustable or fixed)
lWire cutter and wire stripper
lMeasuring tape or ruler
lPliers
lFlashlight
lFoil (sheet metal) tape
5.2 Location Requirements
Location requirements:
lYour humidifier must have access to:
water supply
drain
power
lThe humidifier must be mounted on a flat surface of the air duct, with enough clearance for
maintenance.
5.3 Clearance Requirements
Allow 6 in (150 mm) from the front, top, bottom, and side of the humidifier. Allow 16 in (406 mm) for the
bypass duct opening on the humidifier. Mounting holes are 11.4 in (290 mm) apart.
Minimum duct width: 12 in (300 mm)
For the best performance, place the unit at least 24 in (610 mm) downstream of the air conditioning coil
of the ventilation system.
Note: The air conditioning coil is typically hidden within the duct.

14 |Installation and Planning Condair RE
6 in
150 mm
6 in
150 mm
6 in
150 mm
6 in
150 mm
16 in
406 mm
11.4 in
290 mm
12 in
300 mm
min.
Figure 5 - Clearances
5.4 Site Requirements
Prepare the Condair HumiLife RE for installation by ensuring the following site requirements are
satisfied. Report any discrepancies to your Condair representative.
Ensure that the installation of the Condair HumiLife RE is compliant with all applicable local regulations
and codes.
5.4.1 Water Supply Requirements
Water inlet hose diameter (via saddle valve): Ø 0.25 in (6.35 mm)
Temperature: 34-140 °F (1-60 °C)
Pressure: 14-87 PSI (97-600 kPa)
Quality: Potable
5.4.2 Drainage Requirements
Humidifier drain hose diameter: Ø 0.47 in (12 mm)
nDrain (ex. sink, floor) located in the vicinity.
nAble to handle water supply quality (ex. potable).
5.4.3 (Ambient) Air Supply Requirements
lDuct bypass diameter: Ø 6 in (152 mm)
lTemperature: 34-95 °F (1-35 °C)
lHumidity: 0-95% RH (non-condensing)

5.4.4 Power Supply Requirements
lPower supply: 110-120 VAC, 60 Hz
lPower consumption: 20 W
lTransformer: 110-120 VAC to 24 VDC
5.5 Installation
5.5.1 Safety
Observe all safety precautions and comply with local installation codes. Refer to "For Your Safety" on
page7.

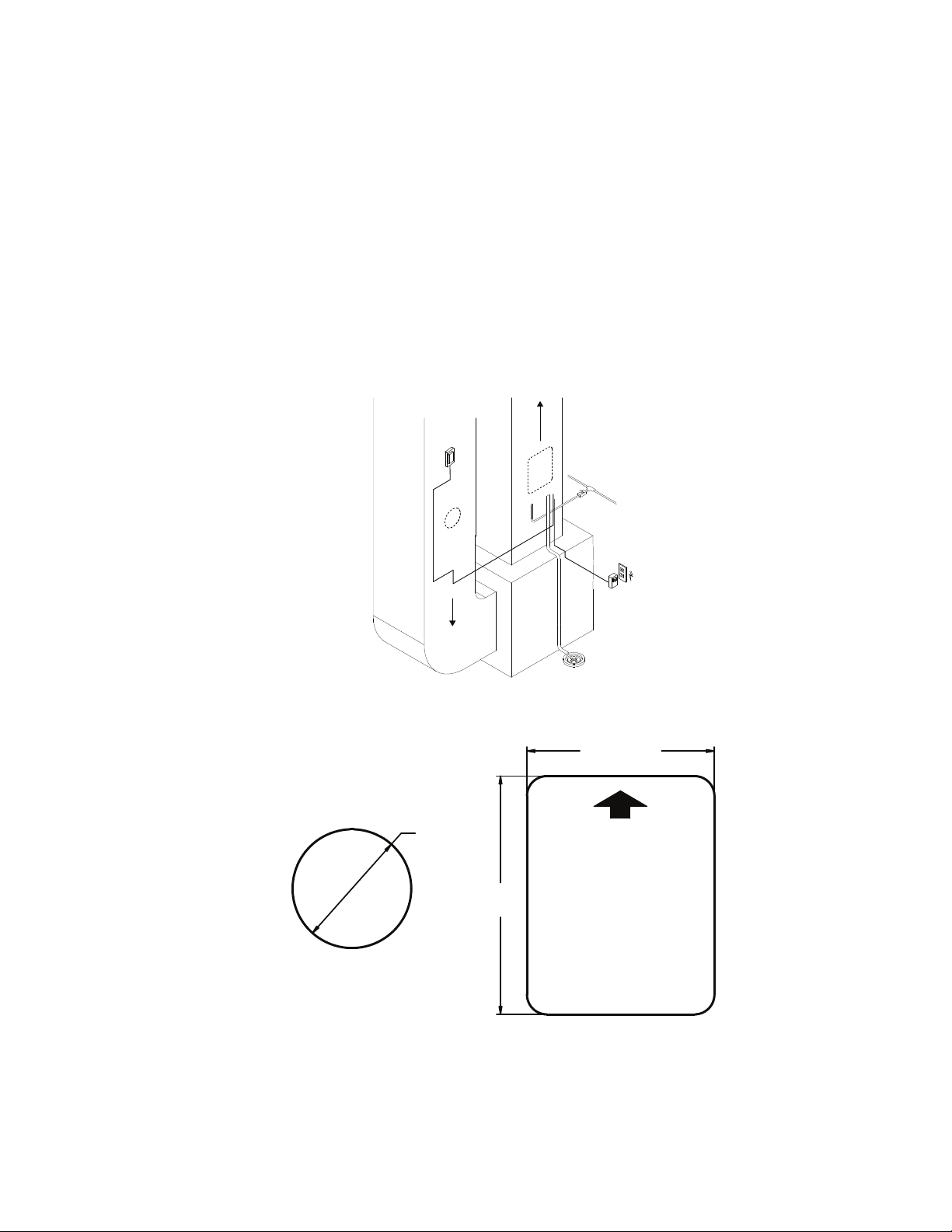

5.5.2 Mounting the Condair HumiLife RE
Figure 6 - Mounting location. The humidifier may also be placed on the return air duct.
Ø 6 in
152 mm
ADHERE TEMPLATE TO
DESIRED POSITION ON DUCT.
CUT METAL DUCT ALONG
OUTLINE.
ADHERE TEMPLATE TO
DESIRED POSITION ON DUCT.
CUT METAL DUCT ALONG
OUTLINE.
ENSURE ARROW UP
12 in
305 mm
9.45 in
240 mm
Figure 7 - Mounting Templates (supplied separately)
Condair RE Installation and Planning |15

16 |Installation and Planning Condair RE
Figure 8 - Mounting Procedure
To mount the humidifier:
1. Use the templates (supplied) to cut holes in the ducts.
a. Position the rectangle mounting template on the air duct. Ensure the template is level and
in the desired position.
b. Ensure that the humidifier will have the proper clearance.
c. Cut a rectangle into the air duct (return or supply). This hole will be for the humidifier body.
Width x Height: 9.45 x 12 in (240 x 305 mm)
d. From the center of the rectangle, draw a horizontal line towards the adjacent duct (return or
supply). Use the horizontal line as a rough guide. Align the center of the circle (of the circle
mounting template) on the adjacent duct, then place the template on the duct.
e. Cut a round hole into the other duct. This hole will be for the bypass duct.
Diameter: 6 in (152 mm)
2. (Optional) Change the orientation of the bypass opening (ex. from the left side opening to the
right). Required if the orientation of the humidifier does not fit with the current configuration of
your air ducts.
a. Remove the top cover, then the bottom cover of the humidifier. This will allow you to
access the tabs on the end caps of the bypass.
b. Push in the tabs on the bypass opening and the opposite end cap, and push out the end
cap and bypass opening. Switch their positions.
c. Reinstall the bypass opening/damper and end cap, then reinstall the bottom cover.
3. Mount the humidifier.
a. Remove the top cover from the humidifier.
b. Secure the support hooks on the humidifier to the bottom lip of the rectangular hole.
c. Push the top of the humidifier back against the duct and fasten the humidifier to the duct by
using two self-drilling sheet metal screws (provided).
d. Reinstall the top cover.

5.5.3 Installing the Bypass Duct
SUMMER
SUMMER
WINTER
Figure 9 - Bypass Duct (not supplied) and Damper Switch
To install the bypass duct:
1. Adjust the bypass duct and fix it to the circular hole of the air duct. Typically, the bypass duct
should have tabs for the air duct that can be folded outwards.
2. Extend the free end of the bypass duct to the humidifier and secure with sheet metal tape.
3. Depending on the season, switch the damper pad on the humidifier. This must be done
manually every season.
lSUMMER - damper closes and air does not pass through the humidifier.
lWINTER - damper opens and air passes through the humidifier.
Condair RE Installation and Planning |17

18 |Installation and Planning Condair RE

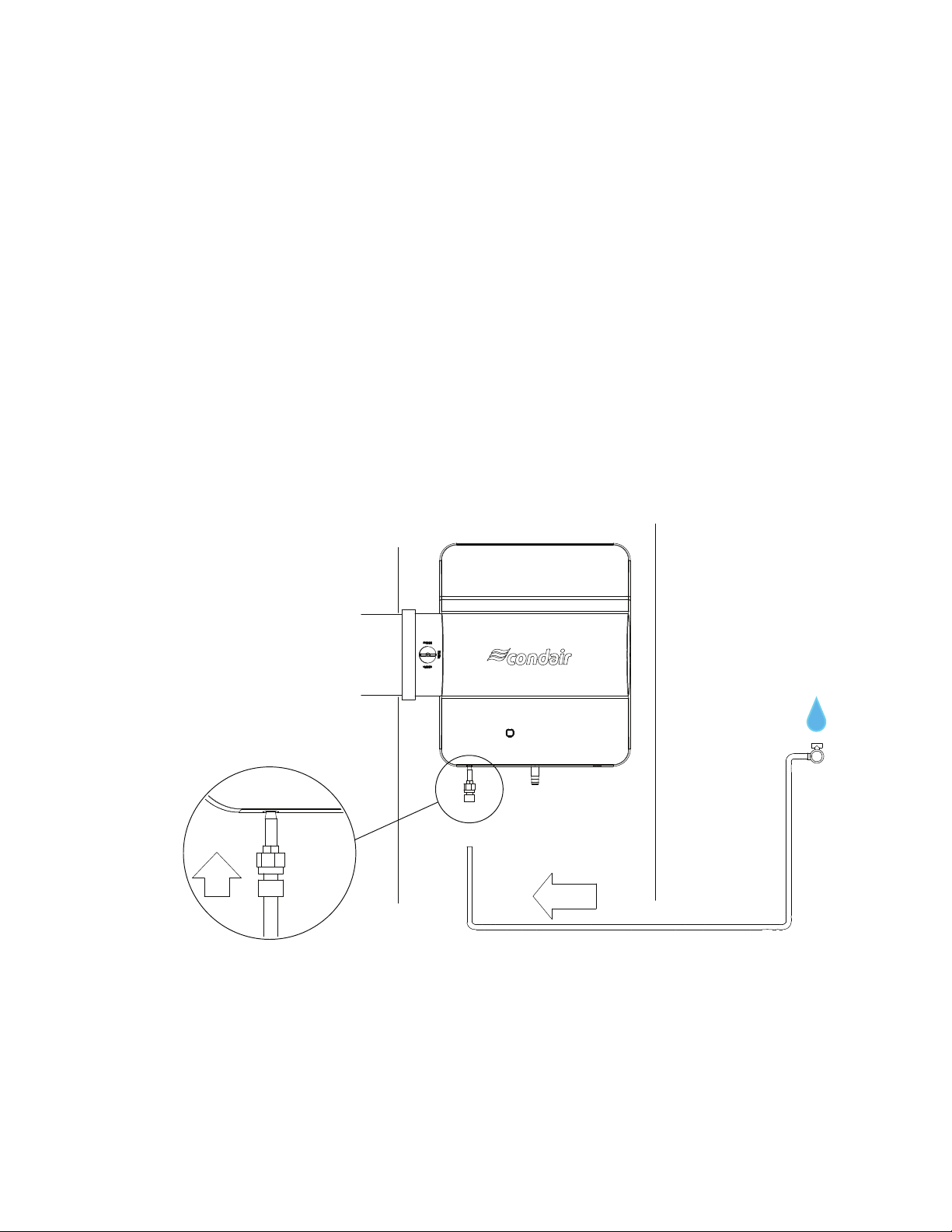

5.5.4 Connecting the Water Supply
Shut off the water supply before beginning.
To supply water to the humidifier:
1. Remove the protective sleeve on the inlet valve and install the white quick connector over the
inlet valve.
2. Measure and cut the water supply hose that will reach the humidifier from the water supply
valve.
lIf there is no spare line from the water supply, create one using a self-tapping saddle
valve (or install a T-fitting and valve). Refer to "Tapping into an Existing Water Line" on
the facing page. Consult local plumbing codes.
3. Insert the water supply hose into the quick connect fitting and ensure a tight fit.
4. Connect and tighten the water supply hose to the supply valve.
lPlastic hoses require brass tubing reinforcement. Use a plastic sleeve with a brass
compression nut.
lCopper tubes require a brass sleeve and brass compression nut.
5. Tighten the brass compression nut on the hose.
6. Turn the saddle valve counter-clockwise to allow water to enter the new line.
7. Check for leaks.
Figure 10 - Water Supply Connection

5.5.5 Tapping into an Existing Water Line
Note: You may also use a tee-fitting and shut-off valve from the existing water line. This may
require the use of a plumber.
Ensure the water supply is turned off.
The humidifier can use hot or cold water.
1
2
3
3
4
3 5 6 7
5 6
9
8
Figure 11 - Saddle Valve and T-fitting and Valve
1. Copper tubing
2. Plastic tubing
3. Supply line
4. Gasket
5. Compression nut
6. Protective sleeve
7. Reinforcement
8. Saddle valve
9. T-fitting valve and shut-off
IMPORTANT! Do not use the saddle valve to pierce plastic supply water pipes. Only rigid (copper
or steel) water lines can be used with the saddle valve. A T-fitting and shut-off valve must be used
with a plastic (or PEX) water supply line.
IMPORTANT! Ensure the piercing pin is completely backed up into the valve body by turning the
handle counter-clockwise.
IMPORTANT! Adhere to all local/national plumbing codes.
To tap into the water line (using the saddle valve on rigid pipe):
1. Loosely assemble one side of the top clamp to bottom clap with one screw and nut
(provided). For best results, mount the saddle valve on the top or side of the water supply
line. This prevents sediment from clogging the system.
2. Place the rubber gasket over the piercing pin of the top clamp, then place the gasket and
clamp over the water supply line.
3. Assemble the other side of the top and bottom clamps. The water supply line should be
pressed between the rubber gasket and bottom clamp.
4. Tighten the connection between the top and bottom clamps.
5. Connect the water line between the humidifier and saddle valve. Ensure the fittings (brass
nut, plastic sleeve, etc.) are installed.
lFor the plastic water line (supplied), from the saddle valve to the humidifier:
a. Place the brass compression nut over one end of the plastic water line. Ensure
the wider opening of the nut faces the saddle valve outlet.
b. Place the plastic sleeve over one end of the plastic water line.
c. Place the brass tubing reinforcement into the plastic water line.
Condair RE Installation and Planning |19

20 |Installation and Planning Condair RE
d. Insert the plastic water line into the saddle valve outlet. Push the brass
compression nut to the saddle valve, over the plastic sleeve, and over the brass
tubing reinforcement. The sleeve and reinforcement should be nested in the nut.
e. Secure the nut to the saddle valve.
f. Connect the other end of the plastic water line to the humidifier, at the inlet valve (or
quick connect, if installed)
6. Twist the handle on the saddle valve clockwise to pierce the water supply line. Twist counter-
clockwise to allow water through the saddle valve.
5.5.6 Connecting the Drain Line
To connect the drain line:
1. Connect the drain line to the spout on the humidifier and secure the hose with hose clamps.
2. Route the drain hose to a suitable drain. The hose must have a continuous downward slope (to
prevent standing water) and have no kinks. Suitable drains include:
lFloor drain
lSink
lSewer
3. Secure the hose along its length to prevent sagging.
Figure 12 - Drain Connection
