Condair HumiLife RH Series User manual

Quick Start Guide
Condair HumiLife – The proven steam solution
Condair RH
READ AND SAVE THESE INSTRUCTIONS
2594905_C_EN_2005_Condair-RH_SIOM
Humidification and Evaporative Cooling

2 2594905_C_EN_2005_Condair-RH_SIOM
CAUTION: Servicing
nThe unit is mains powered. Disconnect main power before any
servicing.
nElectrical compartment contains high voltage components. Access
should be limited to authorized personnel only.
nThe unit is hot. Wait for the unit to drain and cool before servicing.
During and following operation of the humidifier, the steam and
components in contact with the steam such as the steam lines,
steam distributors, and condensate lines can become hot and can
burn if touched.
nCondair does not accept any liability for installations of humidity
equipment installed by unqualified personnel, or the use of parts,
components, or equipment that are not authorized or approved by
Condair.
CAUTION: Electrical
nAll electrical work should be done according to all applicable local
and national codes.
nElectrical connection to be performed by a licensed electrician.
CAUTION: Plumbing
n(Recommended) Plumbing to be performed by a licensed plumber.
nDrain water from the humidifier can be very hot. Drain to an
appropriate floor drain.
nAll plumbing work should be done according to local plumbing code.
CAUTION: Installation
nDo NOT mount in area where freezing can occur.
nDo NOT mount on vibrating surface.
nDo NOT mount on the floor.
nDo NOT block the steam outlet.
n(Recommended) Install an air proving switch.
nDo install steam lines to prevent any restrictions that may cause
back-pressure in the humidifier.
nEnsure furnace fan is operating while the humidifier is generating
steam.
Thank you for choosing Condair.
What's in the box?
lCondair HumiLife RH Humidifier
lQuick Start Guide
lSteam Distributor & Gasket
lHumidity sensor (duct)
lWater (fill) hose, 20 ft (6 m)
lSteam hose, 5 ft (1.5 m)
lDrain hose, 10 ft (3 m)
lFittings
What you'll need
Condair HumiLife app. Find the app in the
AppStore®(iPhone) or GooglePlayStore(Android).
(required to finalize the installation)
Google Play (Android) App Store (iOS)
Access to:
lDrain
lWater supply
lForced air ventilation system
lWall studs (for wall mounted installations)
Tools:
lPhillips (+) screwdriver
lFlat-head (–) screwdriver
lPliers
lLevel
lHole saw, 1.2 in (30 mm) & 5/8 in (16 mm)
lDrill and bits
lBox cutter (or other sharp knife)
lWire cutter and wire stripper
Cautions and Warnings

2594905_C_EN_2005_Condair-RH_SIOM 3
Product Overview
Steam hose Steam distributor
Steam cylinder
Control board
Drain valve
Power button
& LEDs
Drain outlet
Water inlet

4 2594905_C_EN_2005_Condair-RH_SIOM

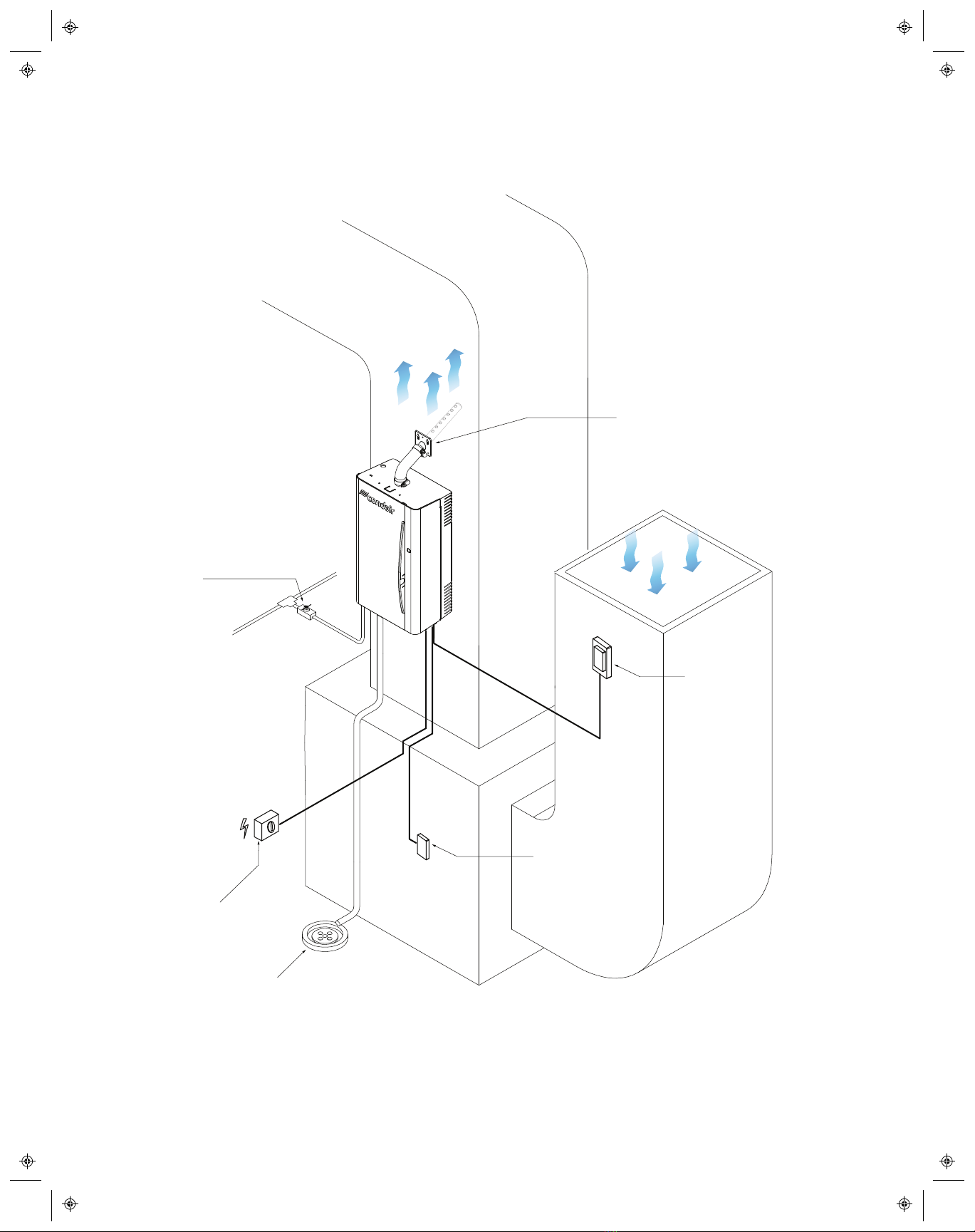

Installation Overview
Drain
Electrical
disconnect switch
or breaker
Furnace
Humidity
sensor*
Water shut-off valve
Steam distributor
*Use a humidity sensor OR an On/Off humidistat. Installing a high-limit sensor or controller is optional (but recommended).
See installation manual for more information.
Fan enable/
activation
Supply
Return

2594905_C_EN_2005_Condair-RH_SIOM 5
Location and Clearances
Important Considerations for the Steam Line
lInstall the humidifier below the steam distributor.
lInstall support brackets (one supplied with the humidifier) to prevent sagging in the steam line. If
sagging occurs, use additional support brackets.
lInstall the humidifier as close as possible to the steam distributor. Short distances minimize
condensate losses and reduces the possibility of back pressure in the steam line.
lBend radius: 6 in (150 mm) minimum.
lLength: 15 ft (4.5 m) maximum.
lSlope: 15° min. (up-slope), 2° max. (down-slope).
Note: install condensate traps at low points if the steam line has any down-slope.
lSteam line material: Condair steam hose (supplied), or properly insulated stainless steel or copper,
with max. surface temperature at 140 ° F (60 °C).
lClamp torque: 12 in-lb (1.36 Nm) (max. at humidifier outlet).
The Condair HumiLife RH may be installed on a wall and
remotely connect to your ventilation system, or directly onto
the ventilation duct.
When choosing the location for your humidifier, ensure there
is enough clearance for servicing and maintenance, and for
the installation of the steam line and steam distributor.
For remote installations, you will require a longer steam hose,
so consider the steam line recommendations below for
efficient humidification.
For installations on a wall, mount the unit on wall studs (2x4
or equivalent).
For installations directly on the duct, use the mounting
template (supplied) to locate pilot holes for mounting the unit
and installing the steam distributor.
(Recommended) Install the distributor first. The location of the
distributor will define the location of the humidifier.
152 mm
915 mm
610 mm
254 mm
265 mm
467 mm
175 mm
36 in
6 in
24 in
10 in
10.4 in
18.4 in
6.9 in
915 mm
36 in
Net / Full Weight
lb (kg)
Dimensions HxWxD
in (mm)
19 / 26lb (8.6 / 11.8 kg) 18.4 x 10.4 x 6.9 in (467 x 265 x 175 mm)
135 mm
118 mm
5.3 in
4.6 in
*Clearance dimensions shown are for reference only and are the
minimum required for maintenance of the humidifier.
*Consult local and national code before final location and installation.
*Condair does not accept responsibility for installation code violations.

6 2594905_C_EN_2005_Condair-RH_SIOM
Removing the Steam Cylinder
2
1.2 in
30 mm
Ø
1.2 in
30 mm
Ø
2/3
1/2
≥ 8 in (204 mm)
≥ 8 in (204 mm)
1
Horizontal Duct
Vertical Duct
Create a 1.18 in (30 mm) hole in the duct. Install distributor on
the supply duct, after the cooling coil, and before any bends or
obstructions.
For horizontal ducts, cut the hole at roughly 2/3 of duct height,
from the top.
For vertical ducts, cut the hole halfway between the two sides of
the duct.
Place a gasket over the steam distributor and
insert the distributor into the duct. Ensure that the
arrows on the distributor are pointing up. Secure
the distributor to the duct with self-tapping screws.
Installing the Steam Distributor
21 3
Open the door to the humidifier. Pull the lever upwards. The lever
will push the cylinder out.
Pull the cylinder out of the humidifier.

2594905_C_EN_2005_Condair-RH_SIOM 7

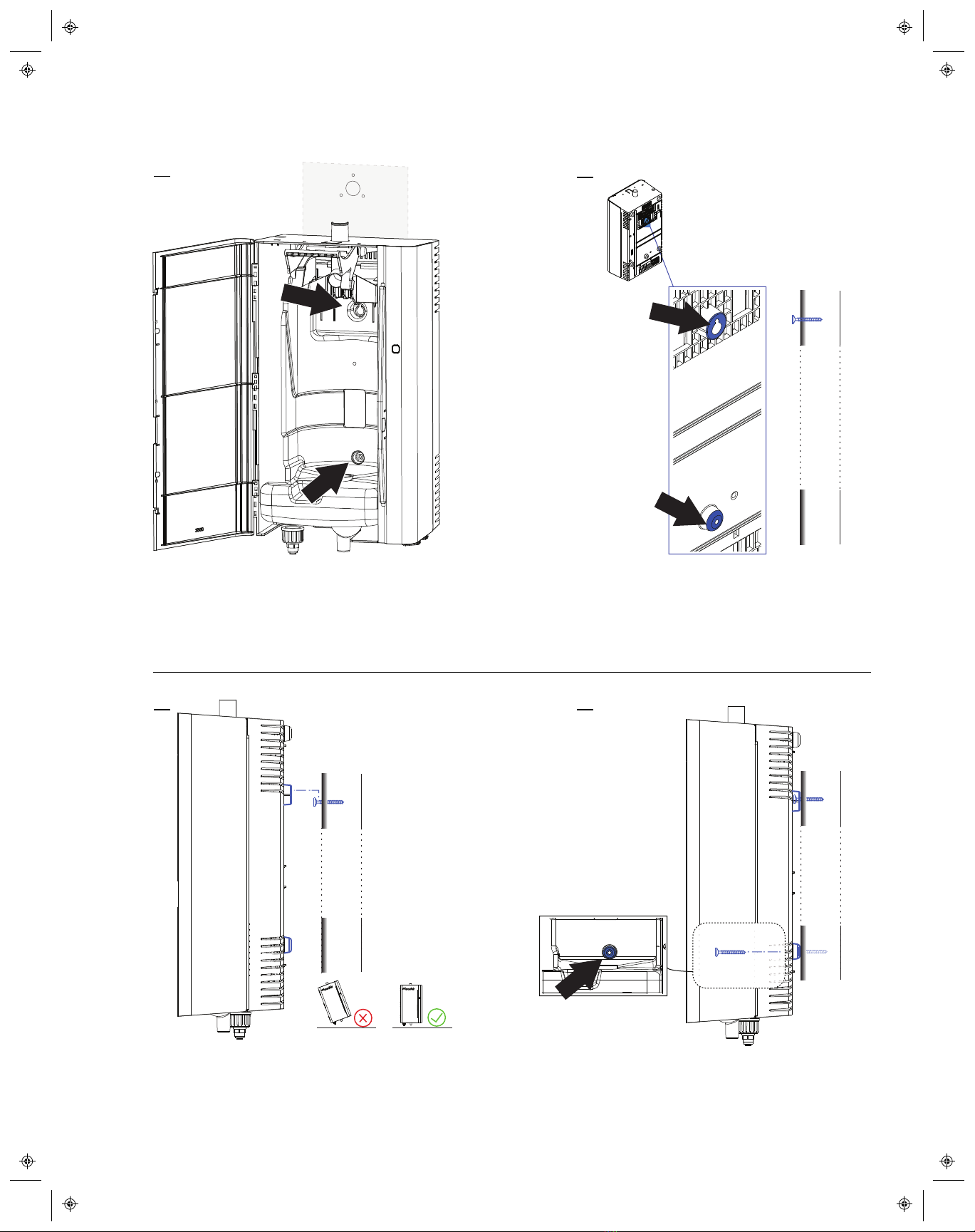

Mounting Your Humidifier
A
A
A
B
B
A
A
B
B
12
3 4
Duct or Wall Stud
Raise and hang the humidifier on the screw A. Ensure the
unit is level.
Through the inside of the humidifier, insert and tighten a
screw into the lower mounting hole B. Tighten the top
screw at A.
Open the door to the humidifier. Remove the steam cylinder
if it is installed.
Tip: For installations directly on the duct, place the mounting
template on the duct and secure with tape. The template will
show you where to cut a hole for the distributor.
On the wall stud (2x4 or equivalent) or duct, mark the
location for the key hole A(on the back of the humidifier).
Insert a screw at A. Leave space on the screw to hang
the humidifier.
template

8 2594905_C_EN_2005_Condair-RH_SIOM
Installing the SteamLine
1 in
25 mm
Ø
1 in
25 mm
Ø
1 in
25 mm
Ø
1 in
25 mm
Ø
≥15°
Connect the steam hose to the humidifier and route it to the steam distributor, outer diameter 1 in (25 mm). Secure
with clamps.
*Do NOT exceed max recommended steam line length of 15 ft (4.5 m).
*Do NOT over tighten hose clamps 12 in-lb (1.36 Nm) at steam outlet.
Consult the Installation Manual for complete details and steam line considerations.
0.80 in
20 mm
Ø
** 140 °F
60 °C
0.25 in
6.35 mm
Ø
Water Supply Requirements
Quality: Potable water (do not use reverse
osmosis or deionized water)
Pressure: 30 - 80 psig (2 - 5.5 bar)
Temperature: 39 - 86 °F (4 - 30 °C), cold water
Conductivity: 125 - 1250 µS/cm
Other: lWater shut-off valve installed
before the humidifier (for service).
lInstalled according to national and
local plumbing code.
Drain line*
Water supply line*
Installing the water and drain connection:
1. Connect the water supply inlet adapter to the
humidifier.
2. Install a water shut-off valve and connect the
water supply to the adapter.
3. Connect the drain hose to the humidifier and
route it to a suitable drain (floor). Ensure that
the drain hose flows to the drain in a continuous
down-slope (1.2°).
Valve (not supplied)
*Supplied.
** Drain temperatures may be high if the fill or drain valve are malfunctioning.
Consult the Installation Manual for drain connection and drain line
considerations and requirements.
Installing the Water and Drain Connections

2594905_C_EN_2005_Condair-RH_SIOM 9
Installing the Electrical Connection and Controls
X1
L
1
L
2/N
G
ND/PE
BA
+
-
HOT
HOT
GND
HOT
N
GND
230 VAC
120 VAC
R G
C
Q1Q1
GF RF GT E XT
2 4VD C GND LIM 2 4VD C
SC SC
GND HUM 2 4VD C
X2
X3
X4 X5
208 VAC
Electrical
Disconnect Switch
A: Humidity control sensor or controller
B: Jumper (refer to installation manual for more
information)
C: Fan activation, connect to HVAC system
Q1: External disconnect or breaker
Humidity
sensor*
Power Supply**
Controls/Sensors**
Model Voltage
V
Power
kW
Current
A (MCA)
Phase
Freq.
Max Ext
Fuse
A (MOCP)
Condair
RH -
NAP,
22
110-120
208
220-240
1.4
2.5
2.9
12.0
Phase
1,
50/60
Hz
15
*for other control devices, refer to installation manual.
** route cables and wires though strain relief clamps.
Consult the Installation Manual for electrical connection requirements and guidelines.
Fan
activation

10 2594905_C_EN_2005_Condair-RH_SIOM
Connecting to the Condair HumiLife App
Download the Condair HumiLife app from
the App Store (iPhone) or Google Play Store
(Android).
Open the app and allow it to load. Press Add
Device.
Turn on the humidifier by pressing the power button for 2 seconds.
Press and hold the power button on the humidifier for 5 seconds (the
WiFi LED will start flashing). Once the connection is established,
follow the on-screen instructions to configure your humidifier.
Downloading the Condair HumiLife App
Google Play (Android) App Store (iOS)
Use your phone's camera or QR scanner to go to Google Play (Android) or the App Store (iOS).

Disclaimer
This Quick Start Guide (the “QSG”) provides basic product and installation overview of the Condair Humilife Humidifier (the “Humilife Humidifier”) and
is for general information purposes only. The general installation guidelines contained herein do not purport to cover all details of the Humilife
Humidifier nor do they provide for every contingency met in connection with installation. Please consult the complete Installation Manual and
Operation Manual for a more comprehensive installation guide and for general operation, maintenance, and troubleshooting information, including
Condair’s suggested storage, packaging, and transportation guidelines. The Installation Manual and Operation Manual contain specific system,
accessories, and components. Copies of the complete Installation Manual and Operation Manual can be found at: www.condairhumilife.com . Please
read all Cautions and Warnings before installing and using the Humilife Humidifier.
All electrical connections must be installed in accordance with local and national electrical code requirements by a licensed electrician.
All water supply and drain line connections must be installed in accordance with local plumbing codes by a licensed plumber.
Condair does not accept any liability for installations of humidity equipment installed by unqualified personnel or the use of
parts/components/equipment that are not authorized or approved by Condair.
Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and receiver.
lConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
lConsult the dealer or an experienced radio/TV technician for help.

Warranty
Condair Inc. and/or Condair Ltd.(hereinafter collectively referred to as THE COMPANY), warrant for a period of five years from the date of purchase by
the customer, that THE COMPANY’s manufactured and assembled products, not otherwise expressly warranted, are free from defects in material and
workmanship. No warranty is made against corrosion, deterioration, or suitability of substituted materials used as a result of compliance with government
regulations.
THE COMPANY’s obligations and liabilities under this warranty are limited to furnishing replacement parts to the customer, F.O.B. THE COMPANY’s
factory, providing the defective part(s) is returned freight prepaid by the customer. Parts used for repairs are warranted for the balance of the term of the
warranty on the original humidifier or 90 days, whichever is longer.
The warranties set forth herein are in lieu of all other warranties expressed or implied by law. No liability whatsoever shall be attached to THE COMPANY
until said products have been paid for in full and then said liability shall be limited to the original purchase price for the product. Any further warranty must
be in writing, signed by an officer of THE COMPANY.
THE COMPANY’s parts or materials that are considered consumables, including but not limited to: cylinders, filters, nozzles, membranes, media, gaskets,
O-rings, etc. are NOT covered by the warranty.
THE COMPANY makes no warranty and assumes no liability unless the equipment is installed in strict accordance with a copy of the catalog and
installation manual in effect at the date of purchase and by a contractor approved by THE COMPANY to install such equipment.
THE COMPANY makes no warranty and assumes no liability whatsoever for consequential damage or damage resulting directly from misapplication,
incorrect sizing or lack of proper maintenance of the equipment.
THE COMPANY makes no warranty and assumes no liability whatsoever for damage resulting from freezing of the humidifier, supply lines, drain lines, or
quality of the water used.
THE COMPANY retains the right to change the design, specification and performance criteria of its products without notice or obligation.
THE COMPANY’s limited warranty on accessories, not of the companies manufacture, such as controls, humidistats, pumps, etc. is limited to the warranty
of the original equipment manufacturer from date of original shipment of humidifier.
Tel: [phone], Fax: [phone]
Email: [e-mail]
Website: www.condairhumilife.com
