Condair Nortec EL-Series User manual

OPERATION AND
MAINTENANCE MANUAL
Electrode Steam Humidifier
Nortec EL-Series
2582954_D_EN_1811_Nortec-EL_OM
Humidication and Evaporative Cooling
NORTEC
IMPORTANT! Read and save these instructions. This manual to be left with the equipment.

Thank you for choosing Condair
Installation date (DD/MM/YYYY):
Commissioning date (DD/MM/YYYY):
Site:
Model:
Serial number:
Proprietary Notice
This document and the information disclosed herein are proprietary data of Condair Ltd. Neither this document, nor
the information contained herein shall be reproduced, used, or disclosed to others without the written authorization
of Condair Ltd., except to the extent required for installation, operation or maintenance of the customer's equipment.
Liability Notice
Condair Ltd. does not accept any liability due to incorrect installation, maintenance or operation of the equipment,
or due to the use of parts/components/equipment that are not authorized by Condair Ltd.
Copyright Notice
© Condair Ltd, All rights reserved.
Technical modication rights reserved.

3Contents
Nortec EL 2582954_D_EN_1811_Nortec-EL_OM
Contents
1 Introduction 5
1.1 Before You Start! 5
1.2 General 5
2 For Your Safety 7
3 Product Overview 9
3.1 General Description 9
3.2 Functional Description 10
4 Operator Interface 13
4.1 Controls 13
4.2 Control Software 15
4.2.1 Home Screen 15
4.2.2 General Navigational Elements 16
4.2.3 Operating Status 16
4.2.4 Maintenance and Fault Status 17
4.2.5 Help 18
4.2.6 System Information 18
4.2.7 Main Menu 25
4.2.7.1 Conguration Menu 27
4.2.7.2 Service Menu 48
4.2.7.3 Administrator Menu 52
4.3 Software Conguration 54
4.3.1 Conguring the Control Software 54
4.3.2 Conguring for Multi-Unit Operation 55
5 Operation 57
5.1 General 57
5.2 Operating Procedures 58
5.2.1 Starting Up 58
5.2.2 Remote Monitoring 58
5.2.3 Inspections During Operation 59
5.2.4 Manually Initiate Steam Cylinder Draining 59
5.2.5 Exporting Trend Data 60
5.2.6 Shutting Down 62
5.2.7 Restarting After Shutdown 62
6 Maintenance 63
6.1 General 63
6.2 Maintenance List 64
6.2.1 Regular Replacement of Steam Cylinder(s) 64
6.2.2 Regular Maintenance of Steam Humidier 64
6.3 Maintenance Procedures 65
6.3.1 Removal and Installation of Door Panels 65
6.3.2 Removal and Installation of Steam Cylinder 66
6.3.3 Removal and Installation of Drain Valve 68
6.3.4 Replacement of Backup Battery and Fuses 69

4Contents 2582954_D_EN_1811_Nortec-EL_OM Nortec EL
6.4 Cleaning 71
6.4.1 Cleaning Agents 71
6.4.2 Cleaning Procedures 71
6.5 Resetting Cylinder 72
6.6 Installing Software and Firmware Updates 73
7 Fault Isolation 75
7.1 General 75
7.2 Fault Indication 75
7.3 General Troubleshooting 76
7.4 Nortec EL Warning and Fault List 78
7.5 Exporting Fault and Service History 83
7.6 Resetting Fault Status 83
8 Wiring Diagrams 85
9 Decommissioning 89
9.1 General 89
9.2 Removal from Service for Disposal or Long-term Storage 90
9.3 Disposal/Recycling 90
10 ProductSpecications 91
10.1 Performance Data 91
10.2 Operating Data 91
10.3 Size and Weight 92
10.3.1 Size 92
10.3.2 Weight 92

5Introduction
Nortec EL 2582954_D_EN_1811_Nortec-EL_OM
1 Introduction
1.1 Before You Start!
Thank you for purchasing the Nortec EL steam humidier.
The Nortec EL steam humidier incorporates the latest technical advances and meets all recognized
safety standards. Never-the-less, improper use of the Nortec EL steam humidier may result in danger
to the user or third parties, and/or damage to property.
To ensure safe, proper and economical operation of the Nortec EL steam humidier, observe and comply
with all information and safety instructions contained in this manual, as well as all relevant documenta-
tion of components of the installed humidication system.
If you have additional questions, contact your local Condair representative. They will be glad to assist you.
1.2 General
Limitations
The subject of this manual is the Nortec EL steam humidier. The various options and accessories may
only be described in-so-far as is necessary for proper operation of the equipment. Additional information
on options and accessories can be obtained in the instructions that are supplied with them.
This manual is restricted to the operation and maintenance of the Nortec EL steam humidier, and is
intended for well trained personnel who are suitably qualied for their respective tasks.
Symbols Used in This Manual
CAUTION!
The word "CAUTION" in conjunction with the general caution symbol is used to provide safety
instructions that, if neglected, may cause damage and/or malfunction of the unit or damage to
property.
WARNING!
The word "WARNING" in conjunction with the general warning symbol is used to provide safety
instructions that, if neglected, may cause injury to personnel. Other specic warning symbols may
also be used in place of the general symbol.
DANGER!
The word "DANGER" in conjunction with the general danger symbol is used to provide safety
instructions that, if neglected, may cause severe injury to personnel or even death. Other specic
danger symbols may also be used in place of the general symbol.

6Introduction 2582954_D_EN_1811_Nortec-EL_OM Nortec EL
Other Related Publications
This operation manual is supplemented by other publications such as the installation manual, spare
parts list, etc., which are included in the delivery of the equipment. Where necessary, appropriate cross-
references to these publications have been added in this manual.
Storage of Manual
Keep this manual in a place where it is safe and readily accessible. If the equipment is moved to another
location, make sure that the manual is passed on to the new user.
If the manual is lost or misplaced, contact your local Condair representative for a replacement copy.

7For Your Safety
Nortec EL 2582954_D_EN_1811_Nortec-EL_OM
2 For Your Safety
General
Every person who is tasked with the operation and maintenance of the Nortec EL steam humidier must
read and understand this manual before performing any work. Knowing and understanding the contents
of the operation manual is a basic requirement for protecting personnel against any kind of danger,
preventing faulty operation, and operating the unit safely and correctly.
All labels, signs and marking applied to the Nortec EL steam humidier must be observed and kept in
a readable state.
PersonnelQualications
All procedures described in this manual must only be performed by personnel who are adequately quali-
ed, well trained and are authorized by the customer.
For safety and warranty reasons, any activity beyond the scope of this manual must only be performed
by qualied personnel authorized by Condair.
All personnel working with the Nortec EL steam humidier must be familiar with, and comply with the
appropriate regulations on workplace safety and prevention of accidents.
Intended Use
The Nortec EL steam humidier is intended exclusively for air humidication using a Condair-approved
steam distributor or blower pack within specied operating conditions (refer to "Operating Data" on page 91
for details). Any other type of application, without the express written consent of Condair, is considered
to be not conforming to its intended purpose, and may lead to dangerous operation and will void the
warranty.
In order to operate the equipment in the intended manner all information contained in this manual, in
particular the safety instructions, must be observed closely.
DangersthatmayarisefromtheNortecELsteamhumidier:
DANGER!
Risk of electric shock!
The NortecELsteamhumidierismainspowered.Livepartsmaybeexposedwhenthedoor
panels are removed. Touching live parts may cause severe injury or even death.
Prevention:Before performing any work inside the Nortec EL steam humidier, shut down the
humidier properly and secure it against accidental power-up as described in "Shutting Down" on
page 62.
WARNING!
Riskofsevereburnsfromexposuretohotsteamvapours!
TheNortecELsteamhumidierproduceshotsteamvapours.Contactwiththehotsteam
vapours can result in severe burns.
Prevention:Never perform any work on the steam system (including the steam lines, steam dis-
tributors, etc.) while the humidier is operating. Shut down the Nortec EL steam humidier, as
described in "Shutting Down" on page 62 before xing any leaks in the steam system.

8For Your Safety 2582954_D_EN_1811_Nortec-EL_OM Nortec EL
WARNING!
Risk of severe burns from contact with hot surfaces!
Components of the stream system (including the steam cylinder, steam distributors, etc.)
get up to 212°F (100°C) during operation. Contact with the hot surfaces can result in severe
burns.
Prevention:Shut down the Nortec EL steam humidier as described in "Shutting Down" on page 62
and wait for the components to cool down before performing any work on the steam system.
CAUTION!
Risk of damage to internal components from electrostatic discharge (ESD)!
Theelectroniccomponentsinsidethehumidieraresensitivetoelectrostaticdischarge
(ESD).
Prevention: Take appropriate measures to protect the electronic components inside the unit against
damage caused by electrostatic discharge (ESD). Refer to ANSI/ESD-S20.20.
Preventing Unsafe Operation
If it is suspected that the Nortec EL steam humidier cannot be operated safely for any of the reasons
listed below, shut it down immediately, as described in "Shutting Down" on page 62,and secure it against
accidental power-up.
• Humidier is damaged
• Electrical connections are loose or damaged
• Humidier is not operating properly
• Leaks in the steam system
All personnel working with the Nortec EL steam humidier must immediately report to the customer any
alternations to the humidier that may a󰀨ect safety.
ModicationsProhibited
Modicationsarenotpermitted on the Nortec EL steam humidier without the express written consent
of Condair.
Always use original Condair replacement parts and accessories available through your local Condair
representative.

9Product Overview
Nortec EL 2582954_D_EN_1811_Nortec-EL_OM
3 Product Overview
3.1 General Description
The Nortec EL steam humidier is an atmospheric steam generator, which operates on the electrode
heating principle. It is designed for direct room humidication using a blower pack, or humidication
through the ducts in an air handling unit using a steam distributor.
The Nortec EL steam humidier has state-of-the-art features. It has an integrated control board which
not only controls the humidier, but also allows the humidier to be connected to a building automation
system (BACnet, Lonworks, Modbus) or the internet so it can be controlled and monitored remotely.
In addition, up to six humidiers (12 cylinders) can be set up in a main-extension conguration using
Condair's Linkup system to satisfy large humidication needs.
The Nortec EL steam humidier comes in three di󰀨erent housing sizes – small, medium and large. The
small and medium size models have a single steam cylinder, while the large model is equipped with
dual steam cylinders. Each steam cylinder has its own dedicated driver board to receive control signal
inputs. The dual driver boards allow the large models to be congured to operate in series, in parallel
or independent mode to control humidity in one or more zones depending on how they are congured.
Figure 1 shows the various components of the Nortec EL steam humidier (door panels removed for clarity).
Figure 1:
1
2
3
5
8
9
12
13
15
16
17
18
19
21
23
25
6
10
11
20
22
24
14
4
7
Nortec EL Steam Humidier (Medium size model shown)
1 Main contactor, K1
2 Driver board
3 Terminal block, high voltage supply
4 Specication label
5 Transformer
6 Remote fault indication PCB
7 Integrated control board
8 Cylinder strap
9 Electrode plug
10 Steam outlet hose (optional)
11 Steam adaptor (optional)
12 Sensor, high water level (orange wire)
13 Low voltage terminal
14 Front panel
15 Touchscreen display
16 On/Off switch
17 Drain canal
18 Drain valve
19 Steam cylinder
20 Fill hose (ll cup to cylinder)
21 Fill valve
22 Fill hose (ll valve to ll cup)
23 Steam outlet, steam cylinder
24 Overow hose
25 Fill cup

10 Product Overview 2582954_D_EN_1811_Nortec-EL_OM Nortec EL
3.2 Functional Description
Refer to Figure 1 on page 9 and Figure 2 on page 11.
Water Supply
Water enters the humidier through the ll valve into the open ll cup with integral air gap, and then ows
down through the ll hose into the steam cylinder.
Steam Generation
When the humidier receives a signal to supply steam the contactor closes, and after a 60 second delay
the ll valve opens and water enters the bottom of the steam cylinder, as described above.
As soon as the electrodes come in contact with the water, current begins to ow between the electrodes,
generating heat. As the water level continues to rise, more surface of the electrodes come in contact
with the water. This results in more current draw. Once the water has heated to the boiling point, steam
will be produced. (Note: On rst startup when the conductivity level of the water is low, it may take 30-
60 minutes for water to heat su󰀩ciently to produce steam).
When the steam output reaches the requested level, the ll valve closes. As water is evaporated, the
water level and current drop. When the current falls below a certain percentage of the requested level,
the ll valve opens to raise the water level and the current and maintain the required steam output level.
When the actual output is higher than the requested steam output, the ll valve remains closed until
the desired output level is achieved through a gradual lowering of the water level due to evaporation.
Water Level Monitoring
A sensor monitors the high water level in the steam cylinder. When the sensor detects the high water
level, the ll valve closes to prevent over-lling.
Drainage
As the evaporation process continues, the conductivity level of the water increases due to the increasing
levels of residual minerals left behind as the water turns into steam. This a󰀨ects the current draw, which
can rise beyond optimal levels. To prevent this from happening, the Nortec EL's auto-adaptive control
algorithm periodically drains some concentrated water in the cylinder and replaces it with fresh water.
Control
Steam production can be controlled using the continuous proportional (P) or the proportional-integral
(PI) controller internal to the humidier, or an external modulating controller, or with an On/O󰀨 control
signal from an external humidistat.

11Product Overview
Nortec EL 2582954_D_EN_1811_Nortec-EL_OM
Figure 2:
min. 10 ft (3m)
B or min. 8-10 ft (2.4-3m)
n
1, 2
4
5
6
7
8
9
10
12
13
2, 3
11
Nortec EL Duct Humidication
1 High limit On/Off humidistat (external safety chain)
2 Humidity sensor or modulating humidistat (used for
control of space in return duct, or high limit in supply duct)
3 On/Off humidistat (used for humidity control)
4 Steam line
5 Electrical disconnect, high voltage supply
6 Drain line
7 Air gap with optional trap
8 Water supply
9 Condensate line
10 Steam distributor
11 Air proving switch (external safety chain)
12 Supply air duct
13 Return air duct

12 Product Overview 2582954_D_EN_1811_Nortec-EL_OM Nortec EL
Figure 3:
1
2
3
4
5, 6
7
8
9
10
11
12
Nortec EL Direct Room Humidication
1 Blower pack, remote-mounted
2 Steam line
3 Blower pack, built-on
4 High level On/Off humidistat (external safety chain)
5 Humidity sensor or humidistat (used for control of space humidity or high limit)
6 On/Off humidity control
7 Electrical disconnect, high voltage supply
8 Drain line
9 Air gap with optional trap
10 Water supply
11 Condensate drain line (routed to oor drain)
12 Condensate drain connection through ll cup to steam cylinder (for remote blower pack)

13Operator Interface
Nortec EL 2582954_D_EN_1811_Nortec-EL_OM
4 Operator Interface
4.1 Controls
The operator interface in the Nortec EL steam humidier is located on the front of the unit – refer to
Figure 4. It consists of a touchscreen display with a LED status indicator, and an On/O󰀨 switch. Refer to
Table 1 on page 14 for a description of each of these elements.
Figure 4:
2
3
1
Nortec EL Operator Interface
1 Touchscreen display
2 LED status indicator
3 On/Off switch
DANGER!
Risk of electric shock!
The control cabinet in the NortecELsteamhumidierhaslivevoltage.Turningo󰀨theunit
attheOn/O󰀨switchdoesnotshuto󰀨powertothecontrolcabinet.Touchinglivepartsmay
cause severe injury or even death.
Prevention:Shut down the humidier properly as described in "Shutting Down" on page 62 before ac-
cessing the control cabinet in the humidier.

14 Operator Interface 2582954_D_EN_1811_Nortec-EL_OM Nortec EL
Table 1: Operator Interface Element Functions
Element Description
Touchscreen display Allows the user to monitor or control the Nortec EL humidier. Refer to
"Control Software" on page 15 for details of the software interface.
LED status indicator The status LED is a multi-function LED, which lights up in di󰀨erent colors
depending on the operating status of the humidier.
Green: indicates that the Nortec EL is operating normally and humidifying.
Flashing Green: indicates that the Nortec EL is in standby mode.
Yellow: indicates that a warning condition is present, or the humidier is
due for maintenance.
Red: indicates that a fault condition is present, and humidication is
stopped. Note: On units with a dual steam cylinders, it indicates that a
fault condition exists in one or both steam cylinders, and humidication is
stopped in the steam cylinder(s) with the fault condition.
On/O󰀨 switch Allows the user to turn the Nortec EL humidier on or o󰀨.

15Operator Interface
Nortec EL 2582954_D_EN_1811_Nortec-EL_OM
4.2 Control Software
The control software runs in the background and controls all the functions of the Nortec EL steam humidier.
The user interacts with the control software through the screens on the touchscreen display. Details of
the screens are described in the sections below.
Note: The screens shown in this chapter are for representation purposes only, and may di󰀨er from what
is displayed on your humidier.
4.2.1 Home Screen
When the Nortec EL steam humidier is turned on, it starts initializing and performs system checks.
When initialization and system checks are completed successfully, it goes into the normal operating
mode. The Home screen then appears on the touchscreen display.
The major elements of the Home screen are shown in Figure 5.
Figure 5:
2
3
4
5
6
7
8
9
10
1
11
Home Screen Elements
1 Current date and time
2 Operating status message – refer to "Operating Status" on page 16 for details.
3 Humidity control information – shows the type of control signal and the steam output requested.
4 Service/Warning/Fault status message – refer to "Maintenance and Fault Status" on page 17 for details.
5 Steam Cylinder selector. Only available on units with dual steam cylinders, and units controlled by the Linkup system. Select the ap-
propriate tab to view its status on the Home screen.
6 <Help> button – access technical support help information. Refer to "Help" on page 18 for details.
7 <Drain> button – manually initiate the drain function. Refer to "Manually Initiate Steam Cylinder Draining" on page 59 for details.
8 <About> button – access the system information. Refer to "System Information" on page 18 for details.
9 <Menu> button – access the Main menu. Refer to "Main Menu" on page 25 for details.
10 Visual indication of the current steam output level.
11 Condair humidier model number

16 Operator Interface 2582954_D_EN_1811_Nortec-EL_OM Nortec EL

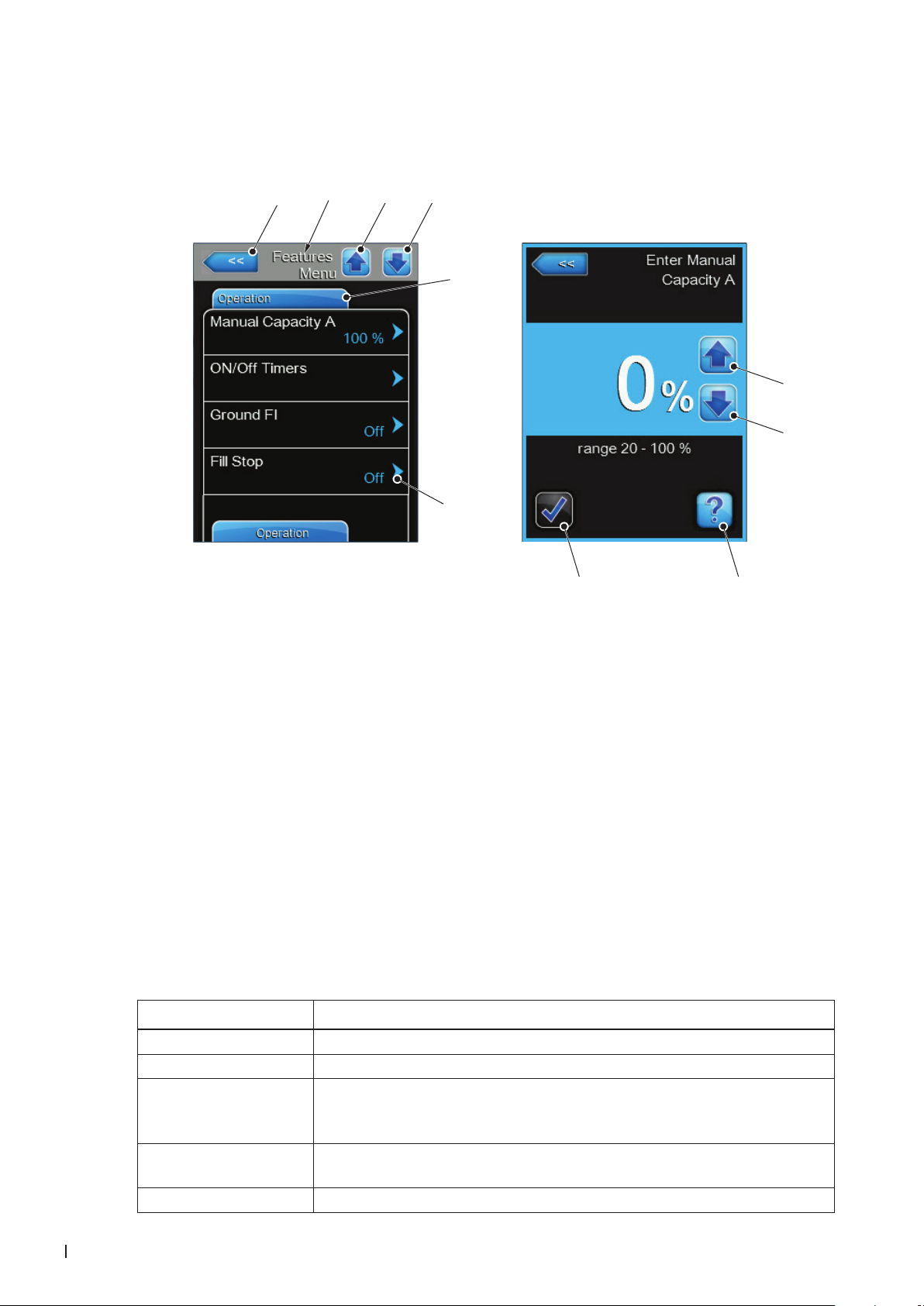

4.2.2 General Navigational Elements
Figure 6 show the general navigational elements/features of the screens on the touchscreen display.
Figure 6:
1234
5
6
7
8
9
10
General Navigational Elements
1 Return button – cancel and return to previous menu level.
2 Current menu/sub-menu selection
3 Previous Tab button – return to the previous tab in the current menu/sub-menu selection.
4 Next Tab button – continue/go to the current/next tab in the menu/sub-menu selection.
5 Current tab
6 Increase button – increase the setpoint value.
7 Decrease button – decrease the setpoint value.
8 Help button – access context-sensitive help.
9 Conrm button – conrm the change/selection. Changes will not be stored if this button is not pressed.
10 Additional information icon – access additional information.
4.2.3 Operating Status
The operating status area of the Home screen (refer to Figure 5) shows the current operating status
message and an associated status icon. The messages are described in Table 2, and the status icons
are described in Table 3 on page 17.
Table 2: Operating Status Descriptions
Message Description
Standby The humidier is in standby mode (no humidity demand).
Draining The humidier is draining the steam cylinder.
Idle Drain There has been no demand for humidity for an extended period of time.
The idle drain function has drained the humidier. The humidier will auto-
matically rell when it receives a humidity demand.
Partial Drain There has been no demand for humidity for an extended period of time.
The partial drain function has drained the water o󰀨 of the electrodes.
Humidifying The humidier is generating steam.

17Operator Interface
Nortec EL 2582954_D_EN_1811_Nortec-EL_OM
Message Description
Keep Warm The humidier is in standby mode, and the keep warm function is activated.
Disabled The Nortec EL humidier is disabled by the BMS (building management
system).
Stopped The humidier is stopped because a condition with a "Fault" status is
active.
Safety Loop One or more contacts in the external safety loop is open, so the humidier
has stopped producing steam.
Blower Pack The blower pack input signal to the humidier is open. The humidier will
not produce steam.
Warning A condition with a "Warning" status is active. In addition, the message
"Warning" is shown in the maintenance/fault status area of the Home
screen. The humidier will continue to produce steam when there is a
demand (unless the warning relates to a control signal).
Fault A condition with a "Fault" status is active. The humidier is stopped. In ad-
dition, the message "Fault" is shown in the maintenance/fault status area
of the Home screen.
Table 3: Status Icon Descriptions
Icon Description
The icon appears to the left of the operating status message or the main-
tenance/fault message when the system is working normally.
The icon appears to the left of the maintenance/fault status message
when a maintenance reminder or a condition with a "Warning" status is
active. The humidier will continue to produce steam when there is a
demand (unless the warning relates to a control signal).
The icon shown appears to the left of the maintenance/fault status mes-
sage when a condition with a "Fault" status is active. The humidier stops
producing steam.
4.2.4 Maintenance and Fault Status
The Service/Warning/Fault status area of the Home screen (refer to Figure 5 on page 15) shows mainte-
nance reminders, maintenance and fault status messages along with associated status icons. This eld
also allows access to the "Service Menu". When a maintenance reminder, warning or fault status message
is active, the Fault History list can be accessed directly from this eld to view additional details.
The general maintenance reminders and alarm messages displayed in this area are described in Table 4,
and the status icons are described in Table 3. Refer to "Warning and Fault List" on page 78 for a detailed list
of warning and fault messages.
Table 4: Maintenance/Fault Status Descriptions
Message Description
Service info No faults conditions present.
Cylinder Spent This message appears if the control software has detected that the steam
cylinder is lled with scale and can no longer achieve the required output.
If the steam cylinder is not replaced, and the maintenance cylinder is not
reset within 72 hours (run time), a corresponding fault message appears.
Replace the steam cylinder, then reset the maintenance cylinder in the
Service menu. Refer to "Removal and Installation of Steam Cylinder" on page 66.

18 Operator Interface 2582954_D_EN_1811_Nortec-EL_OM Nortec EL
Message Description
Warning A condition with a "Warning" status is active. Depending on the warning
condition, the Nortec EL humidier will continue to produce steam when
there is a demand (unless the warning relates to a control signal).
In addition, the status LED turns yellow in color.
Fault A condition with a "Fault" status is active. Depending on the fault condi-
tion, the Nortec EL humidier will not produce steam until the fault condi-
tion is cleared.
In addition, the status LED turns red in color.
4.2.5 Help
Touch the <Help> button on the Home screen (refer to Figure 5 on page 15) to view your local technical
support help details.

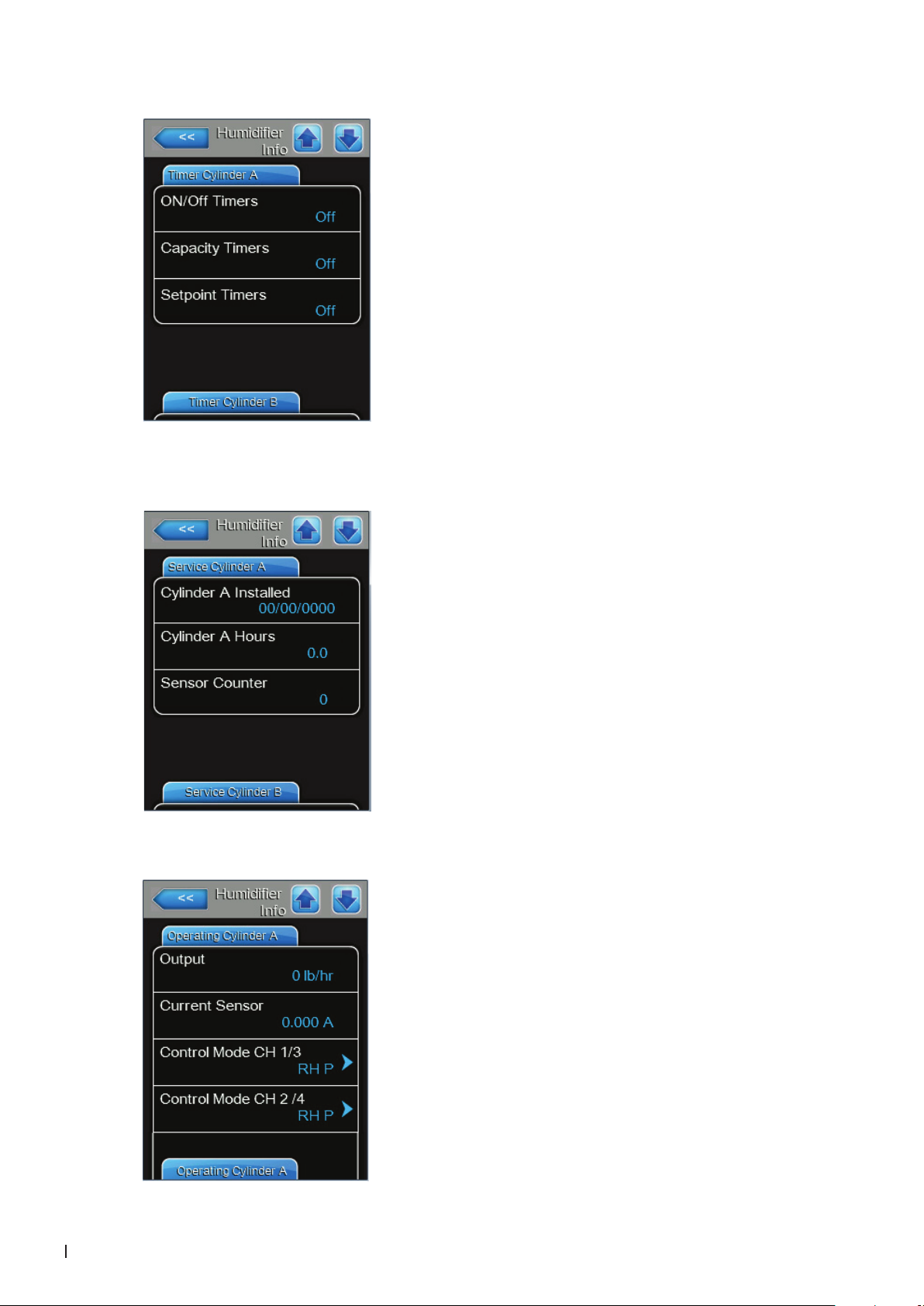

4.2.6 System Information
Select the <About> button on the Home screen (refer to Figure 5 on page 15) to view the system informa-
tion for your Nortec EL steam humidier. The tab structure for this selection is shown below.
About > "General Tab" on page 19
"Timer Cylinder A (Timer Cylinder B) Tab" on page 20
"Service Cylinder A (Service Cylinder B) Tab" on page 20
"Operating Cylinder A Tab" on page 20
"Operating Cylinder B Tab" on page 22
"Features Tab" on page 23
"Network Tab" on page 24

19Operator Interface
Nortec EL 2582954_D_EN_1811_Nortec-EL_OM
General Tab
–HumidierModel: shows the model number, as also seen
on the specication label (on the underside and right side
of the humidier).
–Cyl.Series: shows the cylinder series used in the
humidier.
–Voltage: shows the rated heating voltage of the humidier.
–SoftwareVersion: shows the current version of the con-
trol software. Select the eld to update the control software
or the driver board rmware – refer to "Software Update Tab"
on page 53 for details.
–SerialNumber: shows the serial number, as also seen on
the specication label.
–Graph: allows you to view a graphical presentation of the
recent humidier performance.
–ExportTrendData: allows you to save the performance
data as a .csv le to a USB memory stick. Refer to
"Exporting Trend Data" on page 60.
Note: Insert a USB memory stick (formatted to 32-bit FAT
system) into the USB port on the control board before
selecting this function.

20 Operator Interface 2582954_D_EN_1811_Nortec-EL_OM Nortec EL
Timer Cylinder A (Timer Cylinder B) Tab
Note: The Timer Cylinder B tab appears only on units with
dual steam cylinders that are set to work in independent
mode. It is identical to the Timer Cylinder A tab.
–On/O󰀨Timers: shows the current status of the On/O󰀨 tim-
ers function. Refer to On/Off Timers for more details. Note: A
warning message is displayed whenever the humidier is
turned o󰀨 by the On/O󰀨 timer.
–CapacityTimers: shows the current status of the capac-
ity limitation timer function. Refer to Capacity Timers for more
details.
–Setpoint Timers: shows the current status of the setpoint
timers function. Refer to Setpoint Timers for more details.
Note: This eld only appears if Control Mode is set to "RH P"
or "RH PI".
Service Cylinder A (Service Cylinder B) Tab
Note: The Service Cylinder B tab appears only on units with
dual steam cylinders, and is identical to the Service Cylinder A
tab.
–CylinderAInstalled: shows the date of installation of the
steam cylinder.
–CylinderAHours: shows the number of operating hours
on the steam cylinder since its installation.
–SensorCounter: shows the number the number of high
water level sensor activations. A high sensor counter value
may indicate the cylinder is nearing end of life or that a
newly installed cylinder is concentrating cylinder water to
optimal level.
Operating Cylinder A Tab
–Output: shows the actual output level of steam cylinder A.
–CurrentSensor: shows the actual current draw (in am-
peres) by steam cylinder A.
–ControlModeCH1/3: shows the general control mode
setting for the control signals to the humidier. Select
the eld to choose a di󰀨erent control mode – "Demand",
"RH P", "RH PI" or "On/O󰀨". Refer to Control Mode for more
details.
–ControlModeCH2/4: shows the general control mode
setting for the high limit input signal to the humidier.
Select the eld to choose a di󰀨erent control mode –
"Demand", "RH P", "RH PI" or "On/O󰀨". Refer to Control
Mode for more details. Note: This eld only appears if
Control Channels is set to "Dual".
