Condair 1510142 User manual

2556314—G | 31 October 2018 Introduction | 1
0-10 V Wall & Duct Humidistat Installation Instructions
This document covers the operation and installation instructions for the following Condair Digital Humidistats:
Part #: Description:
1510142 0-10 V Digital Wall Humidistat
2520266* 0-10 V Digital Duct Humidistat
Note: Part #2520266 is comprised of two parts:
1509857 Duct Sensor
2520261 Humidistat w/o sensor
1510142 – 0-10 V Digital Wall Humidistat Installation
Location
1. The wall humidistat should not be installed on an outside wall.
2. The sensor should be installed away from any heat source and away from direct sunlight.
3. The wall surface should be flat and clean.
4. Any draft originating from the wall interior should be prevented from interacting with the humidity sensor. A vapor barrier should be
installed.
5. Condair recommends using a sealed, single-gang electrical mounting box (recessed in wall) to mount the wall humidity sensor.
Installation
1. Pull cables 6” (15cm) out of the wall
2. To remove the front face with the digital display, loosen the retaining screw at the bottom of the case. Pull firmly but gently on the bottom
of the front face to unplug the face from the backboard. The front face will unhinge from the top retaining clips.
3. Connect the control wires to the terminals according to the wiring diagram(s). Table 1 outlines the terminal layout of the digital
humidistat.
4. Secure the metal bracket to the mounting box using 2 screws. Make sure the screw heads do not stand out more than 1/5” (5mm) from
the mounting surface.
5. Mount the front face onto the metal bracket. Ensure the top clips engage the grooves on the top of the metal bracket. Carefully lower the
front face until the interconnector reaches the mounting plate. Ensure the connector pins are aligned with the plug on the back plate.
While inserting the connectors, a slight resistance will be felt. Continue pressing gently until the front face is fully seated and tighten the
retaining screw to secure the face.
2520266 – 0-10 V Digital Duct Humidistat Installation
Part #1509857 – Duct Sensor Installation
Location
1. The duct sensor should be installed directly on the duct in an area where the air is well mixed with uniform flow.
2. The supply air sensor should be mounted downstream of the steam distributor at a distance 1.5 times the absorption distance (typically
10-12 ft or 3-3.7 m).
3. If a return air humidity sensor is used it should be mounted close to the air inlet but downstream from a return fan if one is present.
Installation
1. Open the housing by removing the 4 screws securing the housing together.
2. Push the probe through the center hole and tighten the 2 mounting screws.
3. Drill a 1/2” (13mm) hole in the duct and insert the probe into the air stream.
4. Secure the sensor to the duct using 2 sheet-metal screws.
5. Connect the signal wires to the sensor terminal strip. Table 1 outlines the terminal layout of the digital humidistat.
6. Connect the plug from the temperature probe to the PCB board into the plug marked ‘PROBE’.
7. Close the cover and secure using the 4 Screws removed in step 1.
Part #2520261 – Humidistat w/o Sensor Installation
Refer to the installation instructions on page 1 for Part #1510142 – Wall Humidistat Installation.
Table 1:Humidistat Terminal Layout
Wall Humidistat - (Part # 1510142) Humidistat w/o Sensor - (Part # 2520261)
Ground
1
1
24 VAC
2
2
Outdoor Temperature Input
8
8
Control Output
6
6
Duct Sensor Input
N/A
7

2 | Introduction
2
1
3
4
5
Humidistat LCD Display
Legend for Figure 1.
1. Display of current humidity value.
2. Snowflake indicates outdoor temperature setback for winter compensation is in effect.
3. Setpoint display.
4. Graphical display of output value with increments of 10%.
5. Buttons for operating the humidistat:
POWER button: No function.
UP/DOWN buttons: Adjusts calibration value.
OPTION button: Used for accessing the sensor calibration routine.
Sensor Calibration
1. The humidity sensor is factory calibrated, however, it can be field recalibrated. The calibration routine can be accessed by pressing and
holding down the option button for five seconds. A new screen will appear with the calibration adjustments.
2. Press the up or down buttons until the text calH appears on the LCD screen. To adjust the calibration, press the Option button. The screen
should load to display the current calibration trim. The calibration trim can be adjusted by pressing the up or down buttons to the desired
level and then pressing the option button to confirm the settings. Press the Power button to return to the normal display.
Specifications
Table 2: Specifications
Power Supply
Operating Voltage
24 V AC ± 10%
50/60 Hz
Power Consumption
Max 3 VA
Internal rectification
Half Wave Rectified
Signal Inputs
Analog Input
Input Signal
Resolution
Accuracy
AI1
0-10 VDC
9.76 mV, 0.019 mA
±
2%
Temperature Input
Range
External Thermistor
-40…140 °C
Humidity Input:
Range
Accuracy
Repeatability
0…100 % rH
±3.0% at 25°C
±0.5%
Signal Outputs
Digital Outputs
Maximum Load
DO1
24 VAC 2A max.
Environment
Operation:
Temperature
Humidity
0…50°C
<95% r.h.
Housing
Materials:
Cover, back
Mounting Plate
Fire proof ABS plastic
Galvanized Steel
Setpoint Versus Outdoor Temperature
10
20
30
40
50-5-10-15-20-25-30-35-40
413223145
-4-13-22-31-40
Outdoor Temperature
Setpoint Limit (rh)
Figure 1: Wall Sensor LCD
Display
Figure 2: Outdoor Temperature
Setback

2556314—G | 31 October 2018 Introduction | 3

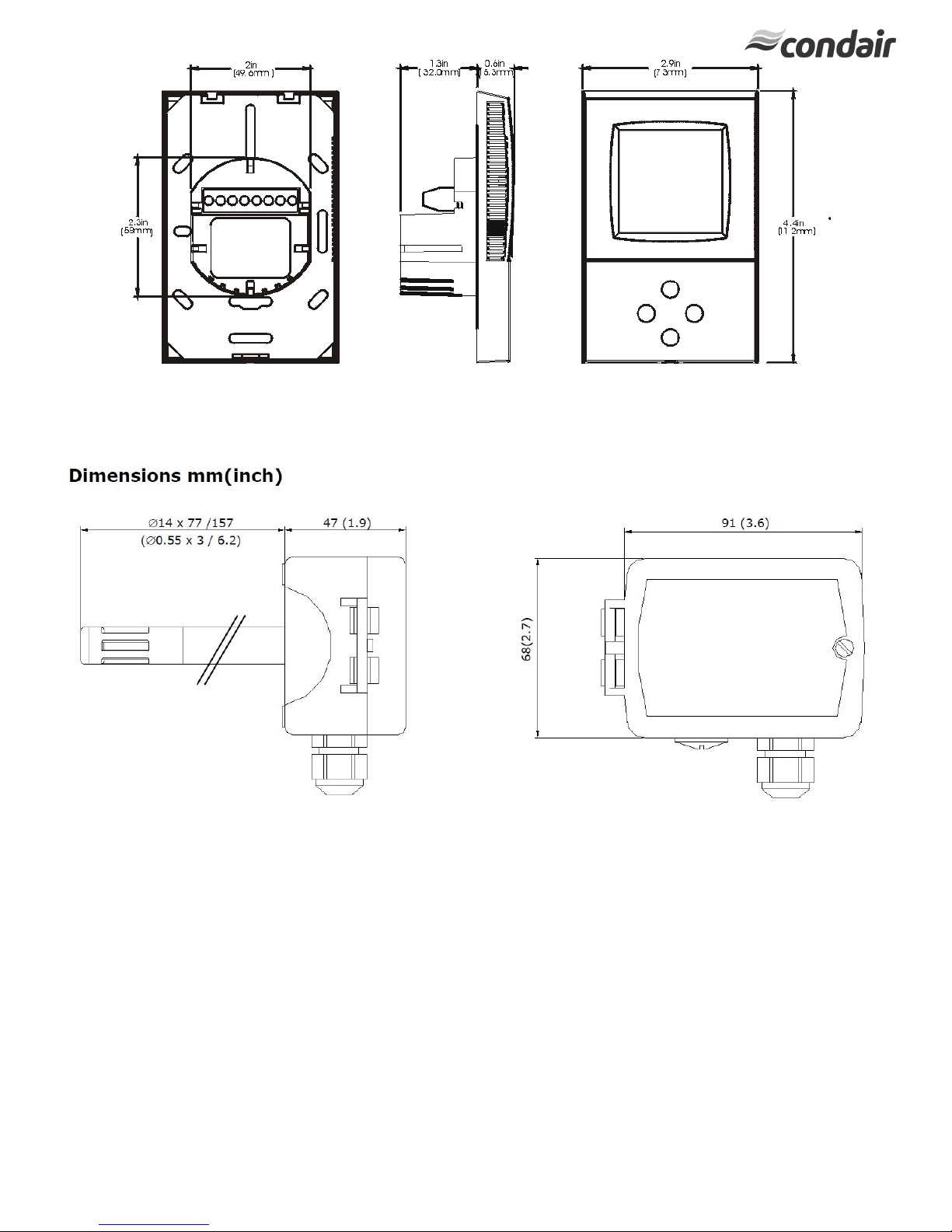

Figure 3: Humidistat Dimensions
Figure 4: Duct Sensor Dimensions

4 | Introduction
Table 3: Troubleshooting
Display
Cause
Symptoms
Corrective Action
ALA5
The controller will initiate
this alarm if the humidity
sensor reports a relative
humidity below 6%.
The LCD screen will report
the message ALA5. The
controller will negate output
until a relative humidity
above 6% is report to the
controller from the sensor.
Normal operation resumes once the sensed humidity is
above 6% RH. The message will remain on the LCD screen
until removed by pressing the option button on the control
panel. If this error persists verify that the wiring is correct.
Also verify that the sensor is mounted in an area that
accurately represents the controlled humidity level.
ALA6
The controller will initiate
this alarm if the humidity
sensor reports a relative
humidity above 95%.
The LCD screen will report
the message ALA6. The
controller will negate output
until a relative humidity
below 95% is report to the
controller from the sensor.
Normal operation resumes once the sensed humidity is
below 95% RH. The message will remain on the LCD screen
until removed by pressing the option button on the control
panel. If this error persists verify that the wiring is correct.
Also verify that the sensor is mounted in an area that
accurately represents the controlled humidity level.
SNOWFLAKE
This function activates when
the temperature sensor
reports a temperature below
0 degrees Celsius or 32
degrees Fahrenheit.
The controller will
automatically be lowered to a
specific setpoint to
compensate for the low
temperature being reported
from the sensor.
This is a normal action controlled by the controller software
to compensate for low operating temperatures.
If this option is believed to be malfunctioning verify the
sensor is properly wired and in an appropriate location to
read the controlled humidity accurately.
