Conquer 330-TMDSK01 User manual

Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL: [e-mail]
TEL: [phone]
help.conquerequipment.com
EMAIL: [email protected] WEB: help.conquerequipment.com TEL: [phone]
Conquer Treadmill Desk
Manual and Assembly Instructions
Read all instructions carefully before using this
product. Retain this owner’s manual for future
reference
.
!

Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL: [e-mail]
TEL: [phone]
help.conquerequipment.com
EMAIL: [email protected] WEB: help.conquerequipment.com TEL: [phone]
Safety Warnings:
Warning: Consult with your physician or health professional before beginning any exercise
regimen. Treadmill should be carefully assembled and covered with the motor shield before
connecting to power.
 Ensure the safety clips are attached to clothing or belt before using the treadmill.
 Please do not modify any part of the equipment, this may damage the equipment.
 Position the treadmill on a clean, level surface. Do not place the treadmill on thick
carpet as it may interfere with proper ventilation. Do not place the treadmill near
water or outdoors.
 Do not start the treadmill while you are standing on the walking belt. After turning the
power on and adjusting the speed control, there may be a pause before the walking
belt begins to move. Always stand on the foot rails on the sides of the frame until the
belt is moving.
 Wear appropriate clothing when exercising on the treadmill. Do not wear long or
loose fitting clothing that may be caught in the treadmill. Always wear running or
other athletic shoes with rubber soles.
 For adult use only. Keep children and pets away from the treadmill.
 Treadmill is for indoor use only, not for outdoor use. Use and store in a clean, dry
place.
 If the speed increases suddenly or inadvertently (for any reason), please pull out the
safety lock from the console and the treadmill will stop.
 Do not use an extension cord, do not lengthen existing cord or change the cord plug.
Do not put any heavy thing on cord or place cord near any heat source. Do not use
treadmill with a power strip/surge protector, as it may cause a sudden stop and/or
result in injury.
 Turn off the power after each use. Unplug when unit will not be used for an extended
period.
 This treadmill is for home use only, and is not intended for commercial use.

Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL: [e-mail]
TEL: [phone]
help.conquerequipment.com
EMAIL: [email protected] WEB: help.conquerequipment.com TEL: [phone]
Parts:
Ⅰ
Ⅱ Ⅲ
Ⅳ
Ⅴ
Ⅵ
Ⅶ
31 34
40 42
No. Description Specification Qty.
I Main Frame 1set
II Safety lock 1pc
III Bottle 1pc
Ⅳ Base tube 1set
Ⅴ Upright frame 1set
Ⅵ Tools 1set
Ⅶ Desk 1pc
31 Nylon nut M8 4pcs
34 Flat washer D8 8
40 Bolt M8*55 4
42 Bolt M8*10 4

Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL: [e-mail]
TEL: [phone]
help.conquerequipment.com
EMAIL: [email protected] WEB: help.conquerequipment.com TEL: [phone]
Assembly Instructions:
STEP 1：

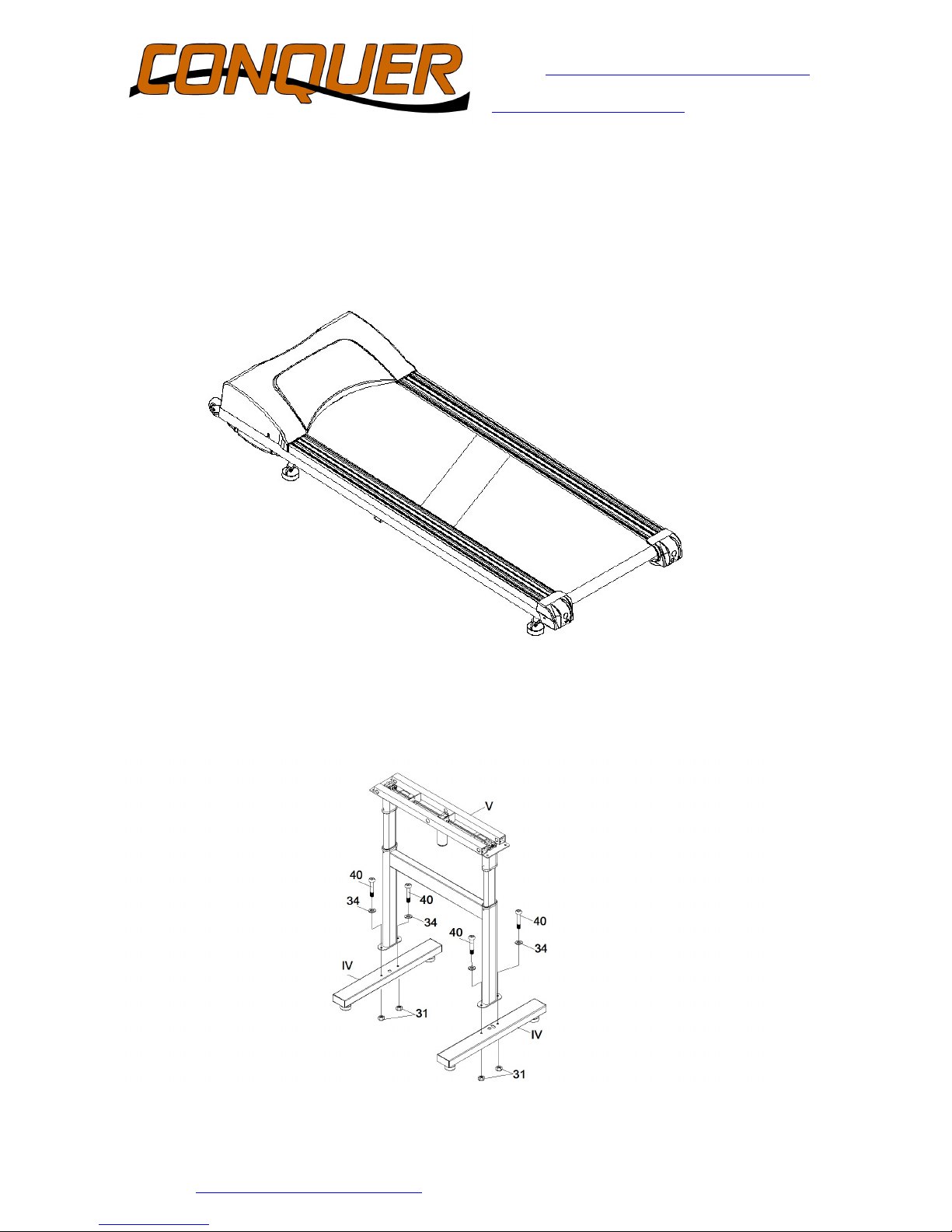

Open the carton, take out the above parts, and put the treadmill (main frame) onto level
ground. Use a partner to help you lift, as this piece is heavy!
Step 2:
Assemble upright frame/desk support (V) onto base tube (IV) with 4pcs M8*55 bolt(40) and
4pcs D8 flat washer(34) and 4pcs M8 nylon nut(31).

Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL: [e-mail]
TEL: [phone]
help.conquerequipment.com
EMAIL: [email protected] WEB: help.conquerequipment.com TEL: [phone]

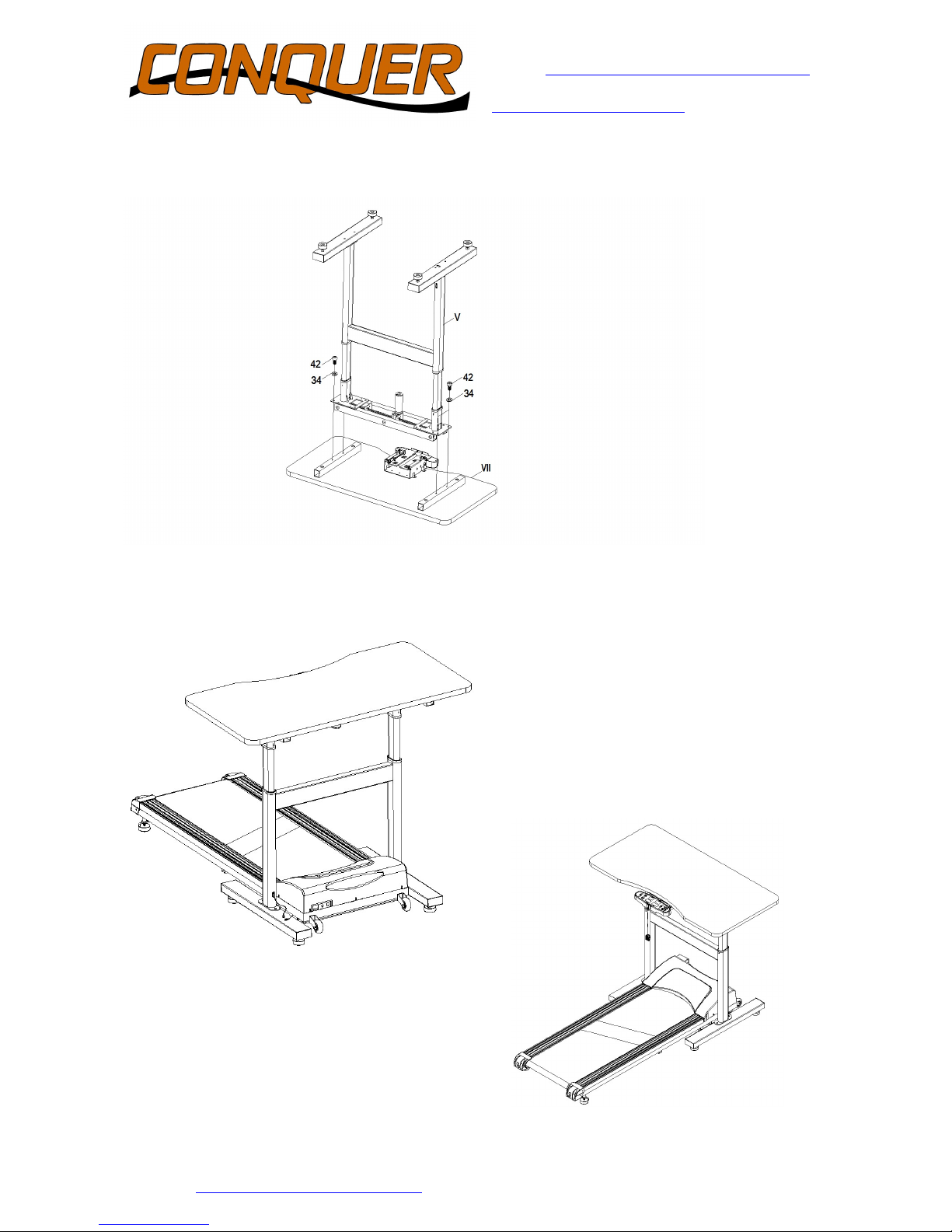

Step 3: Assemble desk (VII) onto upright frame/desk support (V) with 4pcs M8*10 bolts(42)
and 4pcs D8 flat washer(34). Connect the wires.
Step 4: Put the treadmill/main frame under desk, then connect wires from control unit to
treadmill.
Step 5:
Be sure all wires are connected, be
sure all bolts are tightened, then put
safety lock on.

Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL: [e-mail]
TEL: [phone]
help.conquerequipment.com
EMAIL: [email protected] WEB: help.conquerequipment.com TEL: [phone]
Grounding methods:
This product must be grounded. If it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This product is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
*WARNING* Improper connection of the equipment-grounding conductor can result in risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether
the product is properly grounded. Do not modify the plug provided with the product – if it will not
fit the outlet; have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 240-volt circuit and has a grounding plug that looks like the
plug illustrated in sketch A in following figure. Make that the product is connected to an outlet
having the same configuration as the plug. No adapter should be used with this product.
Assembly
size(mm)
1645*1200*（1045~1445）mm
Input As shown
Running
space(mm) 400*1250mm Output As shown
N.W. kg Speed
range 0.6-4mile/H
4 window LED
display speed time distance calorie Max. Weight 110KG/242 lbs.
NOTE：Fasten all the bolts after making sure the treadmill is assembled as instructed.
Connect the power after double checking. For other operations, follow below instructions.
Technical Parameters

Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL: [e-mail]
TEL: [phone]
help.conquerequipment.com
EMAIL: [email protected] WEB: help.conquerequipment.com TEL: [phone]
Maintenance and Belt Adjustment:
Clean: General cleaning or the unit will greatly prolong the treadmill’s life. Keep treadmill
clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of
the walking belt and also the side rails. Reduce the buildup of foreign material underneath
the belt by wearing clean shoes.
Warning: Always unplug the treadmill from electrical outlet before removing the
motor cover, cleaning, or servicing the unit. At least once a year remove the motor
cover and vacuum under the motor cover.
BELT AND DECK LUBRICATION
This treadmill is equipped with a pre-lubricated, low maintenance deck system. The belt/
deck friction play a major role in the function and life of your treadmill, thus requiring
periodic lubrication. Treadmill lubricant is readily available online and elsewhere.
Periodically inspect the deck for optimal performance.
We recommend lubrication of the deck according to the following timetable:
 Light use (less than 3 hours/ week) - Annually
 Medium use (3-5 hours/ week) - Every six months
 Heavy use (more than 5 hours/ week) - every three months
NOTE: Any repairs require a professional technician.
 If treadmill is in use for 2 hours without stopping, be sure to power it down for at
least 10 minutes for continued optimal performance.
 The belt may slip if too loose during use. If the belt is too tight, it may affect the
performance of motor and increase the abrasion of roller and belt. The belt can
be lifted away from the deck for around 50 — 75mm.
 The treadmill belt may gradually shift to one side or another, and may feel “loose”
while walking. This can lead to premature wear and tear. Realigning the belt is
simple, all you need is an Allen wrench.

Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL: [e-mail]
TEL: [phone]
help.conquerequipment.com
EMAIL: [email protected] WEB: help.conquerequipment.com TEL: [phone]

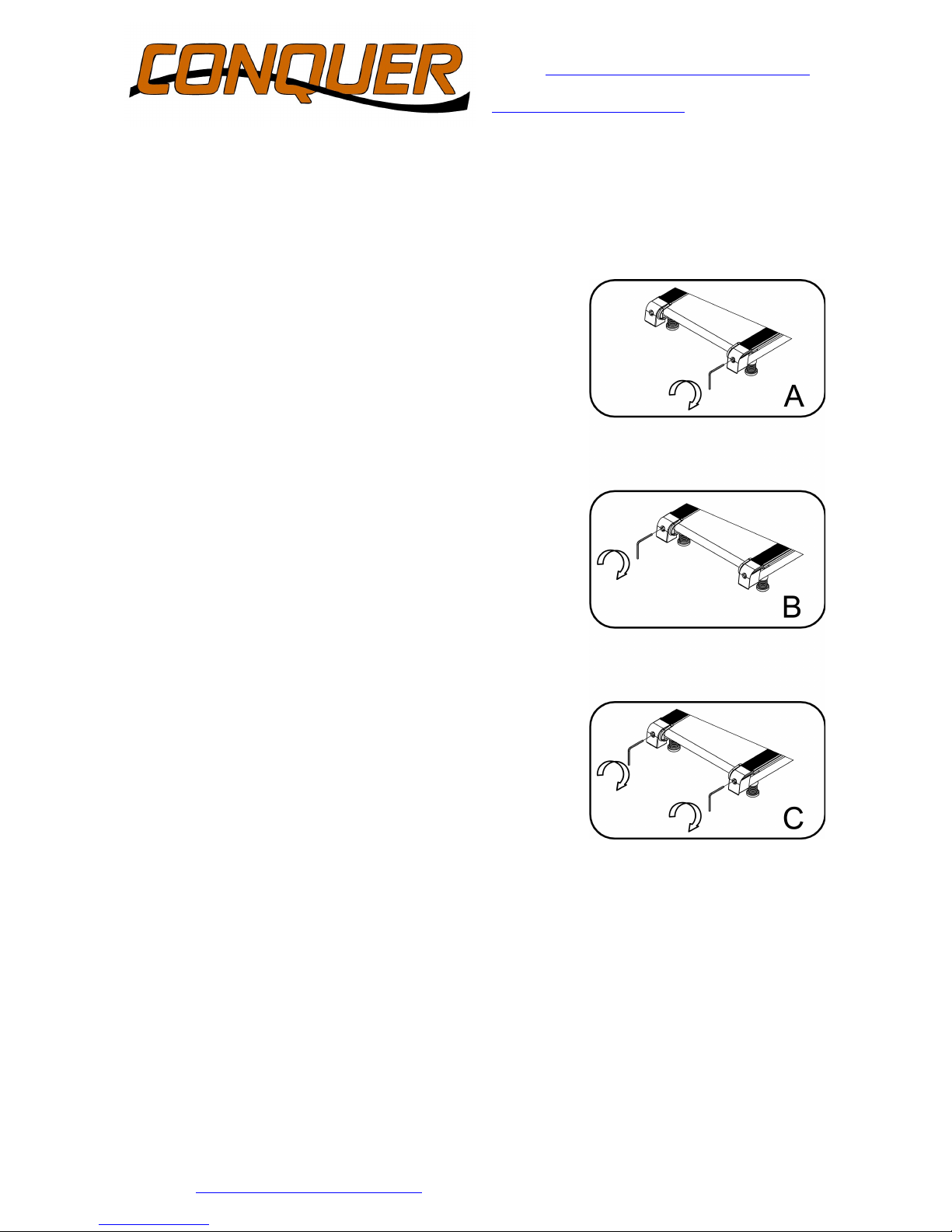

To center the treadmill belt:
1. First, be sure treadmill is on a level surface.
Run treadmill to check the condition. If the
belt has drifted to the right, pull out the safety
lock and switch. Turn the right adjusting bolt
near end cap 1/4 turn clockwise, then run until
belt centers. Be careful when tightening and
loosening bolts as less is more. Perform only
a quarter-inch turn at a time. Test your work
by turning the treadmill on to its lowest setting
for 30 seconds. If belt seems to be properly
aligned, your work is done. If not, then adjust
further; just do so in small increments. A
2. If the belt has drifted to the left, pull out of the
safety lock and switch. Turn the left adjusting
bolt 1/4 turn clockwise, then run unit until belt
centers. B
3. Check the belt for looseness periodically. Pull
out safety lock and switch, turn the left and
right adjusting bolt 1/4 turn clockwise.
Re-start treadmill to confirm the belt tightness
and run until the belt is correct. C

Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL: [e-mail]
TEL: [phone]
help.conquerequipment.com
EMAIL: custom[email protected] WEB: help.conquerequipment.com TEL: [phone]
Exploded Diagram

Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL: [e-mail]
TEL: [phone]
help.conquerequipment.com
EMAIL: custom[email protected] WEB: help.conquerequipment.com TEL: [phone]
Item
no. DESCRIPTION QTY Item no. DESCRIPTION QTY
1 Main Frame 1 62 Flat washerφ20*φ23*1 4
2 L/R base tube 2 63 E-shaped snap ring 2
3 Bottom upright tube 1 64 desk 1
4 Monitor base 1 65 Screw ST2.5*7 7
5 Motor base 1 66 Screw ST4.2*15 10
6 Reinforce tube of running
board 1 67 Limited bushφ8.5*φ12*80 4
7 Computer frame 1 68 Bush φ8.5*φ12*25 2
8 M10 foot pad adjust frame 4 69 Screw M4*15 4
9 Upper upright tube 2 70 Foot pad M10*30 8
10 Inside upright tube 2 71 Plastic screw bloack 2
11 Up down tube 2 72 Plastic bush 1
12 Up down frame fix plate 4 73 Kss 1
13 Desk support 1 74 Motor upper cover 1
14 axle 1 75 Motor bottom cover 1
15 Bolt M8*100 2 76 Side rail 2
16 Bolt M8*30 1 77 L&R rear end cap 1
17 Bolt M8*45 2 78 Rubber blanketφ29.5*φ10*6 6

Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL: [e-mail]
TEL: [phone]
help.conquerequipment.com
EMAIL: custom[email protected] WEB: help.conquerequipment.com TEL: [phone]
18 Bolt M8*40 2 79 Cap 1
19 Bolt M8*20 2 80 EVA pad 1
20 W1507-00001double head
boltφ8*210 2 81 wheelφ70*φ8.5*23mm 2
21 Bolt M8*60 3 82 Felt 2
22 Bolt M8*35 2 83 Wheel φ39*φ20*19 2
23 Bolt M6*60 2 84 Belt 1
24 Bolt M6*35 2 85 Bearing 608ZZ 8
25 Screw ST4.8*25 4 86 Monitor upper cover 1
26 Screw ST4.2*12 21 87 Monitor bottom cover 1
27 Screw ST4.2*12 2 88 Cap 4
28 Screw ST4.2*20 2 89 Cap 2
29 Screw M5*12 9 90 Cap 4
30 Screw ST3.0*8 4 91 Cap 4
31 Nylon nut M8 16 92 Plastic box1 2
32 Nylon nut M6 6 93 Plastic box 2 2
33 Hex nut M10 4 94 Pad 1
34 Flat washer D8 16 95 Belt (5400-S06) 1
35 Spring washer D8 2 96 Running deck (5400-S07) 1
36 Front roller 1 97 Rubber pad 6
37 Rear roller 1 98 Power cord 1
38 Allen wrench S6 1 99 Over-current protector 1
39 Wrench 13*14*15 1 100 DC motor 1
40 Bolt M8*55 4 101 Magnetic ring 2
41 Bolt M6*20 2 102 Power cord 1
42 Bolt M8*10 16 103 Power cord 1
43 Screw φ5*19 14 104 Power cord 1
44 Screw M6*12 5 105 Display 1
45 Flat washerφ6.5*φ16*1 2 106 Control board 1

Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL: [e-mail]
TEL: [phone]
help.conquerequipment.com
EMAIL: custom[email protected] WEB: help.conquerequipment.com TEL: [phone]
46 Spring washer D=6 5 107 Signal wire 1
47 Allen wrench S5 1 108 Signal wire 1
48 Allen wrench S4 1 109 Safety key 1
49 Bolt M4*28 8 110 Poly dome 1
50 Nylon nut M4 8 111 Incline motor 1
51 Screw M5*8 4 112 Magnetic sensor 1
52 Screw M5*48 4 113 Support horizontal tube 2
53 Limited block 2 114 Fix plate 1
54 Bolt 2 115 Safety key sensor 1
55 Nylon nut M4 2 116 R-shaped wire bush 3
56 Bearing 6001RS 2 117 20*20cushion pad 2
57 Spiral bevel gear1 2 118 Chain adjusterM6*40 4
58 Spiral bevel gear 2 2 119 Up down controller 1
59 Dabber 2 120 Switch 1
60 Copper bush 2
61 Bearing 6802Z 2

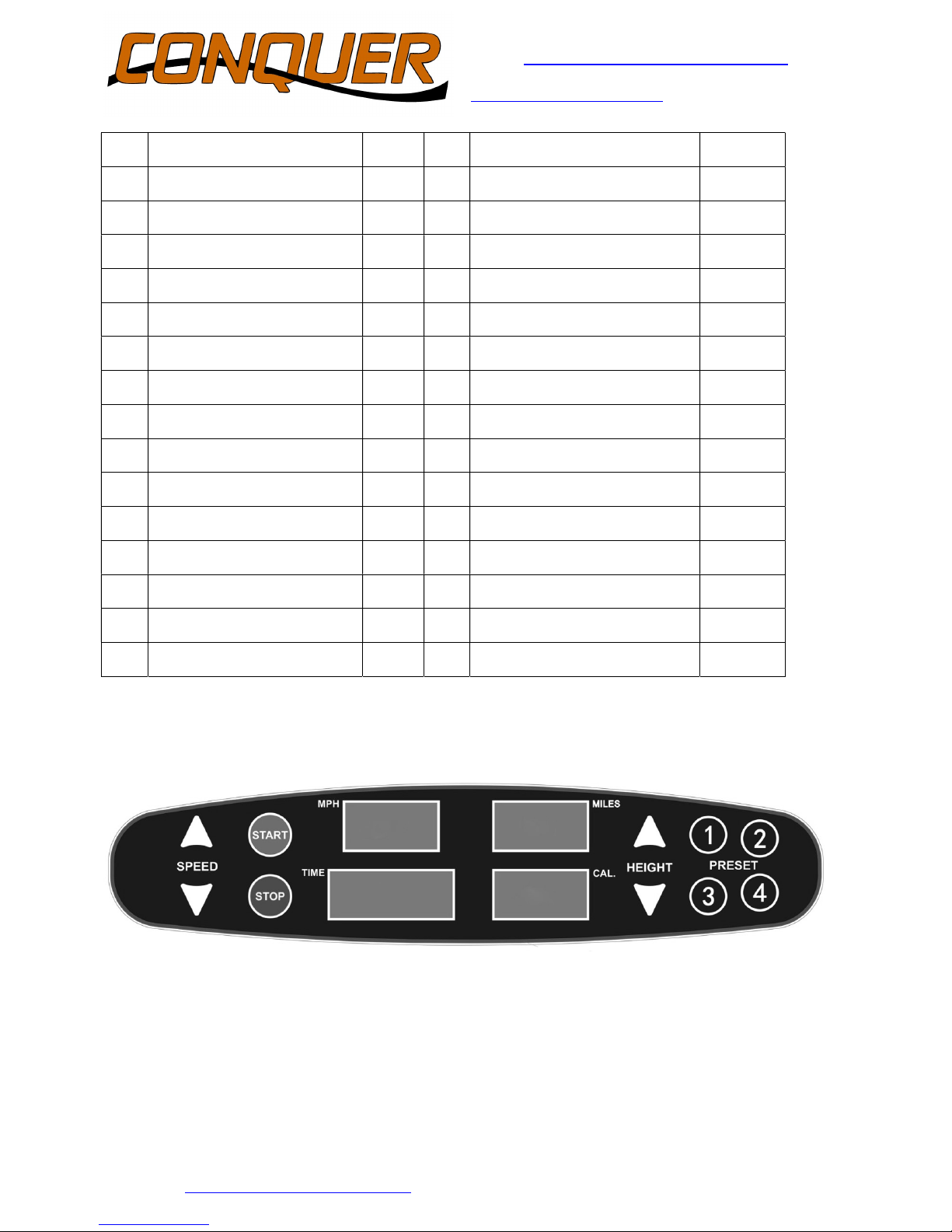

CONSOLE OPERATION
The LED window shows: MPH (speed), TIME, MILES (distance) and CAL. (calories).
1. MPH (speed): Displays the current speed. Speed Range: 0.6~4.0MPH.
2. TIME: Displays the total workout time. Time Range: 0:00~99:59.
3. MILES (distance): Displays the total workout distance. Distance range: 0.0~99.9.
4. CAL. (calories): Displays the total workout calories. Calories range: 0~999.

Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL: [e-mail]
TEL: [phone]
help.conquerequipment.com
EMAIL: custom[email protected] WEB: help.conquerequipment.com TEL: [phone]
BUTTON OPERATIONS:
Please NOTE that the treadmill can be operated ONLY when the safety key is inserted.
1. START: Press the button to start the treadmill.
2. STOP: Press the button to stop the treadmill.
3. SPEED▲:
a. To set the speed, press the speed button until the desired speed shows on the display.
b. Increase the speed as desired while walking by pressing the Speed▲. When the
speed reaches 4.0mph, pressing SPEED▲will no longer increase the speed.
4. SPEED▼
a. To set the speed, press the speed button until the desired speed show on the display.
b. Decrease the speed as desired while walking by pressing the Speed▼. When the
speed reaches 0.6mph, pressing SPEED▼will no longer decrease the speed.
5. HEIGHT▲: Increase the height as desired by pressing the HEIGHT▲.
6. HEIGHT▼: Decrease the height as desired by pressing the HEIGHT▼.
7. HEIGHT MEMORY 1, 2, 3, 4: Press buttons will automatically take you to the desired
height level.
8. Press height memory button for 5 seconds to set height memory
OPERATION MODES
1. Normal: Insert the safety key then press “START”. The running belt will start to move.
The treadmill will start from the speed of 0.6mph and the time will count up from 0:00 to
99:59. When the time reaches to 99:59, it will count up from 0 again. Press SPEED▲
and ▼ to adjust the speed.
2. Sleep: The treadmill will turn to SLEEP status if inactive for 10 minutes.
3. Emergency stop: The emergency switch is designed to function as an emergency stop
mechanism. For this reason it is extremely important that the safety key CORD is
attached to your clothing at all times while using the treadmill. When cord is pulled out
from the emergency switch, the treadmill will stop immediately, a beep signals and the
windows will display “---“. The treadmill will stop. Attach the switch to start the treadmill
again.

Product name: Conquer Treadmill Desk
SKU: 330-TMDSK01
EMAIL: [e-mail]
TEL: [phone]
help.conquerequipment.com
EMAIL: custom[email protected] WEB: help.conquerequipment.com TEL: [phone]
TROUBLESHOOTING GUIDE
Error
code Cause Checking Correction
E01 No sensor signal
1. Check the distance and place
between sensor and magnet.
1. Adjust the distance between
the sensor and the magnet.
2. Check if the wire is broken. 2. Change the wire.
3. Check if the magnetism is
good. 3. Change the magnet.
4. Check if the controller is
damaged. 4. Change to a new controller.
E02 Over-voltage protection of the
motor
1. Check if the network voltage is
stable.
1. Regulator is needed to adjust
the voltage.
2. Check if the controller is
damaged. 2. Change to a new controller.
E03 Over-current protection
1. The machine is overloaded. 1. Verify user weight is within
allowed parameters
2. Check if the motor or the roller
gets stuck by something. 2. Take the foreign matter out.
3. Check roller lubrication. 3. Lubricate the roller.
4. Check if the controller is
damaged. 4. Change to a new controller.
5. Check if the motor is damaged. 5. Change to a new motor.
E04 Open circuit
1. Check the wires of the motor
are connected well.
1. Connect the motor wires
properly.
2. Check if the motor is
open-circuit. 2. Change to a new motor.
3. Check if the controller is
open-circuit. 3. Change to a new controller.
E06 Message failure
1. Check if the connecting wires
are plugged well. 1. Plug all the wires properly.
2. Check if the connecting wires
are broken. 2. Change to the new wires.
3. Check if the console is broken. 3. Change to a new console.
4. Check if the controller is
damaged. 4. Change to a new controller.
E07 Emergency switch off 1. Check if the emergency switch
is attached.
1. Attached the emergency
switch.
