Contec PC-HDD/LG User manual

1PC-HDD/LG
2.5 inch IDE Hard Disk Drive
with Legacy-signal
PC-HDD/LG User’s Guide
CONTEC CO.,LTD.
Thank you for purchasing the CONTEC PC-HDD/LG. Please use
this product in accordance with the procedures described in this
document.
General Caution
- Do not apply pressing force on the top of cover (See Figure 1. on
page 2).
- Do not cover the breathing hole on the top cover (See Figure 2. on
page 2).
- Do not touch the interface connector pins and the surface of printed
circuit board .
- Hard disk are precision instruments. Be extremely careful in
handling during and after assembly.
- The drive can be easily damaged by shocks or ESD (Electrical
Static Discharge), so any damages applied to the drive after taking
out from shipping package and opening ESD protective bag are
user’s responsibilities.
- Be sure to turn off the power of the unit when plugging in or
unplugging connectors.
- Use the mounting screws (M3x5 with sw, w : for screwing the base)
provided with the product. Longer screws may damage the interior
of the product.
- CONTEC bears absolutely no responsibility for use if modified hard
disk.
- This hard disk drive (HDD) has not guaranteed use by continuation
operation and continuation power for 24 hours. When it is used by
continuation operation and continuation power a life fails extremely.
In the case of a 24-hours operation system, use of our company
silicon disk drive (SDD) is recommended.
- The life of a hard disk drive changes with environment or operating
conditions. As a standard, power time (motor-on time) below
250hours/month (below 8 hours/day), disk access time is 20% or
less, it becomes which for 20,000 hours (power time) or five years,
or an early thing.

PC-HDD/LG User’s Guide
PC-HDD/LG 2
Caution of usage
DO NOT PRESS!
Figure 1. Handling caution of PC-HDD/LG
- DO NOT PRESS WHEN YOU TAKE OUT THE DRIVE.
- DO NOT PRESS WHEN YOU CARRY THE DRIVE.
- ATTACH THE DRIVE FREE FROM PRESSING FORCE.
DO NOT COVER THIS HOLE
Figure 2. Breathing hole caution of PC-HDD/LG
COVERING THIS HOLE WILL RESULT LOSS OF DATA.
Absolutely No Impact!
Excessive impact (greater than 900G;1ms or 120G;11ms), if this hard
disk is subjected to, might cause a fatal error that is not recoverable.
When transporting, avoid leaving the disk in the equipment. Instead,
use the box the product came in. An impact of 100G is equivalent to
the impact when dropped from a height of about 1cm.
Unaccommodated host PCs
You can not use this drive when if you use these host PCs.
IPC-PT/M30(PC), IPC-PE/M30(PC), IPC-PS/M30(PC),
IPC-PL/M30(PC), IPC-BX/M20(PC), IPC-BX/M10(PC), PC-386(PC),
PC-386(PC)S, PC-486M(PC), IPC-PT/M140(PC), IPC-PS/M140(PC),
IPC-PT/M100(PC), IPC-PS/M100(PC), PC-IDE/FD(98)A,
PC-486M(PC)H, IPC-PT/M340(PC)H, IPC-PT/M500S(PC),
IPC-PT/M530(PC), IPC-PT/M530S(PC),IPC-TT/M300(PC),
IPC-TT/M310(PC), IPC-TT/M340(PC),IPC-TT/M340S(PC),
IPC-TT/M500(PC), IPC-TT/M500S(PC),IPC-PT/M140(PC),
IPC-BX/M400(PC), IPC-BX/P400(PC)

PC-HDD/LG User’s Guide
3PC-HDD/LG
Capacity is restricted host PCs
You can use only 8Gbyte when if you use these host PCs.
IPC-PT/M140(PC)H*1, IPC-BX/M400(PC)H*1, IPC-PT/M500(PC)
*1: BIOS of Ver. 1.21 and up is required. If you need, please
download from http://www.contec.com/.
Product Configuration
- Hard Disk Drive……1
- Screw (M3x5, with sw, w) ……4
- Insulation Film……1
- Jumper……1
Note!
Check the contents to make sure that you have everything listed
above.
If you don’t have all the items, Please contact CONTEC.

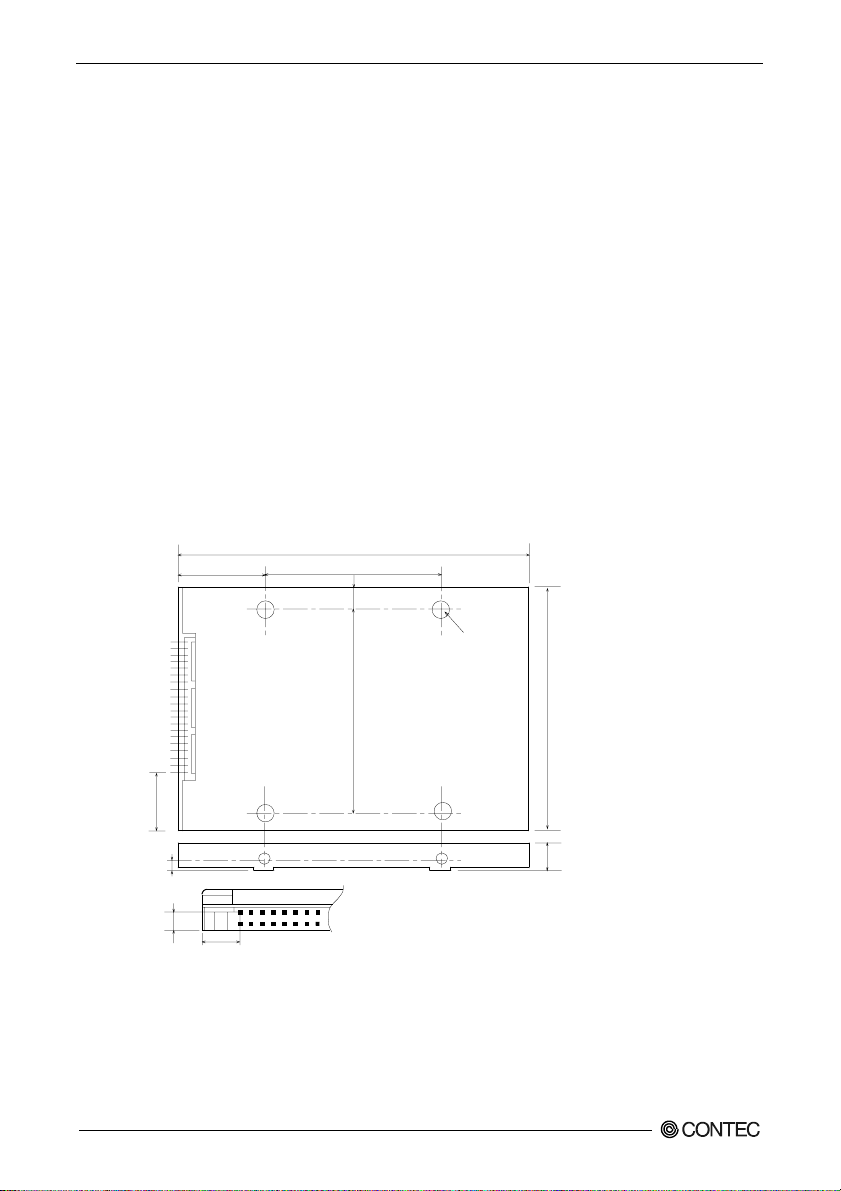

External Dimensions
10.14±0.25
3.99±0.25 3±0.25 10.00
100 ±0.4
76.35 ±0.2514.25 ±0.25
61.72 ±0.25
69.35 ±0.25
9.5 ±0.2
[mm]
8-M3
Figure 3. External Dimension

PC-HDD/LG User’s Guide
PC-HDD/LG 4
Master/Slave Settings
43 41
44 42
AC
1
3
DB
24
Master Setting
(Open : Default Setting) Slave Setting
A-B Short
CA
B
D
CA
B
D
Figure 4. Master/Slave Settings External Dimension
Note!
Specifications differ slightly depending on the drive manufacturer.
Sometimes two drives from two different manufacturers will not
operate together.
PC-HDD/LG (mfd. by Fujitsu,MHT2020AC)
Installation
HDD Insulation Film
Installation Part
Screw (with sw,w)
Figure 5. Installation

PC-HDD/LG User’s Guide
5PC-HDD/LG

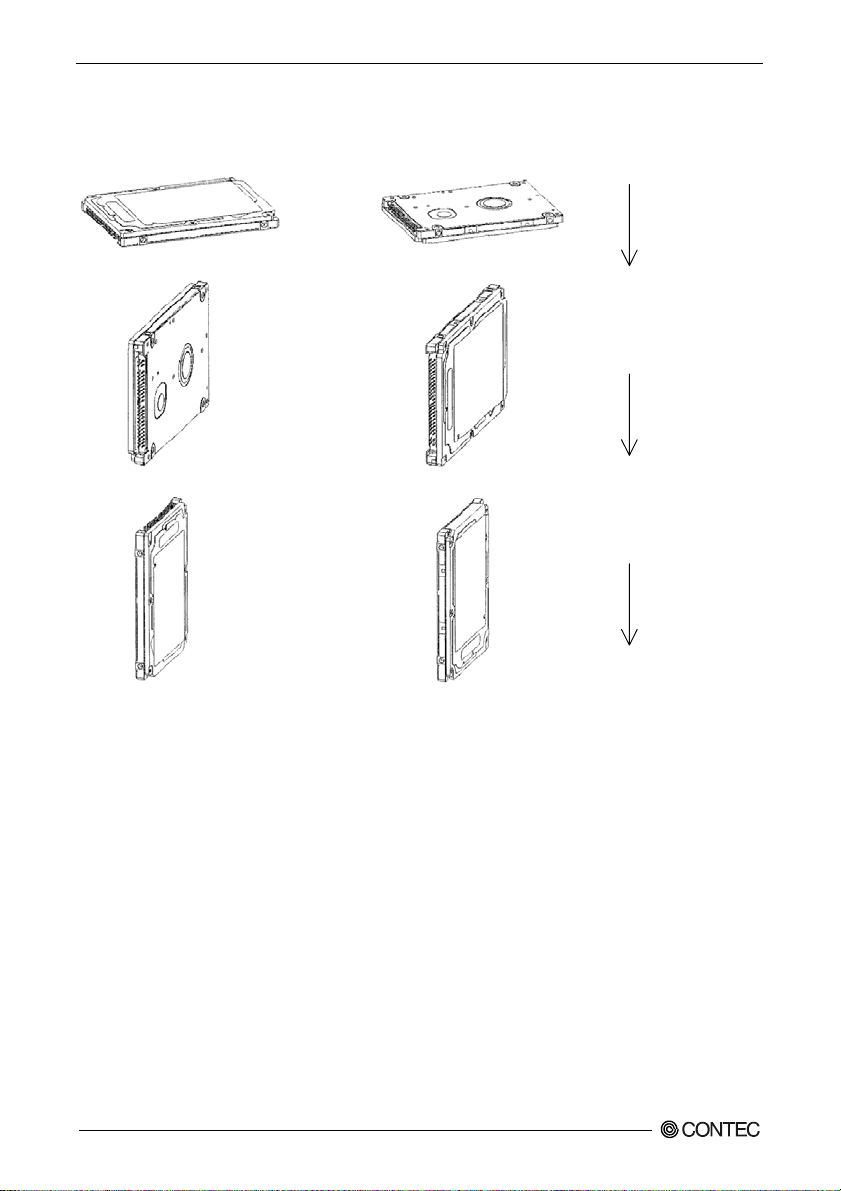

Mounting orientation
The drive will operate in all axes(six directions).
HorizontalOrientation1 HorizontalOrientation2
VerticalOrientation1 VerticalOrientation2
VerticalOrientation3 VerticalOrientation4
The gravity direction
The gravity direction
The gravity direction

PC-HDD/LG User’s Guide
PC-HDD/LG 6
Hard Ware Specifications
Item Specification
Format Capacity 20Gbyte
Bus Specification AT Interface conforming ATA/ATAPI-6
Transfer Speed (Max.) 100MB/sec (Ultra DMA 100)
Nominal Supply/Tolerance +5VDC/±5%
Spin up (motor on) 7.0W(RMS Typ.)
Read/Write 2.1W(RMS Typ.)
Consumed Current
Idle 0.9W(RMS Typ.)
Temperature 5°C to 55°C (Ambient)
5°C to 60°C (Surface)
Humidity 8% to 90%RH (With no condensation)
Maximum Wet Bulb
Temperature
29°C(With no condensation)
Maximum Temperature Gradient 20°C/Hour
Altitude -300m to 3000m
Vibration
(Swept sine, 1/4 octave per
minute)
1G 0-peak, 5 to 500Hz
Operating Conditions
Shock (Half-sine pulse) 225G 0-peak, 2ms
Temperature -40°C to 65°C
Humidity 5% to 95%RH (With no condensation)
Maximum Wet Bulb Temperature 40°C(With no condensation)
Maximum Temperature Gradient 20°C/Hour
Altitude -300m to 12000m
Vibration
(Swept sine, 1/4 octave per
minute)
5G 0-peak, 5 to 500Hz
Nonoperating Conditions
Shock 900G 0-peak, 1ms
120G 0-peak, 11ms
Weight 99g

PC-HDD/LG User’s Guide
7PC-HDD/LG
Connector Pin Assignment
Pin Signal Function I/O Pin Signal Function I/O
1 RESET- Bus Reset I 2 GND Signal Ground
3 DB7 Data Bus Bit 7 I/O 4 DB8 Data Bus Bit 8 I/O
5 DB6 Data Bus Bit 6 I/O 6 DB9 Data Bus Bit 9 I/O
7 DB5 Data Bus Bit 5 I/O 8 DB10 Data Bus Bit 10 I/O
9 DB4 Data Bus Bit 4 I/O 10 DB11 Data Bus Bit 11 I/O
11 DB3 Data Bus Bit 3 I/O 12 DB12 Data Bus Bit 12 I/O
13 DB2 Data Bus Bit 2 I/O 14 DB13 Data Bus Bit 13 I/O
15 DB1 Data Bus Bit 1 I/O 16 DB14 Data Bus Bit 14 I/O
17 DB0 Data Bus Bit 0 I/O 18 DB15 Data Bus Bit 15 I/O
19 GND Signal Ground I/O 20 KEY Key Pin
21 Open 22 GND Signal Ground
23 IOW- Host I/O Write I 24 GND Signal Ground
25 IOR- Host I/O Read I 26 GND Signal Ground
27 IORDY I/O ch RDY O 28 Reserved
29 Reserved 30 GND Signal Ground
31 INTRQ Interrupt Request O 32 IOCS16- Drive 16 Bit I/O O
33 ADD1 Host Address 1 I 34 PDIAG- Passed Diagnostic I/O
35 ADD0 Host Address 0 I 36 ADD2 Host Address 2 I
37 CSO- Chip Select 0 I 38 CS1- Chip Select 1 I
39 DASP- Active (LED) O 40 GND +5V Return
41 +5V +5VDC 42 +5V +5VDC
43 GND +5V Return 44 Reserved
Drive Characteristics (Logical Drive Format)
Description Logical
Head
Number
Logical
Sector
/Track
Logical
Cylinder
Number
Logical
Sector
Size
Number
of
Sectors
Total
logical data
Bytes
PC-HDD/LG 16 63 16,383 512 39,070,080 20,003,880,960
Copyright Copyright 2003 CONTEC CO., LTD. ALL RIGHTS RESERVE
No part of this document may be copied or reproduced in any form by
any means without prior written consent of CONTEC CO., LTD.
CONTEC CO., LTD. makes no commitment to update or keep current
the information contained in this document. The information in this
document is subject to change without notice.
All relevant issues have been considered in the preparation of this
document. Should you notice an omission or any questionable item
in this document, please feel free to notify CONTEC CO., LTD.
Regardless of the foregoing statement, CONTEC assumes no
responsibility for any errors that may appear in this document nor for
results obtained by the user as a result of using this product.

PC-HDD/LG User’s Guide
Copyright 2003 CONTEC CO., LTD. ALL RIGHTS RESERVED.
CONTEC CO., LTD. December 2004 Edition
3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan
Japanese http://www.contec.co.jp/
English http://www.contec.com/ A-46-785 (LYCY311)
Chinese http://www.contec.com.cn/ 12212004_rev2 [09022003]
