Contura C i41 User manual

C i41
www.contura.eu
Installation
Instruction

GB
226 CERTIFICATE
DECLARATION OF PERFORMANCE
No. Ci41-CPR-130912-SE-1
PRODUCT
Product type Insert lit with solid biofuels
Type designation Contura i41
Manufacturing number See rating plate on the insert
Intended area of use Heating of rooms in residential buildings
Fuel Wood
MANUFACTURER
Name NIBE AB / Contura
Address Box 134, Skulptörvägen 10
SE-285 23 Markaryd, Sweden
CHECKS
According to AVCP System 3
European standard EN 13240:2001/AC:2006, EN-13240:2001/A2:2004/AC:2007
Test institute Rein-Ruhr Feuerstätten Prüfstelle, NB 1625,
has checked declared performance and issued test report no. RRF-40 13 3403
The undersigned is responsible for the manufacture and conformity with the declared performance.
Niklas Gunnarsson, Business area manager NIBE STOVES
Markaryd, September 12, 2013
DECLARED PERFORMANCE
Essential characteristics Performance Harmonised technical
specification
Reaction to fire A1 WT
Minimum distance to combustible material 0 mm to rear
200 mm to side
According to the given conditions in the installa-
tion instructions.
Risk of falling embers Approved
Emissions from combustion CO 0.07%
NOx 91 mg/m3
OGC 59 mg/m3
PM 17 mg/m3
Surface temperatures Approved
Cleaning options Approved
Mechanical durability Approved
Emissions of hazardous substances Approved
Nominal output 7 kW
Efficiency 81%
Flue gas temperature in connector at nominal
output
328°C
EN 13240:2001/AC:2006,
EN-13240:2001/A2:2004/AC:2007

GB
227
List of Contents
Technical specifications 228
Surround 229
Chimney 230
Supply of combustion air 231
Installation distances 232
Corner installation 234
Positioning the insert 235
Assembling the stand 237
Assembling the surround – without shelf/bench 242
Assembling the surround – with shelf 250
Assembling the surround – with bench 260
Assembling grate and top 273
CONTENTS
WARNING!
The stove becomes very hot
During operation, certain surfaces of the stove become
very hot and can cause burn injuries if touched. Also,
take heed of the strong heat radiated through the door
glass. Placing flammable material closer than the safe
distance indicated may cause a fire. Smoulder combustion
can cause quick gas ignition with the risk of damage to
property and personal injury.
NOTE:
Report the installation of a fireplace to
your local authority.
The owner of the house is personally responsible
for ensuring compliance with the mandatory safety
requirements and must have the installation approved by
a qualified inspector. Your local chimney sweep must also
be informed about the installation as this will affect the
routines for regular chimney-sweeping services.
A warm welcome to Contura.
A warm welcome to the Contura family. We hope you
will get a great deal of pleasure from your new stove.
As a new owner of a Contura stove, you have secured
a product with timeless design and long service life.
Contura also has a combustion process that is both
environmentally friendly and efficient, for the best heat
production.
Read through these installation instructions carefully
before installation. Read how to best light your stove in
the lighting instructions.

GB
228
Ci41 Ci41 Shelf Ci41 Bench
FACTS
Application to local authority
Before installing a stove or erecting a
chimney, it is necessary for you to make
an application for permission to your
local authority. Ask your local authority
for advice regarding regulations and the
application.
Structural support
If the fireplace is to be positioned on
a wooden joist, a structural engineer
should evaluate the load capacity of the
floor. When the gross weight exceeds
400 kg, reinforcement of the wooden
joists is usually necessary.
Hearth plate
Due to the risk of falling embers, a
flammable floor must be protected by
a hearth plate. It must extend 300 mm
in front of the stove and 100 mm on
each side of the stove, or have a 200 mm
extension on each side of the opening.
The hearth plate can consist of natural
stone, concrete, metal or glass. A glass
hearth plate is available as an accessory
for these models.
Technical specifications
Model i41
Output 5-10 kW
Nominal output 7 kW
Efficiency 81 %
Model Ci41A Ci41T Ci41S
Weight (kg) 355 425 390
Shelf: + 30 kg
Bench: + 125 kg
Powerstone (option): + 200 kg
Protective screen (option): + 15 kg
Width (mm) 910
Depth (mm) 500
Height (mm) 1650 / 1700
Connector diameter Ø150 mm ext.
European standard EN-13240
DIN plus
Bauart 1
Part 15a B-VG
Test report no: RRF-40 13 3403
SINTEF: 110-0408
Approved for installation in
Smoke Control Area by DEFRA
Wall behind
If your Contura i41 is to be installed
against a combustible wall, the wall must
be protected by a firewall or by the
integrated protective screen which is
available as an option in some markets.
The following material requirements are
made of the firewall:
The building material must not be
combustible.
The thermal conductivity coefficient ë
may be a maximum of 0.14 W/mK. The
thickness of the building material must
always be at least 100 mm. In cases
where the building material’s insulation
properties are given as a U-Value, this
must be a maximum of 1.4 W/ m²K.
List of suitable materials:
Aerated concrete λ= 0.12-0.14
Vermiculite λ= 0.12-0.14
Calcium silicate λ= 0.09
Contact your chimney sweep for advice in
choice of other materials. Remember that
even a non-combustible wall may require
protection if it is a load bearing wall or
has combustible material behind it.
General
This manual contains instructions about
how Contura i41 must be assembled
and installed. More information about
the insert is available in the separate
installation instructions.
To ensure the function and safety of the
hearth, we recommend that installation is
carried out by an authorised technician.
Our Contura dealers can recommend
suitable technicians, information about our
dealers can be found at www.contura.eu
Instructions for lighting are also supplied
with the insert. Read them carefully and
keep them safe for future use.

F
F
D
C
B
A
E
E
H
B
G
G
GB
229
Surround
Section 1:
Height 450 mm.
Section 2:
Height 400 mm (not shelves / bench).
Height 450 mm (with shelves / bench).
Supplied packaged separately.
Sections 3 and 4:
Height 370 mm.
Sections 3 and 4 consist of
similar panels.
SURROUND
Shims
Only handle the stone with clean hands or gloves. Handle the stone
carefully so as not to damage fragile corners and edges.
The stone is a natural material, which means that there may be
certain irregularities and variations in its appearance. Clean the
stone with a damp cloth. Soapy water can be used if necessary.
To avoid abnormally large gaps and uneven lines, it is important
that the stove and steel stand are straight and stable. Adjust and
align it carefully before hanging the stone. During assembly, check
that all the stone sections are straight and that all stones are of a
uniform height. Use shims if necessary.
After assembly is complete some adjustment of the insert feet
can improve the joint between the insert and the surround. The
internal fit of the stone can also be adjusted using the stand feet.
All feet must be contact with the base after any adjustment.
!

285
GB
230
Carefully check that the chimney is sealed and that there is no
leakage around soot hatches and flue connections.
Make sure that the connector gasket does not work loose when
the connection pipe is placed on the connector. If further
sealing material is required, heat-resistant sealant may be used.
It must be possible to sweep the full length of the flue and the
soot hatches must be easily accessible.
If two fireplaces are connected to the same chimney flue,
the stove must be equipped with self-closing door, see insert
instructions.
The stove is type approved in accordance with EN 13240 and
must be connected to a chimney dimensioned for at least 350°C
the external connection diameter is Ø150 mm.
The insert requires a draft in the chimney of at least –12 Pa. The
draft is affected both by the length and area of the chimney,
and by how well sealed it is. Minimum recommended chimney
length is 3.5 m and suitable cross section area is 150-200 cm2
(Ø140-160 mm in diameter). Note that a flue with sharp bends
and horizontal routing reduces the draught in the chimney.
The maximum horizontal flue is 1 m, on the condition that the
vertical flue length is at least 5 m.
Chimney
Create an opening in the top grate by using the shorter grate
profiles, see page 275. Cover the gap with a cuff.
If a protective screen is selected, this must be installed before making
the chimney connection.
For the rearward connection it is recommended to use a 45°+ 45° angle
with soot hatch and with the centre 285 mm above the connector.
Top connection
Rearward connection
CHIMNEY

HK
HK
HK
HK
305** 255*
72
285** 235*
130
GB
231
Knockout
Supply of combustion air
* Without shelf/ bench
** With shelf/ bench
Supply rear
Supply down
To insert the combustion air hose through the floor panel,
remove the knockout.
Supply of combustion must be provided. Combustion air can
be provided directly via a duct from outside, or indirectly via
a vent in the outer wall of the room where the stove is placed.
The amount of combustion air that is used for combustion is
approx. 25 m3/h. Some installation alternatives are shown to
the right. The air duct connection on the stove has an external
diameter of Ø100 mm.
In hot areas the duct should be insulated with 30 mm mineral
wool covered with a moisture inhibitor (aluminium tape). It is
important that the lead-in, between the pipe and the wall (or
floor), is sealed using jointing compound.
A 1 m length of condensation-insulated ducting for combustion
air is available as an accessory.
SUPPLY

655
200
700
50
C i41
!
!
500
Min 2380
500
900
1650
910
Brännbart tak
500
235
1100
1385
Ø 150Utv.
GB
232
For corner installation, the
rear and side walls must
always be non-combustible,
alternatively both must
be protected by an
external firewall. Material
requirements for firewall
according to the section
“Walls behind” on page 228.
Without shelf/ Bench
Important!
The dimension diagrams only show the minimum permitted
installation distances for the stove. When connecting to a
steel flue, also note the safety distance requirements of
the flue. The minimum distance to combustible parts of the
building or interior decoration in front of the stove must
be at least 1.5 m.
For placement against
combustible rear walls, a built-
in protective screen (option in
some markets), or an external
firewall that protects the wall
behind is required. Material
requirements for firewalls
according to the section “Walls
behind” on page 228.

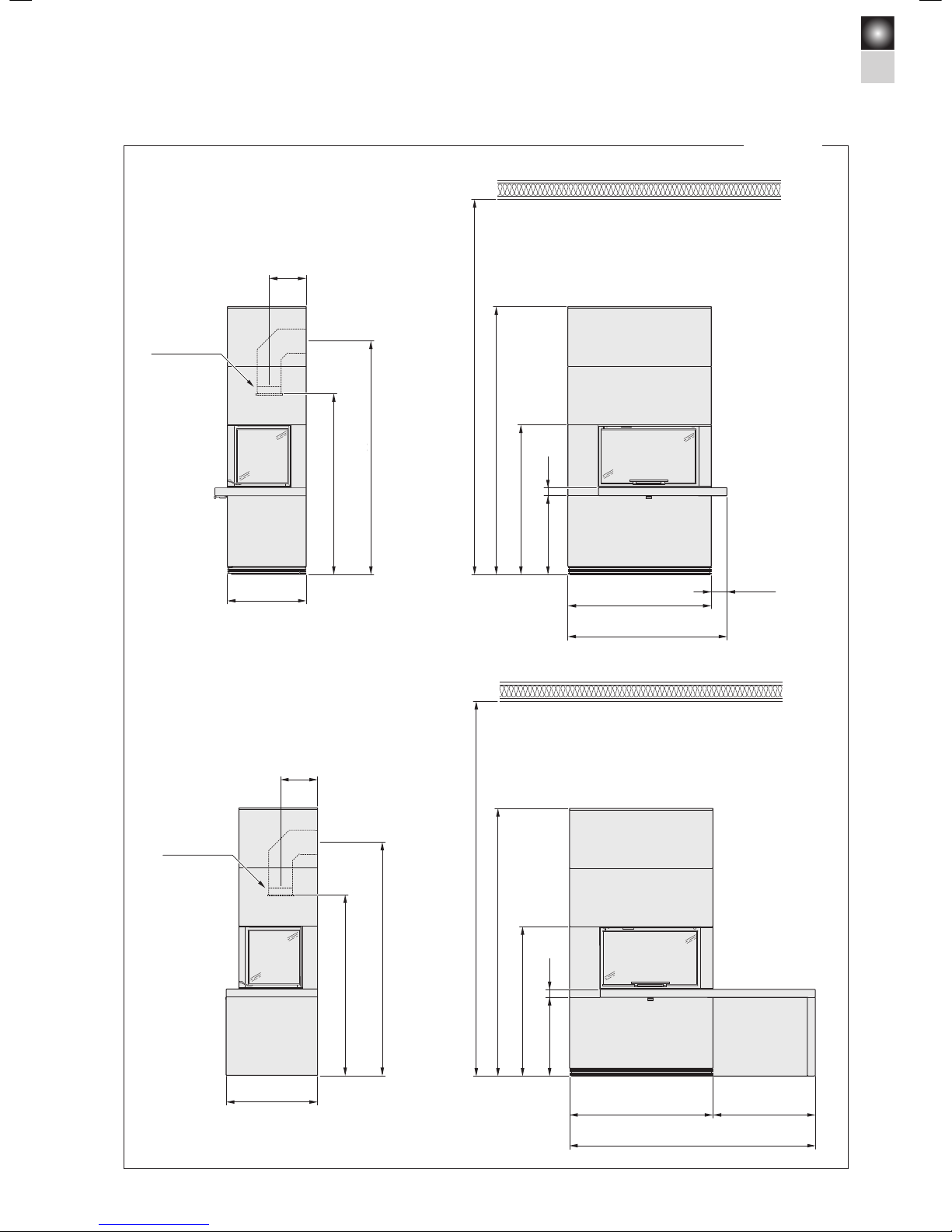

INSTALLATION DISTANCES
Installation distances
1385
Min 2380
Ext. Ø 150
Combustible roof

C i41
Min 2380
500 50
950
1700
910
100
1010
Brännbart tak
500
235
1150
1435
Ø 150Utv.
Min 2380
500 50
950
1700
910 650
1560
Brännbart tak
580
235
1150
1435
Ø 150Utv.
GB
233
INSTALLATION DISTANCES
With shelf/ Bench
Installation distances
Ext. Ø 150
1435
1435
Min 2380 Min 2380
Ext. Ø 150
Combustible roof
Combustible roof

2-5 mm
2-5 mm
2
*
**
Min 30 mm
Min 30 mm
*
**
1
GB
234 CORNER INSTALLATION
Contura i41 can be positioned in a corner with non-combustible
walls according to the section “Walls behind” on page 228. This type of
installation includes the following:
- Lower rear brace is withdrawn (image 1)
- Supplementary support for the top is installed (image 1)
- Row of side stones against wall is withdrawn (image 2)
- There will be a gap between the surround and side wall (2-5 mm),
this can be sealed using grout.
Corner installation

!
!
Min 655
1
2
GB
235
INSERT PLACEMENT
The cross in the floor panel indicates
the location of the flue gas output.
Position the floor section and check that the minimum permitted
distance to combustible material is kept. Measure to the centre of
the floor section.
The rear edge of the floor section will align with the complete rear
edge of the surround.
If the protective screen is selected – read these
instructions before installing the insert or chimney. The stove can be positioned tight to the
wall behind.
When installing against non-vertical
walls and to facilitate installation it is
recommended that a small gap is left
between the wall and stove. Lay the floor
section a slight distance from the wall
behind, and align the position of the holes
in the ceiling for the chimney lead-in with
the same dimensions.
Positioning the insert

!
min 506 *
min 554 **
13
13
VANADIUM
No. 7
CHROME
4
3
13 mm
13 mm
*
**
GB

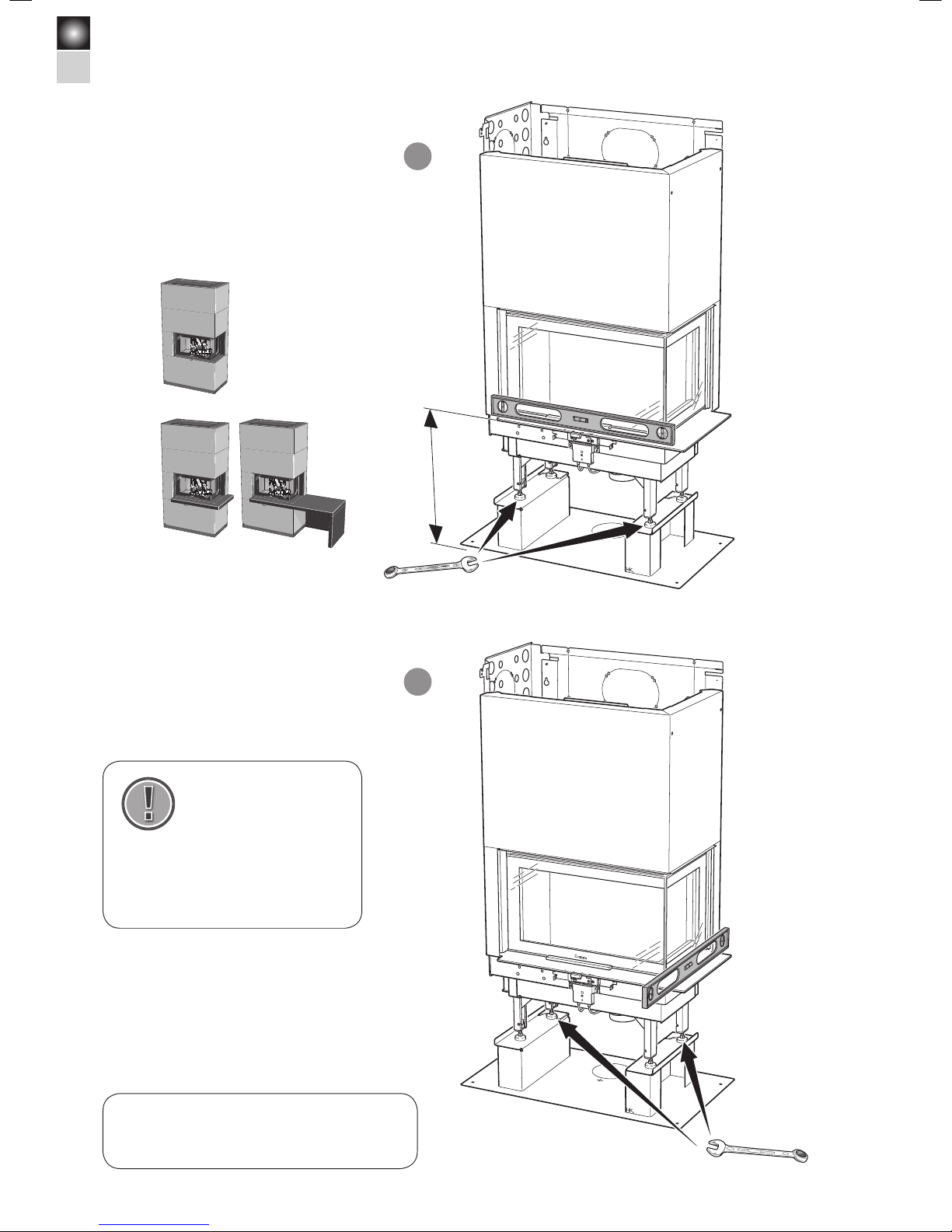

236 INSERT PLACEMENT
Check that the transport locking device
of the counterweight is removed
according to the insert instructions
before assembling the surround.
• With combustion air hose as option
–now connect according to separate instructions.
Position the spirit level as illustrated and adjust
the rear feet until the stove is level.
Place a spirit level on the moulding below the
door, and adjust the front feet to the specified
measurement from the floor to the moulding's
lower edge and until the spirit level is straight.

PZ2
90°
90°
50 mm
~48
1
2
1
2
GB
237
This brace (ring 1)
must be twisted with
the cut-out upwards to
create clearance for the
damper wires. Also check
that the four magnetic
mountings are screwed in
at the bottom.

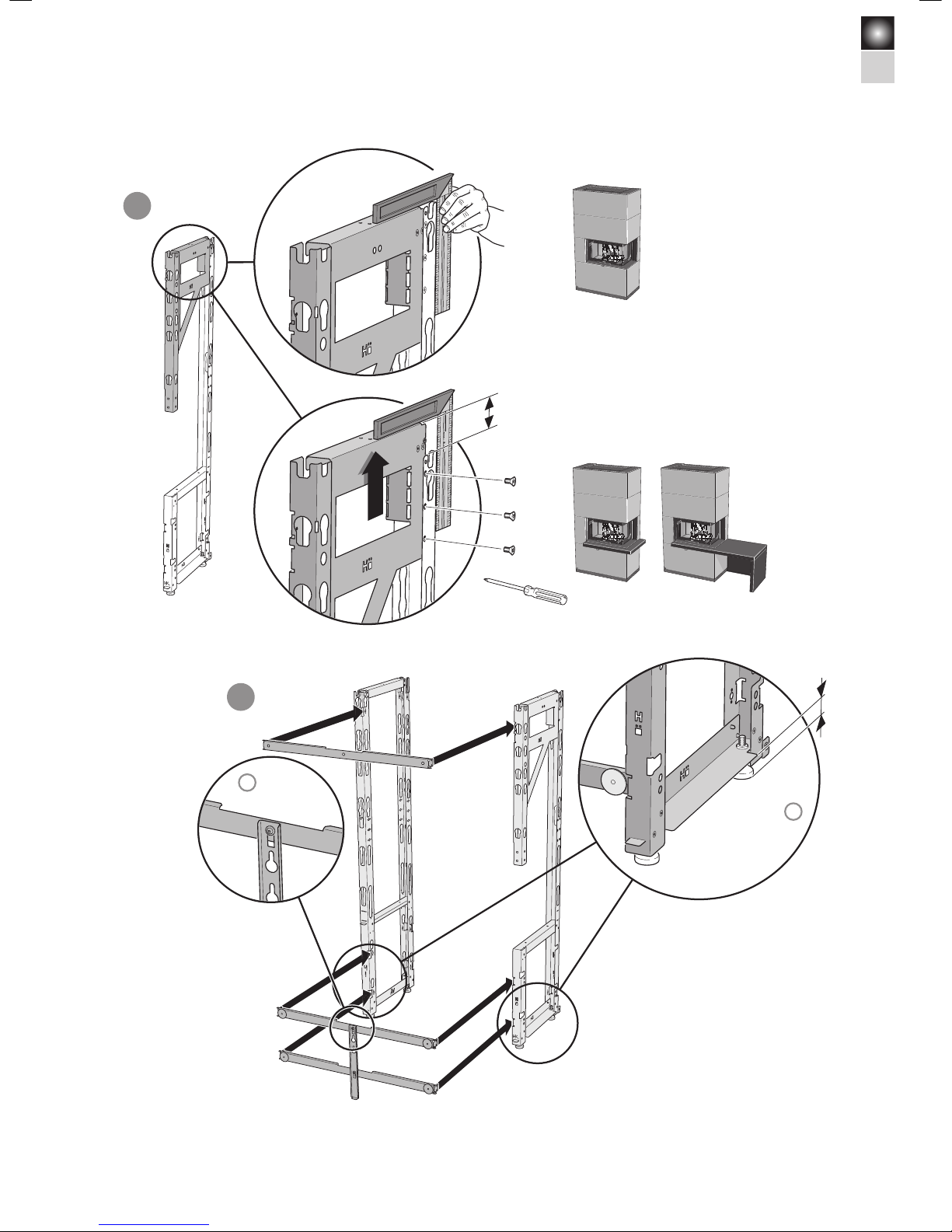

Assembling the stand
The lower brace (ring 2) must
protrude on the outside and
forwards, and provide surfaces for
the stones.
STAND ASSEMBLY

90°
3
4
1
2
GB
238
x 8
M4 x 10
T20
x 4
M5 x 9
T25
x 12
M5 x 9
T25

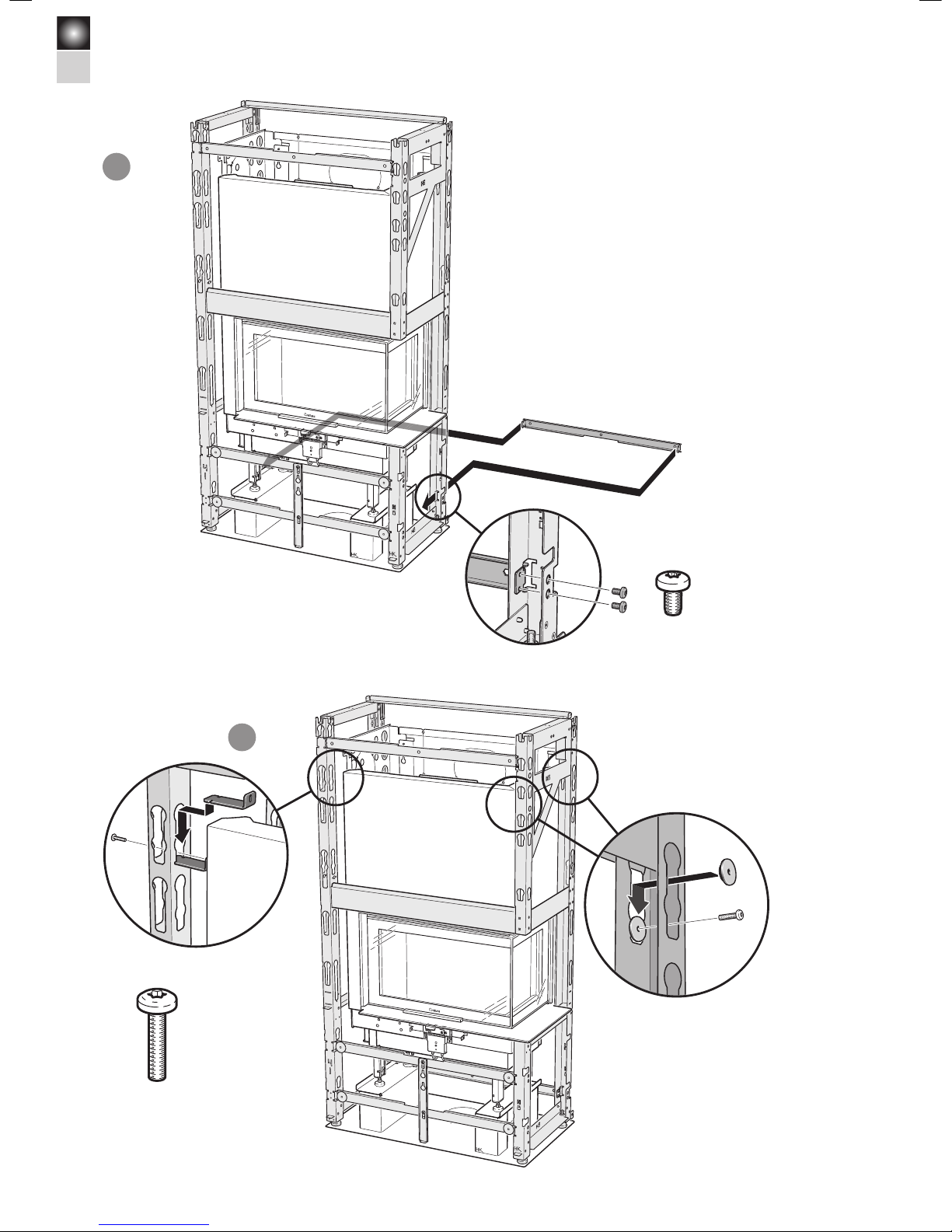

STAND ASSEMBLY

5
6
GB
239
STAND ASSEMBLY
x 2
M5 x 9
T25
x 4
M4 x 10
T20
x 2
M5 x 9
T25

7
8
GB
240
x 3
M5 x 18
T25
x 4
M5 x 9
T25
STAND ASSEMBLY

13
13
VANADIUM
No. 7
CHROME
13 mm
Min 30 mm
Min 30 mm
10
9
!
GB
241
STAND ASSEMBLY
• Connect the chimney -
upwards or rearwards, follow the chimney manufacturer's
instructions.
• With Powerstone as option –
position the heat tank according to the insert’s instructions.
• With protective screen as option –
now connect according to separate instructions.
Ensure that the disc base can be pushed
around the stand. Adjust the base height with
the rubber feet. On heavily sloping floors the
insert and stand may need to be raised further.
Then reposition the base until all stones are in
place.
Check that there is a 30 mm gap all the way
between the rear of the stand and wall behind.
Align the stand using a spirit level.

3
2
1
2 mm
GB
242
With BenchWith ShelfWithout Shelf / Bench

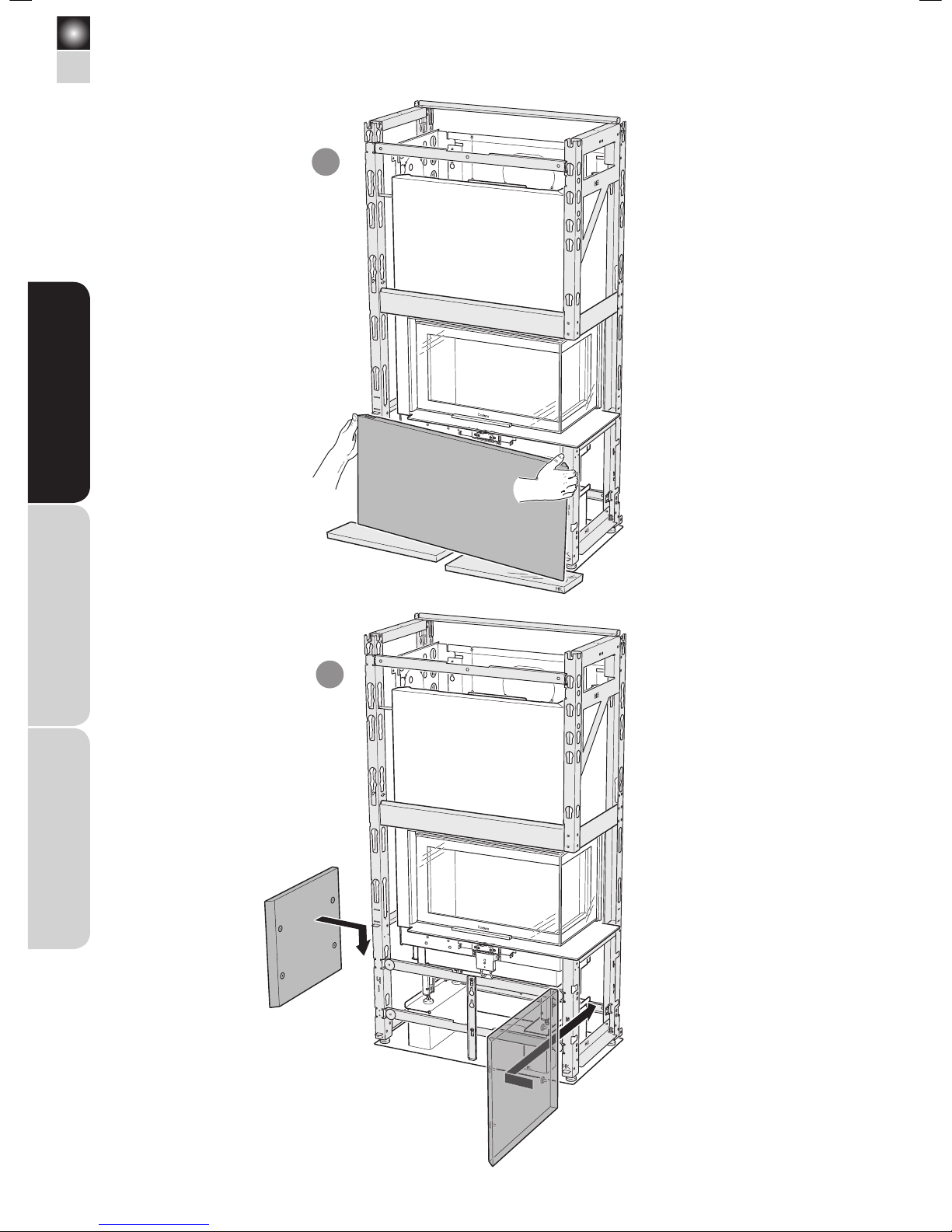

ASSEMBLING THE SURROUND WITHOUT SHELF/BENCH
Assembling the surround – without shelf/bench
Place a foam sheet on the floor to
prevent the stone corners from becoming
damaged when handling.

A
5
4
GB
243
Without Shelf / BenchWith ShelfWith Bench
x 2
M6 x 20
Allen screw 4
ASSEMBLING THE SURROUND WITHOUT SHELF/BENCH
This panel can be removed for servicing.
Lock it in place by inserting two screws
through the moving catch (A) in the front
panel. Do not tighten the screws – it must
be possible to be move the catch upwards
to detach the panel.
The stone must lie flush against the stand.

6
7
GB
244 ASSEMBLING THE SURROUND WITHOUT SHELF/BENCH
With BenchWith ShelfWithout Shelf / Bench
When the front panel is correctly
positioned in the depth direction,
it must be lowered again for the
installation of the side panels.
Beware of the corners!
