GB
PRODUCT
Product type Stove lit with solid biofuels
Type designation Contura 470T
Manufacturing number See rating plate on the stove
Intended area of use Heating of rooms in residential buildings
Fuel Wood
MANUFACTURER
Name NIBE AB / Contura
Address Box 134, Skulptörvägen 10
SE-285 23 Markaryd, Sweden
CHECKS
According to AVCP System 3
European standard EN 13240:2001 / A2:2004
Test institute Rein-Ruhr Feuerstätten Prüfstelle, NB 1625,
has checked declared performance and issued test report no. RRF-40 05 932
PERFORMANCE DECLARATION
No. C470T-CPR-130605-SE-1
DECLARED PERFORMANCE
Essential characteristics Performance Harmonised technical
specification
Reaction to fire A1 WT
Minimum distance to combustible material 100 mm to rear
450 mm to side
Other safety distances according to
the installation instructions
Risk of falling embers Approved
Emissions from combustion CO 0.12%
NOx 25 mg/m3
OGC 84 mg/m3
PM 67 mg/m3
Surface temperatures Approved
Cleaning options Approved
Mechanical durability Approved
Emissions of hazardous substances Approved
Nominal output 7 kW
Efficiency 80%
Flue gas temperature in connector at nominal
output
255°C
EN 13240:2001 / A2:2004
The undersigned is responsible for the manufacture and conformity with the declared performance.
Niklas Gunnarsson, Business area manager NIBE STOVES
Markaryd, 1st July 2013

GB
List of Contents
Technical details 76
Installation distances to walls and ceiling 77
Air supply 78
Unpacking 79
Fitting the fire-box surrond 80
Fitting the smoke baffle 81
Installing the heat-retaining blocks 81

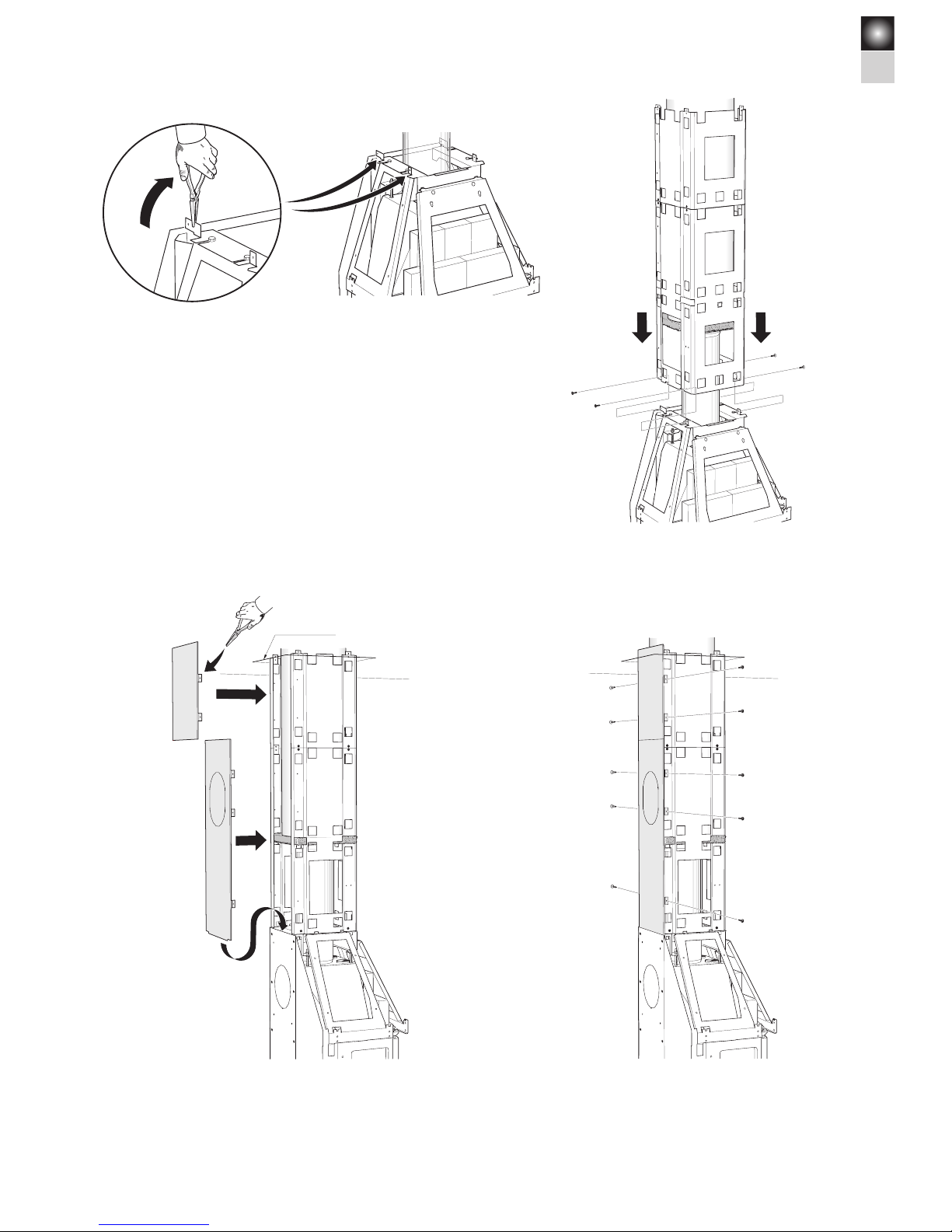

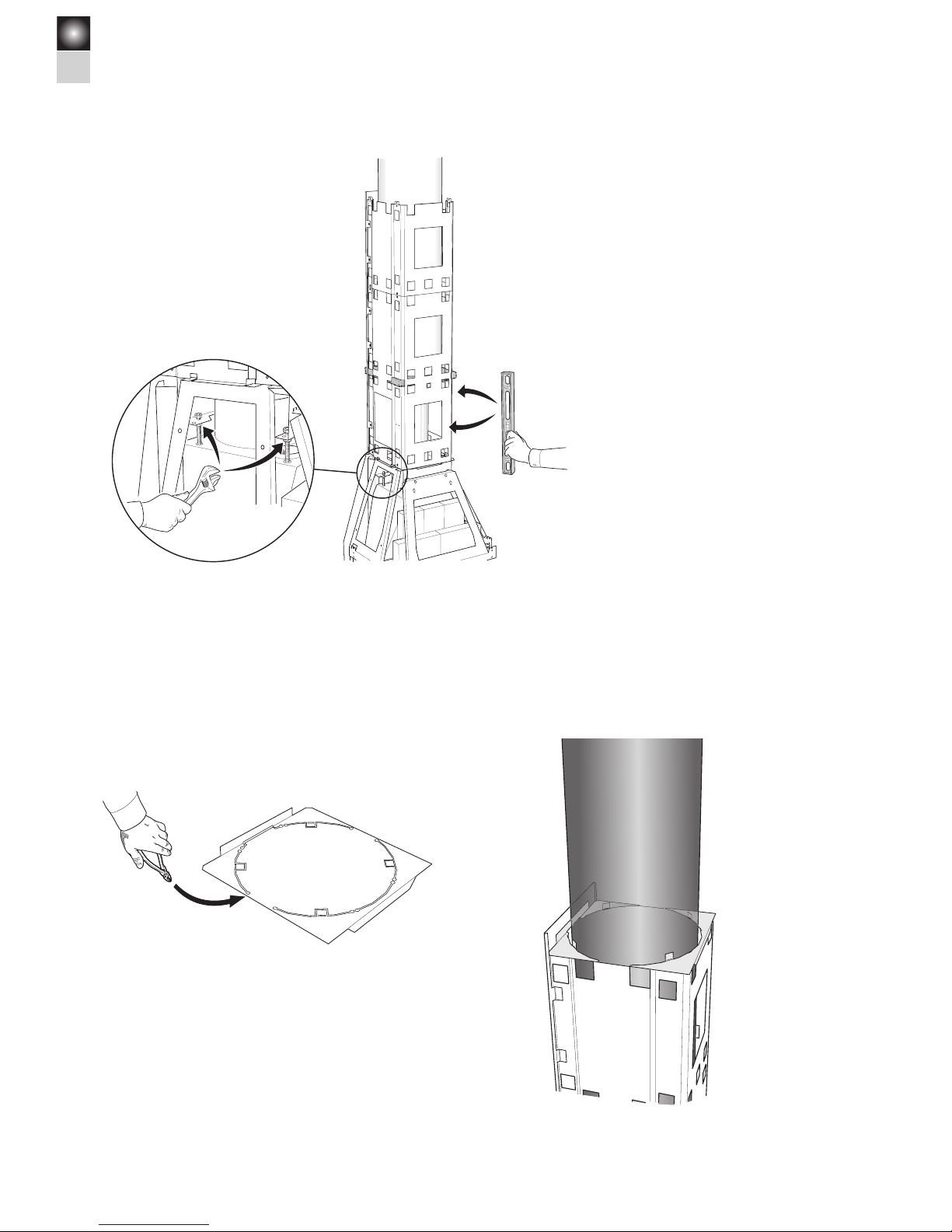

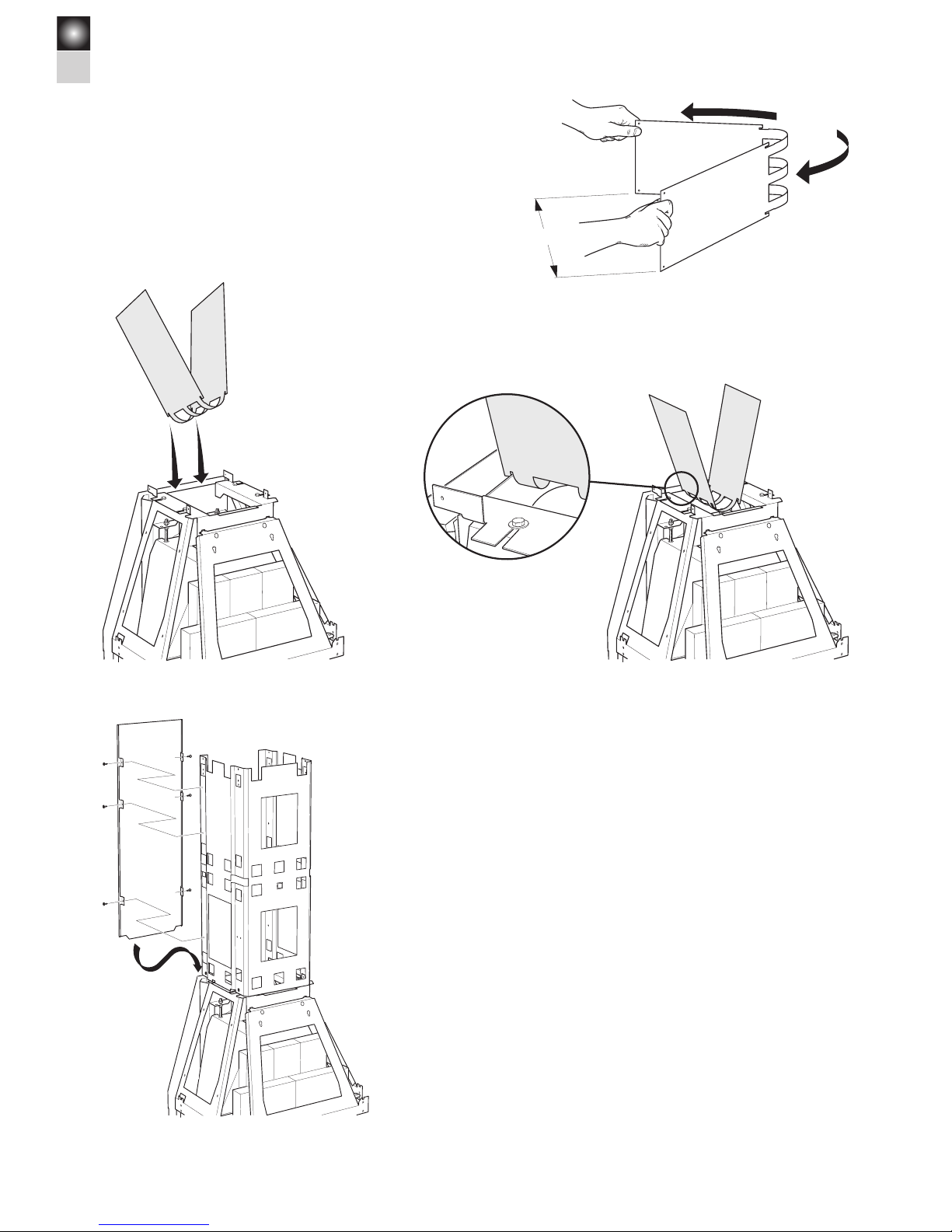

Top flue connection to a steel chimney 81
Rear flue connection to masonry chimney 85

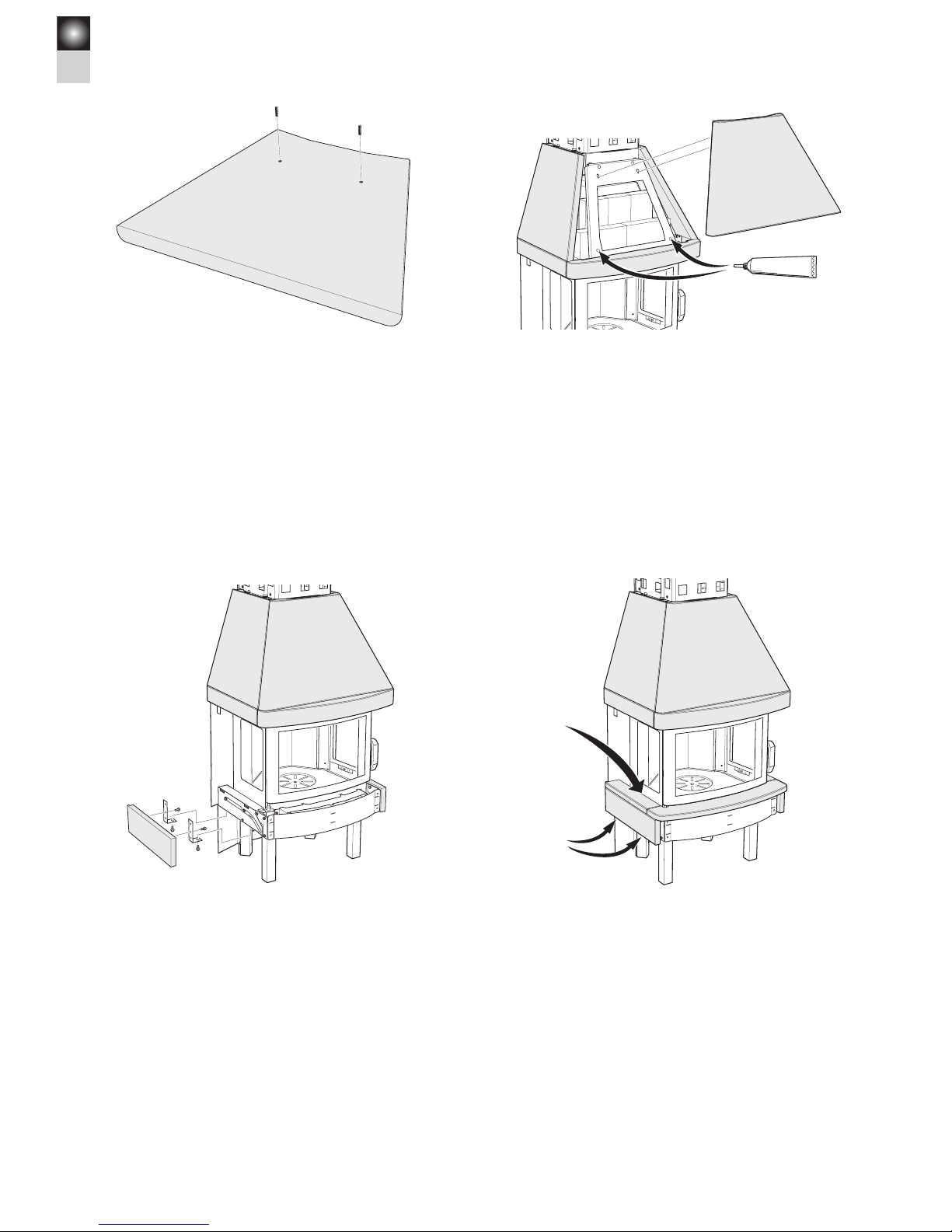

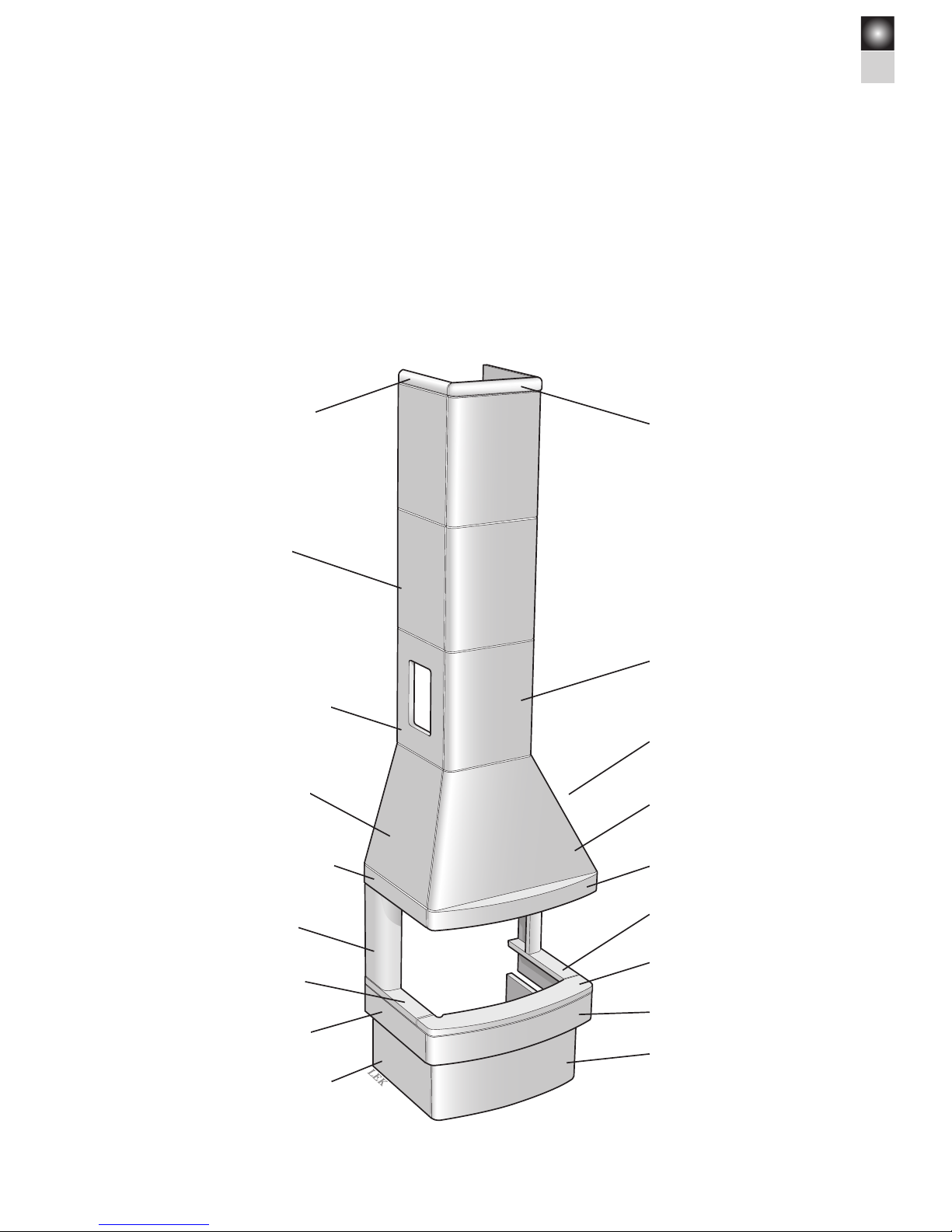

Fitting the soapstone surround 89
Fitting extra side windows 96
How to use the stove 97
A warm welcome to Contura
A warm welcome to the Contura family. We hope you
will get a great deal of pleasure from your new stove.
As a new owner of a Contura stove, you have secured
a product with timeless design and long service life.
Contura also has a combustion process that is both
environmentally friendly and efficient, for the best heat
production.
Read through these installation instructions carefully
before installation. Read how to best light your stove
in the lighting instructions.
WARNING!
The stove becomes very hot
During operation, certain surfaces of the stove become
very hot and can cause burn injury if touched. Also,
take heed of the strong heat radiated through the door
glass. Placing flammable material closer than the safe
distance indicated may cause a fire. Smoulder combustion
can cause quick gas ignition with the risk of damage to
property and personal injury.
NOTE!
Report the installation of a stove to your
local authority.
The owner of the house is personally responsible
for ensuring compliance with the mandatory safety
requirements and must have the installation approved
by a qualified inspector. Your local chimney sweep
must also be informed about the installation as this
will affect the routines for regular chimney-sweeping
services.

76
GB
LEK
Rökhylla
Rostertallrik
Gjutgodsbotten
Täckbitar
Brasbegränsare
Asklåda
Täljsten/keramik
Eldstadsbeklädnad
Plåtprofiler
Technical details
Output 3-9 kW
Efficiency, up to 80%
Weight, tall model 355 kg
Weight, medium high model 328 kg
Stove width 664 mm
Depth 560 mm
Height, tall model 2415 mm
Connecting sleeve (internal dia.) 150 mm
Type approved in accordance with:
European standard EN-13240 class 1
Swedish environmental and quality certification,
“P marked” cert. no. 22 03 07
Norwegian standard NS 3059, certificate no. 043-088
German standard DIN 18.891, RO-91 99 84
Danish standard 887-1, id nr 598
General information
This folder contains instructions on how to assemble and
install stoves in the Contura 470. The stove also comes with
comprehensive Lighting and Maintenance Instructions. Please
take time to read all this information carefully and keep it in a
safe place for future reference.
Contura 470 stoves have been type-approved in Sweden
for connection to a chimney which can withstand flue gas
temperatures of 350 °C. The connecting sleeve has an external
diameter of 150 mm.
To ensure proper combustion, sufficient air must be supplied to
the stove from outdoors.
Building permission
It may be necessary for you to apply for building permission
from your local planning authority before installing a stove or
erecting a chimney. Before starting installation work, make sure
that you check which regulations apply.
Structural support
Check to make sure that the floor is strong enough to support
the weight of the stove and chimney. If you intend to locate the
stove on standard wooden floor joists, contact a professional
builder to make sure that the construction will withstand the
load. If the total weight of the stove and chimney together does
not exceed 400 kilos, it is not usually necessary to reinforce the
joists.
Floor plate
To protect the floor from sparks and falling embers the stove
must stand on a non-combustible surface which extends at
least 300 mm in front of the stove and 100 mm along each
side. As other statutory requirements apply in some countries,
we recommend that you consult the relevant authority or an
authorised chimney-sweep in your area.
Chimney
The draught in the chimney must generate a negative pressure
of at least 12 Pa. The draught is affected both by the length and
cross-sectional area of the chimney, and by how well sealed the
construction is. The shortest recommended chimney length is
3.5 metres. The cross-sectional area of the chimney must be
approximately 150–200 cm² (140–160 mm in diameter).
Make sure that there are no gaps around soot hatches and flue-
pipe connections.
Remember that the draught is reduced in flues with sharp bends
or horizontal sections. A horizontal flue length of up to 1.0
metre is permissible, provided that the vertical flue is at least
5.0 metres in height.
It must be possible to clean the flue throughout its entire
length, and the soot hatches must be easily accessible.
Fire-bars
Ash-pan
Smoke baffle
Grate disc
Cast-iron fire-bed
Cover strips
Fire-box surround
Sheet metal profiles
292 292
664
340
1050
1600
Air inlet Ø64
Tall model 2415
Min. 2100 to ceiling

77
GB

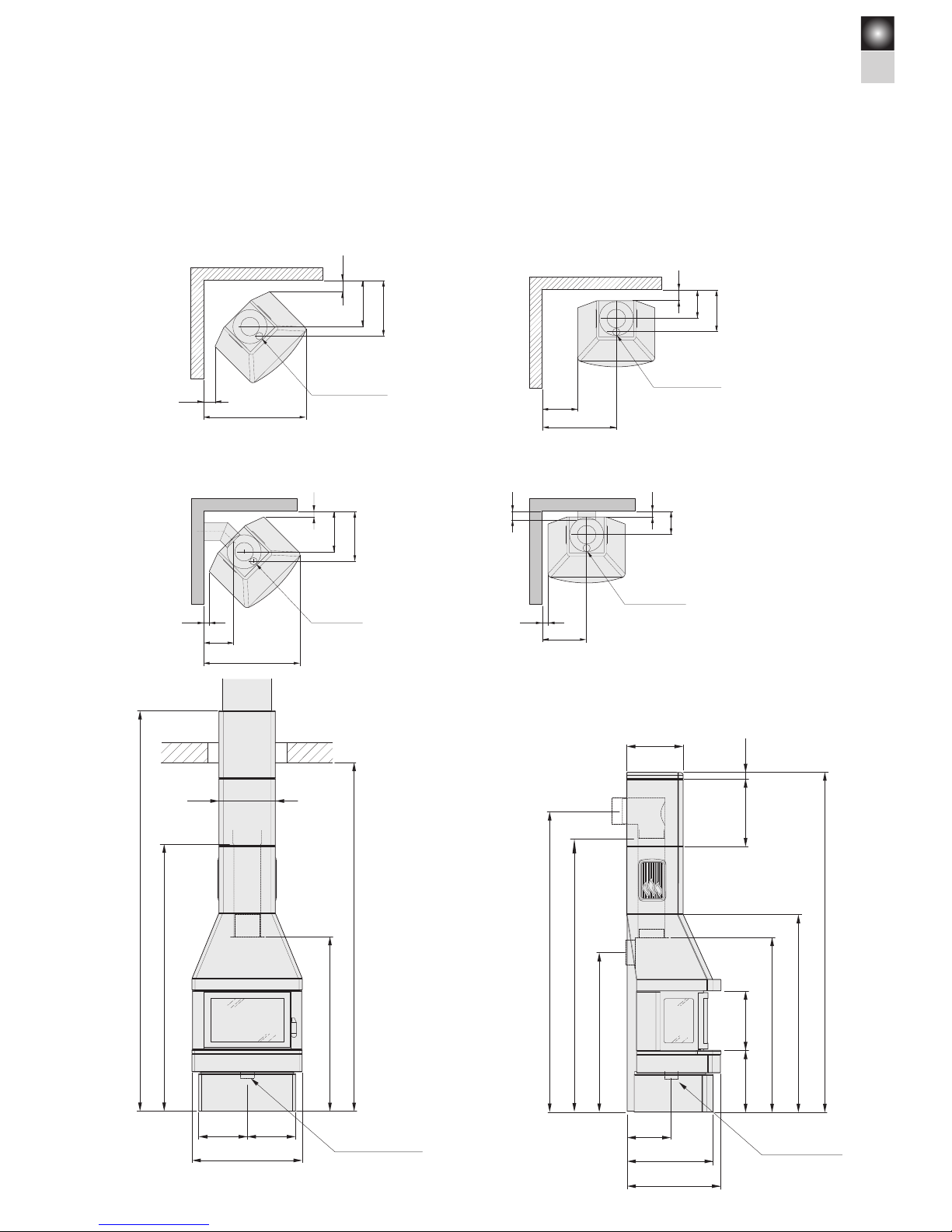

Stand the stove on a floor plate which meets the requirements
laid down on page 76. Measure to make sure that the size of
the floor plate and the distance between the stove and the wall
are at least as great as specified in the diagrams below. Allow at
least 1.0 metre from the stove door to any combustible part of
the building structure or interior fittings.
Important!
When placing the stove in a corner close to combustible
wall materials or against a wall with a gap of only 305 mm
to combustible materials, an extra side window with a heat-
reflecting surface must always be fitted.
365
100
250
450
*305
782
*637
Air inlet Ø64
Combustible wall
* Only permissible with extra side window. Please see page 96.
370
1190
360
1050
407 40
520
560
265
340
ca 1790
940
ca 1610
Air inlet Ø64
Combustible roof
Medium high model 2050
349
432
282
50
50
845
Air inlet Ø64
Fire-retardant wall of
brick or concrete
292 292
664
340
1050
1600
Air inlet Ø64
Tall model 2415
Min. 2100 to ceiling
*100
539
622
240
240
*399
*482
*100
1035
*895
Air inlet Ø64
Combustible wall
Installation distances to walls and ceiling
50
105
50
200
382
Air inlet Ø64
Fire-retardant wall of
brick or concrete
Fire-retardant wall of brick
or concrete
Fire-retardant wall of brick
or concrete

78
GB
Combustion air for the stove can be supplied through a duct
directly from outside, or indirectly through a vent in the wall of
the room where the stove is installed. Flexible tubing is available
as an accessory.
The drawings below show various alternative methods of
supplying the stove with air.
The air duct connection on the stove has an external diameter of
64 mm.
Important!
To prevent condensation in air ducts which pass through heated
areas, the duct must be insulated with 30 mm of mineral wool
covered with aluminium tape.
It is important to seal carefully around the duct where it passes
through the wall or floor. Use jointing compound. For ducts longer
than 1.0 metre, the diameter must be increased to 100 mm, and
the size of the air vent increased correspondingly.
Through the external wall.Indirect air supply through the external wall.
LEK
Through the floor and foundation slab.Through a suspended floor/wall-and-cavity
foundation.
LEK
LEK
LEK
30 mm
Air supply

79
GB
LEK
LEK
Lift and transport the stove as
shown in these sketches.

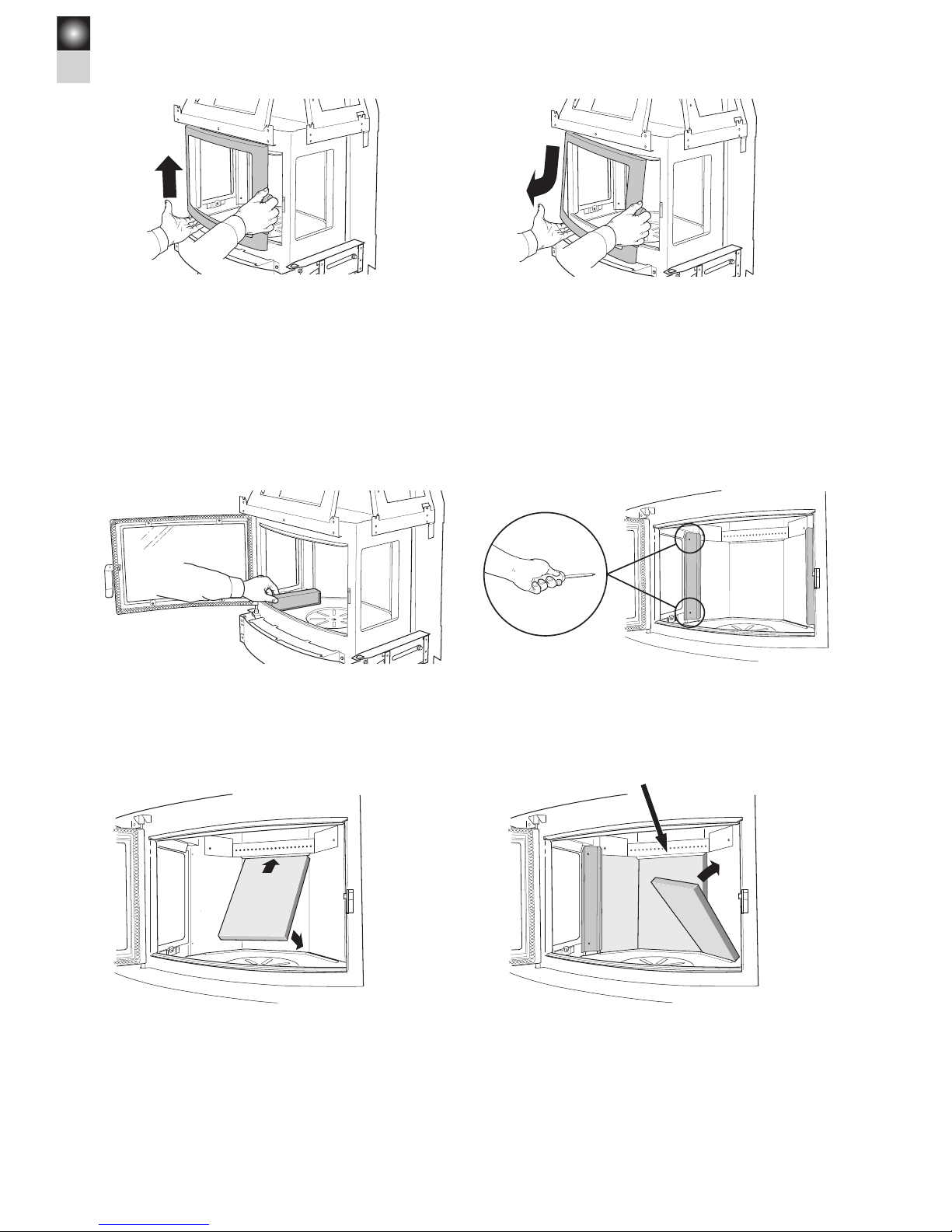

The cast-iron door and fire-bed may be removed to
make the stove lighter and easier to move.
Remove the cast-iron cover strips below the side windows.
LEK
LEK
Remove the grate disc by lifting the edge furthest
away from the draught control bar.
Lift the cast-iron fire-bed at one side and tilt it so that
it can be removed through the door opening.
LEK
LEK
Unscrew the metal brackets from the rear edge of
the side windows.
Unpacking

80
GB
Fitting the fire-box surrond
LEK
LEK
LEK
Vermiculitehållare
LEK
Remove the cast-iron cover strips below the side windows. Unscrew the metal brackets from the rear edge of
the side windows.
Slot the two front fire-bricks. Screw the retaining
brackets back into place and replace the cover strips.
Fit the rear fire-brick.
LEK
Lift the door upwards until it disengages from the
lower hinge.
LEK
Vermiculite holder
Ease the bottom of the door slightly sideways until it
clears the hinge pin.

81
GB
LEK
Stödtapp, sida Vermiculitehållare
LEK
IMPORTANT!
When correctly placed on top of the
supporting pegs, the baffle slopes
upwards from the back to the front.
Installing the heat-retaining blocks
Place the five olivine blocks on top of the fire-box as shown.
LEK
When connecting the stove to a steel chimney, always refer to the
installation instructions supplied by the chimney manufacturer. The
size of the hole in the ceiling through which the chimney passes
must be adapted to the dimensions of the chimney shaft itself
and to the mandatory “safe distances” to combustible materials
in each individual instance. The sketches below show the required
gap between the chimney and any combustible material. The stove
can support a maximum chimney weight of 250 kilos. However, we
strongly recommend that you check with the building and planning
department of your local authority to make sure that local building
regulations permit a steel chimney to rest on a stove.
380
380
380
380
440
440
380
380
380
380
440
440
When the ceiling is flat, the hole in the ceiling must measure
380x380 mm in size and be cut so that it emulates the angle of
the stove, both for installations against a straight wall and in
corners.
When the ceiling slopes and the stove is placed in a corner, the
hole in the ceiling must measure 440x440 mm in size and be cut
parallel to the walls.
Sloping ceiling in corners Flat ceiling
380
380
380
380
440
440
Vermiculite-
holder
Side peg
Top flue connection to steel chimney
Raise the folded front edge of the smoke baffle up over
the side pegs. Then lift the rear edge of the baffle up
over the vermiculite holder.
Fitting the smoke baffle

82
GB
Bend the four metal lugs on the top edge of the lower section of
the chimney frame inwards and upwards. Then screw the upper
section in place.
LEK
180°
LEK
Övre skorstensram
Nedre skorstensram
LEK
Startrör
Avtätningsplåt
Isoleringsskiva
Övre startrör
Stoppbricka
Övergångsisolering
Skorstensmodul
Check to ensure that the stove-body is standing straight and
perpendicular. Slide the flue base over the collar. Make sure that the seal
round the collar is not dislodged. If further sealing material is required,
heat-resistant sealant may be used.
When using a Premodul chimney system, attach the sealing plate and
insulating panel to the start pipe. Cut out the knockout from the sealing
plate and fold the four tabs down slightly. Move the upper start pipe down
through the sealing plate with all four tabs trailing against the outside of
the pipe. Insert the upper start pipe down in the start pipe and check that
the four tabs are against the outside of the upper start pipe and on the
upper edge of the start pipe (see enlarged image). Install the insulating
panel, stop washer, transitional insulation and chimney module.
For different chimney systems, the sealing plate can be screwed to the
rear panel and the insulating panel laid on top.
Chimney frame -
upper section
Chimney frame -
lower section
Chimney module
Stop washer
Insulating panel
Upper start pipe
Sealing plate
Start pipe
Transitional insulation

83
GB
Bend up the fixing lugs on the supporting structure and screw
the chimney frame into place on the structure.
LEK
90°
LEK
LEK
LEK
Hål i innertak
90°
Poke the corners of the block of insulating material out through
the holes in the corners of the chimney frame. Screw the back-
panel of the chimney onto the chimney frame. Make sure the back
panel of the chimney fits inside the back panel on the stove body.
LEK
Hole in ceiling

84
GB
LEK
LEK
LEK
90ϒ
LEK
Cut the metal cover plate along the markings and place the two
halves of the cover around the chimney module at the top of the
chimney frame.
Undo the top adjusting nuts on the supporting structure. Adjust
the entire frame so that the chimney back is flush with the rear
panel on the stove body, making sure that the chimney frame
is vertical and true at all times. Leave the top adjusting nuts
loose so you can adjust the height, if necessary, when fitting the
soapstone tiles. Check to make sure that the insulation forms a
tight seal with the chimney frame: this is important to prevent
hot convection currents from rising up to the ceiling.

85
GB
Slide the connecting flue over the collar.
Make sure that the seal round the collar is
not dislodged.
Cut away the inner and outer marked
cover on the rear panel of the stove body.
LEK
Brytlock
LEK
Täcklock
LEK
LEK
Gäller ej!
Use sealing rope for a safe seal between the flue sleeve and the
connecting flue. If further sealing material is required, heat-
resistant sealant may be used.
LEK
The stove is supplied ready for connection
to a top flue. For rear-flue connections the
covering cap and collar need to exchange
places.
Loosen the top adjusting nuts for the support structure.
Adjust the support structure to ensure that it is perfectly
horizontal.
Leave the top adjusting nuts loose in order to make any
necessary adjustments to the height when installing the
soapstone blocks.
LEK
Mark out the centre of the hole to be made in the wall for a rear
flue connection. Make a hole at least 180 mm in diameter and
then secure the flue sleeve in the wall using heat-proof mortar
(not supplied).
Check the height to make sure that the hole aligns with the
chimney connection on the rear of the stove. Leave the mortar
to dry before connecting the stove to the flue.
Low model, flue height 940 mm
Covering cap
for flue
Partly punched cover
Rear flue connection to masonry chimney

86
GB
Cut away the partly punched metal covers and connect as described
on page 85. Take hold of the ends of the vent screen and bend it to a
U-shape. Hook it in place on the supporting structure .
LEK
Cirka 200 mm
LEK LEK
Bend up the fixing lugs on the supporting structure and fit the
lower section of the chimney frame by following the instructions
on page 83. Screw the back panel of the chimney onto the
chimney frame.
Make sure the back panel of the chimney fits inside the back
panel on the stove body.
LEK
Medium high model with flue height 940 mm.

87
GB
LEK
90
°
Lay the metal fitting plate in place on top of the
chimney frame. Adjust the supporting structure
and the chimney frame with the adjusting nuts by
following the instructions on page 84.
Medium high model with flue height 1775 mm.
Fold in the metal tabs in the middle of the chimney frame.
LEK
LEK
Put the sealing plate and block of insulating material in place.
Poke the corners of the insulating block out through the holes
in the corners of the chimney frame. Check to make sure that
the insulation forms a tight seal with the chimney frame: this is
important to prevent hot convection currents from rising up to
the ceiling.
LEK
LEK
LEK
Gäller ej!
Fit the flue sleeve by following the instructions on page 85.
To determine the right height for the hole in the wall, hold the
connecting flue in place against the stove. Adjust the length
of the connecting flue and push it into place in the flue sleeve.
Seal the joint between the sleeve and the connecting flue with
sealing rope.
LEK
Cut away the partly punched cover
on the rear panel and hang the
panel over the connecting flue.
Check to ensure that the stove
body is standing straight
and perpendicular. Slide the
connecting flue over the collar.
Make sure that the seal round the
collar is not dislodged. If further
sealing material is required, heat-
resistant sealant may be used.

88
GB
Bend up the fixing lugs on the supporting structure and fold in the metal tabs in the middle of the chimney frame as described in the
instructions on pages 83 and 87. Hold the sealing plate and fit the chimney frame into place, ensuring that the sealing plate and insulation
block are resting on the metal tabs. Secure the chimney frame by screwing into the fixing lugs on the supporting structure, and then poke
the corners of the insulating block out through the holes in the corners of the chimney frame.
Screw the back panel of the chimney onto the chimney frame. Adjust the entire chiimney frame with the adjusting nuts by following the
instructions on page 84. Check to make sure that the insulation forms a tight seal with the chimney frame and the connecting flue: this is
important to prevent hot convection currents from rising up to the ceiling.
Lay the fitting plate in place on top of the chimney frame (see picture page 87).
Important!
If you connect the stove to a rear flue, but wish to install an extra layer of soapstone tiles reaching right up to a ceiling made of
combustible material, please note the following:
• This is a special, customised solution, so the extra layer of chimney tiles and the chimney frame will have to be cut to size on site.
• The elbow joint must be insulated with an extra 60 mm of mineral wool (not supplied.)
• To ensure the right ventilation, there must be a gap of at least 200 mm between the ceiling and the top of the rear panel of the chimney
(the top section of the rear panel must be removed, or cut to size on site).
• There must be a gap of at least 5 mm between the soapstone tiles and the ceiling to allow for an expansion in the length of the chimney
during heating.
LEK
Cut away the partly punched metal cover and slide the sealing
plate and the block of insulating material down into place
around the connecting flue.
LEK
Pannkitt
Spread sealant over all joints. Fit the elbow joint in place and slide
it into the connecting flue.
Heat-resistant sealant

89
GB
Sockelfront 003692
Sockelsida 003691
Frissida 003693
Vänster fristopp
003695
Pelare 003697
Kåpsidobas
003698
Vänster kåpsida
003700
Skorstenssida
med varmluftshål
003705
Skorstenssida
003702
Vänster & höger
skorstenstopp
003706
Frisfront 003694
Främre fristopp
003696
Höger fristopp
003690
Kåpfrontbas 003699
Kåpfront 003701
Höger kåpsida
003704
Skorstensfront
003703
Främre skorstenstopp
003707
Each tile is assigned a name and number, according to the scheme illustrated below. Certain tiles can be used in more than one position and
therefore have the same number. We recommend that the tiles are fitted in the order described on the following pages.
Important!
Handle soapstone with care. The tiles scratch easily and may be marked by oil and grease.
Left & right chimney coping 003706
Chimney side 003702
Chimney side with air vent 003705
Left-hand hood 003700
Left-hand border top 003695
Border side 003693
Plinth side 003691
Front chimney coping 003707
Chimney front 003703
Right-hand hood 003704
Hood front 003701
Plinth front 003692
Left-hand hood base 003698
Pillar 003697
Hood-front base 003699
Right-hand border top 003690
Front border top 003696
Border front 003694
Fitting the soapstone surround

90
GB
LEK
Fit the left and right-hand hood bases with hexagon screws so
that they align with the hood-front base. Make sure that the
right and left-hand hood bases are horizontal (same height back
and front).
LEK
Justerskruv
LEK
Justerskruv
105
LEK
20
12678
40
30
16
15
14
13
12
11
10
9
LEKLEK
72
20
12678
40
30
16
15
14
13
12
11
10
9
Adjust so that there is a 72 mm gap between the hood bases and
the stove body.
Fit a stud bolt to the hood-front base and secure it.
The top of the tile should be flush with the edge of the metal
by the screws. Adjust so that there is a 105 mm gap between
the hood-front base and the stove frame.
Adjustment screw
Adjustment screw

91
GB
LEKLEK
383 10
LEKLEK
Silicone
Adjust the height of the entire hood by turning all of the adjusting
nuts on the supporting structure by the same amount. When
making the adjustment, all the locknuts on the top must be loose
with a certain amount of play. Adjust the measurement so that
the height between the bottom edge of the left and right-hand
hood sides and the top edge of the guides is 383 mm on both
sides. Make sure that the measurements on page 90 are correctly
adjusted and check them in accordance with the instructions on
page 84. Tighten the locknuts on the top. There may be slight
variations between the sides if the chimney frame is not exactly
perpendicular. There should be a 10 mm gap between the top of
the door and the hood-front base.
LEK
Squeeze two blobs of silicone onto the bottom half of the metal
hood seats and put the hood’s side tiles in place.
It is also possible to remove the hood seats with the tiles on and
fit nuts to the stud bolts for added security. When the hood seats
are put back in place, it is important that they are pushed into the
bottom of the groove. Note that the washers should normally be
on the top of the metal, but can be fitted to the underside if the
hood seats need to be lowered individually.
Screw two stud bolts into each of the hood’s side tiles.

92
GB
LEK
Squeeze two blobs of silicone onto the bottom half of the metal
hood seat and put the hood front in place.
Unscrew the angle-irons from the guides and screw them in
place on the side tiles of the border. Fit the border sides in place
with the help of the angle-irons.
LEKLEK
Lay the tiles that form the top of the border (left, front and
right) in place, leaving a small gap of about 3 mm to the stove
body. Check to make sure that they fit flush with the tiles that
form the sides of the border. Adjust the side-tiles if necessary.
LEKLEK
Silicone
Screw two stud bolts into the hood front.
LEKLEK
3 mm
Montage-
skruvar
Assembly
screws
