CONVECTAIR OPERA B 7635-C10-BB User manual

OPÉRA B
RADIANT TOWEL WAMER
421AA4940 A00
INSTALLATION AND
USER GUIDE
Installation and Warranty Card
To be read and retained by the user.

Dear user,
Thank you for your trust and congratulations on the
purchase of your new CONVECTAIR electric heater.
We design and manufacture the highest quality
devices in the electrical industry.
For the ultimate in comfort, and for maximum
performance from your devices, please read the
installation and operating instructions included in
this manual.
Thank you.
WARNING: Your heater is already equiped with
a precise electronic thermostat. IT MUST NOT BE
CONNECTED TO A WALL THERMOSTAT.
MESSAGE
FROM THE MANUFACTURER

The smart technology that electric heating lacked.
Your Opera B device is compatible with the Muller Intuitiv
technology that uses the detection sensor of compatible
Convectair heaters to understand your lifestyle and to suggest
concrete and appropriate measures to save energy.
Compatibility with voice assistants.
Download the Muller Intuitiv with Netatmo application on
your smartphone, insert the module (sold separately) into the
compartment provided at the back of compatible electric
heaters and use voice control via Apple Home Kit, Alexa
and Google Assistant.
Keep an eye on your energy consumption.
By tracking down even the smallest unnecessary energy
expenditure in your home, Convectair devices with Muller
Intuitiv smart technology will help you save energy.
Smart and optimized home.
Maximize your savings with precise room-by-room temperature
control, smart planning of heating using temperature settings
and customized alerts.
COMPATIBILITY
SMART ENERGY MANAGEMENT

IMPORTANT:
DO NOT COVER
THE HEATER
Please read carefully the whole installation and
operating instructions and in particular the following.
CAUTION, HOT SURFACE
ATTENTION: Some parts of the appliance may become hot
and cause light burns. A very close attention has to be taken if
children or vulnerable persons are present.
1. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their
safety.
2. Children under the age of three should be kept away from
the appliance, unless they are continuously supervised.
3. Children from three to eight years old should neither play,
nor plug, nor set, nor clean, nor maintain the appliance.
4. If the appliance is covered, there is a risk of overheating.
The logo reminds this risk.
5. Do not cover or obstruct the air inlet or outlet as this could
cause overheating and damage the appliance.
6. Do not insert anything in the appliance.
7. This appliance has to be connected by a qualied
personnel. Turn o the breaker associated to the unit
before connecting or repair.
8. Installation and electrical connections must be in
accordance with the national and local codes.
9. The electrical current should be protected by a residual
current device in the case of an installation in a bathroom
with a bathtub, shower or sink.
10. The heater must not be installed below an electrical socket.
11. This heating device is deisgned to provide ambiant heat for
new or existing residential or commercial type building.
12. Do not install the heater in a zone with air currents capable
of disrupting its regulation.
1. SAFETY
MEASURES TO BE TAKEN

20 cm
(8")
Any obstacle
ex: curtains
Floor
C
15 cm
(6")
B
2.5 cm
(1")
E
15 cm
(6")
B
75 cm
(30")
A
Minimum
clearances In front (A) Sides (B) Above (C) Underneath (E) Recommended height
7635-C10-BB 75 cm
(30 in)
15 cm
(6 in)
20 cm
(8 in)
2.5 cm
(1 in)
25 cm
(10 in)
7635-C15-BB 75 cm
(30 in)
15 cm
(6 in)
20 cm
(8 in)
2.5 cm
(1 in)
25 cm
(10 in)

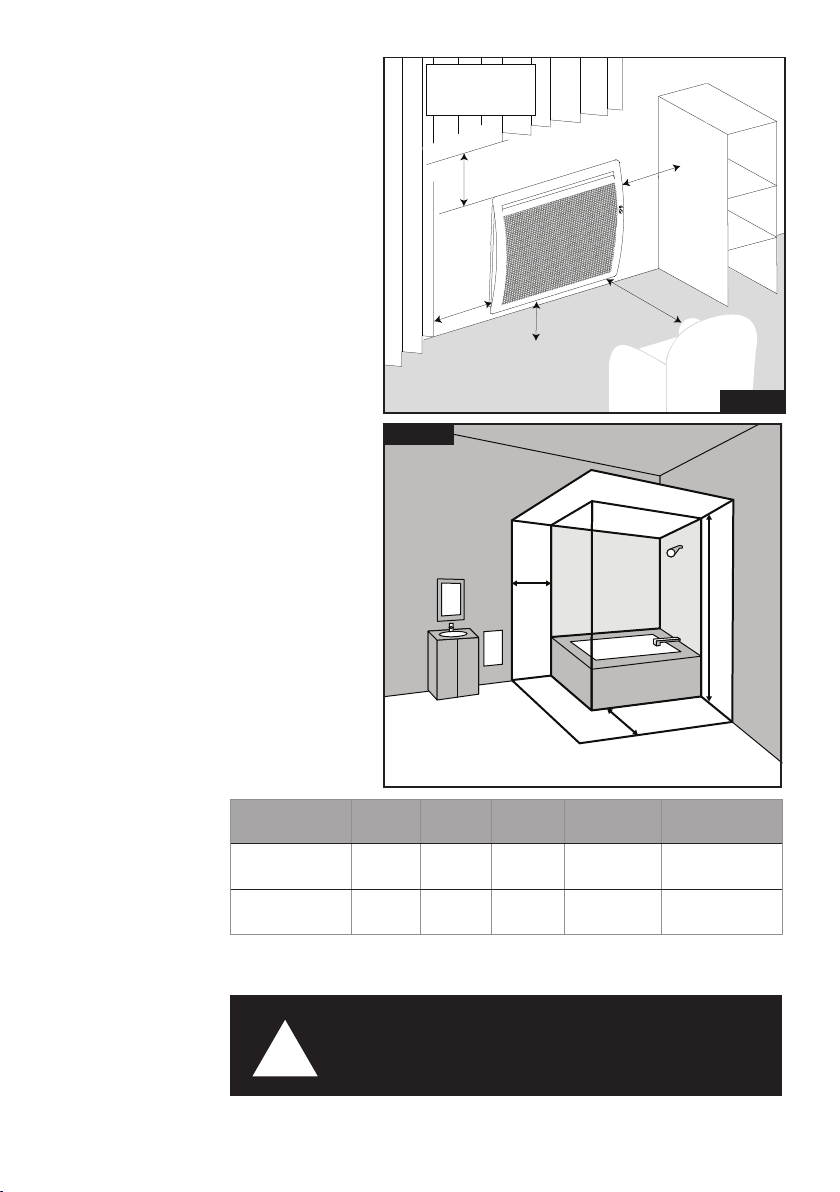

HEATER INSTALLATION: This heater must be
installed in accordance with national and
local codes and CONVECTAIR recommends an
installation by a qualied electrician.
CAUTION: PLEASE MAINTAIN THE MINIMUM REQUIRED CLEARANCES (Fig. A).
CONVECTAIR RECOMMENDS AN INSTALLATION HEIGHT OF 25 CM (10").
These instructions have been established at the moment of the heater’s
manufacturing and in conformity with the standardization at that moment.
!
Fig. A
Volume 0
Volume 1
Hors volume
Outside volume
0,5 m
1' 8"
0,5 m
1' 8"
2,25 m * - 7' 5" *
Volume 2


Fig. A2
13. Minimum installation
distances to the oor,
walls, furniture, etc., must
be respected. (Fig.A). If
the device is installed in a
bathroom or powder room
(Fig. A2), it must be installed
outside of volume2 at a
minimum distance of 0.5m
from the bathtub and/or
shower and must be tted
with a class A dierential
circuit breaker.
(IMPORTANT: See applicable
national and local codes).

Capacity
Hole
spacing
cm / (in)
A
cm / (in)
B
cm / (in)
C
cm / (in)
D
cm / (in)
1000 W
24.8
(9-3/4)
11.6
(4-5/8)
46.8
(18-3/8)
32.7
(12-7/8)
11.6
(4-5/8)
1500 W
24.8
(9-3/4)
11.6
(4-5/8)
46.8
(18-3/8)
38.7
(15-1/4)
11.6
(4-5/8)
To install your heater at 25 cm (10 in) from the ground
(recommended height by CONVECTAIR), follow these directions:
1- Free mounting brackets by pressing and pulling both locking
tabs on the back of the heater (Fig. B).
2- Place the center of the mounting bracket's bottom holes (no.
2 Fig. B2) at the measure C (see Fig. B) from the ground and
make a mark.
3- Check horizontality of the mounting bracket, then mark the
two top holes and pierce the 4 holes for fastening.
4- Replace mounting bracket and fasten it appropriately with
screws (not included).
The installation must comply with applicable national and local
standards, and CONVECTAIR recommends that it be done by a
certied electrician.
This manual was prepared at the time of manufacture of the
device and in accordance with the standards applicable at the
time.
The company reserves the right to modify at any time the
Installation and User Guide to account for standards and their
evolution.
To avoid short circuits, please turn o the power
at the electrical panel prior to installation or repair.
If the power cable is damaged, it must be replaced by the
manufacturer, its after-sales service personnel or a similarly
qualied person to avoid any danger.
If the device has a glass front, do not use if the glass front is
damaged.
2.
INSTALLATION AND MOUNTING
MEASURES TO BE TAKEN

28
B
104
258
2
AA
500=>1250W
Measure C
2
28
B
104
258
2
AA
500=>1250W
BARRE INFÉRIEURE À INSÉRER
PAR LE HAUT DE L’APPAREIL.
(Vis prémontées sur la carrosserie)
1
1
BARRE SUPÉRIEURE À INSÉRER
PAR LE HAUT DE L’APPAREIL
(Vis prémontées sur la carrosserie)
2
2
Installation of towel rails
Floor
A
B
C
D
Hole spacing
Outline
of unit
Height
Width
25.4 cm
(10")
55.8 cm
(22")
Junction
Box
Locking
tab
Figure B
Figure B3
Bottom rail to be inserted
over the unit’s top
(preassembled screws).
Top rail to be inserted
over the unit’s top
(preassembled screws).
Please read carefully the whole installation and
operating instructions before connecting the heater.
!
Figure B2

* 3/12wire
or FAS
10518/2
300 volts
approved.
B - Black
G - Green
R - Red
C - Copper
P (PW) - Purple
B - Black
G - Green
R - Red
C - Copper
P (PW) - Purple
R
R
B
B
C
POWER
G
P *
CANADA

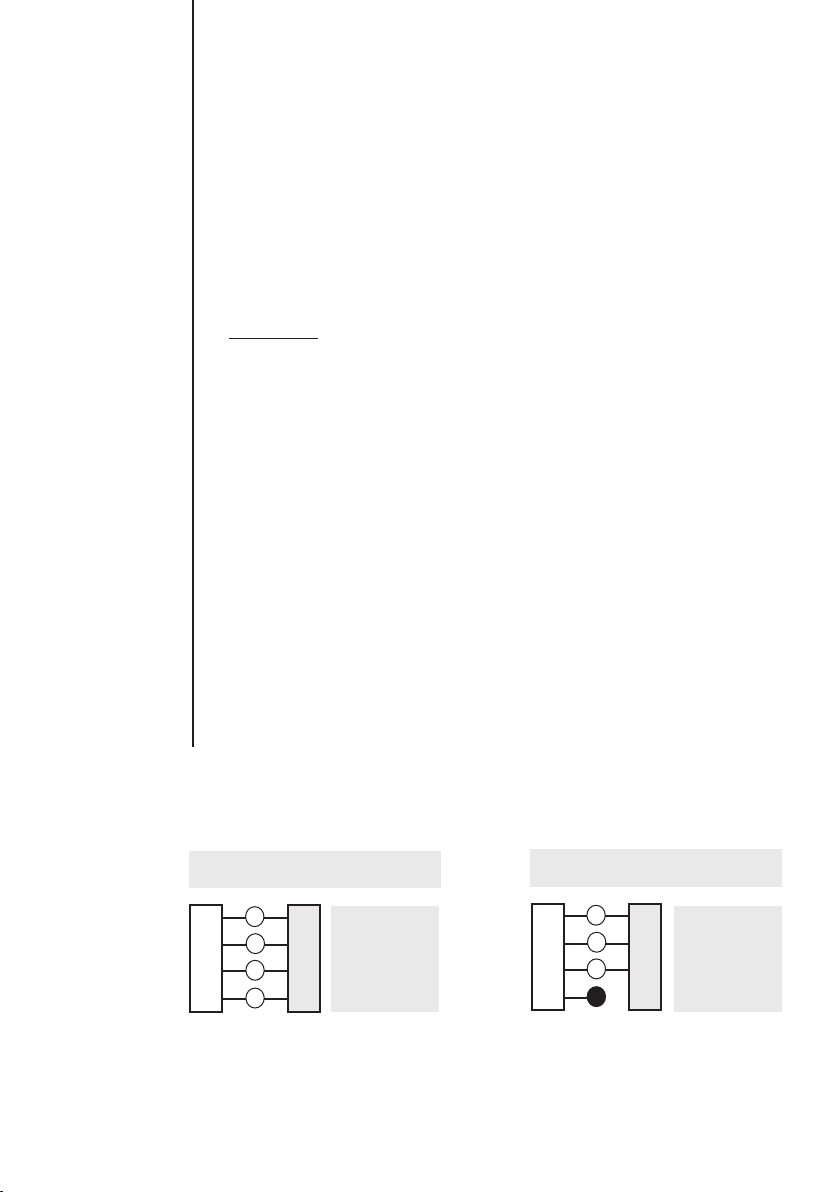

WITH the use pilot wire (PW)
R
R
DEVICE
B
B
C
P
G
CANADA
WITHOUT the use pilot wire (PW)
DEVICE
POWER
CONVECTAIR recommends that your heater be installed by a
qualied electrician and in accordance with national and local
codes.
This heater must be connected to a 240 Volt (60 cycles) circuit
and with an appropriate breaker. Cut all electrical current
before connecting the heater to avoid shocks and damages to
the unit.
The rst time your Convectair heats, a light smoke could be
released due to the burning of production residues. This is
normal and should disappear after 2 to 3 minutes.
WARNING: To prevent short circuits and electrical shocks
turn the power o at the main panel before attempting the
installation or making any repairs. This programmer system is
old technology and will not work on this new generation.
- You must connect the ground wire of the heater (green wire)
with the copper wire.
- Connect the power cables to the red and black cables.
- Never connect the pilot-wire (purple wire) to the electrical
supply nor ground it.
- The purple wire with the seal at the extremity should not be
used for the electrical connection. It is used only if the heater is
connected with other CONVECTAIR units for synchronisation of
heating schedule and temperatures.
- Fix the unit on the wall bracket before turning the power
back on.
3.
CONNECTION
MEASURES TO BE TAKEN

4.
QUICK START
MEASURES TO BE TAKEN

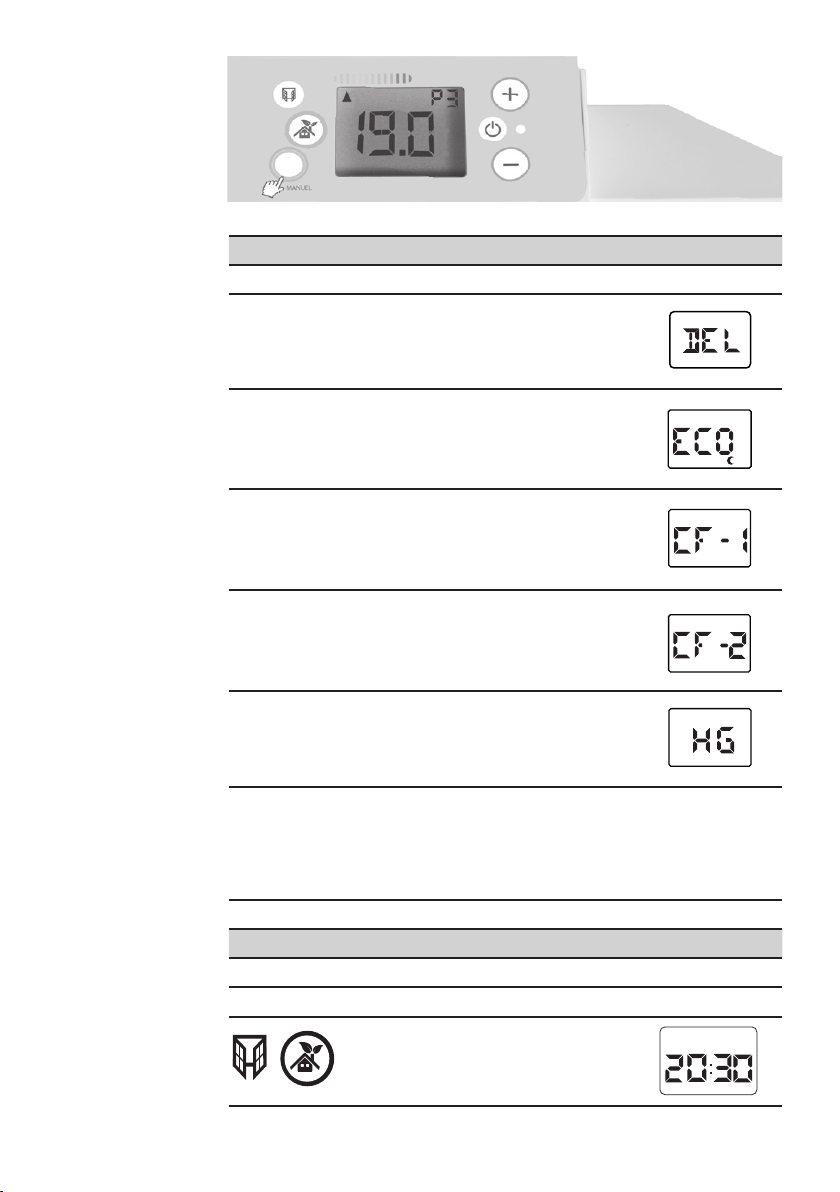

ACTIONS PRESS DISPLAY
Switch the heating
on or o.
Set the temperature.
Modes
To switch from one mode
to another.
Comfort mode
To adjust to the desired
set point.
Economy mode
Recommended for
absences of less than
24hr.
Frost protection mode
Recommended for
absences more than 24hr.
“Open window”
To enable or disable
the function.
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h

5.1 SWITCHING ON AND OFF
PRESS ACTIONS DISPLAY
Switching on.
The green indicator lights up
and the screen displays
Switching o.
The orange indicator lights up
and the screen displays
This indicator shows that your device is heating
up. When the desired temperature has
stabilized, it lights up and turns o based on
heating needs.
NOTE
The device stores the settings in the memory,
even in the case of a power outage.
5.
OPERATION
MEASURES TO BE TAKEN
Be sure to remove the protective lm from the display.
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Selection of
manual
operation modes
Automatic
operation key
Heating
On/O key
Desired
temperature
setting keys
Heating
On/O
indicator light
Programs
- predened (P1/P2/P3)
- user-dened (P4/P5/P6)
Behavioral
indicator
“Open window”
function
Heating
indicator
light
Module
compartment
for future
optional use

5.2 COMFORT TEMPERATURE SETTING
PRESS ACTIONS DISPLAY
Increase or decrease the desired
temperature set point.
Press for 3seconds to store your
favorite set point temperature.
To adjust the temperature to your ideal comfort
level, let the temperature stabilize for a few
hours, with doors closed.
NOTE
During the temperature setting, an indicator
allows you to control but also adjust the
desired temperature based on its impact on
consumption.
This setting is available in COMFORT mode
(manual or automatic).
5.3 ECONOMY MODE (“ECO”)
PRESS ACTIONS DISPLAY
Press successively to access
the “ECO” mode. The screen
displays:
Briey and simultaneously press to
visualize the “ECO” set point.
Press for 3seconds and the “ECO”
temperature ashes to enable the
user to change it.
Press for 3seconds to
save the temperature.
NOTE
In the event of a short-term absence (less than 24hr), use of this
operating mode is recommended for maximum savings. It lowers
the room temperature by approximately 3.5°C relative to the
COMFORT temperature.
The ECO set point cannot be set at a temperature greater than
19°C.
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Echelle de
consommation
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h

5.4 FROST PROTECTION MODE
PRESS ACTIONS DISPLAY
Press successively to access the
“FREEZE PROTECTION” mode.
The screen displays:
NOTE
In the event of a long-term absence (more than 24hr),
use of this mode is recommended for maximum savings. It
helps maintain the temperature of the room above freezing
(approximately 7°C).
5.5 AUTOMATIC OPERATION
PRESS ACTIONS DISPLAY
Press for 3seconds to save
your preferred settings.
Press briey for automatic
operation based on your
heating plan (programming of
Comfort and Eco temperature
ranges) and your setting
preferences (preferred set
point temperature, Window
function, etc.).
NOTE
By default, the stored setting is: Preferred set temperature 19 °C,
Open window function enabled.
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h

5.6 MANUAL OPERATION
PRESS ACTIONS DISPLAY
All automatic functions are
disabled (programming) and
the device switches to either:
• Comfort mode
and you can adjust the set
point temperature as you wish.
• Eco mode
(this operating mode is
recommended during absences
of less than 24hr).
• Frost protection mode
(this operating mode is
recommended during absences
of more than 24hr).
5.7 ABSENCE DETECTION / ENABLING
PRESS ACTIONS DISPLAY
The function is automatically
enabled in automatic mode.
It can be disabled (see the
following table).
NOTE
In the event of a prolonged absence, the device progressively
lowers the set point temperature. When it detects a presence, it
reacts and returns to the operating mode dened by the user.
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h

5.7 ABSENCE DETECTION (CONTINUED) CHOICE OF OPTIONS
PRESS ACTIONS DISPLAY
First, the device must be
turned o.
Simultaneously press and hold
until detection options
1, 2 or OFF are displayed.
Allows you to switch from one
option to another.
Option1 Prioritizes savings
See the explanation on the
following page.
Option2 Prioritizes comfort
See the explanation on the
following page.
OFF Option
The absence
detection function is disabled.
Press for 3seconds
to save your selection. The
screen displays:
NOTE
In the event of a prolonged absence, the device progressively
lowers the set point temperature. When it detects a presence, it
reacts and returns to the operating mode dened by the user.
AUTO
AUTO

5. 7 ABSENCE DETECTION (CONTINUED) EXPLANATION OF OPTIONS
OPTION 1 – PRIORITIZES COMFORT
DETECTION PILOT WIRE ORDER RESULT
COMFORT Gradual transition
in ECO (90min)
ECO ECO mode
COMFORT Immediate transition
in Comfort
ECO ECO mode
OPTION2 – PRIORITIZES COMFORT
DETECTION PILOT WIRE ORDER RESULT
COMFORT Gradual transition
in ECO (90min)
ECO ECO mode
COMFORT Gradual transition
in ECO (90min)
ECO Immediate transition
in Comfort
NOTE
Gradual transition in ECO: In the event of a prolonged absence,
the temperature set point of the device decreases progressively
in 30min steps to CF-1 then CF-2, until ECO is displayed.
absence
movement
absence
movement
absence
movement
absence
movement

5.8 OPEN WINDOW DETECTION FUNCTION
PRESS ACTIONS DISPLAY
Enable the function.
Press and hold until the window
icon is displayed on the screen.
The window icon and the green
indicator ash when the device
turns o following a detection
event.
Following an interruption,
press again to
restart the device.
Disable the function.
Press and hold until the window
icon disappears from the
screen.
NOTE
This function automatically turns o the heater in the event of a
sharp fall in room temperature (e.g., an open window or door).
5.9 SIMPLE PARENTAL LOCK
PRESS ACTIONS DISPLAY
Lock the keypad.
Simultaneously press and hold
for 3seconds.
Unlock the keypad.
Simultaneously press and hold
for 3seconds.
NOTE
This function enables you to block access to device settings to
prevent any inopportune modication. The heating On/O key
remains active, even when the parental lock is enabled.
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h

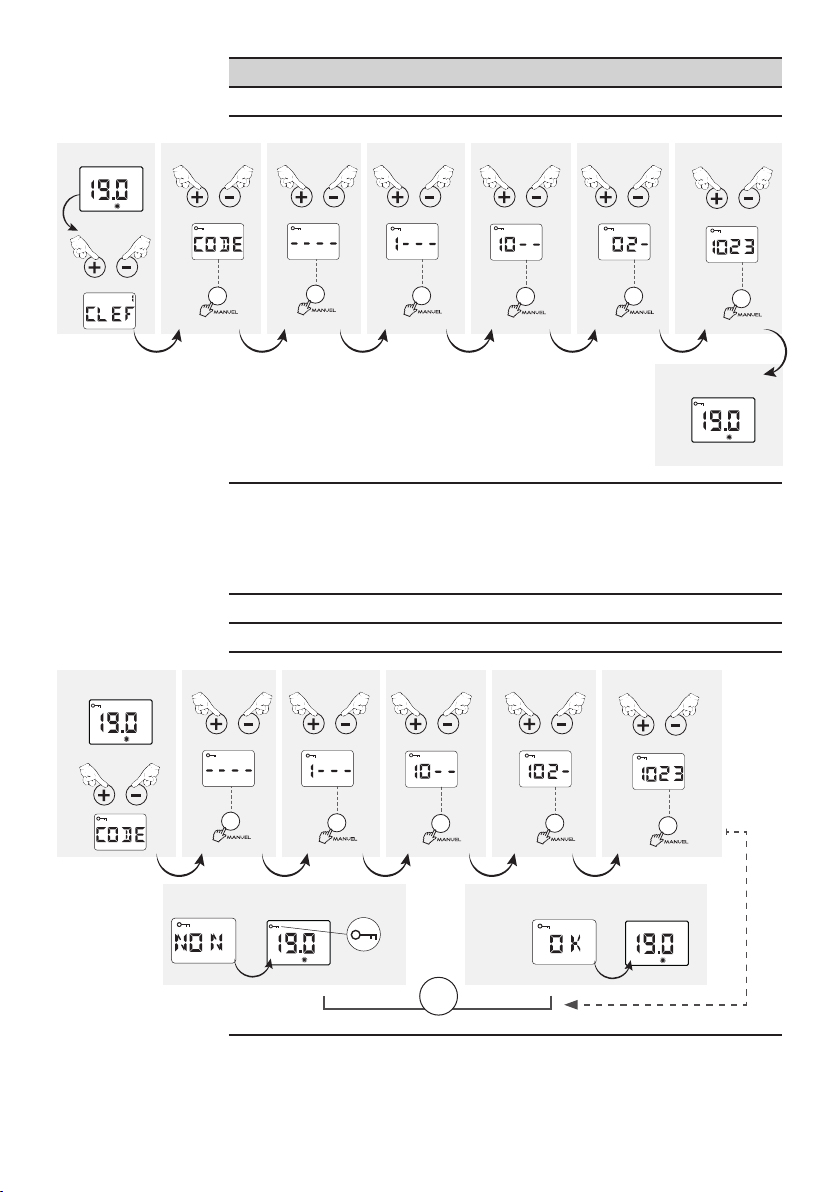

5.9 PARENTAL LOCK WITH CODE
SEQUENCE FOR LOCKING WITH YOUR PERSONAL CODE
NOTE
This function enables you to block access to device settings to
prevent any inopportune modication. The heating On/O key
remains active, even when the parental lock is enabled.
SEQUENCE FOR UNLOCKING WITH YOUR PERSONAL CODE
Conrm
with Conrm
with
Conrm
with Conrm
with
10s
3s
Conrm
with
Modify
using
Modify
using
Modify
using
Modify
using
Conrm
with
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
approx.
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Conrm
with Conrm
with
Conrm
with
Conrm
with Conrm
with
Modify
using
Modify
using
Modify
using
Modify
using
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
- If incorrect code - If correct code
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
3s
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
OR

5.10 CONSUMPTION SCALE
INFORMATION DISPLAY
This indicator provides information about the
eect of your settings on your consumption.
Indicator
Green = Economical
Red = Less economical
NOTE
For economical operation, it is recommended not to exceed a
temperature of 19°C on average over the entire dwelling.
5.11 SETTING OF AUXILIARY FUNCTIONS
PRESS ACTIONS DISPLAY
First, the device must be
turned o.
Simultaneously press
and hold for 3seconds. The
screen displays:
Hold for 3seconds
to see the rst
setting screen:
Screen backlighting.
SETTINGS SCREEN1
BACKLIGHTING TIME SELECTION
Select one of these screen
options.
| = 10seconds
O= permanent
Allows you to switch to the
next settings screen.
Consumption
scale
NIV

5.11 SETTING OF AUXILIARY FUNCTIONS (CONTINUED)
PRESS ACTIONS DISPLAY
SETTINGS SCREEN2

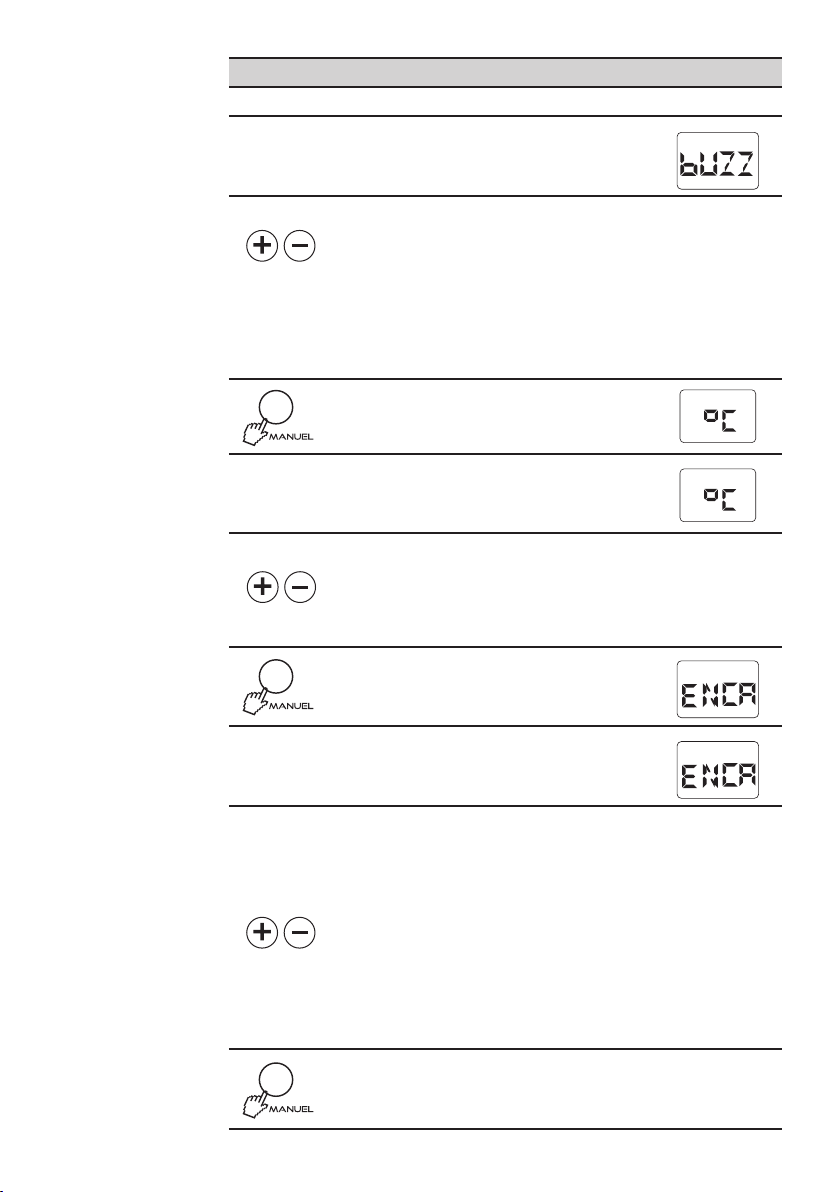

ENABLE / DISABLE THE BUZZER
Select one of these buzzer
options.
|= Enabled
O= Disabled
NOTE
The buzzer remains active for the
heating On/O key.
Allows you to switch to the
next settings screen.
SETTINGS SCREEN3
CELSIUS / FAHRENHEIT SELECTION
Select one of these options.
°C = Celsius
°F = Fahrenheit
Allows you to switch to the
next settings screen.
SETTINGS SCREEN4
ENABLE / DISABLE THE FRAMING
Framing the Comfort
temperature minimizes the
increase or lowering of the
temperature by + or - 2°C.
These keys enable you to
select one of the options.
|= Enabled
O= Disabled
Return to user mode.

5.12 DETAILS OF THE 6ORDERS GIVEN VIA THE PILOT WIRE
ORDERS ACTION DISPLAY
Heating
O
Heating is instantly
turned o.
Eco
Lowering of the temperature
by 3.5°C relative to the
Comfort position or at your
choice.
Comfort-1
Lowering of the temperature
by 1°C relative to the
Comfort position.
Comfort-2
Lowering of the temperature
by 2°C relative to the
Comfort position.
Frost
Protection
Maintains the room
temperature at around 7°C.
NOTE
In manual mode, the Frost Protection and Heating O commands
sent by the central programming unit receive priority. To let you
know, the “AUTO” symbol ashes.
5.13 INTERNAL PROGRAMMING
TIME DISPLAY
PRESS ACTIONS DISPLAY
Briey and simultaneously
press to display the current
time.
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Mode
AUTO
Mode
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
AUTO
Mode
Mode
Indicateur de
consommation
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
{
{
du Lundi au Vendredi
0h 2 4 6 8 10 12 14 16 18 20 22 24
5h à 9h 17h à 23h
5h à 23h
{
{
{
0h 2 4 6 8 10 12 14 16 18 20 22 24
du Lundi au Vendredi
Le week end
P1
P3
P2
{
12h à 14h
T
AUTO
'' ''
AUTO
