Cook's essentials K45559 User manual

I/B Version
201204
ICE CREAM MAKER
Instruction Manual
812138
100-240V~ 50/60Hz 90W

2
ICE 812138
IMPORTANT SAFEGUARDS
Please read this manual carefully before using the appliance,
and always follow the safety and operating instructions.
Important : This appliance can be used by children over 8 years
old and people with reduced physical, sensory or mental
capacities or with a lack of experience or knowledge if they have
been given supervision or instructions concerning the safe use of
the appliance and the risks involved. Children shall not play with
the appliance. Cleaning and user maintenance shall not be made
by children unless they are older than 8 years and supervised.
Never leave the appliance and its cord unsupervised and within
reach of children less than 8 years old or irresponsible persons
when it is plugged into the wall or when it is cooling down.
❑Check that your mains voltage corresponds to that stated on
the appliance.
❑Never leave the appliance unsupervised when in use.
❑Always check the appliance and its cord for damages. Never
use if these show any signs of damage. In that case, repairs
should be made only by a competent qualified electrician(*).
❑Only use the appliance for domestic purposes and in the way
indicated in these instructions.
❑Never immerse the appliance in water or any other liquid for
any reason whatsoever. Never place it into the dishwasher.
Should it get wet or fall into a liquid : immediately unplug, dry
carefully and contact professionally qualified personnel(*).
❑Never use the appliance near hot surfaces.
❑Always unplug before cleaning or storing the appliance.
❑When the appliance is operating, the moving parts are
dangerous. Always respect these warnings:
-Handle the refrigeration bowl only with gloves or other
protection to avoid cold “burns”.
-Only use the components supplied.
-Do not touch the accessory fitted to the appliance.
-Do not stop the blades or moving parts from rotating;
leave them submerged in the container until they stop
naturally from inertia.

ICE 812138
3
❑Never use the appliance outside and always place it in a dry
environment.
❑Never use accessories that are not recommended by the
producer. They could constitute a danger to the user and risk
to damage the appliance.
❑Never move the appliance by pulling the cord. Stand the
appliance on a table or flat surface. Make sure the cord
cannot get caught in any way. Do not wind the cord around
the appliance and do not bend it.
❑Keep your hands, hair and any accessories away from the
bowl when the appliance is operating, to prevent them from
contacting and getting caught up with rotating parts.
❑Do not place the ice cream maker or its bowl in the
refrigerator or freezer but use an airtight container to stock the
ice cream in.
❑Do not let the prepared ice cream stand in the aluminium bowl
for more than 30 minutes or it will freeze to the bowl.
❑Do not use metal utensils or metal objects in the bowl.
❑Do not grip the refrigerant container with bare hands. Protect
your hands by using a plastic bag or gloves: contact with the
skin can cause partial cold “burns”.
❑Never try to open the refrigerant container: if any liquid leaks
out, contact professionally qualified personnel(*).
In case of machine’s liquid loss: do not use the device and do
not eat the ice-cream if contaminated.
❑Do not touch the appliance with wet hands.
❑Do not move the appliance when it is operating.
❑Do not use the appliance to mix boiling liquids.
(*) Competent qualified electrician: after-sales department of the
producer or importer or any person who is qualified, approved
and competent to perform this kind of repairs in order to avoid all
danger. In case of need you should return the appliance to this
electrician.

4
ICE 812138

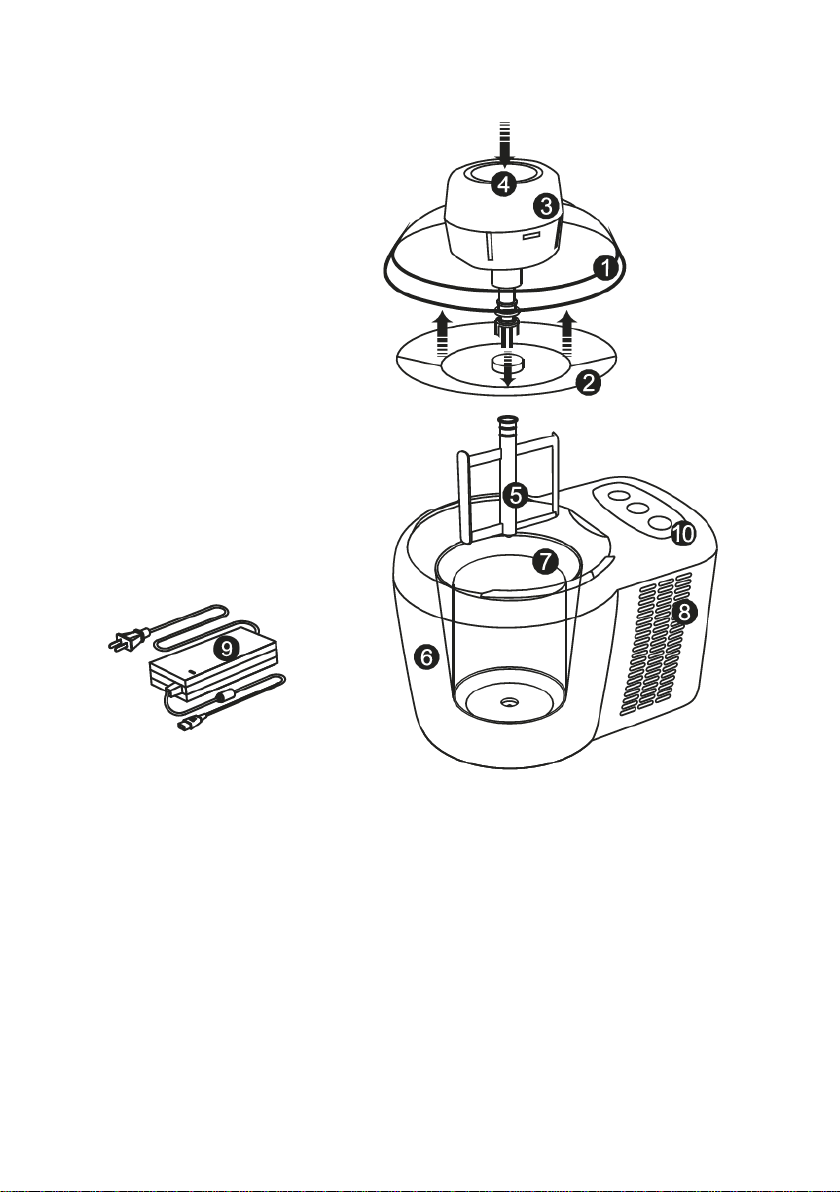

PARTS DESCRIPTION
1. Top lid
2. Top lid lining
3. Mixing motor
4. Unlock button
5. Mixing spatula
6. Housing
7. Aluminum bowl
8. Back cover
9. AC adaptor
10. Control panel

ICE 812138
5
OPERATION
•Remove all interior and exterior packaging materials.
•Clean the aluminum bowl, the top lid and the mixing spatula with warm soapy water
before using.
•Prepare your ingredients before you start to make your ice cream.
•Assemble the unit in accordance with the instructions.
•Connect the input connector clip of the adaptor into the ice cream maker then
insert the plug into a power socket.
•Pour the cold ice cream mixture into the bowl. Do not exceed the max line.
•Place the assembled Top Lid onto the main housing. Please ensure that the two
metal prongs under the cover make contact with the two metal magnetic circles on
the housing. Once in place, turn the Lid clockwise until it stops.
Note: The machine will not start if the metal prongs are not lined up with the magnets.
•Press the Hard or Soft button depending on the desired ice cream consistency. The
selected feature will light up.
Hard : thicker ice cream
Soft : soft serve consistency
•The machine will operate for around 45–120 minutes (time varies depending on the
coldness, quantity and type of the ingredients), or until mixture becomes the desired
thickness (Ice cream should carry a consistency similar to a thick, creamy custard).
•You can check the ice cream though the viewing window while the unit is on.
•The unit will let you know the ice cream is ready with an audible sound. Press STOP.
•If you want to stop the unit before, press the Stop button.
•Unplug the unit when you are finished.
•Remove the assembled Top Lid with mixing spatula by turning it counter-clockwise
and lifting up. Scrape off any excess ice cream from the Spatula.
•Remove the frozen mixture from the Aluminum Bowl with a plastic or silicone spoon,
or plastic ice cream scoop.
•Place the ice cream in a freezer safe container or ice cream bowl if you are ready to
serve.
Notes:
•The preparation time of the ice cream will depend on the amount of ingredients. It
will take about 2 hours to prepare the ice cream if the bowl is fully loaded and the
appliance is stabilized at a room temperature of 25°C.
•If the mixture is chilled before use, ice cream can take less than an hour to prepare.
•Follow the recipes provided in our handy Recipe Guide. However, almost any frozen
dessert recipe can be used providing it does not make more than 600ml of liquid.
350ml will volumize to make 850ml of ice cream.
•To ensure good and consistent results, use a measuring cup or spoon to ensure you
get the correct amount of each ingredient.
•Do not turn the unit off unless the ice cream is ready as the mixture will freeze to the
Aluminum Bowl and the Mixing Spatula will not be able to turn.
•If the Mixing Spatula does not stir anymore, press STOP. Remove the cover and
paddle immediately to prevent the paddle from getting stuck.

6
ICE 812138
CLEANING AND MAINTENANCE
•Wipe the exterior with a damp cloth and mild detergent and wipe it dry. For
stubborn stains and for periodic maintenance, use silicon wax.
•Wash the lid, aluminum bowl and other removable parts in warm soapy water and
thoroughly dry.
•To clean the Aluminum Bowl easily, first wait for the excess mixture to melt to a liquid,
then simply wipe away with a paper towel.
•Clean the interior of the ice cream maker with a baking soda solution (3 tablespoons
per 1 liter of water) or hot soapy water then thoroughly rinse and dry.
Note: make sure all parts are completely dry before reassembling.
TROUBLESHOOTING
Problem
Possible causes
Solutions
The ice cream maker does
not work.
•There is a power
failure.
•A fuse has blown.
•The overload fuse on
the power supply
board is not
connected properly.
•Ensure the unit is
plugged in and the
power socket is turned
on.
•Replace the broken
fuse in your meter box.
•Ensure the fuse is
connected properly.
The ice cream maker
cannot finish the
preparation.
•The unit is placed too
close to a heat source.
•There is not sufficient
ventilation.
•The lid is opened too
frequently during
preparation or for a
long period of time.
•Keep the unit away
from sunlight or other
heat sources.
•Place the unit in a well
ventilated room and
do not place anything
near the fans.
•Close the lid tightly
and do not open it too
often during
operation.

ICE 812138
7
PROTECTION OF THE ENVIRONMENT –DIRECTIVE 2012/19/EU
In order to preserve our environment and protect human health, the waste electrical and
electronic equipment should be disposed of in accordance with specific rules with the
implication of both suppliers and users. For this reason, as indicated by the symbol on
the rating label or on the packaging, your appliance should not be disposed of as
unsorted municipal waste. The user has the right to bring it to a municipal collection point
performing waste recovery by means of reuse, recycling or use for other applications in
accordance with the directive.
ERP DECLARATION –REGULATION 1275/2008/EC
We, QVC, hereby confirm that our product meets the requirements of regulation
1275/2008/EC. Admittedly, our product does not dispose of a function to minimize the
power consumption, which should according to regulation 1275/2008/EC put the product
in off or standby mode after finishing the main function, but this is practically impossible,
as it would compromise the main function of the product so strongly, that using the
product would no longer be possible!
For this reason we always tell the customer in our instruction manual to unplug the
appliance immediately after use.
The user manual is by simple request also available in electronic format from the after-
sales service.
GUARANTEE
This product is guaranteed against manufacturing defects for a period of 1 year. This
does not cover the product where the fault is due to misuse, abuse, use in contravention
of the instructions, or where the product has been the subject of unauthorised
modifications or alterations, or has been the subject of commercial use. In the unlikely
event of a problem with the product within the guarantee period please return it to the
place of purchase. If the item is shown to have had an inherent defect present at the
time of sale, the seller will provide you with a replacement. Your statutory rights remain
unaffected.
Guarantor:
QVC UK
Building 8 | Chiswick Park | London | W4 5XU
