Cooke & Lewis CLOVIPK-A User manual

Built-in electric oven
CLOVIPK-A - Version: 01
GB IE Built-in electric oven - Barcode: 5052931557585
Warning! Read the instructions before using the appliance.
CLOVIPK-A-C&L-IM-V03-EN.indd 1 27/8/15 5:39 pm

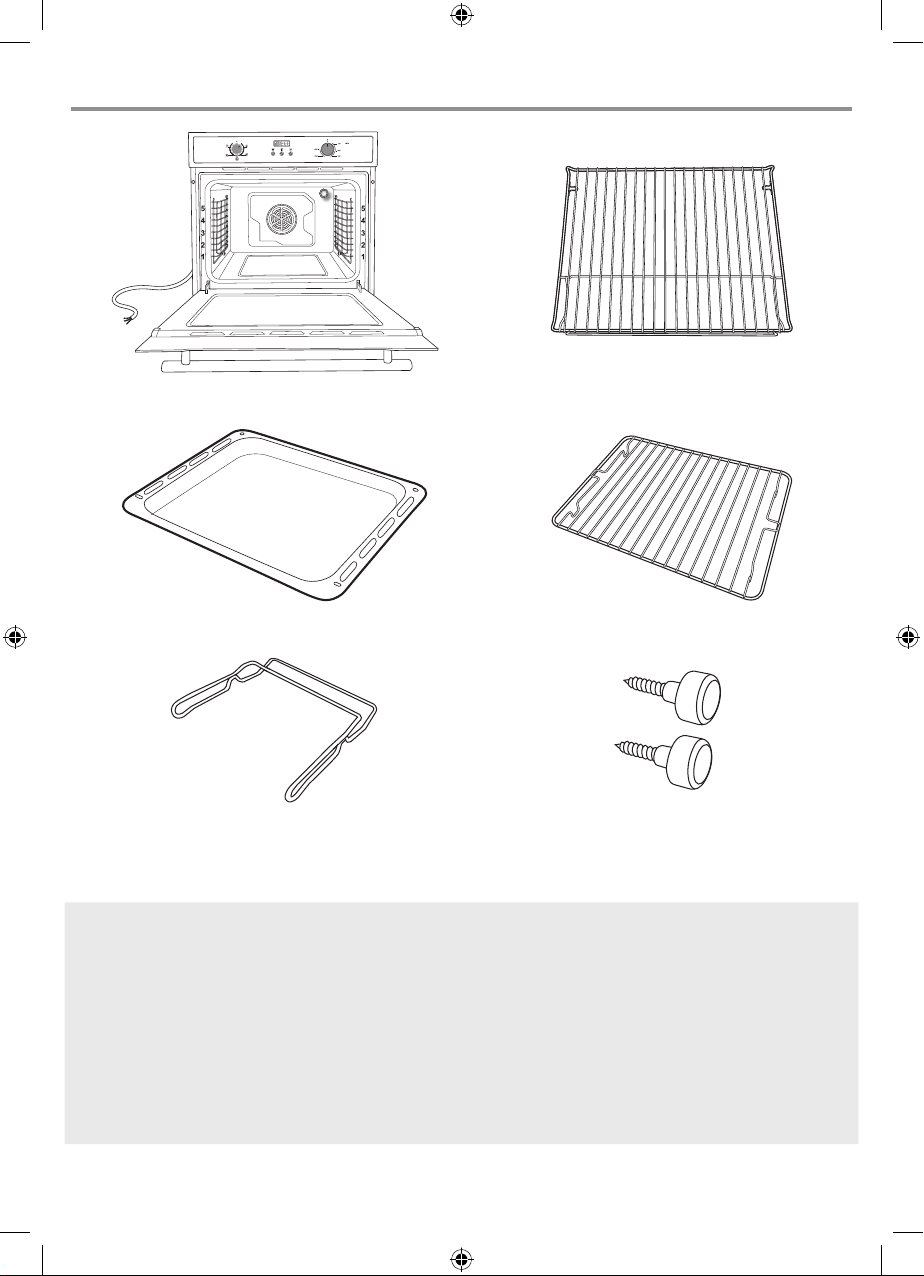

Scope of delivery
[A] x 1 [B] x 1
[C] x 1 [D] x 1
[E] x 1 [F] x 2
[A] Main unit with side rails [D] Grill to place on pan for supporting
food being cooked
[B] Oven shelf [E] Gripper for removing hot grill and
pans, thus avoiding direct contact
[C] Metal pan suitable for cooking and also
useful for collecting fats from foods
placed on the grill
[F] Screws
CLOVIPK-A Built-in electric oven
CLOVIPK-A-C&L-IM-V03-EN.indd 2 27/8/15 5:39 pm

3
Let's
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting started… 04
Safety 04
Your product 10
Before you start 12
In more detail… 13
Operation 13
Care and maintenance 23
Troubleshooting 27
Recycling and disposal 28
Technical and legal information 29
Guarantee 30
CE declaration of conformity 32
Appendix...
33
Installation
GB
IE
CLOVIPK-A-C&L-IM-V03-EN.indd 3 27/8/15 5:39 pm

4
CLOVIPK-A Built-in electric oven
Getting started...
GB
IE
Safety
These instructions are for your safety.
Please read through them thoroughly prior
to installation and retain them for future
reference.
All installation work must be carried
out by a competent person or qualied
electrician.
This appliance must be installed
correctly by a qualied person,
strictly following the manufacturer’s
instructions.
This appliance complies with all current
European safety legislation, however, the
manufacturer must emphasise that this
compliance does not prevent the surfaces of
the appliance from heating up during use and
remaining hot during its operation.
Do not allow the electric cables to touch the
hot parts of the appliance.
Make sure that the power cord is not caught
under or in the appliance and avoid damage to
the power cable.
CLOVIPK-A-C&L-IM-V03-EN.indd 4 27/8/15 5:39 pm

5
Getting started...
CLOVIPK-A Built-in electric oven GB
IE
Safety
Do not install the appliance outdoors in a
damp place or in an area which may be prone
to water leaks such as under or near a sink
unit. In the event of a water leak allow the
machine to dry naturally.
Please dispose of the packing material
carefully.
Do not use ammable sprays in close vicinity
to the appliance.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the appliance
in a safe way and understand the hazards
involved. Children shall not play with the
appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
Regularly check the power cord for damage.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid
a danger or injury.
CLOVIPK-A-C&L-IM-V03-EN.indd 5 27/8/15 5:39 pm

6
CLOVIPK-A Built-in electric oven
Getting started...
GB
IE
Safety
The appliance is not intended to be operated
by means of external timer or separated
remote-control system.
The appliance is for domestic use only.
The Manufacturer declines all liability for
personal or material damage as a result
of misuse or incorrect installation of this
appliance.
Danger of burns! During use the appliance
becomes hot. Care should be taken to avoid
touching heating elements inside the oven.
Warning! Accessible parts may become hot
during use. Children should be kept away.
Warning! If the door or door seals are
damaged, the oven must not be operated until
it has been repaired by a competent person.
Do not lean on the door or place any objects
on the door of the appliance. This can damage
the door hinges.
Warning! Ensure that the appliance is
switched off before replacing the lamp to avoid
the possibility of electric shock.
The oven must be installed in accordance with
installation instructions and all dimensions
must be followed.
CLOVIPK-A-C&L-IM-V03-EN.indd 6 27/8/15 5:39 pm

7
Getting started...
CLOVIPK-A Built-in electric oven GB
IE
Safety
Before connecting the appliance to the power
supply, check that the power supply voltage
and current rating corresponds with the power
supply details shown on the appliance rating
label.
Never use a damaged appliance! Disconnect
the appliance from the electrical outlet and
contact your retailer if it is damaged.
Danger of electric shock! Do not attempt
to repair the appliance yourself. In case of
malfunction, repairs are to be conducted by
qualied personnel only.
To avoid damaging the cord, do not squeeze,
bend or chafe it on sharp edges. Keep it away
from hot surfaces and open ames as well.
Lay out the cord in such a way that no
unintentional pulling or tripping over it is
possible.
Keep the appliance and its cord out of reach of
children.
Do not operate the appliance with wet hands
or while standing on a wet oor.
Always turn the appliance off before
disconnecting it from the main power supply.
CLOVIPK-A-C&L-IM-V03-EN.indd 7 27/8/15 5:39 pm

8
CLOVIPK-A Built-in electric oven
Getting started...
GB
IE
Disconnect the oven from the power supply
when not in use and before cleaning.
This appliance is classied as protection
class I and must be connected to a protective
ground (Earth).
Means for full disconnection must be
incorporated in the xed wiring in accordance
with the wiring rules. To achieve this install an
appropriate circuit breaker (CB) and residual
current device (RCD). It should be installed in
an easily reachable place so that in case of
emergency the appliance can be disconnected
from power immediately.
The xed wiring must be protected against
heat surfaces.
Do not hang any objects to the handle of the
oven door.
Do not cover the bottom of the oven with
aluminium foil or other objects. Caution: Risk
of re!
Do not allow aluminium foil, plastic, paper or
fabric contact with heating elements.
Never leave the appliance unattended during
use, especially when cooking with ammable
substances (e.g., hot oil, fat, etc.).
Safety
CLOVIPK-A-C&L-IM-V03-EN.indd 8 27/8/15 5:39 pm

9
Getting started...
CLOVIPK-A Built-in electric oven GB
IE
Safety
Do not store or never use harsh chemicals,
sprays, ammable or non-food in or near
the oven. Oven is designed specically for
heating or cooking food. The use of corrosive
chemicals in heating or cleaning will damage
the unit and may cause injury.
Should any food inside the oven catch re,
keep the door closed. Switch the oven off and
disconnect the power supply.
Always exercise caution when opening the
door. Move to side, open the door slowly to
vent the hot air and/or steam. Make sure your
face is away from the opening and make sure
there are no children or pets near the oven.
Only use utensils that are suitable for use in
this type of oven.
The oven should be cleaned regularly and any
food deposits removed.
Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass.
They can scratch the surface, which may
result in shattering of the glass.
A steam cleaner is not to be used.
CLOVIPK-A-C&L-IM-V03-EN.indd 9 27/8/15 5:39 pm

10
CLOVIPK-A Built-in electric oven
Getting started...
GB
IE
Your product
Your product
Note!
This diagram may be slightly different from the layout of the appliance.
Note!
Shelf levels are numbered from the bottom up. Levels 4and 5are
used mainly for the grill function. Please refer to the cooking guides
provided throughout this manual to determine appropriate shelf
levels for your dishes.
9
4
6
7
8
1
3
5
10 2

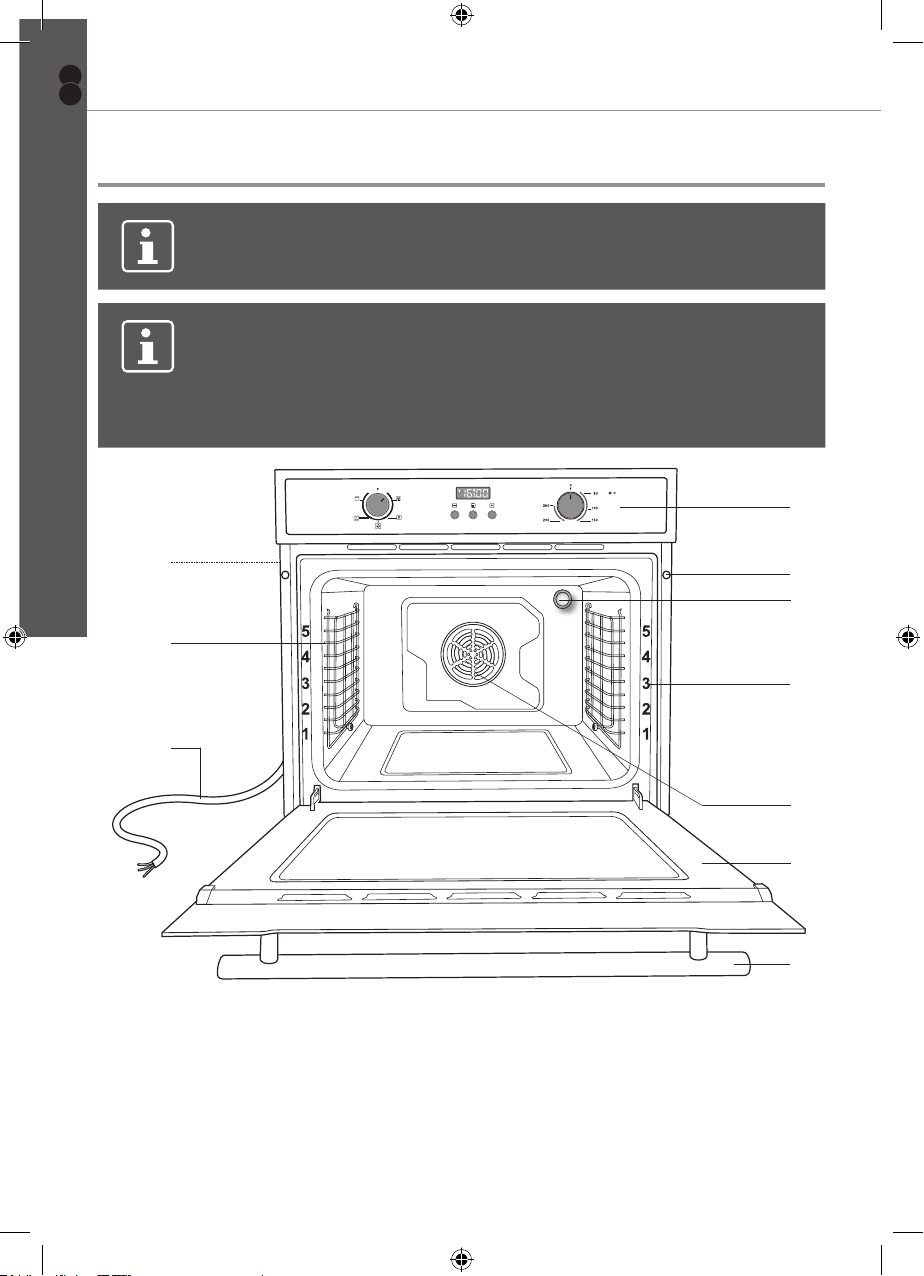

1 Control panel 6 Door
2 Fixing holes (2x) 7 Handle
3 Oven lamp 8 Power cable
4 Shelf level markings 9 Side rails
5 Fan 10 Handles for carrying the oven
CLOVIPK-A-C&L-IM-V03-EN.indd 10 27/8/15 5:39 pm

11
Getting started...
CLOVIPK-A Built-in electric oven GB
IE
Your product
Your product
17 16
12
11
15
13 14
21
18
19
22
20
11 Cooking mode control 17 Decrease time button
12 Display 18 Metal pan
13 Temperature control 19 Screws
14 Operating indicator 20 Gripper
15 Increase time button 21 Grill to place on pan
16 Time button 22 Oven shelf
CLOVIPK-A-C&L-IM-V03-EN.indd 11 27/8/15 5:39 pm

12
CLOVIPK-A Built-in electric oven
Getting started...
GB
IE
Before you start
You will need (not supplied)
Installation guide
located at the end of
the guidebook
33
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance it is important that this appliance is installed correctly and that
you read the safety instructions carefully to avoid misuse and hazards.
Please keep this instruction booklet for future reference and pass it on to
any future owners. After unpacking the appliance please check that it is
not damaged. If in doubt, do not use the appliance but contact Customer
Services on 0344 800 1128 (UK), 0144 75261 (Ireland).
Check the package and make sure you have all of the parts listed.
Decide on the appropriate location for your product.
If this product contains glass please take care when tting or handling to
prevent personal injury or damage to the product.
The specications plate is available on this appliance. This plate displays
all the necessary identication information for ordering replacement parts.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner can
become familiar with the appliance and its safety warnings.
CLOVIPK-A-C&L-IM-V03-EN.indd 12 27/8/15 5:39 pm

13
In more detail...
GB
IE
CLOVIPK-A Built-in electric oven Operation
Introduction
Note!
• This multifunction oven combines the advantages of traditional
convection ovens with those of the more modern fan assisted
models in a single appliance.
• It is an extremely versatile appliance that allows you to choose
easily and safely between different cooking modes.
Note!
Before using the oven for the rst time we recommend that the oven
be switched on and set to its highest temperature. Keep the oven
door closed and leave the appliance on for 1hour with nothing in it.
Ensure adequate ventilation during this process by opening doors
and windows in the room. Any odours created during this operation
are due to the evaporation of substances used to protect the
appliance during storage prior to installation.
Note!
Place the grill pan provided on the bottom shelf of the oven when
cooking fatty foods to prevent grease droplets forming on the base of
the oven. Never place anything on the bottom of the oven when it is
in operation. This could cause damage to the enamel. Always place
your cookware (dishes, aluminium foil, etc. etc.) exclusively on the
shelves provided.
Initial cleaning
Warning!
• Clean the oven thoroughly before using it for the rst time.
• Do not use sharp or abrasive cleaning materials. These could
damage the oven surface.
1. Open the door.
2. Clean all oven accessories with warm water or washing up liquid and polish
dry with a soft clean cloth.
3. Clean the oven interior with a soft clean cloth.
4. Wipe the front of the appliance with a damp cloth.
5. Let the oven and all accessories dry well.
CLOVIPK-A-C&L-IM-V03-EN.indd 13 27/8/15 5:39 pm

14
In more detail...
GB
IE
CLOVIPK-A Built-in electric oven
Operation
Control elements
Controls Cooking mode
control
Temperature
control
Time buttons
( , , )
Functions Use the control to
select one of the
available operation
modes.
Use the control to
set the temperature
between 50 °C and
250 °C.
Use the buttons
( , , ) to set the
time.
How to use 1. Press to let the control pop up.
2. Rotate the control to desired setting.
3. Press the control again to withdraw it.
• Press directly to
set desired time.
Setting the time
Once the appliance is connected to the power source, it beeps once and the
display shows . Then the dot "." ashes. The time is now available for setting
in 24-hour format.
1. Press or to set the hour.
2. Press to conrm.
3. Press or to set the minute.
4. Press to conrm. The time is now set and the timer enters standby.
Note!
If the display does not ash, press and for 3 seconds to enter
time setting mode.
Note!
When the oven is disconnected from the power source, the time
settings cannot be saved and need to be re-set.
Note!
In order to use a timer function, the time has to be set rst.
CLOVIPK-A-C&L-IM-V03-EN.indd 14 27/8/15 5:39 pm

15
In more detail...
GB
IE
CLOVIPK-A Built-in electric oven
Product functions
• This oven provides a wide range of settings and functions to choose from, as
described in the following table.
• Use the selector knob to select one of the available operating modes. The
corresponding icon is shown on the display.
Icon Function Description
Oven lamp
With the lamp, the user can observe the cooking
process without opening the door.
The oven lamp will turn on automatically when a
cooking function is started.
Defrost
The circulation of air at room temperature enables
quicker thawing of frozen food, without the use of
any heat. It is a gentle but quick way to speed up the
defrosting time and thawing of ready-made dishes
and cream lled products, etc.
The advantage of defrosting at room temperature is
that it does not alter the taste and appearance of the
food.
Convection
A heating element around the convection fan
provides an additional source of heat when using
the convection cooking method. In this mode, the
fan automatically comes on to improve the air
circulation within the oven and creates an even heat
for cooking.
Grill
The inner grill element switches on and off to
maintain the required temperature. The food is
cooked through radiation heat.
Double grill
with fan
The inner grill element and the top element are both
activated. In this mode, also the fan is in operation to
provide an even distribution of the heat.
Operation
CLOVIPK-A-C&L-IM-V03-EN.indd 15 27/8/15 5:39 pm

16
In more detail...
GB
IE
CLOVIPK-A Built-in electric oven
Operation
Using the convection mode
The rear circular element and the fan come on and the heat is dispersed by forced
convection. This mode is suitable for cakes and pastry and to roast joints when
you want it well cooked on the outside and tender in the middle. The oven does
not need any pre-heating when using this mode.
Using the grill function
To use the grill ensure that your food is located in the centre of the oven cavity
and adjust the height of the grill pan to control the browning. It is advised to use
the top shelf for small items and the lower shelves for larger items.
Using the double grill function with fan
This mode is recommend for quick browning on the outside but keeping the juices
in. Ideal for chops and burgers.
Using the defrost mode
In this mode only the oven fan comes on. This mode is suitable for the quick
thawing of frozen foods. Thawing times vary depending on the quantity and type
of food to be defrosted.
Practical cooking advice
• The oven offers a wide range of alternatives which allow you to cook any type
of food in the best possible way. With time you will learn to make the best
use of this versatile cooking appliance and the following directions are only a
guideline which may be varied according to your own personal experience.
• Read the information of the food packaging for the cooking temperatures and
times. Once familiar with the performance of the appliance, the temperatures
and times may be varied to adapt them to your personal tastes.
• Check that frozen food is completely thawed before cooking, unless indicated
otherwise.
Note!
The information given in the following charts is intended only as a
guide. Select the lowest temperature quoted and check the food at
the end of the shortest duration quoted.
CLOVIPK-A-C&L-IM-V03-EN.indd 16 27/8/15 5:39 pm

17
In more detail...
GB
IE
CLOVIPK-A Built-in electric oven
CONVECTION
Food Temperature
setting (ºC)
Recommended
Shelf position
from the bottom
Cooking
time in
minutes
Small cakes
(single-deck)
165 - 170 2 20 - 23
Sponge cake 160- 165 2 30 - 40
Pizza 170 - 175 3 19 - 25
Apple yeast cake
(single-deck)
170 - 175 2 60 - 70
Small cakes
(double-deck)
165 - 170 2 (deep tray) 20 - 23
4 (shallow tray)
Apple yeast cake
(double-deck)
170 - 175 2 (deep tray) 65 - 75
4 (shallow tray)
Note!
Unless otherwise stated, the times given are for an oven which has
not been pre-heated.
Operation
CLOVIPK-A-C&L-IM-V03-EN.indd 17 27/8/15 5:39 pm

18
In more detail...
GB
IE
CLOVIPK-A Built-in electric oven
GRILL
Food to be
grilled
Temperature
setting (ºC)
Recommended
Shelf position
from the bottom
Cooking
time in
minutes
Toast 240 3 4 - 5
Beef steak 240 2 15 + (6 - 8)
GRILL WITH FAN
Food to be
grilled
Temperature
setting (ºC)
Recommended
Shelf position
from the bottom
Cooking
time in
minutes
Chicken 180 - 195 2 55 - 65 (Turn
after: 35 min)
Goose 180 - 195 2 75 - 88 (Turn
after: 35 min)
Roasted joint of
pork
180 - 195 1 135 - 150
Operation
CLOVIPK-A-C&L-IM-V03-EN.indd 18 27/8/15 5:39 pm

19
In more detail...
GB
IE
CLOVIPK-A Built-in electric oven Operation
Switching on/off
1. Set the desired operation mode and cooking temperature
( Control elements).
2. When the timer is in standby, press and hold for more than 3 seconds. The
timer enters Manual mode with the symbol staying stably on the display.
3. Press to select the time function setting. Available time function settings
are:
Manual mode Alarm reminder
End Dur
4. The oven now switches on automatically and starts heating. The operating
indicator lights up. After the set temperature is reached, The operating
indicator goes off.
Note!
If "Dur" or "End" is selected, the oven will switch off automatically
after cooking.
Note!
If "Manual mode" or "Alarm reminder" is selected, set the cooking
mode control and the temperature control to 0position. Press and
hold and for more than 3 seconds to let the oven enter standby.
The following shows how to reduce total environmental impact (e.g. energy use)
of the cooking process).
• Try not to open or close the oven door frequently during cooking.
• Keep the oven door clear so that you can look in during cooking easily.
• If possible, defrost frozen food in a way which does not need any power
consumption.
• It takes less time to cook food which has large surface area to volume ratio.
CLOVIPK-A-C&L-IM-V03-EN.indd 19 27/8/15 5:39 pm

20
In more detail...
GB
IE
CLOVIPK-A Built-in electric oven
Manual mode
1. In Manual mode, only the actual time and the symbol lights up on the
display. The cooking duration is controlled by the user.
2. After cooking done, set the cooking mode control and the temperature control
to 0position.
3. Press both and for more than 3 seconds to enter standby if the oven is
not to be used.
Note!
• In Manual mode, to ensure the oven is not left on accidentally,
after 5 hours of inactivity,, the timer will ash once a second to
warn you the oven will enter standby. After a total of 10 hours,
the timer will enter standby.
• When the timer is ashing, pressing any button will reset the
timer if you intend for continual using of the oven.
Setting an alarm reminder
You have the possibility to set a timer to remind you to turn on the oven. You can
also use this function as a kitchen timer to set a time frame for other tasks not
necessarily related to this oven. The timer can be set in a time range between a
minimum of 1 minute, and a maximum of 23 hours and 59 minutes.
Note!
This function can only be activated when the oven is in standby and
not in operation.
1. Press to select the alarm reminder function. The symbol starts ashing
on the display.
2. Press or to set the alarm reminder duration.
3. Press to conrm. The symbol stays continuously on the display. The
alarm reminder is thus activated and starts countdown.
4. When the set time is expired, the oven beeps once and the symbol starts
ashing again.
5. Press both and for more than 3 seconds to enter standby if the oven is
not to be used.
• Note: When the timer arrives, press any button to stop alarming.
Operation
CLOVIPK-A-C&L-IM-V03-EN.indd 20 27/8/15 5:39 pm
