Cookology BUCH520SS User manual

1
BUCH520SS&BUCH750S
S&BUCH900SS
Instruction manual
CONTENT
1………………………………………. General

2
2………………………………………. Safety precaution
3………………………………………..Warning
4………………………………………..Specifications
5………………………………………..Installation
6…………………………………………Operation
7…………………………………………Maintenance
8………………………………………….Abnormity and Solution
1. General
Carefully read the following important information regarding installation,
safety and maintenance. Keep this information booklet accessible for
further consultations.

3
The appliance has been designed as a exhausting version (external
exhaust ) or as a filter version (internal air recycle) cooker hood.
2. Safety precaution
Take care when the cooker hood is operating simultaneously with an
open fireplace or burner that depend on the environment and are
supplied by other than electrical energy, as the cooker hood removes
the air from the environment which a burner or fireplace need for
combustion.
The negative pressure in the environment must not exceed 4 Pa (4*10-
5 bar).
Provide adequate ventilation in the environment for a safe operation of
the cooker hood.
Follow the local laws applicable for external air evacuation.
3. Warning
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
The instructions shall state the substance of the
following:
–there shall be adequate ventilation of the room when
the range hood is used at the same time as appliances
burning gas or other fuels (not applicable to appliances
that only discharge the air back into the room);

4
–the details concerning the method and frequency of
cleaning;
–there is a fire risk if cleaning is not carried out in
accordance with the instructions;
–do not flambé under the range hood;
–CAUTION: Accessible parts may become hot when
used with cooking appliances.
The installation instructions shall include the substance
of the following:
–the air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels (not applicable to appliances that only
discharge the air back into the room);
–the minimum distance between the supporting surface
for the cooking vessels on the hob and the lowest part of
the range hood. (When the range hood is located above a
gas appliance, this distance shall be at least 65 cm.
–regulations concerning the discharge of air have to be
fulfilled.
The installation instructions for range hoods with
accessible metallic enclosures of class II construction
shall include details that indicate the location and
maximum permitted lengths for any fixing or mounting
screw or other fixing device that penetrates into the range
hood to attach an accessory such as a facia or duct fitting.

5
Where fixing or mounting screws, or other fixing devices
are used, that penetrate into the range hood with an
accessible metallic enclosure of class II construction, to
attach an accessory, the instructions shall indicate the
required location of these screws or fixing devices and
include the substance of the following warning.
Warning: Failure to install the screws or fixing device in
accordance with these instructions may result in
electrical hazards.
4. Specifications

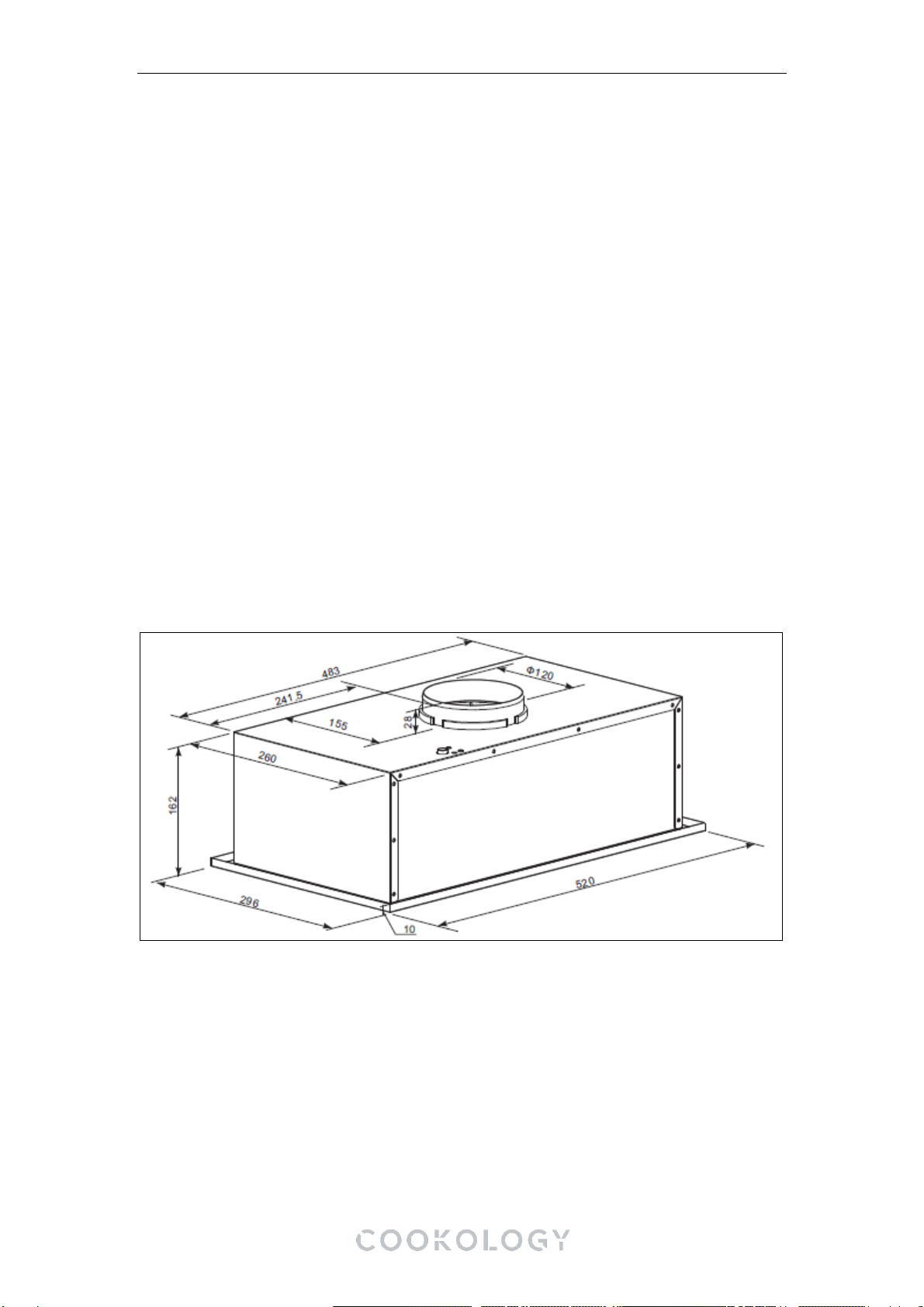

BUCH520SS
Create an opening in the underneath of the kitchen unit; the cut-out must
be of the dimensions shown in the drawing below.

6
BUCH750SS
Create an opening in the underneath of the kitchen unit; the cut-out must
be of the dimensions shown in the drawing below.

7

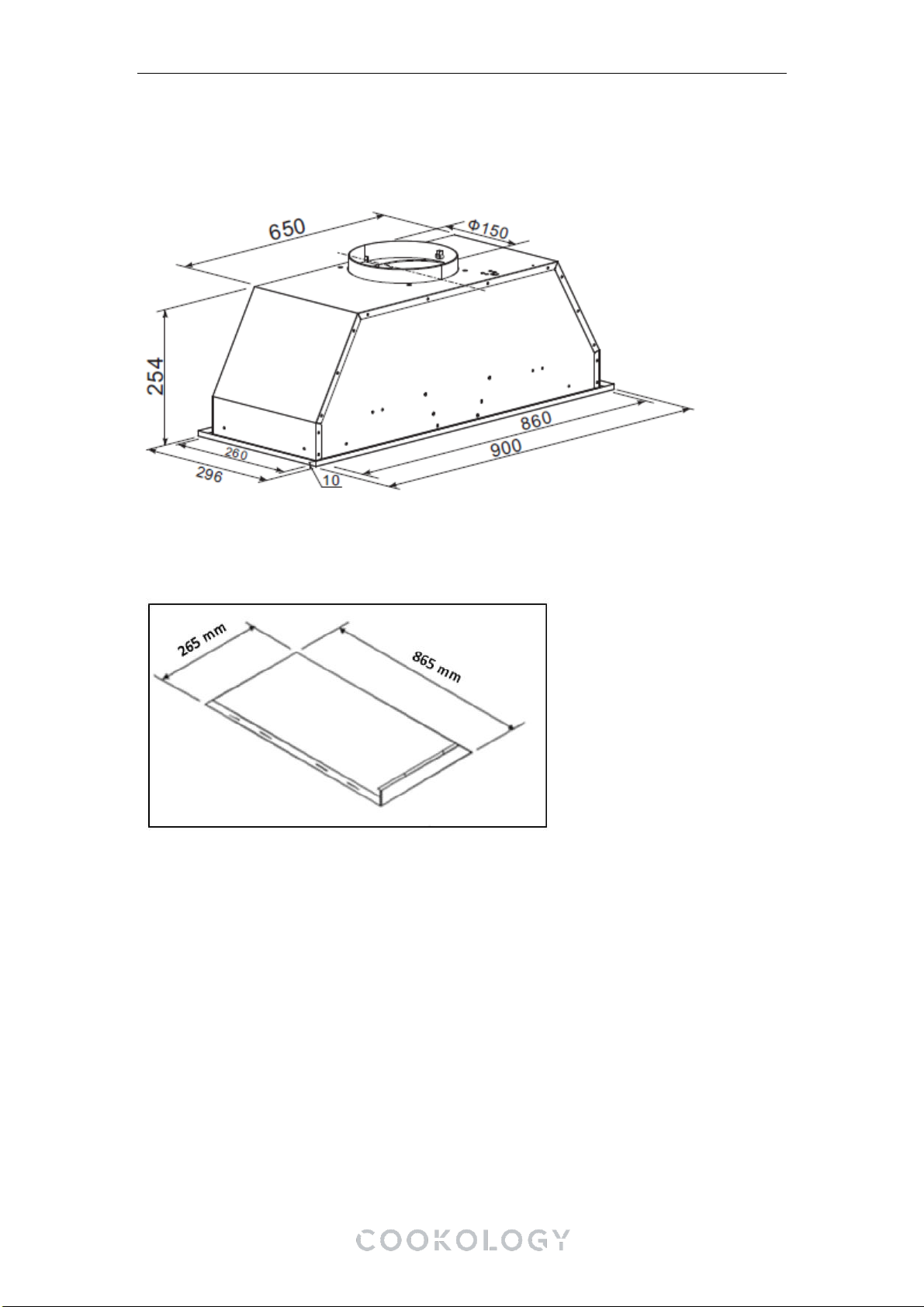

BUCH900SS
Create an opening in the underneath of the kitchen unit; the cut-out must
be of the dimensions shown in the drawing below.

8
5.INSTALLATION

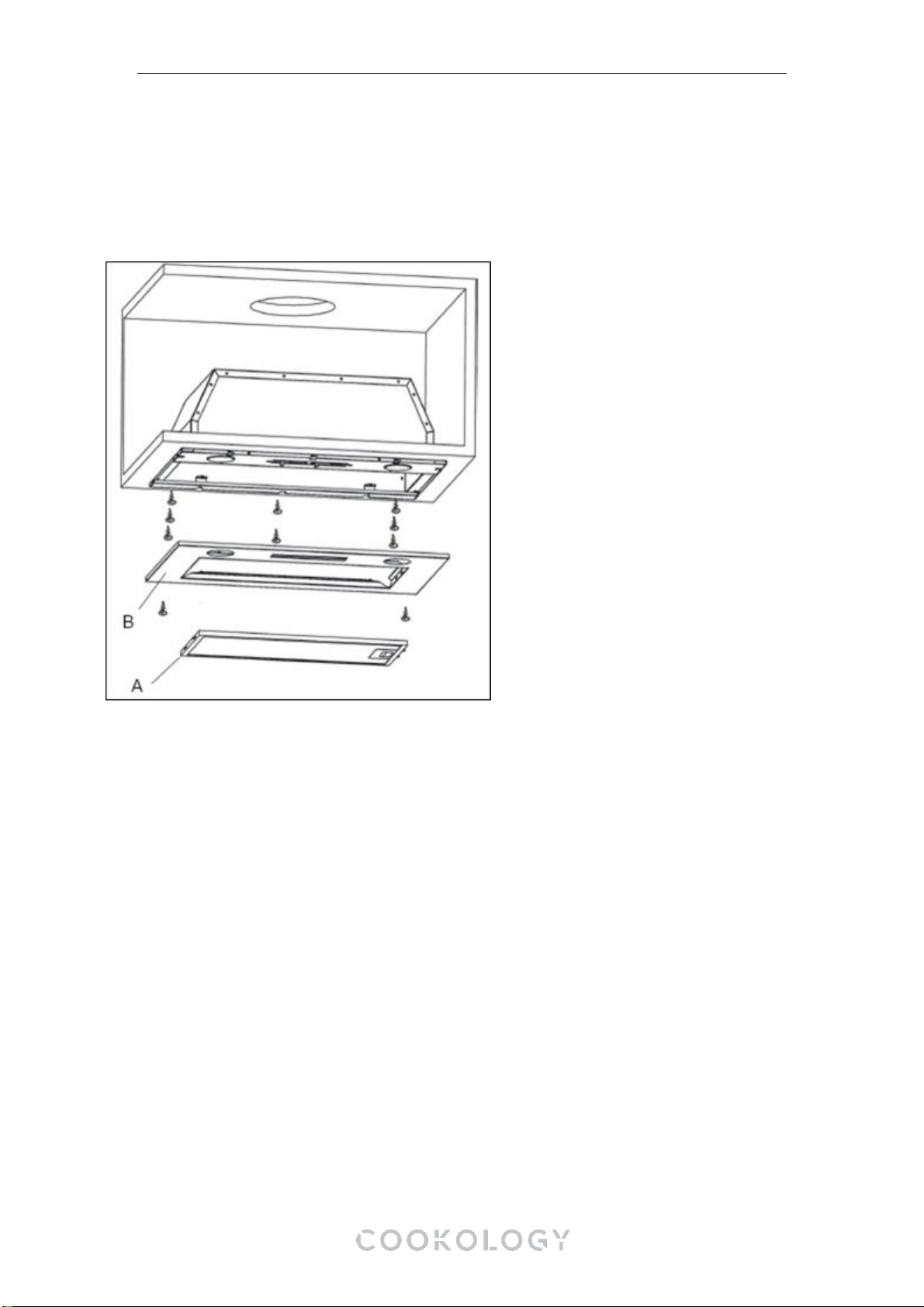

1) Remove the metal grease filter (A).
2) Create an opening in the underneath of the kitchen unit; the cut-out must
be of the dimensions shown in the “Specifications of your cooker hood”
3) Make a hole in the inside of
the kitchen unit for the electrical
cable to feed through. Remove
the 2 screws securing the
extractor frame (B) to the hood
and unscrew the 2 lights. Ensure
that the two support clips on
either side of the hood are set to
accommodate the thickness of
the mounting surface, by
adjusting the clip via the screw.
4) Lift the cooker hood towards
the cut-out that you made in step
2. Feed the electrical cable
through the hole that you made
in step 3.
IMPORTANT: Do not connect
the electrical cable to the mains
supply at this stage.
5) Lift the cooker hood fully into the cut out that you made in step 2. If you
are connecting the cooker hood to external ducting, then secure the ducting
hose to the coupling on the appliance.
oOne person should support the hood. The other person should fully
tighten the support screws through the pre-drilled holes in the outer
frame of the hood, into the kitchen unit. Then replace the extractor
frame using the 2 screws (B) and reattach the 2 lights.
oRefit the grease filter.

9
6.OPERATION
Slide switch
There are 3 speeds for the motor and on / off switch for the lamp.
Slide the switch for operation.
Motor Operation
0- off
1- Low Power Setting
2- Mid Power Setting
3- High Power Setting
Light Operation
0- Off
1- On
Bulb Replacement
Important :
The bulb must be replaced by the
manufacturer, its service agent or similarly
qualified persons.
Always switch off the electricity supply before
carrying out any operations on the appliance.
When handling bulb, make sure it has
completely cooled down before any direct
contact with hands.
When handling bulbs hold with a cloth or
gloves to ensure perspiration does not come
in contact with the bulb as this can reduce
the life of the bulb.
Note:
⚫Before changing the lights, make sure that the appliance is turned off
and unplugged.
⚫Protect against danger when changing lights, such as wearing gloves.

10
• Remove the grease filter.
• Put one hand into the cavity to pull out the LED light carefully and replace
with the same type and rated LED light (2*2W LSD-B2 LED light)
• Replace the filter back to the unit.
• ILCOS D code for this lamp is: DBR-2/65-H-64
–LED modules, self- ballasted –round lamp
–Max wattage: 2×2 W
–Voltage range: AC 110-240V
–Dimensions:
7. Maintenance
Before cleaning, switch the unit off and pull out the plug.
I. Regular Cleaning
Use a soft cloth moistened with hand-warm mildly soapy water or household
cleaning detergent. Never use metal pads, chemical, abrasive material or stiff
brush to clean the unit.
II. Monthly Cleaning for filter
ESSENTIAL: Clean the filter every month can prevent any risk of fire.
The filter collects grease, smoke and dust…... so the filter is directly affecting
the efficiency of the cooker hood. If not cleaned, the grease residue (potential
flammable) will saturate on the filter. Clean it with household cleaning
detergent.

11
8.Abnormity and Solution
Fault
Cause
Solution
Light on, but motor
does not work
The leaf blocked
Get rid of the blocking
The capacitor damaged
Replace capacitor
The motor jammed bearing
damaged
Replace motor
The internal with of motor off or
a bad smell from the motor
Replace motor
Light does not work,
motor does not work
Beside the above mentioned, check the following:
Light damaged
Replace lights
Power cord looses
Connect the wires as per
the electric diagram
Oil leakage
One way valve and the air
ventilation entrance are not
tightly sealed
Take down the one way
valve and seal with glue
Leakage from the connection
of U-shaped section and
cover
Take U-shaped section
down and seal with soap
or paint
Shake of the body
The leaf damaged and causes
shaking
Replace the leaf
The motor is not tightly
hanged
Lock the motor tightly
The body is not tightly
hanged
Fixed the body tightly
Insufficient suction
The distance between the
body and the gas top too long
Readjust the distance
Too much ventilation from
open doors or windows
Choose a new place and
resemble the machine
The machine inclines
The fixing screw not tight
enough
Tighten the hanging
screw and make it
horizontal
The hanging screw not tight
enough
Tighten the hanging
screw and make it
horizontal

12
ENVIRONMENTAL PROTECTION:
This product is marked with the symbol on the selective sorting of
waste electronic equipment. This means that this product must not
be disposed of with household waste but must be supported by a
system of selective collection in accordance with Directive
2002/96/EC. It will then be recycled or dismantled to minimize impacts
on the environment, electrical and electronic products are potentially
dangerous for the environment and human health due to the presence of
hazardous substances.
For more information, please contact your local or regional authorities.
Note：
a. In order to reduce the environmental impact (e.g. energy use) of the
cooking process, please be sure that your product is installed according
to the user manual, keep the operation place ventilated, keep the
extraction duct be direct and short as possible as it can be.
b. For the product with manual operation mode, we suggest switch the
motor off within 10 minutes after finishing the cooking process.
c. Please be sure to dismantle related components according to the user
manual when maintaining for non-destructive, protect the parts to make
the re-installed work can be favoring and avoid damage.
