Cookology VER601BK User manual

1
VER601BK&VER605BK
VER701BK&VER705BK
VER801BK&VER805BK
VER901BK&VER905BK
Cooker hood
Instruction manual

2
CONTENT
1……………………………………….Notice
2…………………………………….Feature& Notice of installation
3………………………………………..Installation
4……………………………………….. Speed adjustment
5………………………………………..Safety Warning
6…………………………………………Maintenance
7………………………………………….. Abnormity and Solution

3
1.Notice
This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision
If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.

4
The instructions shall state the
substance of the following:
–there shall be adequate ventilation
of the room when the range hood is
used at the same time as appliances
burning gas or other fuels (not
applicable to appliances that only
discharge the air back into the room);
–the details concerning the method
and frequency of cleaning;
–there is a fire risk if cleaning is not
carried out in accordance with the
instructions;
–do not flambé under the range hood;

5
–CAUTION: Accessible parts may
become hot when used with cooking
appliances.
The installation instructions shall
include the substance of the
following:
–the air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels (not applicable to appliances
that only discharge the air back into
the room);
–the minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest part
of the range hood. (When the range
hood is located above a gas appliance,
this distance shall be at least 65 cm.

6
–regulations concerning the
discharge of air have to be fulfilled.
The installation instructions for range
hoods with accessible metallic
enclosures of class II construction
shall include details that indicate the
location and maximum permitted
lengths for any fixing or mounting
screw or other fixing device that
penetrates into the range hood to
attach an accessory such as a facia or
duct fitting.
Where fixing or mounting screws, or
other fixing devices are used, that
penetrate into the range hood with an
accessible metallic enclosure of class
II construction, to attach an accessory,
the instructions shall indicate the

7
required location of these screws or
fixing devices and include the
substance of the following warning.
Warning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards
2. Feature
1. The cooker hood uses high quality materials, and is made with a
streamlined design.
2. Equipped with a large power low noise electric motor and centrifugal
leaf, it produces strong suction, low noise, non stick grease filter and easy
to clean.
3. With the isolated low voltage circuit board control, 4vAC input, the
lights are therefore safer.
4. Special wind tunnel construction and oil collector design, free dirt will
be absorbed in a second.
IMPORTANT: IDEALLY YOU SHOULD SWITCH ON
YOUR HOOD TEN MINUTES BEFORE YOU START
TO COOK, OR AT THE VERY LEAST WHEN YOU
BEGIN COOKING. YOU SHOULD ALSO RUN YOUR
HOOD FOR TEN MINUTES AFTER YOU HAVE
FINISHED COOKING.

8
3. Installation

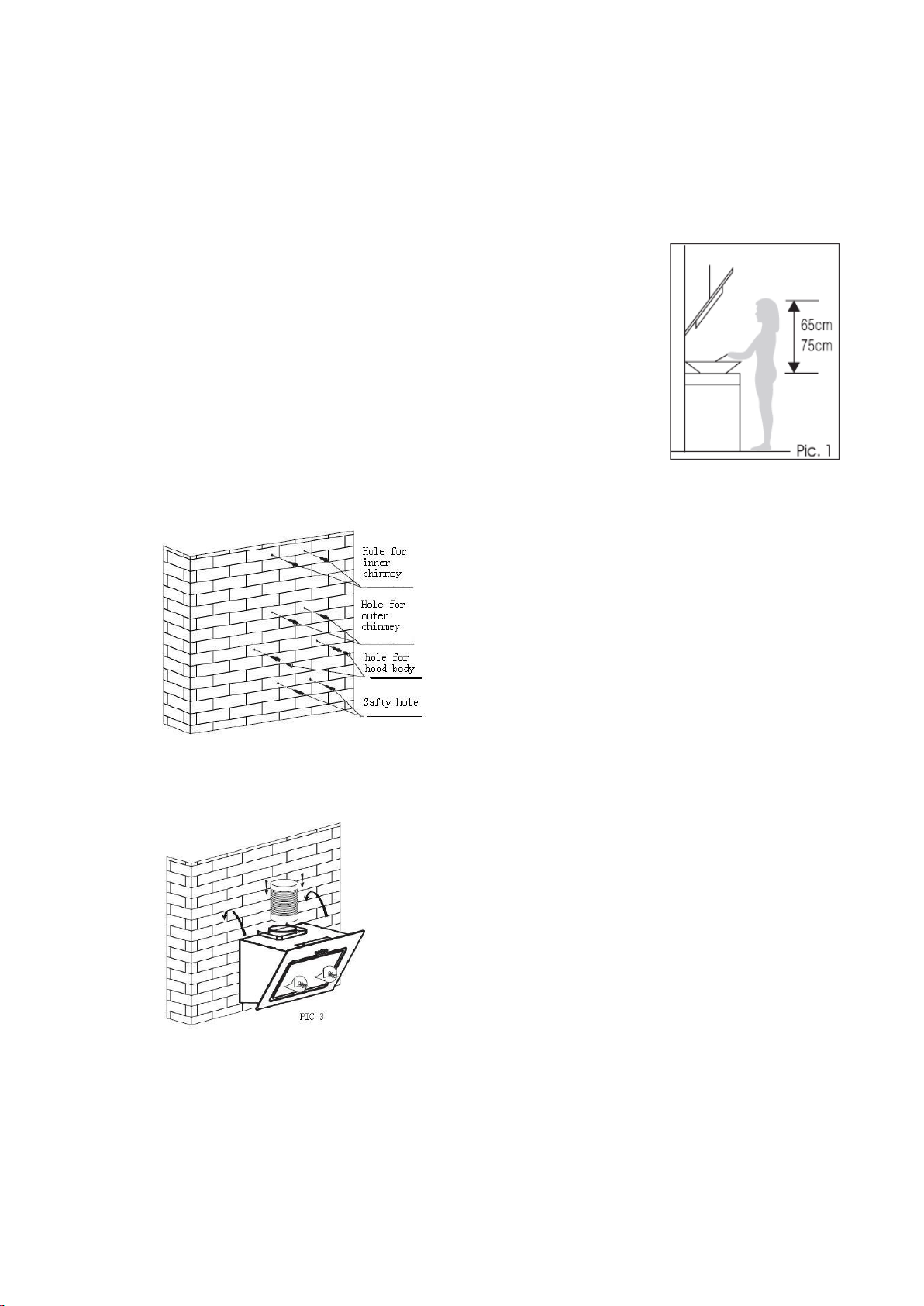

1.The cooker hood should be placed at a distance of
65-75cm (26-30inch) from the cooking surface for
the best effect. See Pic 1.
2. Using a drill bit with an 8mm diameter, make 8
holes in the wall on the position that you preserve
for installing the chimney and cooker hood body. See
Pic 2
3.Insert rawl plugs into the holes that you have drill
for cooker hood body, fasten 2pcs support screw
ST4*40mm halfway in,leaving them 2mm out of the wall.See Pic 2
4.Hang the cooker hood onto the support screws
Pic 2
5.Insert self-tap screw ST4*30mm into the safty holes and fully
fasten it to ensure the cooker hood it is well fixed. See pic 3
6.Connect the couping to the outlet of cooker hood, and then
connect the ducting hose to the couping. The other end of the
ducting hose should be connected to a discharge outlet that it is
suitable for cooking vapours.
7. Use self tapping screw ST4*40mm to fix the inner chinmey
bracket into the wall. See pic 4

9
8. Put the inner chinmey and outer chinmey together,use self
tapping screw ST4*8mm to fix the outter chimney bracket onto the
outer chimney.Please make sure that the inner chimney it is
adjustable inside the outerchinmey.See pic 5
Pic 5
9. Positioning the outer chinmey on the top of the cooker hood,use
self tapping screw ST4*8mm to fixed the chinmey bracket to
cookerhood. Fix the outer chinmey bracket to the wall by using the
ST4*40MM self tapping screw. See pic 6
10. Pull the inner chinmey out from the outer chimney until it reach
the bracket on the wall,fix it by 2pcs ST4*8MM self taping screw.
See pic 7

10
Note:
● Any installation work must be carried out by a qualified
electrician or Competent person.
●Do not connect the ducting system of the hood to any existing
ventilation system which is being used for any other appliance
,such as warmer tube, gas tube, hot wind tube.
●The angle of the bend of the ventilation pipe should not be less
than 120º; You must direct the pipe horizontally, or,
alternatively, the pipe should go up from the initial point and
should be led to an outer wall.
●After the installation, make sure that the cooker hood is level to
avoid grease collection at on end. See Pic. 8
4. SPEED ADJUSTMENT
For VER601BK , VER701BK, VER801BK, VER901BK
1. Connect to the power supply, the cooker hood enter into standby
mode.
2. The cooker hood totally with 3 speed selection. Low speed,
medium speed, high speed.
3. Off button
Press this button to turn off the motor
4. Low Speed button
Press this button to operate at low speed.
