Cookology CYL351BK User manual

1
CYL351BK & CYL351SS
CYL351WH & CYL351COP
Cooker hood
Instruction manual

2
CONTENT
1……………………………………….Notice
2……………………………………….Feature
3………………………………………..Installation
4………………………………………..Notice of installation
5………………………………………..Safety Warning
6…………………………………………Speed adjustment
7…………………………………………Maintenance
8………………………………………….. Abnormity and Solution

3
1.Notice
This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision
If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.

4
The instructions shall state the
substance of the following:
– there shall be adequate ventilation
of the room when the range hood is
used at the same time as appliances
burning gas or other fuels (not
applicable to appliances that only
discharge the air back into the room);
– the details concerning the method
and frequency of cleaning;
– there is a fire risk if cleaning is not
carried out in accordance with the
instructions;
– do not flambé under the range hood;

5
– CAUTION: Accessible parts may
become hot when used with cooking
appliances.
The installation instructions shall
include the substance of the
following:
– the air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels (not applicable to appliances
that only discharge the air back into
the room);
– the minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest part
of the range hood. (When the range
hood is located above a gas appliance,
this distance shall be at least 65 cm.
– regulations concerning the

6
discharge of air have to be fulfilled.
The installation instructions for range
hoods with accessible metallic
enclosures of class II construction
shall include details that indicate the
location and maximum permitted
lengths for any fixing or mounting
screw or other fixing device that
penetrates into the range hood to
attach an accessory such as a facia or
duct fitting.
Where fixing or mounting screws, or
other fixing devices are used, that
penetrate into the range hood with an
accessible metallic enclosure of class
II construction, to attach an accessory,
the instructions shall indicate the
required location of these screws or
fixing devices and include the

7
substance of the following warning.
Warning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards
2. Feature
1. The cooker hood uses high quality materials, and is made with a
streamlined design.
2. Equipped with a large power low noise electric motor and
centrifugal leaf, it produces strong suction, low noise, non stick grease
filter and easy to clean.
3. Special wind tunnel construction and oil collector design, free dirt
will be absorbed in a second.
3. Installation

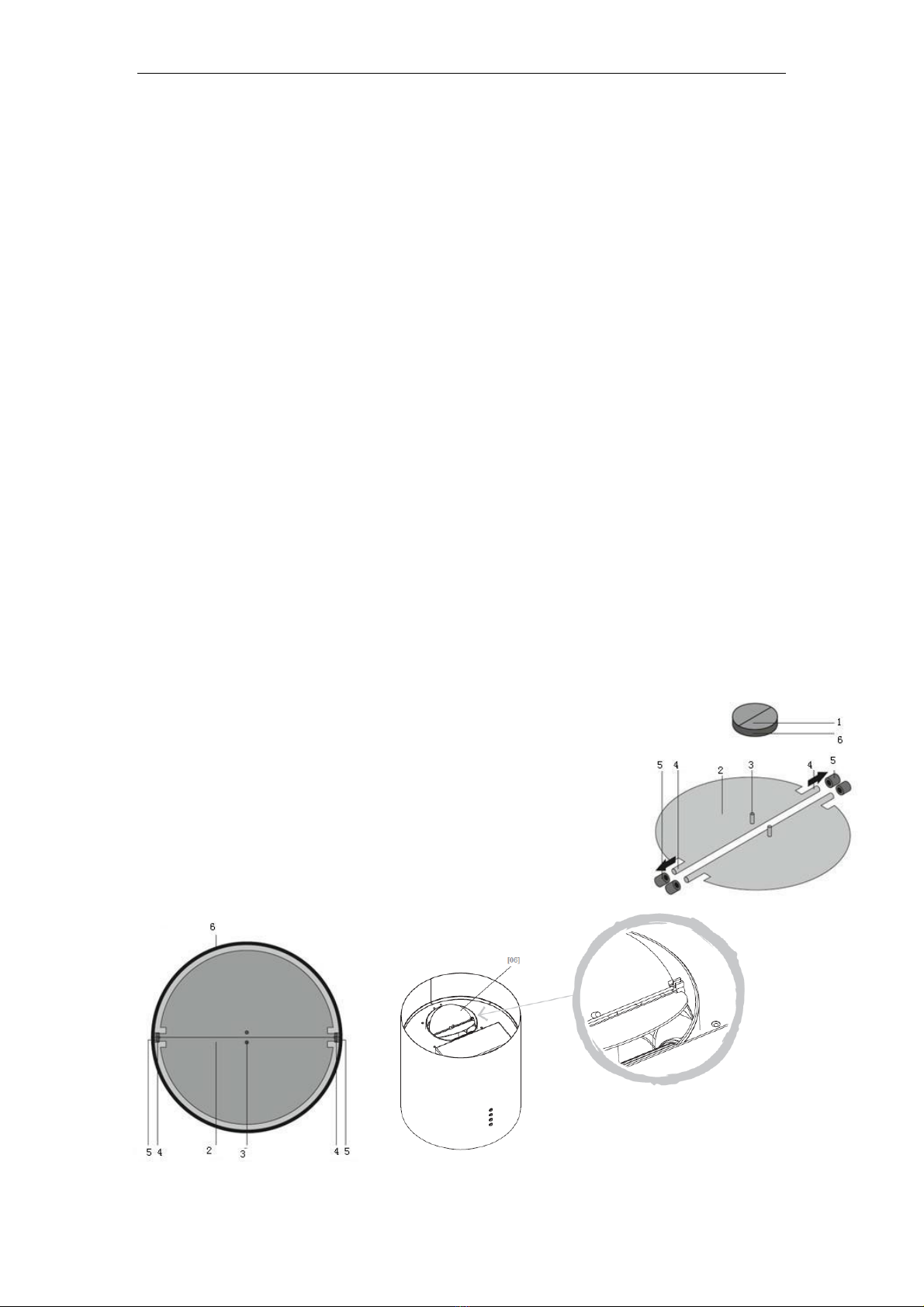

MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap
1, you should mount the half-parts to its body.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented;
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part

8
If you have an outlet to the outside, your cooker hood can be
connected as below picture by means of an extraction duct. (enamel,
aluminum, flexible pipe or non-flammable material with an interior
diameter of 150mm)
1. Before installation, turn the unit off and unplug it from the outlet.
2. The cooker hood should be placed at a
distance of 65-75cm (26-30inch) from
the cooking surface for the best effect.
See Pic.1
3. For safety, the ceiling should bear at
least 120 kgs, and the thickness should be
more than 30mm. Drill a hole with
φ170mm on the ceiling as shown on Pic.2
4. According to the hanging board, drill 9 holes on the ceiling. Use 9
pcs ST6X40mm screws to fix the hanging board on the wooden
ceiling or use 6 pcs explode screw to fix the hanging board on
concrete ceiling. See Pic 2.

9

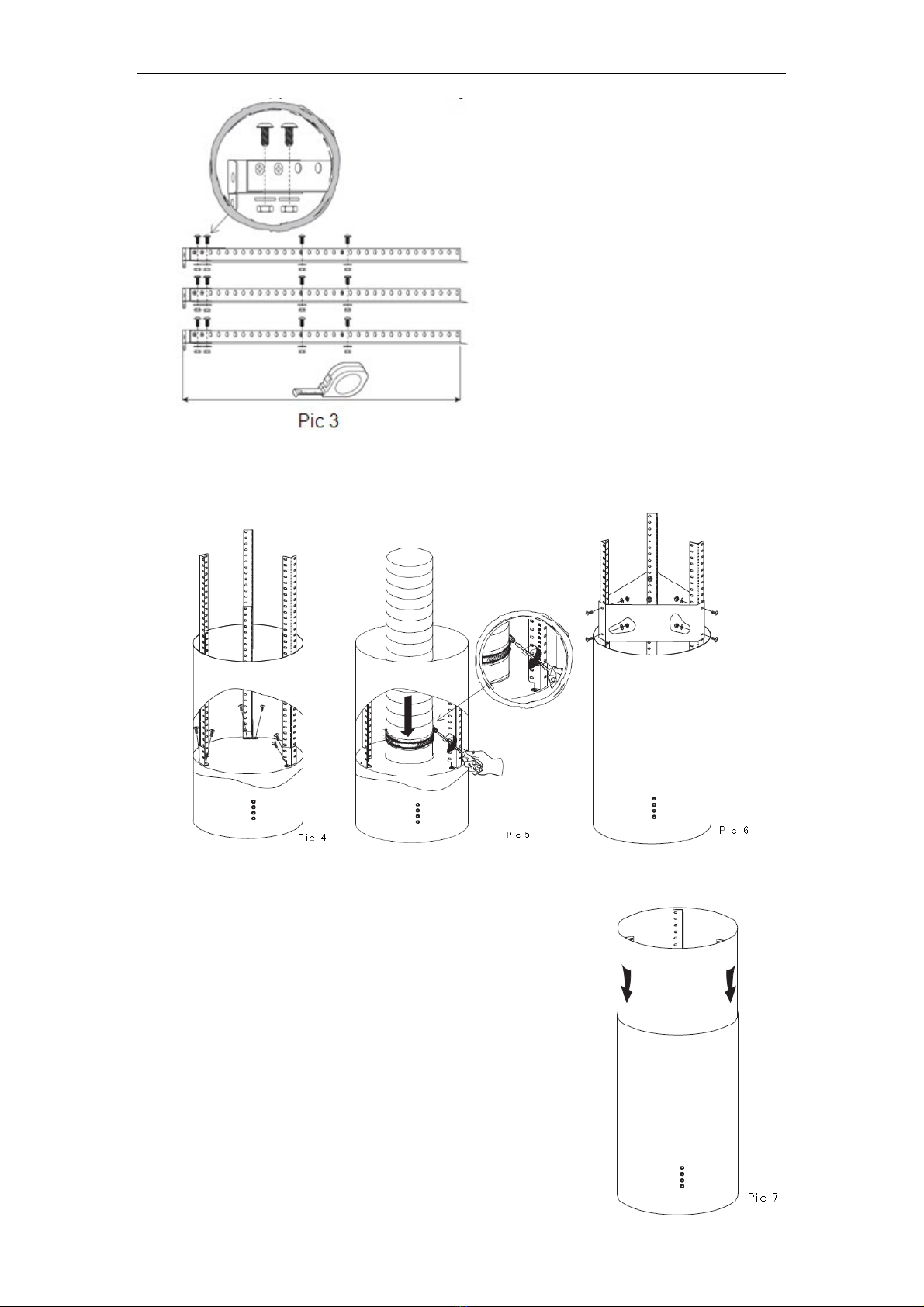

5. Calculate the length of angle
iron according to Pic 1.To
connect the angle iron and
bracket with 18 pcs M4X10
screws ,M4 nut and washer. (the
overlap between angle iron
should more than 100mm) See
pic 3.
6. Using 6 pcs M4X10 screws to fix the angle iron on the cooker
hood housing, and install the expansion pipe. See pic 4/5. Set the
inside chimney.
7. Put fixation of angle iron on the three installed angle iron. And then
using 6 pcs M4X10 screws, M4 nut and washer to fix. See Pic 6
8. See Pic 7, put the inside chimney on the
cooker hood housing.

10

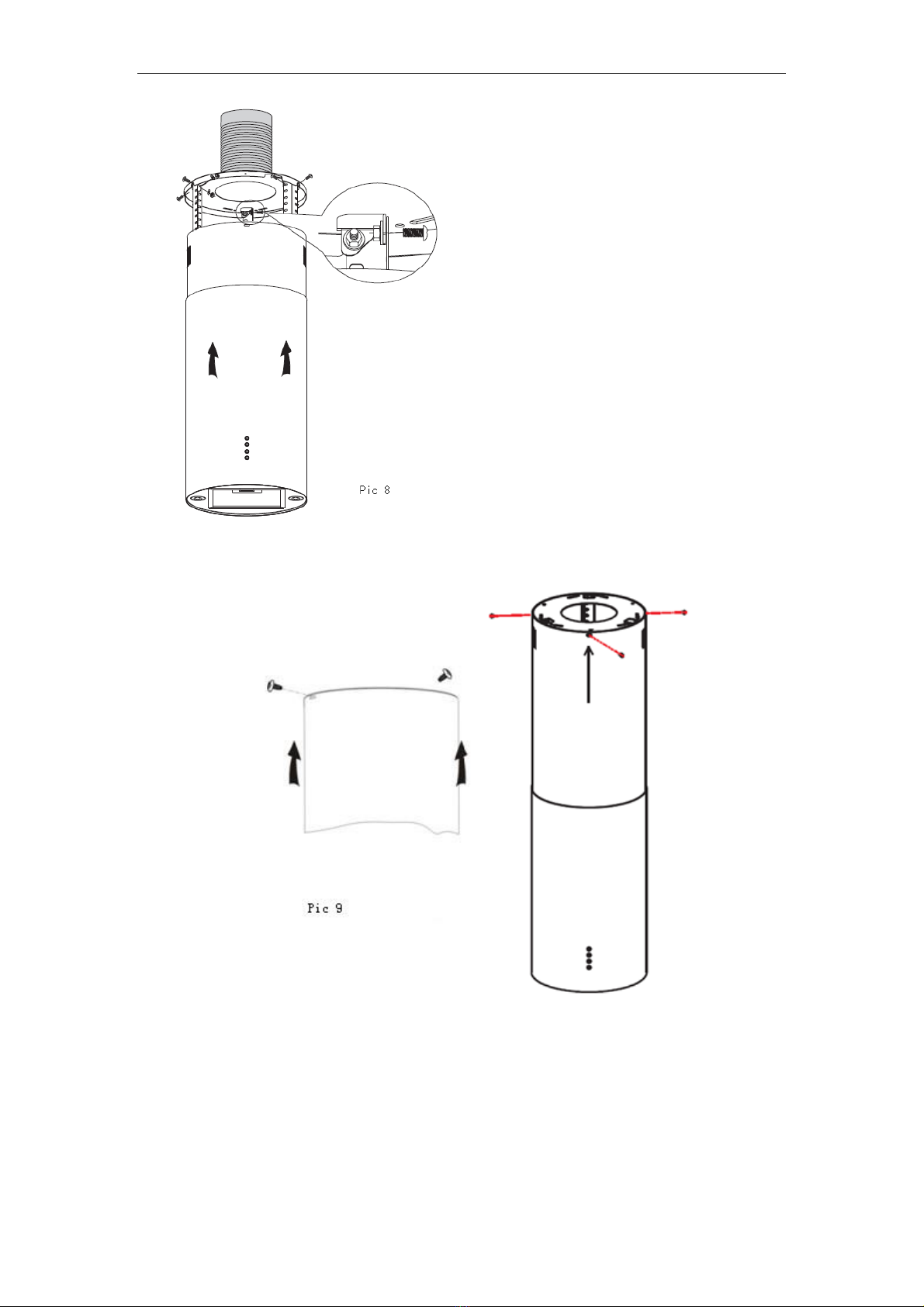

9. See Pic 8, put up the unit, and take
the expansion pipe out of ceiling.
And then using 6 pcs M4X10 screws,
M4 nut and washer fix the angle iron
of unit to the hanging board.
10. see Pic 9. Undrawn the inside chimney and use 3 pcs ST4X8
screws to fix the inside chimney on hanging board.
4.Notice of installation
1. Before installation, please ensure the area is clean to avoid suction
of the remaining bits of broken wood and dust.
2. It cannot share the same air ventilation tube with other appliance
such as gas tube, warmer tube, and hot wind tube.
3. The bending of ventilation tube should be≥120°, parallel or above
the start point and should be connected to the external wall.
