1.SAFETYWARNING

3
Never let children operate the cooker hood.
The cooker hood is for home use only. It is not suitable for barbecues, Roast shop and other
commercial purposes.
The installation must be completed by a qualified and competent fitter, and connect the correct
power before use.
The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good
working order.
Before cleaning, switch the power off at the main supply.
Clean the cooker hood according to the instruction manual and keep the cooker hood from the
danger of burning.
Prohibit putting the cookerhood by fire.
If there is any fault with the appliance, please call the service department to request a service
engineer.
Thank you for choosing our cooker hood. Please read this instruction manual carefully before
installing and using the cooker hood.
The manufacturer disclaims all liability for any damage or injury caused as a result of not following
the instructions for installation that are contained in this manual.
2.Notice
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or

4
mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
The instructions shall state the substance of the
following:
–there shall be adequate ventilation of the room when
the range hood is used at the same time as appliances
burning gas or other fuels (not applicable to appliances
that only discharge the air back into the room);
–the details concerning the method and frequency of
cleaning;
–there is a fire risk if cleaning is not carried out in

5
accordance with the instructions;
–do not flambé under the range hood;
–CAUTION: Accessible parts may become hot when
used with cooking appliances.
The installation instructions shall include the substance
of the following:
–the air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels (not applicable to appliances that only
discharge the air back into the room);
–the minimum distance between the supporting surface
for the cooking vessels on the hob and the lowest part of
the range hood. (When the range hood is located above a
gas appliance, this distance shall be at least 65 cm.
–regulations concerning the discharge of air have to be
fulfilled.

6
The installation instructions for range hoods with
accessible metallic enclosures of class II construction
shall include details that indicate the location and
maximum permitted lengths for any fixing or mounting
screw or other fixing device that penetrates into the range
hood to attach an accessory such as a facia or duct fitting.
Where fixing or mounting screws, or other fixing devices
are used, that penetrate into the range hood with an
accessible metallic enclosure of class II construction, to
attach an accessory, the instructions shall indicate the
required location of these screws or fixing devices and
include the substance of the following warning.
Warning: Failure to install the screws or fixing device in
accordance with these instructions may result in
electrical hazards
3.FEATURES

7
The cooker hood has a streamlined design and is made with high quality materials.
Other features include a large power low noise electric motor and centrifugal leaf that produces
strong suction.Also, a non-stick grease filter ensures that the cooker hood is easy to clean.
The cooker hood’s special wind tunnel construction and oil collector design enables free dirt to be
absorbed in seconds.
4.INSTALLATION
1. The cooker hood should be placed at a distance of 15mm from the wall at least. (See Pic1)

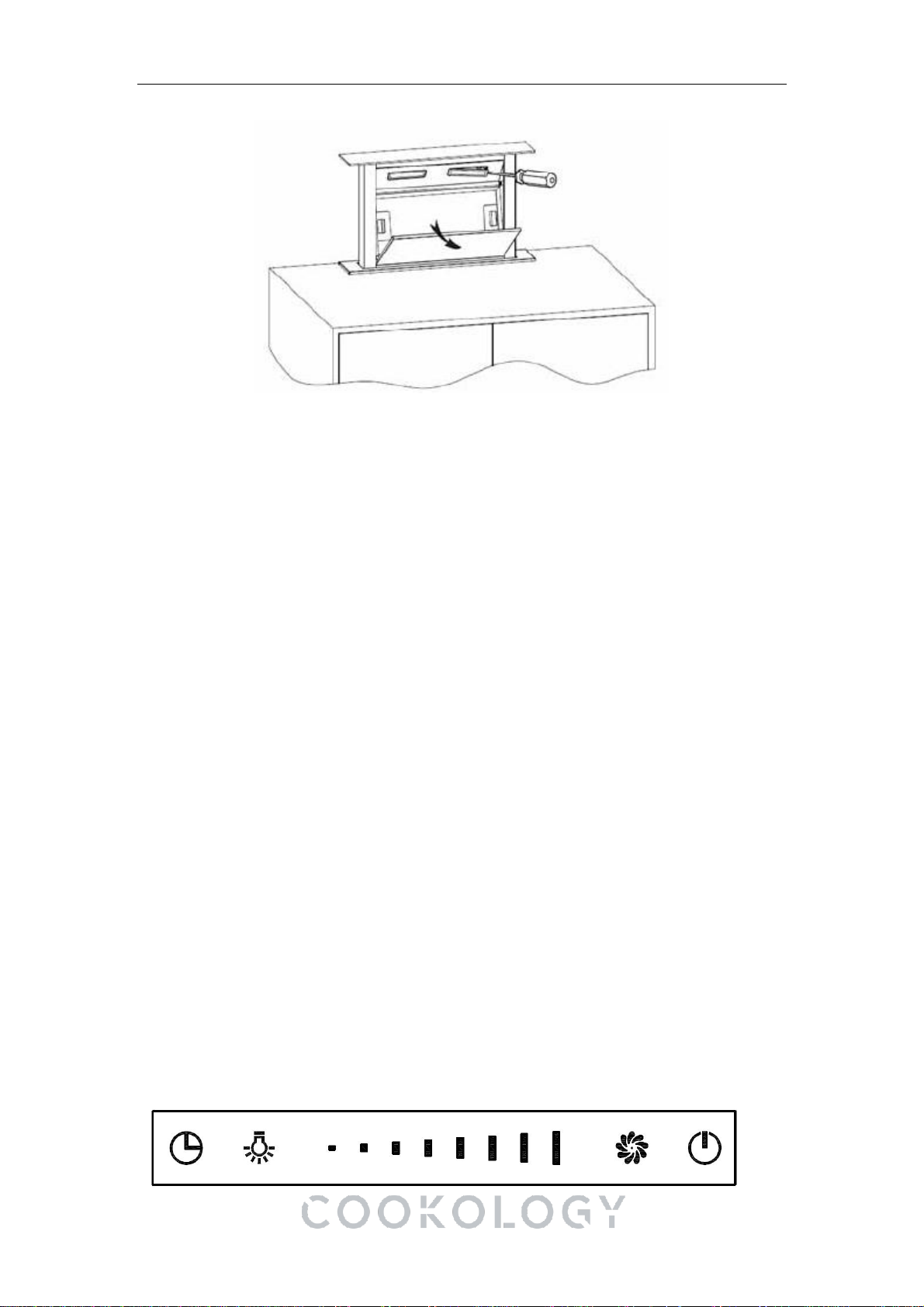

2. Put the hood into the hole of the cabinet.(See pic 2) Use 4pcs screw ST4*8 & screw ST4*14 &
fixing knock to fix the hood.(See pic 3)
3.Connect the casing & hood by 8pcs screw M10*10, the wind direction are up, down, left, right,
the user can select according to the space of the cabinet.(See pic 4)
4.Fix the pipe on the outlet, and use 4pcs screw ST4*14 to fix the PCB box, connect the power
and finish the installation.(See pic 5) The distance between the edge of cooker hood and the hob
should be at least 40mm.Refer to pic 6.
Pic 1 Pic 2 Pic 3
Pic 4 Pic 5

8
Pic 6
5.LAMP REPLACEMENT
BULB REPLACEMENT
Important :
The bulb must be replaced by a competent person.
Always switch off the electricity supply before
carrying out any operations on the appliance. When
handling bulb, make sure it is completely cool down
before any direct contact to hands.
When handling globes hold with a cloth or gloves to
ensure perspiration does not come in contact with
the globe as this can reduce the life of the globe.
➢Switch off the downdraft and unplug it from the main power supply.
➢Open the decorative door of the downdraft.
➢Insert a small screw-driver “-“ type into the gap and pry up the lamp fitting and
disconnect the plug (Refer Pic below).
➢Replace with same type of light.
•ILCOS D code for this lamp is: DSS-1-S-120/33.5.
–LED modules –rectangle LED lamp
–Max wattage: 1 W
–Voltage range: DC 12V
–Dimensions:

9
6.MAINTENANCE
Replace and clean the filter
Please follow the below filter dismantled method operation (See pic 9)
Method 1: Put the filter into 40-50°C clean water, pour on detergent, and soak for 2-3 minutes.
Wear gloves and clean with a soft brush. Please do not apply too much pressure, as the filter is
delicate and will damage easily.
Method 2: The filter can be put into a dishwasher. Set the temperature at around 60°C.
The filter is made of high-density metal. Please do not use corrosive detergent on it. Keeping this
filter clean will keep the appliance running correctly.
Note:
1. Please do not put anything which can block the up & down of the hood to avoid the damage
of the hood and body injury.
2. Please keep the power off when clean the hood.
7.SWITCH INSTRUCTION
This control system consists of two parts, power panel and touch panel.
Touch panel contains five function buttons (power, speed, light, timer, slide control)

10
Timer Light Slide control Speed Power
Functional Operation
1Power on, the hood will standby with backlight, backlight will be extinguished after 5
seconds without any operation, for using the hood again, touch any key to wake up it’s
standby motion.
2 Touch the power button for 2 seconds, the hood will slide upwards, and works at the
first speed. Touch the power button for 2 seconds again, the hood will slide downwards,
and stop working. If you stop the hood, without stopping the motor, when you open the hood
again, the hood will work at the speed it works last time.
2.1 Press the power button , when the hood is coming upwards or going downwards, the
hood will stop moving, with motor keeping running. Press the power button again,
the hood will move again.
3. Motor on/off and speed setting:
3.1 Touch the speed button , the motor will turn on; touch it again, it will turn off.
3.2、How to set the speed? Touch this area ,
with your finger sliding on it. When your finger stops at the first or second point, the motor
will run at the lowest speed; when your finger stops at the third or fourth point, the motor will
run at the second speed; when your finger stops at the fifth or sixth point, the motor will run
at the third speed; when your finger stops at the seventh or eighth point, the motor will run at
the highest speed.
4. Lighting: :
4.1. After the hood slides up, the lights will turn on automatically in 8-10 seconds.
4.2 Touch the button of light , lights will turn off. Touch the light button again, the
lights will turn off.
4.3 When you touch the button of light , the pilot light is flashing. Slide the button
to control the light intensity when the pilot light is flashing. When enter into the controlling of
light intensity, the silde button control the light intensity. There is 8 speeds of slide
button when lighting, every speed means one light intensity. When touch slide button
and slide to one light and it will be on, the light will be on in corresponding light intensity. It can

11
also use the manual keys by touching the button to operate the hoods on one pilot light
and it will be on in corresponding light intensity. The pilot light will stop flashing after 15s if no
function adjustment.
5. Timer button
5.1 Touch timer button when light or motor is working; the hood will enter into timer
working. When the pilot light of timer is flashing, slide button to select the timer section.
There are eight sections of timer button when timer is working, they are: 5-10-15-20-25-30-35-40,
touch the timer button to enter into timer working when confirm the timer section. Or,
enter into timer working automatically 5s later. The motor and light are off automatically when
finish the timer, the hood will enter into standby, the decorative cover will close automatically.
5.2 Use the timer function again when keep power on, touch the timer button but without time
setting, the hood will keep the time which setted on last time. It will decrease by second after 5s.It
will work as new time after new setting.
5.3 Touch the speed button or control the light intensity when timer is working, the timer function
will cancel automatically.
8.Abnormity and Solution
Fault
Cause
Solution
Light on, but motor does
The leaf blocked
Get rid of the blocking
The capacitor damaged
Replace capacitor

12
not work
The motor jammed bearing damaged
Replace motor
The internal with of motor off or a
bad smell from the motor
Replace motor
Light does not work,
motor does not work
Beside the above mentioned, check the following:
Light damaged
Replace lights
Power cord looses
Connect the wires as per the
electric diagram
Oil leakage
One way valve and the air
ventilation entrance are not tightly
sealed
Take down the one way valve
and seal with glue
Leakage from the connection of
U-shaped section and cover
Take U-shaped section down
and seal with soap or paint
Shake of the body
The leaf damaged and causes
shaking
Replace the leaf
The motor is not tightly hanged
Lock the motor tightly
The body is not tightly hanged
Fixed the body tightly
Insufficient suction
The distance between the body
and the gas top too long
Readjust the distance
Too much ventilation from open
doors or windows
Choose a new place and
resemble the machine
The machine inclines
The fixing screw not tight enough
Tighten the hanging screw
and make it horizontal
The hanging screw not tight
enough
Tighten the hanging screw
and make it horizontal
ENVIRONMENTAL PROTECTION:
This product is marked with the symbol on the selective sorting of
waste electronic equipment. This means that this product must not
be disposed of with household waste but must be supported by a
system of selective collection in accordance with Directive
2002/96/EC. It will then be recycled or dismantled to minimize impacts on
the environment, electrical and electronic products are potentially
dangerous for the environment and human health due to the presence of

13
hazardous substances.
For more information, please contact your local or regional authorities.
Note：
a. In order to reduce the environmental impact (e.g. energy use) of the
cooking process, please be sure that your product is installed according
to the user manual, keep the operation place ventilated, keep the
extraction duct be direct and short as possible as it can be.
b. For the product with manual operation mode, we suggest switch the motor
off within 10 minutes after finishing the cooking process.
c. Please be sure to dismantle related components according to the user
manual when maintaining for non-destructive, protect the parts to make
the re-installed work can be favoring and avoid damage.
