Cookology LINT1001BK User manual

1
Standard and Curved
Glass Cooker Hood
Instruction Manual

2
CONTENTS
3……………………………………….Important Safety Notes
5……………………………………….Feature
6……………………………………….Installation
10..…………………………………….Speed adjustment
11..…………………………………….Maintenance
12..…………………………………….Trouble Shooting

3
1. IMPORTANT SAFETY NOTES –Read before
Installing
This appliance must not be used by Children under 8. Children Over
8 and/or Persons with reduced physical, sensory or mental
capabilities can only use the appliance if they are given supervision
and are instructed in the use of the safe use of the item and
understand the hazards involved. Children must not play with the
appliance. This also applies to Cleaning and User Maintenance.
Upon delivery this item needs to be carefully inspected and any
damage needs to be reported before installation. If the Electicity
Supply Cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a
hazard.
Please Note:
Only house the extractor in rooms with adequate ventilation.
Remember that the extractor is powerful and whatever air is
extracted needs to be replaced.
Do not tile the extractor in. It should be removable for service or
maintenance.
There is a fire risk if cleaning is not carried out in accordance
with the instructions.
Do not use silicone sealant to secure the hood to the wall.
Do not flambé under the range hood.
You must be able to isolate the extractor from the mains electrical
supply after installation.
CAUTION: Accessible parts may become hot when used with
cooking appliances.
The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other fuels.
The minimum distance between your cook top and lowest part of
the hood needs to be 65cm.
Do not vent the extractor into an attic or loft space
Keep your children from using the cooker hood.

4
Your cooker hood is for domestic use only, not suitable for
barbecues, fires or commercial use.
Any installation work must be carried out by a qualified
electrician.
The cooker hood and its filter mesh should be cleaned regularly
in order to keep the appliance in good working order.
Before cleaning, always ensure that you have switched your
cooker hood off.
Clean the cooker hood according to the instruction manual be
careful when leaving your cook top on for a prolonged amount of
time to avoid starting a fire.
Do not use fire to dry your cooker hood.
If there is a fault with your cooker hood, please call us.
Before installation and usage read all the instructions and make
sure that the voltage (V) and the frequency (Hz) indicated on
your cooker hood are exactly the same as the voltage (V) and the
frequency (Hz) in your home.
In order to get the most out of your cooker hood, please read the
instruction manual before installing & using, and keep it in a safe
place.

5
2. FEATURES
The cooker hood uses high quality materials, and features a
streamlined design.
Equipped with a large power low noise electric motor and
centrifugal leaf, it produces strong suction with level noise.
The non-stick grease filter makes it easy to clean.
The isolated low voltage circuit board control, (12vAC input),
makes the lights safer.
A Special wind tunnel construction and oil collector design
means dirt will be quickly absorbed.

6
3. INSTALLATION
IMPORTANT: Any installation work must be carried
out by a qualified electrician or competent person.
YOU WILL HAVE TO DECIDE BEFORE INSTALLING
YOUR COOKER HOOD WHETHER TO USE IT IN
EXTRACTION MODE OR RECIRCULATION MODE.
We recommend that at least two people install this hood.
Before installation and usage read all the instructions and make
sure that the voltage (V) and the frequency (Hz) indicated on the
rating plate are exactly the same as the voltage and frequency in
your home. The rating plate can be found behind the grease
filter.
The manufacturer declines all responsibility in the event of
the installer failing to observe all the accident prevention
regulations in force, which are necessary for normal use
and the regular operation of the electric system.
YOUR COOKER HOOD IS INTENDED FOR FITTED
AND PERMANENT INSTALLATION.
The cooker hood’s power cable must be fitted upstream
from the electrical connection, using an omni-polar switch
with a contact distance of at least 3 mm.
THE FUSE MUST BE RATED AT 3 AMPS.
WARNING: THIS APPLIANCE MUST BE EARTHED. It
should only be connected by a competent person, using
fixed wiring via a double pole switched fused spur outlet.
(UK ONLY)
We recommend that the appliance is connected by a
qualified electrician, who is a member of the N.I.C.E.I.C.
and who will comply with the I.E.E. and local regulations.
The wires in the mains lead are coloured in accordance
with the following UK code:
Blue = Neutral
Brown = Live
Green/Yellow = Ground

7
Fitting a Standard Chimney Cooker Hood without Glass:

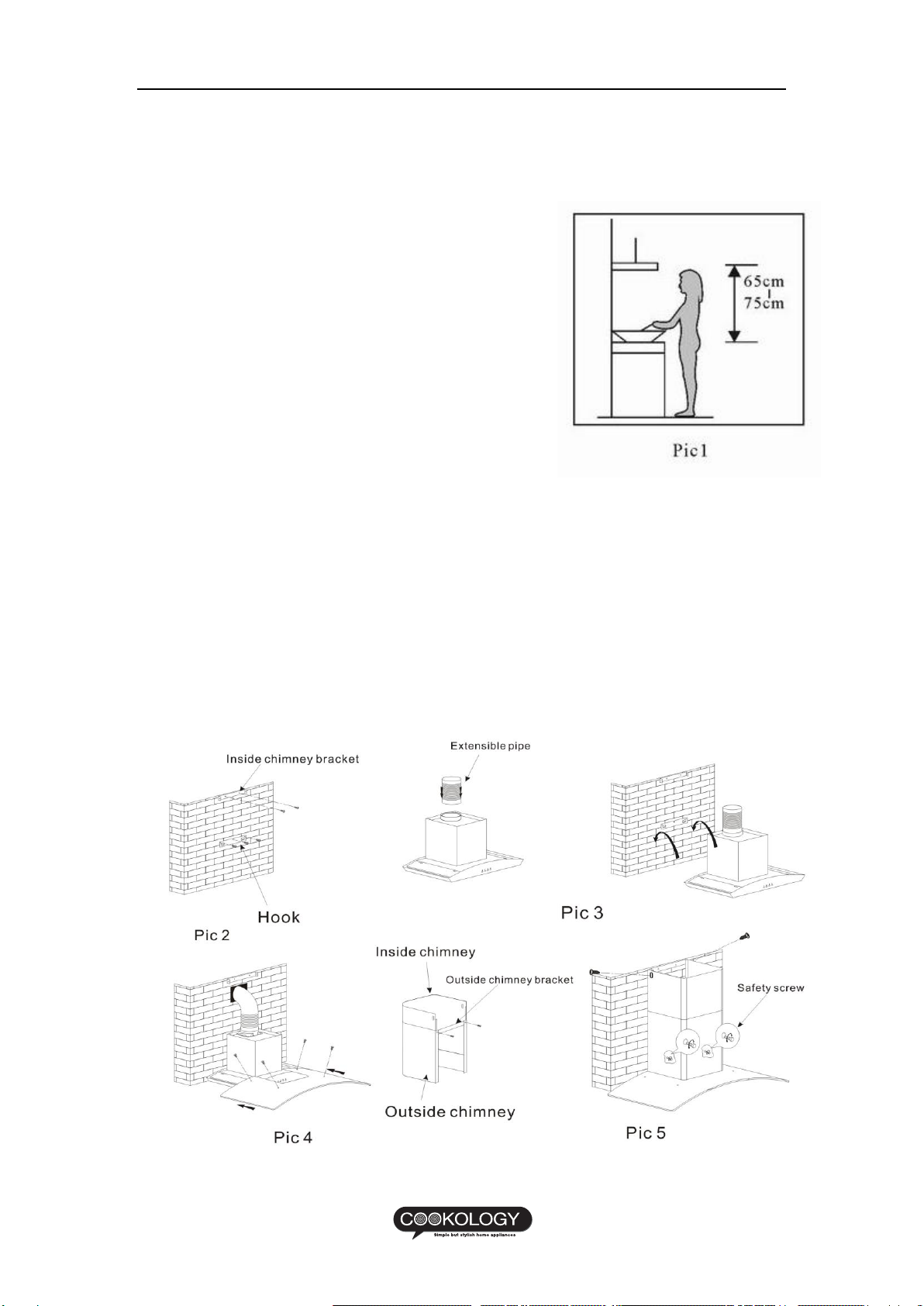

1) The cooker hood should be placed at a distance of 65-75cm
(26-30inch) from the cooking surface for best performance.
See Pic 1. 2) Install the mounting hooks at a
suitable place once the
installation height has been
calculated. Bear in mind, the
position of the inside chimney
bracket is where the chimney
will be.
3) Fix the outside chimney
bracket on the outside
chimney, and make sure that
the inside chimney can be
adjusted up and down freely. Afterwards, install the ducting
tube on the cooker hood. See Pic 2-3.
4) Mount the cooker hood on the hook. See Pic 4.
5) Adjust the height of the inside chimney up to the inside fixing
bracket and then screw it into place. See Pic 5.
Note: The two safety vents are positioned on the back casing, with
diameter of 6mm.

8
Fitting a Curved Glass Cooker Hood:
1) The cooker hood should be placed at a distance of 65-75cm
(26-30inch) from the cooking
surface for the performance. Pic 1.
2) Install the mounting hooks at a
suitable place once the installation
height has been calculated. Bear in
mind, the position of the inside
chimney bracket is where the
chimney will be.
3) Mount the cooker hood on the
mounting hook. See Pic 3.
4) Attach the glass as per Pic 4 and use
the screws to fix the glass gently in place. Don’t Over Tighten.
5) Fix the outside chimney bracket on the outside chimney, and
make sure that the inside chimney can be adjusted up and
down freely. Afterwards, install the ducting tube on the cooker
hood. See Pic 4-5.
6) Put the two chimneys together onto the cooker hood body, and
Adjust the height of the inside chimney up to the inside fixing
bracket and then screw it into place. See Pic 5.

9
Note: The two safety vents are positioned on the back casing, with
diameter of 6mm.

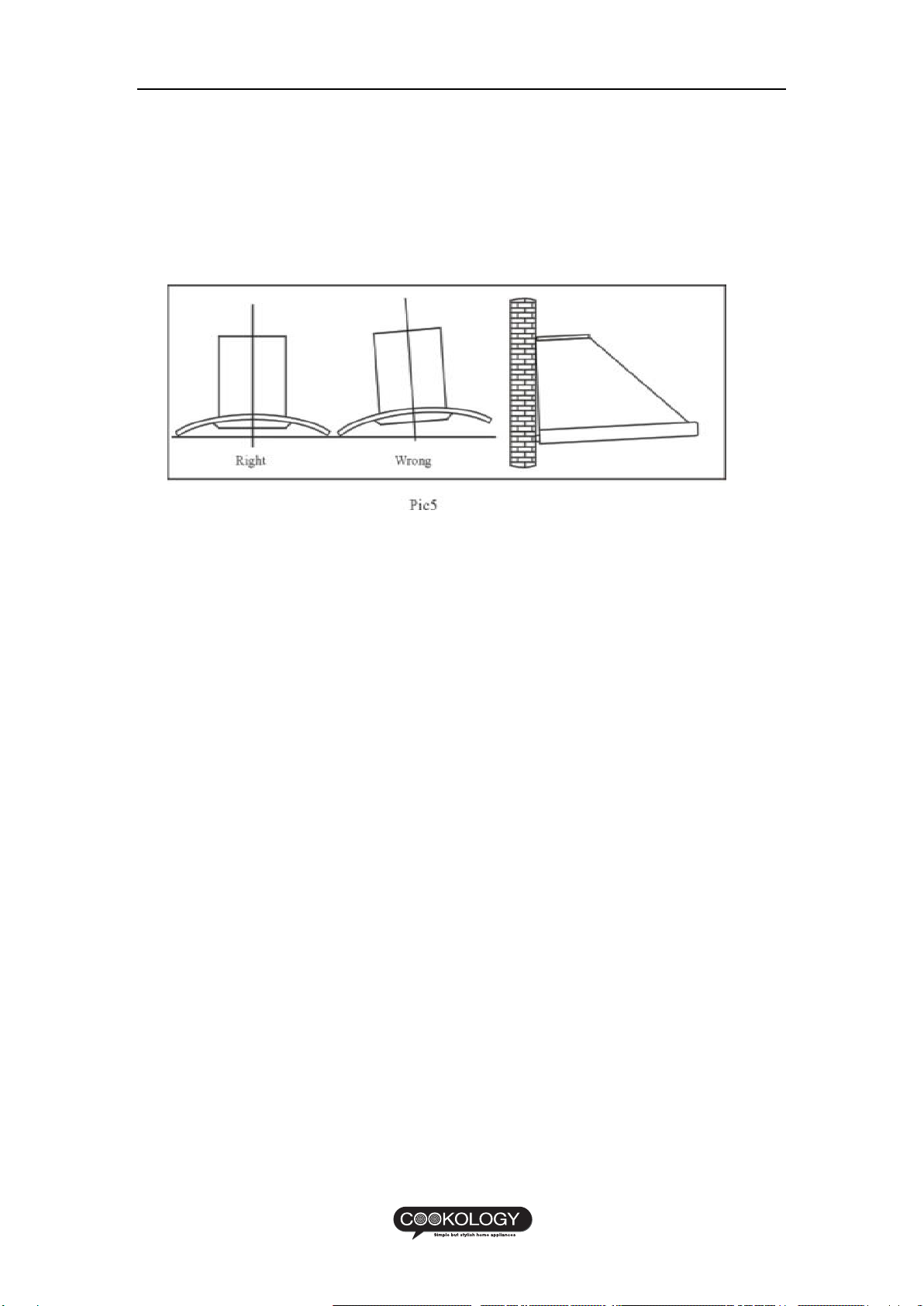

7) After installation, make sure that the extractor is level to avoid
grease collection at one end.
6
Fitting the carbon filters:
If the appliance is being used to be used in recirculation mode
then it is necessary to fit carbon filters. This will help to absorb
unpleasant odours caused by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU MUST ENSURE
THAT YOU HAVE DISCONNECTED THE COOKER HOOD
FROM YOUR MAINS SUPPLY.
1) Remove the Grease Filter
2) Hook Genuine Carbon Filters over the pins that are located at
the end of the motor.
3) Turn the carbon filter anticlockwise, until you feel it click into
place.
4) Repeat this process for the second carbon filter. You need to
place a carbon filter at either end of the motor.
5) Refit the grease filters.
6) The carbon filters should be replaced every 3-9 months or if
they show signs of damage.

10
4. SPEED ADJUSTMENT
There are several buttons on the control panel, which perform
Separate functions.
= Low speed
= Medium speed
= High speed
= Light ON/OFF button
IMPORTANT: IDEALLY YOU SHOULD SWITCH ON
YOUR HOOD TEN MINUTES BEFORE YOU START TO
COOK, OR AT THE VERY LEAST WHEN YOU BEGIN
COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR
TEN MINUTES AFTER YOU HAVE FINISHED COOKING.

11
7. MAINTENANCE
General Cleaning:
Clean the external parts of your cooker hood with mild liquid
detergent and a new damp cloth.
Never use abrasive powder, corrosive solvents or brushes.
Never insert pointed objects into the motor’s protective grid.
Only clean the control panel and grease filter grill with mild
liquid detergents and a new damp cloth.
If you are using the appliance in recirculation mode, then be
sure to replace the carbon filters at the recommended intervals
A build-up of grease could cause a fire hazard.
Never attempt to clean the area above the grease filter as there
are Sharp Edges.
IMPORTANT: You should regularly use a good quality
stainless steel cleaner to maintain the shine and finish on the
stainless steel areas of your cooker hood.
This will help to leave a silicone water-resistant film to protect
the stainless steel surfaces and keep them in good condition for
the life of the product.
The grease filter:
Your cooker hood includes a grease filter which helps to
absorb grease particles to protect your kitchen and furniture
from greasy residues.
This aluminium filter may become flammable if it becomes
saturated with this greasy residue.
To prevent this fire hazard, the filter should be cleaned
regularly.
Depending on use, this should be done every 10-15 days or
at least once a month, using hot water and normal washing-
up detergent.
DO NOT WASH THE GREASE FILTER IN A
DISHWASHER.
Soak the grease filter in hot water and washing up liquid for
at least 5 minutes (or longer if the grease build up is severe)
Rinse it off thoroughly with hot water. Repeat the process if
required.
Refit the grease filter once it has COMPLETELY dried.

12
8. TROUBLE SHOOTING
Fault
Cause
Solution
Light on, but motor
does not work
The Fan is blocked
Get rid of the blockage
The capacitor is damaged
Replace capacitor
The motor jammed - bearings
damaged
Replace motor
Bad smell from the motor
Replace motor
Light does not work,
motor does not work
Besides the above, check the following:
Light damaged
Replace lights
Power cord looses
Connect the wires as per
the electric diagram
Oil leakage
One way valve and the air
ventilation entrance are not
tightly sealed
Take down the one way
valve and seal with glue
Leakage from the connection
of U-shaped section and
cover
Take U-shaped section
down and seal with soap
or paint
Shake of the body
The Fan is damaged and
causes shaking
Replace the Fan
The motor is not tightly hung
Lock the motor tightly
The body is not tightly hung
Fix the body tightly
Insufficient suction
The distance between the
body and the gas top too long
Readjust the distance
Too much ventilation from
open doors or windows
Choose a new place and
resemble the machine
The machine inclines
The fixing screw not tight
enough
Tighten the hanging
screw and make it
horizontal
The hanging screw not tight
enough
Tighten the hanging
screw and make it
horizontal
15

13
ENVIRONMENTAL PROTECTION:
This product is marked with the symbol on the selective sorting of waste
electronic equipment. This means that this product must not be disposed
of with household waste but must be supported by a system of selective
collection in accordance with Directive 2002/96/EC. It will then be
recycled or dismantled to minimize impacts on the environment, electrical and
electronic products are potentially dangerous for the environment and human
health due to the presence of hazardous substances.
For more information, please contact your local or regional authorities.
Note：
a. In order to reduce the environmental impact (e.g. energy use) of the cooking
process, please be sure that your product is installed according to the user
manual, keep the operation place ventilated, keep the extraction duct be direct
and short as possible as it can be.
b. We suggest switch the motor off within 10 minutes after finishing the cooking
process.
c. Please be sure to dismantle related components according to the user manual
when maintaining.
