Cooper & Hunter CH-D005WD2-12LD User manual

Owner's Manual
EN
ENENEN
Dehumidifier
Thank you for choosing our product.
For proper operation, please read and keep this manual carefully.
MODEL: CH-D005WD2-12L D
CH-D008WD2-16LD
Designed by Cooper&Hunter International Corporation,Oregon, USA
www.cooperandhunter.com
Owner’s Manual
EN

Content
Operation Notices
● Safety Precautions..................................................................................2
● The Refrigerant.......................................................................................1
● Operation Area........................................................................................3
●Parts Name.............................................................................................4
●Check Before Operation. ........................................................................5
Operation Instructions
●Operation Method...................................................................................6
● Drainage Option
Maintenance
●Clean and Maintenance........................................................................11
Malfunction

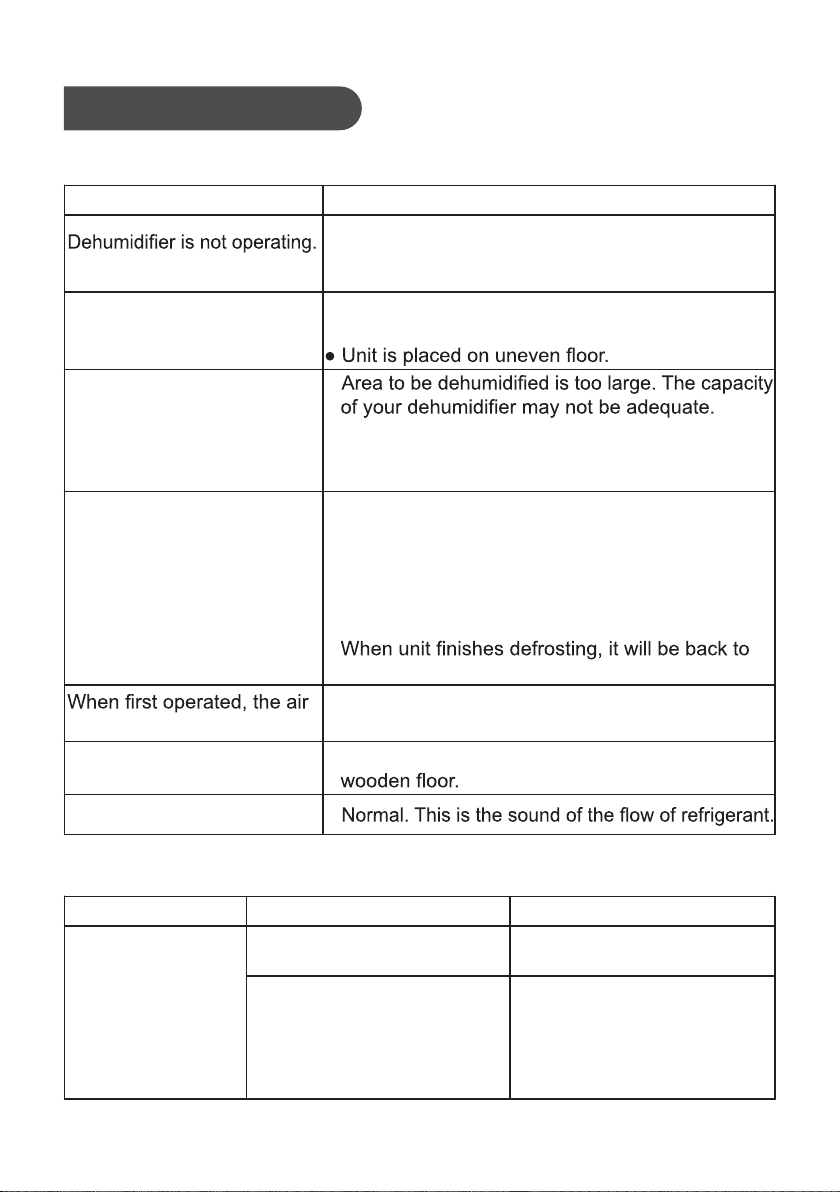

●Troubleshooting....................................................................................13
●Error Codes .........................................................................................15
Note:
Graphics in this manual are only for reference. Please refer to actual
products for specific details.
.....................................................................................8
This appliance is not intended for usebypersons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that theydo not play with the appliance.
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from un-
controlled waste disposal, recycle it responsibly to promote the sustainable reuse of mate-
rial resources.To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased.They can take this product for envi-
ronmental safe recycling.

Explanation of Symbols
Exception Clauses
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.
DANGER
WARNING
CAUTION
NOTICE
Manufacturer will bear no responsibilities when personal injury or
property loss is caused by the following reasons.
1.Damage the product due to improper use or misuse of the product;
2.Alter, change, maintain or use the product with other equipment without abiding
by the instruction manual of manufacturer;
3.After verification, the defect of product is directly caused by corrosive gas;
4.After verification, defects are due to improper operation during transportation of
product;
5.Operate, repair, maintain the unit without abiding by instruction manual or
related regulations;
6.After verification, the problem or dispute is caused by the quality specification or
performance of parts and components that produced by other manufacturers;
7.The damage is caused by natural calamities, bad using environment or force
majeure.

1
The Refrigerant
WARNING
To realize the function of the air conditioner unit, a special refrigerant circulates in
the system. The used refrigerant is the fluoride R290, which is specially cleaned.
The refrigerant is flammable and inodorous. Furthermore, it can leads to explosion
under certain conditions.
Compared to common refrigerants, R290 is a nonpolluting refrigerant with no harm
to the ozonosphere. The influence upon the greenhouse effect is also lower. R290
has got very good thermodynamic features which lead to a really high energy
efficiency. The units therefore need a less filling.
Please refer to the nameplate for the charging quantity of R290.

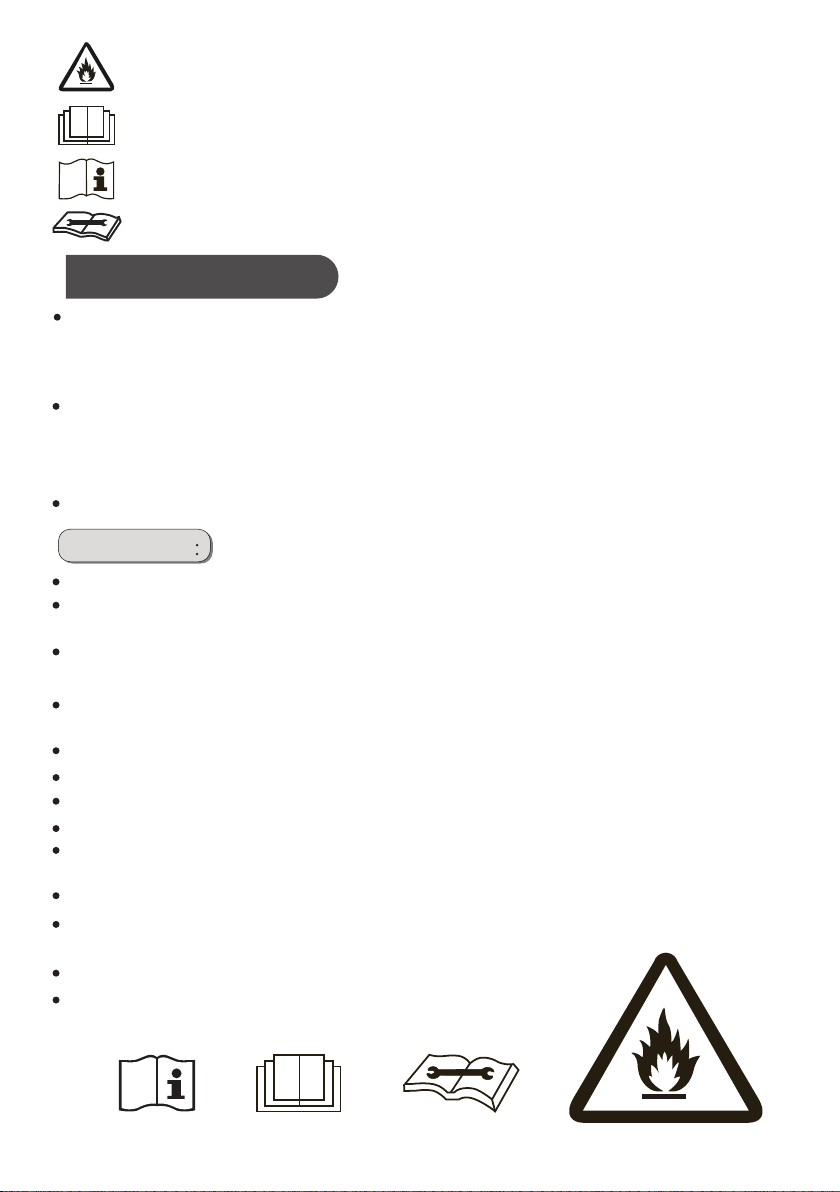

Appliance filled with flammable gas R290.
Before install and use the appliance, read the owner’s manual first.
Before install the appliance, read the installation manual first.
Before repair the appliance, read the service manual first.
Appliance filled with flammable gas R290.
Appliance shall be installed, operated and stored in a room with a floor area larger
The appliance shall be stored in a room without continuously operating ignition sources .
(for example: open flames, an operating gas appliance or an operating electric heater.)
The appliance shall be stored in a well-ventilated area where the room size corresponds
to the room area as specified for operation.
The appliance shall be stored so as to prevent mechanical damage from occurring.
Keep any required ventilation openings clear of obstruction.
Do not pierce or burn.
Be aware that refrigerants may not contain an odour.
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
Servicing shall be performed only as recommended by the manufacturer.
Should repair be necessary, contact your nearest authorized Service Centre.
Any repairs carried out by unqualified personnel may be dangerous.
Compliance with national gas regulations shall be observed.
Read specialist’s manual.
than 4 m .
2

● Prohibit operating the unit in the bathroom or laundry room.
● This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory ormental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the app-
liance in a safe way and understand the hazards involved.
● Children shall not play with the appliance.
● Cleaning and user maintenance shall not be made by children
without supervision.
● Before operation, please check the power cord if it complies with
the requirement indicated on the nameplate.
● Before cleaning, please turn it off and unplug the dehumidifier.
● Make sure the power cord is not pressed by any hard object.
● Do not remove the power plug or move unit by pulling the powe cord.
● Do not use any heating application near the dehumidifier.
● Do not remove the power plug in wet hands.
● Please use grounded power cord and make sure it's well conne-
cted and not damaged.
● Children and disabled people are not allowed to use the dehum-
idifier without supervision.
● Keep children from playing or climbing on the dehumidifier.
● Do not place the dehumidifier under dripping objects.
● Memory function is included in this dehumidifier. When nobody
is taking care of the unit, please turn it off and remove the power
plug or disconnect power.
● Do not repair or disassemble the unit by yourself.
● If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
● If abnormal condition occurs (e.g. burned smell), please discon-
nect power at once and then contact local dealer.
● Dehumidifier can not be disposed of everywhere. If you want to
get rid of this dehumidifier, please check with local handling dis-
posal or information service center about what to do.
wiring regulations.
● Do not use an extension cord.
● The appliance shall be installed in accordance with national
Safety Precautions
2

3

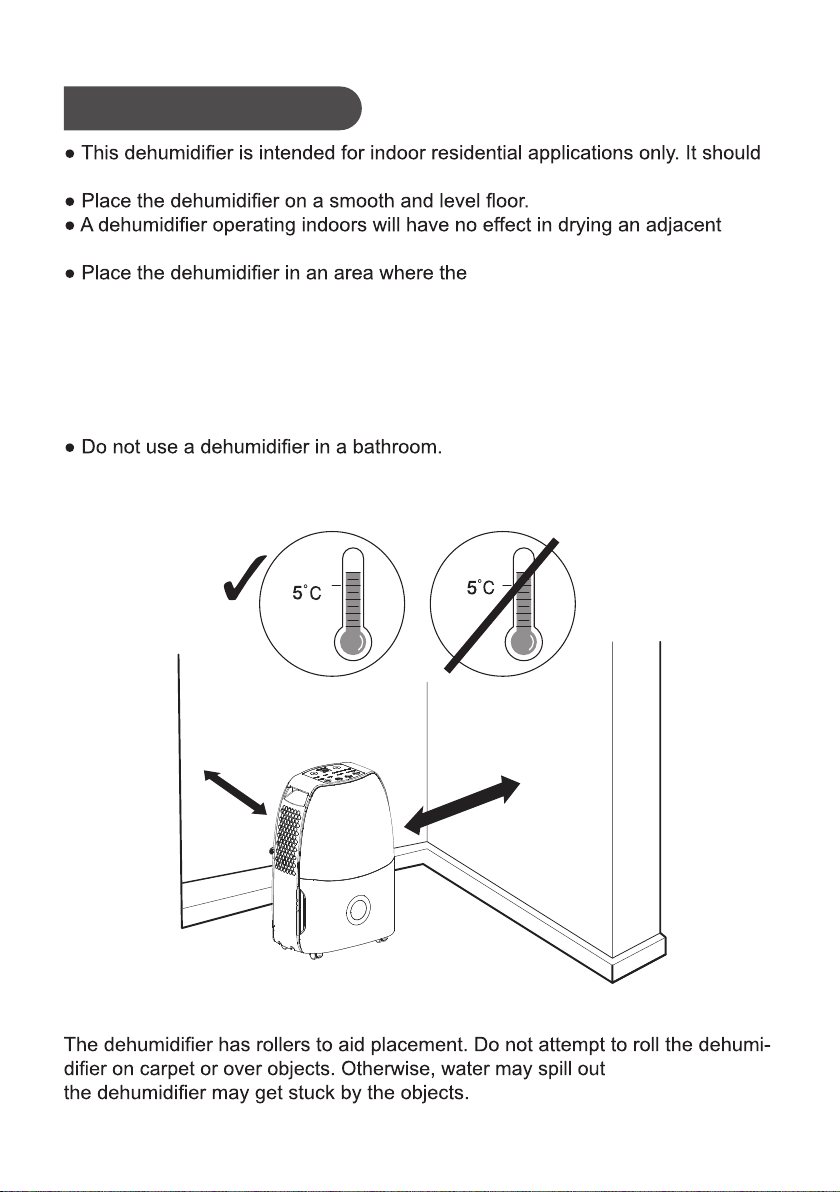

Operation Area
not be used for commercial or industrial applications.
enclosed area, such as a closet.
temperature will not below 5°C or
above 35°C.
●Allow at least 30-45 cm of air space onall sides of the unit, The place with a
draught leaves the distance of the wall as 100 cm.
● Close all doors, windows and other outside openings of the room to improve
the working effect.
● Please keep the air inlet/outlet clean and not blocked.
●Avoid direct sunlight.
30-45 cm
100 cm
Above Below
Correct Wrong
Note:
from the bucket or
Note:

Parts Name
Front Side
Back Side
4
Power Plug
Air Outlet
Castors
Control Panel
Water Bucket
Air-in Grille
Cover of drainage hole
Rear Case

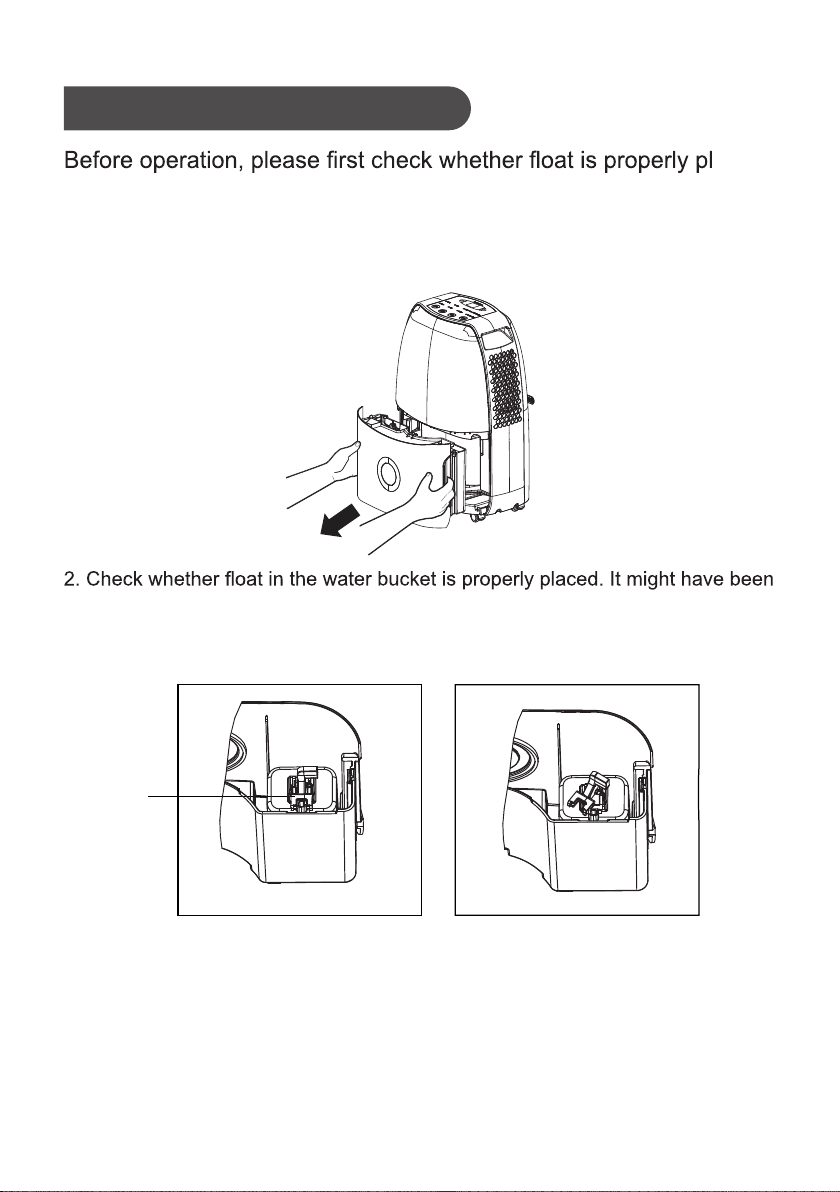

Check Before Operation
aced.
Below are the checking steps:
1. Hold the handles on both sides of the water bucket and pull it out following the
arrow direction.
moved a little after long-time transportation. If it's not placed properly, move it
to the correct position by hand.
3. Replace the bucket as instructed in step 1.
Correct Position Wrong Position
5
Float

6

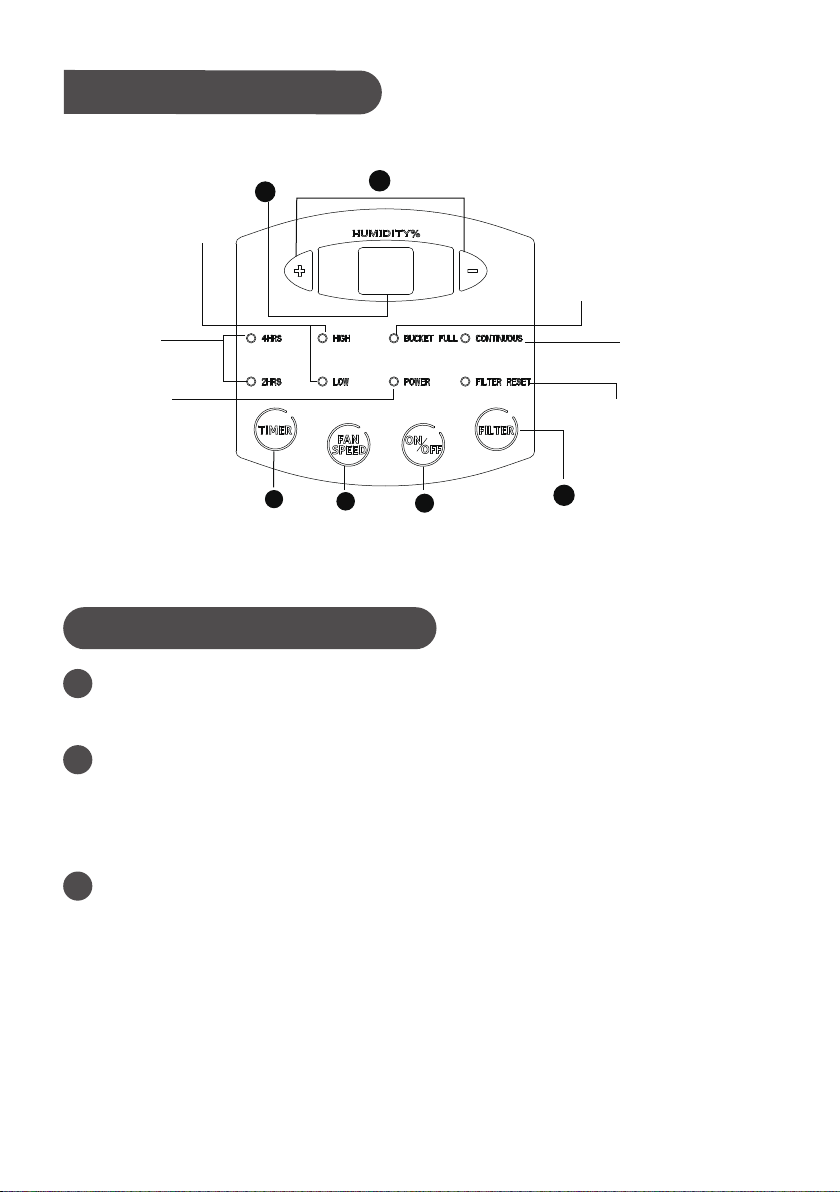

Basic Functions of the Buttons
1
2
● Press toturn off the Clean the Filter light. See the Care and Cleaning section.
● For drier air, press the - pad and set to a lower percent value (%).
● For damper air, press the + pad and set to a higher percent value (%).
Operation Method
4
3
2
1
5
6
High and Low fan
indicator lights
Bucket full light indicates
bucket needs to be emptied
or it is not in the proper place
Continuous operation on
indicator light
Power On
indicator light Clean the Filter
indicator light
4 hour or 2 hour
indicator lights
delay on/off
NOTE: When the bucket is full or removed, the controls cannot be set.
ON/OFF Pad
Press to turn the dehumidifier on and off.
FILTER Pad
After 250 hours of operation, the Clean the Filter indicator light will glow to
remind you to clean the filter. Remove the filter and clean it.
3
The humidity level can be set within a range of 80% RH (Relative Humidity)to
35% RH (Relative Humidity) in 5% reduce or at CO for continuous operation.
Humidity Set Control Pads
NOTE: If CO (Continuous) is selected, the dehumidifier will operate continuously
at its maximum dehumidification settings if attached to a hose to drain or until the
bucket is full.

Shows the set % humidity level while setting, then shows the actual room %
humidity level.
Other Instructions
1. Alarm Warning
If bucket is full or not locked into place for over 3min, buzzer will go off for 10s
to remind you to empty bucket or put it back into the correct place.
2. Auto Stop
When bucket is full, removed or not placed correctly or the humidity is 5%lower
than the set humidity, unit will automatically stop.
3. Memory Function
If power is lost, all of the control settings are remembered. So when power is
restored, the unit will start back up in the settings it was in when power was
lost.
4. Bucket full light
This indicates that bucket is full or removed or not placed correctly.
5. Clean the Filter On indicator light
● When you first use the dehumidifier, set the humidity control to 45% or 50%.
Allow at least 24 hours for the dehumidifier to achieve the humidity level.
If you still have damper air than desired, set the humidity level to a lower
setting or select Continuous for maximum dehumidification.
7
4
This unit has 3-min lag due to the device for protecting circuit .In order to
prolong the compressor's working life, the compressor will not start until the
unit has run for 3 minutes.
Display
6
If unit is turned on and running in timer mode for 2hr or 4hr,can turn off the unit.
When unit stand by and running in timer mode for 2hr or 4hr can turn on the unit.
5
Controls the fan speed.
Press to select High or Low fan speed.
Set the fan control to High for maximum moisture removal. When the humidity
has been reduced and quiet operation is preferred, set the fan control to Low.
FAN SPEED Pad
TIMER Pad

Drainage Option
Option 1 Emptying Manually
Notes:
● Do not remove the bucket when unit is in operation or has just stopped.
● Do not use the hose if using water bucket to collect water. When the hose is
connected, water will be drained out through it instead of into the bucket.
1. Hold the handles on both sides of the water bucket and pull it out following the
arrow direction. (Attention: Pull out the bucket carefully in case the water may
2. Empty the bucket by grasping the handle on the top of bucket with one hand
and grasping the bottom of bucket with the other hand.
8

Option 2 Gravity Drain Hose
1. Hose is not provided, so user shall prepare it in advance.
[Size: The hose should have an inner diameter of 14mm]
2. Use a hose. Water can be automatically emptied into a floor drain by attaching
14mm inner diameter hose (not included).
9
1) Remove the continuous drain cap 1by turning it counter clockwise then
remove the rubber stopper 2 from the spout.
2) Screw the drain connector to(included in the package) the spout by turning
clockwise.
3) Insert the drainage hose into drain connector.

Option 2 Gravity Drain Hose
3. When using continuous drainage option, place dehumidifier on a level surface
and make sure garden hose is clear of any obstructions and is directed
downward. Press down drain door so it rests on top of the hose.
Placing dehumidifier on an uneven surface or improper hose installation may
result in water filling up the bucket and causing the unit to shut off. Empty water
bucket if shut off occurs, then check dehumidifier location and hose for proper
setup.
Note: When you want to take off the drain hose, prepare a receptacle to collect
water from the nozzle.
10
× × ×

11
Clean and Maintenance
Warning:
may lead to electric shock.
.
Otherwise it will damage unit's appearance.
1. Grille and Case
To clean the case:
When there is dust on the case, use soft towel
to dust it off; When the case is very dirty(greasy),
use mild detergent to clean it.
To clean the grille:Use a dust catcher or brush.
2. Air Filter
least every 250 hours of operation or more often
The air filter should be checked and cleaned at
if necessary.
After 250 hours of operation, the Clean the Filter
indicator light will glow to remind you to clean the
filter. Remove the filter and clean it. Replace the
filter and press the Filter RESET pad to turn off the
Clean the Filter light.
Warning:
Otherwise the evaporator will catch dust and affect unit's performance.
● Do not dry the air filter with fire or electric hair dryer. Otherwise the air filter
may be unshaped or caught on fire.
● Don’t use dust catcher or brush to clean the air filter. Otherwise the air filter
may be destroyed
To remove:
Press the two buttons, then pull out the filter.
To clean:
Clean the filter with warm, soapy water. Rinse and
let the filter dry before replacing it.
To install:
Put the filter back into the dehumidifier.
NOTE: DO NOT rinse or put the filter in an automatic
dishwasher. NOTE: Avoid using a dishwasher
to clean the filter.
Buttons

● Check whether air outlet is blocked.
● Check whether power plug and power socket are in good condition.
● Check whether drain hose is damaged.
Check Before Use-season
● Disconnect power.
● Empty the water bucket.
Care After Use-season
Long-time Storage
12
steps below in order to maintain the unit in good condition.
● Make sure the bucket is clear of water and drain hose is removed.
● Clean the unit and wrap it well to prevent the gathering of dust.

Troubleshooting
● Not all the following problems are malfunctions.
● Problem of Water Leakage.
Problem Possible Causes
Controls can not be set.
● Unit is operating in an area where temperature
is higher than 35°C or lower than 5°C.
● Bucket is full.
Noise suddenly rises during
operation.
● Noise will rise if compressor has just started.
● Power supply problem.
Humidity does not drop.
●
● Doors are open.
● There might be some device producing vapor in
the room.
Little or no effect in
dehumidifying
● Room temperature is too low.
● Humidity level may be improperly set.
● If unit is operating in a room where temperature
is from 5 to 15 °C, it will start to defrost automati-
cally. Compressor will stop for a brief period of
time(fan will operate in high fan speed).
normal operation.
emitted has musty-odor.
● Due to temperature rising of heat exchanger, the
air may have some strange smell at the beginning.
Unit has noise. ●
There might be some noise if unit is operating on
Swooshing sound is heard. ●
Problem Possible Causes Solution
When using drain
hose, there is water
in the bucket.
● Examine the drainage joint. ● Connect the drainage joint
well.
● Clear the obstacle from the
drain hose.
● Drain hose is not correctly
installed. ●
Remove the drain hose and
replace it. Be sure that the
hose is correctly installed.
13

Bad dehumidifying
performance
● Check whether there is
any obstacle around the
unit.
● Make sure there is no curtain,
shutter or furniture that blocks
blocked.
● Doors and windows are
left open.
● Make sure all doors and
windows and other opening to
the outside have been
closed.
● Room temperature is too
low.
● Warm temperature is good for
ature will reduce unit's working
effect. This unit should be wor-
king in a place where temper-
ature is above 5°C.
Problem Possible Causes Solution
Power indicator is
not lit when power
is connected.
● Power is not supplied for
power plug is not well
inserted.
● Check if power is lost. If yes,
wait for the power to restore.
● If not, check whether the
power circuit or power socket
has been damaged.
● Check whether power plug is
loosen.
● Check whether power cord is
damaged.
● Fuse is blown. ● Replace the fuse.
Bucket full indicator
is lit up.
● Bucket is not properly
placed.
● Water is full in the bucket.
●Bucket hasbeen removed.
●
Empty the bucket and replace
it.
Unit can function
normally but it can
not start up.
● Humidity is set too high.
● If you want the air drier,
press - button to lower the
for unit to dehumidify
continuously.
14

Compressor
and fan
motor stop.
This button
is invalid.
2
Tube
temperature
sensor
malfunction
F2
● Temperature sensor on the
evaporator is loosen or is poorly
connected with the terminal of
display board.
● Some element of display board
may have been put upside down
and cause short circuit.
● Temperature sensor on the eva-
porator is damaged(Please refer
to checking table for temperature
sensor resistance).
● Display board is damaged.
3Humidity sensor
malfunction L1 ●
Humidity sensor is short-circuited.
● Humidity sensor is damaged.
● Display board is damaged.
No. Malfunction
Name
Display
Code Unit's
Condition Possible Causes
Display
Window
1
Ambient
temperature
sensor
malfunction
F1 Compressor
and fan
motor stop.
This button
is invalid.
●Ambient temperature sensor is
loosen or is poorly connected
with the terminal of display board.
● Some element of display board
may have been put upside down
and cause short circuit.
●Ambient temperature sensor is
damaged(Please refer to chec-
king table for temperature sen-
sor resistance).
● Display board is damaged.
Malfunction Codes
● Unit's Malfunction Codes
15
CH-D008WD1-18LD
18
295
+5/+35
115/100
3,5
45/43
13,5
353*496*225
R134

Compressor
stops opera-
tion. 30s lat-
er , the fan
will also stop
operation.
16

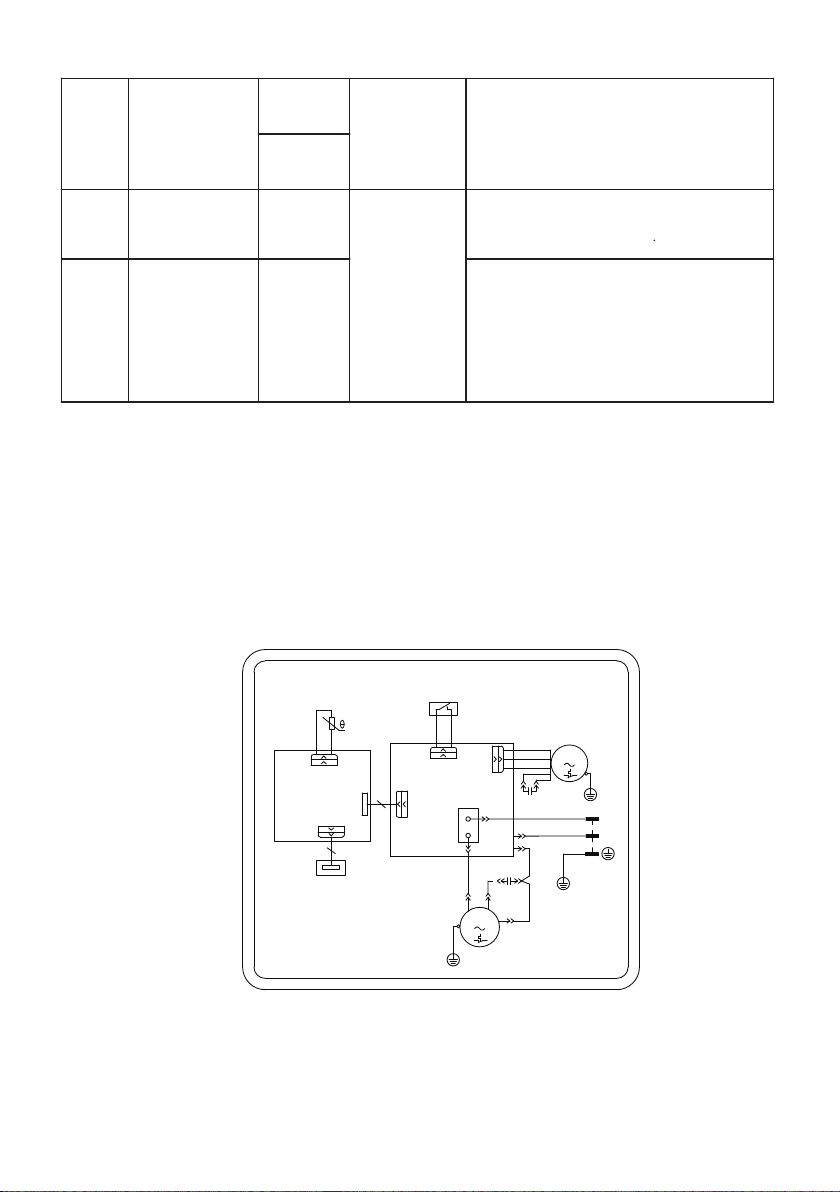

4Freon-lacking
protection F0 ● Refrigerant is leaking. ● System is blocked
5
High-tempe-
rature over
load
protection
H3
● Ambient operation condition is
bad.
● The evaporator and condenser
are blocked with filth.
● The system is abnormal.
No. Malfunction
Name
Display
Code Unit's
Condition Possible Causes
Display
Window
C2
YE
BU
BU
R
S
LEVEL SWITCH
LIQUID
CN4
ST
HUMIDITY SENSOR
AC-L
YEGN
C1
C
RD
YEGN(GN)
BU(WH)
BN(BK)
CN1
AP2
CN1
CN3
AP1
L
N
COMP.
M
N1
PE
POWER
FAN
MOTOR
PE
YEGN
PE
COMP
CN2
K1
TUBE
RT1
TUBE
TEMP.SENSOR
MAIN BOARD
DISPLAY
BOARD
COMP.
N

CH-D005WD1-12LD CH-D008WD1-18LD
L/D 12 18
W 230 295

С +5/+35 +5/+35
115/100 115/100
L 3,5 3,5
43/41 45/43
11 13,5
Model
Dehumidifying
Power inpu
Tempera ure
Airflow Volume m
3
/h
Wa er Tank Volume
Sound Pressure Level dB(A)
Ne Weigh kg
* Cooper & Hunter is constantly working to improve their products, so the
information in this manual is subject to change without prior notice.
Designed by Cooper&Hunter International Corporation, Oregon, USA
www.cooperandhunter.com
E-mail: [email protected]
