Cooper & Hunter CH-D014WD2-30LD User manual

OWNER’S MANUAL
Dehumidifier
MODEL:
For proper operation, please read and keep this manual carefully.
Cooper&Hunter International Corporation, Oregon, USA
www.cooperandhunter.com
EN
CH-D014WD2-30LD

Content
Operation Notices
●Safety Precautions..................................................................................2
●The Refrigerant.......................................................................................1
●Operation Area........................................................................................3
●Parts Name.............................................................................................4
●Check Before Operation.........................................................................5
Operation Instructions
●Operation Method...................................................................................6
●Drainage Option
Maintenance
●Clean and Maintenance........................................................................10
Malfunction
●Troubleshooting....................................................................................13
●Specialist’s Manual ..............................................................................18
●Malfunction Codes................................................................................15
Note:
Graphics in this manual are only for reference. Please refer to actual
products for specific details.
.....................................................................................8
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from un-
controlled waste disposal, recycle it responsibly to promote the sustainable reuse of mate-
rial resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for envi-
ronmental safe recycling.
Electric schematic diagram●..................................................................17

Explanation of Symbols
1.Damage the product due to improper use or misuse of the product;
2.Alter, change, maintain or use the product with other equipment without abiding
by the instruction manual of manufacturer;
After verification, defects are due to improper operation during transportation of
product;
4.
Operate, repair, maintain the unit without abiding by instruction manual or related
regulations;
5.
After verification, the problem or dispute is caused by the quality specification or
performance of parts and components that produced by other manufacturers;
6.
The damage is caused by natural calamities, bad using environment or force
majeure.
7.
After verification, the defect of product is directly caused by corrosive gas;3.
Exception Clauses
Manufacturer will bear no responsibilities when personal injury or
property loss is caused by the following reasons.
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.
DANGER
WARNING
CAUTION
NOTICE
If it needs to install, move or maintain the appliance, please contact dealer or
local service center to conduct it at first. The appliance must be installed,
moved or maintained by appointed unit. Otherwise, it may cause serious
damage or personal injury or death.
When refrigerant leaks or requires discharge during installation, maintenance,
or disassembly, it should be handled by certified professionals or otherwise in
compliance with local laws and regulations.

1
The Refrigerant
To realize the function of the unit, a special refrigerant circulates in the system.
The used refrigerant is the fluoride R290, which is specially cleaned. The
refrigerant is flammable and inodorous. Furthermore, it can lead to explosion under
certain conditions.
Compared to common refrigerants, R290 is a nonpolluting refrigerant with no harm
to the ozonosphere. The influence upon the greenhouse effect is also lower. R290
has got very good thermodynamic features which lead to a really high energy
efficiency. The units therefore need a less filling.
Appliance filled with flammable gas R290.
Before install and use the appliance, read the owner’s manual first.
Before install the appliance, read the installation manual first.
Before repair the appliance, read the service manual first.
WARNING
Appliance filled with flammable gas R290.
Appliance shall be installed, operated and stored in a room with a floor area larger
than 4 m
2
.
The appliance shall be stored in a room without continuously operating ignition sources.
(for example: open flames, an operating gas appliance or an operating electric heater.)
Theappliance shall be stored in a well-ventilated area where the room size corresponds
to the room area as specified for operation.
The appliance shall be stored so as to prevent mechanical damage from occurring.
Ducts connected to an appliance shall not contain an ignition source.
Keep any required ventilation openings clear of obstruction.
Do not pierce or burn.
Be aware that refrigerants may not contain an odour.
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
Servicing shall be performed only as recommended by the manufacturer.
Should repair be necessary, contact your nearest authorized Service Centre.
Any repairs carried out by unqualified personnel may be dangerous.
Compliance with national gas regulations shall be observed.
Read specialist’s manual.

● Prohibit operating the unit in the bathroom or laundry room.
●This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the app-
liance in a safe way and understand the hazards involved.
● Children shall not play with the appliance.
● Cleaning and user maintenance shall not be made by children
without supervision.
● Before operation, please check the power cord if it complies with
the requirement indicated on the nameplate.
● Before cleaning, please turn it off and unplug the dehumidifier.
● Make sure the power cord is not pressed by any hard object.
●
● Do not use any heating application near the dehumidifier.
● Do not remove the power plug in wet hands.
● Please use grounded power cord and make sure it's well conne-
cted and not damaged.
● Children and disabled people are not allowed to use the dehum-
idifier without supervision.
● Keep children from playing or climbing on the dehumidifier.
● Do not place the dehumidifier under dripping objects.
● Memory function is included in this dehumidifier. When nobody
is taking care of the unit, please turn it off and remove the power
plug or disconnect power.
● Do not repair or disassemble the unit by yourself.
● If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
● If abnormal condition occurs (e.g. burned smell), please discon-
nect power at once and then contact local dealer.
● Dehumidifier can not be disposed of everywhere. If you want to
get rid of this dehumidifier, please check with local handling dis-
posal or information service center about what to do.
wiring regulations.
● Do not use an extension cord.
● The appliance shall be installed in accordance with national
Safety Precautions
2
Do not remove the power plug or move unit by pulling the power cord.

3

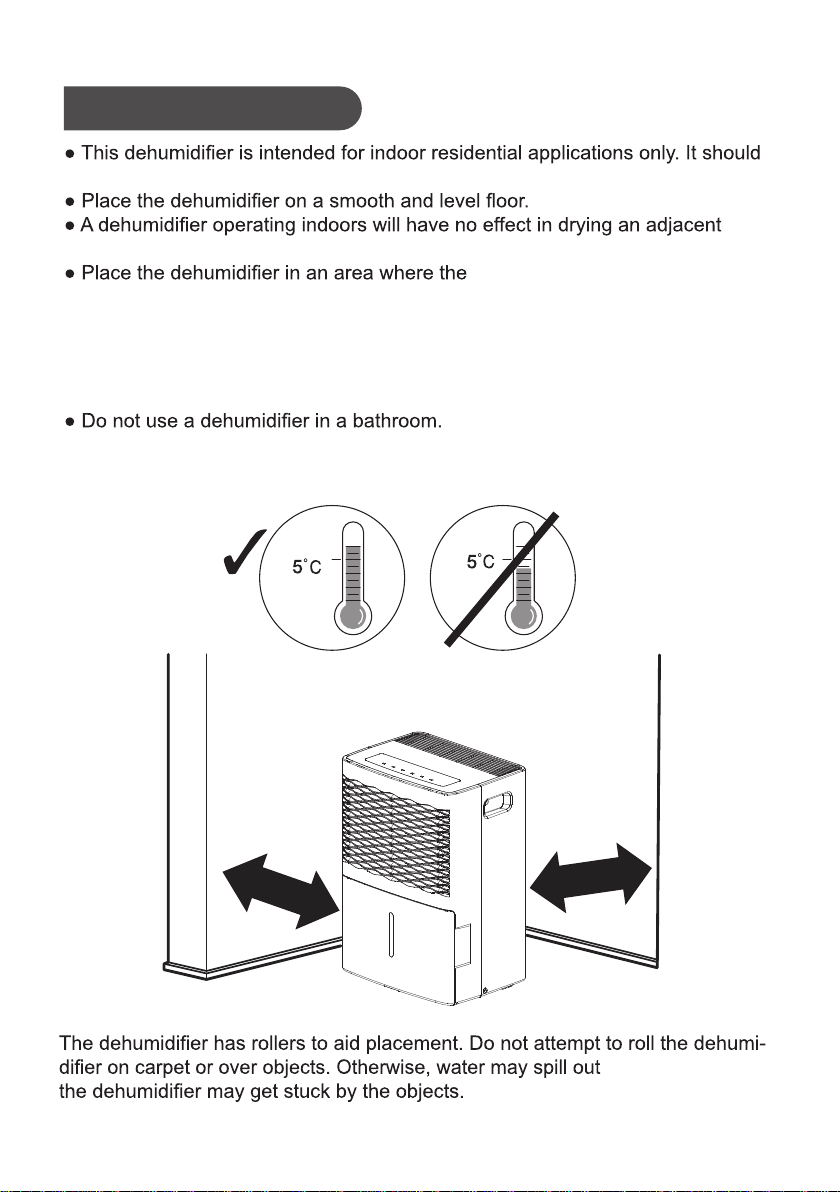

Operation Area
not be used for commercial or industrial applications.
enclosed area, such as a closet.
temperature will not below 5°C or
above 35°C.
●Allow at least 45cm of air space on all sides of the unit.
●Close all doors, windows and other outside openings of the room to improve
the working effect.
●Please keep the air inlet/outlet clean and not blocked.
●Avoid direct sunlight.
Above Below
Correct Wrong
Note:
from the bucket or
Note:
at least 45cm
at least 45cm

Rear Case Cover Plate
(continous drainge)
Power Plug
4
Back Side
Air Outlet
Air-in Grille
Castors
Control
Panel
Bucket
Water
Parts Name
Front Side

5

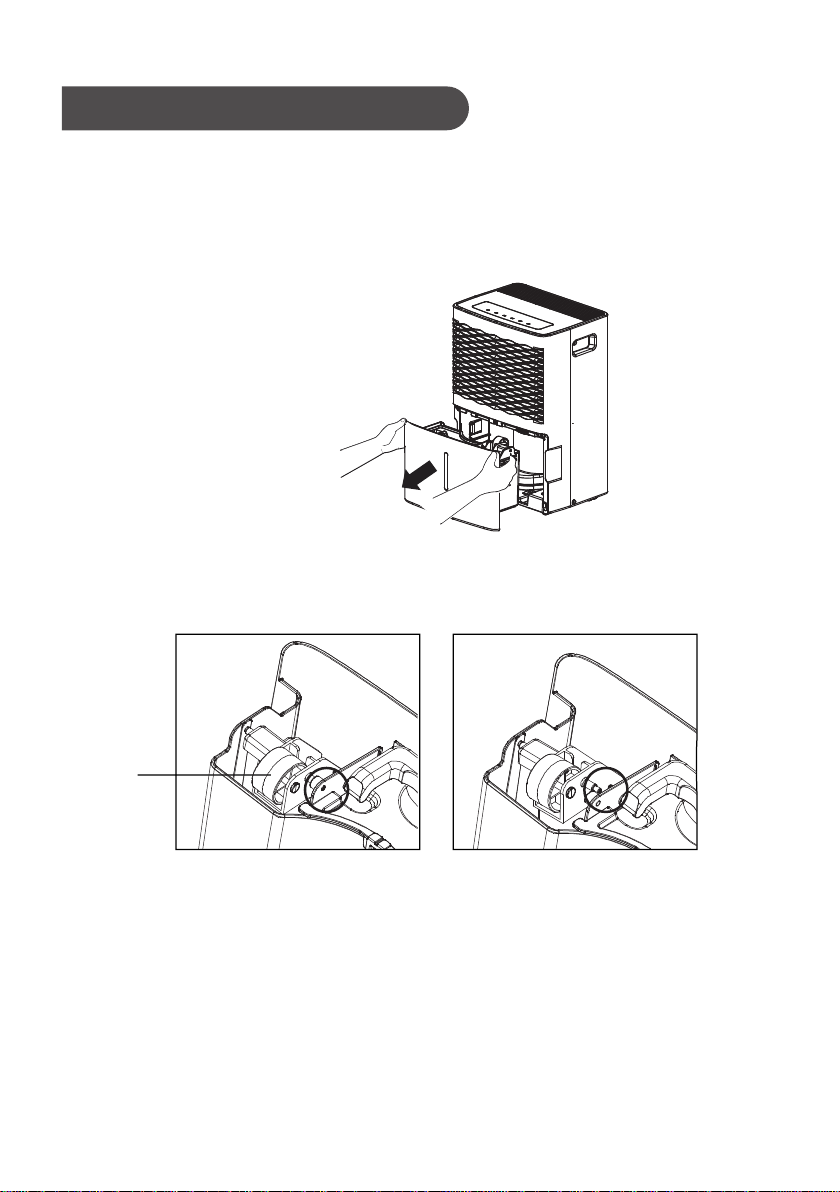

Check Before Operation
Before operation, please first check whether float is properly placed.
Below are the checking steps:
1. Hold the handles on both sides of the water bucket and pull it out following the
arrow direction.
2. Check whether float in the water bucket is properly placed. It might have been
moved a little after long-time transportation. If it's not placed properly, move it
to the correct position by hand.
3. Replace the bucket as instructed in step 1.
Correct Position Wrong Position
Float

Operation Method
6
After 250 hours of operation, the Filter indicator light will glow to remind
you to clean the filter. Remove the filter and clean it.
Press to rest to turn off the Filter light.See the.Clean and Maintenance.
2FILTER
NOTICE:
Water bucket must be correctly installed for the dehumidifier to operate.
Do not remove the bucket while unit is in operation.
If you want to use drain hose to drain water away, please install the hose
according to section "Drainage option".
Each time pressing the effective button on the control panel will give out a
"beep" sound.
When power is connected, power indicator on the control panel will be on and
dehumidifier gives out a “beep” sound simultaneously.
1

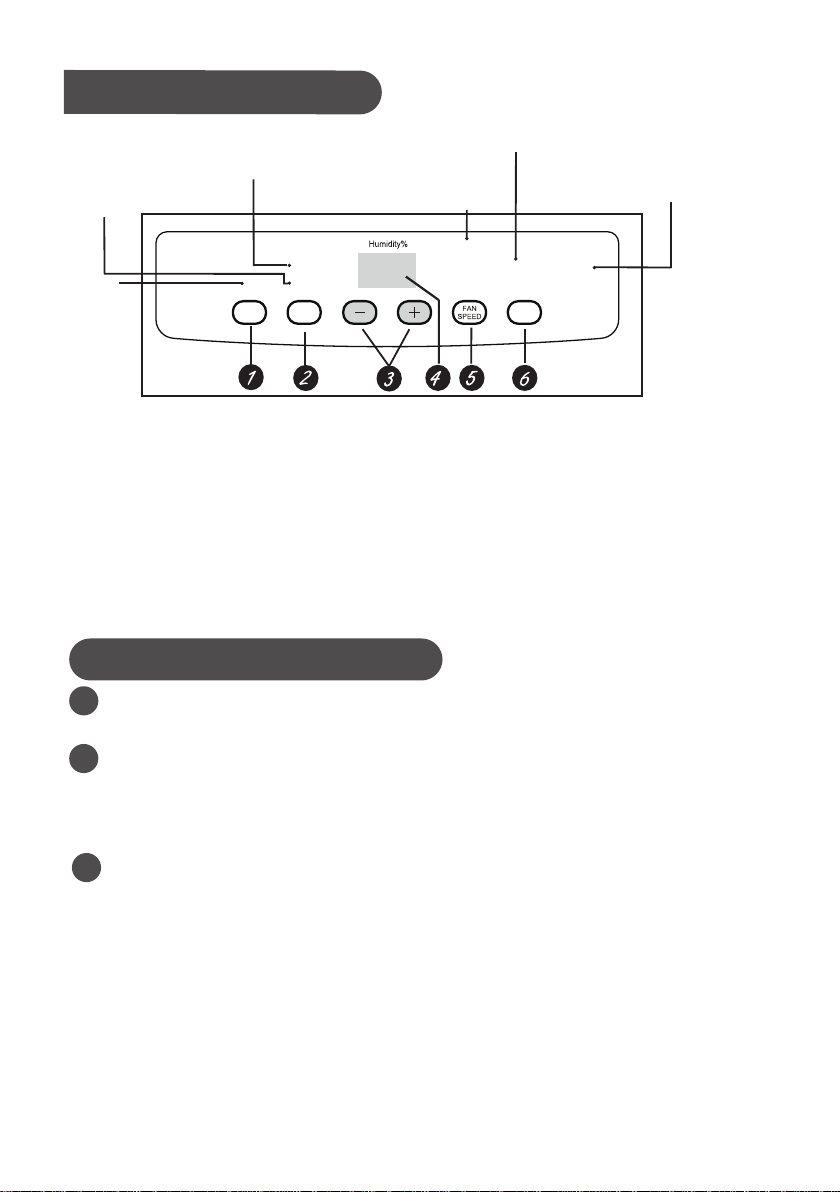

Basic Functions of the Buttons
POWER
Press to turn the dehumidifier on and off.
3-/+
The humidity level can be set within a range of 80% RH (Relative Humidity)
to.35% RH (Relative Humidity) in 5% reduce or at continuous operation.To
set the unit for continuous operation, press the - pad until the screen reads CO.
NOTE: If Cont is selected, the dehumidifier will operate continuously at its
maximum dehumidification settings if attached to a hose to drain or until the
bucket is full.For drier air, press the - pad and set to a lower percent value (%).
Full light indicates
bucket needs to be emptied
or is not in place in the unit
Full
Cont operation
on indicator light High, Medium
and Low fan
indicator lights
Filter
indicator light
Low
Medium
High
Cont
Filter
FILTER
4 hour
2
hour
TIMER
Power On
indicator light
On
P
POWER
For damper air, press the + pad and set to a higher percent value (%).
When you first use the dehumidifier, set the humidity control to 45% or 50%.
Allow at least 24 hours for the dehumidifier to achieve the humidity level. If you
2 hour、4 hour or 6 hour
delay on/off indicator lights

6TIMER
4
7
still have damper air than desired, set the humidity level to a lower setting or
select Continuous for maximum dehumidification.
Display
Shows the set % humidity level while setting, then shows the actual (± 5%
accuracy) room % humidity level.
5 FAN SPEED
Controls the fan speed.
Press to select either High, Medium or Low fan speed.
Set the fan control to High for maximum moisture removal. When the humidity
has been reduced and quiet operation is preferred, set the fan control to Medium or Low.
1.
2. Alarm
3.
4. Auto Defrost
When frost builds up on the evaporator coils,the compressor will cycle off and
the fan will continue to run until the frost disappears.
5. Power Outage
In the case of a power outage or interruption,the unit will automatically restart,
in the settings last used, after the power is restored.
Other Instructions
Full Light
Glows when the bucket is ready to be emptied,or when the bucket is removed or
not replaced in the proper position.
If the bucket is full or missing for more than three minutes, an alarm will sound for
about 10 seconds to remind you to empty and replace the bucket.
Under ON status, press this button to select “Timer OFF” in 2h, 4h, 6h and cancel
timer circularly in sequence.
Under OFF status, press this button to select “Timer ON” in 2h, 4h, 6h and cancel
timer circularly in sequence.
4h 6h
2h Timer OFF Timer OFF Timer OFF
Cancel
4h 6h2h Timer ON Timer ON Timer ON
Cancel
When there is no setting or cancelling timer, the indicator of “2h” and “4h” will be off;
when setting timer on/off in “2h” or “4h”, the corresponding timer indicator will be on.
When setting timer on/off in “6h”, the indicators of both times will be on at the same time.
Auto Shut Off
The Water Level Control Switch shuts of f the dehumidifier when the bucket is full,
or when the bucket is removed or not replaced in the proper position.

8
Drainage Option
Option 1 Emptying Manually
● Do not remove the bucket when unit is in operation or has just stopped.
Otherwise it may cause some water to drip on the floor .
● Do not use the hose if using water bucket to collect water. When the hose is
connected, water will be drained out through it instead of into the bucket.

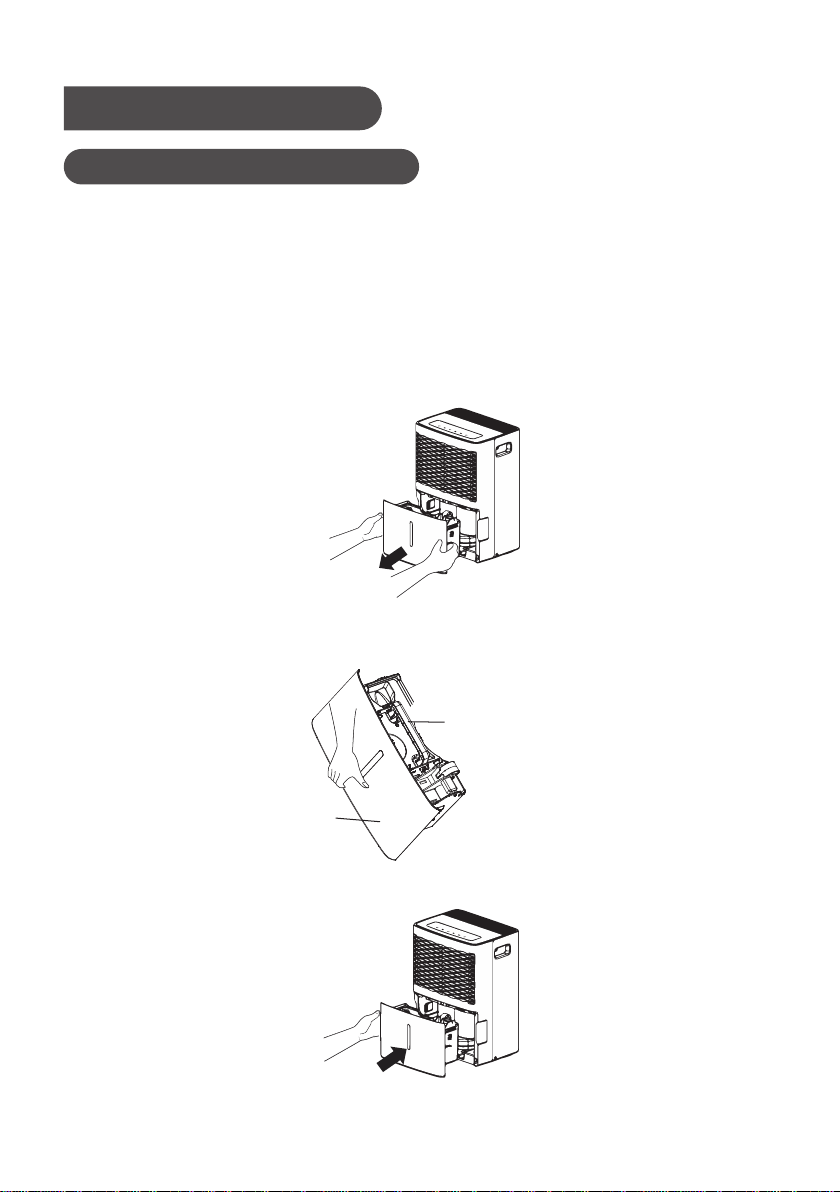

1. Hold the handles on both sides of the water bucket and pull it out following the
arrow direction. (Attention: Pull out the bucket carefully in case the water may
spill out from the bucket and onto the floor.)
2. Empty the bucket by grasping the handle on the top of bucket with one hand
and grasping the bottom of bucket with the other hand.
3. Replace bucket in the dehumidifier according to the arrow direction
Handle
Bucket
NOTICE:

9
drain hose
nozzle

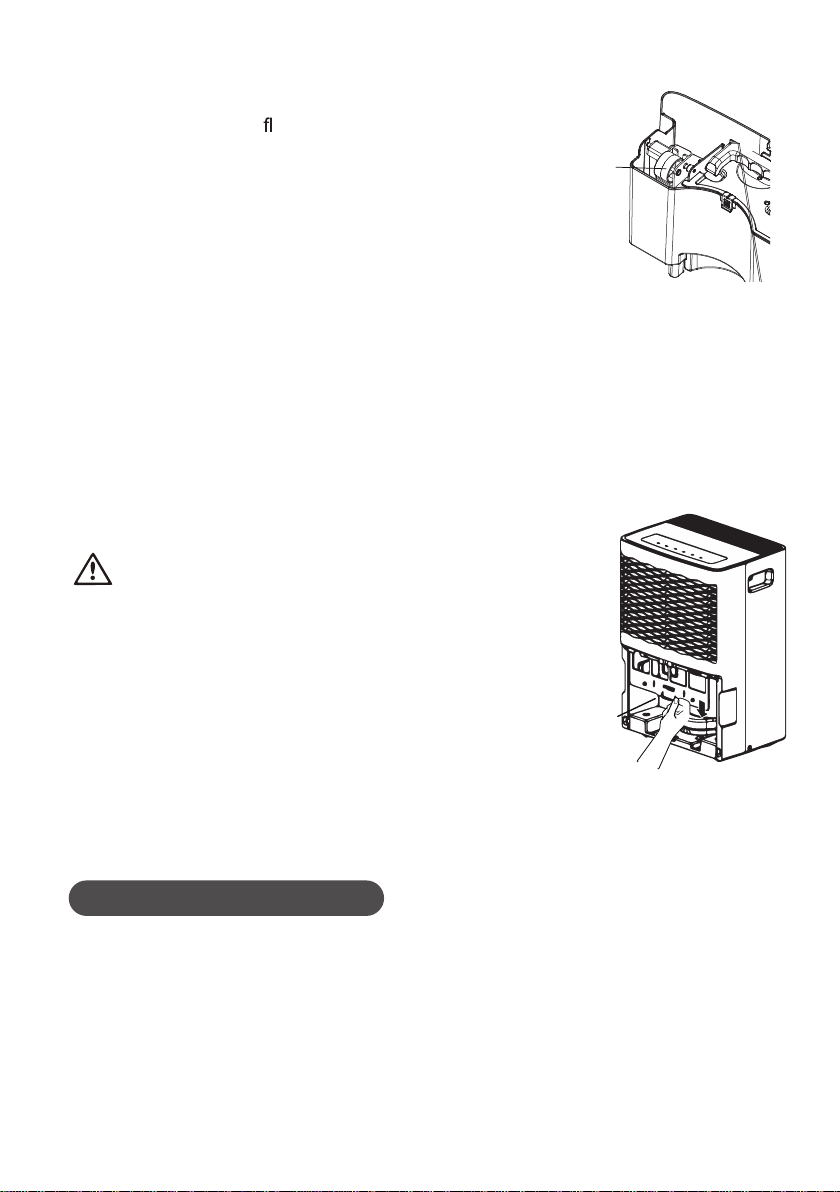

Option 2 Gravity Drain Hose
1. Hose is not provided, so user shall prepare it in advance.
[Size: The hose thread should have an outer diameter of 11/16 inches (1.0625
inches or 27.0mm), and a pitch of 11.5 TPI.]
4. Replace the bucket. Make sure the drain hose goes through the bucket's drain
hole and is placed downward. Lead the hose to the floor drain and then cove
the hole with a lid. Note that drain hose should not be pressed, otherwise
water can not be drained out.
When you want to take off the drain hose, prepare a receptacle to collect
water from the nozzle.
2. Remove bucket from the unit as instructed.
3. Thread the drain hose onto the nozzle and make
sure it's securely locked.
NOTICE:

2. Water Bucket
Every few weeks, clean the bucket to prevent growth of mold, mildew and
bacteria. Use soft brush to clean the bucket and then rinse it.
To remove:
(1) Direct the rotor shaft of handle to the hole of buckle plate.Pull the bucket
plate at the handle side by following the arrow direction. Remove the handle.
(shown in Fig.1a)
(2) Press down all buckles around the water bucket. Lift up the drain lid.
(shown in Fig.2a)
Note:5 clasps marked with line on the right figure.
●Before cleaning, turn off the dehumidifier and disconnect power. Otherwise it
1.
may lead to electric shock.
● Do not wash the dehumidifier with water, or it may lead to electric shock.
● Do not use volatile liquid(such as thinner or gasoline) to clean
dehumidifier. Otherwise it will damage unit's appearance.
Grille and Case
To clean the case:
When there is dust on the case, use soft towel
to dust it off; When the case is very dirty(greasy),
use mild detergent to clean it.
To clean the grille:Use a dust catcher or brush.
Clean and Maintenance
Warning
10
Drain Lid
Fig. 1a Fig. 2a Buckle
Rotor Shaft
of Handle
Buckle Plate Hole of Buckle Plate
Handle

Float
11
(3) After cleaning, replace the drain lid and handle
and make sure the oat of water bucket is placed
properly. The side with foam plastic should be
beneath the drain lid. Do not remove the foam
plastic on the float
●Do not operate the dehumidifier without a filter.
Otherwise the evaporator will catch dust and
affect unit's performance.
●Do not dry the air filter with fire or electric hair
dryer. Otherwise the air filter may be unshaped
or caught on fire.
●Don' t use dust catcher or brush to clean
the air filter. Otherwise the air filter may be
destroyed.
Warning
Air Filter
3. Air Filter
Dehumidifier will remind you to clean the air filter
when it has been operating for 250 hours. If it is
used in dusty places, clean the air filter more
often.
To remove: Remove the bucket. Grasp the filter
edge, and pull it straight down and out.
To clean: Clean the filter in warm, soapy water.
Rinse it and let the filter dry before rep-
lacing it.
●Check whether air outlet is blocked.
●Check whether power plug and power socket are in good condition.
●Check whether air filter is clean.
●Check whether drain hose is damaged.
Check Before Use-season

12
●Disconnect power.
●Clean air filter and case.
●Clean dust and obstacle of the dehumidifier.
●Empty the water bucket.
Care After Use-season
If you won't use the dehumidifier for a long time, we suggest that you follow the
steps below in order to maintain the unit in good condition.
●Make sure the bucket is clear of water and drain hose is removed.
●Unplug the dehumidifier and pack the power cord.
●Clean the unit and wrap it well to prevent the gathering of dust.
Long-time Storage

Troubleshooting
● Not all the following problems are malfunctions.
● Problem of Water Leakage.
Problem Possible Causes
Controls can not be set.
● Unit is operating in an area where temperature
is higher than 35°C or lower than 5°C.
● Bucket is full.
Noise suddenly rises during
operation.
● Noise will rise if compressor has just started.
● Power supply problem.
Humidity does not drop.
●
● Doors are open.
● There might be some device producing vapor in
the room.
Little or no effect in
dehumidifying
● Room temperature is too low.
● Humidity level may be improperly set.
● If unit is operating in a room where temperature
is from 5 to 15 °C, it will start to defrost automati-
cally. Compressor will stop for a brief period of
time(fan will operate in high fan speed).
normal operation.
emitted has musty-odor.
● Due to temperature rising of heat exchanger, the
air may have some strange smell at the beginning.
Unit has noise. ●
There might be some noise if unit is operating on
Swooshing sound is heard. ●
Problem Possible Causes Solution
When using drain
hose, there is water
in the bucket.
● Examine the drainage joint. ● Connect the drainage joint
well.
● Clear the obstacle from the
drain hose.
● Drain hose is not correctly
installed. ●
Remove the drain hose and
replace it. Be sure that the
hose is correctly installed.
13

Bad dehumidifying
performance
● Check whether there is
any obstacle around the
unit.
● Make sure there is no curtain,
shutter or furniture that blocks
blocked.
● Doors and windows are
left open.
● Make sure all doors and
windows and other opening to
the outside have been
closed.
● Room temperature is too
low.
●Warm temperature is good for
ature will reduce unit's working
effect. This unit should be wor-
king in a place where temper-
ature is above 5°C.
Problem Possible Causes Solution
Power indicator is
not lit when power
is connected.
● Power is not supplied for
power plug is not well
inserted.
● Check if power is lost. If yes,
wait for the power to restore.
● If not, check whether the
power circuit or power socket
has been damaged.
● Check whether power plug is
loosen.
● Check whether power cord is
damaged.
● Fuse is blown. ● Replace the fuse.
Bucket full indicator
is lit up.
● Bucket is not properly
placed.
●Water is full in the bucket.
●Bucket hasbeen removed.
●
Empty the bucket and replace
it.
Unit can function
normally but it can
not start up.
● Humidity is set too high.
● If you want the air drier,
press - button to lower the
14
or press the - pad until
the screen reads CO for unit to
dehumidify continuously.

15
Malfunction Codes
● Unit's Malfunction Codes
Display
Code
Display
Window
● Ambient temperature sensor is
loosen or is poorly connected
with the terminal of display board.
● Some element of display board
may have been put upside down
and cause short circuit.
●
Ambient temperature sensor is
damaged(Please refer to Checking
Table for Temperature Sensor
Resistance).
● Display board is damaged.
● Temperature sensor on the
evaporator is loosen or is poorly
connected with the terminal of
display board.
● Some element of display board
may have been put upside down
and cause short circuit.
● Temperature sensor on the evaporator
is damaged(Please refer
to Checking Table for Temperature
Sensor Resistance).
● Display board is damaged.
●
Temperature sensor on the
evaporator is loosen or is poorly
connected with the terminal of
display board.
●
Some element of display board
may have been put upside down
and cause short circuit.
●
Discharge temperature sensor is
damaged (Please refer
to Checking Table for Temperature
Sensor Resistance).
● Display board is damaged.
● Humidity sensor is short-circuited.
● Humidity sensor is damaged.
● Display board is damaged.
2
3
4
Compressor
and fan
motor stop.
The buttons
are invalid.
F2
Tube
Temperature
Sensor
Malfunction
L1
Humidity
Sensor
Malfunction
Discharge
Temperature
Sensor
Malfunction
F5
No. Malfunction
Name Unit's Condition Possible Causes
F1
Ambient
Temperature
Sensor
Malfunction
1

16
Malfunction Codes
● Unit's Malfunction Codes
Display
Code
Display
Window
● Refrigerant is leaking.
●
System is blocked
● Ambient operation condition is
bad.
● The evaporator and condenser
are blocked with filth.
●
The system is abnormal.
●
Abnormal system (e.g.: blockage, etc).
●
Abnormal rotation speed of the motor.
●
Abnormal air intake.
● System is normal, but the compressor
discharge
temperature sensor is abnormal or poorly
contacted.
H3
High-temperature
overload
protection
5
6
E4
High discharge
temperature
protection of
compressor
7
Freon-lacking
protection F0
No. Malfunction
Name Unit's Condition Possible Causes
The compressor
stops;
the fan motor
stops after
30 seconds.
The compressor
stops;
the fan motor
stops after
30 seconds.
