Cooper Lighting Neo-Ray's 22DIW User manual

ADN070412
Construction
Extruded aluminum housing.
Nominal 3', 4', 6' or 8'
illuminated sections.
Shielding
Trimless, snap-in white high
transmission acrylic diffuser.
Snap-in high performance
semi-specular or white
parabolic louver.
Electrical
120, 277 or universal voltage,
electronic ballast. Fixtures and
electrical components certified
to UL and CUL standards.
Finish
Durable, low gloss, white
powder coated acrylic. Optional
custom finish.
Catalog # Type
Project
Comments
Prepared by Date
A return to simplicity, elegance and minimalism...Slender lines of
unbroken light set in an architectural enviroment are what of
essence of Straight and Narrow is all about. Accommodates most
architectural lighting design applications.
Features:
- Straight and Narrow embodies Neo-Ray's critical attention to
architectural detail as well as lighting performance
- Continous and unbroken light
- Extruded aluminum housing offers precise in-line appearance
- Runs are provided to nearest foot
SPECIFICATION FEATURES
DESCRIPTION
Mounting
Fixture mounts directly to
existing structure over a
standard electrical box (not
supplied by Neo-Ray). Blocking
provided by others.
ADA Compliant
www.cooperlighting.com
Straight & Narrow
22DIW
22DW
T5 or T5HO
WALL
DIRECT-INDIRECT (DIW)
DIRECT (DW)
ORDERING INFORMATION
SAMPLE NUMBER: S22DIW/1X1T5HO/4/1EB-SI-EM-GLR-S91
Series
22=Straight & Narrow
22
Light Output
DI=Direct-Indirect
D=Direct Number of Lamps
(not included)
1x1=1 Lamp up/ 1 Lamp down
(DIW only)
1=1 Lamp (DW only)
Lamp Type
T5
T5HO
Voltage
1=120V
2=277V
U=Universal
Ballast1
EB=Electronic
Ballast (standard)
DB=Dimming
Ballast
Switching Options
SI=Single Switching
DU=Dual Switching
(DIW only)
Fusing
GLR
GMF
Louver Options
S91=High performance louver
S91W=White louver
S91P=High performance
louver with acrylic overlay
S91WP=White louver with
acrylic overlay
S92=Satin white lens
Emergency
EM= Emergency
Pack (consult
factory)1
Mounting
W=Wall
W
Length
3=3 ft
4=4 ft
6=6 ft
8=8 ft
XX=Continuous Runs
5/8”
4”
2-3/8”
Side
mounted
electrical box
and blocking
by others
22DW with satin
white lens (S92)
22DIW 1x1 with high
performance louver (S91)
5-5/8”
5/8” 2-3/8”
Side
mounted
electrical box
and blocking
by others
ADA
COMPLIANT
1 Required voltage information
• For some electronic, dimming and EM battery pack ballast combinations fixture has space limitation (consult factory)
• Not all option combination available, please consult your COOPER Lighting representative for additional information
NOTE: Specifications and dimensions are subject to change without notice.
NEORAY
18'-3/8" (Typical)
4' INT
(plus 0.188" endcap)
6' INT8' INT (plus 0.188" endcap)
OVERALL LENGTH OF RUN
1-3/16" 34"/46"
2"
34"/46" 34"/46" 1-3/16"
2"
36-3/8" 3FT IND 96-3/8" 8FT IND
48-3/8" 4FT IND 72-3/8" 6FT IND
40-1/2"
28-1/2"
64-1/2"
88-1/2"
88.500
96.25
4" 72.000
72.000
48.000
48.25
4"
Joining Detail Mounting Detail
Specifications and Dimensions subject to change without notice.
Neo-Ray 100 Andrews Road Hicksville, NY 11801 516.470.1000 FAX 516.470.1077 ADN070412
www.cooperlighting.com
MOUNTING INFORMATION
INDIVIDUAL
ROWS
OPTICAL OPTIONS
FEATURES AND OPTIONS
High Performance
Louver
Satin White Lens Direct/Indirect
(top view)
SERIES COMPANION PRODUCTS (Reference other spec sheets if necessary)
22DR
Recessed
(Ceiling & Wall)
22DIP
Direct/Indirect Pendant
22DP
Direct Pendant
22DS
Surface
22DW
1T5 lamp with
Satin White Lens (S92)
Efficiency 37.0%
Test#13403
PHOTOMETRICS
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
0-30 309 10.6 28.8
0-40 501 17.3 46.8
0-60 860 29.7 80.2
0-90 1072 37.0 100.0
0-180 1072 37.0 100.0
Total Luminaire Efficiency = 37.0%
Candela
Angle Along II 45° Across ⊥
0 383 383 383
5 387 387 387
15 386 386 386
25 351 351 350
35 307 307 306
45 250 250 249
55 185 184 184
65 125 125 126
75 63 65 68
85 14 16 19
90 0 0 0

Other Cooper Lighting Indoor Furnishing manuals

Cooper Lighting PM113obi User manual

Cooper Lighting

Cooper Lighting PM113obi User manual

Cooper Lighting FAIL-SAFE FDI User manual

Cooper Lighting

Cooper Lighting FAIL-SAFE FDI User manual

Cooper Lighting PORTFOLIO H77250QT4 User manual

Cooper Lighting

Cooper Lighting PORTFOLIO H77250QT4 User manual

Cooper Lighting Luminous Wall Sconce 606 User manual

Cooper Lighting

Cooper Lighting Luminous Wall Sconce 606 User manual

Cooper Lighting 196HO User manual

Cooper Lighting

Cooper Lighting 196HO User manual

Cooper Lighting Shaper 635-18 User manual

Cooper Lighting

Cooper Lighting Shaper 635-18 User manual

Cooper Lighting HALO H2600 User manual

Cooper Lighting

Cooper Lighting HALO H2600 User manual

Cooper Lighting PM112cbi User manual

Cooper Lighting

Cooper Lighting PM112cbi User manual

Cooper Lighting Shaper 601V-24 User manual

Cooper Lighting

Cooper Lighting Shaper 601V-24 User manual

Cooper Lighting Power Failure Emergecny Light ENC User manual

Cooper Lighting

Cooper Lighting Power Failure Emergecny Light ENC User manual

Cooper Lighting Shaper 210-D User manual

Cooper Lighting

Cooper Lighting Shaper 210-D User manual

Cooper Lighting IRIS E3AA User manual

Cooper Lighting

Cooper Lighting IRIS E3AA User manual

Cooper Lighting PM124ob User manual

Cooper Lighting

Cooper Lighting PM124ob User manual

Cooper Lighting SSIXX User manual

Cooper Lighting

Cooper Lighting SSIXX User manual

Cooper Lighting Lumiere 1070 User manual

Cooper Lighting

Cooper Lighting Lumiere 1070 User manual

Cooper Lighting Lumiere 1048 User manual

Cooper Lighting

Cooper Lighting Lumiere 1048 User manual

Cooper Lighting Shaper 498-RP-TR Series User manual

Cooper Lighting

Cooper Lighting Shaper 498-RP-TR Series User manual

Cooper Lighting HALO H2BSMLRG User manual

Cooper Lighting

Cooper Lighting HALO H2BSMLRG User manual

Cooper Lighting PM132ob User manual

Cooper Lighting

Cooper Lighting PM132ob User manual

Cooper Lighting LV2060ISMulti-Lamp Luminaire LV2060IS User manual

Cooper Lighting

Cooper Lighting LV2060ISMulti-Lamp Luminaire LV2060IS User manual

Cooper Lighting Fail-Safe X10 User manual

Cooper Lighting

Cooper Lighting Fail-Safe X10 User manual

Cooper Lighting HALO L2717 User manual

Cooper Lighting

Cooper Lighting HALO L2717 User manual

Cooper Lighting Shaper 609 User manual

Cooper Lighting

Cooper Lighting Shaper 609 User manual

Cooper Lighting LTC2 Series User manual

Cooper Lighting

Cooper Lighting LTC2 Series User manual

Popular Indoor Furnishing manuals by other brands

comfortel COLOUR BAR II owner's manual

comfortel

comfortel COLOUR BAR II owner's manual

Julian Bowen Limited Maine MAI013 Assembly instructions

Julian Bowen Limited

Julian Bowen Limited Maine MAI013 Assembly instructions

Allen + Roth FRS60602E quick start guide

Allen + Roth

Allen + Roth FRS60602E quick start guide

Rauch M1746 Assembly instructions

Rauch

Rauch M1746 Assembly instructions

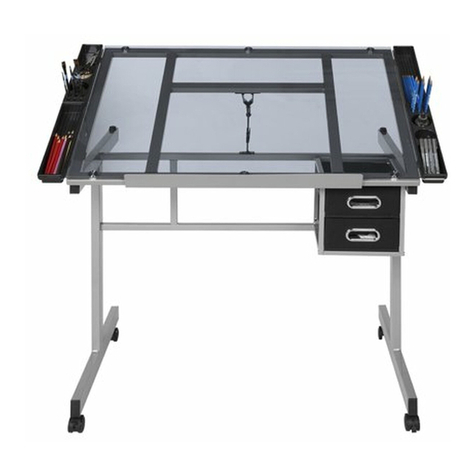

Onespace 50-CS01 Assembly instructions

Onespace

Onespace 50-CS01 Assembly instructions

Mecalux Longspan Shelving Guide to Assembly & Usage

Mecalux

Mecalux Longspan Shelving Guide to Assembly & Usage

Manhattan Comfort Tribeca TV Stand 35.43 manual

Manhattan Comfort

Manhattan Comfort Tribeca TV Stand 35.43 manual

Incy Interiors Elizabeth Trundle Assembly instructions

Incy Interiors

Incy Interiors Elizabeth Trundle Assembly instructions

Bassett INSPIRED BP-PSBS24K Assembly instructions

Bassett

Bassett INSPIRED BP-PSBS24K Assembly instructions

OLG Adapta Assembly instructions

OLG

OLG Adapta Assembly instructions

highwood AD-CTB25 Assembly guide

highwood

highwood AD-CTB25 Assembly guide

Germania Kleiderschrank 0888 Assembly instructions

Germania

Germania Kleiderschrank 0888 Assembly instructions

Costway HW66556 user manual

Costway

Costway HW66556 user manual

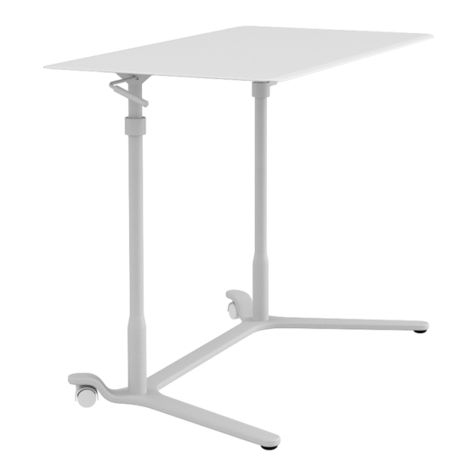

Haworth Eddy quick start guide

Haworth

Haworth Eddy quick start guide

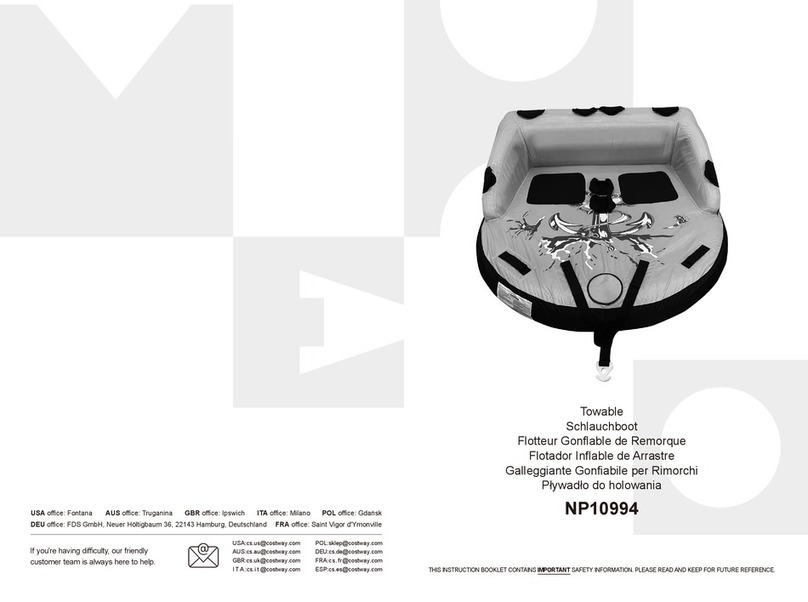

Costway NP10994 manual

Costway

Costway NP10994 manual

Saint Birch AK4300 Assembly instructions

Saint Birch

Saint Birch AK4300 Assembly instructions

Julian Bowen brooklyn BRO015 Assembly instructions

Julian Bowen

Julian Bowen brooklyn BRO015 Assembly instructions

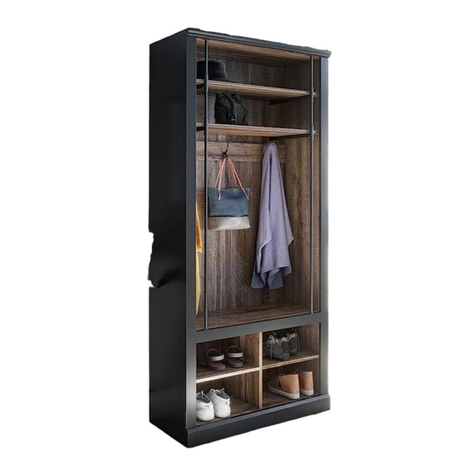

Ameriwood HOME 1630407COM Assembly instructions
