Talon
Area Luminaire

TALON
VERSATILE PERFORMANCE
Talon’’s ingenious blend of performance and
versatility allows application specific
illumination by way of fourteen [14] high
efficiency, field rotatable optical systems.
Offered with the unrivaled Spill Light Eliminator
[SL] optic for areas requiring strict light
trespass control, and the premier Automotive
Front Row [AF] optic for precisely illuminated
automotive dealership front row displays.
Flat glass or sag, vertical lamp or horizontal,
segmented optic or formed, Talon offers a
myriad of optical solutions to satisfy exacting
application requirements.
AREA LUMINAIRE
TABLE OF CONTENTS
Performance + Versatility.................................3
Quality + Durability .........................................5
Control + Efficiency .........................................7
Specification Features ....................................11
Options + Accessories ...................................13
Photometrics..................................................15
Ordering Information [TMU + TLU].................17

SITE + PARKING |ROADWAY |PATH OF EGRESS
IMPENETRABLE FORM
Coupling precise mechanical design with
premium quality materials, the Talon site light
is constructed to sustain the rigors of outdoor
operation. Thick wall die-cast aluminum
construction and channel set silicone gasketing
form an impenetrable IP65 barrier optimizing
optical efficiency and fixture longevity in the
harshest of environments.
INNOVATIVE FOREFRONT
Forward Leaning— two words that describe
Streetworks’ product development process
and relentless commitment to providing
progressive solutions for emerging market
trends. Regardless of the ordinance governing
your site—spill control, emergency egress,
energy efficiency or curfew compliance, the
Talon offers progressive features to address
rigorous regulatory needs.

3
4
PERFORMANCE + VERSATILITY
MAXIMIZE SITE UNIFORMITY
Add sparkle to your site and maximize
pole spacings with sag glass optical
systems offered in both cutoff and
semi-cutoff configurations.
For applications mandating full cutoff,
choose from a complete offering of flat
glass vertical lamp solutions. The vertically
lamped family of optical systems
minimizes light levels directly below
the luminaire while increasing lateral
illumination, maximizing overall site
uniformity. Available in Type III, Area
Round, Area Square, Type IV and
Automotive Front Row [TLU only]
distributions.
OPTICAL VERSATILITY
Never before has a single luminaire
supported this magnitude of optical
choices, touting four [4] distinct families
of optical assemblies, all with compelling
performance. Hydroformed, segmented,
vertical and specialty application optical
systems allow finely tuned site lighting
solutions with unprecedented levels of
uniformity and control.

LEADING SPILL CONTROL
The Spill Light Eliminator [SL] optic is the
industry leader in effective spill light
control, eliminating light beyond one [1]
mounting height behind the pole with no
sacrifice in forward illumination. Used
along site perimeters and property lines,
the Spill Light Eliminator keeps the light
inside and the darkness out.
ROTATIONAL FLEXIBILITY
Maintain uniform site spacing and
fixture orientation with rotatable optical
assemblies. All optics are capable of
rotating in 90° increments allowing for
manipulation of distribution orientation
independent of fixture position.
DARK SKY FRIENDLY
For applications requiring dark sky friendly
solutions, look to full cutoff flat glass
optical assemblies providing focused
illumination with zero uplight and minimal
high angle illumination while retaining
superior uniformity. Available in
hydroformed or segmented Type II, III, IV,
V and SL distributions.
OPTICAL SOLUTIONS AS DIVERSE AS THE ENVIRONMENTS THEY ILLUMINATE.
Exterior lighting requirements continue to grow more stringent with added emphasis on light control and system efficiency. Whether the goal of your
site lighting design is safety, general illumination or highlighting prominent features, Talon offers application-specific optical solutions that provide the
highest level of photometric performance and control.

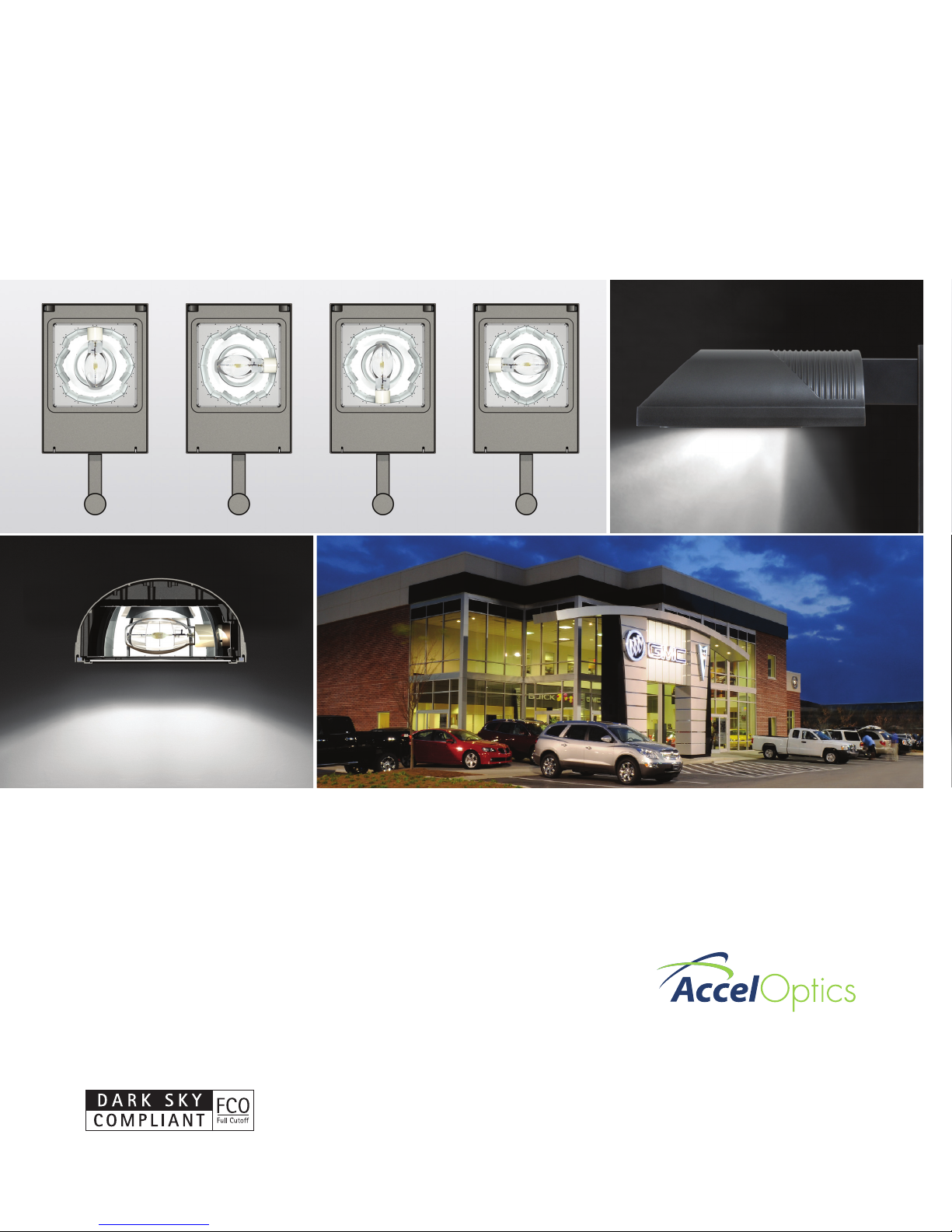

GET NOTICED
Accel Optics, the Talon’s family of
automotive reflector solutions specialize in
focused front row product displays that
engage the customer, general merchandise
lighting that creates an inviting dealership
appearance emanating safety and security,
and perimeter lighting that precisely
frames the automotive dealership lot.
NOTE: In Flat Glass configurations only.

5
6
QUALITY + DURABILITY

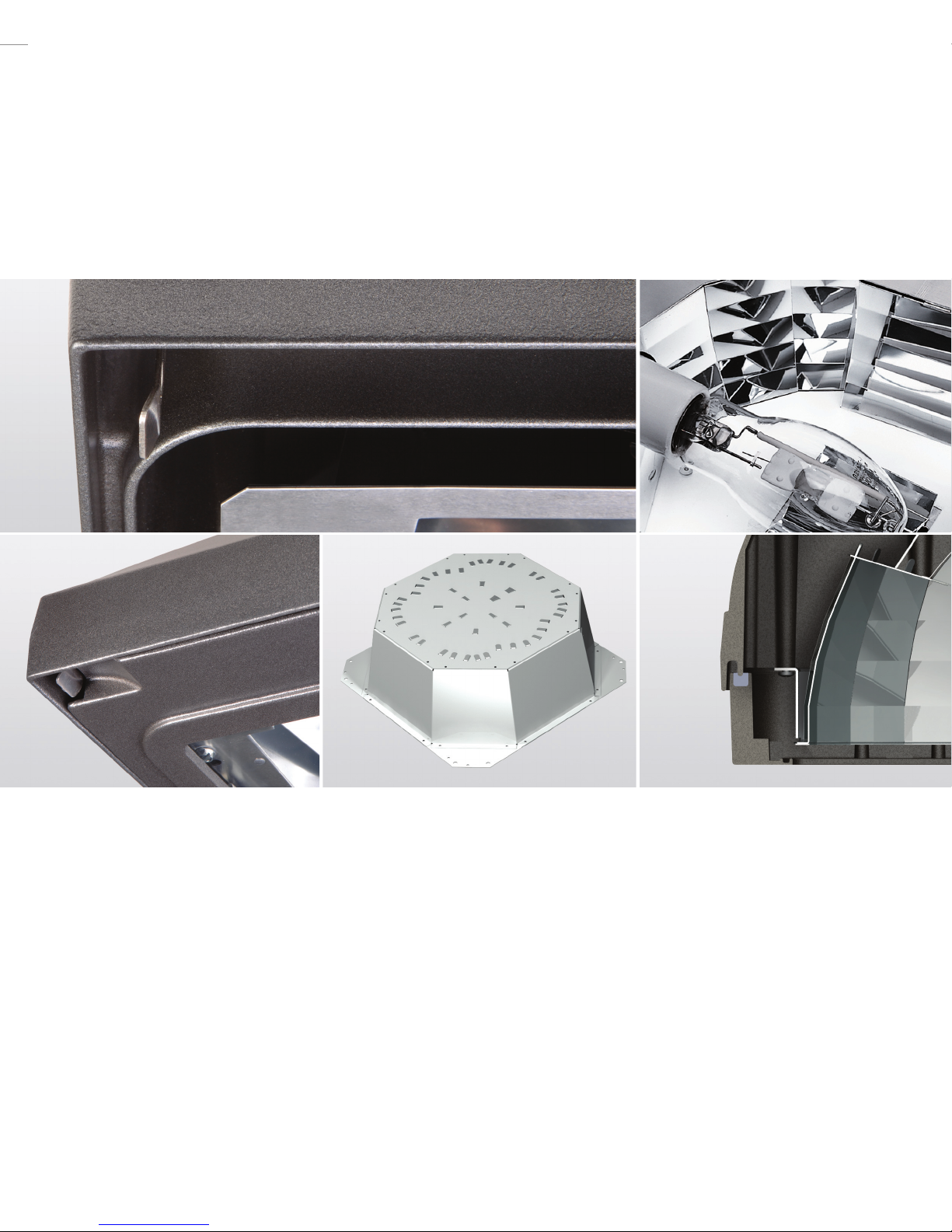

DURABLE CAST CONSTRUCTION
Low-copper alloy die-cast aluminum
construction offers corrosion resistance
while precise tolerance control ensures
tight nesting of the door and housing.
Combining heat extracting reveal channels
with independent optical and electrical
chambers that isolate heat producing
sources, the Talon’s housing design is
both functionally relevant and aesthetically
pleasing.
TOOLLESS ENTRY
Invisibly integrated door retaining latches
allow for a consistent outward aesthetic
while providing maintenance-friendly,
toolless entry into the optical and
electrical chambers. The corrosion-
resistant stainless spring steel latch
and door receiver pin create an audible
engagement confirming secure door
closure and fixture sealing.
RIGID OPTICAL CONSTRUCTION
A commitment to optical research and
precision build quality result in unequaled
levels of performance and repeatability.
A rigid box enclosure shields segmented
optical facets on all sides from performance
degrading damage while each facet bank is
secured to both the top and bottom of the
enclosure providing repeatable facet
orientation relative to light center.
PREMIUM MATERIALS
Superior optical design and a commitment
to premium 95% reflective sheet aluminum
make Talon’s segmented reflector family
the benchmark of optical excellence.
Reflector facets are flat and unobstructed
by rivets or other means of attachment
which may cause streaks or striations in
the light distribution. First class
construction and attention to detail
ensure dependable performance in
every installation.
INGRESS PROTECTION
“IP” stands for Ingress Protection and is a
rating system recognized internationally
as the standard for electrical products
and other related technologies. The two
numbers proceeding the “IP” individually
callout the fixture's protection rating
against moisture and airborne
particulates. The channel set silicone
gasketing system incorporated in Talon
is IP65 certified. Dust, insects and
moisture simply have no chance of
penetrating the outer enclosure.

CONFIDENCE-INSPIRING QUALITY BEYOND THE SUM OF ITS PARTS.
From the stainless steel hinges to the rugged housing, every detail of the Talon construction is precisely designed with industry leading craftsmanship.
Heavy-wall die-cast aluminum construction, premium TGIC [triglycidyl isocyanurate] polyester powder coat paint and an IP65 rated optical cavity ensure
Talon can endure the harshest environments.
FINISH OPTIONS
Streetworks’ premium polyester powder coatings are enhanced
TGIC based coatings formulated to withstand extended outdoor
exposure. The powders are designed not only to be functional, but
decorative, combining good film appearance with excellent mechanical
and exterior exposure qualities. Formulated with properties similar to
a standard TGIC, the improved weathering characteristics of premium
TGIC result from the integration of a new polyester resin technology.
These coatings consistently display at least twice the gloss retention
of standard TGIC materials in both weatherometer and QUV testing,
making them ideal for outdoor lighting fixtures and poles. Applied to
a nominal 2.5 mil thickness, Talon’s six (6) standard finishes offer
superior protection against fade and wear.
GREY [AP]
WHITE [WH]
BLACK [BK]
DARK PLATINUM [DP]
BRONZE [BZ]
GRAPHITE METALLIC [GM]
Months Exposure
TGIC Streetworksʼ Premium
Color Retention Over Time
0 6 12 18 24
84
88
92
96
100
Percentage To Original

7
8CONTROL + EFFICIENCY
0°
[nadir]
180°
UH
Back Forward
Uplight
30° 30°
60° 60°
80° 80°
90° 90°
100° 100°
UL UL
BVH FVH
BH FH
BM FM
BL FL
LUMINAIRE CLASSIFICATION
The IESNA’’s revised Luminaire Classification System
[TM15-07 revised] creates a new basis of measurement
for site lighting visibility and adjacent property
interaction. This technical memorandum subdivides
the luminaire distribution into smaller angular zones
and subzones to more clearly represent how much
light is emitted at various angles. The values for each
subzone give an indication of the appropriate use for
the luminaire within an application. For dark sky
sensitive areas, the uplight component tells how
much the luminaire will contribute to sky glow.
For applications with strict light trespass regulations,
the back light portion of the distribution helps
determine how much light will reach neighboring
properties. Talon reflector assemblies keep light on
task by contributing as little as 0.0% total upward
illumination and 0.8% total backlight.
Forward Light
Forward Light Low [FL]
Forward Light Mid [FM]
Forward Light High [FH]
Forward Light Very High [FVH]
Back Light
Back Light Low [BL]
Back Light Mid [BM]
Back Light High [BH]
Back Light Very High [BVH]
Uplight
Uplight Low [UL]
Uplight High [UH]
Property
Line
Glare
Light Trespass
Uniform Task Illumination
NEIGHBORHOOD AND DARK SKY FRIENDLY
National organizations work to educate the general public on best lighting practices in order to minimize light trespass, reduce sky-glow and improve
nighttime visibility through glare reduction. Experts understand the visual system adapts to surrounding ambient conditions, spurring a move from
universal light level recommendations to a set of custom tailored guidelines for each task based on an application’s lighting zone. When surrounding
conditions are dim, lower levels of light are able to be detected more easily. In these environments, high light level applications can be a source of
discomfort and glare. Careful selection and placement of luminaires eliminates glare and creates a comfortable nighttime environment. Talon’s
assortment of specialty light control optical assemblies combined with a wide array of internal or external house-side shields provide the perfect
solution for every application.

STEPPING UP TO THE CHALLENGE.
As visual research advances so too the core understanding of how light interacts with surrounding communities and nocturnal environments.
Utilizing this knowledge, Federal programs, national organizations and industry leaders institute guidelines for illuminating an area safely and
securely while reducing energy, eliminating spill light and minimizing glare. Talon steps up to the challenge, offering innovative solutions to regulatory
compliance issues.
ENERGY EFFICIENCY
With the Federal Energy Independence and Security Act effective January 1, 2009, states are rapidly adopting energy legislation limiting the use of probe
start sources in favor of higher efficiency options. Pulse start technology is being embraced for its efficacy, extended life, high lumen maintenance, and
color consistency. The increased color rendering of a pulse start lamp improves visibility and heightens the overall safety and security of the site. Higher
lumen maintenance levels reduce the number of fixtures needed to achieve a consistent light level over the fixture’’s installed life. Initial savings are
compounded by decreased energy consumption and less frequent maintenance requirements. By supporting a full array of both horizontal and vertical
lamp distributions, Talon offers the broadest selection of energy saving pulse start solutions.
CURFEW COMPLIANCE
Certain regulatory documents incorporate energy saving measures beyond standard source efficacy, including curfew regulations calling for close
of business site lighting power reduction. When alternating luminaires are turned off to accomplish the reduction, site lighting uniformity is greatly
reduced, compromising visibility and the feeling of security. The Talon Hi/Low [HL] option enables curfew compliance through an integrated
dimming relay internal to the housing that reduces power while closely maintaining critical-to-safety site lighting uniformity levels.
Lumen Output Over Time
Hours of Operation [4000 hours ~ 1 year]
0 2000 4000 6000 8000 10000
750W Pulse Start MH 1000W Probe Start MH
12000 14000 1800016000
120
100
80
60
40
20
0
Lumen Output [In Thousands]
Alternating Fixture Switching
Hi/Low Dimming

11

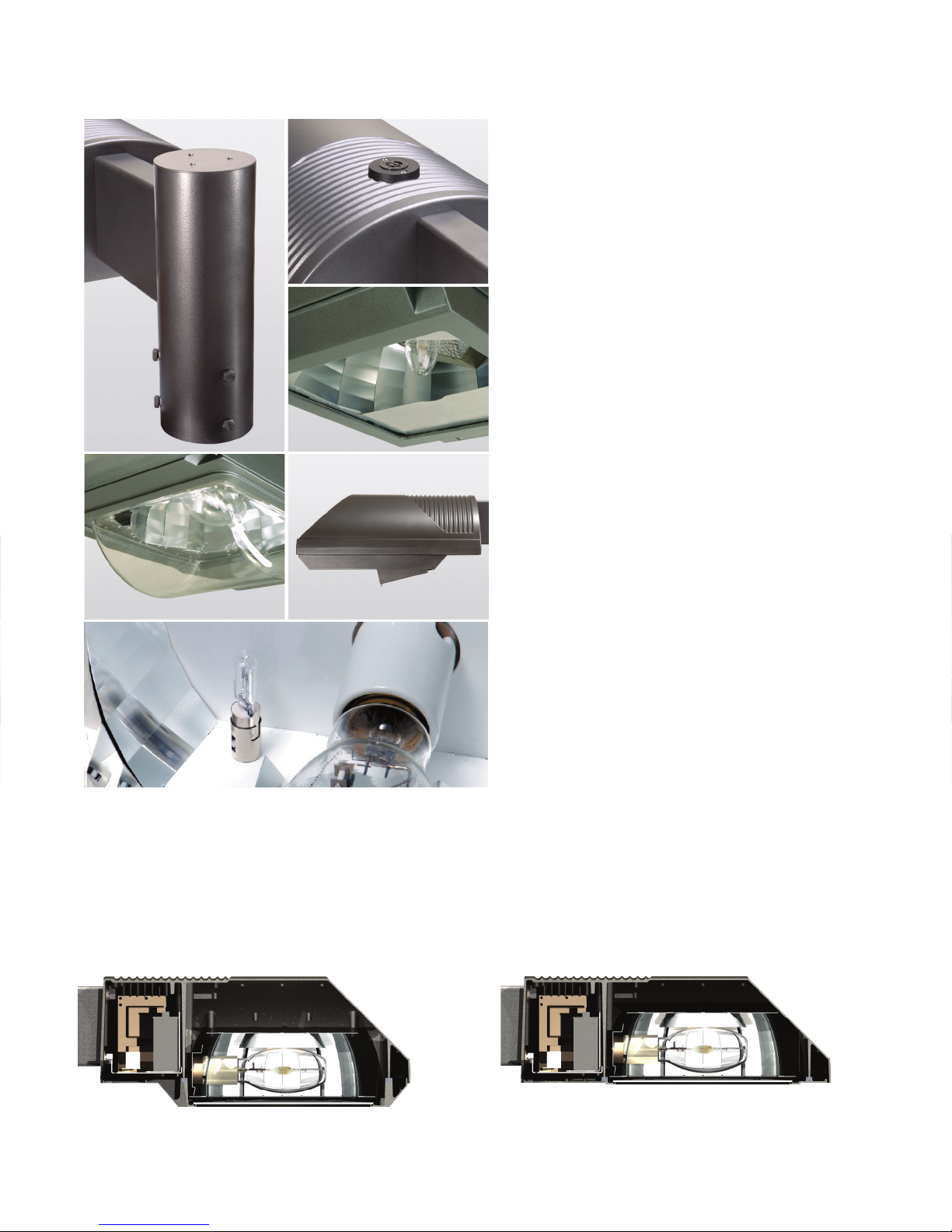

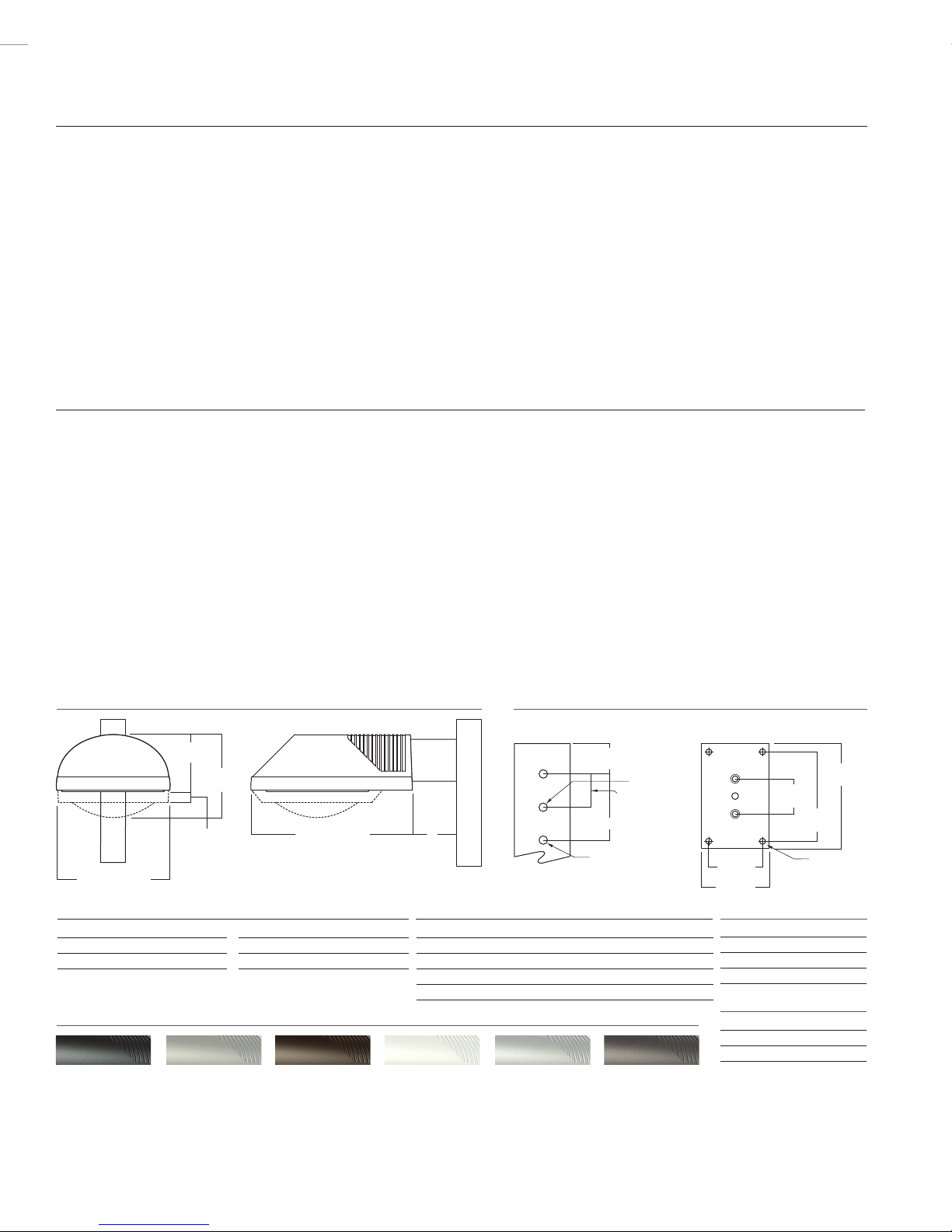

12 SPECIFICATION FEATURES
MOUNTING
Extruded 8" [TMU Talon Medium] or 10
1/2" [TLU Talon Large] aluminum arm
includes internal bolt guides allowing
for easy positioning of fixture during
installation to pole or wall surface.
Standard single carton packaging of
housing, square pole arm and round
pole adapter for contractor friendly
arrival of product on site.
CONSTRUCTION
Heavy-wall, die-cast low-copper alloy
aluminum construction with integral
reveal channels along top surface of
housing to promote heat extraction and
prolong electrical component life. Internal
cast-in wall separates optical and electrical
chambers, allowing components to operate
cooler. One-piece heavy-wall, die-cast
aluminum door frame with integral cast-in
gasket channel seals optical chamber to an
IP65 rating. Stainless steel latches and
hinges.
OPTICAL SYSTEMS
Choice of fourteen [14] high efficiency
optical systems utilizing horizontal and
vertical lamp orientations, including five [5]
optional high efficiency segmented optical
systems constructed of premium 95%
reflective anodized aluminum sheet.
Optical segments are rigidly mounted
inside a thick gauge aluminum housing for
superior protection. All segment faces are
clean of rivet heads, tabs or other means
of attachment which may cause streaking
in the light distribution. Standard with
mogul-base socket for HPS and
175-1000W MH. Standard with
medium-base socket for 150W MH and
below. All optical modules feature quick
disconnect wiring plugs and are field
rotatable in 90° increments.
ELECTRICAL
TMU offered standard with ballast and
related electrical componentry hard
mounted to die-cast housing for optimal
heat transfer and improved operating
efficiency. TMU optional and TLU standard,
electrical componentry mounted to a
swing-down galvanized steel power tray
with integral handle. Electrical disconnects
allow tray to be completely removed from
the housing providing ample hand and
tool room for attachment of fixture during
installation.
Lamp Standard Door 70-200W 250-400W Lamp 250-1000W
Distribution Orientation Configuration Lens Type Lens Type Orientation Lens Type
2F Horizontal Recessed Flat/Sag Flat/Sag Horizontal Flat/Sag
2S Horizontal Recessed Flat/Sag Flat/Sag Horizontal Flat/Sag
3F Horizontal Recessed Flat/Sag Flat/Sag Horizontal Flat/Sag
3S Horizontal Recessed Flat/Sag Flat/Sag Horizontal Flat/Sag
4F Horizontal Recessed Flat/Sag Flat/Sag Horizontal Flat/Sag
4S Horizontal Recessed Flat/Sag Flat/Sag Horizontal Flat/Sag
5F Horizontal Recessed Flat/Sag Flat/Sag Horizontal Flat/Sag
5S Horizontal Recessed Flat/Sag Flat/Sag Horizontal Flat/Sag
SL Horizontal Recessed Flat/Sag Flat/Sag Horizontal Flat/Sag
AR Vertical Deep Flat/Sag Sag Vertical Flat/Sag
AS Vertical Deep Flat/Sag Sag Vertical Flat/Sag
3V Vertical Deep Flat/Sag Sag Vertical Flat/Sag
4V Vertical Deep Flat/Sag Sag Vertical Flat/Sag
AF Horizontal Recessed Flat/Sag Flat/Sag Vertical Flat/Sag
TALON MEDIUM [TMU] TALON LARGE [TLU]

FINISH
Housing and arm finished in a 5 stage
premium TGIC polyester powder coat
paint, 2.5 mil nominal thickness for
superior protection against fade and
wear. Standard colors include black,
bronze, grey, white, dark platinum,
and graphite metallic.
MOUNTING CONFIGURATIONS
Talon is available in seven [7] unique luminaire mounting configurations.
NOTE: In Flat Glass configurations only.
DRILLING PATTERNS
Type “M” Wall Mount
3/4" [20mm]
dia. hole
[2] 5/8" [16mm]
dia. holes
4 7/8" [124mm]
2 7/16" [124mm]
2 5/16"
[59mm] 12"
[305mm]
4 7/8"
[124mm]
9/16" [14mm]
Dia. Hole [4]
6 1/2"
[165mm]
8"
[203mm]
10 1/2"
[267mm]
IP65 Rated
CSA Listed
Certifications
U.L. 1598 Listed ISO 9001
25°C Ambient
GM
Graphite Metallic
WH
White
DP
Dark Platinum
BZ
Bronze
BK
Black
AP
Grey
Wall Mount Arm Mount Single
E.P.A.
TMU
Recessed Door 1.22
Deep Door 1.45
TLU 2.51
Arm Mount 2 @ 180°
E.P.A.
TMU
Recessed Door 2.44
Deep Door 2.90
TLU 5.02
Arm Mount 2 @ 90°
E.P.A.
TMU
Recessed Door 2.44
Deep Door 2.90
TLU 5.02
Arm Mount 3 @ 120°
E.P.A.
TMU
Recessed Door 3.23
Deep Door 3.92
TLU 6.85
Arm Mount 3 @ 90°
E.P.A.
TMU
Recessed Door 3.23
Deep Door 3.92
TLU 6.85
Arm Mount 4 @ 90°
E.P.A.
TMU
Recessed Door 3.63
Deep Door 4.43
TLU 7.77

[Arm Mount] [WM]
13
14
OPTIONS + ACCESSORIES
ARM MOUNT
Standard 8" [TMU] or 10 1/2" [TLU]
extruded aluminum arm features internal
bolt guides for twin support rods. Round
pole mounting accommodated by utilizing
provided round pole adapter between the
fixture arm and pole shaft.
EXTERNAL MAST ARM ADAPTER [MS]
Cast aluminum mast arm adapter secures
fixture head to nominal 2" [2 3/8" O.D. pipe
size] horizontal steel tenon arm. Adapter
casting slip fits over tenon arm and is
secured via two [2] stainless steel bolts.
WALL BRACKET [WM]
Wall bracket secured to wall via four [4] lag
bolts [lag bolts supplied by other]. Wall
bracket kit includes 1/2" thick steel adapter
plate, a 8" [TMU] or 10 1/2" [TLU] machined
extruded aluminum arm and two [2] fixture
support rods.
TENON ADAPTER
Tenon adapters available to slip fit over poles
equipped with nominal 2" pipe size steel tenon
[2 3/8" O.D., 4" length] or nominal 3" pipe size
steel tenons [3 1/2" O.D., 5" length]. Adapter
secures to tenon via six [6] stainless steel
bolts. For complete configuration availability,
see Tenon Adapters on page 14.
POLYCARBONATE VANDAL SHIELD [V]
Internally mounted 3/16" thick molded
polycarbonate lens, treated with UV inhibitor
to discourage the gradual discoloration that
results from exposure to sunlight and UV
radiating sources.
QUARTZ RESTRIKE [Q + E]
Optional quartz restrike [Q] energizes auxiliary
quartz lamp upon power reactivation and
extinguishes once HID lamp re-ignites.
Quartz restrike with time delay [E] adds
cold start activation.
PHOTOCONTROL RECEPTACLE [4]
Fixtures available with gasketed photocontrol
receptacle for mounting a standard NEMA
photocontrol [ordered separately]. Medium
housing also available with a button-style
photocontrol [P].
INTERNAL HOUSE-SIDE SHIELD [B]
Internal house-side shield reduces light
concentration behind the pole while
maintaining street side efficiency. Internal
house-side shields available on Type II, III, IV
and AF distributions.
EXTERNAL HOUSE-SIDE SHIELD
[MA1213-XX + MA1214-XX]
External house-side shield provides sharp
cutoff behind the pole and shields the lamp
from direct view. Mounted to the door frame
via double-sided VHB adhesive [TMU] or three
[3] stainless steel fasteners [TLU]. Rotatable in
90° increments, the external house-side shield
provides industry leading glare and spill light
control.
[MS]

OPTIONS
[Factory installed and shipped complete with luminaire]
Electrical
1=Single Fuse [120, 277 or 347V]
2=Double Fuse [208, 240 or 480V]
3=3 Place Terminal Block
4=NEMA Twistlock Photocontrol Receptacle
E=Quartz Restrike w/Delay [Also Strikes at Cold Start]
H=Plug-in Starter Receptacle
HL=Hi/Low Dimming [Vertical Optics Only]
P=Button Type Photocontrol [TMU Only]
Q=Quartz Restrike [Hot Restrike Only]
R=Removable Power Tray [Standard on TLU]
U=U.L. Listed
Shields + Doors
B=Internal House Side Shield
DD=Deep Door [TMU Only]
V=Polycarbonate Vandal Shield [TMU Only]
Mounting
DM=Direct Mount for Round or Square Pole
DW=Direct Wall Mount Kit
MS=External Mast Arm Adapter [TMU Only]
WM=Wall Bracket with Arm
ACCESSORIES
[Field installed and shipped independent of luminaire]
Electrical
OA/RA1016=NEMA Photocontrol [105-285V]
OA/RA1027=NEMA Photocontrol [480V]
OA/RA1201=NEMA Photocontrol [347V]
OA/RA1013=Shorting Cap
Tenon Adapters
MA1010-XX=Single Tenon Adapter for 3 1/2" O.D. Tenon
MA1011-XX=2 @ 180° Tenon Adapter for 3 1/2" O.D. Tenon
MA1012-XX=3 @ 120° Tenon Adapter for 3 1/2" O.D. Tenon
MA1013-XX=4 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1014-XX=2 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1015-XX=2 @ 120° Tenon Adapter for 3 1/2" O.D. Tenon
MA1016-XX=3 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1017-XX=Single Tenon Adapter for 2 3/8" O.D. Tenon
MA1018-XX=2 @ 180° Tenon Adapter for 2 3/8" O.D. Tenon
MA1019-XX=3 @ 120° Tenon Adapter for 2 3/8" O.D. Tenon
MA1045-XX=4 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
MA1048-XX=2 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
MA1049-XX=3 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
Shields
MA1213-XX=External House-side Shield Kit [TMU Only]
MA1214-XX=External House-side Shield Kit [TLU Only]
DEEP DOOR [DD]
Medium housing vertically lamped optics are
shipped standard with Deep Door. For sites
combining horizontal and vertical optics, specify
the Deep Door [DD] option on horizontal lamp
fixtures to maintain a uniform outward aesthetic.
Reflector shifted downward toward the lens to
maintain optimal photometric performance
[TMU only].
Horizontal optic in recessed door position.
[MA1213 + MA1214]
[B]
[4]
[Tenon Adapter]
[V]
[Q + E]
Horizontal optic in deep door position.

15
16 PHOTOMETRICS [Complete IES files available at www.cooperlighting.com]
FOOTCANDLE TABLE
Select mounting height and read across for
footcandle values of each isofootcandle
line. Distance in units of mounting height.
Mounting Footcandle Values for
Height Isofootcandle Lines
AB C D E
100W [3F]
15' 3.40 1.70 0.86 0.34 0.17
20' 2.00 1.00 0.50 0.20 0.10
25' 1.28 0.64 0.32 0.13 0.06
150W [4V]/175W [3V/AS]
15' 1.70 0.85 0.34 0.17 --
20' 1.00 0.50 0.20 0.10 --
25' 0.64 0.32 0.13 0.06 --
ABCDE
TMU10SXX3FF
100-Watt HPS
9,500-Lumen Clear Lamp
Type III Formed
Flat Glass
ABCD
TMU15SXX4VS
150-Watt HPS
16,000-Lumen Clear Lamp
Type IV Vertical
Sag Glass
AB CD
TMU17MXX3VF
175-Watt MH
14,000-Lumen Clear Lamp
Type III Vertical
Flat Glass
AB CD
TMU17MXXASF
175-Watt MH
14,000-Lumen Clear Lamp
Area Square
Flat Glass
FOOTCANDLE TABLE
Select mounting height and read across for
footcandle values of each isofootcandle
line. Distance in units of mounting height.
Mounting Footcandle Values for
Height Isofootcandle Lines
AB C D E
250W [5F/SL]/400W [3S]
25' 2.88 1.44 0.72 0.29 0.14
30' 2.00 1.00 0.50 0.20 0.10
35' 1.46 0.73 0.37 0.15 0.07
250W [AS]
25' 1.44 0.72 0.29 0.14 --
30' 1.00 0.50 0.20 0.10 --
35' 0.73 0.37 0.15 0.07 --
AB C DE
TMU25SXX5FF
250-Watt HPS
30,000-Lumen Clear Lamp
Type V Formed
Flat Glass
AB CD
TMU25SXXASS
250-Watt HPS
30,000-Lumen Clear Lamp
Area Square
Sag Glass
ABCDE
TMU25MXXSLF
250-Watt MH
20,500-Lumen Clear Lamp
Spill Light Eliminator
Flat Glass
ABCDE
TMU40MXX3SF
400-Watt MH
36,000-Lumen Clear Lamp
Type III Segmented
Flat Glass
FOOTCANDLE TABLE
Select mounting height and read across for
footcandle values of each isofootcandle
line. Distance in units of mounting height.
Mounting Footcandle Values for
Height Isofootcandle Lines
AB C D E
400W [3V/4V/5S/AR]
20' 3.00 1.50 0.75 0.30 0.15
25' 2.00 1.00 0.50 0.20 0.10
30' 1.38 0.69 0.34 0.13 0.06
AB C DE
TMU40MXX3VS
400-Watt MH
36,000-Lumen Clear Lamp
Type III Vertical
Sag Glass
ABCDE
TMU40MXX4VS
400-Watt MH
36,000-Lumen Clear Lamp
Type IV Vertical
Sag Glass
AB CDE
TMU40MXX5SF
400-Watt MH
36,000-Lumen Clear Lamp
Type V Segmented
Flat Glass
ABCDE
TMU40MXXARF
400-Watt MH
36,000-Lumen Clear Lamp
Area Round
Flat Glass
FOOTCANDLE TABLE
Select mounting height and read across for
footcandle values of each isofootcandle
line. Distance in units of mounting height.
Mounting Footcandle Values for
Height Isofootcandle Lines
AB C D E
400W [2F/3VB/5F/AR]
25' 2.88 1.44 0.72 0.29 0.14
30' 2.00 1.00 0.50 0.20 0.10
35' 1.46 0.73 0.37 0.15 0.07
ABCDE
TMU40SXX2FF
400-Watt HPS
50,000-Lumen Clear Lamp
Type II Formed
Flat Glass
ABCDE
TMU40SXX3VSB
400-Watt HPS
50,000-Lumen Clear Lamp
Type III Vertical Sag Glass
Internal House-side Shield
ABCDE
TMU40SXX5FF
400-Watt HPS
50,000-Lumen Clear Lamp
Type V Formed
Flat Glass
ABCDE
TMU40SXXARS
400-Watt HPS
50,000-Lumen Clear Lamp
Area Round
Sag Glass

PHOTOMETRICS [Complete IES files available at www.cooperlighting.com]
FOOTCANDLE TABLE
Select mounting height and read across for
footcandle values of each isofootcandle
line. Distance in units of mounting height.
Mounting Footcandle Values for
Height Isofootcandle Lines
AB C D E
400W [3F/4F/3V]
25' 2.88 1.44 0.72 0.29 0.14
30' 2.00 1.00 0.50 0.20 0.10
35' 1.46 0.73 0.37 0.15 0.07
400W [AR]
25' 1.44 0.72 0.29 0.14 --
30' 1.00 0.50 0.20 0.10 --
35' 0.73 0.37 0.15 0.07 --
ABCDE
TLU40SXX3VF
400-Watt HPS
50,000-Lumen Clear Lamp
Type III Vertical
Flat Glass
AB C DE
TLU40MXX3FF
400-Watt MH
36,000-Lumen Clear Lamp
Type III Formed
Flat Glass
ABC DE
TLU40SXX4FF
400-Watt HPS
50,000-Lumen Clear Lamp
Type IV Formed
Flat Glass
AB C D
TLU40MXXARS
400-Watt MH
36,000-Lumen Clear Lamp
Area Round
Sag Glass
FOOTCANDLE TABLE
Select mounting height and read across for
footcandle values of each isofootcandle
line. Distance in units of mounting height.
Mounting Footcandle Values for
Height Isofootcandle Lines
AB C D E
400W [AR]/1000W [3F]
25' 2.88 1.44 0.72 0.29 0.14
30' 2.00 1.00 0.50 0.20 0.10
35' 1.46 0.73 0.37 0.15 0.07
1000W [SL/3V]
25' 7.20 2.88 1.44 0.72 0.29
30' 5.00 2.00 1.00 0.50 0.20
35' 3.65 1.46 0.73 0.37 0.15
ABC DE
TLU40SXXARF
400-Watt HPS
50,000-Lumen Clear Lamp
Area Round
Flat Glass
ABC ED
TLU40SXXSLF
400-Watt HPS
50,000-Lumen Clear Lamp
Spill Light Eliminator
Flat Glass
ABC D E
TLU91SXX3FF
1000-Watt HPS
135,000-Lumen Clear Lamp
Type III Formed
Flat Glass
ABCDE
TLU91MXX3VF
1000-Watt MH
110,000-Lumen Clear Lamp
Type III Vertical
Flat Glass
FOOTCANDLE TABLE
Select mounting height and read across for
footcandle values of each isofootcandle
line. Distance in units of mounting height.
Mounting Footcandle Values for
Height Isofootcandle Lines
AB C D E
1000W [3V-EHS (HPS)/5F]
25' 2.88 1.44 0.72 0.29 0.14
30' 2.00 1.00 0.50 0.20 0.10
35' 1.46 0.73 0.37 0.15 0.07
1000W [3V-EHS (MH)/4VB]
25' 7.20 2.88 1.44 0.72 0.29
30' 5.00 2.00 1.00 0.50 0.20
35' 3.65 1.46 0.73 0.37 0.15
AB CDE
TLU91MXX3VFEHS
1000-Watt MH
110,000-Lumen Clear Lamp
Type III Vertical Flat Glass
External House-side Shield
ABC D F
TLU91SXX3VFEHS
1000-Watt HPS
135,000-Lumen Clear Lamp
Type III Vertical Flat Glass
External House-side Shield
ABCDE
TLU91MXX4VFB
1000-Watt MH
110,000-Lumen Clear Lamp
Type IV Vertical Flat Glass
House-side Shield
ABCDF
TLU91SXX5FF
1000-Watt HPS
135,000-Lumen Clear Lamp
Type V Formed
Flat Glass
FOOTCANDLE TABLE
Select mounting height and read across for
footcandle values of each isofootcandle
line. Distance in units of mounting height.
Mounting Footcandle Values for
Height Isofootcandle Lines
AB C D E
1000W [4V/SL/AS]
25' 2.88 1.44 0.72 0.29 0.14
30' 2.00 1.00 0.50 0.20 0.10
35' 1.46 0.73 0.37 0.15 0.07
1000W [AF]
25' 30.00 10.00 3.00 1.00 0.20
27' 25.50 8.50 2.55 0.85 0.17
30' 20.70 6.90 2.07 0.69 0.14
ABC D E
TLU91SXX4VFB
1000-Watt HPS
135,000-Lumen Clear Lamp
Type IV Vertical Flat Glass
Internal House-side Shield
ABCDE
TLU91MXXSLF
1000-Watt MH
110,000-Lumen Clear Lamp
Spill Light Eliminator
Flat Glass
ABCD E
TLU91MXXASF
1000-Watt MH
110,000-Lumen Clear Lamp
Area Square
Flat Glass
ABCDE
TLU91MXXAFF
1000-Watt MH
110,000-Lumen Clear Lamp
Automotive Front Row
Flat Glass

17
18 TMU TALON MEDIUM
ORDERING INFORMATION
SAMPLE NUMBER: TMU40SWW3SF
VOLTAGE
2=120V
0=208V
4=240V
7=277V
8=480V
9=347V
N=Multi-Tap
wired 277V
W=Multi-Tap
wired 120V
V=Multi-Tap
wired 240V
BALLAST TYPE
C=CWI
H=Reac./HPF
K=10KV CWA
N=Hi. Reac./NPF
P=Hi. Reac./HPF
R=Reac./NPF
W=CWA
DISTRIBUTION
Horizontal Lamp
2F=Type II Formed
2S=Type II Segmented
3F=Type III Formed
3S=Type III Segmented
4F=Type IV Formed
4S=Type IV Segmented
5F=Type V Formed
5S=Type V Segmented
SL=Spill Light Eliminator
AF=Automotive Front Row
Vertical Lamp
3V=Type III Vertical 5
4V=Type IV Vertical 5
AR=Area Round 5
AS=Area Square 5
LENS TYPE
F=Flat Glass
S=Sag Glass
COLOR
[add as suffix
/must specify]
WH=White
BK=Black
AP=Grey
BZ=Bronze
DP=Dark Platinum
GM=Graphite Metallic
PRODUCT
FAMILY 1
TMU=Talon
Site
Medium
LAMP TYPE
S=High
Pressure
Sodium
R=Super Metal
Halide
M=Metal
Halide
P=Pulse Start
Metal Halide
LAMP
WATTAGE 2
70=70W
10=100W
15=150W
17=175W
20=200W
25=250W
32=320W 3, 4
35=350W 3, 4
40=400W 4
24=250/400W
wired 250W
42=250/400W
wired 400W
OPTIONS [add as suffix]
1=Single Fuse [120, 277 or 347V] 6
2=Double Fuse [208, 240 or 480V] 6
3=Three Place Terminal Block
4=NEMA Twistlock Photocontrol Receptacle
B=Internal House-side Shield 7
DD=Deep Door
DM=Direct Mount for Round or Square Pole
DW=Direct Wall Mount Kit
E=Quartz Restrike w/Delay [Also Strikes at Cold Start] 8
H=Plug-in Starter Receptacle
HL=Hi/Low Dimming 9
L=Lamp Included
MS=External Mast Arm Adapter
P=Button Type Photocontrol [120, 208, 240 or 277V] 6
Q=Quartz Restrike [Hot Restrike Only] 8
R=Removable Power Tray
U=U.L. Listed
V=Polycarbonate Vandal Shield
WM=Wall Bracket with 8" Arm
OPTIONS + ACCESSORIES [must be ordered in alphanumeric order]
ACCESSORIES [order separately/replace XX with color designation]
OPTIONS +
ACCESSORIES
[See Below]
NOTES: 1 8" arm and round pole adapter included with fixture. 2Standard with mogul-base socket for HPS and 100-400W MH. Standard with medium-base socket for 70W MH. 3320/350W Pulse Start Metal Halide
lamp only. 4Requires reduced envelope lamp. 5Vertical lamp optics ship standard with deep door. Flat glass not available for 250W—400W. 6Must specify voltage. 7House-side shield not available on 5S,
5F, AS, AR and SL optics. 8Quartz options not available with SL and AF optics. 9Requires vertical lamp orientation. Provides 24V low voltage leads used in dimming controls. 10 Specifications and
dimensions subject to change without notice.
Lamp Type Wattage
Metal Halide 175, 250, 400W
Pulse Start Metal Halide 70, 100, 150, 175, 200, 250, 320, 350, 400W
Super Metal Halide 175, 250, 400W
High Pressure Sodium 70, 100, 150, 250, 400W
DIMENSIONS
WATTAGE TABLE
IP65 Rated
25° C Ambient Temperature
U.L. 1598 Listed
CSA Listed
ISO 9001
FCO [Full Cutoff] Flat Glass Only
CERTIFICATIONS
STANDARD COLORS
GM
Graphite Metallic
WH
White
DP
Dark Platinum
BZ
Bronze
BK
Black
AP
Grey
DRILLING PATTERNS
TYPE “M” WALL MOUNT
3/4" [20mm]
dia. hole
[2] 5/8" [16mm]
dia. holes
4 7/8" [124mm]
2 7/16" [124mm]
2 5/16"
[59mm] 12"
[305mm]
4 7/8"
[124mm]
9/16" [14mm]
Dia. Hole [4]
6 1/2"
[165mm]
8"
[203mm]
10 1/2"
[267mm]
11 7/8"
[302mm]
8"
[203mm]
1 3/4"
[45mm]
16 1/4" [412mm]
23 1/4" [590mm] 8"
[203mm]
Effective Projected Area
Recessed Door w/o Arm: 0.79
Deep Door w/o Arm: 1.02
8" Arm: 0.43
EPA
Approximate Net Weight
Recessed Door 47 lbs. [21.79 kgs.]
Deep Door 52 lbs. [23.63 kgs.]
SHIPPING DATA
OA/RA1016=NEMA Photocontrol [105-285V]
OA/RA1027=NEMA Photocontrol [480V]
OA/RA1201=NEMA Photocontrol [347V]
OA/RA1013=Shorting Cap
MA1010-XX=Single Tenon Adapter for 3 1/2" O.D. Tenon
MA1011-XX=2 @ 180° Tenon Adapter for 3 1/2" O.D. Tenon
MA1012-XX=3 @ 120° Tenon Adapter for 3 1/2" O.D. Tenon
MA1013-XX=4 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1014-XX=2 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1015-XX=2 @ 120° Tenon Adapter for 3 1/2" O.D. Tenon
MA1016-XX=3 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1017-XX=Single Tenon Adapter for 2 3/8" O.D. Tenon
MA1018-XX=2 @ 180° Tenon Adapter for 2 3/8" O.D. Tenon
MA1019-XX=3 @ 120° Tenon Adapter for 2 3/8" O.D. Tenon
MA1045-XX=4 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
MA1048-XX=2 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
MA1049-XX=3 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
MA1213-XX=External House-side Shield Kit [EPA=0.38]

COLOR
[add as suffix
/must specify]
WH=White
BK=Black
AP=Grey
BZ=Bronze
DP=Dark Platinum
GM=Graphite Metallic
TLU TALON LARGE
ORDERING INFORMATION
SAMPLE NUMBER: TLU91SWW3VF
BALLAST TYPE
C=CWI
H=Reac./HPF
K=10KV CWA
M=Mag. Reg.
N=Hi. Reac./NPF
P=Hi. Reac./HPF
R=Reac./NPF
W=CWA
VOLTAGE
2=120V
0=208V
4=240V
7=277V
8=480V
9=347V
N=Multi-Tap
wired 277V
W=Multi-Tap
wired 120V
V=Multi-Tap
wired 240V
DISTRIBUTION
Horizontal Lamp
2F=Type II Formed
2S=Type II Segmented 4
3F=Type III Formed
3S=Type III Segmented 4
4F=Type IV Formed
4S=Type IV Segmented 4
5F=Type V Formed
5S=Type V Segmented 4
SL=Spill Light Eliminator 3
Vertical Lamp
3V=Type III Vertical
4V=Type IV Vertical
AR=Area Round
AS=Area Square
AF=Automotive Front Row
LENS TYPE
F=Flat Glass
S=Sag Glass
PRODUCT
FAMILY 1
TLU=Talon
Site
Large
LAMP TYPE
S=High
Pressure
Sodium
R=Super Metal
Halide
M=Metal
Halide
P=Pulse Start
Metal Halide
LAMP
WATTAGE
25=250W
32=320W 2
35=350W 2
40=400W
75=750W
87=875W 2
91=1000W 3
Lamp Type Wattage
Metal Halide 250, 400, 1000W
Pulse Start Metal Halide 250, 320, 350, 400, 450, 750, 875, 1000W
Super Metal Halide 250, 400, 750, 1000W
High Pressure Sodium 250, 400, 1000W
OPTIONS [add as suffix]
1=Single Fuse [120, 277 or 347V] 5
2=Double Fuse [208, 240 or 480V] 5
3=Three Place Terminal Block
4=NEMA Twistlock Photocontrol Receptacle
B=Internal House-side Shield 6
DM=Direct Mount for Pole
E=Quartz Restrike w/Delay [Also Strikes at Cold Start] 7
H=Plug-in Starter Receptacle 8
HL=Hi/Low Dimming 9
L=Lamp Included
Q=Quartz Restrike [Hot Restrike Only] 7
U=U.L. Listed
WM=Wall Bracket with 10 1/2" Arm
OA/RA1016=NEMA Photocontrol [105-285V]
OA/RA1027=NEMA Photocontrol [480V]
OA/RA1201=NEMA Photocontrol [347V]
OA/RA1013=Shorting Cap
MA1010-XX=Single Tenon Adapter for 3 1/2" O.D. Tenon
MA1011-XX=2 @ 180° Tenon Adapter for 3 1/2" O.D. Tenon
MA1012-XX=3 @ 120° Tenon Adapter for 3 1/2" O.D. Tenon
MA1013-XX=4 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1014-XX=2 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1015-XX=2 @ 120° Tenon Adapter for 3 1/2" O.D. Tenon
MA1016-XX=3 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1017-XX=Single Tenon Adapter for 2 3/8" O.D. Tenon
MA1018-XX=2 @ 180° Tenon Adapter for 2 3/8" O.D. Tenon
MA1019-XX=3 @ 120° Tenon Adapter for 2 3/8" O.D. Tenon
MA1045-XX=4 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
MA1048-XX=2 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
MA1049-XX=3 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
MA1214-XX=External House-side Shield Kit [EPA=0.94]
OPTIONS + ACCESSORIES [must be ordered in alphanumeric order]
DIMENSIONS
WATTAGE TABLE
IP65 Rated
25° C Ambient Temperature
U.L. 1598 Listed
CSA Listed
ISO 9001
FCO [Full Cutoff] Flat Glass Only
CERTIFICATIONS
DRILLING PATTERNS
TYPE “M” WALL MOUNT
ACCESSORIES [order separately/replace XX with color designation]
OPTIONS +
ACCESSORIES
[See Below]
NOTES: 1 10 1/2" arm and round pole adapter included with fixture. 2320/350/875W Pulse Start Metal Halide lamp only. 3Requires reduced envelope lamp. 4Maximum wattage on segmented optical
distributions is 400W. 400W Metal Halide lamp must use reduced envelope ED-28 lamp. 5Must Specify Voltage. 6House-side shield not available on 5S, 5F, AS, AR and SL optics. 7Quartz options not
available with SL and AF optics. 8Not available in 1000W. 9Requires vertical lamp orientation. Provides 24V low voltage leads used in dimming control. 10 Specifications and dimensions subject to change
without notice.
STANDARD COLORS
GM
Graphite Metallic
WH
White
DP
Dark Platinum
BZ
Bronze
BK
Black
AP
Grey
3/4" [20mm]
dia. hole
[2] 5/8" [16mm]
dia. holes
4 7/8" [124mm]
2 7/16" [124mm]
2 5/16"
[59mm] 12"
[305mm]
4 7/8"
[124mm]
9/16" [14mm]
Dia. Hole [4]
6 1/2"
[165mm]
8"
[203mm]
10 1/2"
[267mm]
3 1/8"
[79mm]
14 1/8"
[359mm]
21 5/8" [549mm]
31" [787mm] 10 1/2"
[267mm]
Effective Projected Area
Without Arm: 1.82
10 1/2" Arm: 0.6
EPA
Approximate Net Weight
400W 91 lbs. [41.36 kgs.]
1000W 98 lbs. [44.54 kgs.]
SHIPPING DATA

Cooper Lighting
Customer First Center
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
F: 770-486-4801
www.cooperlighting.com
International Sales, USA
Cooper Lighting
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
F: 770-486-4801
Canada
Cooper Lighting
5925 McLaughlin Road
Mississauga, Ontario L5R 1B8
P: 905-507-4000
F: 905-568-7049
The Cooper Lighting Family
Halo
Metalux
Lumark
Sure-Lites
Neo-Ray
Corelite
Portfolio
Iris
Shaper
io
Lumière
Invue
McGraw-Edison
Streetworks
Fail-Safe
MWS
DLS
RSA
Ametrix
Printed in USAADW080322
Domestic Facilities
Cranbury, New Jersey
Elk Grove Village, Illinois
Irving, Texas
Ontario, California
Peachtree City, Georgia
Canadian Facility
Calgary, Alberta T2E 7V9
Cooper Industries, Ltd.
600 Travis, Ste. 5800
Houston, TX 77002-1001
P: 713-209-8400
www.cooperindustries.com
Cooper Lighting, Streetworks, Talon and Accel Optics are valuable trademarks of Cooper Industries in the United States and other countries.
You are not permitted to use the Cooper Trademarks without the prior written consent of Cooper Industries.
