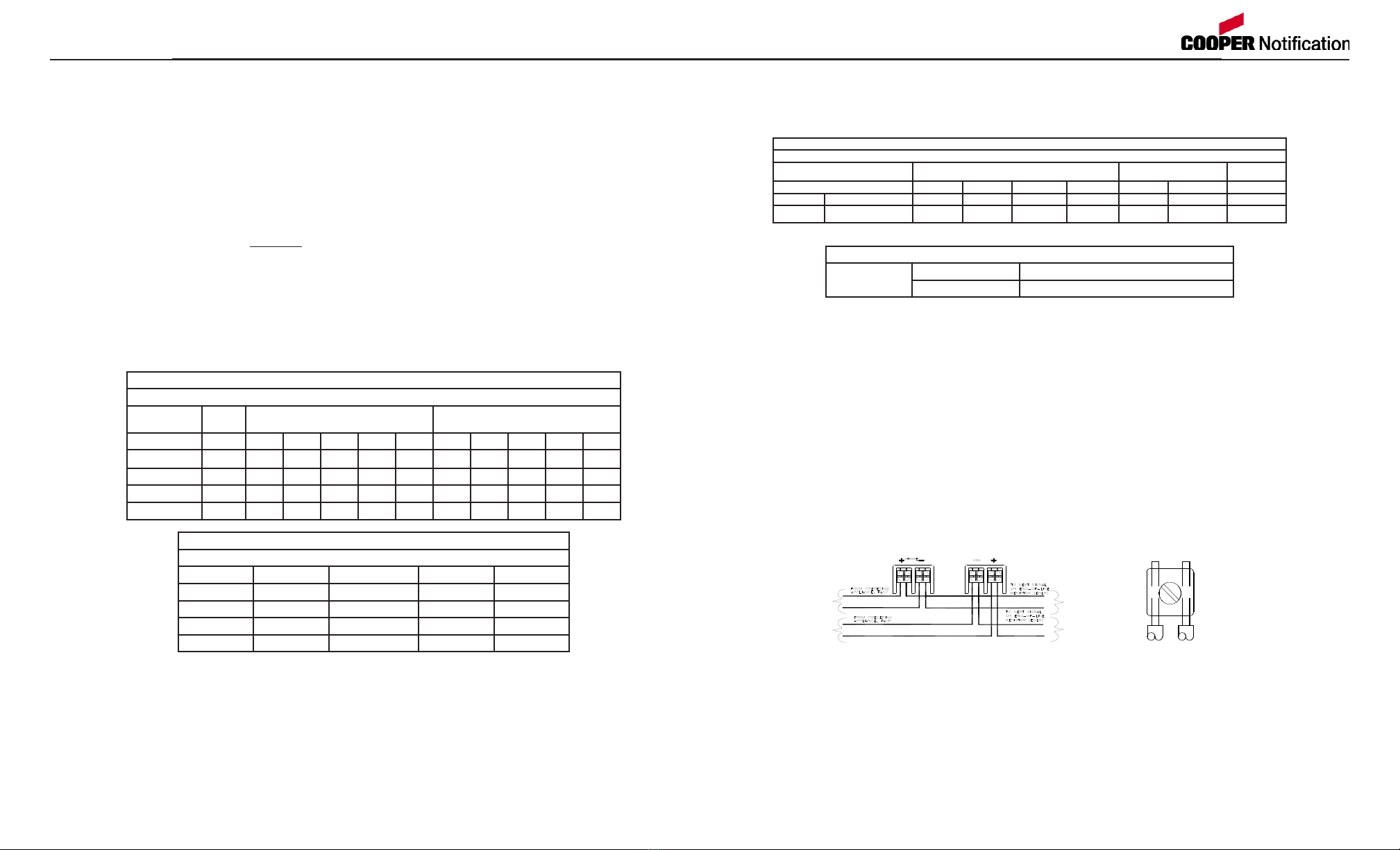

Cooper Notification E50H-241575W User manual

273 Branchport Ave.
Long Branch, N.J. 07740
[phone]
www.coopernotification.com
1
PN P85324C Copyright 2015 Cooper Wheelock, Inc. dba Cooper Notication
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
GENERAL
The Wheelock E50H Series High-Fidelity Multi-Candela Speaker Strobes are UL Listed under Standard 1971 for Signaling Devices for the Hearing Impaired, UL Standard 1480
for Speaker Appliances and ULC Listed under Standard CAN/ULC-S541-07 and CAN/ULC-S526-07 for indoor Fire Protective Service. Speaker strobes with amber, blue, green
and red lens are UL Listed under Standard 1638 (Visual Signaling Appliance) for Private Mode Emergency and General Utility Signaling. They are designed for multiple power
requirements with high dBA output at each power tap. Series E50H, High Fidelity Speakers, are UL Listed under UL Standard 1480 and ULC Listed under Standard CAN/
ULC-S541-07 for Speaker Appliances. All models offer a choice of field selectable taps, 1/8W to 2W, for either 25.0 VRMS or 70.0 VRMS audio systems. The design incorporates
a high efficiency speaker for maximum output at minimum power across a frequency range of 300-8000Hz. The Speaker Strobes can provide non-synchronized strobe opera-
tion when connected directly to a Fire Alarm Control Panel (FACP), or provide synchronized strobe operation when used in conjunction with a Dual Sync Module (DSM), or
Wheelock’s Power Supplies. All models are Listed for indoor use only with the backboxes specified in these instructions (see Mounting Options). 1/8W tap setting for Private
Mode only. E50H-241575W is UL Listed only. E50H series speakers are UL rated to meet the NFPA 72 requirement for 520Hz signals in sleeping areas when used
in conjunction with Wheelock Safepath products (see SP40S manual for more details)
NOTE: All Canadian Installations should be in accordance with the Canadian Standard for the Installation of Fire Alarm Systems – CAN/ULC-S524-01 and Canadian Electri-
cal Code, Part 1. Final acceptance is subject to Authorities Having Jurisdiction.
WARNING: This appliance is a “FIRE ALARM DEVICE - DO NOT PAINT.”
WARNING: Please read these instructions carefully. Failure to comply with any of the following instructions, cautions and warnings could result in improper
application, installation and/or operation of these products in an emergency situation, which could result in property damage and serious injury or death to you
and/or others.
SPECIFICATIONS
Table 1A: UL/ULC Listed Models and Ratings
Speaker
Model Voltage dBA at 10 Feet (Rated Watts) Anechoic dBA
Per CAN/ULC-S541-07
25/70 1/8 1/4 1/2 1 2 1/8 1/4 1/2 1 2
E50H 25/70 73 76 79 82 84 74 76 80 83 86
E50H-24MCW 25/70 73 76 79 82 84 74 76 80 83 86
E50H-24MCWH 25/70 73 76 79 82 84 74 76 80 83 86
E50H-241575W 25/70 73 76 79 82 84 n/a n/a n/a n/a n/a
Table 1B: UL/ULC Listed Models and Ratings
Strobe
Model Voltage (VRMS) Regulated Voltage Voltage Range Candela (cd)
25/70 VDC/VRMS VDC/Vrms
E50H-24MCW 25/70 24 16-33 15/30/75/110
E50H-24MCWH 25/70 24 16-33 135/185
E50H-241575W 25/70 24 16-33 15/75
NOTES:
• 1575W models are UL Listed at 15cd and meet 75cd on axis
• Strobes will produce 1 flash per second over the “Regulated Voltage” range.
• All models are Listed for indoor use with a temperature range of +32ºF to +120ºF (0ºC to +49ºC) and maximum humidity of 95% RH. The effect of shipping and storage
temperatures shall not adversely affect the performance of the appliance when it is stored in the original cartons and is not subjected to misuse or abuse.
• dBA is rated per UL Standard 1480 and ULC Standard ULC-S541-07 for Speaker Appliances. Frequency range of speakers is 300-8000Hz.
• These appliances were tested to the operating voltage limits of 16-33 volts using Filtered (DC) or unfiltered Full-Wave-Rectified (FWR). Do not apply 80% and 110% of
these voltage values for system operation.
• Check the minimum and maximum output of the power supply and standby battery and subtract the voltage drop from the circuit wiring resistance to determine the
applied voltage to the strobes.
• Strobes with clear and amber lens meet the required light distribution defined in UL1971.
• Candela ratings are for clear lens. Derate approximately 25% for amber lens, 55% for green, 75% for blue and 80% for red. Model numbers will have a letter after the
H to designate lens color (A, G, B or R).
Table 2: Current Rating for Strobe Only
Maximum RMS Current (AMPS)
UL 24MCW 24MCWH 241575W
Voltage 15cd 30cd 75cd 110cd 135cd 185cd 15/75cd
DC 16-33VDC 0.060 0.092 0.165 0.220 0.300 0.420 0.090
FWR 16-33VRMS 0.102 0.155 0.253 0.347 0.455 0.645 0.145
NOTE: Candela setting will determine the current draw of the product.
Table 3: ULC Directional Characteristics
25/70V -3dBA +/- 19 degrees horizontal; +/- 18 degrees vertical
-6dBA +/- 37 degrees horizontal; +/- 39 degrees vertical
NOTE: The maximum wire impedance between strobes shall not exceed 35 OHMS. The maximum number of strobes on a single notification appliance circuit shall not
exceed 47.
CAUTION: Speaker Strobes are not designed to be used on coded systems in which the applied voltage is cycled on and off.
NOTE: Make sure that the total RMS current required by all appliances that are connected to the system’s primary and secondary power sources, NAC Circuits DSM Sync
Modules or Wheelock Power Supplies do not exceed the power sources’ rated capacity or the current ratings of any fuses on the circuits to which these appliances are
wired.
WARNING: Overloading power sources or exceeding fuse ratings could result in loss of power and failure to alert occupants during an emergency.
When calculating the total currents, use Table 2 to determine the highest value of “RMS Current” for an individual strobe (across the expected operating voltage range of
the strobe), then multiply these values by the total number of strobes; be sure to add the currents for any other appliances, including audible signaling appliances, powered
by the same source and include any required safety factors.
If the peak current exceeds the power supplies’ peak capacity, the output voltage provided by the power supplies may drop below the listed voltage range of the appli-
ances connected to the supply and the voltage may not recover in some types of power supplies. For example, an auxiliary power supply that lacks filtering at its output
stage (either via lack of capacitance and/or lack of battery backup across the output) may exhibit this characteristic.
WIRING INFORMATION
A 1.5µF blocking capacitor for DC supervision of audio lines by the FACP is factory wired in series with the speaker input. Supervision voltage must not exceed 33 volts DC.
1. E50H Speaker Strobe models have in-out wiring terminals that accept two #12 to #18 American Wire Gauge (AWG) wires at each screw terminal. Strip leads 3/8 inches
and connect to screw terminals.
2. Break all in-out wire runs on supervised circuits to assure integrity of circuit supervision as shown in Figure 2. The polarity shown in the wiring diagrams is for operation
of the appliances.
Refer to Sync Module instruction sheets SM (P83123), DSM (P83177) or Wheelock Power Supplies for additional information.
Figure 1 Figure 2
GROUNDING: Connect ground wire to backbox. Install signaling appliance to backbox using mounting screws provided.
NOTE: Check electrical ratings specified in tables 1 and 2 (as appropriate) to ensure proper electrical input. Ensure the speaker wiring is connected to speaker terminals
only, and strobe wiring is connected to strobe terminals only. Ensure the wiring at the FACP is correct.
NOTE: Wiring method shall be in accordance with CSA C22.1, Canadian Electrical Code, Part 1, Safety Standard for Electrical Installations, Section 32.
WARNING: Improper electrical input can damage the product or cause it to malfunction.
INSTALLATION INSTRUCTIONS
E50 HIGH FIDELITY MULTI-CANDELA SPEAKER AND SPEAKER
STROBES

2
PN P85324C
A B C D E F G H
AB C DE F GH
Figure 3: Jumper plug is used to
select dBA loudness.
Figure 4: Tap Settings (Factory setting is
70V @ 1/2W (F))
NOTE: Use needle nose pliers to pull and properly insert the jumper plug to the desired tap setting.
Connect speaker wires to common and positive of terminal block and select the power tap terminal for 1/8W, 1/4W, 1/2W, 1W or 2W; 25V or 70V as required (see Figures 1,
2, 3, 4 and Table 4). Each doubling of rated Watts increases sound output by 3 dBA.
Each letter corresponds to a plug position of the header located on the printed circuit board. Select voltage and wattage as shown in Table 4 below.
Table 4: Speaker Voltage and Wattage Connection Chart
Position 25V 70V
A 2 ------
B 1 ------
C 1/2 ------
D 1/4 2
E 1/8 1
F ------ 1/2
G ------ 1/4
H ------ 1/8
NOTE: Graph does not apply to 1575W models.
NOTE: The speaker strobe appliances must be set to the desired dBA sound output level before they are installed. This is done by properly inserting jumper plugs in ac-
cordance with these instructions.
WARNING: Incorrect settings will result in improper performance.
CAUTION: Always operate audio amplifiers and speakers within their specified ratings. Excessive input may distort sound quality and may damage audio equipment.
Improper input voltage can damage speaker. If distortion is heard, check for clipping of the audio appliance with an oscilloscope and reduce the amplifier input level or gain
level to eliminate any clipping.
Figure 5: E50-24MCW; E50-24MCWH
NOTE: The E50-24MCW comes pre-set at 15cd. The E50-24MCWH comes pre-set at 185cd.
CAUTION: The candela select switch must be field set to the required candela intensity before installation. When changing the setting of the candela select switch make
certain that it clicks in place. After changing the candela setting the appliance must be retested to verify proper operation. Improper setting of the candela select switch
may result in operation at the wrong candela.
MOUNTING OPTIONS
CAUTION: The following figures show the maximum number of field wires (conductors) that can enter the backbox used with each mounting option. If these limits are exceeded, there may be
insufficient space in the backbox to accommodate the field wires and stresses from the wires could damage the product.
Although the limits shown for each mounting option comply with the National Electrical Code (NEC), Cooper Wheelock recommends use of the largest backbox option
shown and the use of approved stranded field wires, whenever possible, to provide additional wiring room for easy installation and minimum stress on the product from
wiring.
NOTE: Speaker-strobe mounting depicted above. For non-strobe speaker surface mounting, use E50SB:
NOTE: Surface backbox (E50SSB) in Figure B, is compatible with wiremold and conduit. Mounting holes are for single-gang, double-gang, and #10 wood screws for stud
mounting. If metal conduit is installed onto top and bottom conduit entrances, then an insulated grounding wire (18 AWG, supplied) must be connected between the top
and bottom plate by using thread cutting screws (supplied) to provide electrical continuity per UL 50. See Figure 6.
Figure 6: Surface Backbox E50SB (left) and E50SSB (right)
MOUNTING PROCEDURES
CAUTION: Check that the installed product will have sufficient clearance and wiring room prior to installing backboxes and conduit, especially if sheathed multiconductor
cable or 3/4” conduit fittings are used.
1. E50H models have an integrated Speaker Mounting Plate.
2. The Speaker Mounting Plate must be oriented correctly when it is mounted to the backbox. Turn the Speaker Mounting Plate so that the arrow above the words “Hori-
zontal Strobe” points to the top side of the Speaker Mounting Plate.
3. First mount the Speaker Mounting Plate to the backbox. Next slide the grille over the Speaker Mounting Plate strobe until both snaps are engaged.
4. When terminating field wires, do not use more lead length than required. Excess lead length could result in insufficient wiring space for the signaling appliance.
5. Conduit entrances to the backbox should be selected to provide sufficient wiring clearance for the installed product.
6. Do not pass additional wires (used for other than the signaling appliance) through the backbox. Such additional wires could result in insufficient wiring space for the
signaling appliance.
7. Mounting hardware for each mounting option is supplied.
8. All models can be flush mounted to a 4” square by 2-1/8” deep backbox in the wall (Figure A).
9. Use care and proper techniques to position the field wires in the backbox so that they use minimum space and produce minimum stress on the product. This is espe-
cially important for stiff, heavy gauge wires and wires with thick insulation or sheathing.
10. Use care to prevent speaker cone damage when driving screws for speaker product mounting.
WARNING: When installing strobes in an open office or other areas containing partitions or other viewing obstructions, special attention should be given to the
location of the strobes so that their operating effect can be seen by all intended viewers, with the intesity, number, and illumination, regardless of the viewer’s
orientation.
The 110cd and 135/185cd settings are Listed for use in sleeping or non-sleeping areas when installed in accordance with appropriate NFPA Standards and the Authority
Having Jurisdiction.
WARNING: Installers must advise owners and operators of buildings with sleeping occupants, e.g., hotels and motels, to warn guests, residents and employees
to not move the bed location to a position violating points (1) and (2) above or serious injury and or loss of life may occur during a fire emergency.
WARNING: A small possibility exists that the use of multiple strobes within a person’s field of view, under certain circumstances, might induce a photo-sensitive
response in persons with epilepsy. Strobe reflections in a glass or mirrored surface might also induce such a response. To minimize this possible hazard, cooper
wheelock strongly recommends that the strobes installed should not present a composite flash rate in the field of view which exceeds five (5) hz at the operating
voltage of the strobes. Cooper wheelock also strongly recommends that the intensity and composite flash rate of installed strobes comply with levels estab-
lished by applicable laws, standards, regulations, codes and guidelines.
If this appliance is required to produce a distinctive three-pulse Temporal Pattern Fire Alarm Evacuation Signal (for total evacuation) in accordance with NFPA 72, the appli-
ance must be used with a fire alarm control unit that can generate the temporal pattern signal. Refer to manufacturer’s installation manual for details.
NOTE: NFPA 72/ANSI 117.1 conforms to ADAAG Equivalent Facilitation Guidelines in using fewer, higher intensity strobes within the same protected area.
CAUTION: Check the installation instructions of the manufacturers of other equipment used in the system for any guidelines or restrictions on wiring and/or locating Noti-
fication Appliance Circuits (NAC) and notification appliances. Some system communication circuits and/or audio circuits, for example, may require special precautions to
assure electrical noise immunity (e.g., audio crosstalk).
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Réglement sur le matériel brouilleur du Canada.
ANY MATERIAL EXTRAPOLATED FROM THIS DOCUMENT OR FROM COOPER WHEELOCK MANUALS OR OTHER DOCUMENTS DESCRIBING THE PRODUCT FOR
USE IN PROMOTIONAL OR ADVERTISING CLAIMS, OR FOR ANY OTHER USE, INCLUDING DESCRIPTION OF THE PRODUCT’S APPLICATION, OPERATION, INSTALLA-
TION AND TESTING IS USED AT THE SOLE RISK OF THE USER AND COOPER WHEELOCK WILL NOT HAVE ANY LIABILITY FOR SUCH USE.
