Copernicus TD5001 User manual

TD5000-TD5001 - Version A - Released 15 December 2014 - Copernicus Educational Products Inc.
Assembly Guide
TD5000_
Check out our other products online at
www.copernicused.com
TD5001_2014_A
?This product is meant to be assembled by an adult.
?In its unassembled state, small parts present a hazard.
?To be used under direct supervision of an adult.
WARNING
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
3D Printer Cart
TD5000
TD5001
Please Recycle
TD5000
4 Open Tubs
1 Really Big Tub
TD5001
2 Open Tubs
1 Tech Tub
1 Really Big Tub
Printer and accessories not included. Printer and accessories not included.

TD5000-TD5001 - Version A - Released 15 December 2014 - Copernicus Educational Products Inc.

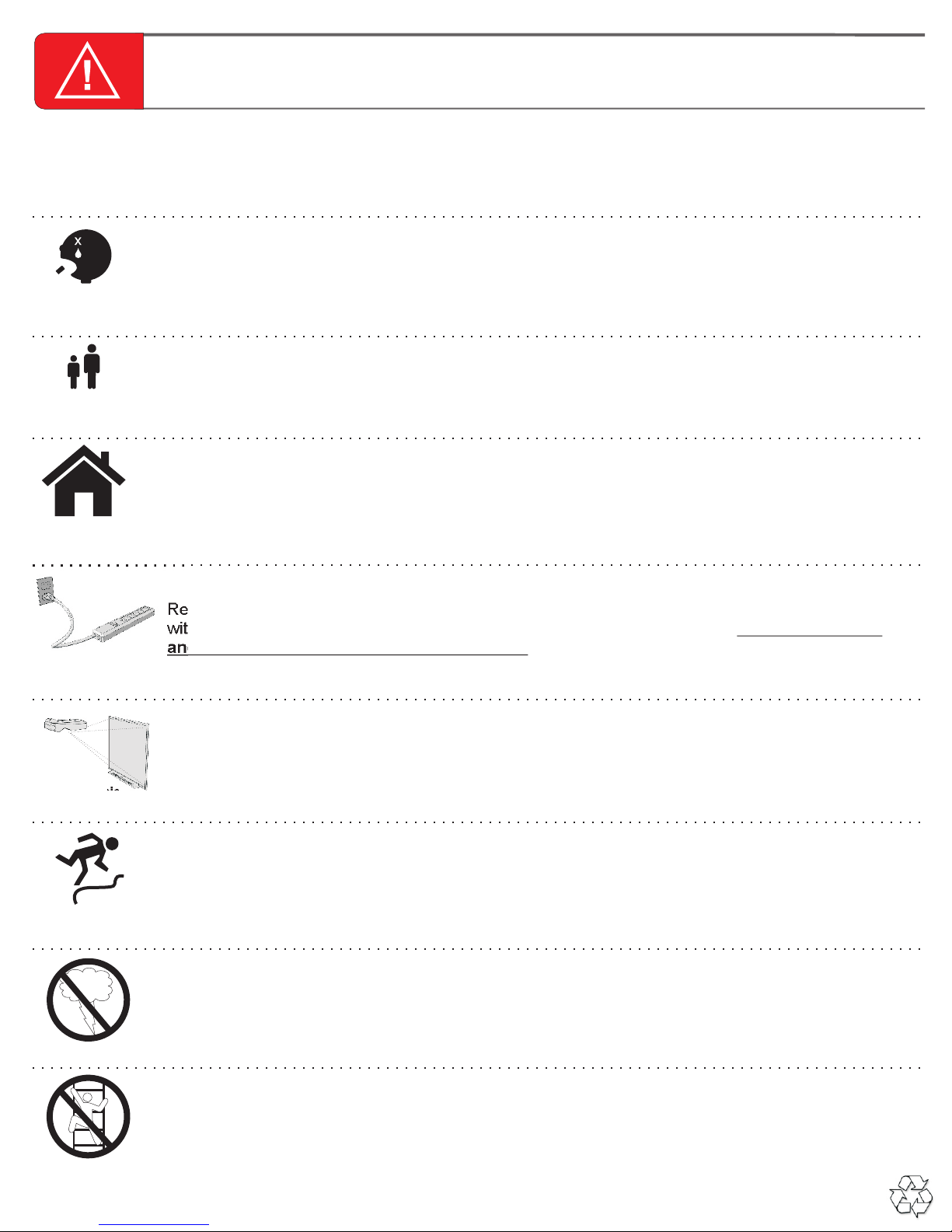

Warning! Hazard Risks!
Please read the warnings below for important safety information regarding your product.
Failure to read these warnings or to follow the instructions below could result in personal
injury or damage to your product that could void your warranty.
This product is to be used under the supervision of an adult.
Indoor Use
Only
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture. The internal components are not sealed from the
environment.
Read your powerbar’s electrical specifications. Only plug in devices that are approved for use
with this powerbar. Connect the supplied power bar directly to a wall outlet. Do not connect to
another power bar or use an extension cord. Unplug when not in use.
Powerbar
Specifications
Do not install or use the electrical components of this unit during a lightening storm.
Electrical Shock
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
Small
Parts
Ensure that any cables extending across the floor to your product are properly bundled and
marked to avoid tripping or falling which may lead to personal injury.
Cable Trip
Hazard
Climb Hazard
Do not climb on, hang from or suspend objects from any components of your product unless
otherwise specified.
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage
to your equipment or personal injury.
Electronic
Equipment
Adult
Supervision
2

TD5000-TD5001 - Version A - Released 15 December 2014 - Copernicus Educational Products Inc.
Hardware
Actual Size
Contents - Box 1
Before beginning, you should have:
Additional tools required:
3D Printer Cart - Parts
In Box 1
TD 5000
TD 5001
Screwdriver
OR
4” Caster With Brake &
Safety Pinch Point Cover
2x (41013)
1/4” Lock Washer
(43010)
16x
A1/4” x 1-3/4” Bolt
(43007)
16x
M6 x 19mm Screw
(43219)
2x
C
10-24” x 7/8” Screw
(430137)
2x
D
M6 Barrel Nut
(43272)
2x
E
10-24 Lock Nut
(430165)
2x
FG
H
Allen Key
(Not to Scale)
2x
Side Frame
2x (51087)
Stretcher
2x (33092)
Top Drawer Stretcher
Left & Right
2x (33094)
Middle Frame
1x (51088)
Spool Holder
1x (33095)
Spool Arm Holder Right
1x (51089)
Handle
1x (33093)
Really Big Tub Frame
1x (31091)
Printer Table
1x (32061)
OR
Really Big Tub
1x
(CC4073-B)
15 lbs Weight Limit
Open Tub
4x
(CC4068-B) 10 lbs Weight Limit
Really Big Tub
1x
(CC4073-B)
15 lbs Weight Limit
Open Tub
2x
(CC4068-B) 10 lbs Weight Limit
TM
Tech Tub
1x
(TEC57)
TD5001 - BOX 3
Power Strip
1x (25515)
B1/4”-20 x 1 1/4” Bolt
(430043)
4x
3
1/4” Keps Nut
(430162)
4x
M8 Washer
(43274)
2x
I
Caster Lock Washer
(4301012)
4x
J
Tiny Tub
1x
(CC4072-G)
Tiny Tub
1x
(CC4072-G)
4” Caster without
Brakes
2x (41014)
Laptop Tray
(drawer slides attached)
1x (32060)
Laptop Tray
(drawer slides attached)
1x (32060)
Really Big Tub Frame
1x (31091)
Printer Table
1x (32061)
TD5000 - BOX 2
TD5001 - BOX 2
Spool Arm Holder Left
1x (51089)
Caster
Wrench
(Not to Scale)
1x

TD5000-TD5001 - Version A - Released 15 December 2014 - Copernicus Educational Products Inc.
“The beautiful thing about learning is that no one can take it away from you.” - B. B. King
lThis symbol denotes a 2 Person Task. For safety, please ensure that there are two people
working on steps displaying this symbol
lWatch for this symbol throughout the Assembly Instructions. Wherever you see it, pay close
attention. The symbol denotes a step needing extra attention to ensure it is done correctly.
lThe Star symbol highlights an advisory note
Tips for Assembly - Using this Manual
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Layout and identify all of the included parts
l
The hardware has been packed by size
l
Read the assembly instructions over once to familiarize yourself with them
l
Please note that in its unassembled state, this product contains parts that can be a hazard
l
to small children; it should be assembled by an adult.
lFollow the steps in sequence
lBefore beginning each step, find the part(s) that you need for that step
lPay attention to the labeling on the parts, they are there to help direct you at certain stages
lThe title of each step states what you will be doing. Review the text and the pictures as you
build the unit.
“The beautiful thing about learning is that no one can take it away from you.” - B. B. King
To validate your warranty submit the ON-LINE form at www.copernicused.com
Validate Your Warranty On-Line
5
Year
Frame
Warranty
Life
Time
Tub
Warranty
TD 5000
TD 5001
2 Person
4

TD5000-TD5001 - Version A - Released 15 December 2014 - Copernicus Educational Products Inc.
3D Printer Cart
For parts and other issues regarding the frame:
- The height adjust system is not working.
missing
- The projector mount cannot be rotated.
Please call Copernicus Customer Service,
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
OR
where we will be happy to help.
Customer Service - FAQ’s
?
?
?
Need Tech Support?
Have a Question?
Email our Tech Support Service
Dear Educator,
Thank you for purchasing one of our products.
I hope the assembly of your 3D Printer Cart went well.
If you have any questions, or concerns, or ideas for how we can improve, please call us at 1-800-267-8494,
where someone will be happy to help.
Enjoy using your new product, and happy teaching,
Jim Phillips
President
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
Assembly Guide
TD5000_TD5001_2014_A
Check out our other products online at
www.copernicused.com
Quality schools are the result of quality teachers going above and beyond the call of duty.
VICKI CARUANA
TD5000
TD5001
5

TD5000-TD5001 - Version A - Released 15 December 2014 - Copernicus Educational Products Inc.
A
H
A
H
Note holes face
upwards.

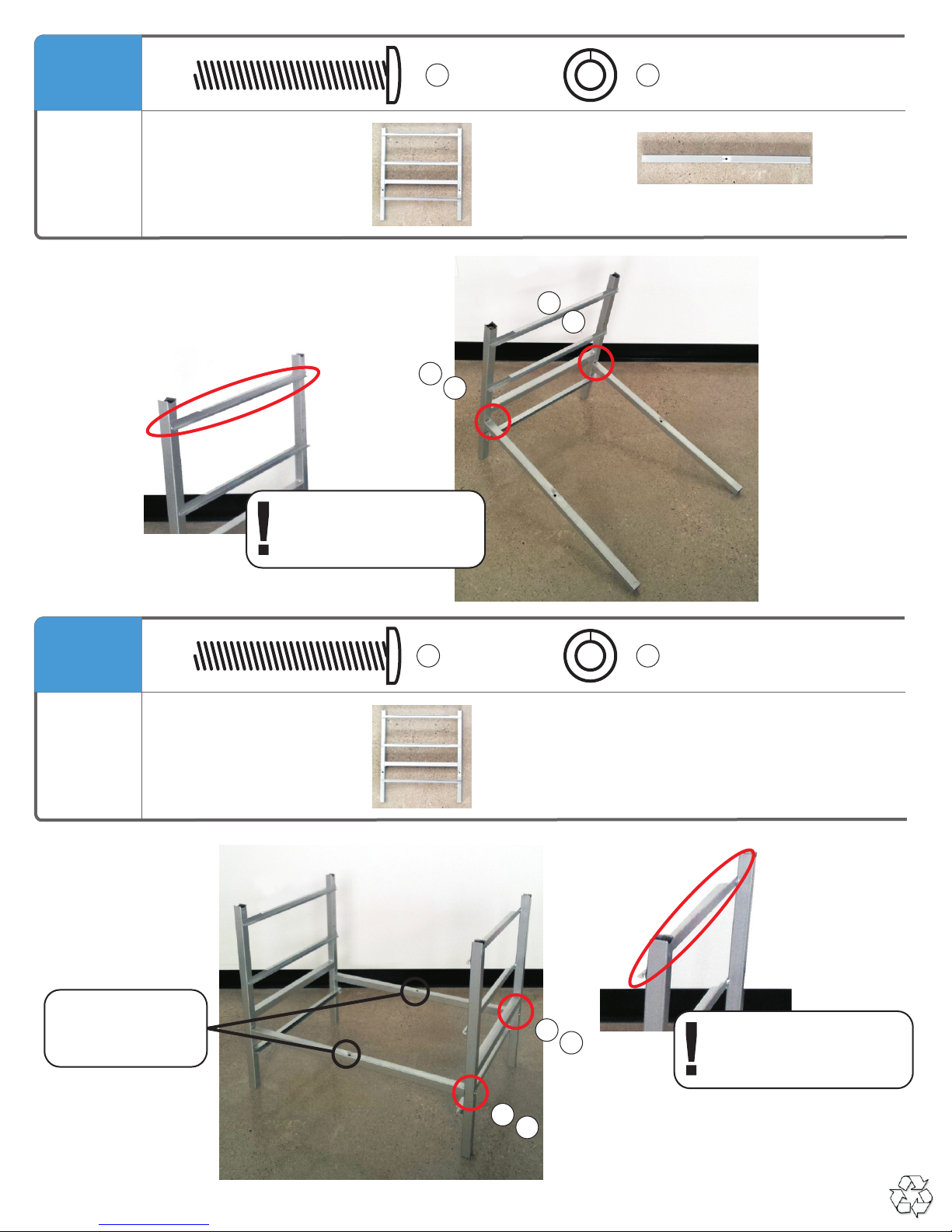

1
You will need: (Not to Scale)
Actual Size:
2
Attach other Side Frame
You will need: (Not to Scale)
Actual Size:
Attach Stretchers to Side Frame
Side Frame
1x
Stretcher
2x
Side Frame
1x
2x
A2x
H
Make sure Side Frame
channels face inwards.
6
AH
A
H
2x
A2x
H
Make sure Side Frame
channels face inwards.

TD5000-TD5001 - Version A - Released 15 December 2014 - Copernicus Educational Products Inc.
3
Attach Middle Frame
You will need: (Not to Scale)
Actual Size:
Install Casters
You will need: (Not to Scale)
Actual Size:
Position main frame upside down
to attach Middle Frame.
Lock all casters then
tighten by hand.
4” Caster With Brake &
Safety Pinch Point Cover
4x
Install Middle Frame
with hooks facing the
back of cart.
Middle Frame
1x
7
2x
A2x
H
A
H
4x
J
4
J
Screw casters into bottom of Side Frame. Locking caster
are put on opposite side of cable wrap.

TD5000-TD5001 - Version A - Released 15 December 2014 - Copernicus Educational Products Inc.
5
Install Really Big Tub Frame
You will need: (Not to Scale)
Actual Size:
6
Attach Handle
You will need: (Not to Scale)
Actual Size:
Slide Really Big Tub frame into cart frame opposite of cable hooks on Middle Frame
and install safety bolts
Really Big Tub Frame
1x
Handle
1x
2x 2x
D F
Push frame all the way
in & then install bolts.
Do not over tighten.
8
6x
A6x
H
A
H
A
H
A
H
A
H
A
H
A
H
D
F

TD5000-TD5001 - Version A - Released 15 December 2014 - Copernicus Educational Products Inc.
7

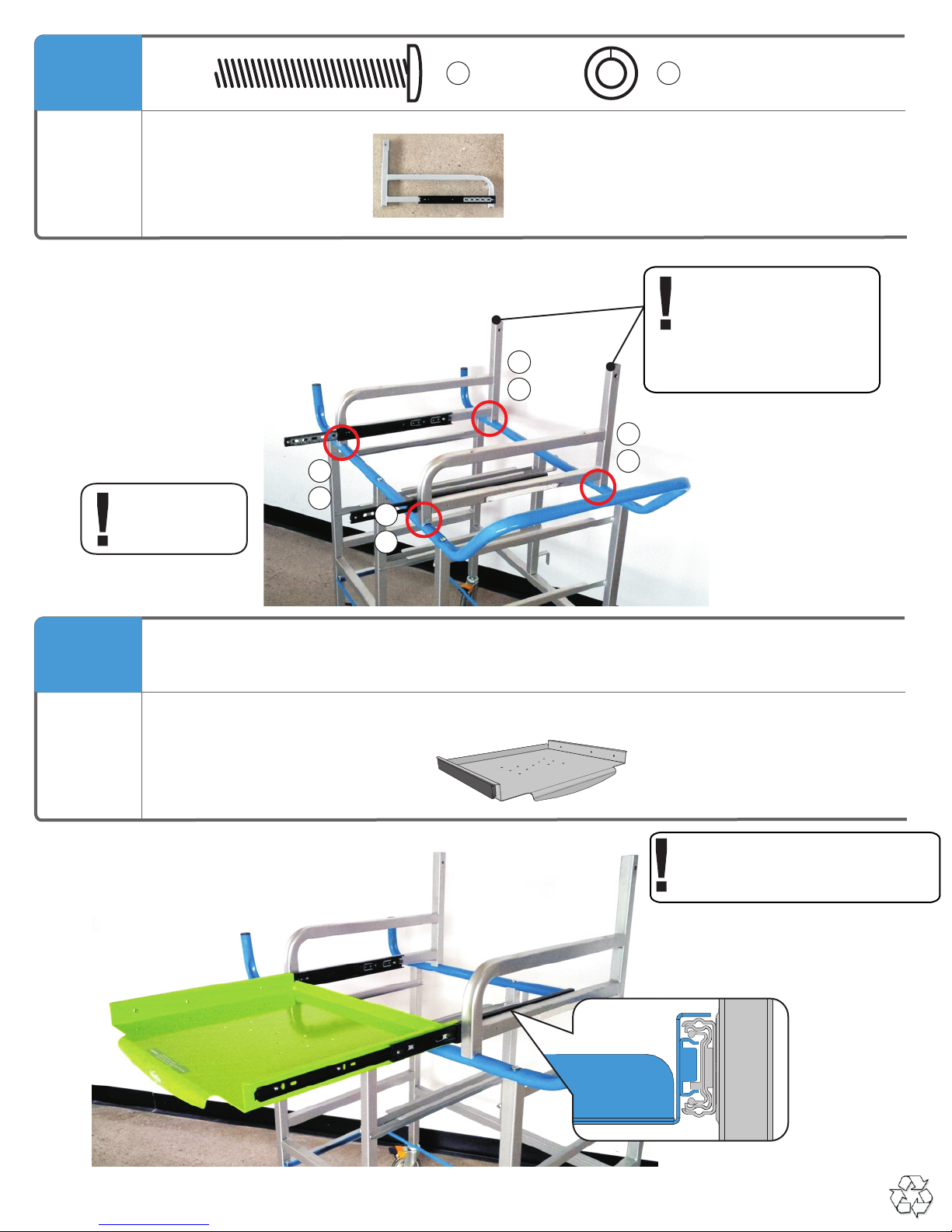

Attach Top Drawer Stretchers
You will need: (Not to Scale)
Actual Size:
8
Install Laptop Tray
You will need: (Not to Scale)
Actual Size:
Slide Laptop Tray into drawer slides.
Tighten hardware from Step 7.
Note orientation of
Top Drawer Stretchers.
They face front of cart,
opposite to the cable
hooks on the back.
Note channels
face inward
Top Drawer Stretcher
2x
Laptop Tray
(drawer slides attached)
1x
9
4x
A4x
H
A
H
A
H
A
H
A
H
Do not fully tighten hardware until the end of Step 8.
Pull the tray out slowly to ensure
that the drawer has been fully
locked in.

TD5000-TD5001 - Version A - Released 15 December 2014 - Copernicus Educational Products Inc.
9
Install Printer Table
You will need: (Not to Scale)
Actual Size:
10
Install Spool Holder Arms
You will need: (Not to Scale)
Actual Size:
Printer Table
1x
Spool Holder
1x
Spool Arm Holder
2x
2x 2x
E C
Magnets face
outward
Spool holder rests
in place.
10
B4x G4x
I
C
2x
I
E
I
C
E
B
G
B
G
B
G
B
G
Tighten screws to
make them flush with
shelf. Otherwise they
will stick out above
printer shelf.

TD5000-TD5001 - Version A - Released 15 December 2014 - Copernicus Educational Products Inc.
11
Install Tiny Tub in Holder
You will need: (Not to Scale)
Actual Size:
12
Attach Power Bar
You will need: (Not to Scale)
Actual Size:
Attach Power Bar to the cart by using the supplied double sided tape. Install on the same side as
the handle. Install on the be stretcher shown below. Wrap cord around hooks on back of unit.
1 2 3
Tiny Tub
1x
(CC4072)
Power Strip
1x
(25515)
11

TD5000-TD5001 - Version A - Released 15 December 2014 - Copernicus Educational Products Inc.
TD5001
13
Install Tubs
You will need: (Not to Scale)
Actual Size:
TD5000
Really Big Tub
1x
15 lbs Weight Limit
Open Tub
4x
10 lbs Weight Limit
TM
Tech Tub
1x
(TEC57)
Really Big Tub
1x
15 lbs Weight Limit
Open Tub
4x
10 lbs Weight Limit
TD5000
TD5001
OR
12
OR
Printer and accessories not included. Printer and accessories not included.
