Coram Showers OPTIMA User manual

71813 00 / Issue 1 / 15
CUSTOMER CARELINE 01746 713410
Equipment needed:
Drill, 6.5mm Masonry Bit, 4.5mm & 3mm Metal Bits (general), Crosshead Screwdriver, Spirit Level, Pencil, Tape Measure,
Masking Tape, Silicone Sealant.
Note: The screws and wall plugs supplied are for masonry walls. For lightweight walls i.e. stud partition, plasterboard etc,
use the correct type of fixings.
Please read these instructions carefully and keep for future reference.
Incorrect fitting will invalidate the guarantee.
SAFETY
●Handle glass with great care. Although the glass is very tough, sharp impacts can damage both the
glass and metal frame.
●Make sure there are no hidden pipes or cables hidden in the wall where you intend to drill.
●Wear safety goggles, shoes and appropriate clothing.
BEFORE INSTALLATION
●Check that the shower tray is level in all directions. The enclosure will not sit correctly on an uneven surface.
If uneven, the wall channels may not fit and the doors may not shut correctly.
●The enclosure should be fitted on tiled walls which are sealed with waterproof grout.
●There must be a good silicone seal between the rim of the shower tray and the wall.
●The shower tray and the enclosure must match in size. Attempting to fit the incorrect size of enclosure to
the shower tray will result in water leaks.
●Always check very carefully that components are vertical.
CORAM SHOWERS LTD
Stanmore Industrial Estate, Bridgnorth, Shropshire WV15 5HP, UK •Tel: [phone] •Fax: [phone] • www.coram.co.uk
Recycling
Packaging:- The cardboard and polythene parts of this packaging can be recycled.
End of life:- This product contains materials such as aluminium and glass which can be recycled.
Please contact your local authority to find your nearest recycling centre.
IMPORTANT: You must not use the shower for 24 hours after installation of the enclosure.
DO NOT use bleach, scouring powders, solvents or other aggressive cleaning agents. To clean, use warm soapy water and
a clean cloth and rinse off.
Please note: There has been a glass coating applied to this product, use a squeegee to remove water and debris.
Periodically check all fixings and tighten if necessary.

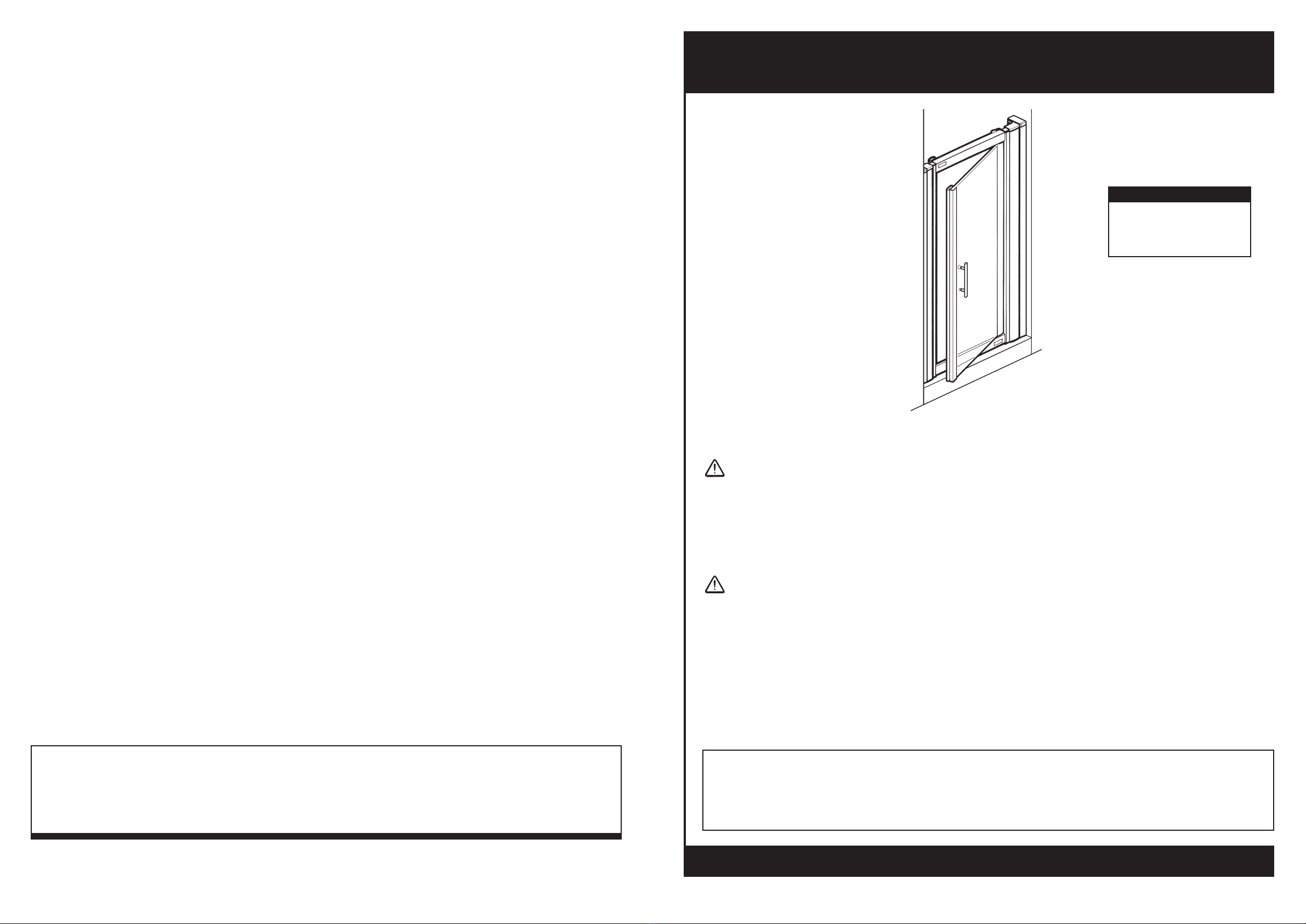

EXTENDER PACK FOR
OPTIMA SHOWER ENCLOSURES
Each extender channel will
add 20mm to the width of
the door or side panel.
PLEASE NOTE:

2 3
CUSTOMER CARELINE: 01746 713410
PN10899
Check contents of pack before installation. If anything is
missing, contact our Customer Careline for assistance.
Install the door following the instructions supplied, adding an extender channel where required. As with the wall channels apply
sealant to the back of the extender channels before fixing to the wall.
Where an extender is used, you MUST replace the 32mm wall fixing screws (supplied with the door screw pack) with the longer
50mm screws and screw caps (supplied with this pack).
2
Following the instructions supplied with the door, drill each wall channel in 4 positions.
Place the wall channel onto the extender channel (on the side with slightly raised edges). Mark the hole positions and drill the
extender channel.
IMPORTANT: Ensure the wall channel you use as a template is the same one that will fix to that extender channel in step 2.
1
8
PN60046
2
PN50045
50mm
PN10899
This extender pack can be used to extend Optima Shower enclosures.
Each extender channel will add 20mm to the width of the door or side panel.
PN10899
Push fit the top caps.
3
a b
PN50045 PN50045
50mm
+20mm
ø 4.5
mm
