Coram Showers PREMIER User manual

71683 00 / Issue 1 / 13
CUSTOMER CARELINE 01746 713410
Equipment needed:
Drill, 6.5mm Masonry Bit, 4.5mm & 3mm Metal Bits (general), Crosshead Screwdriver, 16mm Spanner, Spirit Level, Pencil,
Tape Measure, Masking Tape, Silicone Sealant.
Note: The screws and wall plugs supplied are for masonry walls. For lightweight walls i.e. stud partition, plasterboard etc,
use the correct type of fixings.
Please read these instructions carefully and keep for future reference.
Incorrect fitting will invalidate the guarantee.
SAFETY
●Handle glass with great care.
Although the glass is very tough, sharp impacts can damage both the glass and metal frame.
●Make sure there are no hidden pipes or cables hidden in the wall where you intend to drill.
●Wear safety goggles, shoes and appropriate clothing.
BEFORE INSTALLATION
●Check that the shower tray is level in all directions. The enclosure will not sit correctly on an uneven surface.
If uneven, the wall channels may not fit and the doors may not shut correctly.
●The enclosure should be fitted on tiled walls which are sealed with waterproof grout.
●There must be a good silicone seal between the rim of the shower tray and the wall.
●The shower tray and the enclosure must match in size. Attempting to fit the incorrect size of enclosure to
the shower tray will result in water leaks.
●Always check very carefully that components are vertical.
●To avoid damage, use the opened out packaging to build the enclosure on.

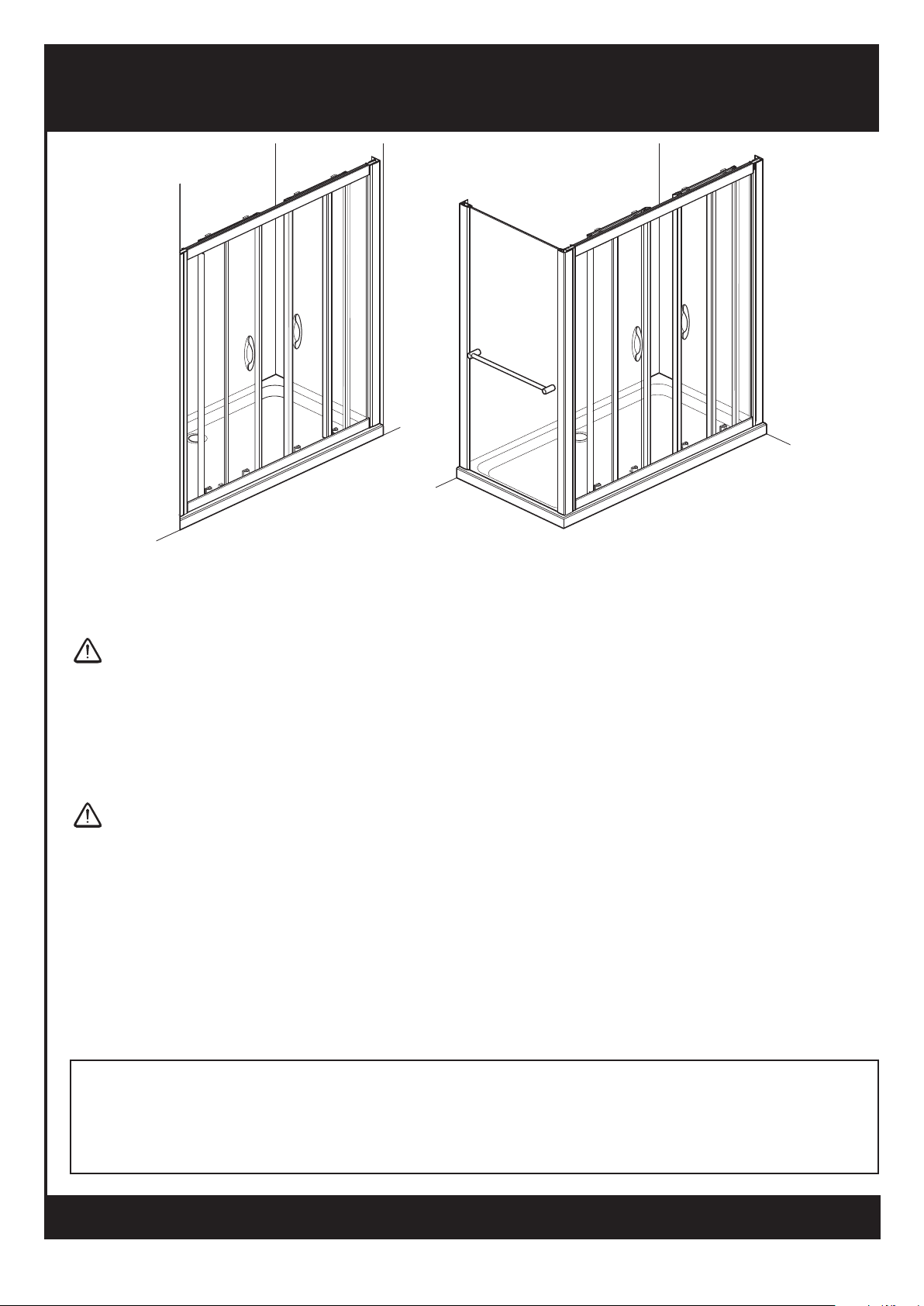

PREMIER DOUBLE SLIDING DOOR
/ SIDE PANEL
Sliding Door - Pages 2 - 8 Sliding Door & Side Panel - Pages 9 - 16

2
1500 RAIL - PN80599
1700 RAIL - PN80600
PN11029
PN11029
1500 RAIL - PN80599
1700 RAIL - PN80600

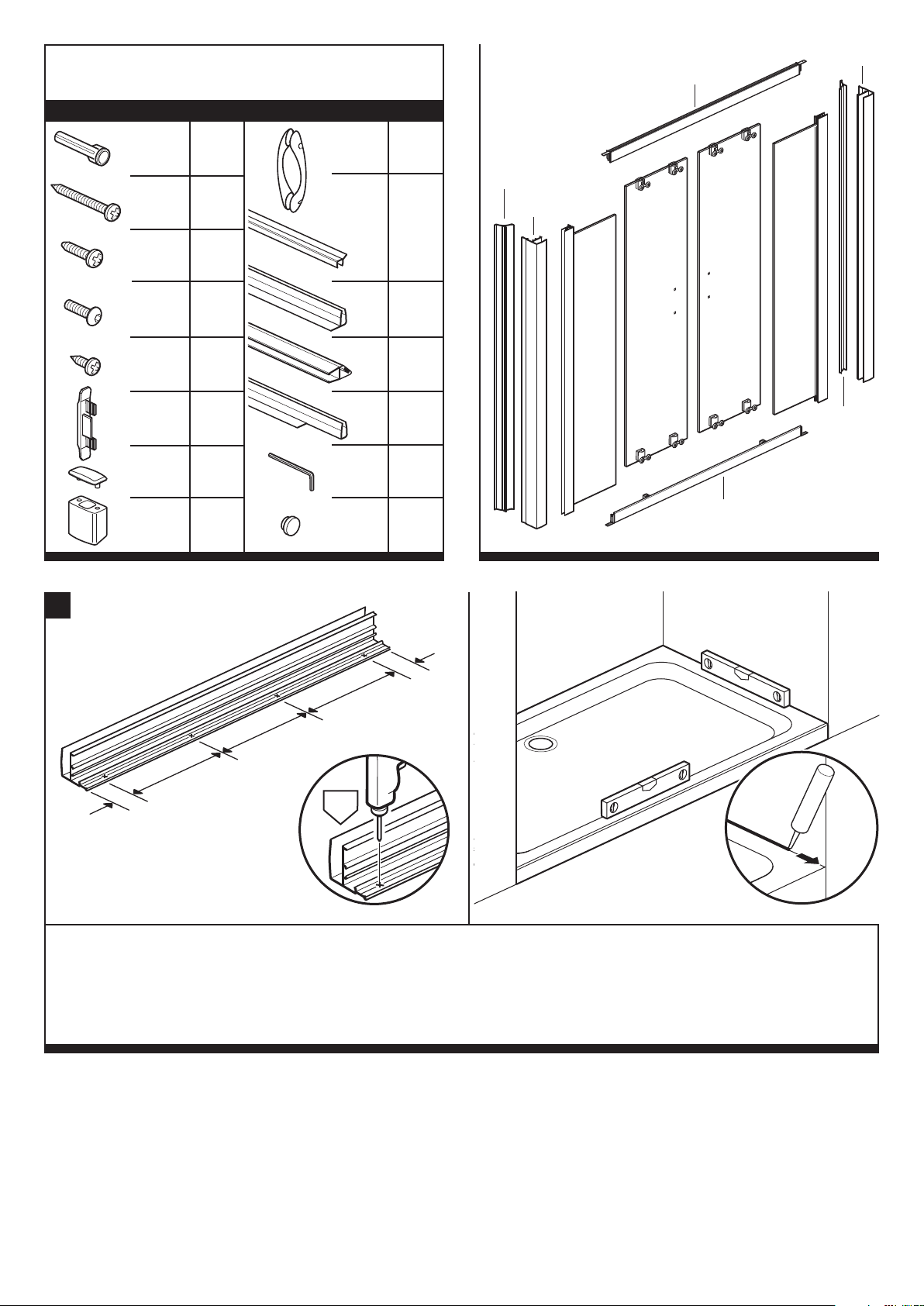

a: Drill holes in both wall channels at the points shown (in the groove) using a 4.5mm drill bit.
b: Ensure the shower tray is level in all directions.
IMPORTANT: Clean the tray and seal the gap between the tray surface and tiles. It is important that the tray is sealed right up to
the tray edge so that the bottom of the wall channel is sealed. Failure to do this will cause water to leak under the wall channel
and between the tray and tiles, resulting in damp patches on the wall and under the tray.
1ab
PN11031
PN11031
100mm
max
=
=
=
100mm
max
ø 4.5
mm
1500 =
PN40272
1700 =
PN40273
Check contents of pack before installation. If anything is
missing, contact our Customer Careline for assistance.
CUSTOMER CARELINE: 01746 713410
8
PN3230
8
PN3225
32mm
2
PN4745
2
2
4
2
PN60093
12mm
6
4
6
PN60220
PN40309
PN40311
PN40308
PN60162
PN50359
PN50370
PN80618
PN60014
13mm
4
4
2
1
8
PN3222
10mm

2
3

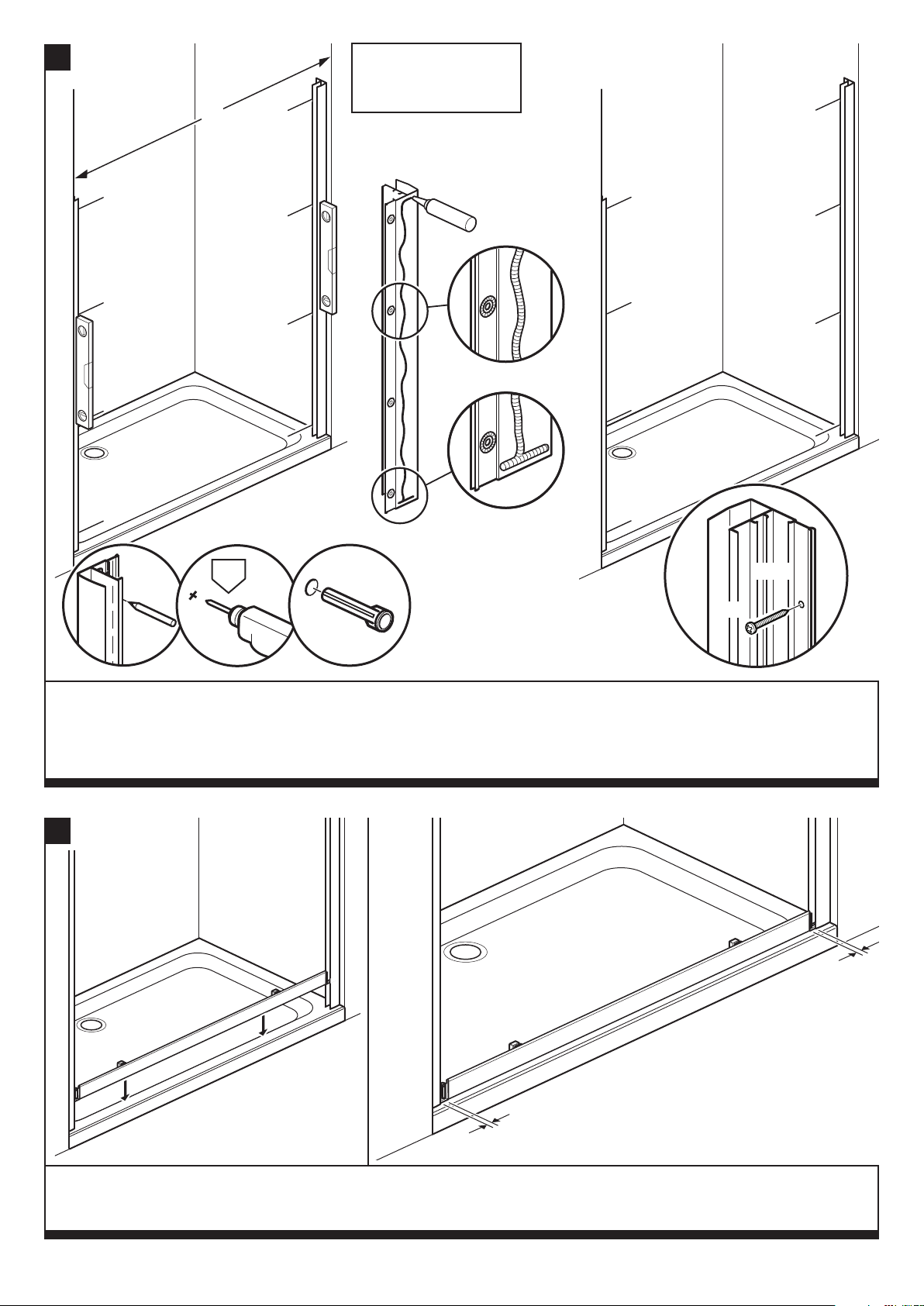

a: Place the wall channels on the tray ensuring they are vertical and an equal distance back from the front of the tray.
Place masking tape against the wall before marking drill hole positions, this will help prevent the drill bit slipping. Drill 6.5mm
holes, 30mm deep and insert the wall plugs. b: Apply sealant to the back of the wall channels and around the fixing holes.
c: Fix the wall channels to the walls using 8 x 32mm screws.
a
b
c
a: Place the bottom rail onto the tray with its end mouldings inserted into the wall channels.
b: Centre the bottom rail between the wall channels so that there is an equal gap at each end.
3a b
=
=
ø 6.5
mm Inside
32mm
X
X = Door widths
1500 = 1450 - 1500mm
1700 = 1650 - 1700mm

4

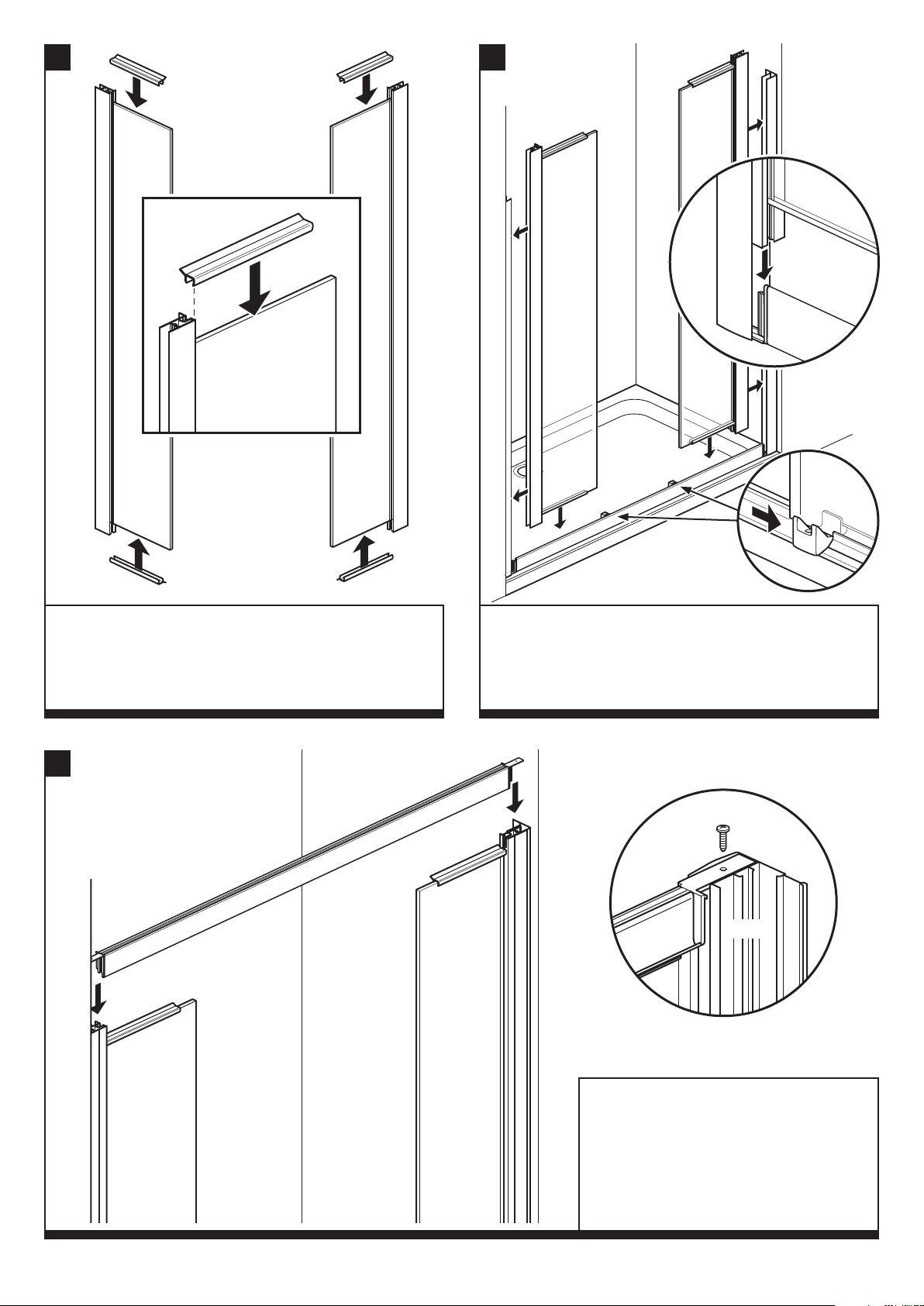

Push fit the 'short flipper seals' onto the top and bottom
edges of the fixed panels - flush against the metal profile.
Ensure the flipper seal 'flaps' are on the inside of the
fixed panels.
Note: Wetting the glass with water will help to fit the seals.
5
Position the fixed panels into the wall channels and slide
down so they fully slot onto the end mouldings of the
bottom rail. Inside the enclosure, ensure the panels sit in
the 'fixed panel brackets', slide the brackets along the rail
and position under the panels as shown.
6
Position the top rail onto the top of the
'fixed panels'. Adjust the position of the
fixed panel brackets as required.
Line up the holes and fix using 2 x 13mm
screws.
4
Fixed
panel
bracket
Outside
face of
fixed
panel
13mm
Inside
Outside
face of fixed
panels
Outside
face of
fixed
panel
13mm
Inside

9
Push fit 'flipper seals' (PN40309) onto the back edge of the doors.
Ensure the flipper seal 'flaps' are on the outside of the doors.
Push fit 'magnetic seals' (PN40311) onto the closing edge of the
doors (the same side as door handle holes).
Note: Ensure the magnetic seals are positioned as shown.
Note: Wetting the glass with water will help fit the seals.
PN
40309
Outside
face of
door
Door
handle
holes
PN40309
PN40311
Door
handle
holes
Outside
face of
door
PN40311
PN40311
10mm
ø 3
mm
8
Fit 'flipper seals' (PN40308) onto the edge of the fixed
panels. Ensure the flipper seal 'flaps' are on the
inside. Note: Wetting the glass with water will help to
fit the seals.
From inside the enclosure, place fixed panel retainer
covers (PN80618) onto the top and bottom fixed
panel brackets. Fix using the 12mm screws and fit the
retainer caps (PN50370).
PN80618
Inside
PN40308
PN50370
12mm
Fixed
panel
bracket
5
7

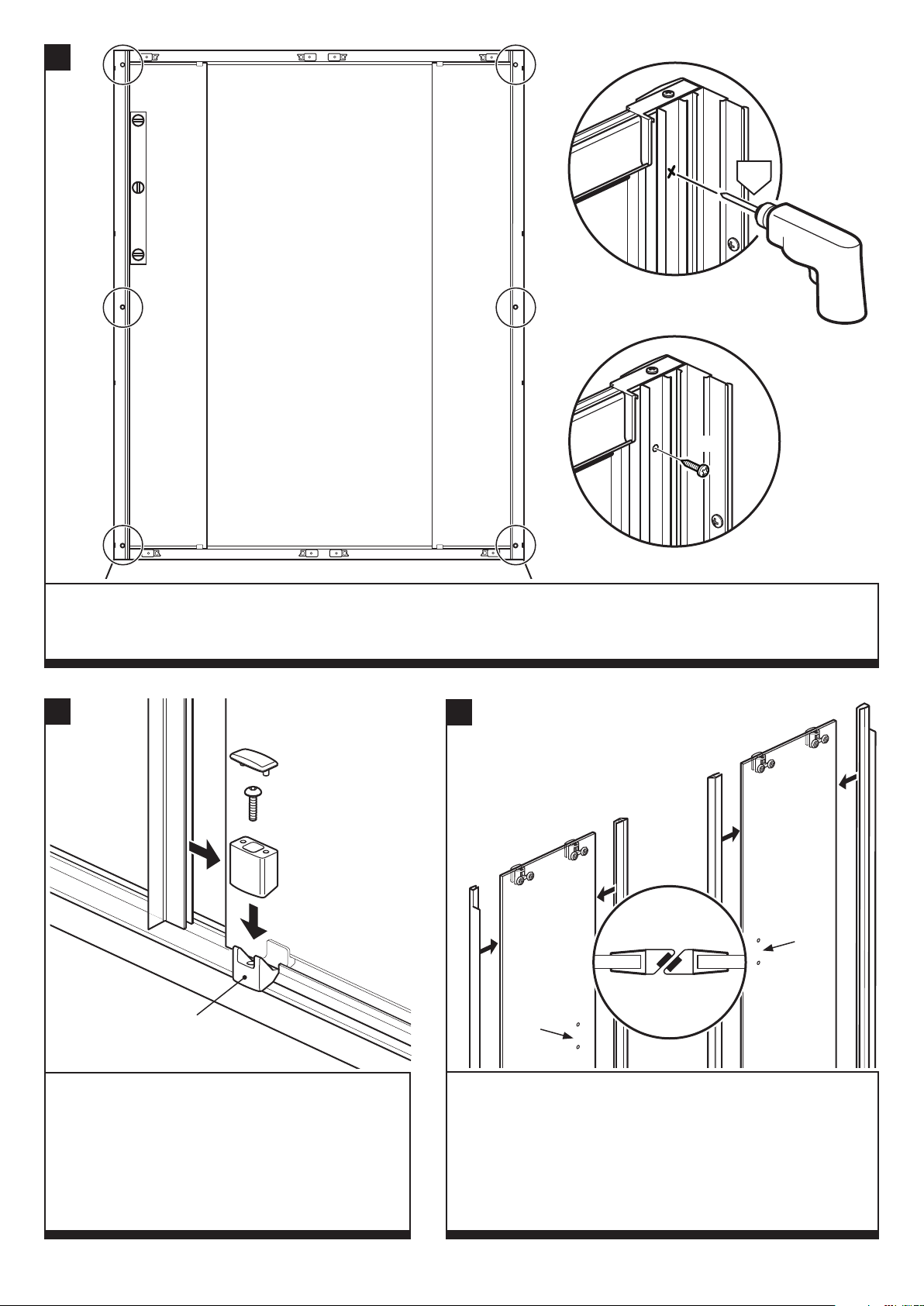

Check the door frame is vertical and is centrally positioned between the wall channels.
From inside the enclosure, in the positions shown, drill through the wall channels into the fixed panels using a 3mm drill bit,
do not drill too deep! Fix using 6 x 10mm screws.
From inside

6

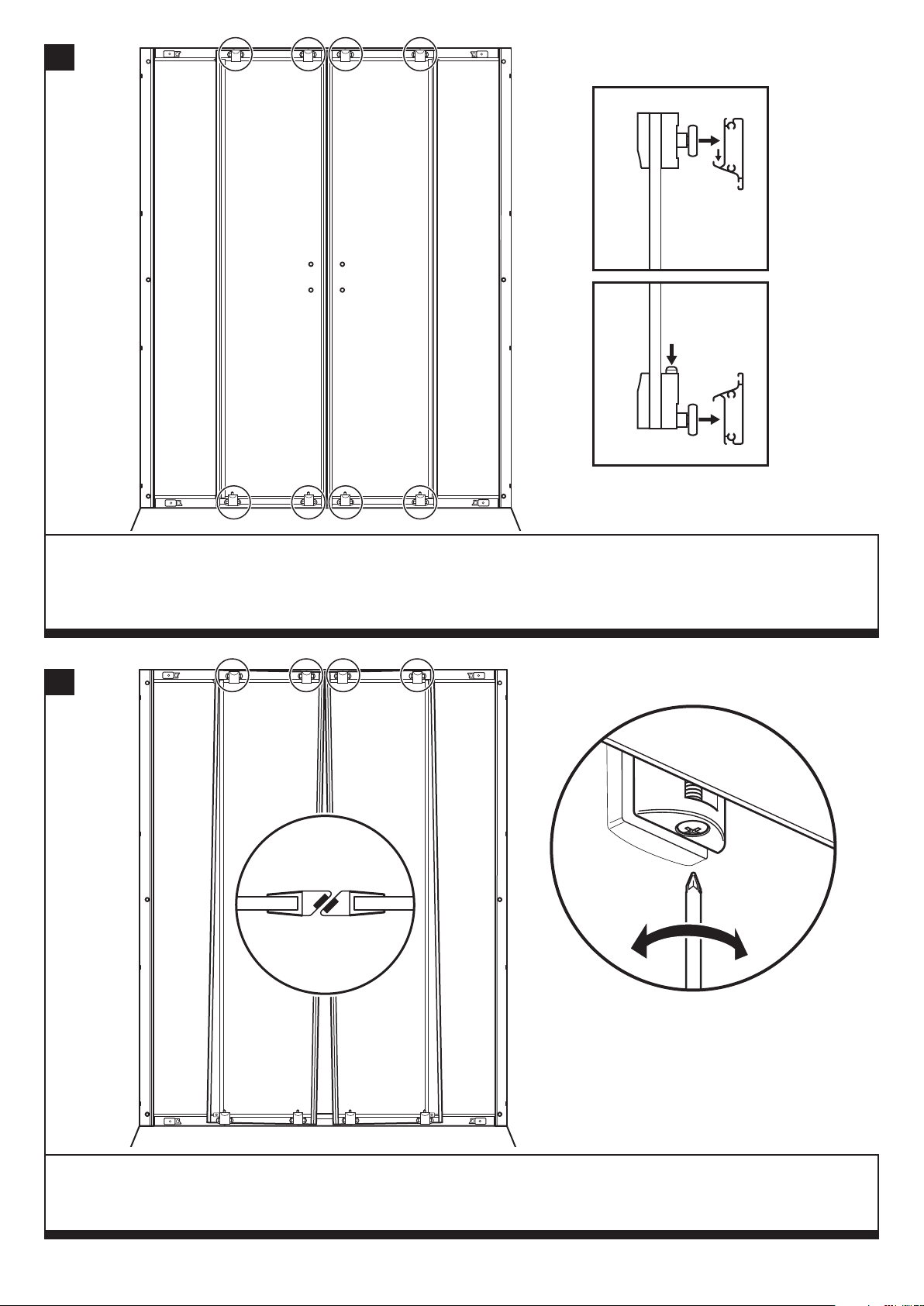

It is advised that this stage is carried out by two people to avoid damaging the runners, rails or doors.
a: From inside the enclosure, hang the top 'door rollers' onto the top rail 'runner'.
b: From outside (with the door closed) depress both 'plungers' on the bottom 'door rollers' and position under the bottom rail
'runner' and release the 'plungers'.
10
From inside
The 'wheels' at the top of the doors may need adjusting so that the doors slide freely and the magnetic seals meet evenly when
the doors are closed.
From outside the enclosure, turn the adjuster screw (under each of the top wheels) as shown until the doors hang vertically.
11
From inside
a
b
Plunger
From
outside

7

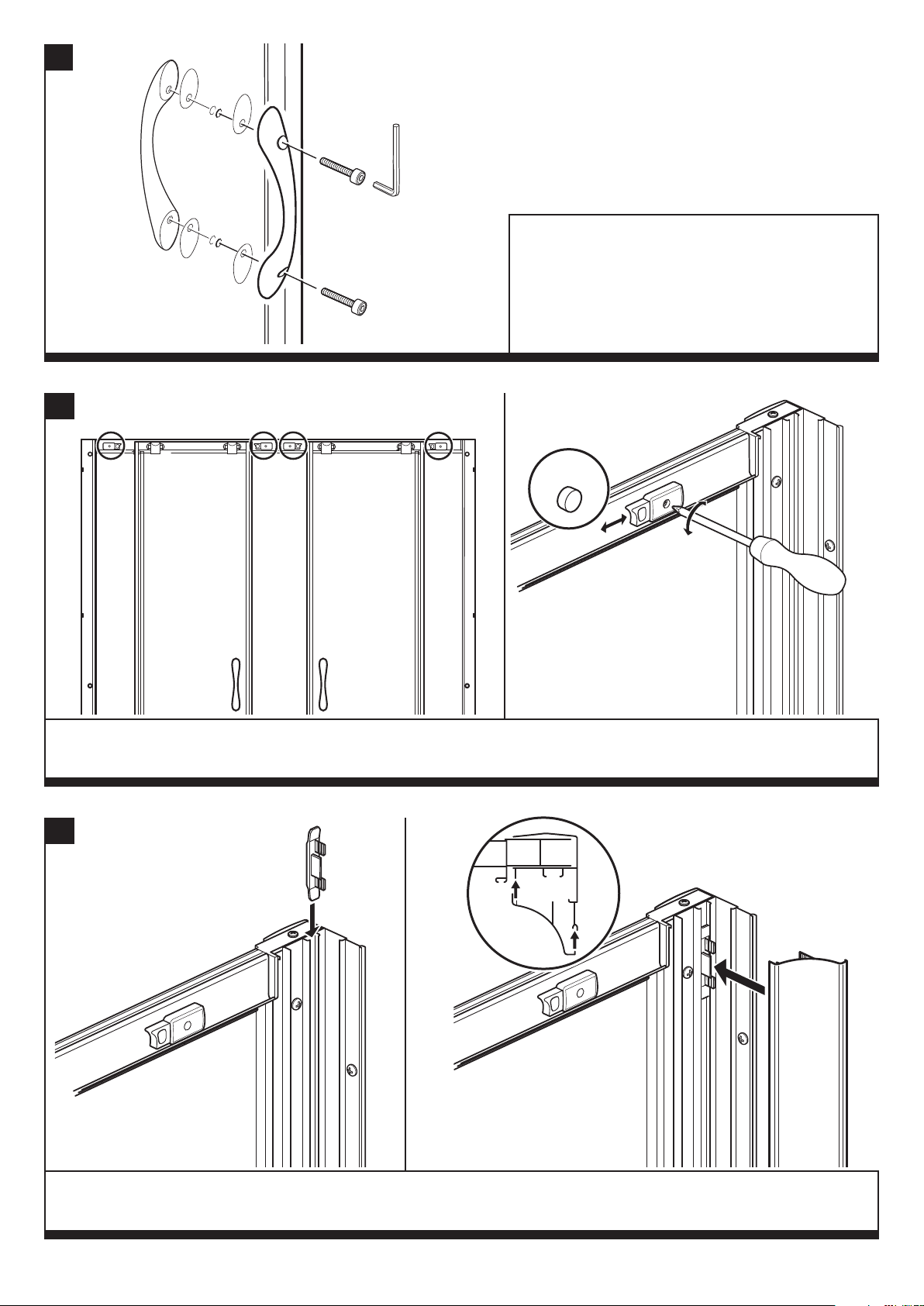

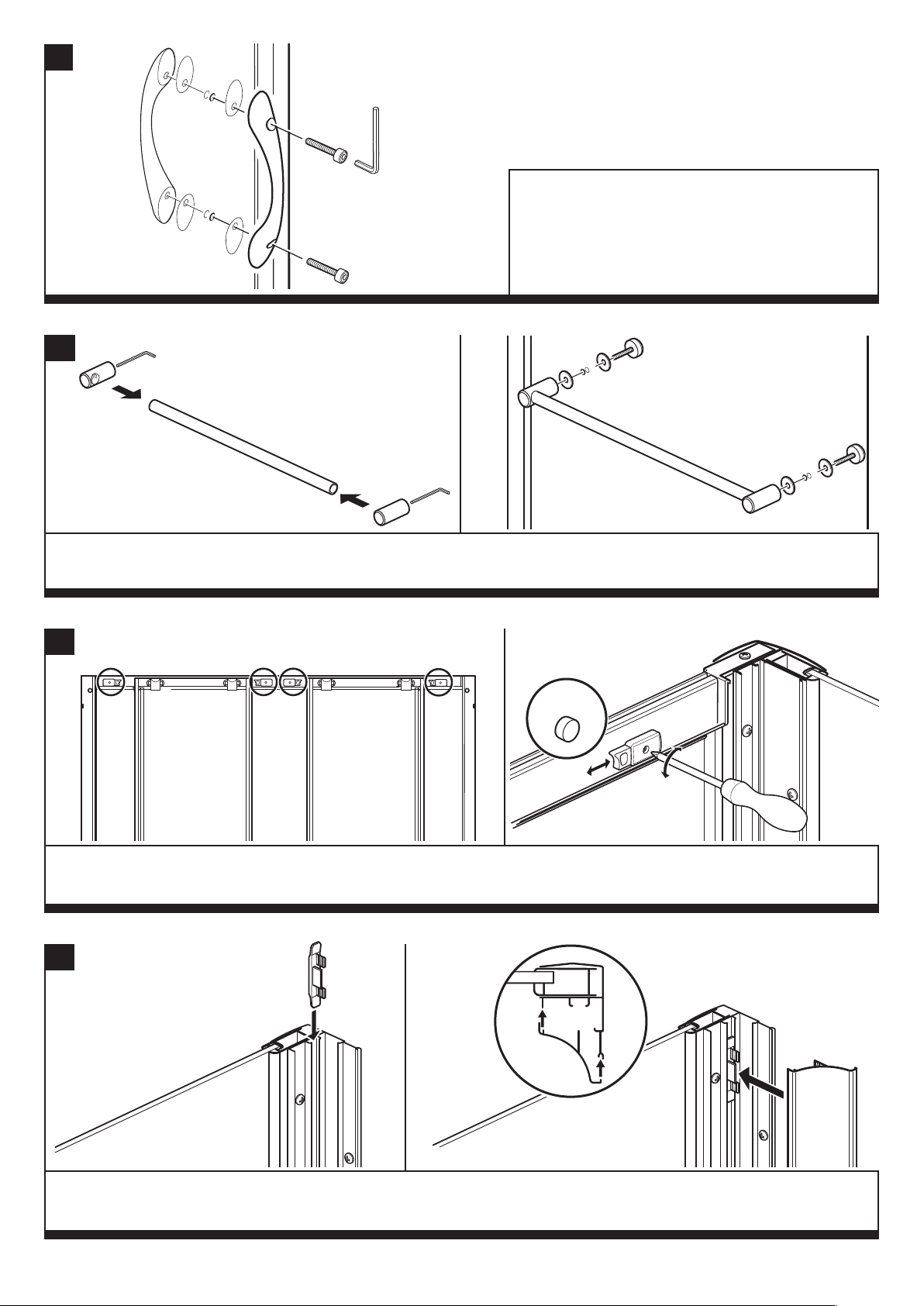

Fit the door handles to the doors with the allen bolts
on the inside of the doors.
Ensure the rubber washers are placed between the
handles and the glass.
Do not over tighten.
12
Inside
PN50359
PN11031
PN11031

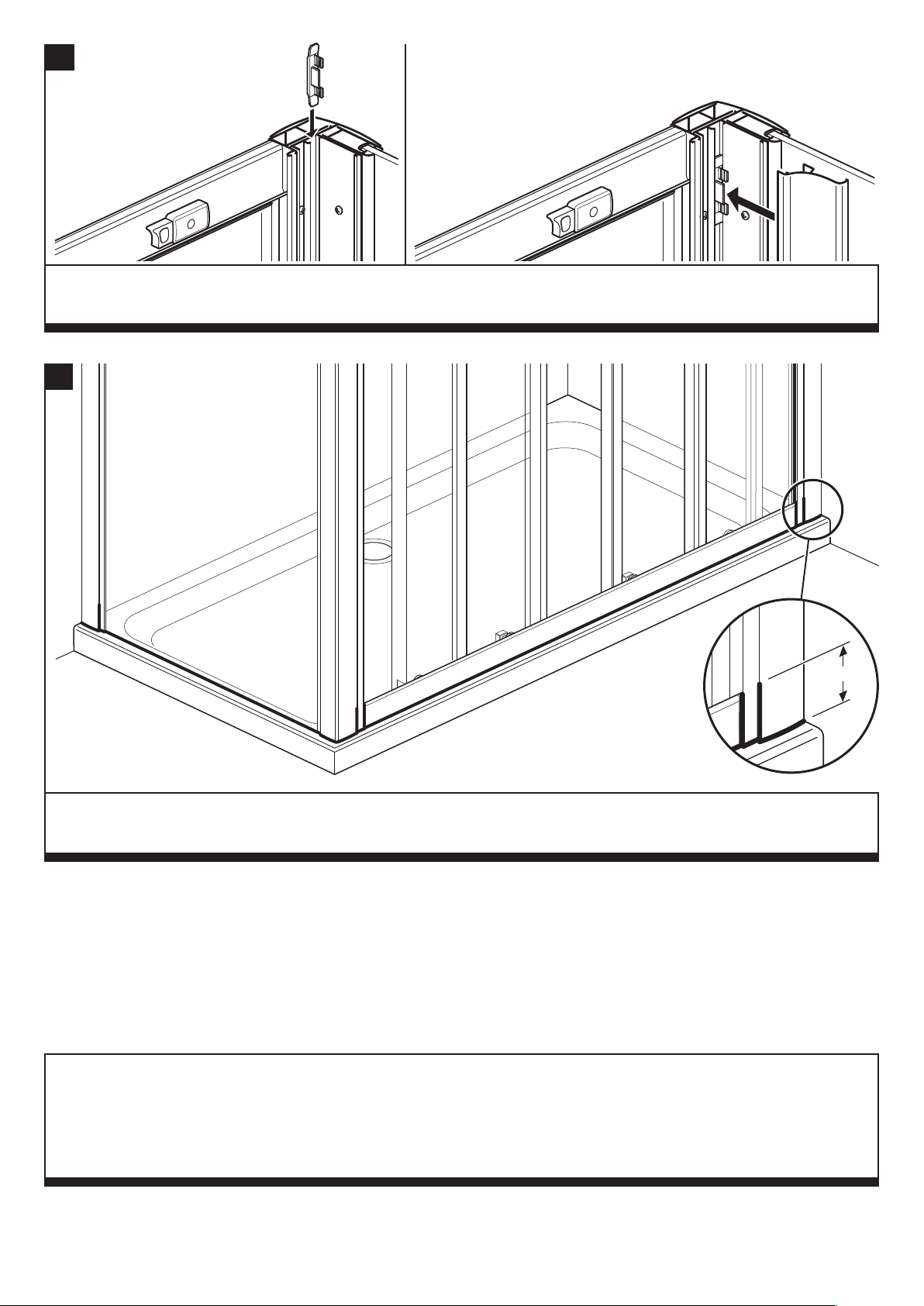

a: Insert 3 wall channel clips (PN50359) down the slot in each wall channel and space out equally down their length.
b: Push fit the wall channel cover strips (PN11031) onto the wall channels as shown.
ab
14
a: Check that the doors hit the top and bottom bumpers at the same time.
b: To adjust the bumpers, loosen the screw, move the 'rubber' bumper as required then re-tighten. Push fit cover caps (PN4745).
ab
13
PN4745

8
15
From the outside only, apply sealant to the bottom of the enclosure and 50mm up the wall channels and vertical joints
as shown.
50mm
CORAM SHOWERS LTD
Stanmore Industrial Estate, Bridgnorth, Shropshire WV15 5HP, UK •Tel: [phone] •Fax: [phone] • www.coram.co.uk
Recycling
Packaging:- The cardboard and polythene parts of this packaging can be recycled.
End of life:- This product contains materials such as aluminium and glass which can be recycled.
Please contact your local authority to find your nearest recycling centre.
IMPORTANT: You must not use the shower for 24 hours after installation of the enclosure.
DO NOT use bleach, scouring powders, solvents or other aggressive cleaning agents. To clean, use warm soapy water and a
clean cloth and rinse off.
Please note: There has been a glass coating applied to this product, use a squeegee to remove water and debris.
Periodically check all fixings and tighten if necessary.

9
2

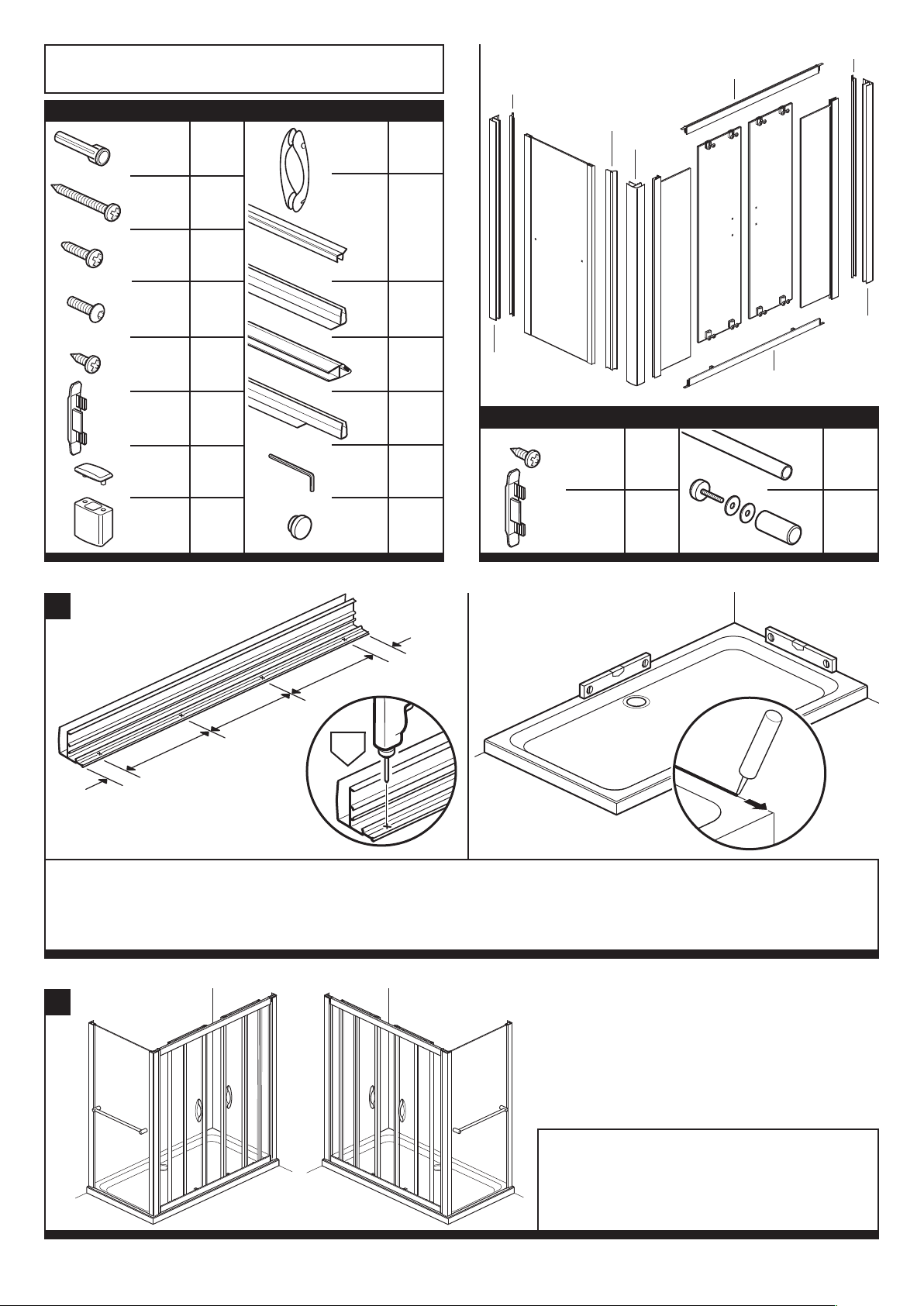

The enclosure can be assembled with the side
panel on either the right or left (see step 4).
Note: The following instructions show the
enclosure with the side panel on the left.
1500 RAIL - PN80599
1700 RAIL - PN80600
PN11029
PN11029
1500 RAIL - PN80599
1700 RAIL - PN80600
a: Drill holes in both wall channels at the points shown (in the groove) using a 4.5mm drill bit.
b: Ensure the shower tray is level in all directions. IMPORTANT: Clean the tray and seal the gap between the tray surface and tiles.
It is important that the tray is sealed right up to the tray edge so that the bottom of the wall channel is sealed. Failure to do this will
cause water to leak under the wall channel and between the tray and tiles, resulting in damp patches on the wall and under the tray.
1a b
1500 =
PN40272
1700 =
PN40273
SLIDING DOOR CONTENTS
8
PN3230
8
PN3225
32mm
2
PN4745
2
2
4
2
PN60093
12mm
6
4
6
PN60220
PN40309
PN40311
PN40308
PN60162
PN50359
PN50370
PN80618
PN60014
13mm
4
4
2
1
8
Check contents of packs before installation. If anything is
missing, contact our Customer Careline: 01746 713410
ø 4.5
mm
PN11031
PN11031
PN11030
PN11032
PN3222
61
PN80522PN50359
32
SIDE PANEL CONTENTS
10mm
100mm
max
=
=
=
100mm
max
PN3222
10mm

10
3
a: Place the wall channels on the tray ensuring they are vertical and an equal distance back from the front of the tray.
Place masking tape against the wall before marking drill hole positions, this will help prevent the drill bit slipping. Drill 6.5mm
holes, 30mm deep and insert the wall plugs. b: Apply sealant to the back of the wall channels and around the fixing holes.
c: Fix the wall channels to the walls using 8 x 32mm screws.
abc
a: Insert the side panel into the wall channel (ensuring that the H2O label is on the outside of the enclosure). Fit the corner post
onto the side panel. IMPORTANT: The corner post MUST be fitted as shown above.
b: Ensure that the corner post is vertical and the same distance in from the edges of the tray as the wall channels.
4a b
X
Y
ø 6.5
mm
Inside
32mm
Note: Assembly
with side panel on
the left hand side
shown from now on.
H2O label
on outside
of side
panel.
Y = Side Panel widths
700 = 670 - 695mm
760 = 735 - 760mm
800 = 775 - 800mm
900 = 875 - 900mm
X = Door widths
1500 = 1450 - 1500mm
1700 = 1650 - 1700mm

11
a: Place the bottom rail onto the tray with its end mouldings inserted into the corner post and wall channel.
b: Centre the bottom rail between the corner post and wall channel so that there is an equal gap at each end.
a
=
=
b

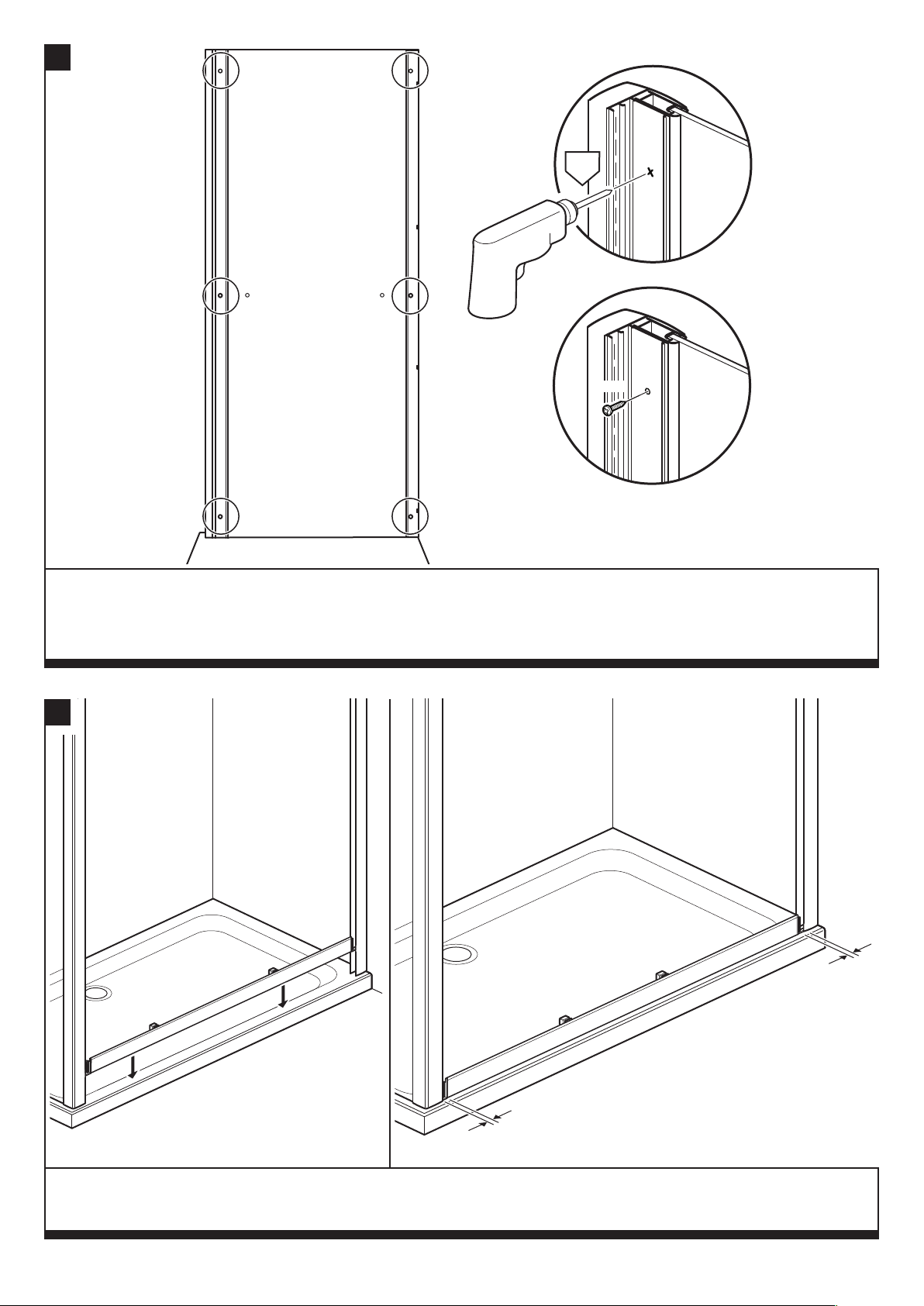

Check the side panel and corner post are vertical and that the side panel is centrally positioned between the corner post and
wall channel.
From inside the enclosure, in the positions shown, drill through the corner post and wall channel into the side panel using a 3mm
drill bit, do not drill too deep! Fix using 6 x 10mm screws.
5
ø 3
mm
Inside
side panel
10mm
6

12
9
Position the top rail onto the top of the
'fixed panels'. Adjust the position of the
fixed panel brackets as required.
Line up the holes and fix using 2 x 13mm
screws.
13mm
Inside
7
Push fit the 'short flipper seals' onto the top and bottom
edges of the fixed panels - flush against the metal profile.
Ensure the flipper seal 'flaps' are on the inside of the
fixed panels.
Note: Wetting the glass with water will help to fit the seals.
8
Position the fixed panels into the corner post and wall
channel and slide down so they fully slot onto the end
mouldings of the bottom rail. Inside the enclosure, ensure the
panels sits in the 'fixed panel brackets', slide the brackets
along the rail and position under the panels as shown.
Fixed
panel
bracket
Outside
face of
fixed
panel
Outside
face of fixed
panels
Outside
face of
fixed
panel
13mm
Inside

12
Push fit 'flipper seals' (PN40309) onto the back edge of the doors.
Ensure the flipper seal 'flaps' are on the outside of the doors.
Push fit 'magnetic seals' (PN40311) onto the closing edge of the
doors (the same side as door handle holes).
Note: Ensure the magnetic seals are positioned as shown.
Note: Wetting the glass with water will help fit the seals.
PN
40309
Outside
face of
door
Door
handle
holes
PN40309
PN40311
Door
handle
holes
Outside
face of
door
PN40311
PN40311
11
Fit 'flipper seals' (PN40308) onto the edge of the fixed
panels. Ensure the flipper seal 'flaps' are on the
inside. Note: Wetting the glass with water will help to
fit the seals.
From inside the enclosure, place fixed panel retainer
covers (PN80618) onto the top and bottom fixed
panel brackets. Fix using the 12mm screws and fit the
retainer caps (PN50370).
PN80618
Inside
PN40308
PN50370
12mm
Fixed
panel
bracket
10
Check the door frame is vertical and is centrally positioned between the wall channel and corner post.
From inside the enclosure, in the positions shown, drill through the wall channel and corner post into the fixed panel and
magnetic profile using a 3mm drill bit, do not drill too deep! Fix using 6 x 10mm screws.
From inside
10mm
13
ø 3
mm

14
The 'wheels' at the top of the doors may need adjusting so that the doors slide freely and the magnetic seals meet evenly when
the doors are closed.
From outside the enclosure, turn the adjuster screw (under each of the top wheels) as shown until the doors hang vertically.
14
From inside
It is advised that this stage is carried out by two people to avoid damaging the runners, rails or doors.
a: From inside the enclosure, hang the top 'door rollers' onto the top rail 'runner'.
b: From outside (with the door closed) depress both 'plungers' on the bottom 'door rollers' and position under the bottom rail
'runner' and release the 'plungers'.
13
From inside
a
Plunger
From
outside

15
Fit the door handles to the doors with the allen bolts
on the inside of the doors.
Ensure the rubber washers are placed between the
handles and the glass.
Do not over tighten.
15
a: Check that the doors hit the top and bottom bumpers at the same time.
b: To adjust the bumpers, loosen the screw, move the 'rubber' bumper as required then re-tighten. Push fit cover caps (PN4745).
Inside
ab
17
PN4745
a: Assemble the towel rail brackets onto the ends of the towel rail and tighten using the supplied allen key.
b: Attach the towel rail to the side panel ensuring the supplied towel rail washers are used on each side of the glass.
a b
Outside of
side panel
16
PN50359
a: Insert 3 wall channel clips (PN50359) down the slot in each wall channel and space out equally down their length.
b: Push fit the wall channel cover strips (PN11031) onto the wall channels as shown.
ab
18
PN11031
PN11031

CORAM SHOWERS LTD
Stanmore Industrial Estate, Bridgnorth, Shropshire WV15 5HP, UK •Tel: [phone] •Fax: [phone] • www.coram.co.uk
Recycling
Packaging:- The cardboard and polythene parts of this packaging can be recycled.
End of life:- This product contains materials such as aluminium and glass which can be recycled.
Please contact your local authority to find your nearest recycling centre.
IMPORTANT: You must not use the shower for 24 hours after installation of the enclosure.
DO NOT use bleach, scouring powders, solvents or other aggressive cleaning agents. To clean, use warm soapy water and a
clean cloth and rinse off.
Please note: There has been a glass coating applied to this product, use a squeegee to remove water and debris.
Periodically check all fixings and tighten if necessary.
20
From the outside only, apply sealant to the bottom of the enclosure and 50mm up the wall channels and vertical joints as
shown.
PN50359
a: Insert 3 wall channel clips (PN50359) down the slot in the corner post and space out equally down the length of the post.
b: Push fit the corner post cover strip (PN11032) onto the corner post as shown.
ab
19
PN11032
50mm
