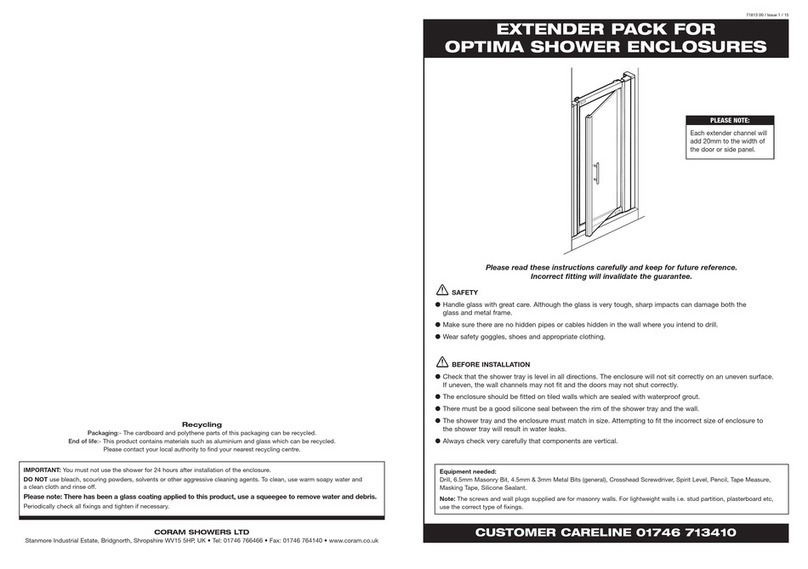

Coram Showers OPTIMA User manual

00 71805 00 / Issue 1 / 15
CUSTOMER CARELINE 01746 713410
Equipment needed:
Drill, 6.5mm Masonry Bit, 4.5mm & 3mm Metal Bits (general), Crosshead Screwdriver, Spirit Level, Pencil, Tape Measure,
Masking Tape, Silicone Sealant.
Note: The screws and wall plugs supplied are for masonry walls. For lightweight walls i.e. stud partition, plasterboard etc,
use the correct type of fixings.
Please read these instructions carefully and keep for future reference.
Incorrect fitting will invalidate the guarantee.
SAFETY
●Handle glass with great care. Although the glass is very tough, sharp impacts can damage both the
glass and metal frame.
●Make sure there are no hidden pipes or cables hidden in the wall where you intend to drill.
●Wear safety goggles, shoes and appropriate clothing.
BEFORE INSTALLATION
●Check that the shower tray is level in all directions. The enclosure will not sit correctly on an uneven surface.
If uneven, the wall channels may not fit and the doors may not shut correctly.
●The enclosure should be fitted on tiled walls which are sealed with waterproof grout.
●There must be a good silicone seal between the rim of the shower tray and the wall.
●The shower tray and the enclosure must match in size. Attempting to fit the incorrect size of enclosure to
the shower tray will result in water leaks.
●Always check very carefully that components are vertical.
●To avoid damage, use the opened out packaging to build the enclosure on.
OPTIMA SIDE PANEL
From the outside only, apply
sealant to the bottom of the
enclosure and 50mm up the wall
channels and centre post as
shown.
6
50mm
CORAM SHOWERS LTD
Stanmore Industrial Estate, Bridgnorth, Shropshire WV15 5HP, UK •Tel: 01746 766466 •Fax: 01746 764140 • www.coram.co.uk
Recycling
Packaging:- The cardboard and polythene parts of this packaging can be recycled.
End of life:- This product contains materials such as aluminium and glass which can be recycled.
Please contact your local authority to find your nearest recycling centre.
IMPORTANT: You must not use the shower for 24 hours after installation of the enclosure.
DO NOT use bleach, scouring powders, solvents or other aggressive cleaning agents. To clean, use warm soapy water and a
clean cloth and rinse off.
Please note: There has been a glass coating applied to this product, use a squeegee to remove water and debris.
Periodically check all fixings and tighten if necessary.

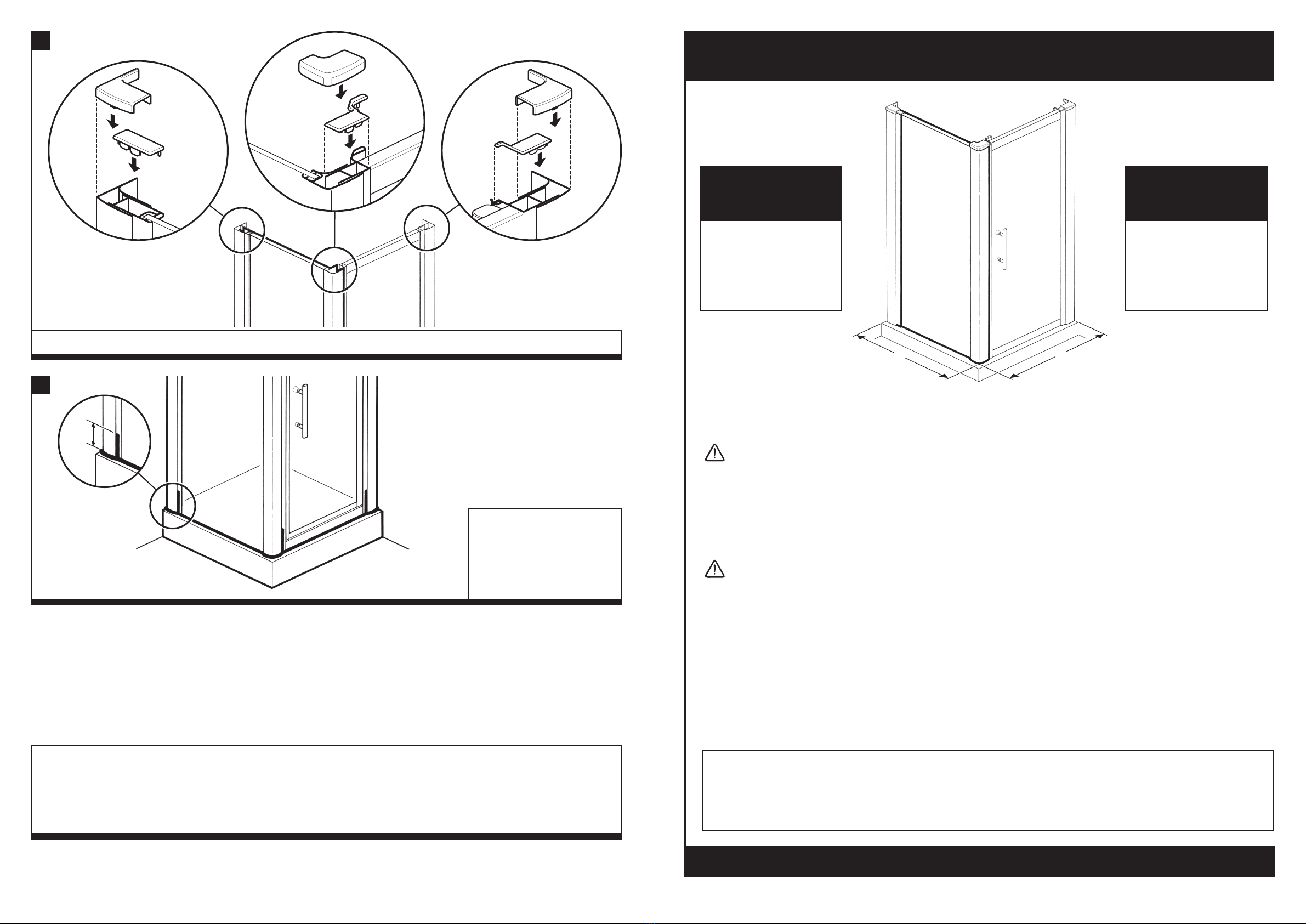

Push-fit the top caps onto the wall channels and corner post.
5
ac
b
DoorSide panel
X
Y
700 Door X = 653 - 703mm
760 Door X = 713 - 763mm
800 Door X = 753 - 803mm
900 Door X = 853 - 903mm
1000 Door X = 953 - 1003mm
DIMENSIONS
Check the enclosure size in
the table below matches the
showertray installation.
700 Panel Y = 670 - 695mm
760 Panel Y = 735 - 760mm
800 Panel Y = 775 - 800mm
900 Panel Y = 875 - 900mm
DIMENSIONS
Check the enclosure size in
the table below matches the
showertray installation.
2 3
a: Drill holes in both wall channels at points shown using a 4.5mm drill bit, where shown.
b: Ensure the shower tray is level in all directions. IMPORTANT: Clean the tray and seal the gap between the tray surface and tiles. It is important
that the tray is sealed right up to the tray edge so that the bottom of the wall channel is sealed. Failure to do this will cause water to leak under
the wall channel and between the tray and tiles, resulting in damp patches on the wall and under the tray.
1a b
ø 6.5
mm
3
2a b c
a: Insert your door into the wall
channel (Pivot Door shown).
b: Insert the side panel into the
wall channel and into the door.
a b
4
a: Check that the enclosure is perfectly vertical and the door is square within the frame (see Door instruction).
b: Drill inside of wall channels and corner post using 3mm drill bit in the 5 positions shown. DO NOT drill too deep.
Fix using 10mm screws and screw caps.
c: Check that the enclosure is perfectly vertical and the door is square within the frame. Drill the next four holes in the upper positions shown
inside of the wall channels and corner post using 3mm drill bit.
DO NOT drill too deep. Fix using 10mm screws and screw caps.
10mm
ø 3
mm
a b c
100mm
max
ø 4.5
mm
=
=
=
100mm
max
CUSTOMER CARELINE: 01746 713410
3
PN3222
3
Check contents of pack before installation. If anything is
missing, contact our Customer Careline for assistance.
PN4748
10mm
1/1
PN50495
PN50496
1/1
PN50503
PN50504
a: Place wall channels on the tray ensuring they are vertical and a minimum of 3mm back from the front of
the tray. Place masking tape against the wall before marking drill hole positions, this will help prevent the
drill bit slipping. Drill 6.5mm holes, 30mm deep and insert the wall plugs.
b: Apply sealant to the back of the wall channels.
c: Fix the wall channels to the wall using 8 x 32mm screws and screw caps.
X = Side Panel (S/P) widths
700 S/P = 670 - 695mm
760 S/P = 735 - 760mm
800 S/P = 775 - 800mm
900 S/P = 875 - 900mm
ø 6.5
mm
10mm
ø 3
mm
X
3mm
min
32mm
