General Information
The wireless Pain Remedy TENS from Core Products is a single-channel transcutaneous electrical nerve
stimulator (TENS) for over-the-counter use of pain relief - no prescription is required. The device generates
small pulses of electrical current and delivers the pulses to the user’s skin through adhesive gel electrode
pads such that the underlying nerves are activated and the pain associated with sore and aching muscles
is relieved. The Pain Remedy TENS is portable, compact, and stylish in design. It may help relieve pain in
various areas of body, such as the lower back, shoulders, arms and legs.
Because the Pain Remedy System is wireless - needing no lead wires - you must use only Pain Remedy
SNAP Electrodes. Lead wire type electrodes will not work with this wireless system.
Intended Use
To be used for relief of pain associated with sore and aching muscles in the shoulder, waist, back, arm, and
leg due to strain from exercise or normal household and work activities.
Included In This Package
• 1 CONTROL Unit
• 1 pc 5” x 3” Body Gel Electrode Pads
• AC Adapter
• USB Cable for Recharging
• User Manual

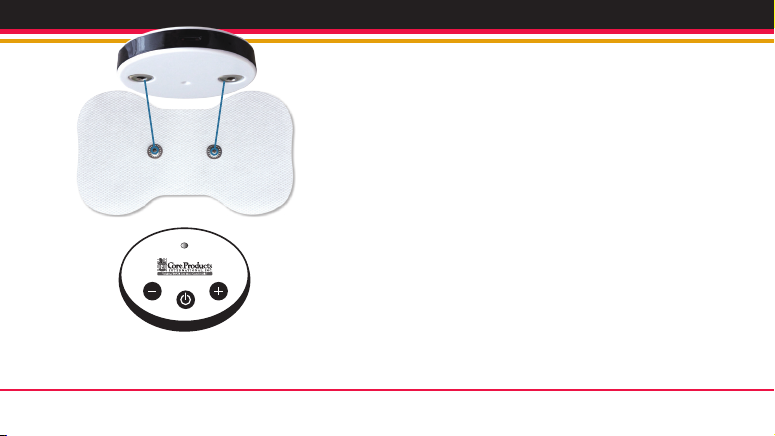

1. Control Unit 2. Power Button
3. Intensity Adjustor 4. USB Port
5. Working Indicator Light (Green)
Need to Charge Indicator Light (Red)
6. USB Cable 7. AC Adapter
8. Electrode Pad

45
General Information
The wireless Pain Remedy TENS from Core Products is a single-channel transcutaneous electrical nerve
stimulator (TENS) for over-the-counter use of pain relief - no prescription is required. The device generates
small pulses of electrical current and delivers the pulses to the user’s skin through adhesive gel electrode
pads such that the underlying nerves are activated and the pain associated with sore and aching muscles
is relieved. The Pain Remedy TENS is portable, compact, and stylish in design. It may help relieve pain in
various areas of body, such as the lower back, shoulders, arms and legs.
Because the Pain Remedy System is wireless - needing no lead wires - you must use only Pain Remedy
SNAP Electrodes. Lead wire type electrodes will not work with this wireless system.
Intended Use
To be used for relief of pain associated with sore and aching muscles in the shoulder, waist, back, arm, and
leg due to strain from exercise or normal household and work activities.
Included In This Package
• 1 CONTROL Unit
• 1 pc 5” x 3” Body Gel Electrode Pads
• AC Adapter
• USB Cable for Recharging
• User Manual
1. Control Unit 2. Power Button
3. Intensity Adjustor 4. USB Port
5. Working Indicator Light (Green)
Need to Charge Indicator Light (Red)
6. USB Cable 7. AC Adapter
8. Electrode Pad
6
7
8
2
5
3
14

67
Contraindications
1. DO NOT use this device if you have a cardiac pacemaker, implanted defibrillator, or other implanted
metallic or electronic devices. Such use could cause electric shock, burns, electrical interference, or
death.
2. DO NOT use this device if you have any of the following medical conditions:
• Undiagnosed pain syndromes
• Have been diagnosed with cancer
• Are pregnant
• Have suered acute trauma or surgical procedure in the past six months
• Have cardiac problems or cardiac disease
• Have epilepsy or other seizure disorder
• Have painful and/or atrophied muscles
• Have abdominal or inguinal hernia
• Have limited range of motion in skeletal joints
• Have blood circulatory problems
3. DO NOT use this device on muscles that are: atrophied, painful, suer spasms, on a limb with painful or
otherwise aicted joints.

67
Contraindications
1. DO NOT use this device if you have a cardiac pacemaker, implanted defibrillator, or other implanted
metallic or electronic devices. Such use could cause electric shock, burns, electrical interference, or
death.
2. DO NOT use this device if you have any of the following medical conditions:
• Undiagnosed pain syndromes
• Have been diagnosed with cancer
• Are pregnant
• Have suered acute trauma or surgical procedure in the past six months
• Have cardiac problems or cardiac disease
• Have epilepsy or other seizure disorder
• Have painful and/or atrophied muscles
• Have abdominal or inguinal hernia
• Have limited range of motion in skeletal joints
• Have blood circulatory problems
3. DO NOT use this device on muscles that are: atrophied, painful, suer spasms, on a limb with painful or
otherwise aicted joints.
Precautions
1. TENS is not eective for pain of central origin, including headache.
2. TENS is not a substitute for pain medications and other pain management therapies.
3. TENS devices have no curative value.
4. TENS is a symptomatic treatment and, as such, suppresses the sensation of pain that would otherwise
serve as a protective mechanism.
5. Eectiveness is highly dependent upon patient selection by a practitioner qualified in the management
of pain patients.
6. The long-term eects of electrical stimulation are unknown.
7. You may experience skin irritation or hypersensitivity due to the electrical stimulation or electrical
conductive medium (gel).
8. Use this device only with electrodes and accessories recommended by the manufacturer.
9. The Pain Remedy is not intended for the application of any medical condition or disease nor is it
intended for physiotherapy or muscle rehabilitation. It is contraindicated for use on any muscle that is
injured or diseased.

89
Rechargeable Batteries
Prior to the use of a new unit, the rechargeable battery in the
CONTROL unit may need to be charged.
After being stored for 60 days or more, the batteries may lose
their charge. After long periods of storage, batteries should be
charged prior to use.
Charging the Batteries

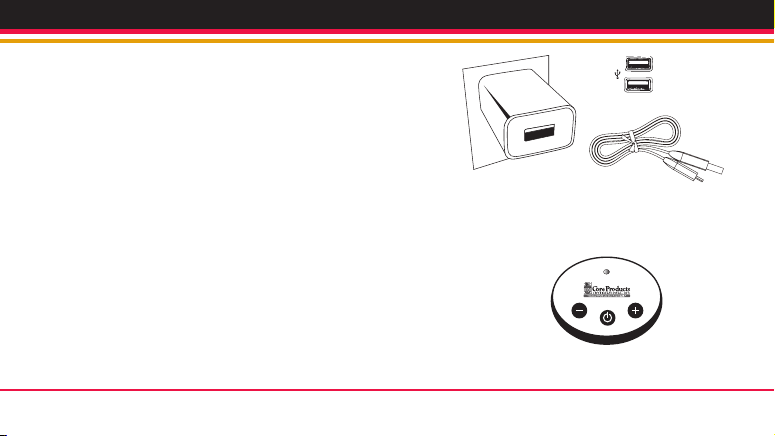

1. Connect the AC Adapter to any wall outlet or use a computer with
USB Port (computer must be powered on).
2. Connect the larger end of the USB Cable into the AC Adapter or USB
Port on the computer (must be powered on).
3. Connect the small end of the USB Cable into the CONTROL unit.
CONTROL Unit is fully charged when indicator light is green.
It will take about 1.5 hours to fully charge the batteries. A fully charged
battery will last approximately 12 hours at an intensity level of 10 - this is 50%
of the maximum intensity level of 20.

89
Quick Start Guide for Simple Use
1. Before using the Pain Remedy TENS charge the
CONTROL unit.
2. Snap the ELECTRODE pad into the round CONTROL unit.
NOTE:        TENS   .
3. Remove the electrode pad film and securely place the
adhesive pads directly on the skin over the pain area.
4. Turn the CONTROL Unit on by pressing the power button.
NOTE:      ,      .
5. Adjust the intensity of the CONTROL Unit by pushing the +
or - button. Do this until the sensation is comfortable - up
to 20 levels.
NOTE: I          
  .
6. Treatment time is 3 hours. For every 30 minutes
of treatment, the unit goes through a cycle of
4 pre-programmed modes.
NOTE: U      3 .

10 11
Application of Reusable Self Adhesive Electrodes
Application
1. Clean the skin area with soap and water; dry the skin area thoroughly prior to application of electrodes.
2. With electrode snapped into the CONTROL unit, remove plastic film on the ELECTRODE and securely
place on the skin, over the pain area.
3. Save the plastic film to protect adhesive during storage.
Care and Storage
1. Between uses, store the electrodes with plastic film attached, in a sealed bag.
2. Store in a cool, dry place.
3. It may be helpful to improve adhesion of electrode over repeated applications by spreading a few
drops of cold water over the adhesive; allow to air dry on a flat surface with adhesive side up.
NOTE: O S       .
NOTES:
1. Do not apply to broken skin.
2. The electrodes should be discarded when they are no longer adhering.
3. The electrodes are intended for single users only.
4. If irritation occurs, discontinue use and consult your clinician.

10 11
Electrodes
The placement of the electrodes is key to achieving success with TENS Therapy. In a single channel
application, place the CONTROL unit directly over the area of pain in such a way as to direct the flow of
current across the area of pain.
Adverse Reactions
You may experience skin irritation and burns beneath the stimulation electrodes applied to your skin. You
may experience headache and other painful sensations during or following the application of electrical
stimulation near your eyes and to your head and face. If you experience adverse reactions, stop using the
device and consult with your physician.
Application of Reusable Self Adhesive Electrodes
Application
1. Clean the skin area with soap and water; dry the skin area thoroughly prior to application of electrodes.
2. With electrode snapped into the CONTROL unit, remove plastic film on the ELECTRODE and securely
place on the skin, over the pain area.
3. Save the plastic film to protect adhesive during storage.
Care and Storage
1. Between uses, store the electrodes with plastic film attached, in a sealed bag.
2. Store in a cool, dry place.
3. It may be helpful to improve adhesion of electrode over repeated applications by spreading a few
drops of cold water over the adhesive; allow to air dry on a flat surface with adhesive side up.
NOTE: O S       .
NOTES:
1. Do not apply to broken skin.
2. The electrodes should be discarded when they are no longer adhering.
3. The electrodes are intended for single users only.
4. If irritation occurs, discontinue use and consult your clinician.

12 13
Warnings
1. Consult with your physician before using this device.
2. If you have had medical or physical treatment for your pain, consult with your physician before using
this device.
3. If your pain does not improve, becomes more than mild, or continues for more than five days, stop
using the device and consult with your physician.
4. Do not apply stimulation over your throat. This could cause severe muscle spasms resulting in closure
of your airway, diculty in breathing, or adverse eects on heart rhythm or blood pressure.
5. Do not apply stimulation across your chest. The introduction of electrical current into the chest may
cause rhythm disturbances to your heart, which could be lethal.
6. Do not apply stimulation over open wounds or rashes, or over swollen, red, infected, or inflamed areas
or skin eruptions (e.g., phlebitis, thrombophlebitis, varicose veins).
7. Do not apply stimulation over, or in proximity to, cancerous lesions.
8. Do not apply stimulation in the presence of electronic monitoring equipment (e.g., cardiac monitors,
ECG alarms), which may not operate properly when the electrical stimulation device is in use.
9. Do not apply stimulation when in the bath or shower or around any other water source.
10. Do not apply stimulation while sleeping.
Tips For Skin Care
To avoid skin irritation, especially if you have sensitive skin, follow these suggestions:
1. Wash the area of skin where you will be placing the electrodes, using mild soap and water before
applying electrodes, and after taking them o. Be sure to rinse soap o thoroughly and dry skin well.
2. Excess hair may be clipped with scissors; do not shave stimulation area.
3. Wipe the area with the skin preparation your clinician has recommended. Let this dry. Apply electrodes
as directed.
4. Never apply electrodes over irritated or broken skin.
5. When removing electrodes, always remove by pulling in the direction of hair growth.
6. Do not stretch the electrodes when placing them on the skin, “pulling stress” from excessively
stretched electrodes can cause skin problems. To prevent this, apply electrodes from the center
outward.
7. It may be helpful to rub skin lotion on electrode placement area when not wearing electrodes.
NOTE:      ,    1   .

12 13
Warnings
1. Consult with your physician before using this device.
2. If you have had medical or physical treatment for your pain, consult with your physician before using
this device.
3. If your pain does not improve, becomes more than mild, or continues for more than five days, stop
using the device and consult with your physician.
4. Do not apply stimulation over your throat. This could cause severe muscle spasms resulting in closure
of your airway, diculty in breathing, or adverse eects on heart rhythm or blood pressure.
5. Do not apply stimulation across your chest. The introduction of electrical current into the chest may
cause rhythm disturbances to your heart, which could be lethal.
6. Do not apply stimulation over open wounds or rashes, or over swollen, red, infected, or inflamed areas
or skin eruptions (e.g., phlebitis, thrombophlebitis, varicose veins).
7. Do not apply stimulation over, or in proximity to, cancerous lesions.
8. Do not apply stimulation in the presence of electronic monitoring equipment (e.g., cardiac monitors,
ECG alarms), which may not operate properly when the electrical stimulation device is in use.
9. Do not apply stimulation when in the bath or shower or around any other water source.
10. Do not apply stimulation while sleeping.
Tips For Skin Care
To avoid skin irritation, especially if you have sensitive skin, follow these suggestions:
1. Wash the area of skin where you will be placing the electrodes, using mild soap and water before
applying electrodes, and after taking them o. Be sure to rinse soap o thoroughly and dry skin well.
2. Excess hair may be clipped with scissors; do not shave stimulation area.
3. Wipe the area with the skin preparation your clinician has recommended. Let this dry. Apply electrodes
as directed.
4. Never apply electrodes over irritated or broken skin.
5. When removing electrodes, always remove by pulling in the direction of hair growth.
6. Do not stretch the electrodes when placing them on the skin, “pulling stress” from excessively
stretched electrodes can cause skin problems. To prevent this, apply electrodes from the center
outward.
7. It may be helpful to rub skin lotion on electrode placement area when not wearing electrodes.
NOTE:      ,    1   .

14 15
Warnings - Continued
11. Do not apply stimulation while driving, operating machinery, or during any activity in which electrical
stimulation can put you at risk of injury.
12. The Pain Remedy is for ADULT use and ONLY on healthy muscles.
13. The device may cause lethal rhythm disturbances to the heart in susceptible individuals.
14. Do not attempt to use the Pain Remedy for muscle reeducation, to prevent muscle atrophy or spasms,
improving range of motion, blood flow deficiencies/venous thrombosis. Use caution if stimulation is
applied over areas of skin that lack normal sensation.
15. Do not use TENS anywhere on the head or face (unless instructed by your therapist for TMJ), front of
the neck, internally, or on genitals.
Maintenance, Transportation, and Storage
1. Non-flammable cleaning solution is suitable for cleaning the device.
2. Stains and spots can be removed with a cleaning agent.
3. Do not submerge the device in liquids or expose it to large amounts of water.
4. Return the device to the carrying box to ensure that the unit is well-protected before transportation.

14 15
Warnings - Continued
11. Do not apply stimulation while driving, operating machinery, or during any activity in which electrical
stimulation can put you at risk of injury.
12. The Pain Remedy is for ADULT use and ONLY on healthy muscles.
13. The device may cause lethal rhythm disturbances to the heart in susceptible individuals.
14. Do not attempt to use the Pain Remedy for muscle reeducation, to prevent muscle atrophy or spasms,
improving range of motion, blood flow deficiencies/venous thrombosis. Use caution if stimulation is
applied over areas of skin that lack normal sensation.
15. Do not use TENS anywhere on the head or face (unless instructed by your therapist for TMJ), front of
the neck, internally, or on genitals.
Maintenance, Transportation, and Storage
1. Non-flammable cleaning solution is suitable for cleaning the device.
2. Stains and spots can be removed with a cleaning agent.
3. Do not submerge the device in liquids or expose it to large amounts of water.
4. Return the device to the carrying box to ensure that the unit is well-protected before transportation.
Troubleshooting
Problem Cause Solution
When increasing intensity after
turning the unit on 3 buzzes were
heard and green light flashed
Pads are not firmly on the skin
and need to be repositioned
Reposition pads and adhere
firmly to the skin. Turn power on
and continue
The indicator light on CONTROL
unit is red
The Battery is low Charge the CONTROL unit
Adhesive pad does not stick after
moistening surface
Adhesive gel pad needs to be
replaced
Replace adhesive gel pad. Pads
can be purchased at the location
you purchased the unit or at
www.coreproducts.com
During use, the skin feels a
painful burning sensation or the
stimulation becomes weakened.
Adhesive gel pads are not
adhering firmly to the skin or the
gel pads are too dry.
Apply a few drops of water to the
adhesive surface of the pads.
Press firmly to the skin.

16 17
Troubleshooting
Problem Cause Solution
The CONTROL unit does not
seem to be charging
Charging cable not plugged in
fully.
Ensure the USB cable is firmly in
the CONTROL unit and other end
is in the AC Adapter or Computer
USB Port. Check if there is a
problem with the AC adapter by
plugging the USB Cable into a
computer port.
Skin is red in treatment area Overtreatment or adverse
reaction
Stop and treat another area.
Contact your physician if problem
persists.
Stimulation is weak or non-
existent
Pad(s) not adhering well or
battery is low
Clean skin
Replace electrode pad(s)
Charge battery

16 17
Troubleshooting
Problem Cause Solution
The CONTROL unit does not
seem to be charging
Charging cable not plugged in
fully.
Ensure the USB cable is firmly in
the CONTROL unit and other end
is in the AC Adapter or Computer
USB Port. Check if there is a
problem with the AC adapter by
plugging the USB Cable into a
computer port.
Skin is red in treatment area Overtreatment or adverse
reaction
Stop and treat another area.
Contact your physician if problem
persists.
Stimulation is weak or non-
existent
Pad(s) not adhering well or
battery is low
Clean skin
Replace electrode pad(s)
Charge battery
Specifications
Size: 5.6x4.4x 1.4cm
Weight: 20g
Power supply: DC 3.7V Lithium rechargeable battery
Channels: Single channel
Waveform: Asymmetric biphasic pulse
Intensity: 0-80 mA @ 500 Ω
Pulse Width: 100µS
Frequency: 1-52 Hz
Timer: Continuous for 3 hours duration period; unit automatically it shuts
o at completion
Intensity: 20 levels/adjustable
Mode: 2 modes; automatically adjusts
Operating Condition: 5oC to 40oC (41oF to 104oF); RH 30% - 75%; AP 700 to 1060 Hpa
Storage condition: -10oC to 55oC (14oF to 131oF); RH 10% - 90%; AP 700 to 1060 Hpa

18 19
Conformity to Safety Standards
Statement of EMC
The Pain Remedy TENS device is in compliance with IEC 60601-1-2: 1993.
Conformity to MDD Requirements
The Pain Remedy TENS device is in compliance with IEC 60601-1 safety standard.
Warranty
Pain Remedy TENS device is warranted for one year from the date of purchase. The warranty applies to the
TENS stimulator CONTROL unit only.
The warranty does not apply to damage resulting from failure to follow the operating instructions, accidents,
abuse, alteration or disassembly by unauthorized personnel.
Proof of purchase will be required at time a warranty claim is made.
Contact Information
Customer Service Phone: [phone] or 715-294-2050
Core Products International Inc. www.coreproducts.com
808 Prospect Avenue,
Osceola, WI 54020 U. S. A.

18 19
Conformity to Safety Standards
Statement of EMC
The Pain Remedy TENS device is in compliance with IEC 60601-1-2: 1993.
Conformity to MDD Requirements
The Pain Remedy TENS device is in compliance with IEC 60601-1 safety standard.
Warranty
Pain Remedy TENS device is warranted for one year from the date of purchase. The warranty applies to the
TENS stimulator CONTROL unit only.
The warranty does not apply to damage resulting from failure to follow the operating instructions, accidents,
abuse, alteration or disassembly by unauthorized personnel.
Proof of purchase will be required at time a warranty claim is made.
Contact Information
Customer Service Phone: [phone] or 715-294-2050
Core Products International Inc. www.coreproducts.com
808 Prospect Avenue,
Osceola, WI 54020 U. S. A.

20 21
CONTENU
Description générale.............. 22
Usage prévu.............................. 22
Contenu du paquet ................. 23
Contre-indications.................... 24
Précautions ................................ 25
Chargement de la batterie.... 26
Guide de démarrage rapide..27
Application des électrodes... 28
Eets indésirables ................... 29
Astuces pour les
soins cutanés ............................ 30
Manuel de l’utilisateur
Français
