Cosco Fitness CMTM-4610A2 User manual

1
CONTENTS
Precautions…………………………………………..……….…..2
Hardware and tool………………………………………..…...…3
Exploded drawing……………………..………………..…….…4
Spare parts list…………………………..…………………….....5
Assembly instruction…………..………………………...…..…6
Computer Instruction……………………………….…………..8
Adjustment…………………………………..........................….11
Operation instruction…………………………….……….……11
Folding, moving and unfolding instruction….………..….. 12
Maintenance and malfunction treatment……………….......13
Warm up exercises……….…………………………..….....….14

2
Precautions
1) Thank you for making this treadmill part of your exercise program. For your safety
and benefit please read this manual carefully before use.
2) Place the treadmill on the flat ground. The safety operation space is 200 cm
behind the treadmill and 100 cm aside of it. If the ground is not flat, you can put
mats on the ground to ensure the treadmill runs steadily.
3) Please use the treadmill indoors to keep dry. Do not use the treadmill in carport,
dooryard or anywhere close to water.
4) Keep the power wire away from the heated surface.
5) Never allow two or more persons on the treadmill at the same time. The max
user’s weight is 130 kg.
6) Adults should keep their eyes on any users that under 12 years old when they’re
using the treadmill.
7) Do not try to hold up or move the assembled treadmill unless you have the ability
to raise 20kg (45 pounds) goods.
8) Please wear appropriate clothing, including running shoes during exercise; do not
wear clothes that might catch on any part of this treadmill. Do not run by barefoot,
slippers or socks only.
9) Always clip the safety key on the user during exercise so that the user can pull it
off to stop the treadmill immediately in case of emergency.
10) Don’t force to step the running belt when the power is shut off. Don’t force to use
the treadmill when the power wire or pin is damage or the treadmill can’t use in
ordinary.
11) The pulse sensor in this machine is not for therapeutic purpose. There’re many
reasons (including posture of movements) to affect the precision of the index
shown on machine. So the pulse sensor is only for accessorial use during exercise
to reflect the general trend of your workout.
12) Please examine and tighten the parts of machine regularly to keep safe use..
13) The plug has to be connected in correct socket with earth wire to avoid electric
shock.
14) Never turn on the treadmill when standing on the running belt. Stand on the side
extrusion of the treadmill and hold the handrails then step up/down the running
belt from lower speed.
15) Do not open the motor cover when encountering the unmanageable malfunction,
you should ask the authorized service representative or technicians to check the
treadmill.

3
16) The equipment is not suitable for therapeutic purpose.
17) This appliance is not intended for use by person (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
18) Children should be supervised to ensure that they do not play with the appliance.
Warning: It will harm your health or damage the equipment if using the treadmill
improperly or exceeding the natural functions!
Warning: This power plug only can be replaced by relative qualified people or its
manufacturer and its services center！
Hardwareandtool

4

5

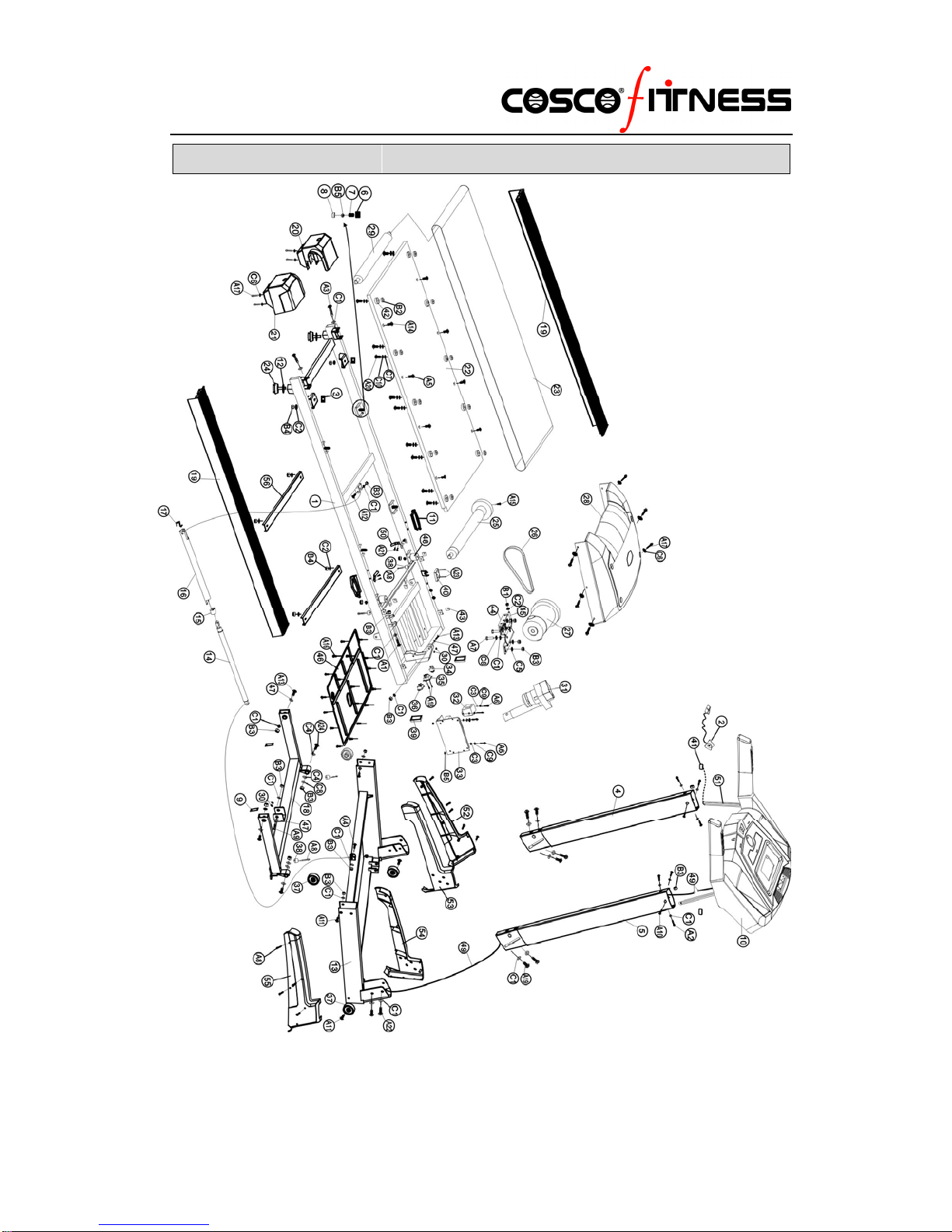

Exploreddrawing

6
SparePartsList
No Description Qty No. Description Qty
1 Base frame 1 35 Cymbiform switch 1
2 Safety key 1 36 Socket 1
3 Running board support pad 2 37 Foot wheel 4
4 Left support tube 1 38 Cushion 4
5 Right support tube 1 39 Square plug (60*30) 2
6 Spring cover 4 40 Square sensor 1
7 Anit-shock spring 4 41 φ15.5 Bushing 2
8 Guide tube 4 42 Side rail anchor point 10
9 Square plug (40*20) 2 43 Stator 8
10 Computer/Handlebar 1 44 Motor support 1
11 Running board cushion 2 45 Spring guide tube 2
12 Lock nut 2 46 Motor base cover 1
13 Support frame 1 47 Nylon washer 4
14 Cylinder 1 48 Running board cushion 2
15 Cylinder bushing 1 49 Signal wire 1
16 Cylinder support 1 50 Running belt guide hook 2
17 Cylinder spring 1 51 Computer connecting plate 2
18 Incline frame 1 52 Left base foot cover inner 1
19 Side rails 2 53 Left base foot cover outer 1
20 Left end cap 1 54 Right base foot cover inner 1
21 Right end cap 1 55 Right base foot cover outer 1
22 Running board 1 56 Running board support frame 2
23 Running belt 1
24 Adjustable foot pad 2 A1 Half round bolt M8*60 1
25 Front roller 1 A2 Half round bolt M8*16 6
26 6V belt 1 A3 Half round bolt M8*70 2
27 Motor 1 A4 Bolt M8*45 1
28 Motor cover 1 A5 Cross head bolt M6*25 6
29 Rear roller 1 A6 Cross head self-lock bolt
ST4.2*12 4
30 φ10 special washer 4 A7 Bolt M8*12 2
31 Incline motor 1 A8 Cross head self-lock bolt ST4*16 14
32 Transformer 1 A9 Altitude bolt φ10X45 1

7
33 Driver 1 A10 Half round bolt M8*40 2
34 Emergency stop key 1 A11 Bolt M8*50 4
No Description Qty No. Description Qty
A12 Bolt M8*30 1 B5 Nut M4 4
A13 Altitude bolt φ10X30 3 C1 Flat washer Ф8 27
A14 Cross head bolt M6*30 2 C2 Flat washer Ф6 10
A15 Half round bolt M8*30 1 C3 Flat washer Ф4 4
A16 Cross head half round bolt
ST4.2*10 18 C4 Flat washer Ф10 4
A17 Cross head self-lock bolt
ST4.2*16 10 C5 Big flat washer Ф8 4
A18 Cross head bolt M3*8 2 C6 Big flat washer Ф4 10
A19 Half round bolt M8*20 4
A20 Bolt M5*35 10 C7 Big flat washer Ф5 10
A21 Cross head bolt
ST6*10 4 C8 Spring washer Ф8 4
A22 Half round bolt M8*50 4 C9 Spring washer Ф4 4
A23 Cross head self-lock bolt
ST2.9*12 2 C10 Spring washer Ф5 10
A24 Altitude bolt Ф10X40 2
B1 Nut M6 2 D1 Wrench 1
B2 Nut M5 10 D2 Screwdriver 1
B3 Nylon lock nut M8 17 D3 Wrench (s=6) 1
B4 Nylon lock nut M6 8 D4 Lubricant bottle 1
Assembly Instruction
Please make sure there’s enough space to install the treadmill and recommend
2 persons to install it.
WARNING: Don’t insert the power wire until the treadmill was fully assembled.
1. Take out the machine from the box; put it on the ground at horizon; Hold up the

8
computer (10) and the Left & right support tube (4.5) along with the Computer
connecting plate (51), insert the Computer connecting plate (51) and the tube of
computer(10) to the Left & right support tube (4.5). (NOTE: Please don’t press

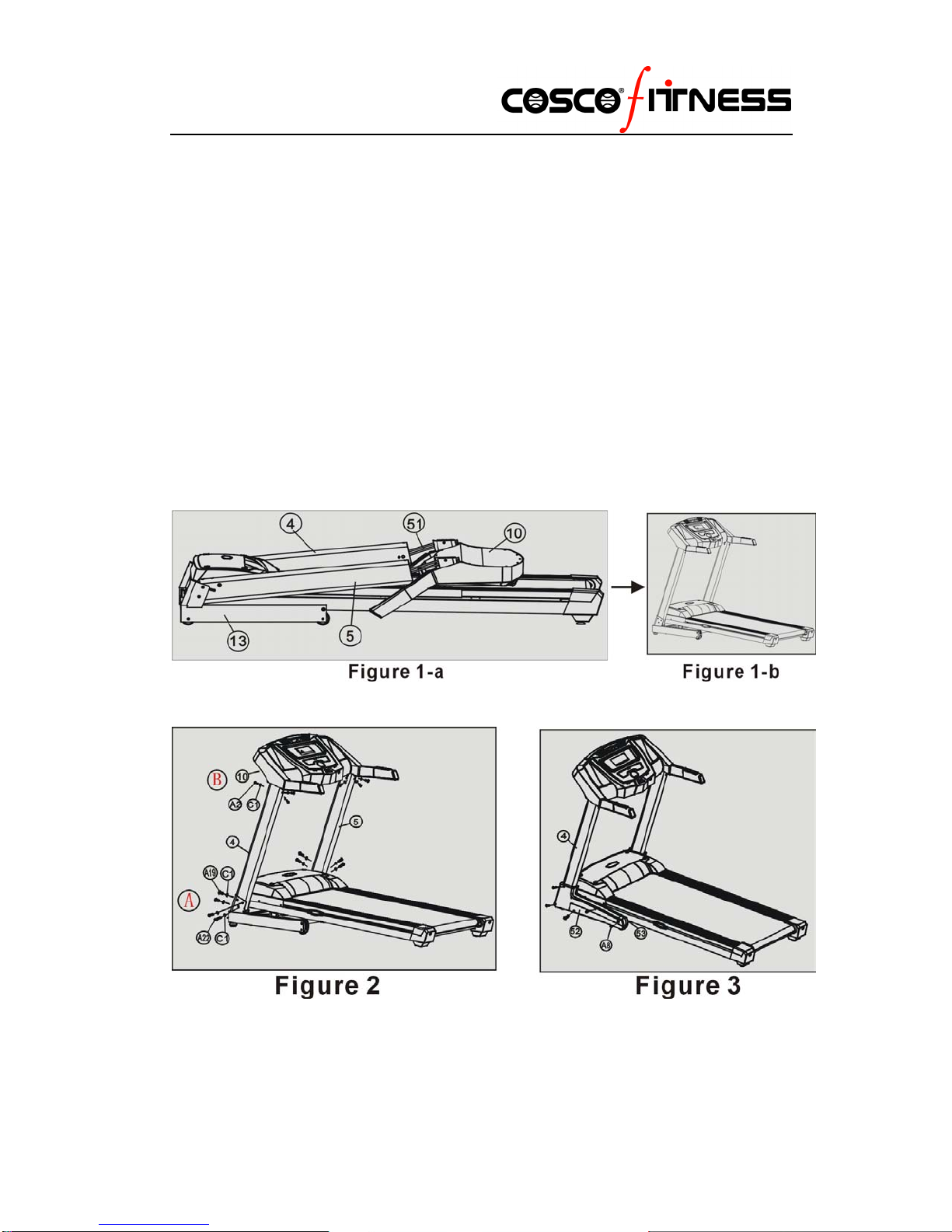

against the wires.) (See figure 1-a-b)
2. Tighten the Half round bolt M8*50 (A22) and Flat washer Ф8 (C1) which already
connect the Left & right support tube (4.5) with Support frame (13); secure them
with two Half round bolts M8*20 (A19), two Flat washers Ф8 (C1) in front and
one Half round bolt M8*50 (A22), Flat washer Ф8 (C3) on the side. (See figure
2-B)
3. Tighten the computer (10) with the Left & right support tube (4.5) with six sets of
two Half round bolts M8*16 (A2), Flat washers Ф8 (C1). (See figure 2-B).
4. Install the left base foot cover (52, 53) to the support frame by attaching five
Cross head self-lock bolts ST4*16 (A8). Do the same to install the right base foot
cover. (See figure 3)
5.

9
ComputerInstruction
Calorie: 0-999.9 kcal
Distance: 0-99.99 km
Time: 0-99 minutes: 59 seconds
Pulse: 60-200 times/minute
Incline: 0%-15%
A. Start the computer: connect the
power, press the switch on machine,
put the safety key in the groove on
computer, the computer is ready. If
the incline is not 0%, after pressing”
incline + “,” incline – “or “START/STOP”, the treadmill will automatically return to
incline 0%. Then you can set incline.
B. Manual operation: when computer is ready, press the on/off button, the time will
count down 3 seconds, then the treadmill starts, the initial speed is 1 km / h and incline
is 0%. The LCD will show the speed accordingly. Adjust the speed and incline by
pressing speed and incline buttons on computer. The speed will increase by 0.2 km / h
and incline by 1 each time.
Preset program operation
This treadmill has 18 preset programs. P1-P5 is weight losing program. P6-P10 is
Physical compliance training program. P11-P12 is Physical training program. P13-P15
is Physical fitness maintaining program. P16-P18 is Physical recovery program.
a. Press “PROGRAM” to enter automatic program status, the LCD will show program
1, and the speed diagram. It shows total time, and incline of this program.
b. Press “P+” and “P-” to change programs, press ENTER to enter the program you
want.

10
c. The time window shows program preset total time. Press -/+ to change program
running time (The scale is 10-59 minutes.), press ENTER after setting.
d. Press “START/STOP” to enter program status. The time starts to count down. When
changing different programs, it will produce beep sound. When the time descends
to zero, the speed slows down and the treadmill stop.
e. During program running, you can press “Speed –“or “Speed +“to change speed, and
press “Incline –“or “Incline +“to change incline. When it comes to the next section,
it will show the initial data of this section.
Customized program setting:
The users can preset the speed, time and record them in the computer for future use,
according to their own needs. There’re 5 sets of user settings and 16 programs per set
in this computer.
1) Customized program setting: Press “User set” button in ready status for custom
program setting, the light will be on for user setting 1. Press “P+” and “P-” to
choose programs; press “ENTER” to start time setting.
2) TIME SETTING
Before this section of program is set, the initial time is 16 minutes. Otherwise it
shows set time. Press -/+ to change program running time (The scale is 10-59
minutes.), press ENTER to start speed and incline setting of section.
3) Speed and incline setting
a. The dot matrix of section 1 in the LCD starts to twinkle, meaning it’s OK to start
setting. If this program is unidentified, the initial speed is 1KM/H; the initial incline is
0. Otherwise it shows set speed and incline.
Press “speed+ “, “speed-“to choose the speed you want.
Press “incline+ “, “incline-“to choose the incline you want.
Press ENTER after setting, and start next section speed and incline setting.
b. Do the same to set the speed and incline of section 2-16. When the last section is
finished identified and you continued setting by pressing ENTER, the computer will
beep twice to remind you the setting is done.
c. During setting, press START/STOP to exit.
d. Press “user set” to record the data to the computer. The dot matrix shows all speed
data; time window shows total time; incline window shows section one incline data.
e. If you want to delete all customized program setting data, long press “user set”.
f. If all data are preserved, press START/STOP to operate these set programs. Press
“user set” to back to ready status.
Customized Program Operation

11
Press “CUSTOM” under ready status, the LCD will show Program 1. Press “CUSTOM”
continuously, the LCD will show 2-5. If press “CUSTOM” again, it will go back to ready
status.
If the custom program is set, the LCD will show the data of the program.
Press “START/STOP” to operate program. If the program is not set, it will go back to
ready status.
Body fat operation
a. Press “Body Fat” in ready status.
b. Under “Body Fat” status, the LCD shows “MAN” or last set gender. Press “P+” and
“P-” to choose: “MAN”, “WOMAN”,
Press “ENTER” to set weight.
c. Weight (25-200KG), The LCD will twinkle and show 45 (KG) or last set weight,
Press “P+” and “P-” to choose your weight. Press “ENTER” to set height.
d. Height (100-220CM), The LCD will twinkle and show 145 (CM) or last set height,
Press “P+” and “P-” to choose your Height. Press “ENTER” to set age.
e. Age (8-65), The LCD will twinkle and show 18 or last set age, Press “P+” and “P-”
to choose your age. Press “ENTER” to set body fat test.
f. After all setting, The LCD will twinkle and then hold both of your hands on the
hand pulse to test your body fat. The LCD will show your body fat when test is
finished, or it will show “-----” if it’s failed. The computer will choose the appropriate
program for you after processing the data. You can press “Body Fat” to quit the
test during operation and return to ready status.
g. Press “ON/OFF” to enter program status. The time starts to count down. When
changing different programs, it will produce beep sound. When the time descends
to zero, the speed slows down and the treadmill stop.
h. Taking Asian measure: body fat under 19 is thin; between 19 and 24 is realistic
weight; between 24 and 27 is overweight; over 27 is obese.
Hand pulse: in non-exercise status, hold both of your hands on the pulse sensors, the
LCD will show the index, the heart shape light will show the pulse
twinkling.
Fan: to press “Fan”, it will start in the maximum speed then press this button again to
reduce it until it stops.
Operation buttons:When the program operation ,Press "Manual" to enter manual
operation，the speed is 1.0KM/H and incline is 0%.

12
Malfunction:
A. When the speed sensor has malfunctions, the computer will indicate it. The
machine will stop after 5 seconds if there’s problem with speed sensor, the
computer will return to ready status and LCD show “Er”. Users can continue the
operation when it’s under ready status.
B. When the incline sensor has malfunctions: if the computer doesn’t detect the
incline, the LCD show “Er”, you can still press incline up/down key to change the
incline, for examining and repairing the treadmill.
Adjustment
1. Ask the authorized service representative or professional technician to check if the
voltage is suitable, and if the grounded wire is reliable. Pull the running belt by
your hand and check if it turns freely, without screech.
2. Insert one end of the power line into the socket at the forepart of treadmill; plug the
other end in the electrical outlet. Put the emergency stop key on to the
corresponding place on the computer.
3. Turn on the switch from “0” to “1”, the computer displays zero, the running belt do
not move.
4. Press the “ON/OFF” key, the treadmill runs slowly, check if the computer and
running belt work normally.
5. Press the “SPEED” key, and observe the status of the running belt and display on
the computer. Please turn off the machine if the belt runs defectively, adjust it
following the rules in “MAINTENANCE AND MALFUNCTION TREATMENT”.
6. Check all the functions keys on the computer.
7. Pull out emergency stop key, the treadmill should stop immediately; it’ll work when
you put it on again.
8. Press the “ON/OFF” key, the treadmill will stop, and then turn off the switch if you
want to finish your exercise.
Operationinstruction
After assembly and adjustment you can use the treadmill:

13
1. Turn on the electrical outlet switch, and put the emergency stop key onto the
corresponding place on the computer.
2. Stand on the side extrusions; clip the safety key to your clothing at your waist.
3. Press the “ON/OFF” key, the treadmill runs at a lower speed, you can step on the
belt and walk slowly. The lowest speed is 1.0 km/h. ( see COMPUTER
INSTRUCTION )
4. Press the “Speed +”, “Speed -” or direct speed key, the speed will change relatively,
and you can read the speed on the computer. You can run slowly for 2~3 minutes,
and then run faster if you feel comfortable. You can run freely with hand away from
the handrails when you feel well.
5. During running, you can read speed, time, distance and calorie on the LCD.
6. Slowdown when you want to finish your exercise, and run slowly for 2~3 minutes
to make your heart rate and muscle turn to normal.
7. If you can’t keep balance while running at a high speed, you can pull off the
emergency stop key, and the treadmill will stop immediately.
8. Do not step on the running belt to right or left during exercise, or else the running
belt will be aberrancy.
9. After exercise, slowdown and press “ON/OFF” key to stop the treadmill. If you
want to restart the treadmill, press “ON/OFF” key (But the interval between start
and stop should be more than 1 minute).
WARNING: Continuously using incline function for more than five times, the function
may not work well. This is not the malfunction but a kind of self-protection.
The function would restore in 1 hour.
Folding, Moving and Unfolding Instruction
1) Folding: The treadmill is foldaway. Lift the end of the main frame and fold upwards
until the connecting bar rebound to the cover of cylinder tube. (See figure a)
2) Moving: Press the handrails to make the front base foot away from the ground then
push the treadmill after folding.
3）When you want to put the treadmill to the work position, please lift the end of main
fame (end cap) a little to make the foldaway support tube higher than the cylinder
cover (see figure a-1), tip the foldaway support tube with your foot slightly (see
figure a-2), press the end of main fame (end cap) forcibly, remove your foot and
keep on pressing the end of main fame for a while. The cylinder will shrink under
the weight of itself (see figure b) and the main fame goes flat.

14
MaintenanceandMalfunctionTreatment
1) The surface of the treadmill should be kept
clean, pull out the power line before
cleaning. You can clean the running belt
and the surface of the treadmill with a soft
and wet cloth.
2) The running belt is adjusted at factory; it
may runs defectively after transportation
and use. Turn off the treadmill before
adjusting, pull the belt in the center, and
then adjust the left and right bolts in rear roller with hex spanner (See figure ) it is
better to adjust 1/2 circle once. Then turn on the switch, check if the belt
10 runs defectively when the running speed is 4~5 km/h.
3) After using over 100hours or the lubricant between the running board and the
running belt is used up, please lubricate the running board and adjust the running
belt well.
4) After a long time of running, the belt may be longer and stuck. You should turn the
left and right adjustor bolt in rear roller clockwise at same position till the runs
smoothly and freely.

15
Warning:
1) The safety level of the equipment can be maintained only if it is examined
regularly for damage and wear, e.g. pins, connection points.
2) Please replace defective components immediately and/or keep the
equipment out of use until repair.
. Malfunction Reason Treatment
Cannot start the treadmill
after the power line is
plugged.
1. Plug incorrectly.
2. Signal line is not inserted
correctly.
3. Safe set is not replaced.
Plug it again.
Reset it.
1. Computer displays
normally, but the treadmill
can not be operated
2. Computer displays
normally, but the belt
doesn’t run, and buzzes.
Input voltage is too low. Use it when voltage is
normal
Operating normally when
non-loading, the belt gets
stuck when the user is
running on the belt.
Check if the belt is too loose. Adjust the length of
the running belt.
Warming up and cooling down
A successful exercise program consists of a warm-up, aerobic exercise, and a
cool-down. Do the entire program at least two and preferably three times a week,
resting for a day between workouts. After several months, you can increase your
workouts to four or five times per week.
Warming up is an important part of your workout, and should begin every session. It
prepares your body for more strenuous exercise by heating up and stretching out your
muscles, increasing your circulation and pulse rate, and delivering more oxygen to
your muscles. At the end of your workout, repeat these exercises to reduce sore
muscle problems. We suggest the following warm-up and cool-down exercises:
1. Inner Thigh Stretch
Sit with the soles of your feet together with your knees
pointing outward. Pull your feet as close into your groin as
possible. Gently push your knees towards the floor. Hold for
15 counts.

16
2.Hamstring Stretch
Sit with your right leg extended. Rest the sole of your left
foot against your right inner thigh. Stretch toward your
toe as far as possible. Hold for 15 counts. Relax and
then repeat with left leg extended.
3. Head Roll
Rotate your head to the right for one count, feeling the stretch up
the left side of your neck. Next, rotate your head back for one count,
stretching your chin to the ceiling and letting your mouth open.
Rotate your head to the left for one count, and finally, drop your
head to your chest for one count.
4. Shoulder Lift
Lift your right shoulder up toward your ear for one count. Then lift
your left shoulder up for one count as you lower your right shoulder.
5. Toe Touch
Slowly bend forward from your waist, letting your back and
Shoulders relax as you stretch toward your toes.
Reach down as far as you can and hold for 15 counts.

17

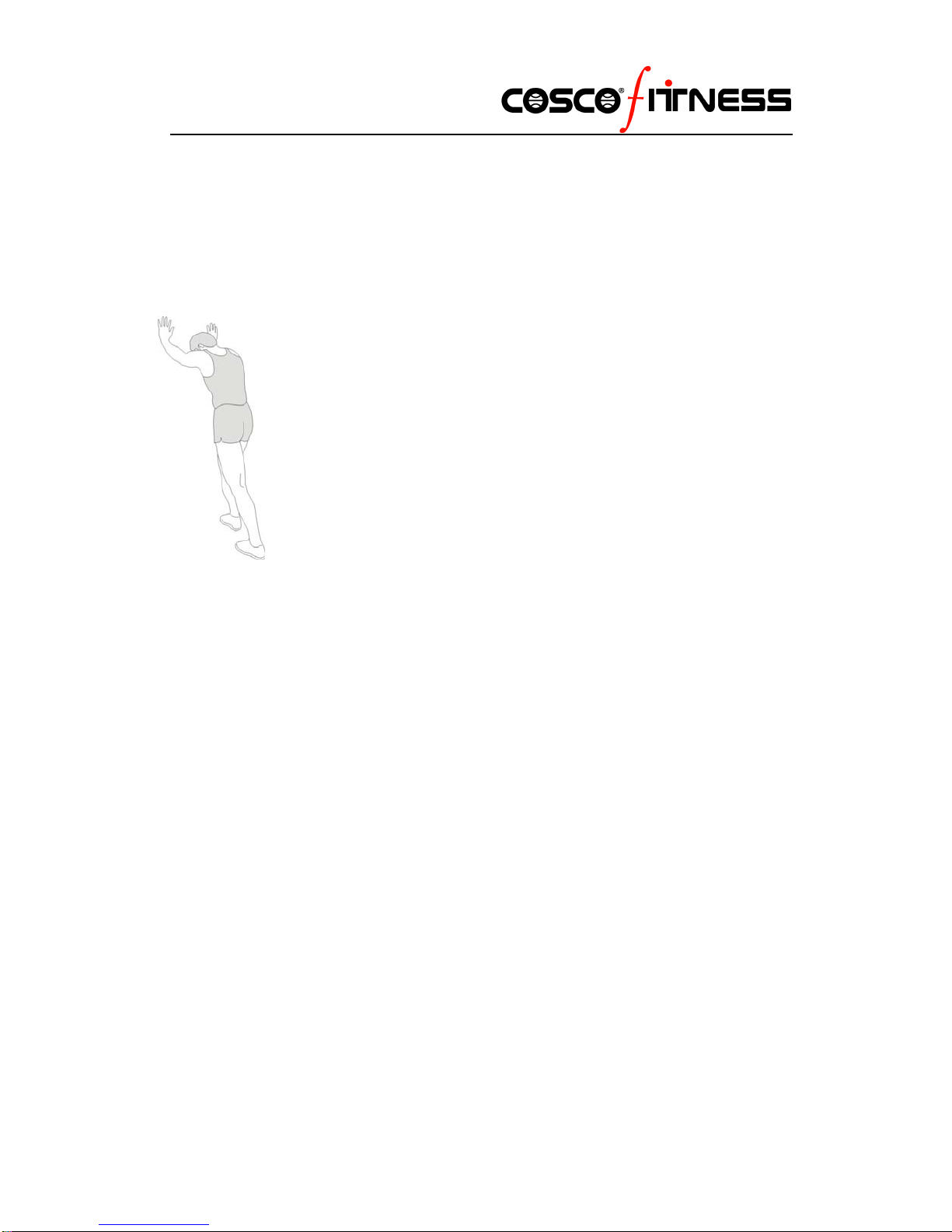

6. Calf-Achilles Stretch
Lean against a wall with your left leg in front of the right
And your arms forward. Keep your right leg straight and
the left foot on the floor; then bend the left leg and lean
forward by moving your hips toward the wall. Hold, then
repeat on the other side for 15 counts.
7. Side Stretch
Open your arms to the side and continue lifting them until they are over
your head. Reach your right arm as far upward toward the ceiling as
you can for one count. Feel the stretch up your right side. Repeat this
action with your left arm.
Cosco (India) Ltd.,
2/8,Roop Nagar,Delhi-110 007
