USER’S MANUAL
30-Inch Propane Fire Pit Table
OP70521

HYFP50095
DANGER
WARNING
WARNING
WARNING
For outdoor use only.
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Refer to the owner's information manual provided with this appliance.
For assistance or additional information consult a qualified installer, services agency or
the gas supplier.
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier
or fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance. An LP-cylinder not connected
for use shall not be stored in the vicinity of
this or any other appliance.
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage,personal injury,or loss of life.
•
•
•
•
Installation and service must be performed
by a qualified installer, service agency,
or the gas supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
www.costway.com
Contact Us!
Do NOT return this item.
Contact our friendly customer service department for help first.
E-mail
US: [e-mail]
UK: [e-mail]
BBefore You Startefore You Start
Please read all instructions carefully.
Retain instructions for future reference.
Seperate and count all parts and hardware.
Read through each step carefully and
follow the proper order.
We recommend that, where possible, all
items are assembled near to the area in
which they will be placed in use, to avoid
moving the product unnecessarily once
assembled.
Always place the product on a flat, steady
and stable surface.
Keep all small parts and packaging
materials for this product away from
babies and children as they potentially
pose a serious choking hazard.
2

WARNING
Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so
may result in a re, explosion, injury or death.
•
•THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a
ventilated space and shall not be used in any enclosed area.
•This unit is to be used with propane gas only! (sold separately)
•Do not attach a remote gas supply to this unit.
•Only use propane gas for this unit.
•Solid fuels shall not be burned in this appliance.
•
•LP GAS WARNING: Do not use any more than 1/4in depth lava rocks/pumice stones/LavaGlass®
above the bur
•If the propane gas tank is leaking gas, you may hear, see, or smell a hiss. Do the following:
e department for help.
•Applying too much propane may result in gas pooling and will not burn. Allow fresh air into the unit
so that the remaining gas may escape.
•
•Manifold pressure: 11 inch w.c. (2.74kPa).
•
•You must use a propane tank that has a collar to protect the gas valve.
•
•The tank system must be set up for vapor withdrawal.
•Discontinue use if any part of the propane tank is damaged. Rust and dents may be hazardous and
should be inspected by a gas supplier.
•
•
rocks/pumice stones/LavaGlass®could pop out and cause injury. Should any rocks pop out, discard
them.
•Always ensure that lava rocks/pumice stones/LavaGlass®are completely dry before use. Failure to
do so will cause them to crack or pop.
•Do not operate unit until all parts are fully assembled.
•Do not paint or color any part of this heating unit.
•Unit may be hot while in use, do not attempt to move it while in use.
•Never leave this heating unit unattended while in use.
•This unit is not intended for cooking.
•
•Keep a safe distance to avoid burning skin or clothing.
•Do not sit or rest hands or feet on this heating unit.
•
•Keep all electrical cords and fuel supply hose away from heated surfaces.
Use LP propane tanks with the following dimensions: diameter 12 in, height 18 in - capacity 20 lbs.
The installation of this unit must adhere to local codes or Propane Storage and Handling Code,
CSA B149.2.
www.costway.com
3

IF APPLICABLE:
• Allow heating item to cool completely before placing on lid.
• DO NOT use heating item while lid is installed. Always remove the lid while heating item is in use.
•Combustible material should not be within 60 inches of the top of the unit, or within 48 inches
around the entire unit.
•Keep the appliance area clear and free fr
vapors and liquids.
•
•Do not add water into the unit.
•Do not operate unit if any part has been under water. Immediately call a qualied service
technician to inspect the appliance and replace any part of the control system and any gas
control that has been under water.
•Do not disconnect any part while unit is in use.
•Do not store a spare propane tank on or near this unit.
•If the heating unit is indoors, detach the propane tank and leave outdoors.
•Always remove protective cover before operating (if applicable).
•Do not set the protective cover over the unit until it is turned off and completely cooled down.
•Check for leaks after not using the unit for long periods of time.
•Children should never operate this unit. Children must be supervised while near this unit.
•Keep gas tank at least 5 feet away from unit when lit. (if external tank)
•Maximum gas supply:250 psi; Min. gas supply:10 psi.
inspected annually and cleaned regularly.
•Inspect all elements of this heating unit before each use. If there is damage, the burner must be
replaced.
•Keep the hose out from any pathways to eliminate any accidental damage. (if external tank)
•Be aware of the hazards of high temperatures and stay away from the unit to avoid any burns or
injury.
of the U.S. Department of Transportation or the National Standard of Canada CAN/CSA-B339, LP gas
tanks, spheres and tubes for Transportation of Dangerous Goods; and Commission.
gas tank connection.
cks.
•Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
•Young children should be carefully supervised when they are in the area of the appliance.
near the appliance.
•Any guard or other protective device removed for servicing the appliance shall be replaced
prior to operating the appliance.
may be required as necessary. It is imperative that the control compartment, burners and
circulating airways of the appliance are kept clean.
(CGA791) LP
4
www.costway.com

www.costway.com
5
Only use the regulator and hose assembly provided with this unit. Replacement parts must be
supplied directly by the manufacturer .
Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate the
appliance. For assistance with repair or replacement of the burner or any other parts, please contact
COSTWAY.
NOTE: You must follow all steps to properly assemble this heating item. Make sure the gas
valve is turned “OFF” before assembling. Do NOT attempt to assemble without proper tools.
Min. Clearance
48 in. (121.9 cm)
Min. Clearance
60 in. (152.4cm)
Min. Clearance
48 in. (121.9 cm)
Combustible materials should not be within 60
inches of the top of the unit, or within 48 inches
around the entire unit.

www.costway.com
6
ITEM# PICTURE DESCRIPTION QTY
A
B
C
D
E
F
G
H
J
K
1PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
Table Leg
Table Leg
Table Leg
Panel
Panel
Panel
Door
Tank Holder/Base
Table Lid
Fire Table with Burner
1PC
Table Leg
I

www.costway.com
7
ITEM# PICTURE DESCRIPTION QTY
L
M
N
O
1PC
17 PCS
1PC
PVC
Screw(M6*12MM)
Screwdriver
P20 PCS
M6 Washer
Q4 PCS
Screw(M6*25MM)
lava rocks 1BOX

www.costway.com
8
Do not lock the screws until the assembly is complete.

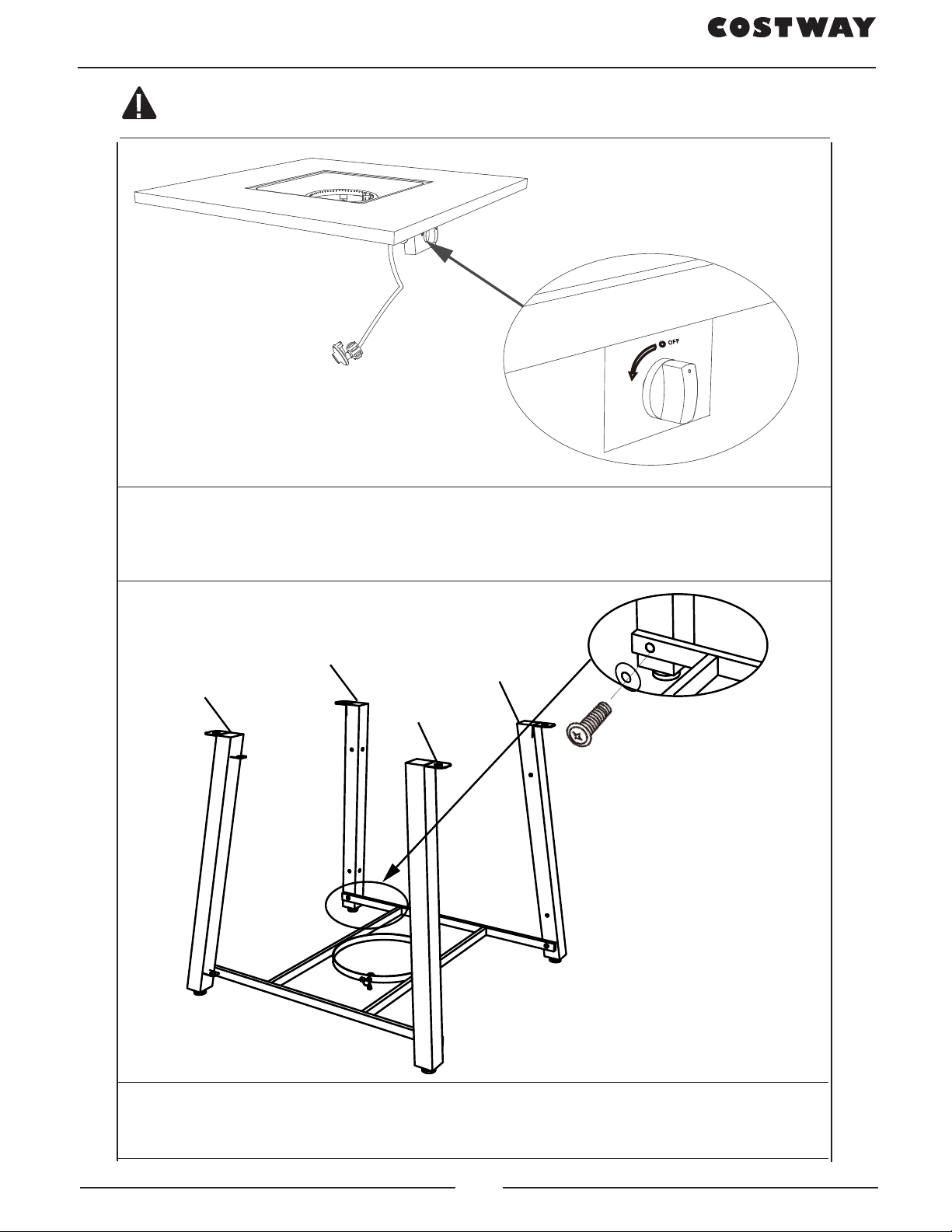

2.Connect the tank holder/base（I）With table Legs （A/B/C/D）by 4pcs
screws (Q) and 4pcs M6 washers(P),do not fully tighten.
1.Check the control knob for gas supply system is turned to OFF position
before, starting your assembly.
A
BC
DQ
P

www.costway.com
9

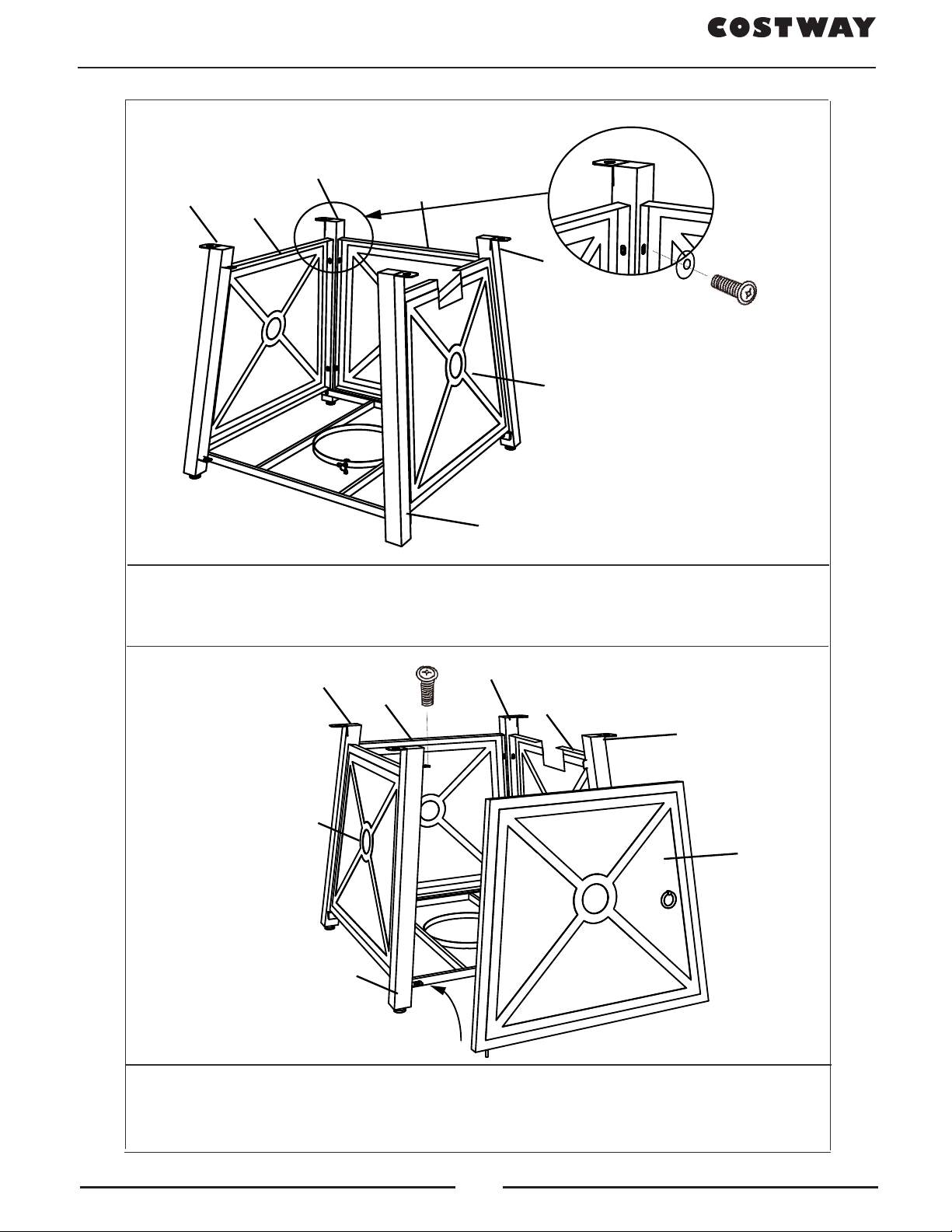

4.Hang the bottom (H) of the door plate on the round bracket.Top with
