Coway CHPE-250NF User manual

Filtered Water Ionizer
CHPE-250NF
• This product can not be used if the voltage is dierent from that mentioned in the rating plate.
• For your safety and proper use of the product, please read this User’s Manual before use.
• Warranty card is included in this User’s Manual.

FEATURES
1
2
3
4
5
Various and useful functions
It has not only water ltering functions but also ion water generating functions
so it increases customer satisfaction.
5-step ambient/ion water ltering system
NF membrane lter enhances 5-step ambient/ion water ltering system .
Alkali density control function
It is possible to control alkali density(weak→medium→strong) with Alkali level
button.
Antibacterial system in water tank
Antibacterial lter in water tank prevents micro-organism from multiplying.
Safety lock features
Hot water lock function keeps children from being burned hot water so children
can use the device safely. And in button lock mode, all functions are locked so it
is useful when you clean the device.

FEATURES / CONTENTS
DEAR CUSTOMERS
- Please keep the User’s Manual where it can be readily reached or found -
CONTENTS
Coway
2
1
Thank you for using our Filtered Water Inonizer.
Please read this Users’Manual to use and maintain the product correctly. If you encounter a
problem while using the product, you may solve the problem referring to the User’s Manual.
As this manual contains the product warranty card, please keep it in a safe place.
The CHPE-250NF is tested and certied by WQA according to
NSF/ANSI 42, 53, and 372.
FOR INFORMATION
MAINTENANCE
HOW TO USE
OTHERS
| 03 | SAFETY INFORMATION
Danger
Warning
Caution
| 07 | PARTS NAME
| 08 | WATER FILTRATION PROCESS
| 09 | INSTALLATION PRECAUTIONS
| 11 | BUTTONS AND INDICATORS |
| 13 | HOW TO USE
| 18 | INSTALLATION
| 20 | CLEANING METHOD
Storage tank
Tray
| 23 | FILTER REPLACEMENT
| 24 | FILTER REPLACEMENT METHOD
| 25 | TROUBLESHOOTING
| 27 | SPECIFICATION
| 28 | WATER FLOW DIAGRAM
| 29 | WARRANTY CARD

Danger : If not observed, serious injury or even death
could occur.
• Do not use a damaged power cord or plug, and loose outlet.
• Do not pull the power cord.
• Do not carry the unit by its power cord.
• Do not touch the power plug with a wet hand.
• Do not forcefully bend the power cord or put it under a heavy
object to prevent it from being damaged or deformed.
• Do not connect and pull out the power plug repeatedly.
• Remove any dust or water o in the pin and contacts of the
power plug.
• Do not plug into an outlet that is being used by several other
appliances.
Use an electrical outlet dedicated.
• When you don’t use for a long time, close the main water supply
valve and unplug.
• Do not attempt to repair or modify the power cord at your
discretion.
• In the case the power cord is damaged, do not replace the cord
yourself. Call Coway Service Center to have it replaced.
• Do not install near a heating device.
• When the water is coming inside of the product or there is a
puddle on the product, call Service Center after closing the
supplying valve and unplugging.
Be careful to keep this safety information.
Please read this information to prevent property loss
and ensure your safety. for 220 V - 240 V use only for 120 V use only
SAFETY INFORMATION

SAFETY INFORMATION
For Information
4
3
• If our product produces a strange noise or odd smell,
immediately unplug from the electrical outlet and call our
Service Center.
• Do not put the candle, a light for cigarette on the products.
• Do not place any containers with water, medicine, food, small
metallic objects, or any ammable material on the top of the
product.
• Clean after unplugging.

SAFETY INFORMATION
Warning : If not observed, serious injury or property
damage could occur.
• If the electric outlet is wet, carefully unplug the unit and let the
electric outlet completely dry before subsequent use.
• Unplug the product before repair, inspection, or parts
replacement.
• Do not install the product on a sloped oor.
• The water cooler is intended to be plugged into a receptacle of
the ground fault circuit interrupting type.
• Do not press the product by constraint or impact.
• Do not clean by spraying the water directly or don’t wipe the
product using the benzene and thinner.
• Do not repair, disassemble, or modify.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• This appliance can be used by children aged from 8 years and
above.
• The new hose-sets supplied with the appliance are to be used
and that old hose-sets should not be reused.

SAFETY INFORMATION
For Information
6
5
Caution : If not observed, minor physical injury or property
damage may occur as a result.
• The ltration device installation shall comply with applicable
state and local regulations.
• Use after closing the water tank cover completely inside of the
product.
• To drink the ltered, change the lter according to the lter
replacement cycle.
• When you don’t use for a long time, use after draining the saved
water completely and emptying the newly ambient water once
again.
• Do not use ltered water for the water exchange of an aquarium
or a shbowl.
• After moving the product or replacing the Plus Inno-sense lter,
the black powder can be remained in the inner bottom of the
water tank.
• Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after
the system.
• Cleaning and user maintenance shall not be made by children
without supervision.

Front
Rear
Ambient water faucet
IonicWater Extraction Lever
Operation/Indication Part
Ionic water faucet
Ambient Water Extraction Lever
Top Cover
Wire Condenser
Inlet(Orange) Tubing
Outlet(Blue) Tubing
Power Cord
PARTS NAME

PARTS NAME / WATER FILTRATION PROCESS
For Information
8
7
NEO-SENSE
FILTER
NF MEMBRANE
FILTER
ANTIBACTERIAL
FILTER *
ANTIBACTERIAL
FILTER
PLUS INNO-SENSE (E)
FILTER
Reject
Water
Outlet
*
The Antibacterial lter contains silver, which is known to inhibit the propagation of microorganisms and to
maintain the integrity of the lter.
The 5-step water ltering system (CHPE-250NF)
WATER FILTRATION PROCESS
Step 1, 2 : NEO-SENSE FILTER
Step 3 : NF MEMBRANE FILTER
Step 4 : PLUS INNO-SENSE (E) FILTER
Step 5 : ANTIBACTERIAL FILTER *
The CHPE-250NF conforms to NSF/ANSI 42 and 53 for the reduction of Aesthetic Chlorine, Taste
and Odor, and VOCs as veried and substantiated by test data.
The CHPE-250NF conforms to NSF/ANSI 372 for low lead compliance.
The CHPE-250NF registered in California.
See performance data sheet for individual contaminants and reduction performance.
The lter is the core technology of the ltration system.
If you don’t use qualifying lter or if you use an old lter that has expired, the system
performance may degrade.
Uses of reject water
- The reject water should be used for cleaning the restroom, the house, clothes,
or purposes other than drinking.
- Never use the reject water for a drinking water or a cook.
Tips

INSTALLATION PRECAUTIONS
1. Close main water supply valve to separate the faucet.
2. Wind the teon tape on the adaptor and t it to the
pipe.
3. Connect the faucet with the adaptor.
4. Connect 1/4 inch orange tubing with the connector
on the adaptor.
5. Open the feed valve to supply water to the ltration
system.
The summary for the proper installation of the water ltration device
Do not turn the water pipe.
Flush water through each lter at least 5 minutes before
Connection.
Shall install the adaptor with connector on the cold water
pipe.

10
9
INSTALLATION PRECAUTIONS
How To Use
Please check before use!
Only connect the power cord to the voltage rating that matches it on
the rating plate.
• Open the main water supply valve.
The main water must be supplied to operate the water ltration device normally.
• After installing the product
Get rid of the saved water above the full water in the inner water tank 2 times or more to use.
• When the indicator in the indication part is turned o
When the indicator in the indication part is turned o, check if the power supply was stopped
due to the power failure or other cause.
• Regularly lter replacement
It is important to replace the lter regularly to drink the pure water. If the lter is overused
beyond its service life, the performance of the water ltration device deteriorate, Do not miss the
lter replacement cycle.
• When you didn’t use for a long time
If you saved the water for a long time or you didn’t use, drain the water inside of the water
ltration device completely and remove the newly ltered water one time to use.
• When you don’t want to use for a long time
Close the main water supply valve and unplug.
When you don’t use for a long time, close the main water supply valve and
unplug.
Tips

BUTTONS AND INDICATORS
1Power Saving indicator
The indicator is on when Power
Saving mode is on.
2Light sensor
It detects light around the
device.
6Water level indicator
The indicator lights on
depending on water level.
8Cleansing indicator
The indicator is on when
electrolysis vessel cleaning
function is on.
10 Alkali level indicator
The indicator lights on
depending on alkali level(weak,
medium, strong).
4Hot water Lock indicator
The indicator is on when
Hot water Lock is on.
5Hot water indicator
The indicator is on when hot water
functions is on. More indicators are
on, water is hotter.
3Button Lock indicator
The indicator is on when
Button Lock mode is on.
7Cold water indicator
The indicator is on when cold water
functions is on. More indicators are
on, water is colder.
9Alkali generating indicator
The indicator is on when cold/
ambient ionic water is extracted.
1Power Saving indicator
2 Light sensor
3Button Lock indicator
4Hot water Lock
indicator
5Hot water
indicator
6Water level
indicator
7Cold water
indicator
8Cleansing indicator
9Alkali generating
indicator
10 Alkali level
indicator
INDICATORS

12
11
BUTTONS AND INDICATORS
How To Use

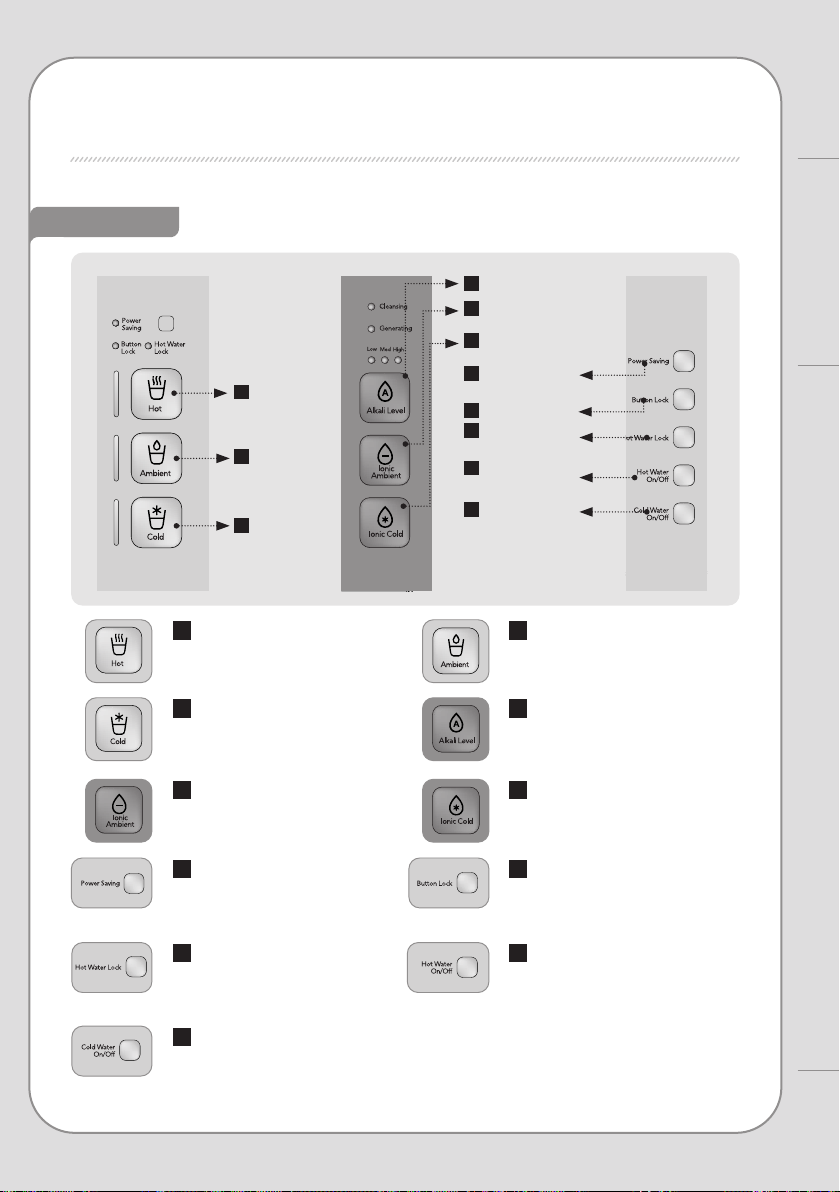

BUTTONS
1Hot water
button
4Alkali level button
2Ambient water
button
5Ionic ambient water
button
3Cold water
button
6Ionic cold water
button
7Power Saving
button
8Button Lock button
9Hot water Lock
button
10 Hot water ON/OFF
button
11 Cold water
ON/OFF button

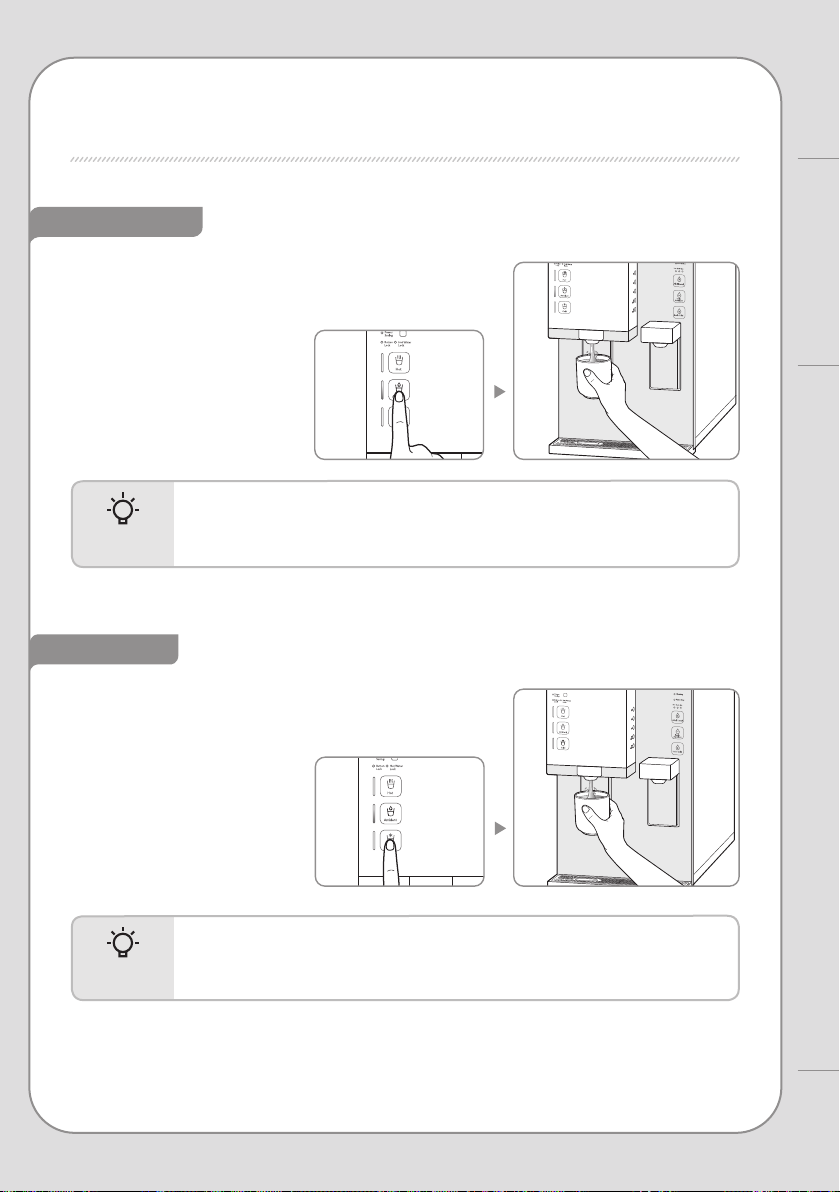

1Hot water button
Press the button when extracting
hot water.
2Ambient water button
Press the button when extracting
ambient water.
5Ionic ambient water button
Pree the button when extractiong
ionic ambient water.
6Ionic cold water button
Press the button when extracting ionic
cold water button.

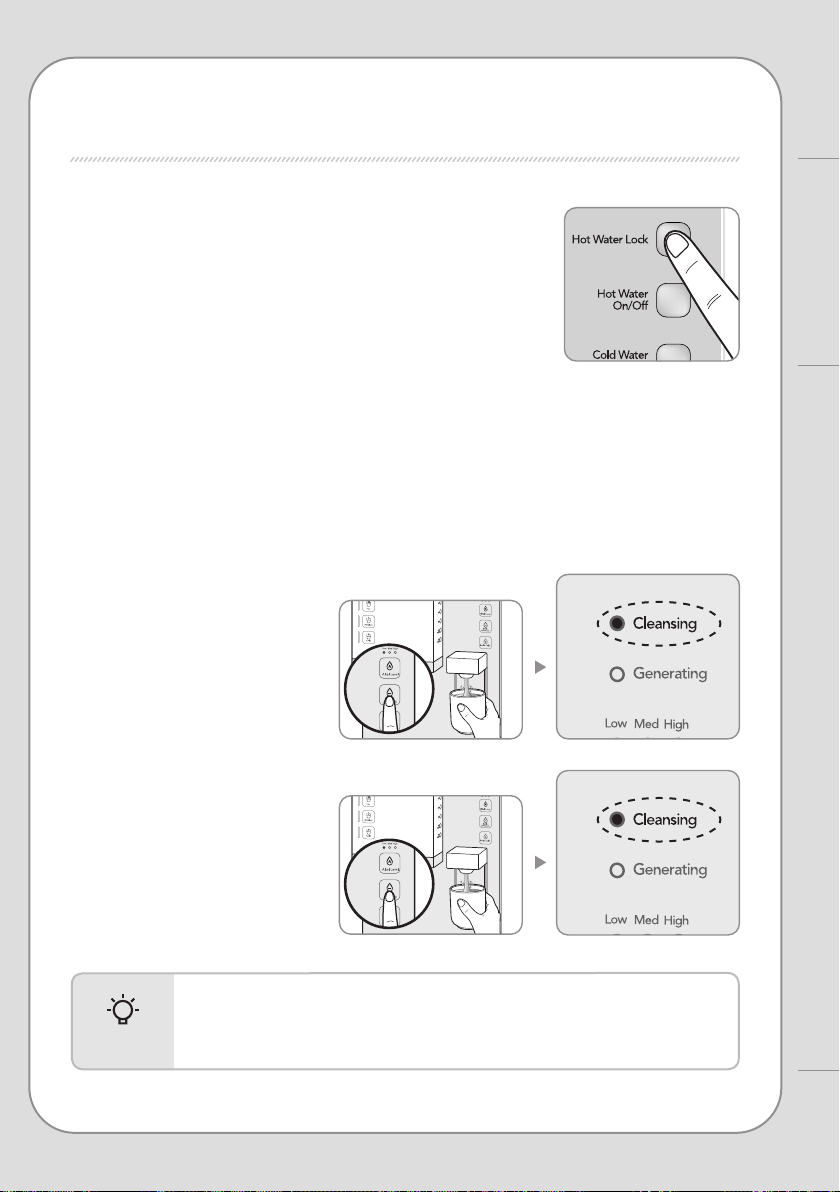

9Hot water Lock button
Press the button for more than 2
seconds when locking hot water
function.
10 Hot water ON/OFF button
Press the button for more than 2
seconds when turning on/o hot water
function.
3Cold water button
Press the button when extracting
cold water.
4Alkali level button
Press the button when controling
alkali level(weak, medium, strong).
7Power Saving button
Press the button for more than 2
seconds when turning on/o Power
Saving mode.
8Button Lock button
Press then button when locking all the
functions.
11 Cold water ON/OFF button
Press the button for more than 2
seconds when turning on/o cold
water function.

HOW TO USE

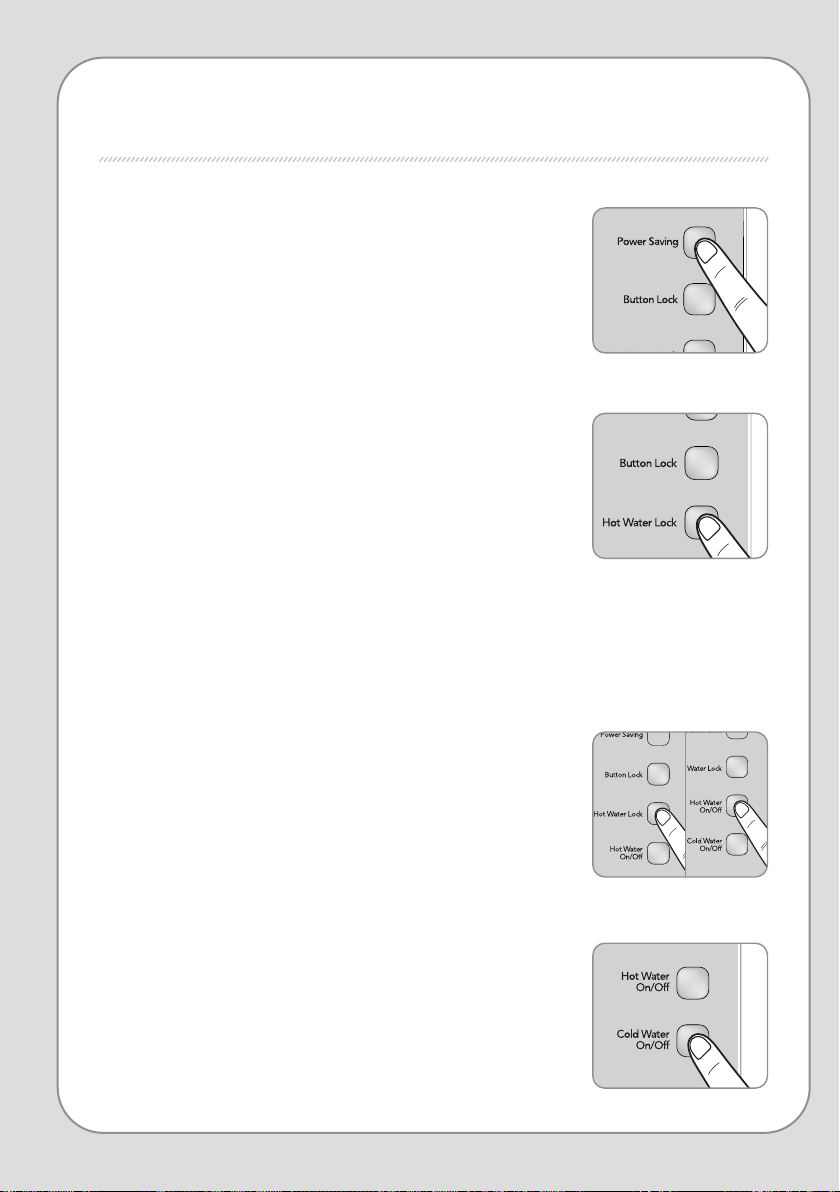

■How to use Power Saving mode
Press the Power Saving button for more than 2 seconds, then Power Saving indicator
is on. In Power Saving mode, the motor and heater moves less in night so power
consumption decreases. When Light sensor detects the night, Power Saving indicator
blinks.
∗In Power Saving mode, temperature of cold water is little bit higher than in day time.
■How to use Lock mode
- Hot water Lock
Press Hot water Lock for more than 2 seconds, Hot water indicator blinks and
Hot water Lock is on.
∗In Hot water Lock mode, Hot water button doesn't work and alarm rings.
∗Hot water isn't extracted even if Extraction button is pressed.
- Button Lock
Every function doesn't work in Button lock mode and alarm rings if any button is pressed. Use this function when you
clean the device. Press Button Lock button for 1 second, then indicators blink and Button Lock is on.
- Release Lock mode
Press Hot water Lock/Button Lock button for 1 second to release Lock mode.
■To use Hot water function
Press Hot water button for more than 2 seconds and check if Hot water indicator
is on. Press the button again to turn o Hot water function.
∗ It takes about 30 minutes to extract hot water after turning on Hot water function.
■To use Cold water function
Press Cold water button for more than 2 seconds and check if Cold water indicator
is on. Press the button again to turn o Cold water function.

HOW TO USE
How To Use
14
13
■How to use Silent mode
Press Hot water button for more than 5 seconds to activate Silent mode. In Silent
mode, alarm sound doesn't ring.
∗To deactivate Silent mode, Press Hot water button for more than 5 seconds again.
∗Even in silent mode, Power Saving, Lock, Hot water ON/OFF, Cold water ON/OFF
sound rings.
■Electrolysis vessel cleaning function
The auto electrolysis vessel cleaning function is provided to keep the vessel clean and protect the product. During
eletrolysis vessel cleaning, the cleaning indicator is turned on.
①If no ionized water is extracted for 1 minute after ionized water is extracted, the vessel is cleaned automatically.
②If the stop period exceeds 7 hours after water is extracted, the vessel is cleaned automatically.
▶If no ionized water is extracted for 1 minute after ionized water is extracted,
the vessel is cleaned automatically.
▶If the stop period exceeds 7 hours after water is extracted, the vessel is cleaned
automatically.
- During electrolysis vessel cleaning or ionized water extracting, the device could make some noise.
It doesn't mean product malfunction.
- Ionized water isn't extracted during electrolysis vessel cleaning.
TIPS

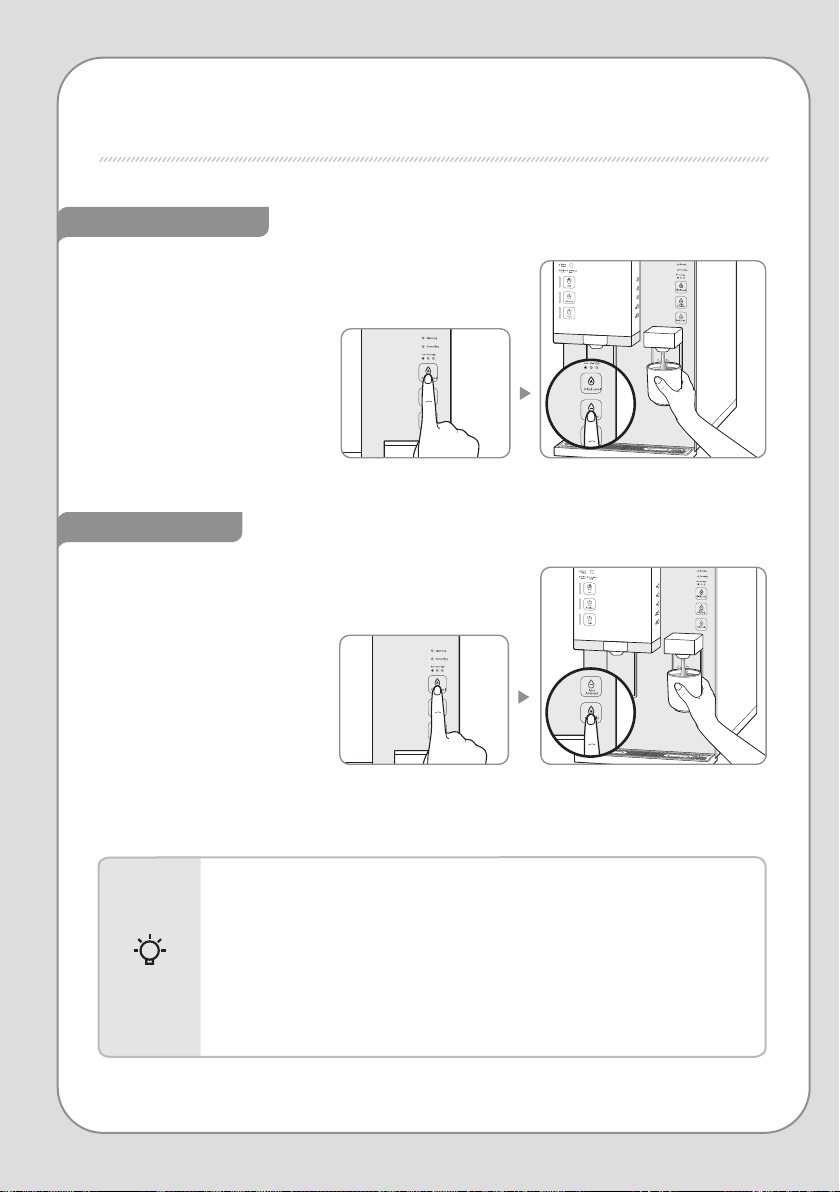

Press Alkali level button and choose Alkali level.
Press Ionic ambient water button and push Extraction lever.
Press Alkali level button and choose Alkali level.
Press Ionic cold water button and push Extraction lever.
Ionic ambient water
Ionic cold water
-Safety Lock : Automatically stops extraction after 1 minute continuous extracting.
- Ionic ambient water functions is set when you use the device for the rst time.
- Ionic cold water is set automatically when Cold water function is on.
- Ionic ambient or cold water setting is maintained.
- According to environment or user's drinking habit, the rst cup maybe not cold enough.
It doesn't mean product malfunction and you can have cold water from second cup.
- Alkali level is set as 'High' when you use the device for the rst time.
- Alkali level setting is maintained after you drink ionic water.
- Ionic water isn't extracted when water level is low.
TIPS
HOW TO USE

HOW TO USE
How To Use
16
15

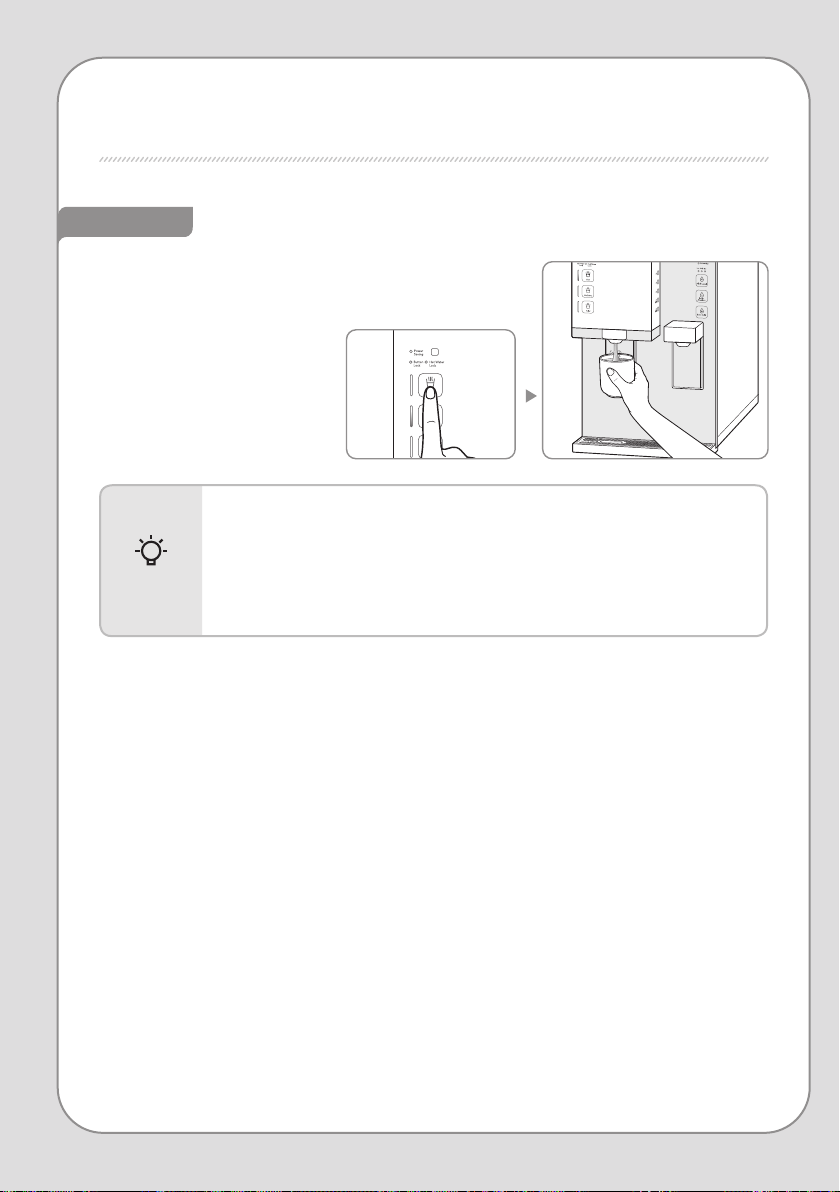

Press Ambient water button and push the lever.
Press Cold water button and push the lever.
Ambient water
Cold water
-Safety Lock : Automatically stops extraction after 1 minute continuous extracting.
- Ambient water setting is maintained after you drink ambient water.
TIPS
- If cold water isn't extracted, check if Cold water function is on.
- Cold water setting is maintained after you drink cold water.
TIPS

- If hot water isn't extracted, check if Hot water function is on.
- Hot water setting automatically goes back to previous setting after seconds.
(For example, if you drank ambient water before you drink hot water, the setting goes
back to Ambient water setting.)
- Hot water extraction volume could decrease when water level is low.
TIPS
Press Hot water button and push the lever.
Hot water
HOW TO USE

HOW TO USE / INSTALLATION
Maintenance
18
17
INSTALLATION
Follow the instruction for installation
Connect the orange color inlet tubing 1to the tap water
supplying pipe. Connecting the outlet tubing 2.
Inlet tubing (Orange)
Outlet tubing(Blue)
2
1
Main water
supply valve
voltage rating that
matches it on the
rating plate.

Water ltration device installation place 1
Please install the water ltration system not at a rough place, a damp place, a place where the
unit is exposed to the direct sunlight, a place where dust is present, or a place that the water
drops.
Water ltration device installation place 2
Please install at the place where it is 10 cm or more o from the wall and the bottom is at and
rm.
After installing the water ltration system
Filtered water : Fill the water tank with the ltrated water and remove the water twice or more if
necessary after installing it.
Ion water : Fill the water tank with the ionized water and remove the water twice or more if
necessary after installing it.
Removing moisture : Remove moisture and dust from the operating, display and connecting
parts of the front cover.
Cold water plumbing
Please connect to the cold water pipe necessarily. (If you connect to the warm water pipe, the
lter can be damaged.)
Movement and installation
When the position is moved, connect the power cord when 30 minutes passes after installing.
Be cautious!
To maintain optimal product performance, consult a Coway engineer for the
detailed installation methods.
There may be some water remaining inside of the lter which was used to
test the product during inspection process at the factory.
Please feel at easy and use as it isn’t the used product.
Don’t reuse the main water supply valve and hose that was previously
used when you install the product.
Tips
INSTALLATION
