Craftex B1012 User manual

OWNER’S MANUAL
B1012 – MEAT CUTTING BAND SAW &
GRINDER

2
B1012 MEAT CUTTING BANDSAW
Table Of Contents
General Safety Instructions Page 3
B1012 Features Page 4
Carton Contents Page 5
Assembly Instructions
Unpacking Page 6
Base Assembly Page 7
Sliding Table Assembly Page 8
Roller Assembly Page 8
‘L’ Plate Assembly Page 9
Meat Grinder Assembly Page 9
Operating Instructions
Health and Safety Page 10
Power Switch Page 10
Adjusting Drive Wheels Page 10
Adjusting Blade Page 11
Blade Tension Page 11
Guide Blocks Page 12
Bearing Guides Page 12
Fence Guard Page 12
Upper Blade Guard Page 12
Fence and Pusher Page 13
Meat Grinder/Sausage Stuffer Page 13
Band saw Schematic Diagram Page 14
Band saw Parts List Page 15
Base Schematic Diagram Page 16
Base Parts List Page 17
Sliding Table Schematic Drawing Page 18
Sliding Table Parts List Page 19
Miscellaneous Parts List Page 20
Warranty Page 21
Busy Bee Locations Page 22

3
GENERAL SAFETY INSTRUCTIONS
EXTREME CAUTION SHOULD BE USED IN OPERATING ALL POWER TOOLS. KNOW
YOUR POWER TOOL, BE FAMILIAR WITH ITS OPERATION. READ THE OWNER’S
MANUAL AND PRACTICE SAFE USAGE PROCEDURES AT ALL TIMES.
CONNECT your machine ONLY to the matched and specified power source.
WEAR SAFETY GLASSES, RESPIRATORS, HEARING PROTECTION
and SAFETY SHOES when operating this machine. Always wear safety glasses.
DO NOT wear loose clothing or jewellery when operating machinery.
A Safe Environment is important. Keep the area free of dust, dirt and other
debris in the immediate vicinity of the machine.
BE ALERT! Do Not Use prescription or other drugs that may affect your ability
or judgement to safely use this machine.
DISCONNECT the power source when changing drill bits, hollow chisels or
making other adjustments or repairs.
NEVER leave an operating tool unattended.
NEVER reach over the table when the tool is in operation.
ALWAYS keep blades, knives or bits sharp and properly aligned.
ALWAYS keep all safety guards in place and ensure their proper function.
ALWAYS use push sticks and featherboards to safely feed your work through the
machine.
ALWAYS make sure that any tools used for adjustments are removed before
operating the machine.
ALWAYS secure your work with the appropriate clamps or vises.
ALWAYS keep bystanders safely away while operating machinery.
THINK SAFETY. WORK SAFELY. Never attempt a procedure if it does not
feel safe or comfortable.

4
B1012 MEAT CUTTING BAND SAW & GRINDER
As part of the growing line of Craftex woodworking equipment, we are proud to
offer the B1012 Meat Cutting Band saw & Grinder. The Craftex name
guarantees Craft Excellence. By following the instructions and procedures laid
out in this owner’s manual, you will receive years of excellent service and
satisfaction. The B1012 is a professional tool and like all power tools, proper care
and safety procedures should be adhered to.
FEATURES
The Craftex B1012 is a high quality 10” Meat Cutting Band saw with a Meat
Grinder and Sausage Filler.
Motor – 1HP, Single Speed, 110/220 volt, Pre-wired for 110v.
Blade Speed – 1300 FPM.
Chrome Steel Sliding Table, 22 1/2" x 16” with an 8” travel.
Table Height – 35”.
Throat Depth – 9 3/4".
Maximum Cutting Height – 9 1/2".
Blade Length – 77” – 5/8” Wide Blade Included.
Overall Height – 57 1/2".
Aluminum Fence and Push Plate.
Die Cast Aluminum Wheels with Sealed Ball Bearings.
Band saw and Meat Grinder are Belt Driven on a Single Shaft.
Sheet Metal Stand Included.
Gross Weight – 63kg.
Two Year Warranty.

5
CARTON CONTENTS
Carefully remove all components from the shipping case and set to one side. The
following components in the carton should be as those pictured below.

6
B1012 MEAT CUTTING BAND SAW
Assembly Instructions
Unpacking
Carefully unpack all components from the carton and where applicable, clean
any protective lubricant from the appropriate parts with mineral spirits. Remove
any protective film from the bright components. The following illustration is a
guide to the various components on the B1012 Craftex Meat Cutting Band saw.

7
Assembling the Band Saw to the Base
There are three (A) elliptical holes in the top of the base and these should line up with the base of
the band saw. Using the appropriate nuts and bolts, fit the saw on the base and tighten securely.
Band Saw Assembly
Assemble the meat cutting band saw as indicated in the schematic on page.
Metal Stand
Assemble the metal
stand as shown in the
following schematic
(See page 16 for an
exploded view)

8

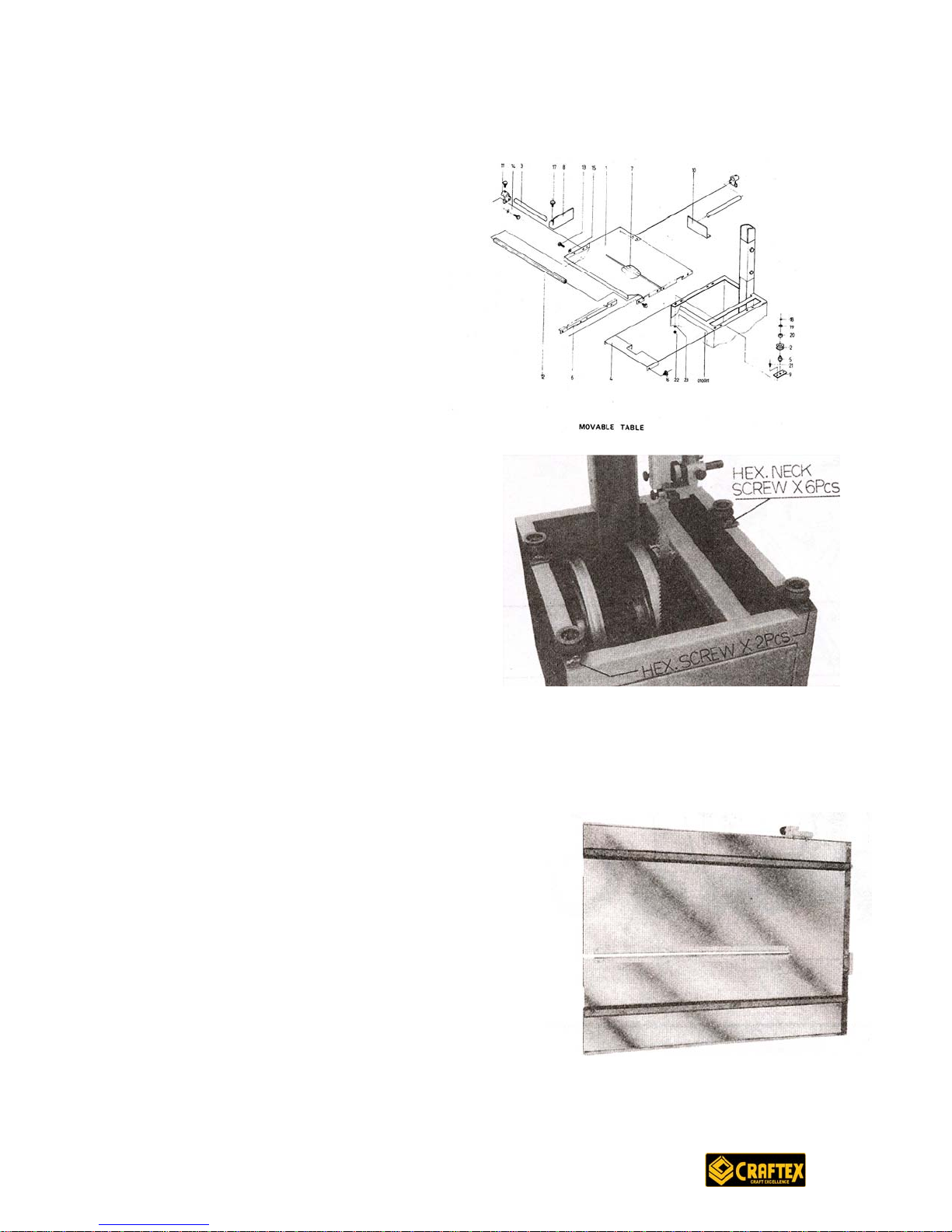

Sliding Table Assembly
Assemble the sliding table as indicated in
the following schematic diagram.
(See page 18 for an exploded view)
Assembly of the Rollers
Mount the four rollers on the band saw
frame as shown. Do not tighten, as further
adjustments may be required.
Assembly of the Table
Place the two guide rails on the underside of the table, using screws and washers to fix one end
of the rails to the table. Place the table on the saw frame
and carefully adjust the rails and rollers to make sure
that the table assembly slides smoothly.

9
Assembly of the Meat Grinder
The following illustration shows the components and assembly procedure of the included meat
grinder. The photo shows the position on the band saw and the lock knob.
Assembly of the “L”
Plate
As shown, fix the “L” plate onto the
table edge, then screw and tighten
the other end of the rails on the
table. Adjust the table to be sure
that the bandsaw blade is in the
middle of the opening. You may
now tighten the four rollers.

10
B1012 MEAT CUTTING BANDSAW
Operating Instructions
Health and Safety
It is important to keep the Craftex B1012 Meat Cutting Band saw, Meat Grinder
and Sausage Stuffer clean and sanitary at all times during the operation of the
machine. Failure to do so could cause contamination of the meat being cut
causing severe or even fatal illness.
YOUR MEAT CUTTING BAND SAW MUST BE CLEANED AFTER EACH USE!
A thorough cleaning should be performed inside and outside the machine prior to
changing to another type of meat (beef to pork etc.).
Sanitary clothing including rubber or other sanitary gloves should be used to
prevent meat contamination.
You can clean your meat band saw thoroughly with anti-bacterial soap and water
or bleach after each use. Your saw was designed with cleaning in mind, so it can
be performed with relative ease.

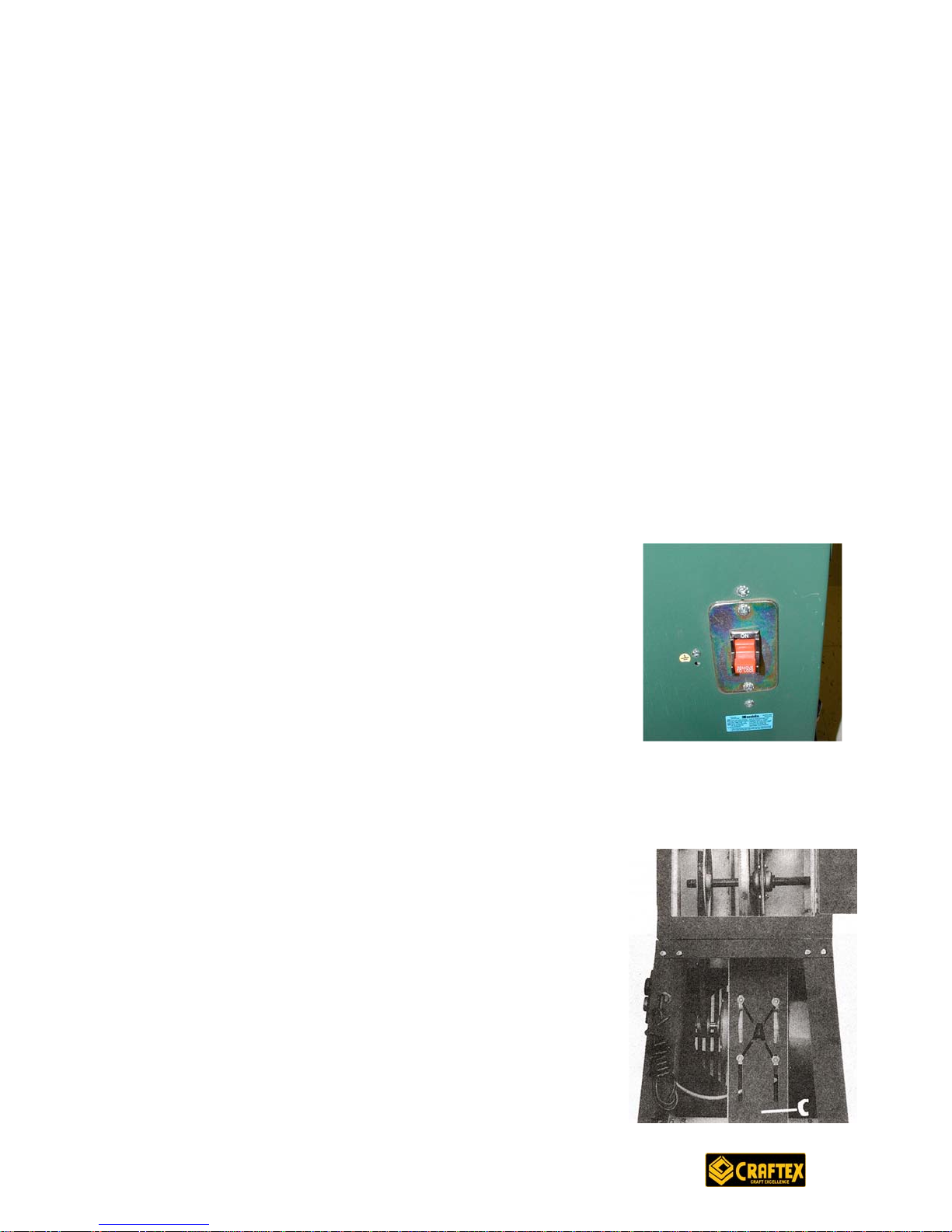

Power Switch
The power switch, located on the base of the B1012 is
designed to prevent unauthorized use. In the off position,
simply remove the switch and store in a secure place. The
B1012 is pre-wired for 110-volt operation but may be
altered to 220 volts. A qualified electrician should be
consulted for this conversion.
Adjusting the Drive Wheels
The drive wheels must be vertically true so that the ‘V’
belt runs true. Removing the rear base cabinet panel will
allow access to the lower motor mounting bolts. Loosen
these bolts accordingly.

11
Adjusting the Band saw Blade
The band saw blade must run vertically true to prevent it from running off the
wheels.
Remove the upper wheel cover by removing
the two thumbscrews on either side of the
cover.
There are four Allen screws located around the
axle of the upper blade wheel. Adjusting these
will alter the horizontal and vertical position of
the upper wheel. The band saw blade must ride
on the center of both the upper and lower
wheels.
Blade Tension
The band saw blade must have enough tension on
it to remain on the center of the wheels and to cut
in a straight line.
With the upper wheel cover removed, a hex-bolt
will be seen on the upper portion of the saw frame.
Tightening or loosening this will alter the band saw
blade tension.

12
Adjusting Guide Blocks
The upper and lower guide blocks must be properly positioned to accurately
guide the band saw blade. These blocks
should be close (but not tight) on the saw
blade and positioned slightly behind the gullet
of the blade.
Adjusting Wheel Bearing Guides
The wheel bearing guides are designed to
prevent the band saw blade from being
pushed off the wheels. These wheel-bearing
guides should be adjusted so that they are
just touching the back of the blade when the
blade is riding on the center of the wheels.
Upper Fence Guard
The upper fence guard should be
positioned so that it is about 1/4" above the
high point of the meat being cut. The fence
lock knob as illustrated adjusts the guard.
Upper Blade Guard
The upper blade guard is a safety guard to
protect your hands and fingers from the
moving band saw blade and should be
positioned to do so. Loosening the knob will
allow the guard to be moved up or down.

13

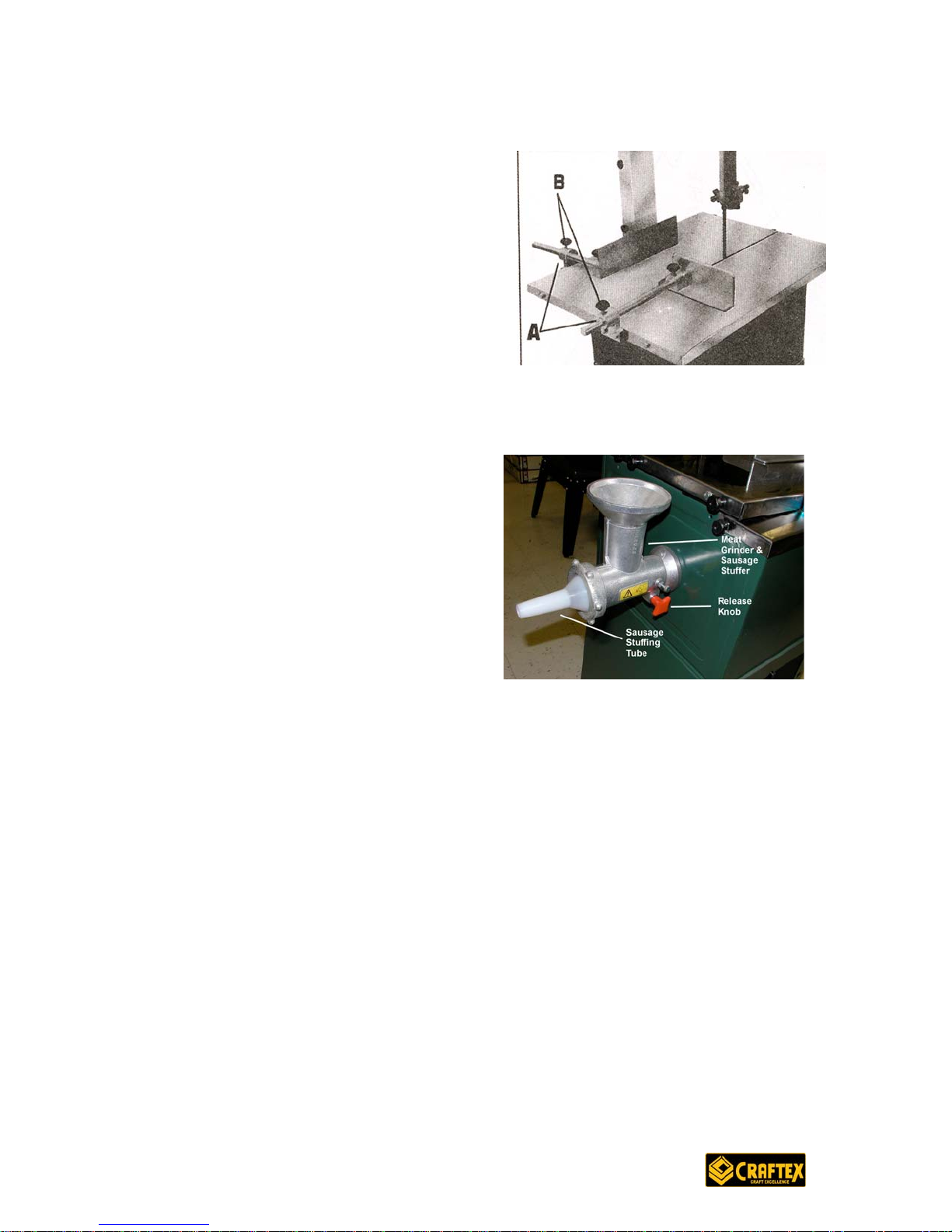

Fence and Pusher
The fence may be adjusted to give you
consistency in the thickness of the meat
slices. The pusher allows you to cut the
meat while keeping your hands at a safe
distance from the moving saw blade. Both
the fence and the pusher can be locked into
position by tightening the lock knobs A and
B.
Installing the Meat Grinder and Sausage Stuffer
The meat grinder and sausage stuffer should not be in position when using the
B1012 Meat Cutting Band saw to cut
meat as it may interfere with the operation
of the sliding table.
To install the meat grinder, loosen the
release knob and simply press into place.
To install or remove the sausage stuffer,
unscrew the outer ring.

14
B1012 MEAT CUTTING BAND SAW
Schematic Diagram

15
B1012 MEAT CUTTING BAND SAW
Parts List
CODE PART # DESCRIPTION QTY. CODE PART # DESCRIPTION QTY
0001 01001 Parent 1 0043 010043 Upper Blade 1
0002 990234 Hex Head screw 40044 010044 Blade 1
0003 991743 F.Washer 12 0046 990233 Hex Head Screw 6
0004 010004 Cover 1 0048 010048 H Rod Cover 1
0005 010005 Lwr. Blade Wheel 1 0049 990871 P.H.Screw 2
0006 010006 Seat Bearing 2 0050 010050 Fixed Guide Seat 1
0008 990721 Set Screw 3 0051 991712 F. Washer 2
0011 990210 Hex Head Screw 2 0052 994167 Bearing 1
0012 991211 Nut 2 0053 990232 Hex Bolt 1
0013 991212 Nut 5 0055 010055 Clamping Luge 2
0014 991111 Nut 2 0056 011056 Table 1
0017 993025 V-Belt 1 0057 990622 Screw 14
0018 010018 Pulley 1 0058 990701 Screw 1
0019 994122 Bearing 2 0059 010059 Scale Bar 1
0020 990114 Hex Head Screw 2 0060 010060 Screw 3
0021 010021 Bracket 1 0061 010061 Blade Guide Bar 1
0022 010022 Charging Hopper 1 0062 994110 Bearing 1
0023 994163 Bearing 1 0063 992540 Retaining Ring 2
0024 992544 E-Ring 1 0064 010065 Blade Guide Block 1
0025 992013 Key 2 64-1 010064 Blade Guide Block 1
0026 010026 Shaft 1 0065 990721 Set Screw 1
0028 991598 Set Screw 1 0066 010066 Blade Guide Hldr 1
0029 990505 Lock Clamp 1 0067 010067 Connector Plate 1
0030 010030 Thrust Shaft 1 0068 010068 Lwr Wheel Shaft 1
0031 010031 Bushing 1 0069 010069 Rod Set Screw 1
0032 010032 Reamer 1 0070 010070 Blade Protec Plate 1
0033 010033 Filler Cover 1 0071 992522 Retaining Ring 1
0034 010034 Lock Cover 1 0072 010072 ‘L’ Guard Plate 1
0035 010035 Cover 1 0073 991214 Nut 1
0038 992545 Retaining Ring 1 0074 010074 Rubber Tube Con 1
0039 994123 Bearing 2 0076 010076 Pestle 1
0040 010040 Reg. Screw 1 0077 990710 Set Screw 4
0041 010041 Bracket 1 0078 991951 Spring Washer 1
0042 010042 Shaft Bracket 1 0079
0080 991751 991931 F. Washer Spring Washer 1 1

16
B1012 MEAT CUTTING BAND SAW
Base Schematic Drawing

17
B1012 MEAT CUTTING BAND SAW
Base Parts List
Code Part No. Description Quantity
0101 011201 Face Plate 1
0102 113102 Rear Plate 1
0103 113103 Front Plate 1
0104 600104 Lower Bracket 2
0105 600107 Motor Plate 1
0106 600109 ‘S’ Upper Bracket 1
0107 Motor 1
0108 Cord 1
0109 990720 Set Screw 1
0110 993636 Cord Bushing 1
0111 Power Cord 1
0112 Switch 1
0113 990852 P.H. Screw 3
0114 990861 G. Screw 4
0115 010215 Motor Pulley 1
0116 010217 Hardware Bag 1
0117 998625 Bushing 1
0118 679112 Side Cover 2
0119 996640 Buckle 12
0121 990811 Screw 12
0122 998001 Manual 1
0123 996638 Switch Cover 1

18
B1012 MEAT CUTTING BAND SAW
Sliding Table Schematic

19
B1012 MEAT CUTTING BANDSAW
Sliding Table Parts List
Code Part Number Description Quantity
0601 013001 Table, Sliding 1
0602 013002 Rollers 4
0603 013003 Stand Rod 2
0604 013004 Guard Cover 1
0605 013005 Roller Shaft 4
0606 013006 Fixed Plate 1
0607 013007 Guard Plate 2
0608 013008 Pusher 1
0609 013009 Roller Fixed Plate 4
0610 013010 Fence 1
0611 013011 Supporter 2
0612 013012 Guide Rail 2
0613 990213 Screw 6
0614 990212 Screw 4
0615 991712 F. Washer 8
0616 990622 Screw
0617 990622 Screw 4
0618 992511 E-Spring 4
0619 992521 R-Spring 4
0620 994167 Bearing 4
0621 991552 Hex Head Screw 8
0622 991211 Nut 8
0623 991712 F. Washer 10

20
B1012 MEAT CUTTING BANDSAW
Miscellaneous Parts List
Code Part Number Description Quantity
HARDWARE PKG.
0201 990233 Hex Head Screw 4
0202 991526 Screw 24
0203 991743 F. Washer 34
0204 991212 Nut 30
0205 010220 Screw 3
0206 998529 ‘L’ Fixed Plate 4
0207 996632 Pad 4
0208 990232 Hex Head Screw 4
0209 991705 F Washer 4
OPTIONAL ACCESS.
0301 014331 Filter Cover 1
0302 014332 Filter Cover 1
SM-100 TABLE
0401 011058 Table – Small 1
0402 011072 ‘L’ Guard Plate 1
SM-100B TABLE
0501 012101 Table – Big 1
0502 012102 ‘L’ Guard Plate 1
