Craftex CX205 User manual

CX205-10” & CX206-12”
LEFT TILT TABLE SAWS
User Manual

2
Table of Contents
General Safety Instructions.....................................................................................3
Specific Safety Instructions.....................................................................................4
CX205 Features......................................................................................................5
CX206 Features......................................................................................................6
Physical Features ...................................................................................................7
Set Up.....................................................................................................................8
Un-Packing & Inventory..........................................................................................8
Proper Grounding ...................................................................................................9

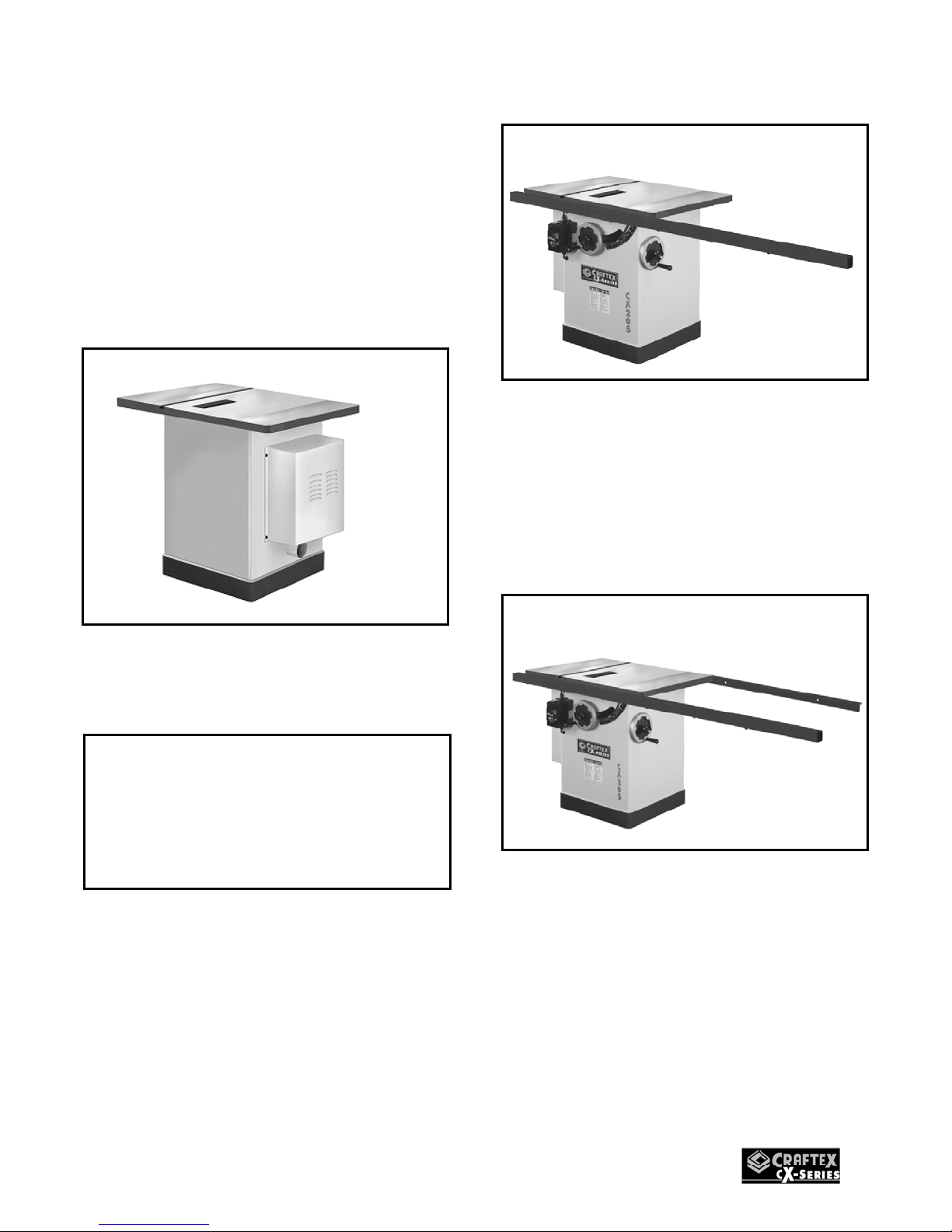

Assembly
Motor Cabinet .........................................................................................................10
Hand Wheels ..........................................................................................................10
Extension Wings.....................................................................................................10
Fence Rails.............................................................................................................11
Fence Assembly & Miter Gauge .............................................................................11
Magnetic Switch......................................................................................................12
Installing the Blade..................................................................................................12

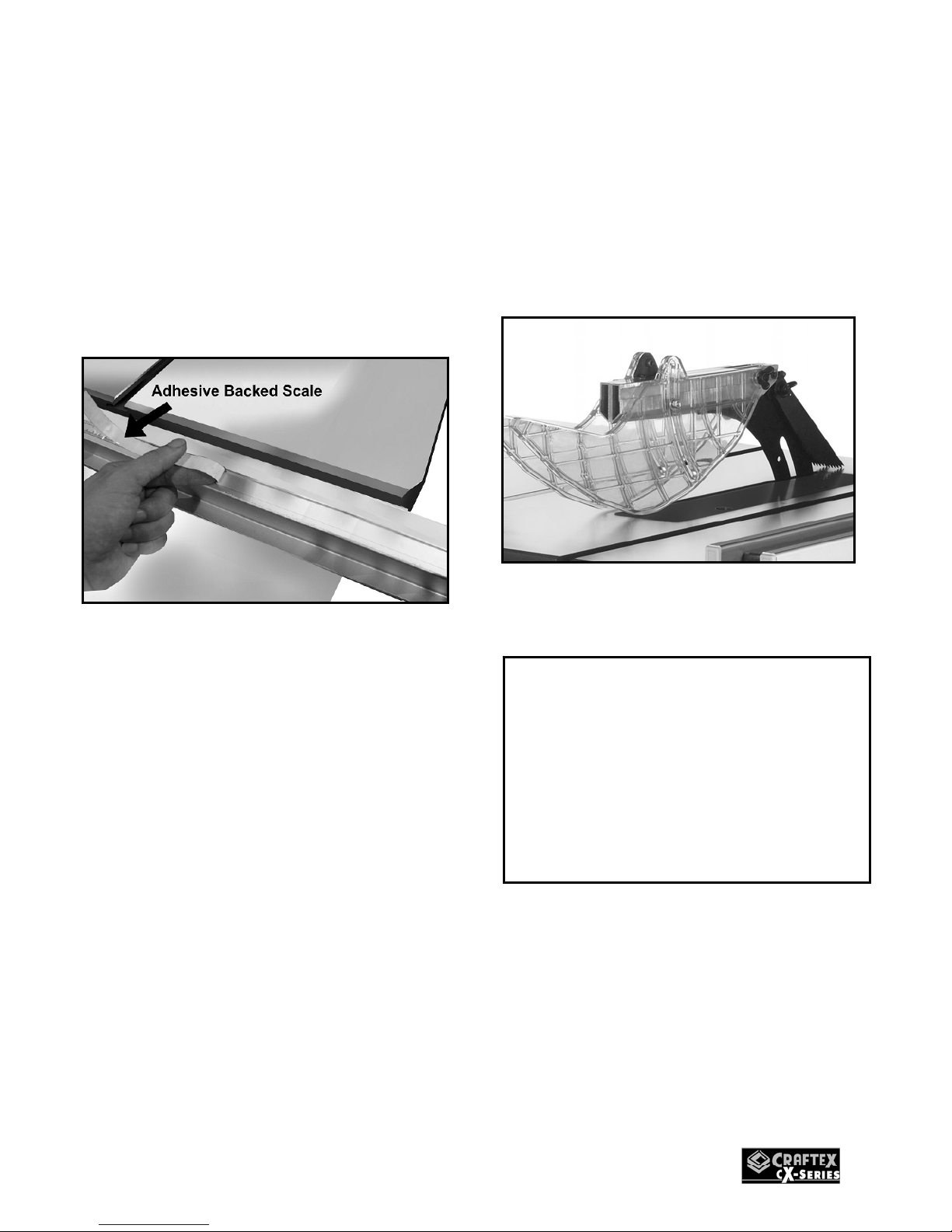

Fence Tape Scale...................................................................................................13
Blade Guard & Anti-Kick Back Pawls......................................................................13
Table Insert.............................................................................................................14
Arbor Extension ......................................................................................................14
Connecting to a Dust Collector ...............................................................................14
Basic Controls.........................................................................................................15
Test Run.................................................................................................................15
Adjustments
Blade Alignment......................................................................................................16
Blade Height Adjustment ........................................................................................16
Blade Tilt Adjustment..............................................................................................16
Fence Adjustment...................................................................................................16
Adjusting the Riving Knife.......................................................................................17
Miter Gauge Adjustment.........................................................................................17
Operations
Rip Cutting..............................................................................................................18
Cross Cutting..........................................................................................................18
Miter Cutting ...........................................................................................................18
Maintenance..........................................................................................................19

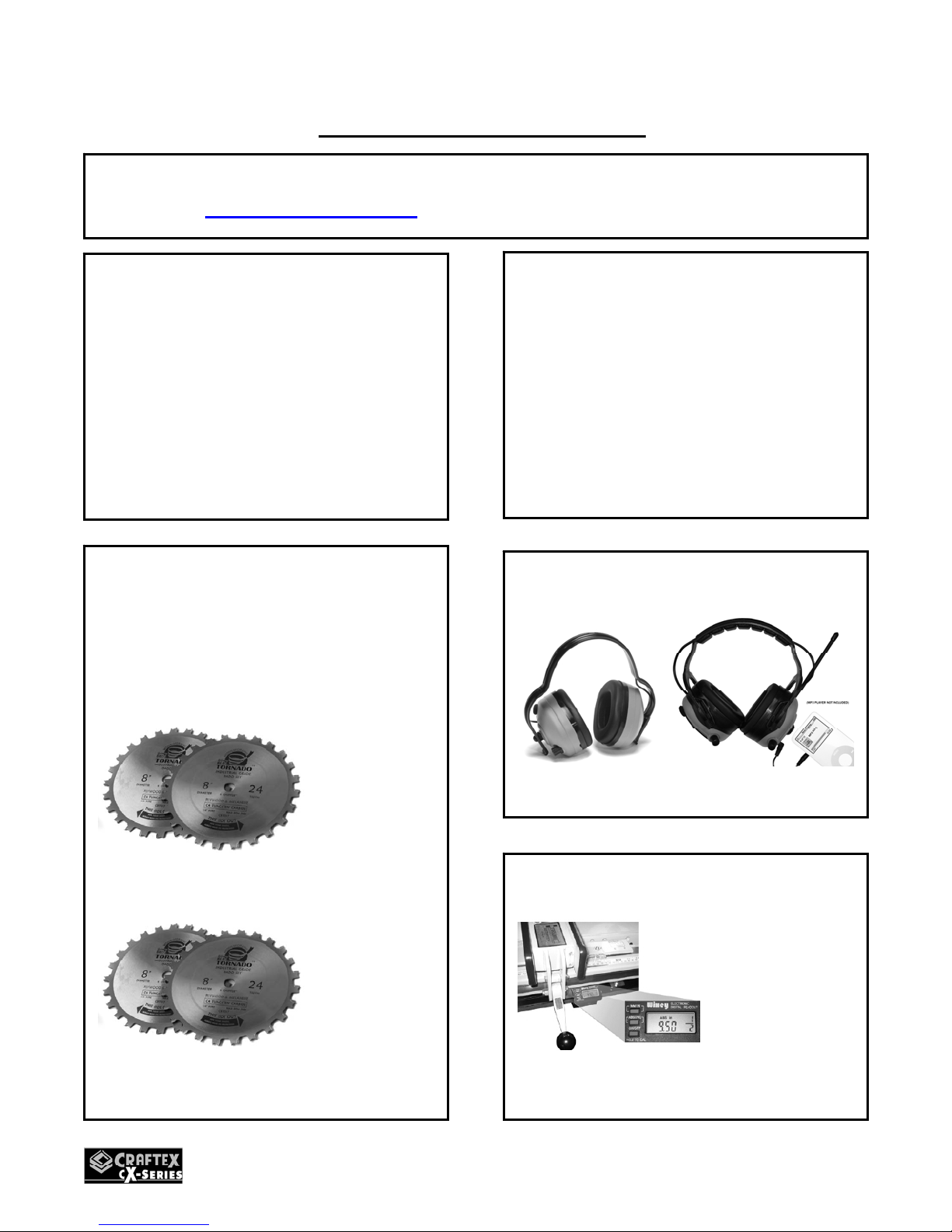

Optional Accessories..............................................................................................20
Wiring Diagram.......................................................................................................21
Parts Breakdown & List.......................................................................................22-32
Warranty.................................................................................................................33

3
GENERALSAFETY INSTRUCTIONS
Extreme caution should be used when operating all power tools. Know your power
tool, be familiar with its operation, read through the owner’s manual and practice safe
usage procedures at all times.
ALWAYS read and understand the
user manual before operating the
machine.
CONNECT your machine ONLY to the
matched and specific power source.
ALWAYS wear safety glasses
respirators, hearing protection and
safety shoes, when operating your
machine.
DO NOT wear loose clothing or
jewelry when operating your machine.
A SAFE ENVIRONMENT is
important. Keep the area free of dust,
dirt and other debris in the immediate
vicinity of your machine.
BE ALERT! DO NOT use prescription
or other drugs that may affect your
ability or judgment to safely use your
machine.
DISCONNECT the power source when
changing drill bits, hollow chisels,
router bits, shaper heads, blades,
knives or making other adjustments or
repairs.
NEVER leave a tool unattended while it
is in operation.
NEVER reach over the table when the
tool is in operation.
ALWAYS keep blades, knives and bits
sharpened and properly aligned.
ALL OPERATIONS MUST BE
performed with the guards in place to
ensure safety.
ALWAYS use push sticks and feather
boards to safely feed your work through
the machine.
ALWAYS make sure that any tools used
for adjustments are removed before
operating the machine.
ALWAYS keep the bystanders safely
away while the machine is in operation.
NEVER attempt to remove jammed
cutoff pieces until the saw blade has
come to a full stop.

4
NEVER use a saw blade that has
missing carbide teeth, loose teeth, or
chipped or broken teeth.
NEVER stand directly in line with the
saw blade when feeding stock into the
saw.
NEVER place your fingers or hands in
the line of cut. If you slip, your hands
or fingers may come into contact with
the blade. Always use a push stick
when ripping narrow pieces.
NEVER allow visitors or helpers to
stand in line with the saw blade.
ALL GAURDS must be in place while
operating the table saw to ensure
safety.
ALWAYS feed the stock smoothly. Do
not force or twist the work-piece while
cutting.
NEVER allow anyone to “assist” you
by holding your work-piece at the out-
feed end.
MAKE SURE before making any
adjustments, the switch is in the “OFF”
position and the cord is un-plugged.
NEVER LEAVE the table saw
unattended while it is running.
DO NOT attempt to remove jammed
pieces unless the table saw has come
to a complete stop and the power
switch has been turned to the OFF
position and cord is unplugged.
NEVER attempt to cut stock
“freehand”, always use the rip fence or
miter gauge.
ALWAYS make sure that the rip fence
is properly squared to the saw blade to
prevent kickback.
ALWAYS make sure that your saw is
in a stable position. Cutting heavy,
long stock may alter the stability of the
saw. In the event that this may occur,
the saw should be firmly bolted to the
floor.
ALWAYS be sure that if using a
mobile base, wheels are firmly locked
before turning the saw on.
ALWAYS use a feather board and/or
hold-downs to support your work-piece
when necessary.
MAKE SURE you have read and
understood all the safety instructions
in the manual and you are familiar with
your table saw, before operating it. If
you fail to do so, serious injury could
occur.
WARNING
The safety instructions given above can not be complete because the environment in
every shop is different. Always consider safety first as it applies to your individual
working conditions.
CX205/CX206
SPECIFIC SAFETY INSTRUCTIONS

MODEL CX205 – 10” LIFT TILT TABLE SAW
As part of the growing line of Craftex woodworking equipment, we are proud to offer CX205 -
10” Left Tilt Table Saw. The Craftex name guarantees Craft Excellence. By following the
instructions and procedures laid out in this owner’s manual, you will receive years of excellent
service and satisfaction. The CX205 is a professional tool and like all power tools, proper care
and safety procedures should be adhered to.
Motor..............................................3-HP, 220-V, Single Phase TEFC Motor
Blade Guard ...................................Riving Knife, CSA Approved & UL897 Compliant
Mitre Gauge....................................T-Slot Mitre Gauge
Drive System..................................Triple “V” Belt Drive
Rip Fence.......................................“T” Type Heavy Duty Rip Fence (Cam Lever) w/Optical Cursor
Arbor Extension..............................Included
Table Size.......................................27” x 36” (with Extension Wings)
Arbor Tilt.........................................Left Tilting
Blade Speed...................................4,140 RPM
Floor to Table Height......................35”
Maximum Depth of Cut @ 90°........3”
Maximum Depth of Cut @ 45°........2 1/8”
Dust Collection Ports......................One 4” Port
Base Dimensions............................ 25 x 32”
Blade Size ......................................10”
Approximate Weight.......................175 Kgs
CX205–10” Left Tilt Table Saw
FEATURES

6
MODEL CX206 – 12” LEFT TILT TABLE SAW
As part of the growing line of Craftex woodworking equipment, we are proud to offer CX206 -
12” Left Tilt Table Saw. The Craftex name guarantees Craft Excellence. By following the
instructions and procedures laid out in this owner’s manual, you will receive years of excellent
service and satisfaction. The CX206 is a professional tool and like all power tools, proper care
and safety procedures should be adhered to.
Motor..............................................3-HP, 220-V, Single Phase TEFC Motor
Blade Guard ...................................Riving Knife, CSA Approved & UL897 Compliant
Mitre Gauge....................................T-Slot Mitre Gauge
Drive System..................................Triple “V” Belt Drive
Rip Fence.......................................“T” Type Heavy Duty Rip Fence (Cam Lever) w/Optical Cursor
Arbor Extension..............................Included
Arbor Tilt.........................................Left Tilting
Table Size.......................................30” x 48” (with Extension Wings)
Blade Speed...................................4,140 RPM
Floor to Table Height......................35”
Maximum Depth of Cut @ 90 °.......4”
Maximum Depth of Cut @ 45 °.......2 5/8”
Dust Collection Ports......................One 4” Port
Base Dimensions............................ 30” x 48”
Blade Size ......................................12”
Approximate Weight....................... 280 Kgs
CX206–12” Left Tilt Table Saw
FEATURES

7

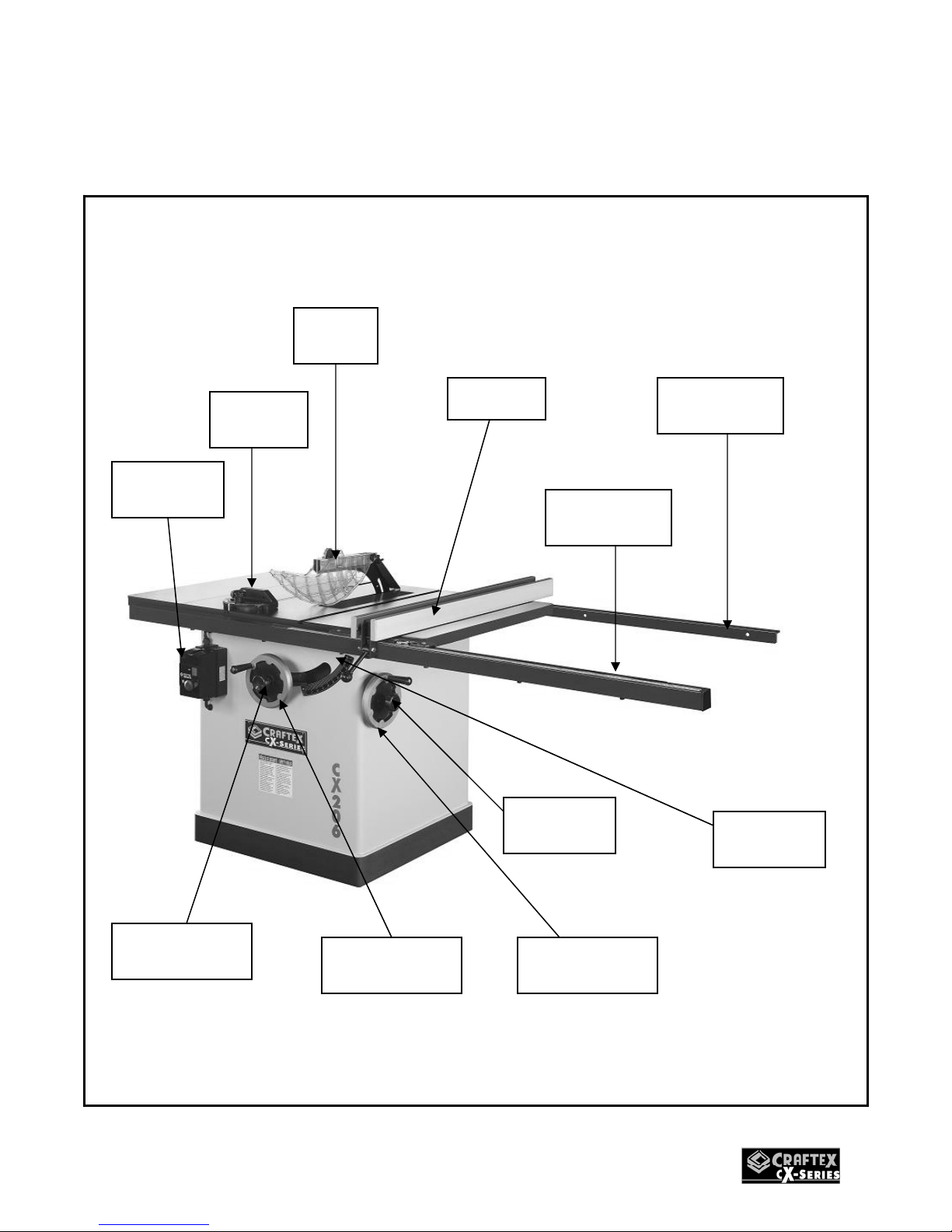

CX205/CX206 – Left Tilt Table Saw
Physical Features
Blade
Guard
Fence
Miter
Gauge
Fence
Lock Knob
Blade Tilt
Hand Wheel
Magnetic
Switch
Blade Tilt
Lock
Blade Height
Hand Wheel
Blade Height
Lock
Front
Fence Rail
Rear
Fence Rail

8
SETUP
Before setting up your machine you should
read and understand the instructions given
in this manual.
The unpainted surfaces of this table saw
are coated with rust prevention waxy oil and
you will want to remove this before you
begin assembly. Use a solvent cleaner that
will not damage painted surfaces.
UNPAKING
The machine properly packaged and is
shipped completely in 3 crates for safe
transportation. When unpacking, carefully
inspect the crate and ensure that nothing
has been damaged during transit. Open the
crate and check that the machine is in a
good condition.

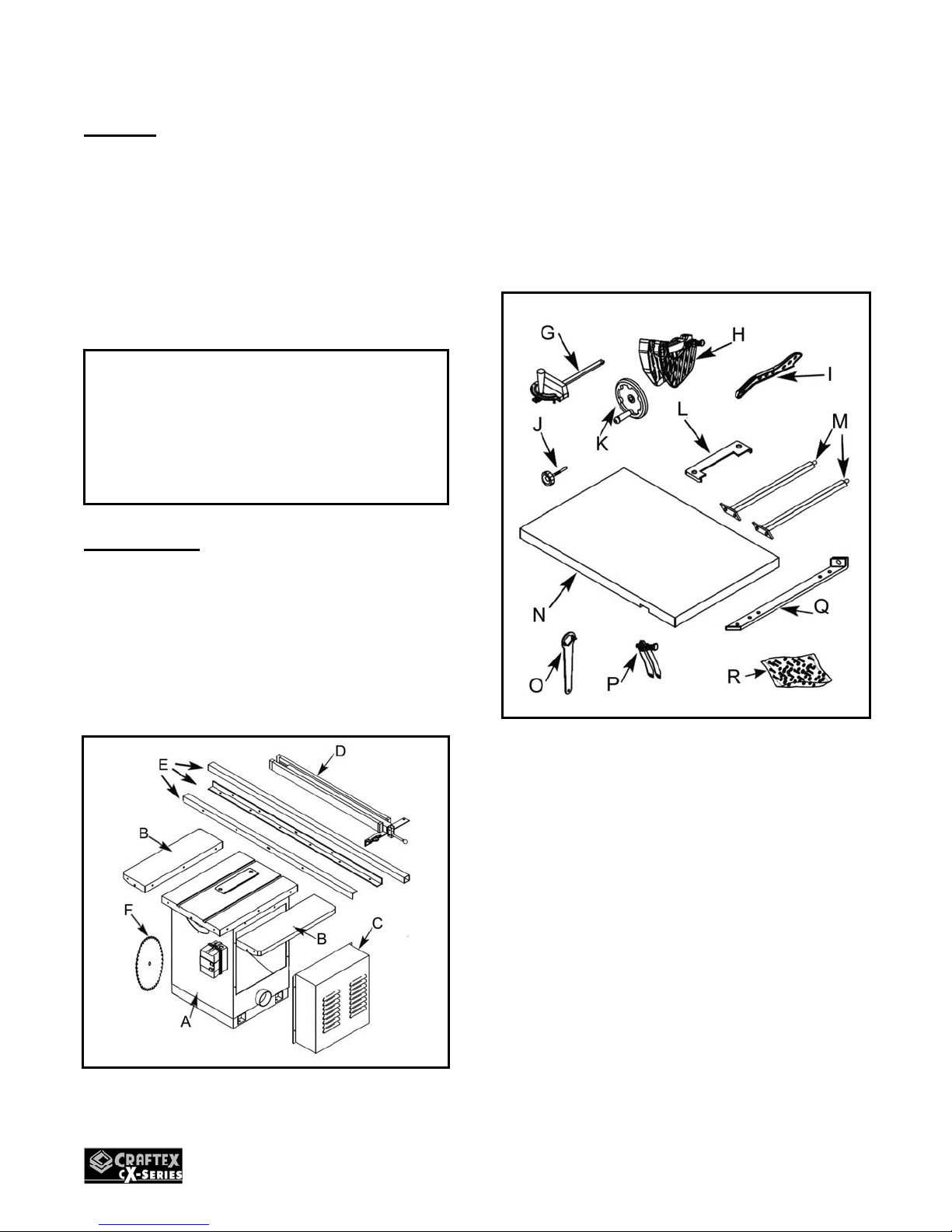

Figure-1 Inverntory
List of Contents
A. Table Saw........................................ 1
B. Table Extensions ............................. 2
C. Cabinet Door.................................... 1
D. Rip Fence ........................................ 1
E. Front & Rear Rails ........................... 3
F. Blade................................................ 1
Figure-2 Inventory
List of Contents
G. Miter Gauge..................................... 1
H. Blade Guard..................................... 1
I. Push Stick........................................ 1
J. Lock Knob........................................ 1
K. Hand-wheel...................................... 2
L. Dado Insert...................................... 1
M. Extension Table Legs (Optional)..... 2
N. Extension Table (Optional) ............. 1
O. Arbor Wrench................................... 1
P. Anti Kickback Pawl........................... 1
Q. Legs Connecting Rod (Optional)..... 1
R. Hardware Bag.................................. 1
WARNING
CX205/CX206 is a very heavy machine,
do not over-exert yourself. For safe
moving method use fork truck or get the
help of an assistant or friend.

9

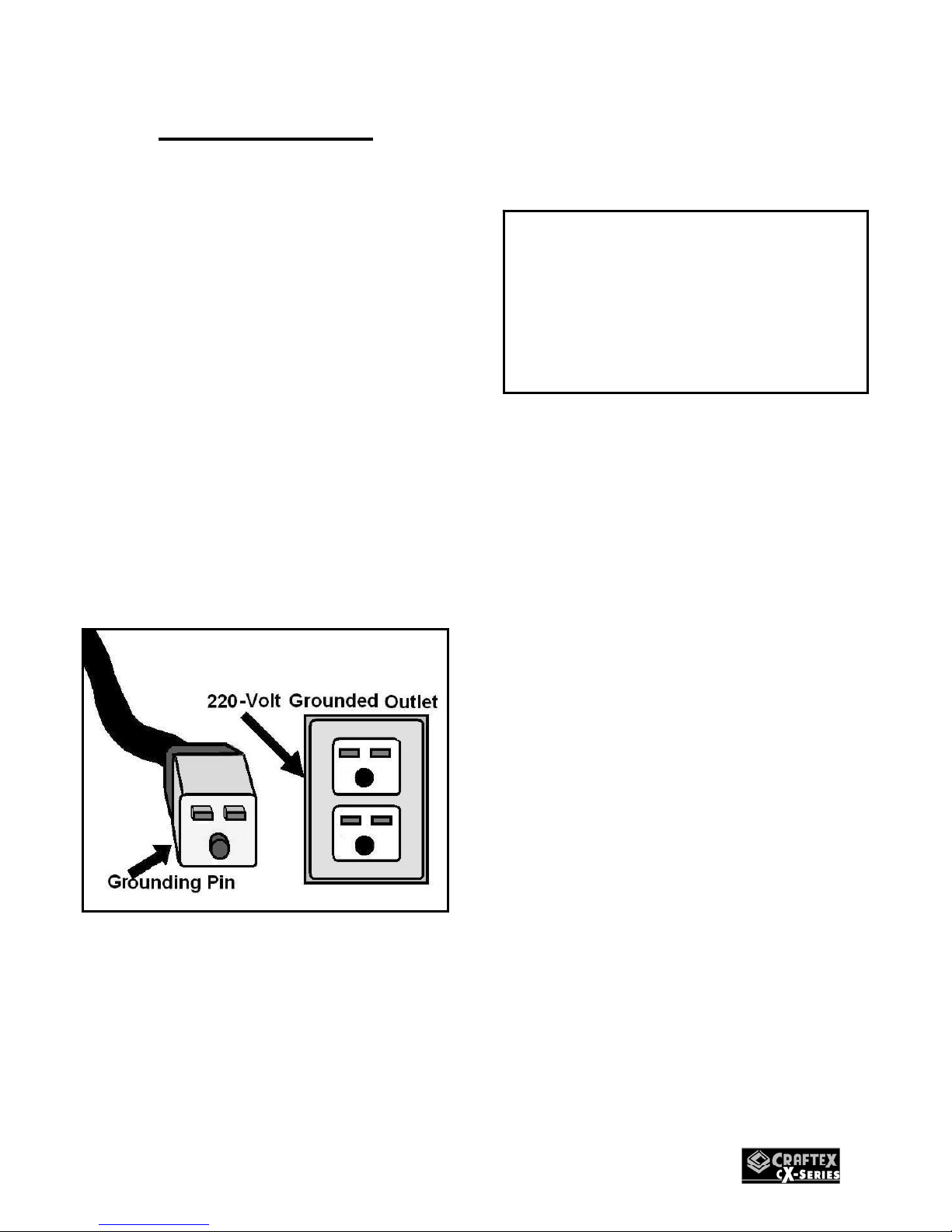

Proper Grounding
Grounding provides a path of least
resistance for electric current to reduce the
risk of electric shock.
CX205 is equipped with a 220-V single
phase motor and provided with a power
supply cord that is to be connected directly
to the source. See figure-3.
CX206 is equipped with a 220-V single
phase motor and features a terminal block
in the electrical connection box and is not
supplied with a power cord.
Make sure that the machine is connected to
an outlet having the same configuration. If
an adaptor plug is used, it must be attached
to the metal screw of the receptacle. To
prevent electrical hazards, have a qualified
electrician ensure that the line is properly
wired.
Figure-3 220-Volts Outlet for CX205/CX206
It is strongly recommended not to use
extension cords with your CX205/CX206.
Always try to position your machine close to
the power source so that you do not need
to use extension cords.
When it is necessary to use an extension
cord, make sure the extension cord does
not exceed 50-feet in length and the cord is
12-gauge to prevent motor damage.
Your CX205/CX206 should be wired with a
plug having 3-prongs to fit a 3 prong
grounded receptacle as shown in figure-3.
Do not remove the grounding prong to fit it
into a 2-pronged outlet. Always check with
a qualified electrician if you are in doubt.
WARNING
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician if you are in doubt as to
whether the outlet is properly grounded.

10
ASSEMBLY
CX205/CX206 features 4 mounting holes
on its base. To mount and level the table
saw on your shop floor, shimming may be
required. Mounting the saw to the floor
reduces vibration and increases stability.
Motor Cabinet
Take the motor cabinet and attach it to the
table saw by inserting the hinge pins into
the hinge sockets on the cabinet. See
figure-4
Figure-4 Installing the motor cabinet
Hand Wheels
The hand wheels for the blade height and
blade tilt are provided with the parts of the
machine. Simply slide the hand wheel on
shaft secure it with a set screw provided.
See figure-5
Figure-5 Installing blade height hand wheel
Insert the crank handle into the hand wheel
shaft and secure it by rotating a few turns.
Figure-6 Installing blade tilt hand wheel
Extension Wings
Remove all the screws from the end of the
main table and clean mating surfaces of the
main table and the extension wings. Make
sure there is no debris or any foreign
material on the mating surfaces of the main
IMPORTANT
Place the table saw on a flat and level
surface, and make sure that the mobile
base is locked before proceeding to
assembly if using a mobile base.

11
table and the extension wing which can
cause misalignment and the wings can not
be properly attached to the table.
Attach the extension wings to the table
using the screws removed from the main
table. Place a straightedge across the
extension wings and the main table to make
sure that the extension wings surface is flat
with the main table.
Figure-7 Installing the extension wings
Fence Rails
Take the front and rear rails and attach it to
the table saw using washer and screws
provided. Place the rail tube on the front rail
and secure it using screws and washers.
Figure-8 Installing the front rail
Install the rear rail in the same manner and
make sure that the top edge of the rear rail
is flush with the lowest edge of the T-bolts
so that the miter gauge slides smoothly
when installed.
Figure-9 Installing the rear rail
Fence Assembly and the Miter
Gauge
Place the fence on the front and rear rails
on the right hand side of the blade. Lock the
fence on the rails using the cam lock lever.
See figure-10
IMPORTANT
If the outside end of the extension wings
tilts down or up, use a strip of masking
tape to align it with the main table.

12
Figure-10 Installing the fence
After the fence is installed on the rails, take
the miter gauge and slid it into the T-slot on
the left hand side of the table.
Magnetic Switch
The magnetic switch can be installed to the
bottom left hand side of the front rail using
hex bolts and washers provided.
Figure-11 Installing the magnetic switch
Installing the Blade
Both the CX205 & CX206 are equipped
with a 10” & 12” blade respectively. To
install the blades, turn the power off and
remove the plug from the power supply (if
plugged in). Check the thickness stamped
onto the riving knife. Your blade must have
a kerf width larger that the thickness of the
riving knife. This is important. The kerf of
your blade should be marked on the blade
itself or on its package.
CX205 - 2.5mm Thick Riving Knife.
Only use for 10” diameter with 3.0mm
minimum kerf width and 2.0mm maximum
body thickness.
CX206 - 2.5mm Thick Riving Knife.
Only use for 12” diameter with 3.0mm
minimum kerf width and 2.0mm maximum
body thickness.
First, remove the blade flange and the arbor
nut. Check that the mounting hole of the
blade matches the diameter of the arbor.
(CX206 comes with a standard 1” arbor &
CX205 comes with a 5/8” arbor).
Ensure that the spindle and arbor itself are
clean and dirt free. Mount the arbor to the
spindle and tighten the arbor to the spindle.
Then, mount the blade so that it spins in the
proper direction (teeth pointing towards the
front of the saw). Finally, replace the nut
and flange and tighten securely. Do not
over tighten.
WARNING
The CX205/CX206 blade is sharp. Wear
heavy duty leather gloves while installing
the blade for the protection of your
hands.

13
Fence Tape Scale
Slide the fence against the blade and lock it
in position. Place the adhesive backed tape
scale on the fence tube so that the “0” on
the tape scale is aligned with the red
pointer. Mark the “0” on the rail tube with a
marker. Remove the fence and peel off the
adhesive backed tape scale. Align the
marked point with the “0” on the scale and
attach the scale to the rail tube.
Figure-12 Attaching adhesive backed tape
scale on the rail tube
If you make any mistakes while attaching
the adhesive backed scale to the rail tube,
loosen the screws on the pointer window
and slide the fence against the blade.
Adjust the pointer so that the red line on the
pointer window is over “0” on the tape and
tighten the screws.
Blade Guard & Anti-Kick Back
Pawls
Take your blade guard and place the slot
for the blade body over the riving knife.
Locate the middle notch of the riving knife
and insert the rear pin of the blade guard
into that notch. After, insert the front pin at
the blade guard into the front notch of the
riving knife. Ensure the blade guard is in the
correct position and tighten the wing nut.
Place the set of Anti-Kickback pawls onto
the riving knife at the notch. Press the
pawls completely down and tighten the
wing nut in position.
Figure-13 Installing the blade guard and
anti-kick back pawls
WARNING
Do not remove the anti-kick back pawls
in normal operations, unless you find it
necessary. The anti-kick back pawls
prevent kick backs while cutting.
Removing the anti-kick back pawls
increases the risk of serious injury to the
operator.

14
Table Insert
You can now install your table inserts.
Ensure that the blade insert and the dado
insert and clean and free from any dirt
before installation. Using your hand wheel,
lower the blade completely below your table
and place the insert into position with the
blade cut out on the blade side of the table.
The insert should sit completely flush with
the table surface. Use a straight edge to
ensure it is flush.
If you need to make adjustments to the
insert, remove the insert and turn it upside
down and lay it on a flat surface (not your
table saw). The insert comes with adjusting
screws located on each corner of the insert.
Adjust each corner screw up or down to get
it flush with your table. Once you have a
good fit, ensure that each screw is sitting in
the table casting snugly. (Repeat this
process for the dado blade insert if
necessary).
Arbor Extension
First, clean off the taper and threads of the
arbor. You can use a dry lubricant when
installing the arbor for best results. Next,
install the arbor extension into the spindle.
The standard extension for the CX206 12”
blade is 1” in O.D x 3” in length. Insert a
8mm hex wrench into the 8mm socket at
the outboard end of the arbor extension and
thread the arbor in by hand. Place the
spanner wrench on the inside blade flange
with two prongs on the spanner wrench
inserted into the two holes in the flange.
Make sure the arbor is properly installed
and that it is not over tightened.
CONNECTING TO A DUST
COLLECTOR
CX205/CX206 features a 4” diameter dust
ports to connect to a dust collector.
When connecting to a dust collector, use a
proper sized hose and make sure all the
connections are sealed tightly.
Figure-14 Installing the table saw to a dust
collector
WARNING
Only use the table insert for the correct
cutting operation. DO NOT use the dado
insert with a regular blade and vice
versa.

15
BASIC CONTROLS
The basic controls of this machine are
shown in the figure below. Use the figure
and read the text to understand what the
basic controls of this table saw are.
Figure-15 Basic Controls of the saw
A. Fence Cam Lock: To lock the fence in
position on the rails.
B. Blade Tilt Hand Wheel: To adjust the
blade tilt, unlock the lock on the hand
wheel and turn the hand wheel to set
the blade to the desired tilt position and
re tighten the lock.
C. Blade Height Hand Wheel: To adjust the
blade height, unlock the lock on the
hand wheel and turn the hand wheel to
the desired height and re tighten the
lock.
D. Magnetic Switch: The magnetic switch
with on/off buttons turns the motor on
and off.
TEST RUN
Once you have assembled your machine
completely, then it is time for a test run to
make sure that the machine works properly
and is ready for operation.
During the test run if there is any unusual
noise coming from the machine or the
machine vibrates strangely, stop the
machine immediately and disconnect from
the power source and investigate if you can
find out the problem with your machine.
If you find out any part of the machine that
is not assembled properly, read the
assembly section of manual and
reassemble that part according to the
instructions provided in the manual.
Before starting the table saw, make sure
that you have read and understood the
manual and you are familiar with the
functions and safety features on this
machine. Failure to do so may cause
serious personal injury.
Read the
manual

16
ADJUSTMENTS
Blade Alignment
Your CX205/CX206 table saw is shipped
from the factory fully aligned so that the
mitre slots are parallel to the saw blade.
However, shipping and rough handling may
have affected this. It should be checked
and adjusted if needed.
To check the alignment, clamp a dowel to
the front of the miter gauge and raise the
saw blade and pick out a saw tooth on the
front of the blade and set the dowel in front
of the miter gauge so that the dowel end
just touches the edge of the saw tooth.
Mark the tooth with a felt marker and rotate
the saw blade by hand to bring the marked
tooth to the rear of the saw. Now, gauge
this tooth with the dowel. If the tooth is in
the same position, the blade is parallel to
the miter slot.
Blade Height Adjustment
The hand wheel on the front face of the saw
cabinet is to control the blade height.
To adjust the blade height, loosen the knob
and turn the hand wheel to set the blade at
the desired height. Rotate the knob clock-
wise and tighten it back.
Figure-16 Blade height hand wheel
Blade Tilt Adjustment
The blade can be tilted at any angle
between 90-degree and 45-degree and the
blade tilt is controlled by the hand wheel on
the side of the saw cabinet. There are
positive stops at both 45 and 90 degrees.
The tilt angle dial at the front face of the
cabinet shows the angle the saw blade is
sitting at.
To adjust the blade tilt, loosen the hand
wheel lock knob and rotate the hand wheel
until the blade is at the desired angle. Keep
an eye on the tilt angle dial and once the
blade is at the desired angle, lock the hand
wheel by rotating the lock knob.
Make sure not to over tighten the lock knob.
Figure-17 Blade tilt hand wheel
Fence Adjustment
The fence should be flush with the table
surface. To raise or lower the fence, use
the nylon screws.
The edge surfaces of the fence must be
perpendicular to the table surface. Use a
combination square for verification and
adjust the nylon square as required.

17
Adjusting the Riving Knife
The riving knife comes, pre installed on
your saw. First, using the hand wheel, raise
the installed blade completely to access the
riving knife. Make the locking wing loose
enough so you can raise the riving knife to
its highest position. The dual position riving
knife has two holes for two different
positions.
The lowest position is for Dado Cuts and
the highest position is for thru cuts.
Ensure that the locking pin is aligned with
the riving knife hole and secure in position
simply by tightening the wing nut. Your
riving knife MUST be in-line with your
blade. Ensure that riving knife is sitting flat
against the lock plate and the mounting
bracket.
You always want to ensure that the gap
between the blade and the riving knife
should be an even distance across the
complete radius. First, loosen the two
socket head cap screws on the riving knife
bracket enough so that the you can move
the bracket bring the riving knife in line with
your saw blade. Again you will want to
ensure that the gap between the blade and
the riving knife is even from 3mm to 8mm in
radius.
After you have properly adjusted and
aligned your riving knife, tighten the socket
head cap screws.
Miter Gauge Adjustment
The gauge supplied with the CX205/CX206
table saw is equipped with individually
adjustable stops at 90 and 45 degrees both
left and right. Adjustment to these stops can
be made by loosening the locking nut and
tightening or loosening the three adjusting
screws. Tighten the locking nut. The face of
the mitre gauge has two holes for attaching
an auxiliary face. The mitre gauge is a
precision tool and is guided through either
mitre ‘T’ slot through the use of a guide
mounted at the front of the mitre gauge bar.
To install the mitre gauge, place the gauge
into the slot at the back edge of the saw
table and then pull it forward. To operate
the mitre gauge, loosen the handle to move
the gauge head to the desired angle and
tighten the handle. To go beyond the stops
at 45 and 90 degrees in either direction,
lower the stop pins.
Figure-18 Miter Gauge

18
OPERATIONS
Before operating the table saw make sure
you have performed the important
adjustments and all the guards are in place.
Rip Cutting
Cutting solid wood with the grain or with
plywood cutting down the length of the
work-piece is called rip cutting.
Adjust the fence on the rails, according to
the width of the cut on the work-piece and
turn the hand-wheel to set the blade
approximately ¼” above the work-piece.
Use safety devices such as feather boards
to prevent kick back
Now, turn the table saw ON and use a push
stick to push the work-piece against the
blade.
Crosscutting
Cutting solid wood across the grain and in
plywood or metal cutting across the width of
the work-piece is called crosscutting.
Mark the work-piece where you want to
start the cut from and make sure the mitre
gauge is at a 90° position on the mitre slot.
Place the work-piece on the table so that
the marked point is aligned with the blade
and hold the work-piece against the mitre
gauge and turn the hand-wheel to set the
blade approximately ” above the work-
piece. Turn the table saw ON and feed the
work-piece against the blade.
Miter Cuts
Miter cut is an angled crosscut. It is done in
the same manner as crosscuts but using
mitre gauge.
Make sure all the guards are in place and
place the miter gauge face against the edge
of the work piece and place the bar of the
miter gauge on the work piece. Use the bar
and mark the angle of your cut with a
pencil.
Figure-198 Marking the angle of the cut
WARNING
Do not use your fingers to feed a narrow
work-piece into the blade. If you slip,
your fingers might go against the blade.
Always use a push stick.

19
Position the miter gauge back into the slot
and hold the work piece against the mitre
gauge. Slide the mitre gauge and feed the
work piece into the blade so that the blade
cuts the waste side of the work piece.
MAINTENANCE
1. Clean off any preservative on the saw
components with mineral spirits and
wipe dry.
2. Avoid getting any of the cleaning
material on rubber parts as it may
permanently damage them.
3. Use a mild soap and warm water on
plastic or rubber parts.
4. The unpainted components such as the
precision-ground cast-iron table top
should be protected with a coat of paste
wax and then buffed dry.
5. Regularly vacuum all sawdust from the
saw’s interior and vacuum the motor
openings as well.
6. Lubricate the trunnion and worm gears
with quality white grease on a regular
basis.
7. Lubricate all moving parts, internal
bearings and wear surfaces being very
careful not to allow any lubricant to
come in contact with areas where wood
will contact.
8. Check drive belts for wear and correct
tension on a regular basis.
9. Check that the blade guard and anti
kickback pawls operate properly.
WARNING
Always make sure the blade guard is
installed on your table saw and is in
down position. Failure to do so may
result in serious personal injury.
WARNING
Do not make any adjustments while the
machine is running. Turn off the
machine and un-plug from the power
source before making any adjustments.

20
OPTIONAL ACCESSORIES
These are just a few of the optional accessories available for your CX-Series Table
Saw. Check www.busybeetools.com for more information and current pricing.
Extension Table
Add a Solid & Functional Extension
Table to Your Saw
Model CX205EXT (for CX205)
Model CX206EXT (for CX206)
Sliding Table Attachment
Smooth Gliding Sliding Table
Allows for Cutting Larger Stock
30”x18” cast iron
table with 12” extension
Swing arm support
Will fit CX205 & CX206
Model CX205ST
Carbide Dado Sets
High Quality Dado Sets for Chip Free
Dados
Model CBT016
Dado Set for
Solid Woods
Model CBT017
Dado Set for
Laminates
& Plywoods
Ear Protection
Model B2517 Model B2756
Digital Fence Readout
Get precise digital
Readouts on your
fence.
Model WR700
