Craftsman Brilliante BRC52 - 4 Light User manual

net fan weight: 16.53 lb. (7.5 kg)
Table of Contents:
Safety Tips. pg. 2
Unpacking Your Fan. pg. 3
Parts Inventory. pg. 3
Installation Preparation. pg. 4
Hanging Bracket Installation. pg. 4
Preparation for Wiring. pg. 5
Wiring. pg. 5
Fan Assembly. pg. 5
Motor Housing Assembly. pg. 6
Blade Assembly. pg. 6

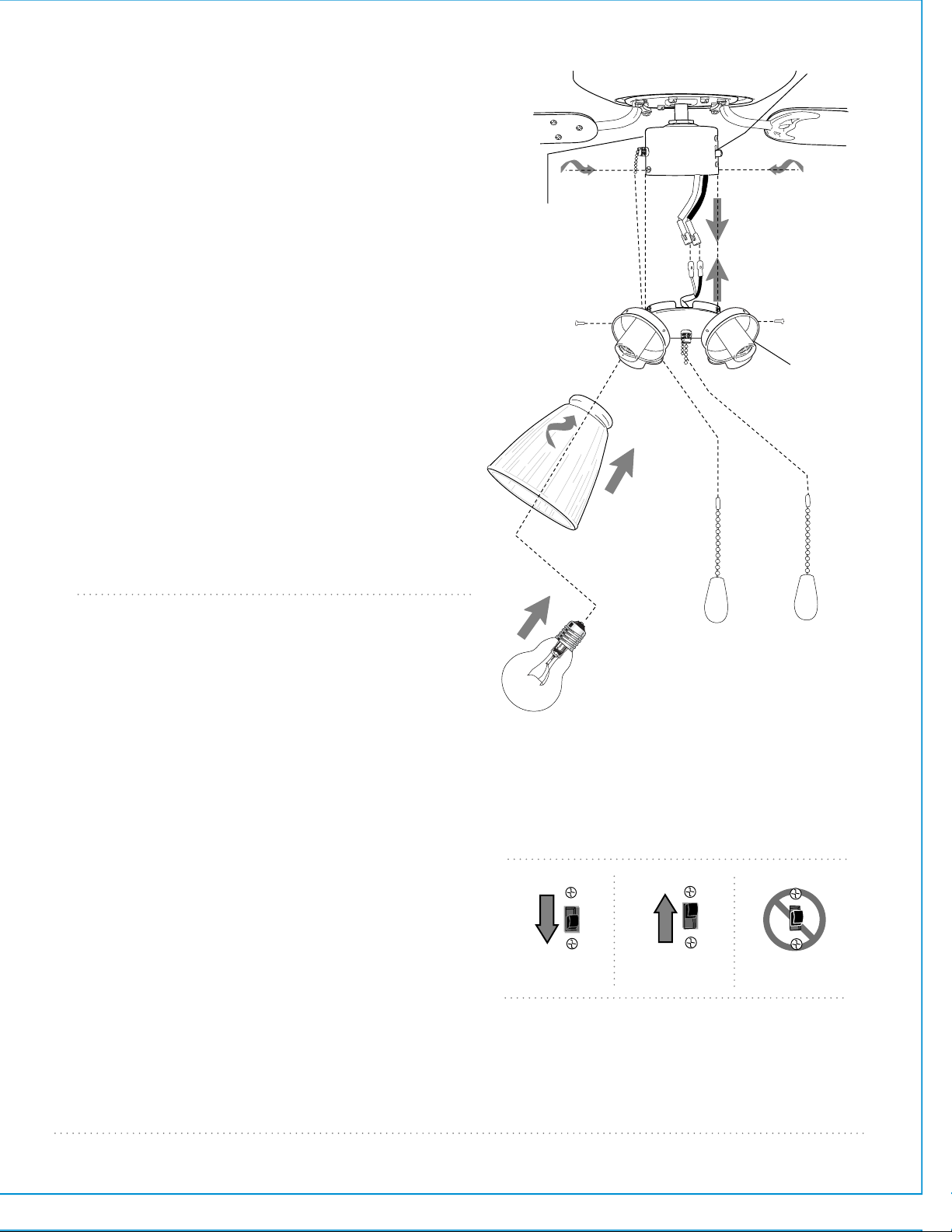

Light Kit Assembly (optional). pg. 7
Testing Your Fan. pg. 7
Troubleshooting. pg. 8
Warranty. pg. 8
Parts Replacement. pg. 8
Installation Guide
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
PRINTED IN CHINA
Brilliante
For Model:
BRC52 - 4 Light
page 1

SAFETY TIPS.
page 2
WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit
panel before you begin the fan installation or before servicing the fan or installing accessories.
1. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN
AND SAVE THESE INSTRUCTIONS.
CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
2. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code,
and ANSI/NFPA 70-1999. If you are unfamiliar with electrical wiring or if the house/building wires are
different colors than those referred to in the instructions, please use a qualified electrician.
3. Make sure you have a location selected for your fan that allows clear space for the blades to rotate, and at
least seven (7) feet (2.13 meters) of clearance between the floor and the fan blade tips. The fan should
be mounted so that the tips of the blades are at least thirty (30) inches (76 centimeters) from walls or
other upright structures.
4. The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at
least 35 pounds (16 kilograms). The outlet box must be supported directly by the building structure.
Use only ETL or UL listed outlet boxes marked "FOR FAN SUPPORT."
WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box marked
"Acceptable for Fan Support of 15.9 kg (35 lbs.) or less," and use the mounting screws provided with the outlet
box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified electrician if in doubt.
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this fan
are designed to accept only one12 gauge house wire and two lead wires from the fan. If your house wire is larger
than 12 gauge or there is more than one house wire to connect to the corresponding fan lead wires, consult an
electrician for the proper size wire connectors to use.
5. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be ETL or UL
listed and marked suitable for use with the model fan you are installing. Switches must be ETL or UL
general use switches. Refer to the instructions packaged with the light kits and switches for proper
assembly.
6. After installation is complete, check that all connections are absolutely secure.
7. After making electrical connections, spliced conductors should be turned upward and pushed carefully up
into the outlet box. The wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on opposite sides of the outlet box.
WARNING: To reduce the risk of electrical shock or fire, do not use this fan with any solid state speed control
device or control fan speed with a full range dimmer switch. [Using a full range dimmer switch to control fan
speed will cause a loud humming noise from fan.]
8. Do not operate the reverse switch until fan has come to a complete stop.
9. Do not insert anything between the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury, do not bend the blade arms during assembly or after
installation. Do not insert objects into the path of the blades.
WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or
cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades.A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense and caution are
necessary factors in the installation and operation of this fan.

page 3
1. Unpacking Your Fan.
Carefully open the packaging. Remove items
from Styrofoam inserts. Remove motor housing
and place on carpet or Styrofoam to avoid
damage to finish. Do not discard fan carton or
Styrofoam inserts should this fan need to be
returned for repairs.
Check against parts inventory that all parts have
been included.
2. Parts Inventory.
c
a
b
e
h
d
i
required bulbs:
4 x 40 watt max. candelabra base bulbs
(included)
f
g
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
*Drawings for blade arm(s) and motor housing in
this manual are representative only
a. hanging bracket. 1 piece
b. motor housing*. 1 piece
c. motor assembly. 1 piece
d. switch housing cap. 1 piece
e. blade arm.* 5 pieces
f. glass shade. 4 pieces
g. light kit fitter. 1 piece
h. blade. 5 pieces
i. hardware packs

4. Hanging Bracket Installation.
page 4
hanging
bracket
spring washers
ON
OFF
ON
OFF
rubber cushions

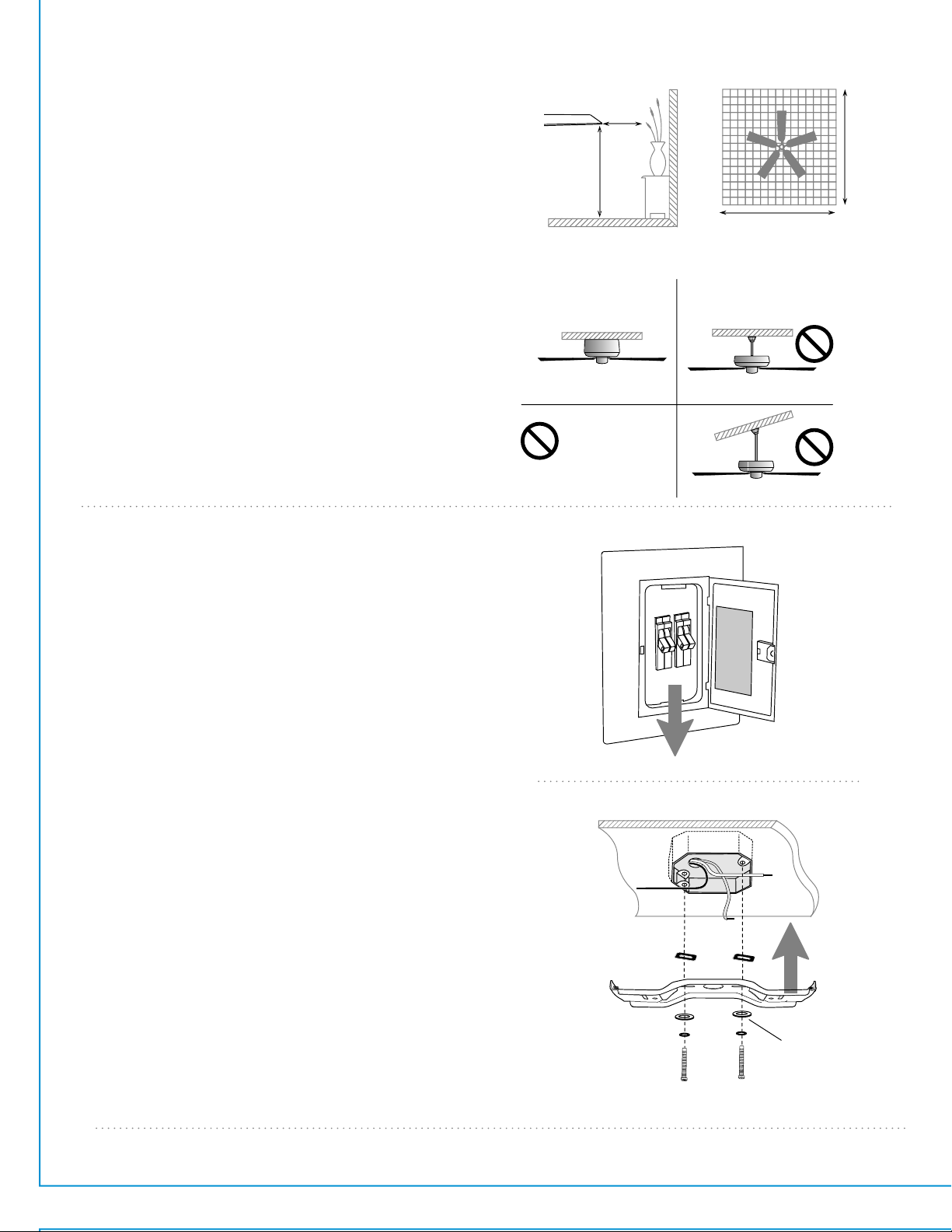

3. Installation Preparation.
To prevent personal injury and damage, ensure
that the hanging location allows the blades a
clearance of 7ft. (2.13m) from the floor and 30in.
(76cm) from any wall or obstruction.
This fan is suitable for room sizes up to 400
square feet (37.2 square meters).
This fan can be mounted as a flushmount
on a regular (no-slope) ceiling only. Downrod
installations are not available for this fan.
Installation requires these tools:
Phillips screwdriver, flat-head screwdriver,
adjustable pliers or wrench, stepladder, wire
cutters, and rated electrical tape.
downrod
installation
flushmount
installation
outlet box screws
blade edge
7 feet
(2.13m)
(76cm)
30
inches
flat washers
CANNOT be
installed on
angled or
vaulted ceilings
12ft. - 20ft.
12ft. - 20ft.
(3.66m - 6.1m)
(3.66m - 6.1m)
Turn off circuit breakers to current fixture from
breaker panel and be sure operating light switch
is turned to the OFF position.
WARNING: Failure to disconnect power supply
prior to installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box,be
sure the outlet box is securely attached to the
building structure and can support the full weight
of the fan. Ensure outlet box is clearly marked
"Suitable for Fan Support." If not, it must be
replaced with an approved outlet box.Failure to do
so can result in serious injury.
CAUTION: Be sure outlet box is grounded properly
and that a ground wire (green or bare) is present.
Install hanging bracket to outlet box using
original screws, spring washers and flat washers
provided with new or original outlet box. * Install
rubber cushions between outlet box and
hanging bracket to reduce vibration of metal to
metal surfaces. Pull electrical wiring from outlet
box through center hole in the hanging bracket.
*Note:It is very important that you use the proper
hardware when installing the hanging bracket as
this will support the fan.

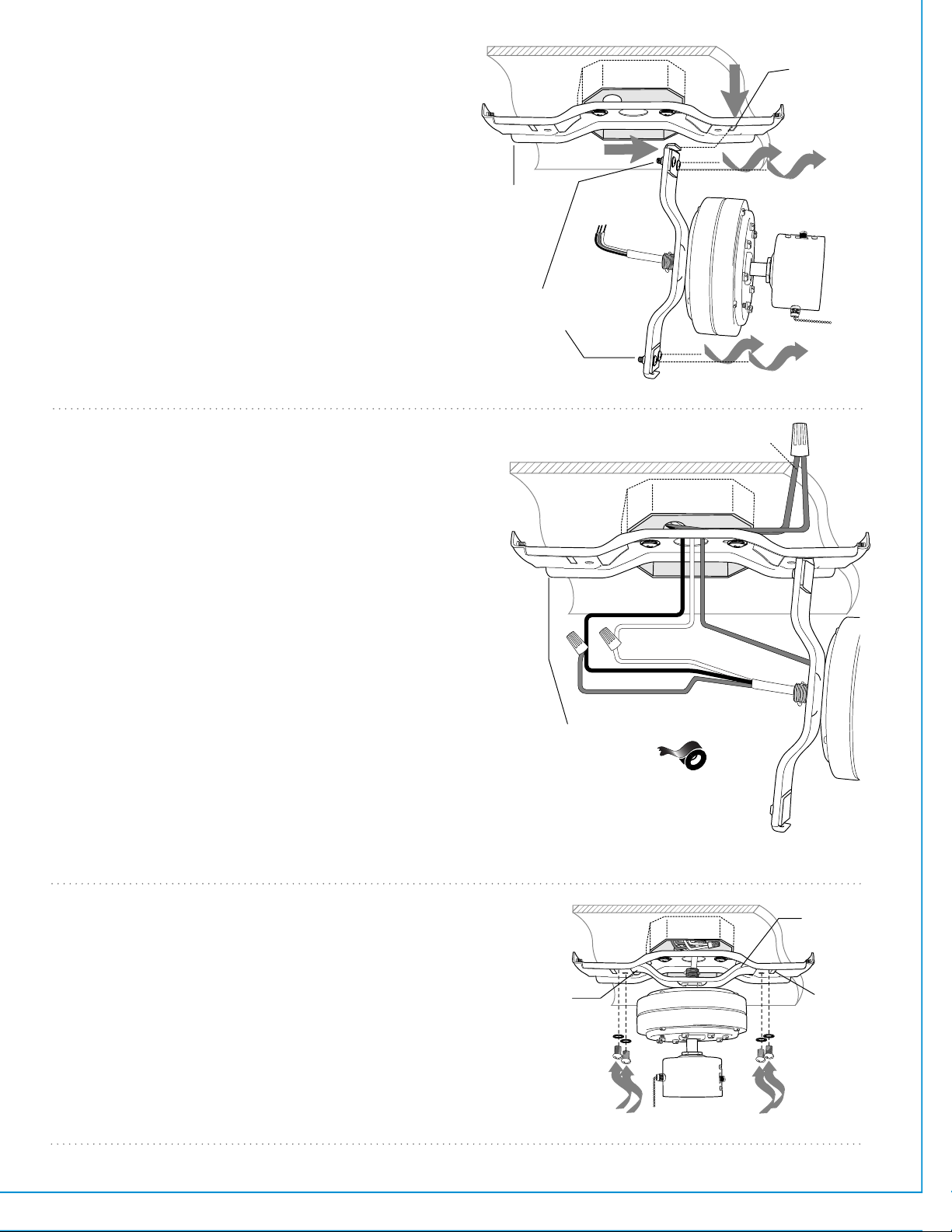

7. Fan Assembly.
Remove motor assembly from temporary hanging
slot in hanging bracket. Carefully push wiring and
wire connectors into outlet box. Slide one end of bar
on motor assembly through one of the openings in
the hanging bracket. Lift the other end of the motor
assembly and slide it through opposite opening on
hanging bracket. Align holes in top of motor
assembly with holes in hanging bracket. Secure
motor assembly to hanging bracket with lock
washers and motor mounting screws that were
previously removed (Section 5).
page 5
hanging
bracket
hanging
bracket slot
Remove 4 motor mounting screws and lock
washers from the bar on the top of motor
assembly; leave rubber cushions in place. Lift
motor assembly to hanging bracket and place
one end of motor assembly in hanging bracket
slot. This will allow motor assembly to hang out
of the way while wiring.
Tip: Seek the help of another person to hold the
stepladder in place and to lift the fan up to you
once you are set on the ladder.
NOTE:See instructions above (Section 5) in order to
temporarily hang fan on hanging bracket during wiring.
CAUTION: Be sure outlet box is properly grounded and that a
ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with Local Codes or
Ordinances and the National Electrical Code. If you are
unfamiliar with electrical wiring or if the house/building wires
are different colors than those referred to in the instructions
below, please use a qualified electrician.
When fan is secured in place on the hanging bracket,
electrical wiring can be made as follows:
Connect BLACK and BLUE wire from fan to BLACK wire from
ceiling with wire connector provided.
Connect WHITE wire from fan to WHITE wire from ceiling
with wire connector provided.
Connect all GROUND (GREEN) wires from fan together to
BARE/GREEN wire from ceiling with wire connector provided.
If you intend to control the fan light with a separate light
switch, connect BLUE wire from fan to the BLACK supply from
the independent switch.
* Wrap each wire connector separately with electrical tape as
an extra safety measure.
motor assembly
motor
mounting
screws and
lock washer
motor
mounting
screws and
lock washers
motor
mounting
screws and
lock washers
hanging
bracket
opening
5. Preparation for Wiring.
6.Wiring.
hanging
bracket
opening slot
motor assembly
hanging
bracket
motor assembly
*
WHITE
WHITE
BLACK
BLACK
BLUE
GROUND (GREEN OR BARE)
GREEN
GREEN

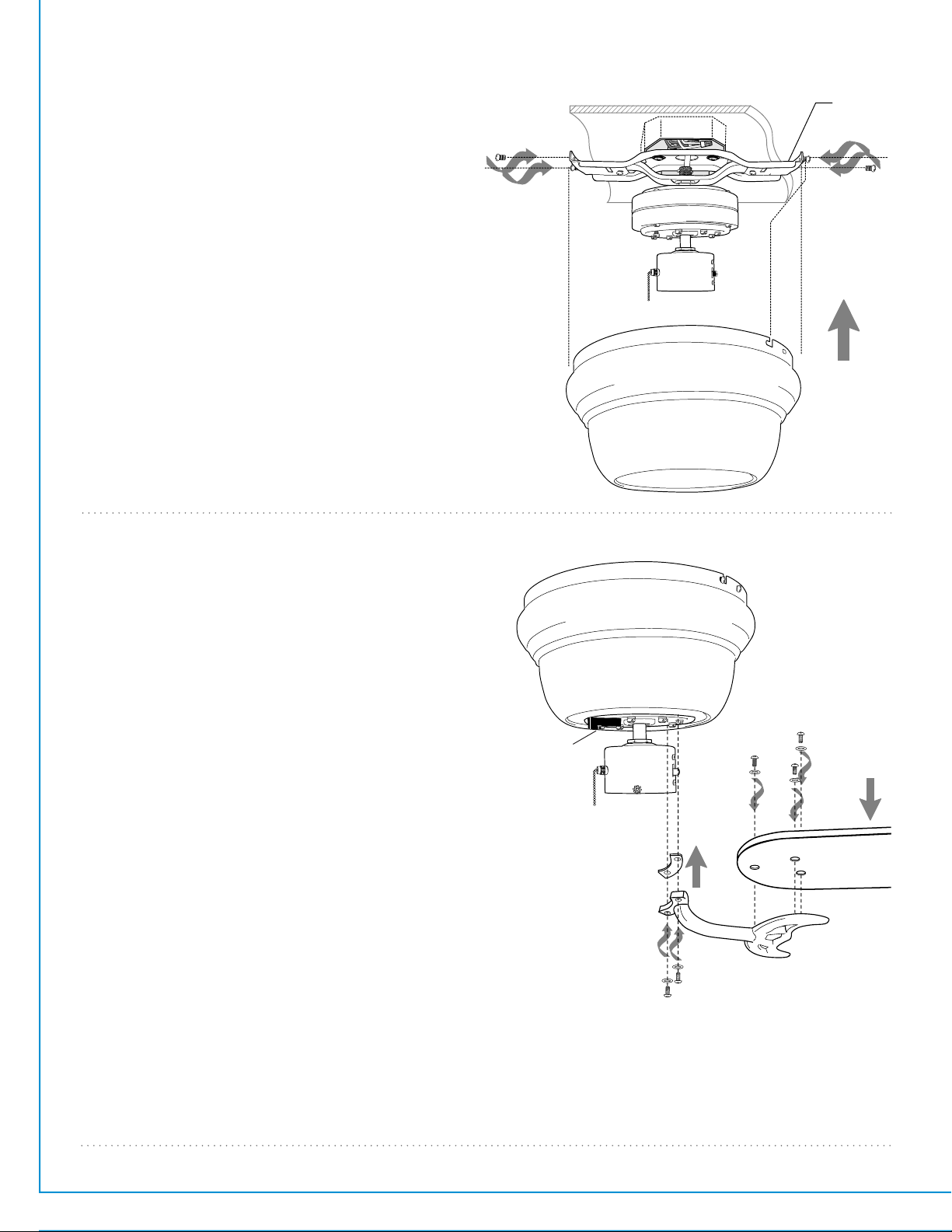

8. Motor Housing Assembly.
Temporarily hold motor housing up to hanging
bracket to determine which 2 screws align with
slotted holes on top rim of motor housing. Put
motor housing down and partially loosen the 2
screws in the hanging bracket that correspond to
slotted holes in motor housing. Remove the other
2 screws, along with star washers, from the
hanging bracket.
Raise motor housing to hanging bracket again,
allowing slotted holes in motor housing to align
with loosened screws in hanging bracket.Twist
motor housing to lock. Re-install the 2 screws that
were previously removed and then tighten all
screws to secure motor housing.
page 6
motor
housing
screws
and
washers
motor
housing
screws
and
washers
motor
housing
9. Blade Assembly.
hanging
bracket
blade arm
blade
blade attachment
screws and washers
blade arm screws
lock washers
motor housing
plastic
motor
lock
fiber washer
WARNING: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades. If screws are overtightened, blades may
crack and break.
Time Saver: Washers for blade screws can be set
on each blade screw prior to installing blades.
Locate 15 blade attachment screws and washers
in hardware pack. Hold blade arm up to blade and
align holes. Insert 3 blade attachment screws
(along with washers) with fingers first and then
tighten screws securely with a Phillips screwdriver.
Repeat procedure for the remaining blades.
Remove blade arm screws and lock washers from
underside of motor. If plastic motor locks are
installed with blade arm screws, discard plastic
motor locks (save blade arm screws and lock
washers to secure blade arms). Install long fiber
washer (if not already pre-attached to blade arm)
between motor and blade arm to reduce
vibration of metal to metal surfaces. Align blade
arm holes with motor screw holes and attach
blade arm with lock washers and blade arm
screws. Before securing screws permanently,
repeat procedure with remaining blade arms.
Securely tighten all screws.
Note:Tighten blade arm screws twice a year.

page 7
11.Testing Your Fan.
It is recommended that you test fan before finalizing
installation. Restore power from circuit box and wall
switch (if applicable). Test fan speeds with the pull chain
directly opposite the reverse switch. Start at the OFF
position (no blade movement). First pull will set the fan
to HI. Second pull will set the fan to MEDIUM. Third pull
will set the fan to LOW. Fourth pull will re-set the fan to
OFF setting. Test light kit with the pull chain in the
middle. (Refer to diagram 1.) If fan and/or light do
(does) not function, please refer to "Troubleshooting"
section to solve any issues before contacting Customer
Service.
Turn fan completely off before moving the reverse
switch. Set reverse switch to recirculate air depending
on the season:
- DOWN position in summer (diagram 2)
- UP position in winter (diagram 3)
A ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting in
winter without feeling a difference in your comfort.
Important: Reverse switch must be set either
completely UP or completely DOWN for fan to function.
If the reverse switch is set in the middle position
(diagram 4), fan will not operate.
Attach pull chains extensions provided or custom pull
chain extensions (sold separately) to ends of pull chains.
10. Light Kit Assembly (Optional).
If you wish to use your fan WITH the light kit, Remove
3 screws from light kit fitter. Locate BLUE (or BLACK)
and WHITE wires in the switch housing labeled FOR
LIGHT KIT CONNECTION. Remove and discard plastic
that holds these 2 wires together.
Connect WHITE wire from switch housing to WHITE
wire from light kit fitter. Connect BLUE (or BLACK)
wire from switch housing to BLACK wire from light kit
fitter. Be sure that molex connections snap together
securely.
Align holes in light kit fitter with holes in switch
housing. Attach light kit fitter with 3 screws that were
previously removed. Securely tighten all screws.
Attach glass shades to light kit fitter with
thumbscrews provided in one of the hardware packs.
Do not overtighten thumbscrews as glass may crack or
break.
Install 4 candelabra base 40 watt max. bulbs
(included)
Important: When replacing bulbs, please allow
bulb(s) and glass shade(s) to cool down before
touching.
motor housing
switch
housing
glass
shade
bulb
thumbscrew
light kit fitter
pull chain
extensions
reverse
switch
thumbscrew
molex
connections
diagram 2 diagram 3 diagram 4
diagram 1

page 8
Troubleshooting. Warranty.
Problem: Fan fails to operate.
Solutions:
1. Check wall switch to fan.
2.Verify that reverse switch is set completely in
either direction.
3. Check to be sure fan is wired properly.
Problem: Light kit (optional) not lighting.
Solutions:
1. Check wall switch to fan.
2. Check that bulbs are installed correctly.
3. Check to be sure wires in outlet box are wired
properly.
4.Verify that molex connections in switch
housing are connected properly.
Problem: Fan operates but lights fail (if
applicable).
Solutions:
1. Check that bulbs are installed correctly.
2. Check to be sure wires in outlet box are wired
properly.
3.Verify that molex connections in switch
housing are connected properly.
4. Replace defective bulbs with same type of
bulb.
Problem: Lighting source (up-light, down-light
or both) not functioning.
Solution:
Wattage Limiting Device has interrupted the
flow of electricity to the light source. Ensure
bulbs total no more than 190W in the light
source.
Problem: Fan wobbles.
Solutions:
1. Use the balancing kit in one of the hardware
packs. If no blade balancing kit is provided, please
call Customer Support, 1-800-486-4892, to request
one.
2. Carefully loosen motor housing and verify that
mounting bracket is secure.
2. Check to be sure motor housing is turned
completely and that motor housing screws are
secure.
Parts Replacement.
For parts and information, please refer to
"Parts Inventory" on page 3.
Craftmade Customer Support:
1-800-486-4892
www.craftmade.com
JMLI1704
CRAFTMADE™ LIFETIME LIMITED WARRANTY:
CRAFTMADE warrants this fan to the original household
purchaser for indoor use under the following provisions:
1-YEAR WARRANTY: CRAFTMADE will replace or repair any
fan which has faulty performance due to a defect in
material or workmanship.Contact Craftmade Customer
Service at 1-800-486-4892 to arrange for return of fan.
Return fan, shipping prepaid, to Craftmade. We will repair
or ship you a replacement fan, and we will pay the return
shipping cost.
5-YEAR WARRANTY: CRAFTMADE will repair or replace, at
no charge to the original purchaser, any fan motor that fails
to operate satisfactorily when failure results from normal
use.
RETURN FAN MOTOR ONLY, shipping prepaid, to Craftmade
Industries.We will repair or ship purchaser a replacement
motor and Craftmade will pay the return shipping cost.
6-YEAR to LIFETIME LIMITED WARRANTY: CRAFTMADE will
repair the fan, at no charge for labor only to the original
purchaser, if the fan motor fails to operate satisfactorily
when failure results from normal use. Parts used in the
repair will be billed to the purchaser at prevailing prices at
time of repair.
The purchaser shall be responsible for all costs incurred
in the removal, reinstallation and shipping of the product
for repairs.
This warranty does not apply when damage from
mechanical, physical, electrical or water abuse results in
causing the malfunction. Deterioration of finishes or other
parts due to time or exposure to salt air is specifically
exempted under this warranty.
Neither Craftmade nor the manufacturer will assume any
liability resulting from improper installation or use of this
product. In no case shall the company be liable for any
consequential damages for breach of this, or any other
warranty expressed or implied whatsoever.This limitation
as to consequential damages shall not apply in states
where prohibited.
WARNING: Failure to disconnect power supply
prior to troubleshooting any wiring issues may
result in serious injury.
