Craftsman Builder Deluxe BLD52-3 light User manual

PRINTED IN CHINA
Installation Guide
net weight of fan: 21.03 lb. (9.54 kg)
Table of Contents:
Safety Tips. pg. 2
Unpacking Your Fan. pg. 3
Parts Inventory. pg. 3
Installation Preparation. pg. 4
Hanging Bracket Installation. pg. 4
Fan Assembly. pgs. 5 - 7
Wiring. pg. 7
Canopy Assembly. pg. 8
Blade Attachment. pg. 8
Light Kit Assembly. pg. 9
Testing Your Fan. pg. 9
Troubleshooting. pg. 10
Warranty. pg. 10
Parts Replacement. pg. 10
READ THESE INSTRUCTIONS
AND SAVE THEM FOR FUTURE USE
For Model:
BLD52-3 light
Builder Deluxe
E124404
page 1

page 2
SAFETY TIPS.
WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit
panel before you begin the fan installation or before servicing the fan or installing accessories.
1. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN
AND SAVE THESE INSTRUCTIONS.
CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.
2. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code, and
ANSI/NFPA 70-1999. If you are unfamiliar with electrical wiring or if the house/building wires are different
colors than those referred to in the instructions, please use a qualified electrician.
3. Make sure you have a location selected for your fan that allows clear space for the blades to rotate, and at
least seven (7) feet (2.13 meters) of clearance between the floor and the fan blade tips. The fan should be
mounted so that the tips of the blades are at least thirty (30) inches (76 centimeters) from walls or other
upright structures.
4. The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at least
35 pounds (16 kilograms). The outlet box must be supported directly by the building structure. Use only
CUL (Canada) or UL (USA) listed outlet boxes marked "FOR FAN SUPPORT."
WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box marked
"Acceptable for Fan Support of 15.9 kg (35 lb) or less," and use the mounting screws provided with the outlet box.
Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may
need to be replaced. Consult a qualified electrician if in doubt.
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this fan are
designed to accept only one12 gauge house wire and two lead wires from the fan. If your house wire is larger than
12 gauge or there is more than one house wire to connect to the corresponding fan lead wires, consult an
electrician for the proper size wire connectors to use.
5. Electrical diagrams are for reference only.
6. After installation is complete, check that all connections are absolutely secure.
7. After making electrical connections, spliced conductors should be turned upward and pushed carefully up
into the outlet box. The wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on opposite sides of the outlet box.
WARNING: To reduce the risk of electrical shock or fire, do not use this fan with any solid state speed control device
or control fan speed with a full range dimmer switch. [Using a full range dimmer switch to control fan speed will
cause a loud humming noise from fan.] (Note:This fan is suitable for use with remote control.)
8. Do not operate the reverse switch until fan has come to a complete stop.
9. Do not insert anything between the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury, do not bend the blade arms during assembly or after installation.
Do not insert objects into the path of the blades.
WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or
cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense and caution are
necessary factors in the installation and operation of this fan.

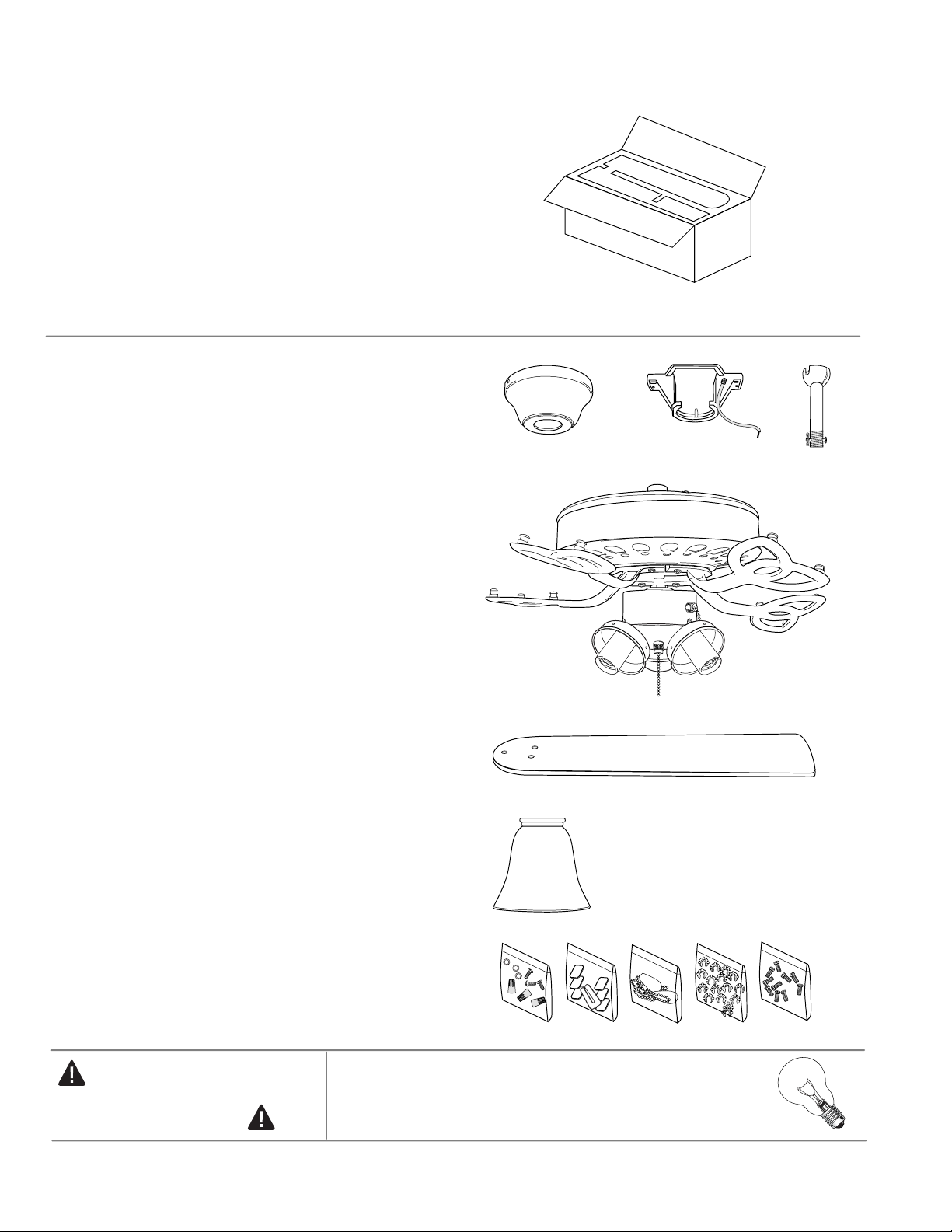

1. Unpacking Your Fan.
2. Parts Inventory.
Carefully open the packaging. Remove items
from Styrofoam inserts. Remove motor housing
and place on carpet or Styrofoam to avoid
damage to finish. Do not discard fan carton or
Styrofoam inserts should this fan need to be
returned for repairs.
Check against parts inventory that all parts have
been included.
a. canopy. 1 piece
b. hanging bracket (pre-attached to canopy).
1 piece
c. downrod and hanging ball (with pin and clip).
1 piece
d. motor housing/blade arms/
switch housing/light kit fitter (pre-assembled).
1 piece
e. blade. 5 pieces
f. glass shade. 3 pieces
g. hardware packs
page 3
ab
f
e
g
d
c
required bulbs:
3 x 60 watt max. candelabra base bulbs
(included)
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.

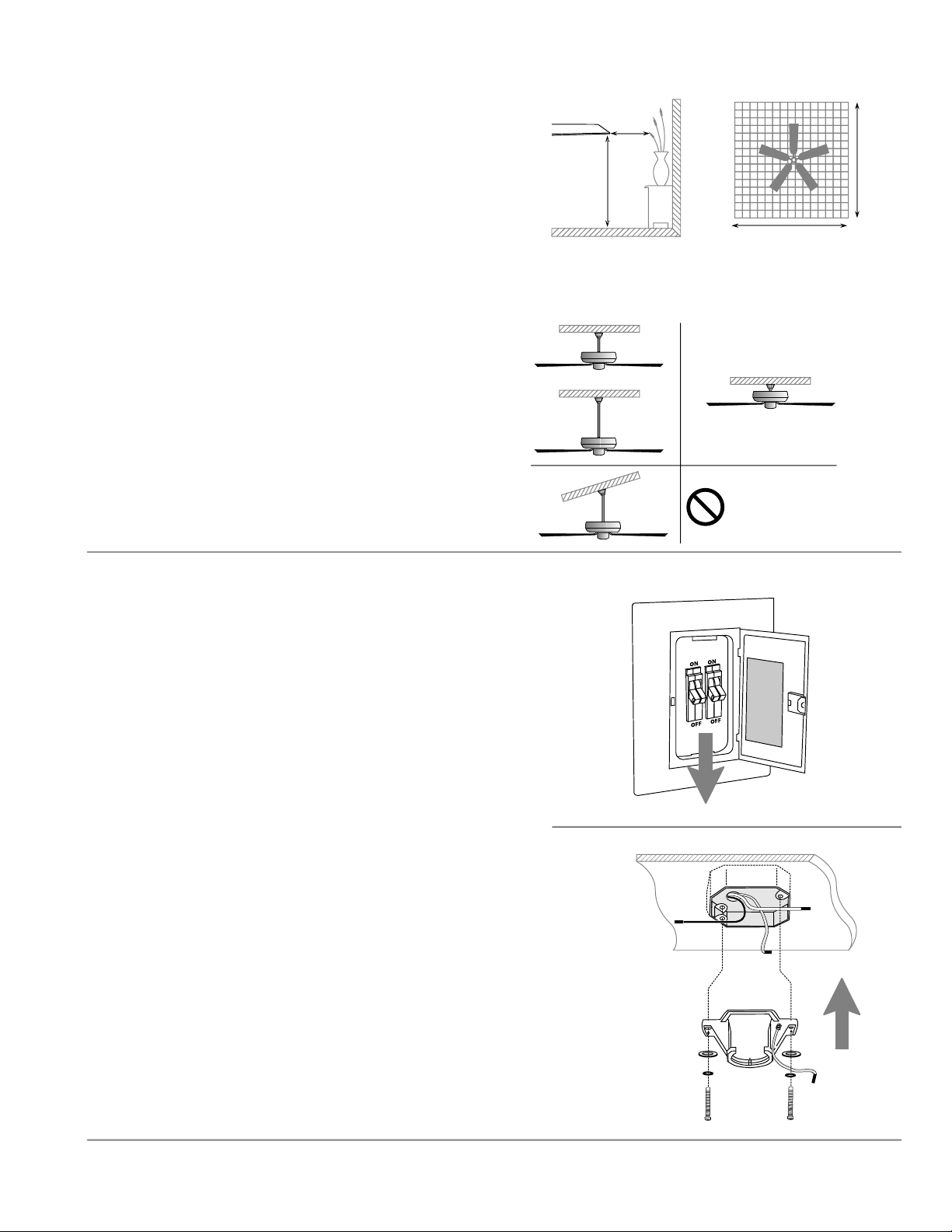

4. Hanging Bracket Installation.
Turn off circuit breakers to current fixture from breaker
panel and be sure operating light switch is turned to the
OFF position.
WARNING: Failure to disconnect power supply prior to
installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box, be sure the
outlet box is securely attached to the building structure and
can support the full weight of the fan. Ensure outlet box is
clearly marked "Suitable for Fan Support." If not, it must be
replaced with an approved outlet box. Failure to do so can
result in serious injury.
Partially loosen screws in slotted holes of canopy. Remove
the other 2 screws--save screws for later use. Twist canopy
to remove hanging bracket.
CAUTION: Be sure outlet box is grounded properly and that a
ground wire (GREEN or bare) is present.
Install hanging bracket to outlet box using original screws,
spring washers and flat washers provided with new or
original outlet box.*If installing on a vaulted ceiling, face
opening of hanging bracket towards high point of ceiling.
Arrange electrical wiring around the back of the hanging
bracket and away from the hanging bracket opening.
*Note: It is very important that you use the proper hardware
when installing the hanging bracket as this will support the
fan.
page 4
hanging bracket
spring washers
outlet box screws
flat washers
3. Installation Preparation.
Vaulted ceiling
angle is not to
exceed 25 degrees.
downrod
installation
blade edge
7 feet
(2.13m)
(76cm)
30
inches
flushmount
installation
12ft. - 20ft.
12ft. - 20ft.
(3.66m - 6.1m)
(3.66m - 6.1m)
To prevent personal injury and damage, ensure that
the hanging location allows the blades a clearance
of 7ft. (2.13m) from the floor and 30in. (76cm) from
any wall or obstruction.
This fan is suitable for room sizes up to 400 square
feet (37.2 square meters).
This fan can be mounted with a downrod
on a regular (no-slope) or vaulted ceiling.The
hanging length can be extended by purchasing a
longer downrod (0.5in./1.27cm diameter). After
installing hanging bracket, continue to Section 5 on
page 5 for those instructions.This fan can also be
mounted as a flushmount on a regular (no-slope)
ceiling. After installing hanging bracket, continue to
Section 6 on page 6 for those instructions.
Installation requires these tools:
Phillips screwdriver, flat-head screwdriver,
adjustable pliers or wrench, stepladder, wire cutters,
and rated electrical tape.

page 5

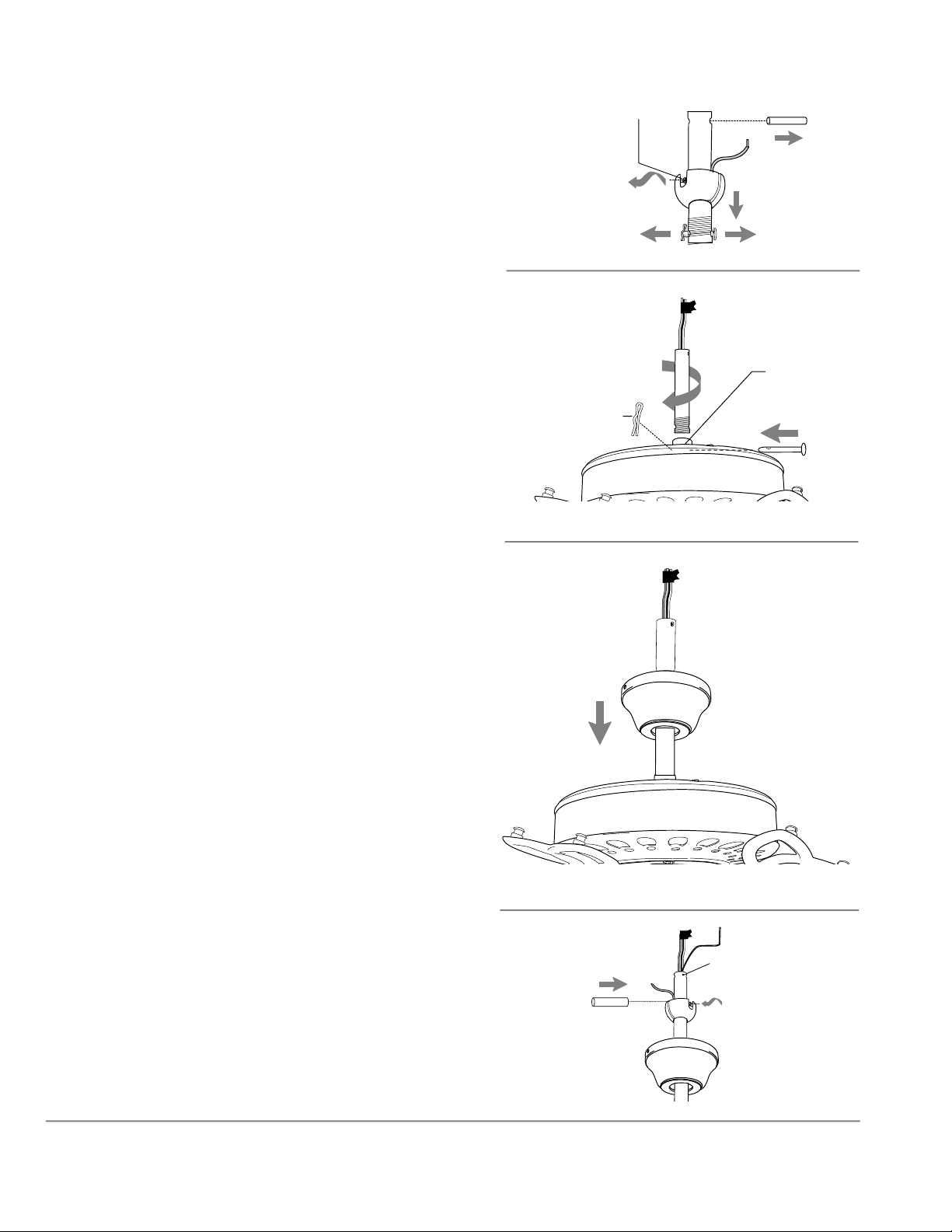

5. Fan Assembly (downrod).
Remove hanging ball from downrod provided
by loosening set screw on hanging ball.
Remove pin and clip. Lower hanging ball and
remove stop pin.Then slide hanging ball off
downrod. [Refer to diagram 1.]
Loosen yoke set screws and nuts at top of
motor housing. [Refer to diagram 2.]
Tip: To prepare for threading electrical wires
through downrod, apply a small piece of
electrical tape to the ends of the electrical wires
-- this will keep the wires together when
threading them through the downrod. [Refer to
diagram 2.]
Determine the length of downrod you wish to
use. Thread electrical wires through threaded
end of downrod and pull extra wire slack from
the upper end of the downrod. [Refer to
diagram 2.]
Thread downrod into the motor housing yoke
until holes for pin and clip in downrod align
with holes in yoke--make sure wires do not get
twisted. Re-insert pin and clip previously
removed. Tighten yoke set screws and nuts
securely. [Refer to diagram 2.]
Slide canopy over downrod. [Refer to
diagram 3.]
Thread wires through hanging ball and then
slide hanging ball over downrod -- the top of
the downrod should be noted as having a set
screw hole; use this hole when setting the set
screw. Insert stop pin into top of downrod and
raise hanging ball. Be sure stop pin aligns with
slots on the inside of the hanging ball.Tighten
set screw securely. [Refer to diagram 4.]
WARNING: Failure to tighten set screw (on
hanging ball) completely could result in the fan
becoming loose and possibly falling.
["Fan Assembly" continued on next page.]
NOTE:The important safety precautions and
instructions appearing in the manual are not meant to
cover all possible conditions and situations that may
occur.It must be understood that common sense and
caution are necessary factors in the installation and
operation of this fan.
set screw
hanging ball
stop pin
diagram 1
pin
clip
diagram 2
yoke set screw
and nut
pin
clip
downrod
electrical wiring
diagram 4
set screw hole
hanging ball
stop pin
motor
housing
diagram 3
canopy
downrod
electrical wiring

canopy
motor housing

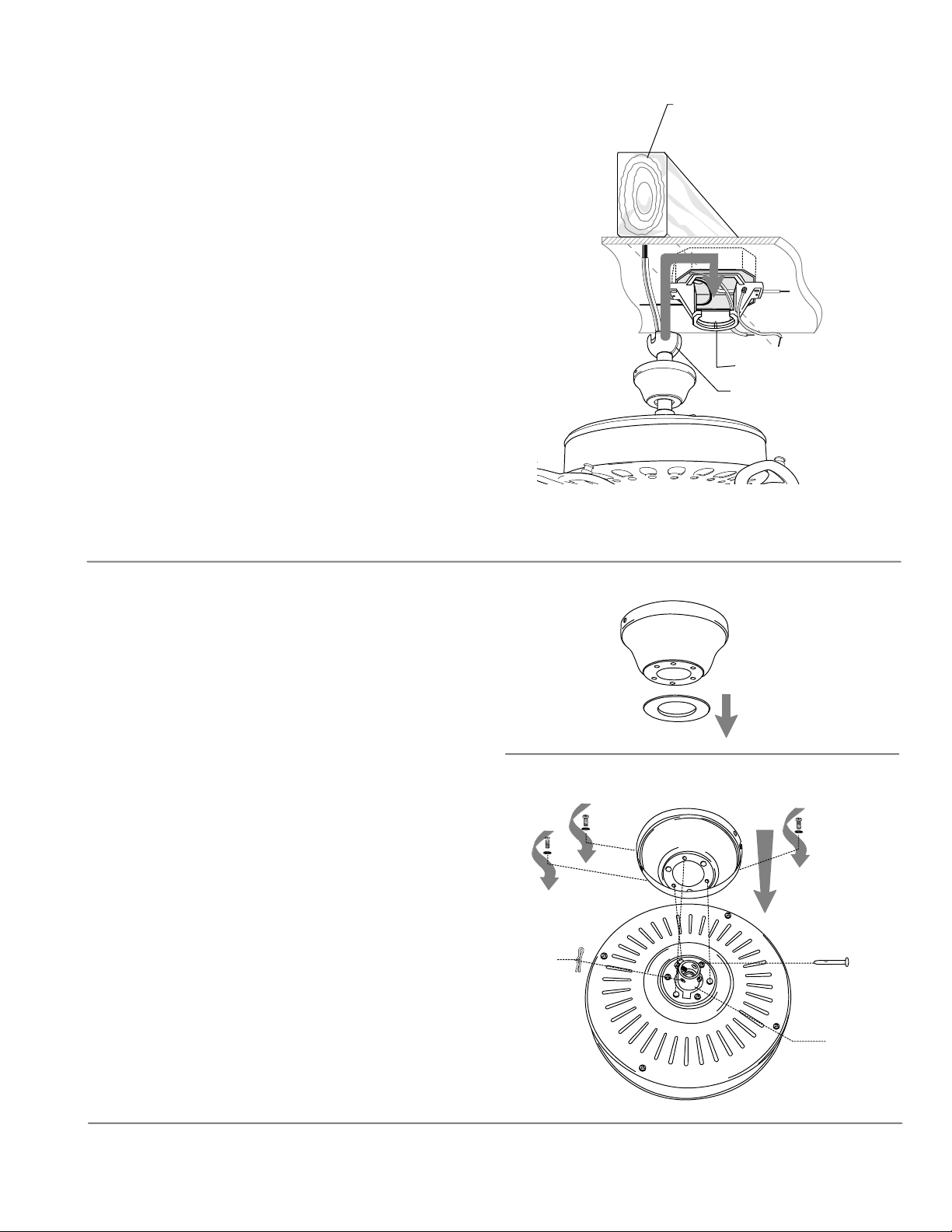

6. Fan Assembly (flushmount).
page 6
canopy
canopy cover
5. Fan Assembly (downrod). (cont.)
Remove and set aside canopy cover to
reveal 6 holes. [Refer to diagram 1.]Notice
that 3 holes are larger than the others.
If there are only 3screws in top of motor
housing, please proceed to next
paragraph. If there are 6screws in top of
motor housing, remove every other screw
and lock washer.
Remove pin and clip from motor housing
yoke.Thread wiring through canopy. Place
canopy over yoke, aligning larger holes in
canopy with the 3 existing screws in top of
motor housing. Insert the 3 screws and
3 lock washers that were removed (if there
were only 3 screws located in top of motor
housing, these screws/lock washers will be
located in one of the hardware packs) into
the remaining holes. Securely tighten
these screws. [Refer to diagram 2.]yoke
pin
clip
With the hanging bracket secured to the
outlet box and able to support the fan,
you are now ready to hang your fan. Grab
the fan firmly with two hands. Slide
downrod through opening in hanging
bracket and let hanging ball rest on the
hanging bracket.Turn the hanging ball
slot until it lines up with the hanging
bracket tab.
WARNING: Failure to align slot in hanging
ball with tab in hanging bracket may
result in serious injury or death.
Tip: Seek the help of another person to
hold the stepladder in place and to help
lift the fan up to you once you are set on
the ladder.
Continue to "Wiring" section on page 7
for wiring diagram.
diagram 1
diagram 2
hanging ball slot
hanging bracket tab
motor
housing
wood
ceiling
joist

page 7
black
black
white
white
blue
black supply wire
ground
(green
or bare)
white supply wire
7.Wiring.
WARNING:Turn off circuit breakers to
current fixture from breaker panel and be
sure switch is turned to the OFF position.
CAUTION: Be sure outlet box is properly
grounded and that a ground (GREEN or Bare)
wire is present.
Make sure all electrical connections comply
with Local Codes or Ordinances and the
National Electrical Code. If you are unfamiliar
with electrical wiring or if the house/building
wires are different colors than those referred
to in the instructions below,please use a
qualified electrician.
When downrod is secured in place on the
hanging bracket, electrical wiring can be
made as follows:
Connect BLACK and BLUE wires from fan
to BLACK wire from ceiling with wire
connector provided.
Connect WHITE wire from fan to WHITE
wire from ceiling with wire connector
provided. Connect all GROUND (GREEN)
wires together from fan to BARE/GREEN
wire from ceiling with wire connector
provided.
If you intend to control the fan light with a
separate light switch, connect BLUE wire
from fan to the BLACK (or RED) supply
from the independent switch.
*Wrap each wire connector separately with
electrical tape as an extra safety measure.
This fan is remote control adaptable (remote
control sold separately).
*
from
ceiling
from fan
ground
(green or bare)
wire
connector
wire
connectors
6. Fan Assembly (flushmount).
(cont.)
canopy
motor housing
hanging bracket tab
To prepare the fan for wiring, hang fan
onto hanging bracket by sliding the
canopy over the hanging bracket tab. (Use
one of the non-slotted holes on the rim of
the canopy to do so.) [Refer to diagram 3.]
diagram 3

page 8
J
blade
blade
arm

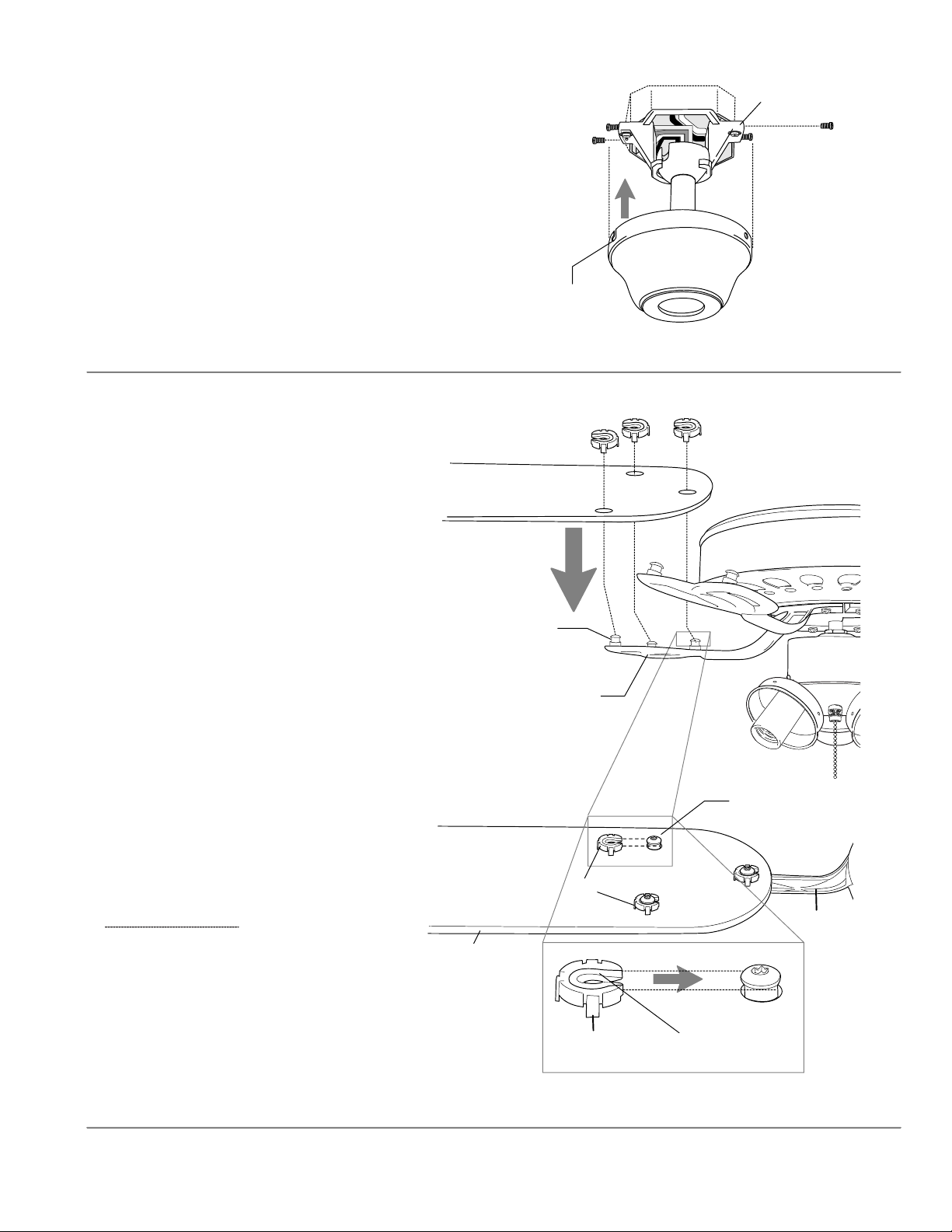

9. Blade Attachment.
blade arm
blade
blade arm post
blade arm post
C-clips
C-clips
Locate 15 C-clips in hardware
pack.
Align holes in one of the blades
with blade arm posts on one of
the blade arms. Press down on
the blade firmly so the blade arm
posts come through the holes in
the blade. [CAUTION: Be careful
not to use so much force that the
blade arm bends.] Then, slide a
C-clip onto each blade arm post.
Repeat for each blade.
WARNING:To reduce the risk of
personal injury, make sure the
friction detents on the C-clips
face down and recessed grooves
face up. One C-clip should slide
completely under each blade arm
post so edges of blade arm posts
are captured by the recessed
groove on the C-clips.
8. Canopy Assembly.
Raise canopy to hanging bracket, aligning
loosened screws in hanging bracket with
slotted holes in canopy. Twist canopy to
lock. Insert screws (with washers) that were
previously removed (on page 4, Section 4)
and secure all screws with a Phillips
screwdriver.
canopy
slotted
hole
hanging bracket
friction
detents
recessed
groove

10. Light Kit Assembly.
page 9
glass shade
bulb
light kit fitter
11.Testing Your Fan.
switch housing
pull chain
extensions
(for fan)
(for
light)
reverse switch
It is recommended that you test fan before
finalizing installation. Restore power from
circuit box and light switch (if applicable).Test
fan speeds with the pull chain located on the
switch housing. Start at the OFF position (no
blade movement). First pull will set the fan to
HI. Second pull will set the fan to MEDIUM.
Third pull will set the fan to LOW. Fourth pull
will again set the fan to OFF setting.Test lights
with the pull chain located in the middle. If fan
and/or lights do/does not function, please refer
to "Troubleshooting" section to solve any issues
before contacting Customer Service.
Turn fan completely off before moving the
reverse switch. Set reverse switch to recirculate
air depending on the season:
- DOWN position in summer (diagram 1)
- UP position in winter (diagram 2)
A ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
Important: Reverse switch must be set either
completely UP or completely DOWN for fan to
function. If the reverse switch is set in the
middle position (diagram 3), fan will not
operate.
Attach pull chain extension(s) provided or
custom pull chain extension(s) (sold separately)
to the end(s) of the pull chain(s).
diagram 1 diagram 2 diagram 3
Secure 3 glass shades with
thumbscrews provided in one of
the hardware packs.
Do NOT overtighten thumbscrews as
glass may crack or break.
Install 3 candelabra base 60 watt max.
incandescent bulbs (included).
IMPORTANT: When you need to
replace bulbs, please allow bulb(s) and
glass shade(s) to cool down before
touching them.

Troubleshooting.
page 10
Warranty.
Parts Replacement.
For parts and information, please refer to
"Parts Inventory" on page 3.
Craftmade Customer Support:
1-800-486-4892
www.craftmade.com
WARNING: Failure to disconnect power supply
prior to troubleshooting any wiring issues may
result in serious injury.
Problem: Fan fails to operate.
Solutions:
1. Check wall switch to fan.
2.Verify that reverse switch is set completely in
either direction.
3. Check to be sure that fan is wired properly.
Problem: Light kit not lighting.
Solutions:
1. Check wall switch to fan.
2. Check that bulbs are installed correctly.
3. Check to be sure that wires in canopy are
wired properly.
4.Verify that molex connections in switch
housing are connected properly.
Problem: Fan operates but lights fail.
Solutions:
1. Check that bulbs are installed correctly.
2. Check to be sure that wires in canopy are
wired properly.
3.Verify that molex connections in switch
housing are connected properly.
4. Replace defective bulb with same type of bulb.
Problem: Lighting source (up-light, down-light
or both) not functioning.
Solution:
Wattage Limiting Device has interrupted the
flow of electricity to the light source. Ensure
bulbs total no more than 190W in the light
source.
Problem: Fan wobbles.
Solution:
1. Use the balancing kit provided in one of the
hardware packs. If no blade balancing kit is
provided, please call Customer Support, at
1-800-486-4892, to request one.
2. Check to be sure set screw(s) on motor
housing yoke is (are) tightened securely.
3. Check to be sure set screw on hanging ball is
tightened securely.
KHLI1905
CRAFTMADE™ LIFETIME LIMITED WARRANTY:
CRAFTMADE warrants this fan to the original household
purchaser for indoor use under the following provisions:
1-YEAR WARRANTY: CRAFTMADE will replace or repair any
fan which has faulty performance due to a defect in
material or workmanship.Contact Craftmade Customer
Service at 1-800-486-4892 to arrange for return of fan.
Return fan, shipping prepaid, to Craftmade. We will repair
or ship you a replacement fan, and we will pay the return
shipping cost.
5-YEAR WARRANTY: CRAFTMADE will repair or replace, at
no charge to the original purchaser, any fan motor that fails
to operate satisfactorily when failure results from normal
use.
RETURN FAN MOTOR ONLY, shipping prepaid,to Craftmade
Industries.We will repair or ship purchaser a replacement
motor and Craftmade will pay the return shipping cost.
6-YEAR to LIFETIME LIMITED WARRANTY: CRAFTMADE will
repair the fan, at no charge for labor only to the original
purchaser, if the fan motor fails to operate satisfactorily
when failure results from normal use. Parts used in the
repair will be billed to the purchaser at prevailing prices at
time of repair.
The purchaser shall be responsible for all costs incurred
in the removal, reinstallation and shipping of the product
for repairs.
This warranty does not apply when damage from
mechanical, physical, electrical or water abuse results in
causing the malfunction. Deterioration of finishes or other
parts due to time or exposure to salt air is specifically
exempted under this warranty.
Neither Craftmade nor the manufacturer will assume any
liability resulting from improper installation or use of this
product. In no case shall the company be liable for any
consequential damages for breach of this, or any other
warranty expressed or implied whatsoever.This limitation
as to consequential damages shall not apply in states
where prohibited.
