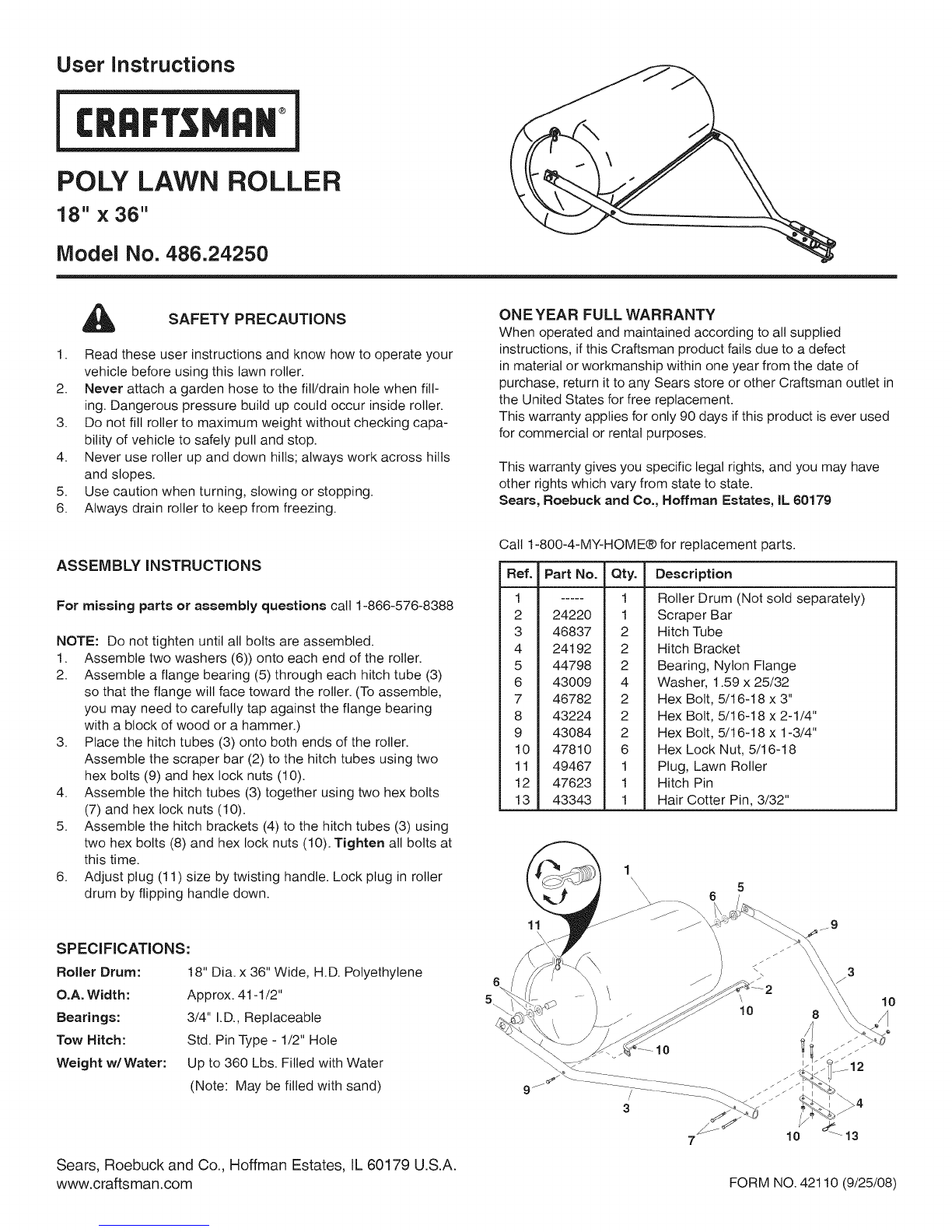

Craftsman 486.24250 User manual

User instructions
POLY LAWN ROLLER
18" ×36"
Model No. 486.24250
SAFETY PRECAUTIONS
1. Read these user instructions and know how to operate your
vehicle before using this lawn roller.
2. Never attach a garden hose to the fill/drain hole when fill-
ing. Dangerous pressure build up could occur inside roller.
3. Do not fill roller to maximum weight without checking capa-
bility of vehicle to safely pull and stop.
4. Never use roller up and down hills; always work across hills
and slopes.
5. Use caution when turning, slowing or stopping.
6. Always drain roller to keep from freezing.
ASSEMBLY INSTRUCTIONS
For missing parts or assembly questions call 1-866-576-8388
NOTE:
1.
2.
Do not tighten until all bolts are assembled.
Assemble two washers (6)) onto each end of the roller.
Assemble a flange bearing (5) through each hitch tube (3)
so that the flange will face toward the roller. (To assemble,
you may need to carefully tap against the flange bearing
with a block of wood or a hammer.)
3. Place the hitch tubes (3) onto both ends of the roller.
Assemble the scraper bar (2) to the hitch tubes using two
hex bolts (9) and hex lock nuts (10).
4. Assemble the hitch tubes (3) together using two hex bolts
(7) and hex lock nuts (10).
5. Assemble the hitch brackets (4) to the hitch tubes (3) using
two hex bolts (8) and hex lock nuts (10). Tighten all bolts at
this time.
6. Adjust plug (11) size by twisting handle. Lock plug in roller
drum by flipping handle down.
SPECIFICATIONS:
Roller Drum:
O.A. Width:
Bearings:
Tow Hitch:
Weight w/Water:
18" Dia. x 36" Wide, H.D. Polyethylene
Approx. 41-1/2"
3/4" I.D., Replaceable
Std. Pin Type - 1/2" Hole
Up to 360 Lbs. Filled with Water
(Note: May be filled with sand)
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.craftsman.com
ONE YEAR FULL WARRANTY
When operated and maintained according to all supplied
instructions, if this Craftsman product fails due to a defect
in material or workmanship within one year from the date of
purchase, return it to any Sears store or other Craftsman outlet in
the United States for free replacement.
This warranty applies for only 90 days if this product is ever used
for commercial or rental purposes.
This warranty gives you specific legal rights, and you may have
other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Call 1-800-4-MY-HOME® for replacement parts.
Ref. Part No. Qty. Description
1 ..... 1 Roller Drum (Not sold separately)
2 24220 1 Scraper Bar
3 46837 2 Hitch Tube
4 24192 2 Hitch Bracket
5 44798 2 Bearing, Nylon Flange
6 43009 4 Washer, 1.59 x 25/32
7 46782 2 Hex Bolt, 5/16-18 x 3"
8 43224 2 Hex Bolt, 5/16-18 x 2-1/4"
9 43084 2 Hex Bolt, 5/16-18 x 1-3/4"
10 47810 6 Hex Lock Nut, 5/16-18
11 49467 1 Plug, Lawn Roller
12 47623 1 Hitch Pin
13 43343 1 Hair Cotter Pin, 3/32"
11
\
9J /
3
\10
10
10
FORM NO. 42110 (9/25/08)
