Operator's Manual
42" SNOW BLADE
Model No. 486.244411
PRINTED IN U.S.A.
®
FORM NO. 41337 (03/15/10)
CAUTION:
Before using this product, read
and follow all Safety, Assembly
and Operating Instructions
• Safety
• Assembly
• Operation
• Maintenance
• Parts
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman
IMPORTANT: For Missing Parts or
Assembly Questions Call 866-576-8388
STOP
DO NOT RETURN TO STORE
For Missing Parts or Assembly
Questions Call 1-866-576-8388

2
TABLE OF CONTENTS
MODEL NUMBER: 486.244411
SERIAL NUMBER: __________________
DATE OF PURCHASE: __________________
The model number and serial numbers will be found on
a decal attached to the snow blade.
You should record both the serial number and the
date of purchase and keep in a safe place for future
reference.
MAINTENANCE............................................................ 12
SERVICE AND ADJUSTMENTS....................................13
STORAGE.................................................................13
TROUBLESHOOTING...............................................14
REPAIR PARTS ILLUSTRATION......................................18
REPAIR PARTS LIST................................................19
PARTS ORDERING/SERVICE...............BACK COVER
Look for this symbol to point out important safety precautions.It means — Attention!! Become
alert!! Your safety is involved.
SAFETY
WARRANTY.................................................................... 2
SAFETY RULES ............................................................. 2
ACCESSORIES AND ATTACHMENTS........................... 3
FULL SIZE HARDWARE CHART................................... 3
CARTON CONTENTS .................................................... 4
ASSEMBLY................................................................ 5-10
OPERATION............................................................ 11-12
Read the tractor and snow blade owner's manuals•
and know how to operate your tractor before using
tractor with snow blade attachment.
Never operate tractor and snow blade without•
wearing proper clothing suited to weather conditions
and operation of controls.
Never allow children to operate tractor and snow•
blade, and do not allow adults to operate without
proper instructions.
Alwaysbeginwithtransmissioninrst(low)gearand•
gradually increase speed as conditions permit.
Any power equipment can cause injury if operated improperly or if the user does not understand how to operate the
equipment. Exercise caution at all times when using power equipment.

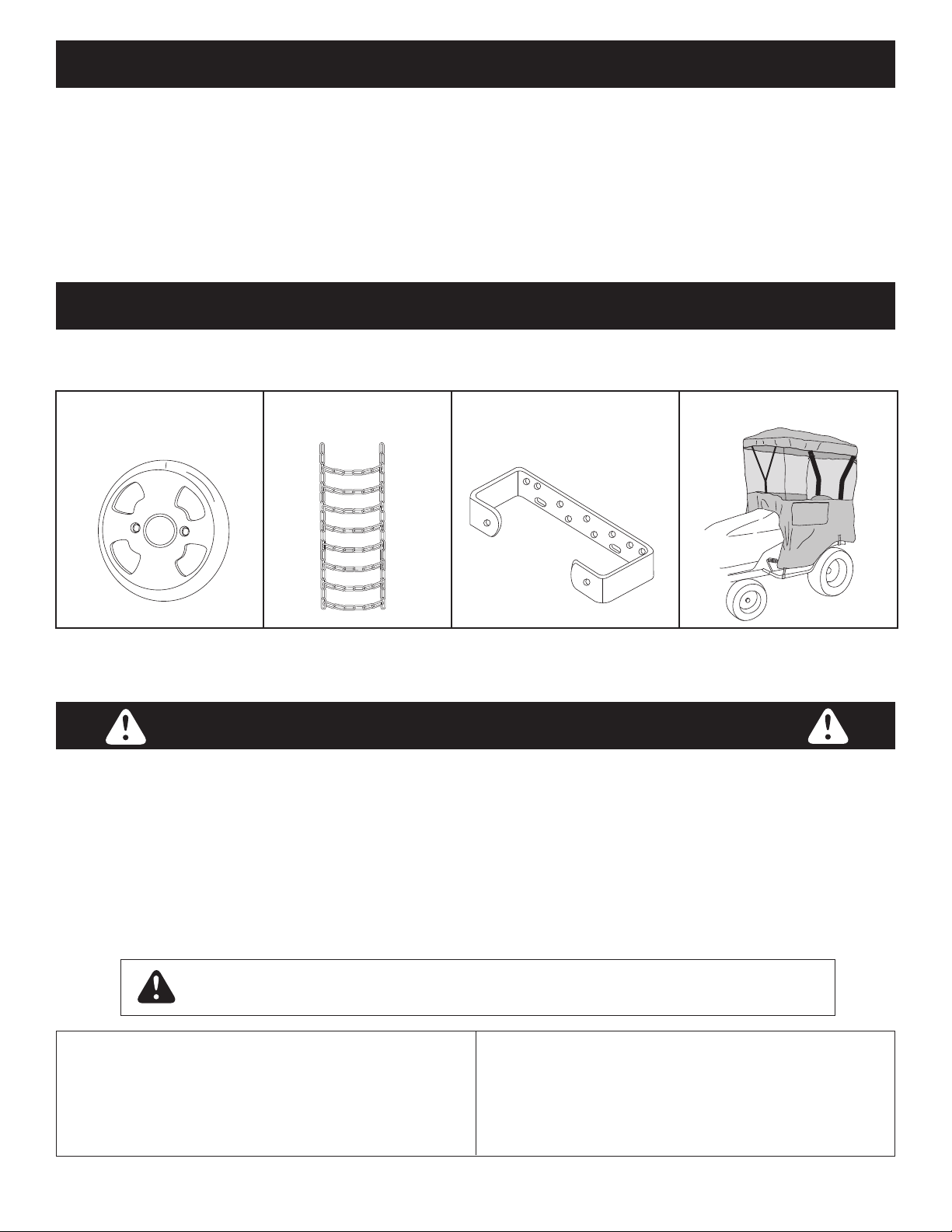

ACCESSORIES AND ATTACHMENTS
WHEEL WEIGHT TIRE CHAINS WEIGHT BRACKET
FOR DRAW BAR
SNOW CAB
Theseandotheraccessoriesarerecommendedforusewithyourunit.Call1-800-4-MY-HOME®tondoutiftheyareavailable.
If available, they may be purchased at most Craftsman outlets or by calling 1-800-4-MY-HOME®.

3

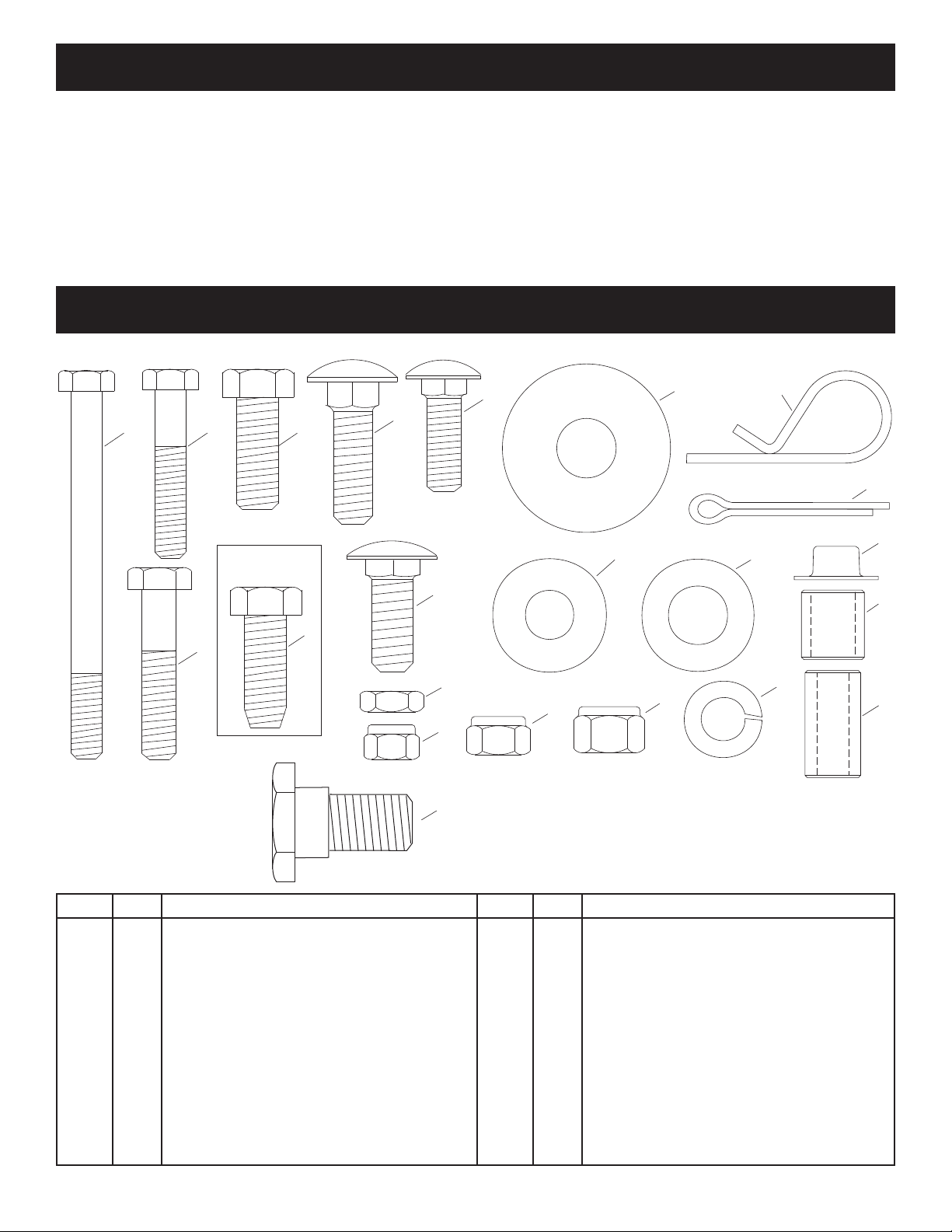

FULL SIZE HARDWARE CHART
REF. QTY. DESCRIPTION REF. QTY. DESCRIPTION
A 1 Hex Bolt, 1/4-20 x 3-1/4" LG.
B 1 Hex Bolt 1/4-20 x 1-1/2"
C 1 Hex Bolt, 5/16-18 x 1-1/2"
D 14 Hex Bolt, 3/8-16 x 1"
E 2 Carriage Bolt, 3/8 x 1-1/4"
F 2 Carriage Bolt, 5/16 x 1"
G 6 Hex Bolt, 3/8" x 1" (Thread Forming)
H 6 Carriage Bolt, 3/8" x 1"
I 2 Hex Jam Nut, 5/16-24 Thread
J 3 Nylock Hex Nut, 1/4-20 Thread
K 3 Nylock Hex Nut, 5/16-18 Thread
L 18 Nylock Hex Nut, 3/8-16 Thread
M 8 Large 1/2" Washer
N 6 3/8" Flat Washer
O 4 Hairpin Cotter
P 2 Cotter Pin 1/8" x 1-1/4"
Q 1 1/2" Washer
R 6 Lock Washer, 3/8"
S 2 Palnut, 3/8"
T 1 Spacer, 9/16" OD x 5/8" LG.
U 2 Spacer, 9/16" OD x 1" LG.
V 2 Shoulder Bolt, 3/8 x .9"
D
L
I
J
K
V
H
A B
T
U
R
E
F
C
N Q
O
P
S
M
G
SPECIAL
USE ONLY
WARRANTY
ONE YEAR FULL WARRANTY
When operated and maintained according to the instructions supplied with it, if this Snow Blade fails due to a defect in
material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair (or
replacement if repair proves impossible).
If this product is used for commercial or rental purposes, this warranty applies for only 90 days from the date of purchase.
Thiswarrantygivesyouspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
Sears, Roebuck and Co., Hoffman Estates, IL 60179

4
REF. QTY. DESCRIPTION REF. QTY. DESCRIPTION
12 1 Hanger Bracket, L.H.
13 1 Hanger Bracket, R.H.
14 1 Pivot Support Bracket
15 2 Angle Support Bracket
16 1 Channel Assembly
17 1 Blade Assembly
18 1 Blade Pivot Rod
19 1 Lift Handle Tube
20 1 Lift Handle Rod
21 1 Cable
22 2 Slotted Angle Support Bracket
23 1 Quick Attach Bracket (RH)
24 1 Quick Attach Bracket (LH)
1 2
3
4
5
6
7
10
8 9
11
REF. QTY. DESCRIPTION REF. QTY. DESCRIPTION
1 2 Cable End Fitting
2 1 Cable Mount Bracket
3 1 Angle Lock Spring
4 2 Nylon Tie
5 1 Spring Mount Rod
6 1 Channel Pivot Pin
7 1 Blade Adjust Spring
8 1 Plastic Grip
9 1 Grip Assembly
10 2 Angle Lock Bars
11 1 Blade Pivot Shaft
PARTS IN PACKAGES NOT SHOWN FULL SIZE
CARTON CONTENTS (Loose Parts in Carton)
18
21
19
13
12
15
14
16
22
24
23
22
17
20

5
ASSEMBLY
(1) Pliers
(1) Hammer
(1) Adjustable Wrench (or socket set)
(1) 9/16" Open End or Box End Wrench
(1) 7/16" Open End or Box End Wrench
(1) 1/2" Open End or Box End Wrench
TOOLS REQUIRED FOR ASSEMBLY

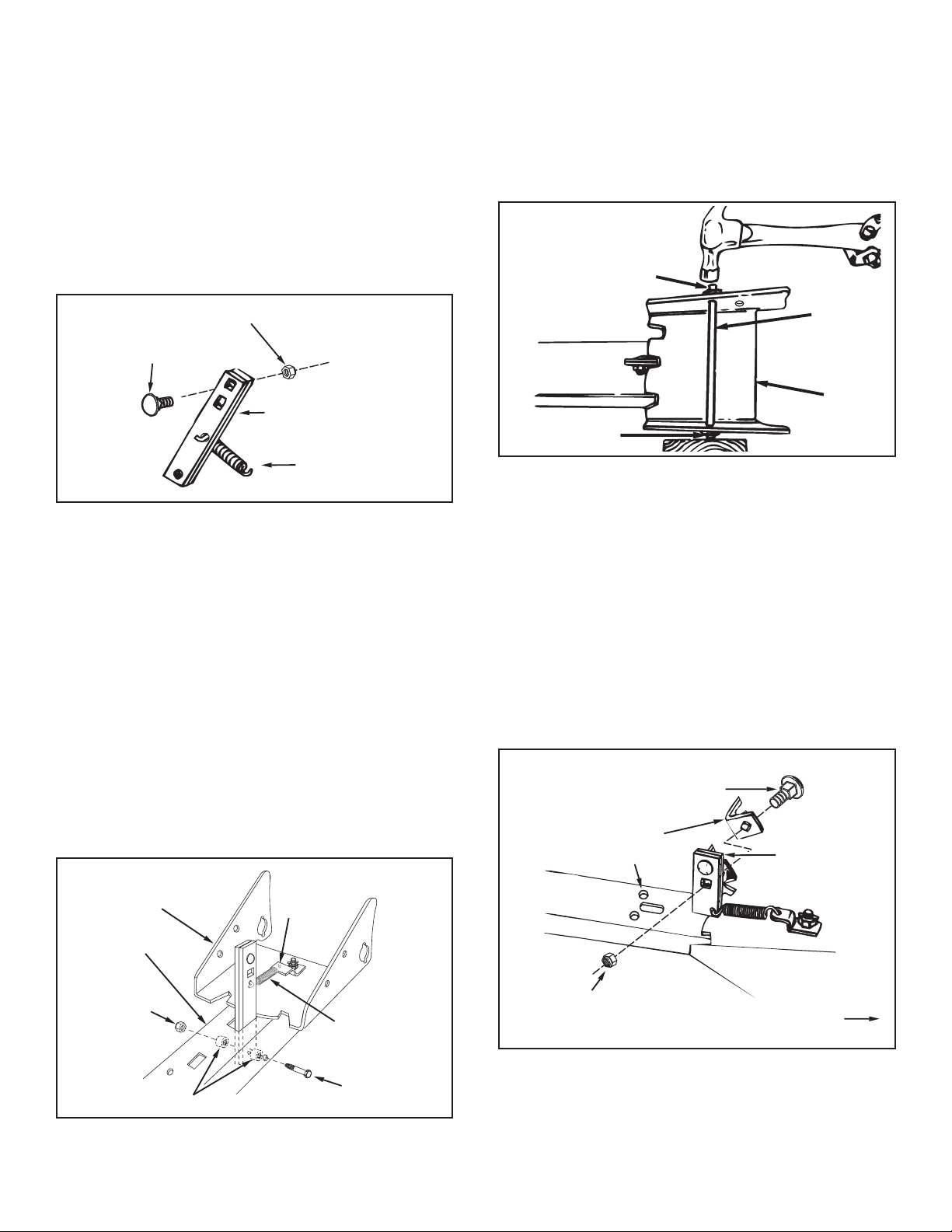

LOCATE MOWER SUSPENSION BRACKETS
Look under the front of your tractor.•
If there is a single mower deck suspension•
bracket located underneath the middle of the front
axle as shown in the image below, proceed to
INSTRUCTIONS FOR TRACTORS WITH SINGLE
FRONT DECK SUSPENSION BRACKET below.
If your tractor does not have a mower deck•
suspension bracket underneath the middle of
the front axle, proceed to INSTRUCTIONS FOR
TRACTORS WITH DUAL FRONT SUSPENSION
BRACKETS on page 6.
MOWER DECK
SUSPENSION
BRACKET
NOTE: Not all of the supplied parts and hardware will be
needed for one particular tractor. Unneeded items may be
discarded after assembly has been completed.
NOTE: Right hand (RH) and left hand (LH) are
determined from the operator's position while seated on
the tractor.
CAUTION: Do not begin assembling until
thetractorengine,muferandexhaust
deectorhavebeenallowedtocooloff.
REMOVE
BROWNING
SHIELD
FIGURE 1
STEP 1: (SEE FIGURE 1)
Remove the tractor hood. Refer to your tractor owners•
manual for instructions on how to properly remove
the hood.
Remove the browning shield from the front of the•
tractor as shown. Hold onto the shield as you remove
the second bolt to prevent it from falling.
NOTE: Reinstall the browning shield before using your
tractor.
INSTRUCTIONS FORTRACTORS WITH SINGLE
FRONT DECK SUSPENSION BRACKET
INSTRUCTIONS FOR 917 MODEL TRACTORS
LOCATE MODEL LABEL OF TRACTOR
Look under your tractor seat, locate the serial•
number, and proceed to the step as shown.
193653
®
MODEL 917. 000000
SERIAL 000000A000000
193653
®
MODEL 247. 000000
SERIAL 000000A000000
917 MODEL TRACTORS
GO TO PAGE 5
247 MODEL TRACTORS
GO TO PAGE 8

6
FIGURE 1

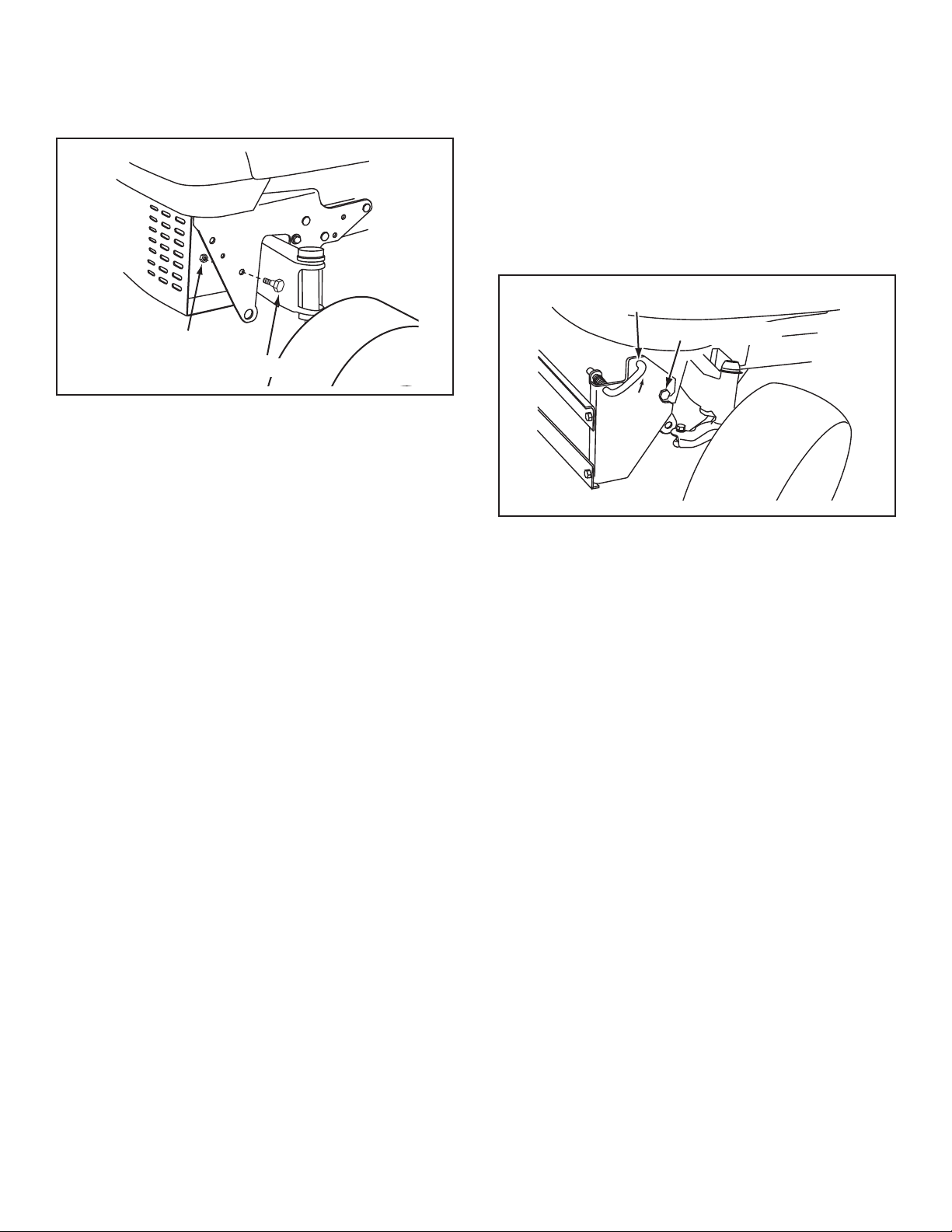

IDENTIFY YOUR SUSPENSION BRACKETS
Compare your tractor to the illustrations shown below.•
If your tractor resembles the top illustration, proceed•
to INSTRUCTIONS FOR TYPE A TRACTORS below.
If your tractor resembles the bottom illustration,•
proceed to INSTRUCTIONS FOR TYPE B
TRACTORS on page 7.
FRONT SUSPENSION
BRACKET
FRONT SUSPENSION
BRACKET
REMOVE BOLTS FROM THESE HOLES
FRONT
SUSPENSION
BRACKET
FIGURE 1
INSTRUCTIONS FOR TYPE A TRACTORS

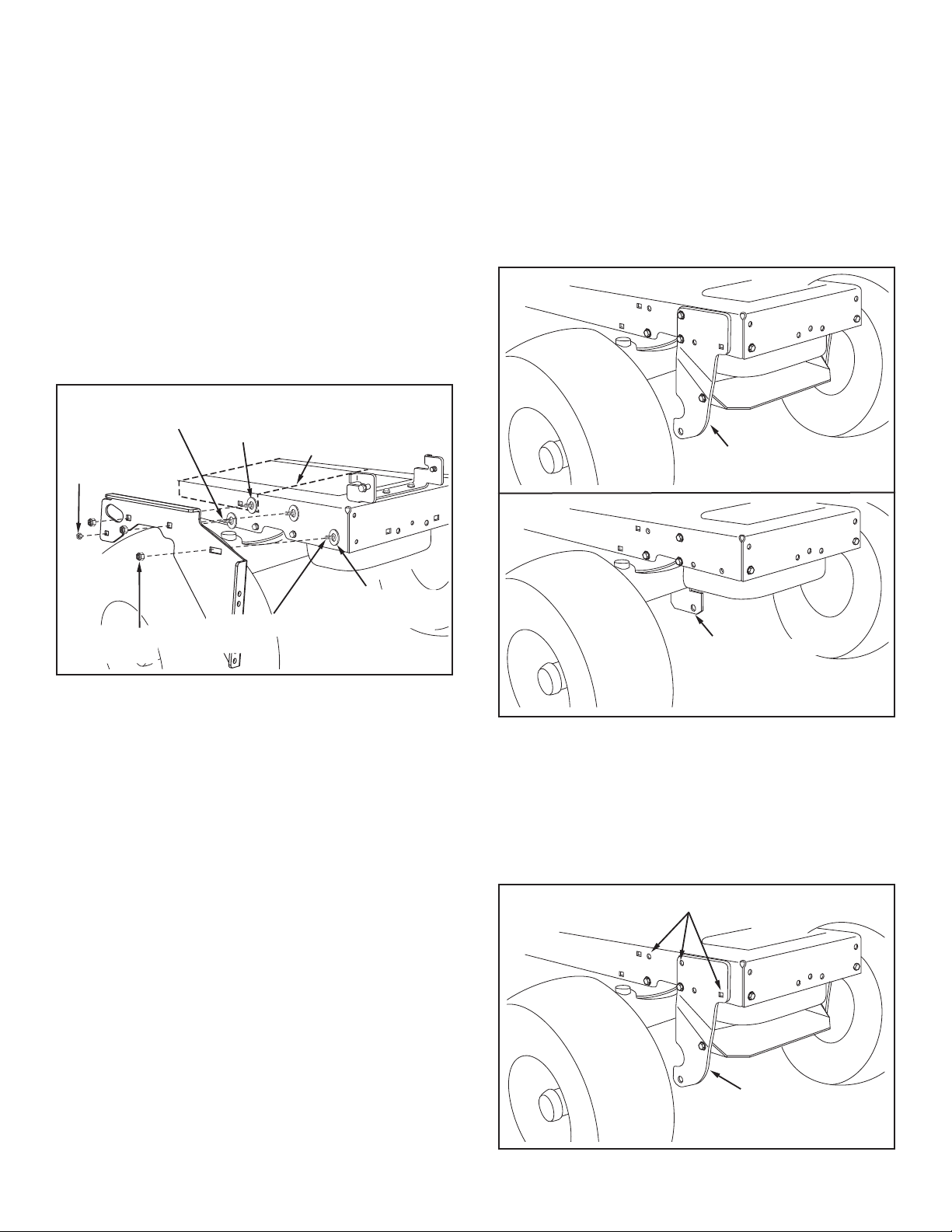

STEP 1: (SEE FIGURE 1)
Remove any bolts found in the holes indicated in the•
illustration.
INSTRUCTIONS FORTRACTORS WITH DUAL
FRONT DECK SUSPENSION BRACKETS
TYPE A
TYPE B
FIGURE 3
5/16" NYLOCK
NUT (K)
3/8" NYLOCK
NUT (L)
5/16" x 1" CARRIAGE
BOLT (F)
(SEE NOTE)
ENGINE
MOUNTING
PLATE
1/2" LARGE
WASHER (M)
3/8" x 1" CARRIAGE
BOLT (H)
STEP 2: (SEE FIGURE 2)
Fasten the R.H. Side Plate (bend facing out) to the•
front three holes in the tractor frame using three 3/8"
x 1" carriage bolts (F), three large 1/2" washers (M)
(see note) and three 3/8" nylock nuts (L). For the
rear hole, use a 5/16" x 1" carriage bolt (F), a large
1/2" washer (M) and a 5/16" nylock nut (K). Place the
washers between the tractor frame and the side plate.
Tighten all bolts. Repeat for L.H. side plate.
Reinstallthebrowningshieldremovedingure2.•
Proceed to• INSTRUCTIONS FOR ALL 917 MODEL
TRACTORS on page 8.
NOTE: If there is an engine mounting plate (shown with
dotted lines) leave the large 1/2" washer (M) off the bolt
that goes through the plate.

7
FIGURE 2
3/8" x 1"
HEX BOLT (D)
3/8" LOCK
WASHER (R)
3/8" FLAT
WASHER (N)
1/2" LARGE
WASHER (M)
R.H. HANGER
BRACKET
STEP 2: (SEE FIGURE 2)
Attach the R.H. hanger bracket to the two front empty•
holes on the right side of the tractor frame using two
new 3/8" x 1" hex bolts (D), 3/8" lock washers (R),
and3/8"atwashers(N)asshown.Fortherearhole,
use a 3/8" x 1" hex bolt (D), 3/8" lock washer (R)
and3/8"atwasher(N)withalarge1/2"washer(M)
placed between the hanger bracket and the tractor
frame. Tighten. Repeat for the left side.
Proceed to• INSTRUCTIONS FOR ALL 917 MODEL
TRACTORS on page 8.
FIGURE 1
REMOVE BOLTS FROM
THESE HOLES
FRONT
SUSPENSION
BRACKET
INSTRUCTIONS FOR TYPE B TRACTORS
STEP 1: (SEE FIGURE 1)
Remove any bolts found in the holes indicated in the•
illustration.
STEP 2: (SEE FIGURE 2)
Attach the R.H. hanger bracket to the three holes•
shown on the side of the tractor frame using three
3/8" x 1" hex bolts (D), 3/8" lock washers (R), 3/8"
atwashers(N)and1/2"largewashers(M).Use3/8"
nylock nuts (L) on inside of frame if bolts insert freely
into holes. Tighten.
Repeat for other side.•
Proceed to• INSTRUCTIONS FOR ALL 917 MODEL
TRACTORS on page 8.
NOTE: Use special 3/8" x 1" thread forming bolts (G) in any
holes that are too small for regular bolts.
FIGURE 2
3/8" x 1" HEX BOLT (D)
(OR THREAD FORMING
BOLT (G) IF NEEDED)
3/8" LOCK
WASHER (R)
3/8" FLAT
WASHER (N)
3/8" NYLOCK NUT (L)
(IF NEEDED)
R.H. HANGER
BRACKET
1/2" LARGE
WASHER (M)

8
FIGURE 2
3/8" x 1"
HEX BOLT (D)
3/8" NYLOCK
NUT (L)
PIVOT SUPPORT
BRACKET

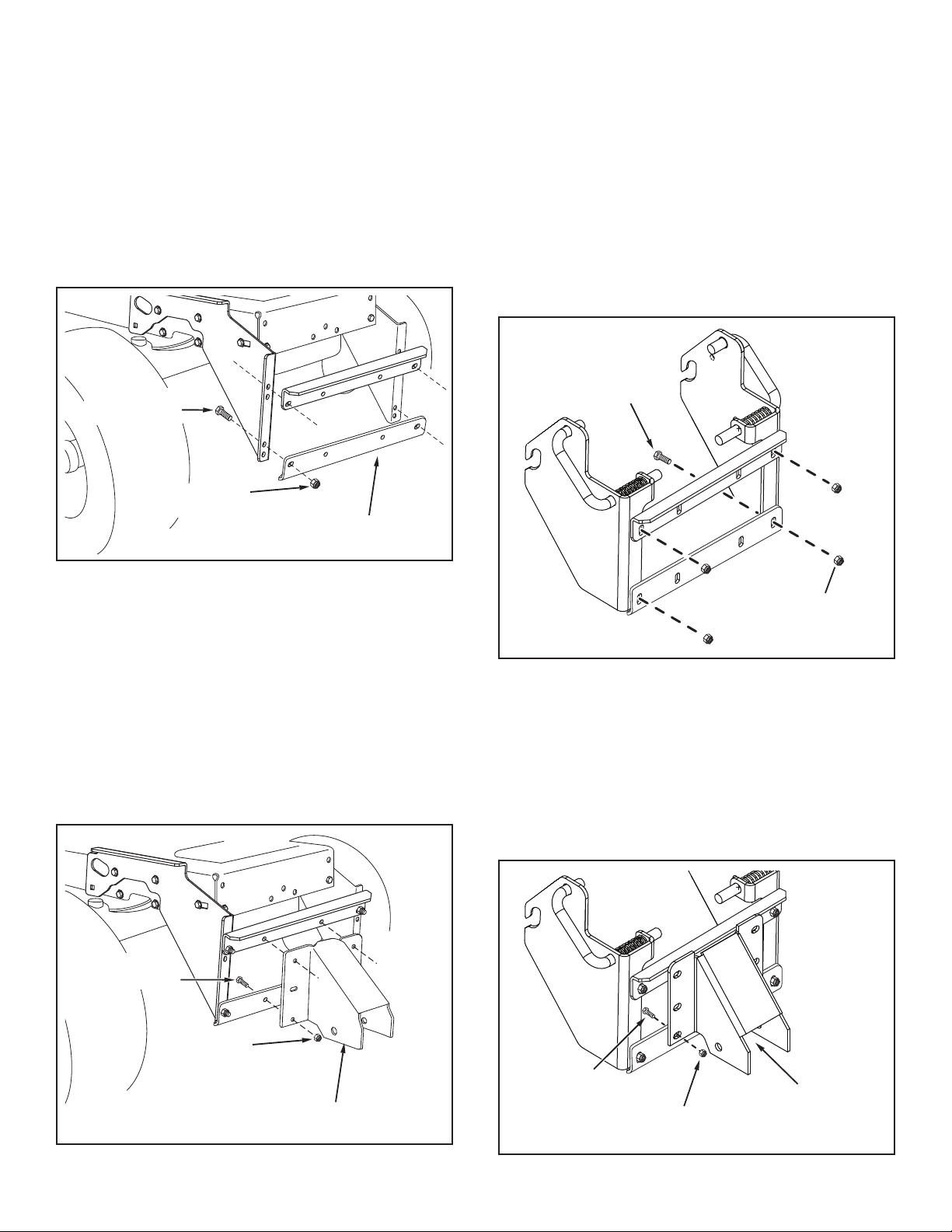

STEP 2: (SEE FIGURE 2)
Assemble the pivot support bracket to the angle•
support brackets using four 3/8" x 1" hex bolts (D)
and four 3/8" nylock nuts (L). Do not tighten yet.
Tighten• the 4 bolts fastening the angle support
brackets to the hanger brackets.
Tighten• the 4 bolts fastening the pivot support
bracket to the angle support brackets.
Proceed to• BLADE ASSEMBLY FOR ALL
TRACTORS on page 10.
STEP 2: (SEE FIGURE 2)
Assemble the pivot support bracket to the slotted•
angle support brackets using four 3/8" x 1" hex bolts
(D) and four 3/8" nylock nuts (L). Do not tighten yet.
Tighten• the 4 bolts fastening the slotted angle
support brackets to the quick attach brackets.
Tighten• the 4 bolts fastening the pivot support
bracket to the slotted angle support brackets.
INSTRUCTIONS FOR ALL 917 MODEL
TRACTORS
INSTRUCTIONS FOR 247 MODEL TRACTORS
FIGURE 1
FIGURE 1
FIGURE 2
3/8" x 1"
HEX BOLT (D)
3/8" NYLOCK
NUT (L)
ANGLE SUPPORT
BRACKET
STEP 1: (SEE FIGURE 1)
Assemble one angle support bracket to the topmost•
set of holes in the hanger brackets using two 3/8" x
1" hex bolts (D) and 3/8" nylock nuts (L). Assemble
the second angle support bracket to the second from
the bottom set of holes in the hanger brackets using
two 3/8" x 1" hex bolts (D) and 3/8" nylock nuts (L).
Be sure the brackets are turned as shown. Do not
tighten yet.
STEP 1: (SEE FIGURE 1)
Assemble one slotted angle support bracket to the•
top set of holes in the quick attach brackets using two
3/8" x 1" hex bolts (D) and 3/8" nylock nuts (L). Do
not tighten
Assemble the other slotted angle support bracket to•
the bottom set of holes in the quick attach brackets
using two /8" x 1" hex bolts (D) and 3/8" nylock nuts
(L). Do not tighten.
NOTE: Be sure brackets are turned as shown.
3/8" x 1"
HEX BOLT (D)
3/8" NYLOCK
NUT (L)
3/8" x 1"
HEX BOLT (D)
3/8" NYLOCK
NUT (L)
PIVOT SUPPORT
BRACKET

9
SHOULDER BOLT
ATTACHMENT PIN
FIGURE 4
STEP 4: (SEE FIGURE 4)
Pull out on the attachment pins on the hitch assembly•
and swing the top of the pins down away from the
holes they were in.
Hook the hitch assembly onto the shoulder bolts in•
the sides of the tractor frame.
Align the holes in the hitch assembly with the holes•
in the tractor frame. Insert the attachment pins to lock
the hitch assembly in place.
Proceed to• BLADE ASSEMBLY ALL TRACTORS on
page 10.
FIGURE 3
STEP 3: (SEE FIGURE 3)
Assemble a shoulder bolt (V) and a 3/8" nylock nut•
(L) to the front bracket on each side of the tractor,
unless a shoulder bolt is already present.
3/8" NYLOCK NUT (L)
SHOULDER BOLT (V)

10
(Right Hand Side View)FIGURE 1
STEP 1: (SEE FIGURE 1)
Assemble the two angle lock bars together as shown•
ingure6,sothatallholesarealigned.Useone3/8"
x 1-1/4" carriage bolt (E) and one 3/8" nylock nut (L).
Be sure to insert bolt from side indicated. Do not
tighten at this time.
Hold the angle lock bars so that the square holes are•
at the top. Insert the straight hook end of the angle
lock spring through the small middle hole in both
angle lock bars.
3/8" x 1-1/4"
CARRIAGE BOLT (E)
3/8" NYLOCK NUT (L)
ANGLE LOCK BARS
ANGLE LOCK
SPRING
STEP 2: (SEE FIGURE 2)
Insert the round hook end of the angle lock spring up•
through the hole in the spring mount bracket.
Insert the angle lock bars down through the slot in the•
channel. Underneath the channel, place a 1" long spacer
(U) on each side of the angle lock bars and insert a 1/4"
x 3-1/4" bolt (A) through the channel, angle lock bars
and the spacers. Secure the bolt with a 1/4" nylock nut
(J). Tighten so that lock bars can pivot freely.
At this time• tighten the 3/8" carriage bolt and hex nut
previously assembled to angle lock bars.
NOTE: When the angle lock bars are pulled back in slot,
the pivot plate should unlock and be free to pivot to the
right or left position.
1/4" x 3-1/4"
HEX BOLT (A)
1" SPACERS (U)
1/4" NYLOCK
NUT (J)
PIVOT
PLATE
ANGLE
LOCK
SPRING
SPRING
MOUNT
BRACKET
CHANNEL
(Right Hand Side View)FIGURE 2
(Top View)
FIGURE 3
STEP 3: (SEE FIGURE 3)
Using a hammer, assemble a 3/8" palnut (S) onto one•
end of the spring mount rod. Insert the other end of
the spring mount rod through the pivot plate using the
rear set of holes. Support the assembled end of the
spring mount rod on a block of wood, and assemble
the remaining palnut onto the other end of the rod.
3/8" PALNUT (S)
PIVOT
PLATE
SPRING
MOUNT
ROD
3/8" PALNUT (S)
STEP 4: (SEE FIGURE 4)
Assemble a 3/8" x 1-1/4" carriage bolt (E) through•
the square hole in the cable mount bracket and
through the square hole in the angle lock bars. (The
carriage bolts should face in opposite directions.)
Using pliers hold the cable mount bracket in position,
angling down towards the L.H. hole in the channel as
showningure15.Securewitha3/8"nylocknut(L).
Tighten.Refertothegureforthecorrectanglefor
the cable mount bracket.
FIGURE 4 (Right Hand Side View)
3/8" x 1-1/4"
CARRIAGE BOLT (E)
3/8" NYLOCK
NUT (L)
ALIGN CABLE
MOUNT BRACKET
WITH L.H. HOLE ANGLE
LOCK
BARS
FRONT
BLADE ASSEMBLY FOR ALL TRACTORS

11
STEP 5: (SEE FIGURE 5)
Assemble one 5/16" jam nut (I) approximately 3/4"•
onto threaded end of control cable that has no rubber
cap or preassembled nuts. Assemble threaded cable
end through round hole in cable mount bracket and
secure with another 5/16" jam nut (I). Tighten.
NOTE: Some adjustment of jam nuts may be required
after blade assembly is completed.
CHANNEL ASSEMBLY
5/16" JAM
NUT (I)
5/16" JAM
NUT (I)
CABLE MOUNT
BRACKET
REAR
3/4"
FIGURE 5 (Left Hand Side View)
STEP 6: (SEE FIGURE 6)
Assemble ball end of control cable up through hole in•
cableendttingandpulluntilballslipsinsidecurled
edgeoftting.Ifballwon'tslipunderedgeofcurl,it
will need to be inserted through open end of curl.
Assemble 1/4" x 1-1/2" (B) hex bolt down through the•
cableendtting,the5/8"longspacer(T)andtheleft
hand hole in the channel assembly. Secure with a
1/4" nylock nut (J). Tighten.
NOTE: Make sure the cable mount bracket is aligned with
thecableendttingtopreventbindingofcable.Theother
end of the control cable will be attached in a later step.
FIGURE 6 (Left Hand Side View)
1/4" x 1-1/2"
HEX BOLT (B)
CABLE END
FITTING
1/4" NYLOCK NUT (J)
5/8" SPACER (T)
CHANNEL
ASSEMBLY
HOLE
REAR
STEP 7: (SEE FIGURE 7)
To attach the blade to the channel assembly, align•
the notched holes in the pivot plate with the notched
holes in the blade. Insert a 1/8" x 1-1/4" cotter pin (P)
down through the hole at the bend in the blade pivot
shaft. Spread the ends of the pin. From the left side
insert the blade pivot shaft, bend facing top of blade,
through the notched holes. Secure the shaft with
another 1/8" x 1-1/4" cotter pin (P) through the end
hole in the shaft. Spread the ends of the pin.
Remove the plastic cap and one 3/8" hex nut from the•
bolt in the blade adjust spring. Adjust the remaining
3/8" hex nut down approximately 1" onto the bolt
threads. Hook the spring over the spring mount rod.
Place the bolt up through the hole in the top edge of
the blade and reassemble the other 3/8" hex nut to
the bolt and tighten down against the top edge of the
blade. Replace the plastic cap over the end of the bolt
threads.
(Right Hand Side View)
FIGURE 7
3/8" HEX NUT
(TOP)
PLASTIC
CAP
3/8" HEX NUT
(BOTTOM)
BLADE
1/8" x 1-1/4"
COTTER PIN (P)
BLADE
PIVOT
SHAFT
SPRING
MOUNT
ROD
BLADE
ADJUST
SPRING
1/8" x 1-1/4"
COTTER PIN (P)
PIVOT PLATE
NOTCHED HOLE

12
FIGURE 8 (Right Hand Side View)
STEP 8: (SEE FIGURE 8)
Assemble the large 1/2" washer (Q) onto the channel•
pivot pin.
Attach the channel assembly to the tractor by placing•
the end of the channel assembly up inside the pivot
support bracket on the tractor. Align the hole in the
pivot support bracket with the second hole from the
end in the channel assembly. Insert the channel pivot
pin through the aligned holes from the left side and
secure with a hairpin cotter (O).
HAIRPIN
COTTER (O)
PIVOT SUPPORT
BRACKET CHANNEL
PIVOT PIN
CHANNEL
ASSEMBLY
1/2" WASHER (Q)
CHANNEL
ASSEMBLY
HOLE
STEP 9: (SEE FIGURE 9)
From the left side, insert the welded end of the lift•
handle rod through the hole in the end of the channel
assembly (Figure 18). Next, insert the lift link pin
through the hole in the bracket that is welded to the
lift handle rod. (The lift link is pre-assembled to the
pivot support bracket). Secure the bracket with a
hairpin cotter (O) inserted up through the lift link pin.
Using the furnished grease packet, apply a light•
coating of grease to the straight upper portion of the
lift handle rod. Slide the lift handle tube onto the rod.
FIGURE 19 (Left Hand Side View)
LIFT HANDLE ROD
HAIRPIN COTTER (O)
LONG PIN
(LIFT LINK)
WELDED BRACKET
LIFT HANDLE TUBE
FIGURE 10 (Right Hand Side View)
STEP 10: (SEE FIGURE 10)
Removetherubbercapandtherstjamnutfromthe•
threaded end of the control cable and slide them onto
the control cable wire. Adjust the second jam nut on
the threads so that it is approximately 3/4" from end.
Assemble threaded end of cable through the cable
mountbracketandsecureitwiththerstjamnut.
Reinstall the rubber cap onto the threaded cable end.
NOTE: Some adjustment of jam nuts may be required
after blade assembly is completed.
RUBBER
CAP
CABLE MOUNT BRACKET
JAM NUTS
3/4"
CONTROL CABLE END
STEP 11: (SEE FIGURE 11)
Assemble plastic grip onto lock release grip assembly.•
Attach lock release grip assembly to lift handle tube•
using one 5/16" x 1-1/2" hex bolt (C) and one 5/16"
nylock nut (K). Do not overtighten the nut. The grip
assembly must pivot freely.
Assemble the ball end of the cable to a cable end•
ttingasyoudidtotheotherendofthecable.Secure
thecableendttingtotheweldboltonthelockrelease
grip with a 1/4" nylock nut (J). Do not overtighten the
locknut.Thecablettingmustpivotfreely.
FIGURE 11 (Right Hand Side View)
5/16" x 1-1/2"
HEX BOLT (C)
PLASTIC
GRIP
LOCK RELEASE
GRIP ASSEMBLY
1/4" WELD
BOLT
CABLE END
FITTING
5/16" NYLOCK
NUT (K)
1/4" NYLOCK
NUT (J)
CABLE
CABLE END
FITTING
CABLE END
FITTING

13
FIGURE 22 (Left Hand Side View)
STEP 12: (SEE FIGURE 12)
Place the end of the blade pivot rod down through the•
blade pivot shaft. Attach the other end of the blade
pivot rod to the lift handle tube. Secure both ends with
a hairpin cotter (O). The holes for the hairpin cotters
should be parallel to the ground.
Use the two plastic ties to hold the cable securely•
to the outside of the handle tube and away from the
tractortoavoiddirectheatfromthetractormufer.
Squeeze the grip assembly to check blade pivot. To•
adjust, see Service & Adjustments section on p. 13.
BLADE PIVOT
ROD LIFT HANDLE
TUBE
BLADE
PIVOT SHAFT
HAIRPIN
COTTER (O)
HAIRPIN COTTER (O)
PLASTIC TIES

14
FIGURE 13 FIGURE 14
To Raise or Lower the Snow Blade
Use the handle grip located on the end of the handle•
tube. To raise the blade, pull back while pushing down
on the handle grip. To lower blade, pull back while
lifting up on handle grip.
OPERATION
HOW TO USE YOUR SNOW BLADE To Pivot the Blade
Raise the blade to transport position. To unlock•
the blade, push the lock release grip down against
the handle tube. To pivot the blade, keep the grip
depressed and push forward or pull back on the
handle tube, sliding it along the lift rod. Release the
grip to lock the blade when it is in either the right
hand, the left hand or the straight ahead position.

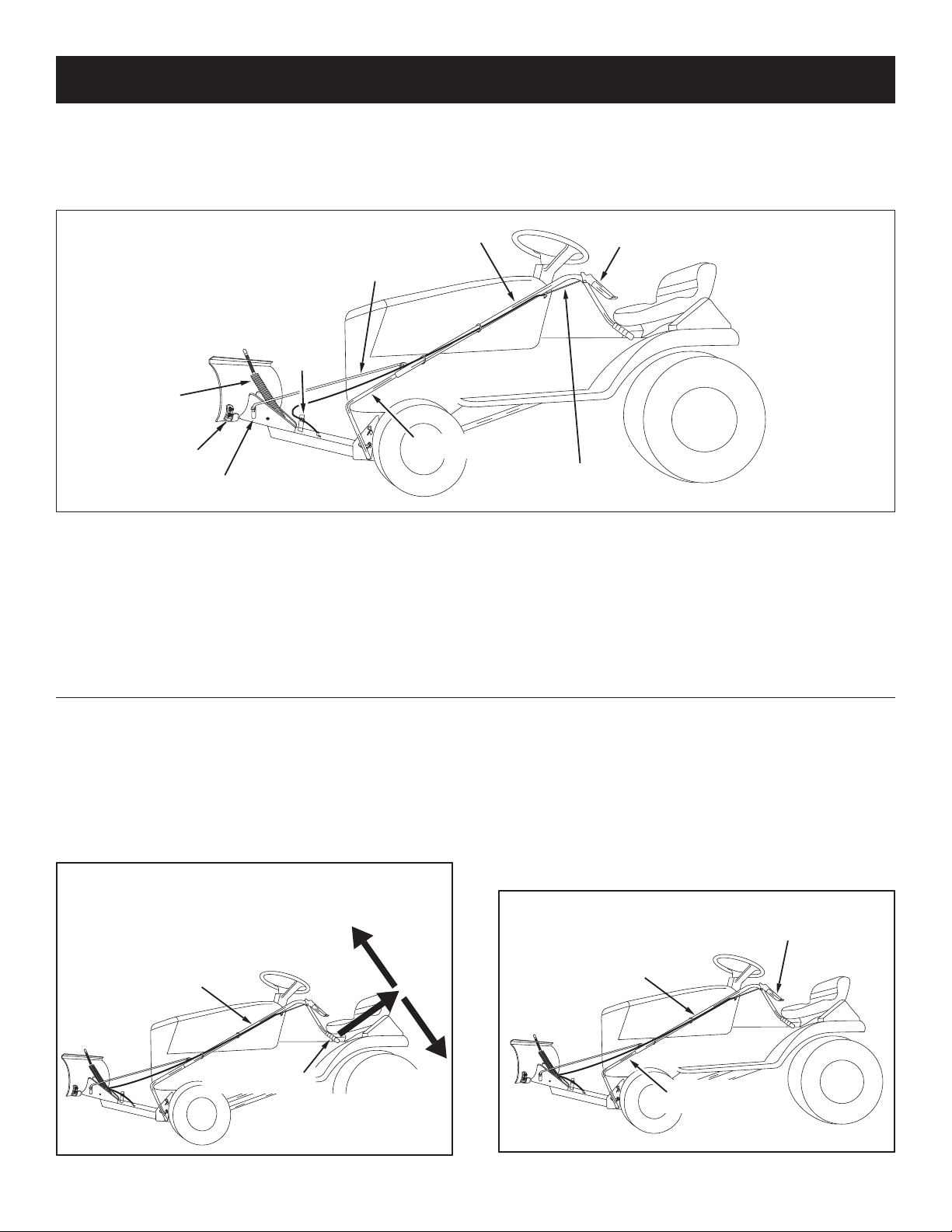

KNOW YOUR SNOW BLADE
Read this owner's manual and safety rules before operating your snow blade.
Compare the illustration below with your snow blade to familiarize yourself with the various controls and their locations.
LOCK RELEASE GRIP ASS'Y. Unlocks the blade to swivel to the right and left.
LIFT HANDLE TUBE Raises or lowers the blade and pivots blade to the right and left.
BLADE PIVOT ROD Connects blade to handle tube. Pivots blade to the right and left.
ANGLE LOCK BARS Locks the blade in either the right hand, left hand or straight ahead position.
BLADE ADJUST SPRING Holds blade in position but permits it to pivot forward to pass over an obstruction.
BLADE SHOE Ground-contacting part of blade. Adjusts for adequate ground clearance of blade.
BLADE PIVOT SHAFT Connects blade to channel assembly. Allows blade to pivot forward.
LIFT HANDLE ROD Connects lift handle tube to channel assembly. Raises and lowers the blade.
CONTROL CABLE Connects the lock release lever to the angle lock bars.
BLADE SHOE
BLADE PIVOT SHAFT
LIFT HANDLE TUBE
BLADE PIVOT ROD
BLADE
ADJUST
SPRING
ANGLE
LOCK
BARS
LOCK RELEASE GRIP ASSEMBLY
CONTROL CABLE
LIFT HANDLE ROD
HANDLE TUBE
PULL BACK AND
LIFT UP TO
LOWER BLADE
PULL BACK AND
PUSH DOWN TO
RAISE BLADE
HANDLE GRIP
HANDLE TUBE
LOCK RELEASE
GRIP ASSEMBLY
LIFT ROD

15
Wheel weights and tire chains must be used with
your snow blade for traction. These accessories are
available at your nearest Sears retail store.
Using the Snow blade
Prepare the lawn tractor engine for cold weather•
using instructions furnished with the lawn tractor.
Alwaysbeginwiththetransmissioninrst(low)gear•
and gradually increase speed as required.
Do not• repeatedly push snow in the same direction.
This causes excessive build up with each successive
pass.
To reduce icing on the blade, allow the lawn tractor•
and blade to adjust to outdoor temperature before
operating.
For improved snow removal performance, coat the•
blade with automotive type paste wax.
CAUTION: Carefully inspect the area
to be worked before operating the snow
blade. Avoid pipes, roots, curbs or other
heavy obstructions.
CAUTION: Know the terrain. Avoid
exceptionally steep slopes or drop-offs
which may be hidden by the snow.
Never run the snow blade into heavy
material at high speed.
CAUTION: Always lower the blade to
the ground before leaving the tractor.
MAINTENANCE SCHEDULE
Fill in dates as you
complete regular service.
Before each use
After each use
Service Dates
CUSTOMER RESPONSIBILITIES
• Readandfollowthemaintenancescheduleand
the procedures listed in the maintenance section.
Every season
Before storage
Check for loose fasteners X
Check for worn or damaged parts X
Clean Blade X X
Lubricate Blade X
FIGURE 15
MAINTENANCE
GREASE
LUBRICATE
LUBRICATE
CHECK FOR LOOSE FASTENERS
During the operating season, check all bolts, nuts and•
hairpin cotters to be sure they are secure.
CHECK FOR WORN OR DAMAGED PARTS
During the operating season, check for worn and•
damaged parts. Replace or repair any that have
excessive damage or wear.
CLEAN BLADE
During the operating season, clean the blade off after•
each use. Touch up any bare metal with paint or
apply a light coat of grease or rust preventive.
LUBRICATE BLADE
Lubricate all pivot points to help maintain proper•
operation of blade. Use grease packet furnished with
the snow blade for lubrication of the upper portion of
the lift handle rod.

16
To Adjust Blade Spring
The tension of the blade adjust spring may be altered•
to permit the blade to tilt forward to bypass solid
obstructions. To change the spring tension, adjust the
nuts at upper end of the spring bolt. Standing in front
of blade, turn the nuts counterclockwise to relieve
tension and clockwise to increase tension. Refer to
gure17onpage9.
To Adjust Blade Shoes
The blade shoes at the ends of blade may be raised•
for close work on smooth surfaces or lowered to raise
the blade to work on rough or uneven areas. Make
sure both shoes are set evenly and that the nuts are
tightened securely.
SERVICE AND ADJUSTMENTS
FIGURE 16
To Adjust the Blade Pivot Lock Mechanism
If the blade will not unlock and pivot, the angle lock•
bars are not disengaging from the slots in the pivot
plate. To correct, adjust the 5/16" hex jam nuts to
draw the end of the control cable back towards the
cable mount bracket. The less the threaded end of
the cable extends through the bracket, the more the
angle lock bars can retract to disengage from the
slots in the pivot plate.
FIGURE 17
BLADE SHOE
CABLE MOUNT BRACKET
5/16" HEX
JAM NUT
CONTROL
CABLE
5/16" HEX
JAM NUT
Recommendations When Storing
When the snow blade is not being used, remove all•
dirt and rust and touch up with paint.
Touch up bare metal with paint or apply a light coat of•
grease or rust preventive.
Lubricate all pivot points and all points shown in•
gure25,page12inthemaintenancesection.
Store in a dry area, protected from weather.•
To Remove Blade From Tractor
Lower the blade to the ground with the blade in the•
center (straight ahead) position.
Remove the hairpin cotter which fastens the blade•
pivotrodtothebladepivotshaft.Seegure22on
page 10.
STORAGE
Remove the hairpin cotter which fastens the lift•
handlerodtotheliftlinkpin.Seegure19,page10.
Remove the hairpin cotter from the channel pivot pin•
and remove the pivot pin from the channel assembly.
Seegure18onpage9.
Remove the blade, the channel assembly and the•
lift handle assembly from the tractor. The brackets
assembled to the tractor frame may be left in place.
To remove the brackets assembled to the tractor•
frame (side plates and pivot support brackets) refer to
theguresappropriateforyourtractoronpages5-7.
If the side plates are removed from the tractor frame,•
be sure to reassemble any bolts that were removed
fromtheframe.Refertogures1and3onpage5.

17
TROUBLESHOOTING
CAUSE
Lift mechanism is binding
Handle tube is binding on lift rod.
Lock mechanism is out of adjustment
and is not disengaging.
PROBLEM
Bladeisdifculttoraise.
Bladeisdifculttopivot.
Blade will not unlock to pivot.
CORRECTION
Lubricate pivot points as shown in
gure25onpage12.
Lubricate lift handle rod as instructed
on page 12.
Refer to the Service and Adjustments
section on page 13.

18
PARTS
REPAIR PARTS FOR MODEL 486.244411 - 42" SNOW BLADE
B
B
A
A
3
8
8
10
30
35
35
50
33
34
45
38
23
46
32
42
56
15
14
19
39
40
24
27
20
48
48
37
47
41
41
25
36
25 61
63 62
62
65
60
16
64
66
25
11
36
21
17
13
44
47
43
12
26
4
5
4
7
7
44
44
44
44
47
31
55
36
25
C
C
57
54
2
1
9
18
22
29
28
49
51
9
51
51
51,59
51
16
16
44
16
16
16
16
16
5
52
58
52
52
53
38
58
67
OPTIONAL ACCESSORY

19
REPAIR PARTS LIST FOR MODEL 486.244411 - 42" SNOW BLADE
REF. PART NO. QTY. DESCRIPTION
1 23114 1 Blade 42" 2 23117 1 Wear Plate 42" 3 62980 1 Reinforcement Plate Assembly 4 43080 6 Bolt, Carriage 5/16-18 x 3/4" 5 44326 6 Bolt, Carriage 5/16-18 x 1" 7 43081 4 Washer, 5/16" 8 24690 2 Skid Shoe 9 25647 2 Bracket, Angle Support
10 24347 1 Push Channel 11 43262 1 Hex Lock Nut, 1/2-13 Thread 12 23131 1 Bolt, Special Pivot 13 1540-118 1 Washer, Flat 1/2" 14 23958 1 Plate, Pivot 7 Ga. 15 23130 1 Bracket, Spring Mt. 16 HA21362 18 Nylock Hex Nut, 3/8" 17 46066 1 Shaft, Blade Pivot 18 43070 6 Washer, 3/8" STD. 19 R9466R 1 Spring, Blade Adjust 20 44071 1 Hex Bolt, 3/8-16 x 3-1/2" 21 43015 2 Hex Nut, 3/8-16 Thread 22 44074 1 Plastic Cap 23 49808 1 Control Cable Assembly 24 62561 1 Release Grip Assembly 25 43055 4 Pin, Hairpin Small 3/32" 26 46053 2 Spacer, .28 ID x 1" 27 63033 1 Lift Handle Rod Assembly 28 25646 1 Hanger Bracket, R.H. 29 25645 1 Hanger Bracket, L.H. 30 24023 1 Pivot Support Bracket 31 46049 1 Rod, Blade Pivot 32 65519 1 Lift Handle Tube Assembly 33 23151 2 Angle Lock Bar 34 23856 1 Spring Mount Rod 35 44917 2 Palnut, 3/8"
REF. PART NO. QTY. DESCRIPTION
36 43010 3 Cotter Pin 1/8" x 1-1/4" 37 43348 1 Angle Lock Spring 38 746-0260 2 Cable End Fitting 39 731-0869 1 Grip, Plastic 40 46471 1 Handle, Grip 41 712-0256 2 Hex Jam Nut, 5/16-24 Thread 42 23658 1 Spacer 43 43085 1 Hex Bolt, 5/16-18 x 1-1/2" 44 47810 13 Nylock Hex Nut, 5/16" 45 05762 1 Cable Mount Bracket 46 43648 1 Hex Bolt, 1/4-20 x 1-1/2" 47 47189 3 Nylock Hex Nut, 1/4" 48 710-0305 2 Carriage Bolt, 3/8-16 x 1-1/4" 49 46065 1 Channel Pivot Pin 50 63034 1 Lift Link Assembly 51 43001 14 Hex Bolt, 3/8-16 x 1" 52 43350 6 Carriage Bolt, 3/8-16 x 1" 53 43003 6 Lock Washer 3/8" 54 726-0178 2 Plastic Tie 55 R19171616 1 Washer 56 46071 1 Hex Bolt, 1/4-20 x 3-1/4" Lg. Gr 5 57 43349 1 1/4" x 1" Spring Pin 58 R19172410 8 Washer, 1/2" (Large) 59 47631 6 Hex Bolt, 3/8" x 1" (Thd. Forming) 60 25838 1 Hitch Bracket (RH) 61 25839 1 Hitch Bracket (LH) 62 24520 2 Angle Support Bracket 63 40005 2 Attachment Pin 64 732-3127 2 Compression Spring 65 43659 2 Spring Pin, 3/16 x 1" 66 48106 2 Shoulder Bolt, 3/8-16 x .9" 67 66586 1 Rubber Blade Kit (not included)
41337 1 Owners Manual

® Registered Trademark / TM Trademark / SM Service Mark of Sears Brands, LLC
® Marca Registrada / TM Marca de Fábrica / SM Marca de Servicio de Sears Brands, LLC
MC Marque de commerce / MD Marque déposée de Sears Brands, LLC © Sears Brands, LLC
Get it fixed, at your home or ours!
Your Home
For expert troubleshooting and home solutions advice:
www.managemyhome.com
For repair – in your home – of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME®(1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR®
(1-888-784-6427)
Au Canada pour service en français:
1-800-LE-FOYERMC
(1-800-533-6937)
www.sears.ca
