Craftsman 919.152360 User manual

Owner's Manual
iCRHFTSMRN'i
120V
INFLATOR
Model No.
919.152360
•Safety Guidelines
•Assembly
•Operation
•Maintenance
•Troubleshooting
•Repair Parts
CAUTION: Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Visit our Craftsman website: www.sears.com/craftsman
D30502 Rev. 0 10/7/03

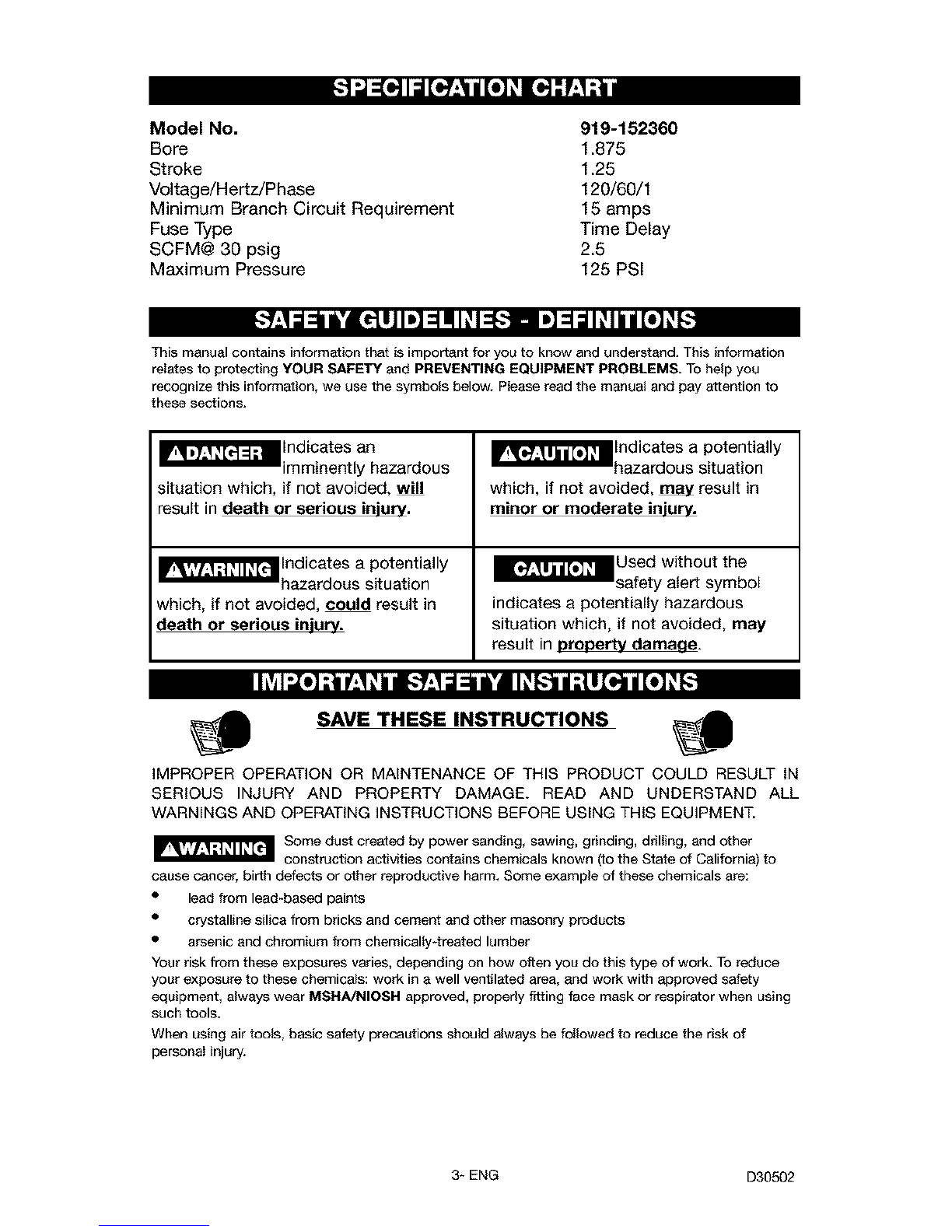

WARRANTY ................................................ 2
SPECIFICATION CHART ..................................... 3
SAFETY GUIDELINES-DEFINITIONS ........................... 3
IMPORTANT SAFETY INSTRUCTIONS ........................ 3-8
GLOSSARY ................................................ 8
ACCESSORIES ............................................. 8

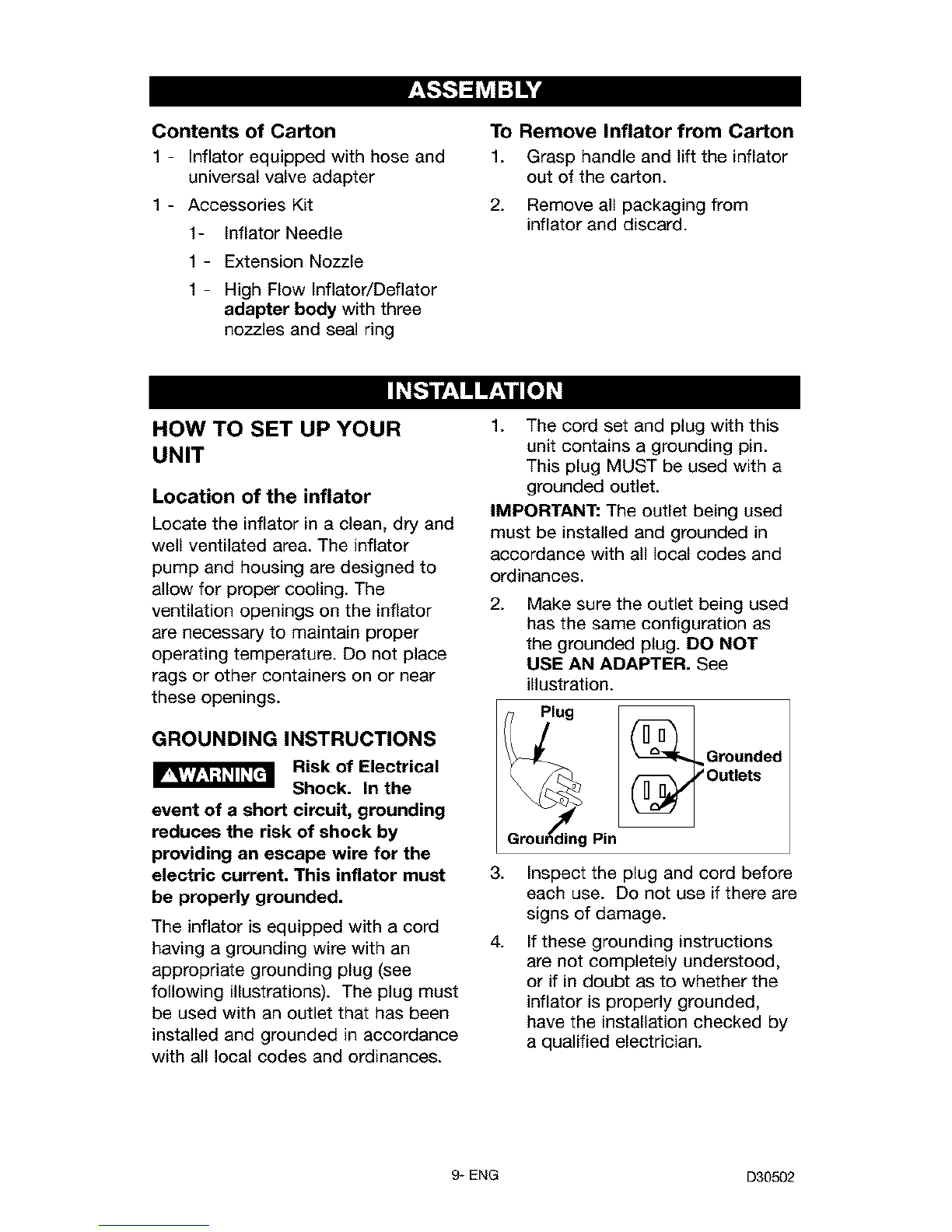

ASSEMBLY ................................................ 9
INSTALLATION ........................................... 9-10
OPERATION ............................................ 11-14
MAINTENANCE ............................................ 14
STORAGE ................................................ 14
TROUBLESHOOTING GUIDE ................................ 15
REPAIR PARTS ............................................ 16
ESPAI_IOL .............................................. 17-30
HOW TO ORDER REPAIR PARTS ...................... back cover
FULL ONE YEAR WARRANTY AIR COMPRESSOR
If this CRAFTSMAN Air Compressor fails due to a defect in material or
workmanship within one year from the date of purchase, Sears will at its
option repair or replace it free of charge. Contact your nearest Sears Service
Center (1-800-4-MY-HOME ®)to arrange for repair, or return the Air
Compressor to the place of purchase for replacement.
If this Air Compressor is used for commercial or rental purposes, this warrant
applies for only ninety days from the date of purchase.
This warranty gives you specific legal rights and you may have other rights
which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
D30502 2-ENG

-1".,1=let I_1[e_,__lII[o]_I[e_"F__r.tl
Model No. 919-152360
Bore 1.875
Stroke 1.25
Voltage/Hertz/Phase 120/60/1
Minimum Branch Circuit Requirement 15 amps
Fuse Type Time Delay
SCFM@ 30 psig 2.5
Maximum Pressure 125 PSI
[.'Y:__1_ I_'l_tl] Im]=1III#I=B_- Im]=1_11#1i II[o_]_.I
This manual contains information that is important for you to know and understand. This information
re_ates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you
recognize this information_ we use the symbols below. Please read the manual and pay attention to
these sections.
_lndicates an
imminently hazardous
situation which, if not avoided, will
result in death or serious injurv.
_'_lndicates a potentially
hazardous situation
which, if not avoided, could result in
death or serious injury.
_T_'_lndicates a potentially
hazardous situation
which, if not avoided, _ result in
minor or moderate injury.
_Used without the
safety alert symbol
indicates a potentially hazardous
situation which, if not avoided, may
result in #rooertv damaae.
Ih_l_o]-'tL+_+hnl£:'/.,_al_S'4_[IP.[-:-]ljt,ttl_o,]njl[o_]P.[-.+
SAVE THESE INSTRUCTIONS
IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULTIN
SERIOUS INJURY AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL
WARNINGSAND OPERATINGINSTRUCTIONSBEFOREUSING THIS EQUIPMENT,
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known (to the State of California) to
cause cancer, birth defects or other reproductive harm. Some example of these chemicals are:
•lead from lead-based paints
•crystalline silica from bricks and cement and other masonry products
•arsenic and chromium from chemicalty4reated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well ventilated area, and work with approved safety
equipment, a_ways wear MSHA/NIOSH approved, properly lifting face mask or respirator when using
such tools.
When using air tools, basic safety precautions should e3ways be feIIowed to reduce the risk of
personal injury.
3* ENG D30502

II_ I_o] ;111P'.'q+IInl[,.'9'.,__1_ &'d__JL_[,._)III,_]LI_+']IIT[_o_+]L_,[,._
Save these instructions
Improper operation or maintenance of this product could result in serious injury and
property damage. Read and understand all warnings and operation instructions before
using this equipment.
,l:1"l'J "-In
WARNING: Risk of explosion or fire
What Could Happen How To Prevent It
It is normal for electrical contacts Always operate the inflator in a well
within the motor to spark, ventilated area free of combustible
materials, gasoline, or solvent vapors.
If electrical sparks from inflator come Store flammable materials in a secure
into contact with flammable vapors, location away from inflator.
they may ignite, causing fire or
explosion.
Restricting any of the inflator ventilation
openings will cause serious overheating
and could cause fire.
Unattended operation of this product
could result in personal injury or
property damage. To reduce the risk of
fire, do not allow the inflator to operate
unattended.
Never place objects against or on top
of inflator. Operate inflator in an open
area at least 12 inches away from any
wall or obstruction that would restrict the
flow of fresh air to the ventilation
openings.
Operate inflator in a clean, dry well
ventilated area. Do not operate unit in
any confined area.
Always remain in attendance with the
)roduct when it is operating.
Always disconnect electrical power by
moving on/off switch to the off position
and unplug the power cord.
D30502 4* ENG

WARNING: Risk of Bursting
What Could Happen
ATTACHMENTS & ACCESSORIES:
Exceeding the pressure rating of air
operated accessories, tires, inflatable
balls, and other inflatables items can
cause them to explode or fly apart, and
could result in serious injury.
How To Prevent It
Follow the equipment manufacturers
recommendation and never exceed the
maximum allowable pressure rating of
attachments or inflatable items.
Unattended tires, inflatable balls, Always remain in attendance when
inflatable toys, and other inflatable inflating tires, inflatable balls, inflatable
items can over inflate very quickly toys, and other inflatable items. Be
sometimes in a matter of seconds and prepared to stop inflator when item is fully
result in personal injury or property inflated, sometimes in e matter of
damage, seconds.
:r:1",J:!;I I
WARNING: Risk from Flying Objects
What Could Happen How To Prevent It
The inflator air stream can cause soft
tissue damage to exposed skin and
can propel dirt, chips, loose particles,
and small objects at high speed,
resulting in property damage or personal
injury.
Always wear ANSI Z87.1 approved safety
glasses with side shields when using the
inflator.
Never direct compressed air toward any
part of the body or at other people or
animals.
Always turn the inflator off before
attempting maintenance, attaching tools,
or accessories.
5* ENG D30502

:r:I"4..I;I _
WARNING: Risk of Electrical Shock
What Could Happen How To Prevent It
Your inflator is powered by electricity. Never operate the inflator outdoors when
Like any other electrically powered it is raining or in wet conditions.
device, If it is not used properly it may Never operate inflator with protective
cause electric shock, covers removed or damaged.
Always replace damaged or worn
electric cords before operating inflator.
Repairs attempted by unqualified Any electrical wiring or repairs required
personnel can result in serious injury on this product should be performed by
or death by electrocution, authorized service center personnel in
accordance with national and local
electrical codes.
Electrical Grounding: Failure to provide Make certain that the electrical circuit to
adequate grounding to this product which the inflator is connected provides
could result in serious injury or death proper electrical grounding, correct
from electrocution, voltage, and adequate fuse protection.
See grounding instructions. When operating inflator outdoors use
GFCI outlet.
WARNING: Risk to Breathing
What Could Happen How To Prevent It
The compressed air directly from your
inflator is not safe for breathing The air
stream may contain carbon monoxide,
toxic vapors, or solid particles from the
tank. Breathing these contaminants
can cause serious injury or death.
Air obtained directly from the inflator
should never be used to supply air for
human consumption. In order to use air
produced by this inflator for breathing,
suitable filters and in-line safety
equipment must be properly installed.
in-line filters and safety equipment used
in conjunction with the inflator must be
capable of treating air to all applicable
local and federal codes prior to human
consumption.
D30502 6* ENG

WARNING: Risk of Burns
What Could Happen
Touching exposed metal such as the
inflator head or outlet tubes, can result
in serious burns.
How To Prevent It
Never touch any exposed metal parts
on inflator during or immediately after
operation. Inflator will remain hot for
several minutes after operation.
Do not reach around protective shrouds
or attempt maintenance until unit has
been allowed to cool.
;f.,v,#.,1"1=
WARNING: Risk from Moving Parts _)
What Could Happen How To Prevent It
Moving parts such as the pulley, flywheel, Never operate the inflator with guards
and belt can cause serious injury if they or covers which are damaged or
come into contact with you, your clothing, removed.
loose hair, or jewelery.
Attempting to operate inflator with Any repairs required on this product
damaged or missing parts or attempting should be performed by authorized
to repair inflator with protective shrouds service center personnel.
removed can expose you to moving parts
and can result in serious injury.
;f.,v,#.,1"1=
WARNING: Risk of Falling
What Could Happen How To Prevent It
An inflator can fall from a table, Always operate inflator in a stable
workbench, or roof causing damage to secure position to prevent accidental
the inflator and could result in serious movement of the unit. Never operate
injury or death to the operator, inflator on aroof or other elevated
position.
7÷ ENG D30502

WARNING: Risk of Unsafe Operation
What Could Happen How ToPrevent It
Unsafe operation of your inflator could
lead to serious injury or death to you
or others.
Review and understand all instructions
and warnings in this manual
Become familiar with the operation and
controls of the inflator.
Keep operating area clear of all persons,
pets, and obstacles.
Keep children away from the inflator at all
times.
Do not operate the product when
fatigued or under the influence of
alcohol or drugs. Stay alert at all times.
Never defeat the safety features of this
product.
Equip area of operation with a fire
extinguisher.
Do not operate machine with missing,
broken, or unauthorized parts.
SAVE THESE INSTRUCTIONS
Become familiar with these terms
before operating the unit.
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per
minute; a unit of measure of air
delivery.
PSlG: Pounds per square inch
gauge; a unit of measure of pressure.
Code Certification: Products that
bear one or more of the following
marks: UL, CUL, ETL, CETL, have
been evaluated by OSHA certified
independent safety laboratories and
meet the applicable Underwriters
Laboratories Standards for Safety.
Branch Circuit: Circuit carrying
electricity from electrical panel to
outlet.
This unit is capable of powering the following Accessories. Accessories
included with your inflator:
Inflation Needle: Used to inflate
sport balls.
Extension Nozzle: Used to inflate
small inflatable items such as air rafts
and beach balls.
High Flow Inflator/Deflator adapter
body with three nozzles and seal
ring: Used to inflate or deflate air
mattresses, small boats, inflatable
toys, and other inflatable items that
use a large volume of low-pressure air.
D30502 8* ENG

'_-"_-__h_I:]_'&
Contents of Carton
1-Inflator equipped with hose and
universal valve adapter
1 - Accessories Kit
1- Inflator Needle
1 - Extension Nozzle
1 - High Flow Inflator/Deflator
adapter body with three
nozzles and seal ring
To Remove Inflator from Carton
1. Grasp handle and lift the inflator
out of the carton.
2. Remove all packaging from
inflator and discard.
II__.!n€.4uluP'.,tnd[o]_J
HOW TO SET UP YOUR
UNIT
Location of the inflator
Locate the inflator in a clean, dry and
well ventilated area. The inflator
pump and housing are designed to
allow for proper cooling. The
ventilation openings on the inflator
are necessary to maintain proper
operating temperature. Do not place
rags or other containers on or near
these openings.
GROUNDING INSTRUCTIONS
Risk of Electrical
Shock. In the
event of a short circuit, grounding
reduces the risk of shock by
providing an escape wire for the
electric current. This inflator must
be properly grounded.
The inflator is equipped with a cord
having a grounding wire with an
appropriate grounding plug (see
following illustrations). The plug must
be used with an outlet that has been
installed and grounded in accordance
with all local codes and ordinances.
1. The cord set and plug with this
unit contains a grounding pin.
This plug MUST be used with a
grounded outlet.
IMPORTANT: The outlet being used
must be installed and grounded in
accordance with all local codes and
ordinances.
2. Make sure the outlet being used
has the same configuration as
the grounded plug. DO NOT
USE AN ADAPTER. See
illustration.
Pin
3.
4.
Inspect the plug and cord before
each use. Do not use if there are
signs of damage.
If these grounding instructions
are not completely understood,
or if in doubt as to whether the
inflator is properly grounded,
have the installation checked by
a qualified electrician.
9-ENG D30502

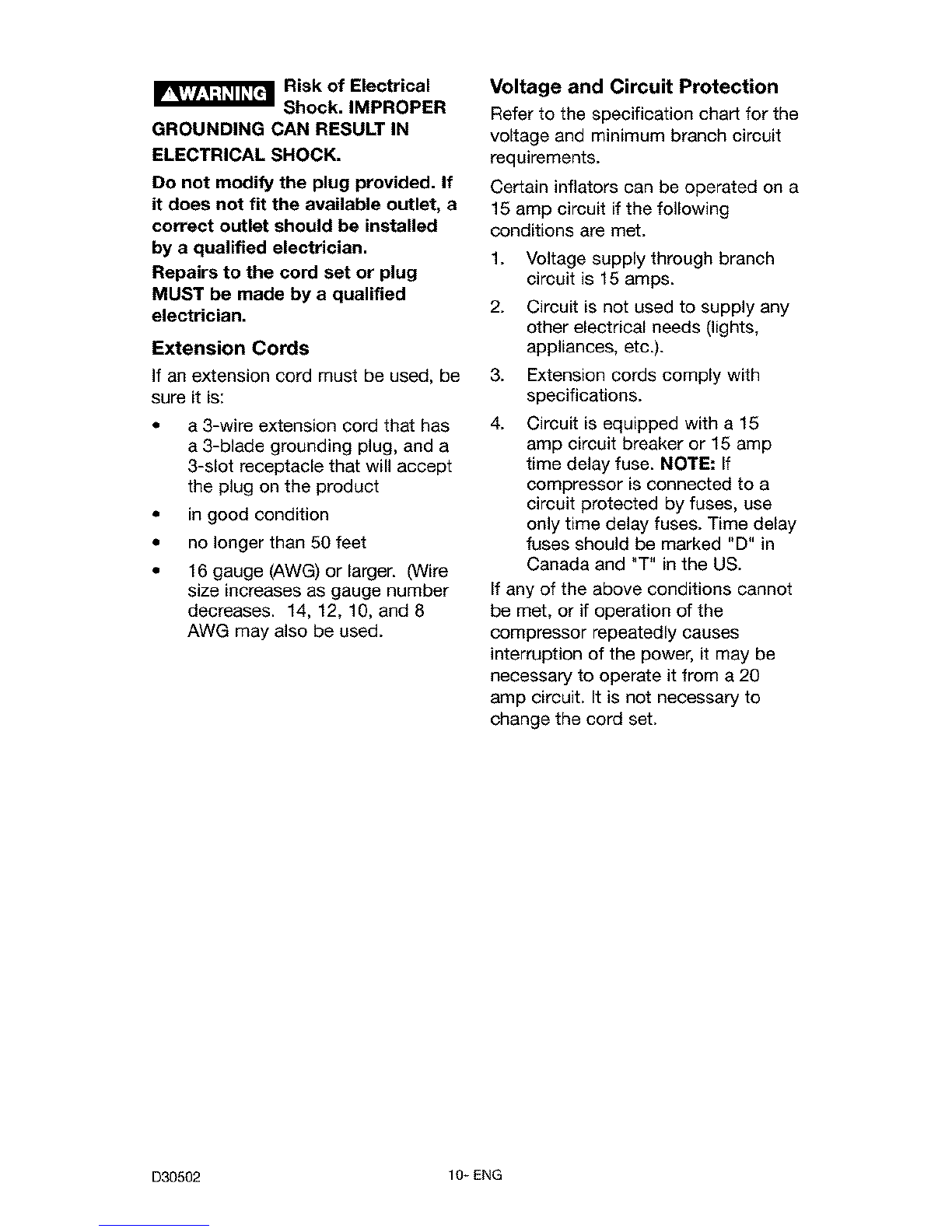

_'_I Risk of Electrical
Shock. IMPROPER
GROUNDING CAN RESULT IN
ELECTRICAL SHOCK.
Do not modify the plug provided. If
it does not fit the available outlet, a
correct outlet should be installed
by a qualified electrician.
Repairs to the cord set or plug
MUST be made by a qualified
electrician.
Extension Cords
If an extension cord must be used, be
sure it is:
a 3-wire extension cord that has
a 3-blade grounding plug, and a
3-slot receptacle that will accept
the plug on the product
*in good condition
no longer than 50 feet
16 gauge (AWG) or larger. ('Wire
size increases as gauge number
decreases. 14, 12, 10, and 8
AWG may also be used.
Voltage and Circuit Protection
Refer to the specification chart for the
voltage and minimum branch circuit
requirements.
Certain inflators can be operated on a
15 amp circuit if the following
conditions are met.
1. Voltage supply through branch
circuit is 15 amps.
2. Circuit is not used to supply any
other electrical needs (lights,
appliances, etc.).
3. Extension cords comply with
specifications.
4. Circuit is equipped with a 15
amp circuit breaker or 15 amp
time delay fuse. NOTE: If
compressor is connected to a
circuit protected by fuses, use
only time delay fuses. Time delay
fuses should be marked "D" in
Canada and "T" in the US.
If any of the above conditions cannot
be met, or if operation of the
compressor repeatedly causes
interruption of the power, it may be
necessary to operate it from a 20
amp circuit. It is not necessary to
change the cord set.
D30502 10_ ENG

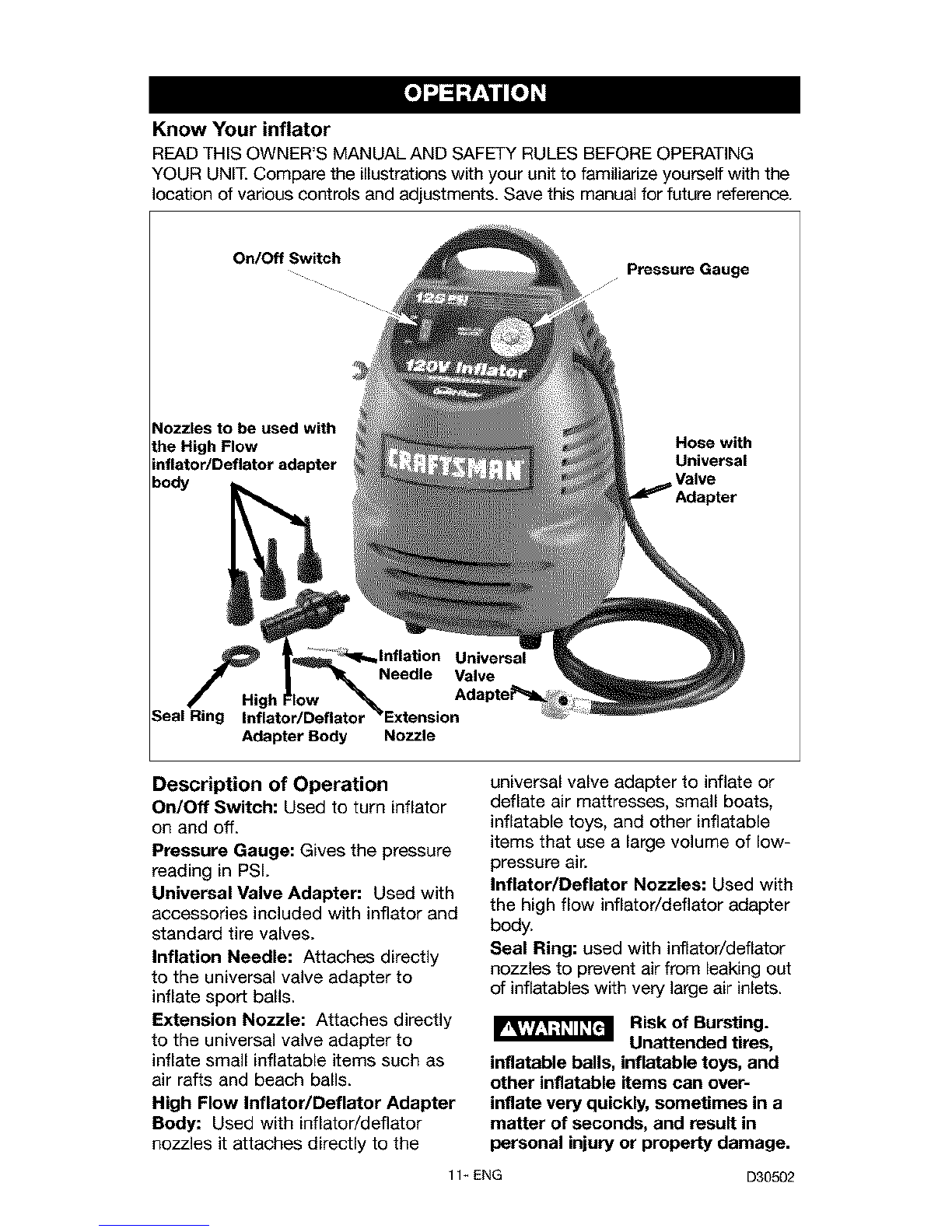

Know Your inflator
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT Compare the illustrations with your unit to familiarize yourself with the
location of various controls and adjustments. Save this manual for future reference.
On/Off Switch Pressure Gauge
Nozzles to be used with
the High Flow Hose with
inflator/Deflator adapter Universal
body Valve
Universal
Needle Valve
Seal R_ing iHnightor/Deft ate r_ Extensio n/
Adapter Body Nozzle
Description of Operation
On/Off Switch: Used to turn inflator
on and off.
Pressure Gauge: Gives the pressure
reading in PSI.
Universal Valve Adapter: Used with
accessories included with inflator and
standard tire valves.
Inflation Needle: Attaches directly
to the universal valve adapter to
inflate sport balls.
Extension Nozzle: Attaches directly
to the universal valve adapter to
inflate small inflatable items such as
air rafts and beach balls.
High Flow Inflator/Deflator Adapter
Body: Used with inflator/deflator
nozzles it attaches directly to the
universal valve adapter to inflate or
deflate air mattresses, small boats,
inflatable toys, and other inflatable
items that use a large volume of low-
pressure air.
Inflator/Deflator Nozzles: Used with
the high flow inflator/deflator adapter
body.
Seal Ring: used with inflator/deflator
nozzles to prevent air from leaking out
of inflatables with very large air inlets.
Risk of Bursting.
Unattended tires,
inflatable bails, inflatable toys, and
other inflatable items can over-
inflate very quickly, sometimes in a
matter of seconds, and result in
personal injury or property damage.
11_ ENG D30502

How to use High Flow
Inflator/Deflator Adapter Body
1. Place the universal valve adapter
over high flow inflator/deflator
adapter body as shown.
5.
Nozzle
attached to
"inflation"
outlet
Insert nozzle into inflatable and
then start inflator, see "How to
Start" paragraph.
2.
3.
4.
Press lever on universal valve
adapter down to lock in place.
NOTE: If the universal valve
adapter will not lock in place pull
it away from the adapter body so
it is not flush.
not flush
Choose nozzle to be used to
inflate or deflate. NOTE: The seal
ring may be used with any of the
nozzles to prevent air from leaking
out of inflatables with very large air
inlets.
The high flow inflate/deflate
adapter body attachment has an
"inflation" outlet and "deflation"
outlet. Attach the nozzle to the
preferred outlet. NOTE:
"inflation" and "Deflation" are
marked at outlets.
NOTE: If inflatable is not getting firm
enough, place thumb over the
"deflation" outlet to allow air to go
directly into the inflatable.
Risk of Bursting.
DO NOT over-
inflate. Keeping thumb over
"Deflation" outlet could cause
inflatable to over-inflate, Use
caution when placing thumb over
"Deflation" outlet.
Nozzle
attached to
"deflation"
outlet
D30502 12-ENG

How to Inflate Tires
1. Place the universal valve adapter
over tire valve stem.
2. Press lever on universal valve
adapter down to lock in place.
I_ Risk of Flying
Objects/Bursting
Objects. Over inflating tire could
cause the tire to burst or the
universal valve adapter to pop off
the valve stem and become a
projectile. Use a tire pressure
gauge to ensure an accurate tire
pressure reading, because the
pressure gauge on the unit is for
general reference only.
3. See "How to Start" instructions
to start inflator.
How to Inflate Sport Balls
Risk of Bursting.
Most sports bails
with no initial air will fill in less than
10 seconds. Watch sport balls
carefully while filling, do not
overfill.
1. Place inflator needle into the
universal valve adapter and press
lever on universal valve adapter
down to lock in place.
2. Insert inflator needle into sport
ball to be inflated.
NOTE: When the unit has been
turned off, it is normal to hear air
being released from the unit. Remove
the universal valve adapter to prevent
pressure loss from the item being
inflated.
How to Use Your Unit
How to Stop:
1. Set the On/Off switch to "OFF".
On/Off
Switch
NOTE: When the unit has been
turned off, it is normal to hear air
being released from the unit. Remove
the universal valve adapter to prevent
pressure loss from the item being
inflated.
Before Starting:
1. Place On/Off switch to "OFF".
2. Attach inflation needle, extension
nozzle, or high flow
inflator/deflator adapter body to
universal valve adapter.
3. Insert inflation needle, extension
nozzle, or high flow
inflator/deflator adapter body
with desired nozzle into
inflatable.
Risk of Bursting.
Too much air
pressure causes a hazardous risk
of bursting. Check the
manufacturer's maximum pressure
rating for objects being inflated.
Carefully follow the "How to Start"
instructions.
3. Place On/Off switch in the "ON"
position. When sport ball is firm
place On/Off switch in the "OFF"
position. IMPORTANT: Most
sports balls with no initial air
will fill in less than 10 seconds.
13_ENG D30502

How to Start:
1. Place On/Off switch to "OFF".
2. Plug the power cord into the
grounded outlet.
NOTE: Before turning the inflator on
know the desired pressure (measured
in PSI).
3. Place On/Off switch to "ON" to
start inflator. If using the pressure
gauge watch it closely and when
it reaches the desired pressure
place the on/off switch in the
"OFF" position.
IMPORTANT: Watch inflatable
carefully while filling; do not overfill.
NOTE: The pressure gauge on the
unit is for general reference only.
NOTE: When the unit has been
turned off, it is normal to hear air
being released from the unit. Remove
the universal valve adapter to prevent
pressure loss from the item being
inflated.
Cleaning 2. Wipe plastic parts clean using
1. Place the On/Off switch to "OFF" mild soap and warm water.
and unplug the cord.
1.
2.
Set the On/Off switch to "OFF"
and unplug the cord.
Store accessories in the storage
bag located on back of unit. The
storage bag has a smaller
compartment to hold smaller
accessories.
Smaller
Compartment
4. Coil the air hose around shroud
and snap into hose snap.
Hose Snap
5.
3. Wind the electrical cord loosely
around the inflator and snap it
onto itself for storage.
Store the inflator in a clean and
dry location.
D30502 14_ ENG

d,{ollJ :] il ::F-"]-"[oIo]l III_[I
Risk of Unsafe Operation. Voltage sources, moving parts,
or compressed air sources are exposed when repairing
the compressor. Personal injury can occur. Unplug the compressor before
attempting any repairs.
PROBLEM CAUSE CORRECTION
Motor will not Fuse blown, circuit breaker
run. tripped.
Extension cord is wrong
length or gauge.
Faulty motor.
1.Check fuse box for blown
fuse and replace as
necessary. Reset circuit
breaker. Do not use a fuse
or circuit breaker with
higher rating than that
specified for your
particular branch circuit.
2. Check for proper fuse.
You should be using a
"Time Delay" fuse.
3. Check for low voltage
problem.
4. Check the extension cord.
5. Disconnect the other
electrical appliances from
circuit or operate the
compressor on its own
branch circuit.
Check the extension cord.
Contact a Trained Service
Technician.
15_ENG D30502

inflator Model Number 919.152360
2
3
No.
1
2
3
Part No. Description
Z-SST-5309 Rubber Bumper Kit (includes 4)
Z-D29391 Storage Bag Kit
D29185 Inflator/Deflator Kit
D30502 16_ ENG

GARANT|A ................................................ 17
ESPECIFICACIONES ....................................... 18
DEFINICIONES DE NORMAS DE SEGURIDAD .................. 18
INSTRUCCIONES IMPORTANTES DE SEGURIDAD ........... 18-23
GLOSARIO ................................................ 23
ACCESORIOS ............................................ 23
ENSAMBLAJE ............................................. 24
INSTALACI(_N .......................................... 24-25
OPERACI(_N ........................................... 26-29
MANTENIMIENTO .......................................... 29
ALMACENAJE ............................................. 29
GU|A DE DIAGN(_STICO DE PROBLEMAS ..................... 30
REPUESTOS .............................................. 16
INGLES ................................................ 1-17
COMO ORDENAR REPUESTOS ....................... Contratapa
GARANT|A TOTAL DE UN AI_IO DEL COMPRESOR DE AIRE
Si este compresor de aire Craftsman fallase debido a defectos de materiales
ode fabricaci6n dentro del aSo de su fecha de compra, Sears, a su opei6n, 1o
reparar& o reempiazar& sin eosto alguno. Comuniquese con el Centro de
Servicio Sears m&s cercano (1-800-4-MY-HOME) para coordinar su
reparaci6n, o devuelva el compresor de aire al ]ugar donde Io compr6 para
que Io cambien.
Si este compresor de aire se usase con fines comerciales o para alquiler, esta
garantia se aplica s61o durante los primeros noventa dfas a partir de su fecha
de compra.
Esta garantfa le otorga derechos especfficos y usted podrfa tener otros
derechos que varian de un estado a otto.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
17_ SP D30502

:[,-."]".1::[e]I=[o-7,.._:o-][o]_I:_
Modelo No.
Di&metro del cilindro
Carrera del pist6n
Voltaje/Hercios/Fases
Requisito minimo de circuito
Tipo de fusible
Pies3/min a 30 PSlG
Presi6n m_xima
919-152360
1,875" (47ram)
1,25" (32ram)
120/60/1
15 Amps.
Retardo
2,5
125 Lb/Pulg2 (PSI)
Im]::1gll_l[o'][o_]_,L_._Im]::l_L_,[_ Im]" t.']_[_lJ :t Im7.,Im]
Este manual contiene importante informaci6n para que usted sepa y comprenda. Esta
informaci6n se relaciona con la proteccion de SU SEGURIDAD Y LA PREVENCION DE
PROBLEMAS A/EOMIPO. Para ayudarlo a reconocer esa informaci6n, utilizamos los
simbolos indicados mas abajo. Sirvase leer el manual y prestar atenci6n a dichos
simbolos.
_ Indica una situaci6n de
inminente riesgo, que si
no se evita, causat_ la muerte o
lesiones serias.
_jCcai_a
potencialmente riesgosa, que si no se
evita, podria causar la muerte o
lesiones serias.
's;du.°o"lUn
potencialmente peligrosa, que si no se
evita, podrla causar lesiones menores
o moderadas.
_Usado sin el simbolo
de seguridad de alerta
indica una situacion potencialmente
riesgosa la que, que si no se evita,
godria causar da_os a la propiedad.
_lJ_[-._l_o,][o_'_ VlhSJ;[o]-.,.tnq.,1_hnl=L_,._ _:-]_[_l] :11m7.,Im]
CONSERVE ESTAS INSTRUCCIONES
LAOPERACION INAPROPIADADE ESTAUNIDADPUEDECAUSARLESIONESSERIASY
DAI_IOSA LA PROPIEDAD. LEA Y ENTIENDA TODAS LAS ADVERTENCIAS DE
SEGURIDADE INSTRUCCIONESDEOPERACIONANTES DE USARESTEEQUIPO,
_ Algunos poivo$ generados por )ijadoras+ sierras+ esmeriiadora$, ta)adros y
otras actividades de construcci6n contienen qulmicos conocidos en el
estado de Ca(ifornia por causar c_ncer+ defectos de nacimiento y otras lesiones al sistema
reproductivo.
A(gunos ejemlpttos de _stos son:
Plomo de pinturas a base de plorno.
Cristales de silic e de ladrillos, cemento y otros componentes de mamposter(a.
Ars_nico y cromo de qulmicos para el tratamiento de la madera.
Su riesgo por exposci6n varla dependiendo de la frecuencia que usted haga ese tipo de trabajo.
Para reducir la exposici6n a esos qulrnicos, trabaje en un &tea bien ventilada y use implementos de
seguridad. Siempre use mascara o respirador aprobado por MSHA/NIQSH bien puestos en la cara
cuando use esas herramientas,
Cuando $e operen herramientas neum_ticas, sienlpre se deben tomar precauciones b_sicas de
seguridad para reducir el riesgo de lesiones persona)es.
D30502 18-SP

Conserve estas instrucciones
La operacion y el mantenimiento inedecuados de este unidad pueden ceusar lesiones
serias y daSos e la propiedad. Lea y entienda todas las advertencias e instrucciones de
operacion antes de opere esta unidad.
ADVERTENCIA: Riesgo de explosi6n o incendio
&QU I_ PUEDE OCURRIR? &COMO PREVENIRLO?
ES normal que los contactos el_ctricos Siempre opere el inflador de aire en
en el motor emitan chispas, Areas bien ventiladas, sin materiales
combustibles ni vapores de gasolina ai
de solventes
Si las chispes electricas del infledor Guardar las substancias inflamables en
entran en contacto con vapores un lugar seguro lejos del inflador,
inflamables, pueden encenderse
causando un incendio o una explosibn.
La obstruccibn de cualquier abertura de
ventUaci6n del inflador puede causer un
recalentamiento serio y un incendio.
La operacibn desatendida de esta
unidad puede caesar lesiones
personales o da_os a la propiedad.
Pare reducir el riesgo de incendio, no
permita que el iaflador funcione
desatendido.
Nunca coloque objetos contra ni
encima del inflador. Opere el inflador
en un Area abierta a por Io menos 30 cm
(12") de cualquier pared u obstruccibn
que pueda restringir el flujo de aire fresco
_or las aberturas de ventilaci6n.
Opere el inflador en un Area limpia, seca y
bien ventilada. No opere la unidad en un
Area confinada,
Siempre permanezca atendiendo esta
unidad cuando estb en funcionamiento.
Siempre epaguela poniendo el
interruptor en "OFF" y desencht'lfela
del tomacorriente.
19-SP D30502

I=II_,,,'_€-Zo]
ADVERTENCIA: Riesgo de revenatazbn
t=,QUE PUEDE OCURRIR?
ADITAMENTOS Y ACCESORIOS:
Exceder la capacidad de presi6n de
los accesorios neumaticos, Ilantas,
pelotas y artfculos inflables puede
hacerlos reventar o salir disparados
causando lesiones serias o dafios a la
propiedad
Las Ilantas, pelotas, juguetes y otros
att|eulos inflables pueden
sobreinflarse rapidamente, algunas
veces en segundos y reventat
causando lesiones personales o
da_os a la propiedad.
i,COMO PREVENIRLO?
Siempre observe las recomendaciones del
fabdcante del equipo ynunca exceda la
presi6n maxima especificada para un
aditamento o artieulo inflable,
Siempre permanezca atendiende eeta
unidad cuando est_ inflancloUantae,
pelotas, juguetes y otros artteulos
inflables. Este listo a detener el inflador
cuando el artfculoest_ completamente
inflado, algunas veces solo unos segundos.

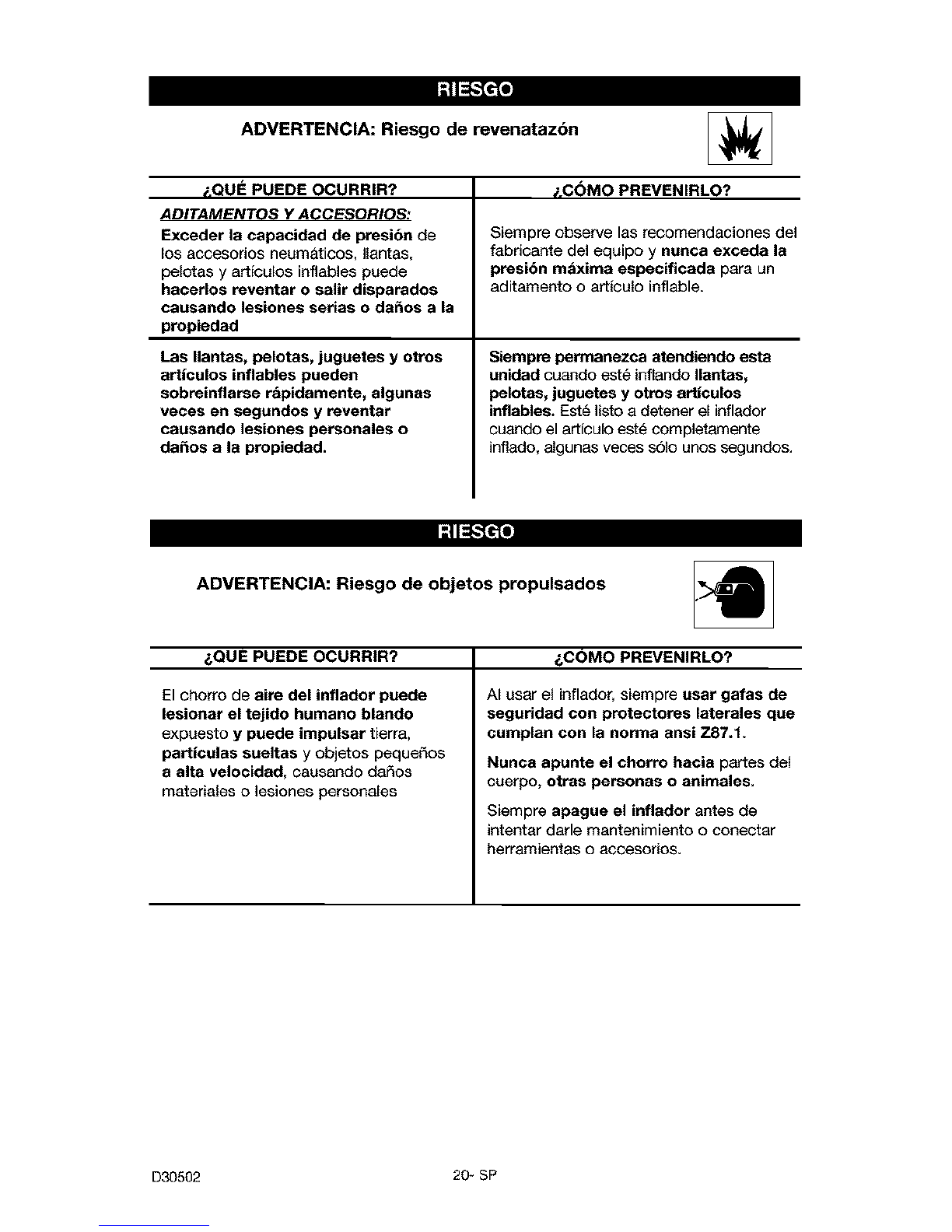

"1I=[,.'[_=
ADVERTENCIA: Riesgo de objetos propulsados
_.QUE PUEDE OCURRIR? _,COMO PREVENIRLO?
El chorro de aire del inflador puede
lesionar el tejido humane blando
expaesto y puede impulsar tierra,
particulas sueltas yobjetos pequefios
aalta velocidad, causando dafios
materiales olesiones personales
AI usar el inflador, siempre usar gafas de
seguridad con protectores laterales que
cumplan con la norma ansi Z87.1.
Nunca apunte el chorro hacia partes clel
cuerpo, otrss personas o animales.
Siempre apague el inflador antes de
intentar darle mantenimiento o conectar
herramientas o accesorios,
D30502 20-SP
