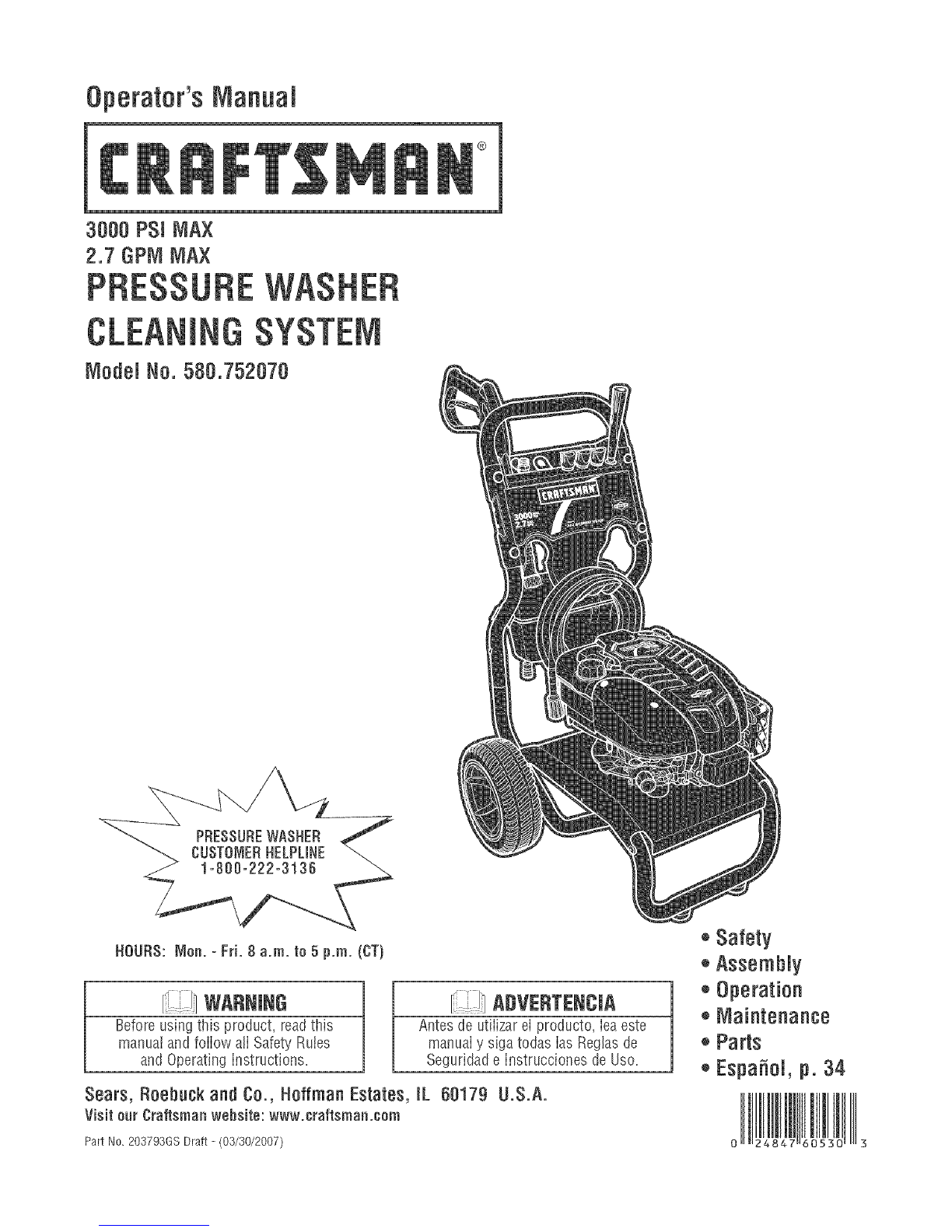

Craftsman 580.752070 User manual

Operator'sManual
®
3000 PSi MAX
2.7 GPiVIMAX
_odei No. 580.752070
PRESSUREWASHER
CUSTOMERHELPLINE
HOUriS: Non. -Fri. 8 a.m. to 5 p.m. (CT)
wAReeeG
Before usingthis product, readthis
manualand follow atI SafetyRutes
and Operating Instructions.
ADVER'rENCmA
Antes de utiiizar el producto, Ieaeste
manuaiy siga todas Ias Reglasde
Seguridade Instrucciones de Uso.
Sears, Roebuck and Ca., Hoffman Estates, [L 68179 U.S.A.
Visit our Craftsman website: www.craftsman.eom
Part No. 203793GS Draft - (03/30/2007)
®Safety
®AssembJy
®Operation
,, Maintenance
,, Parts
,, Espa_oi, p. 34
3

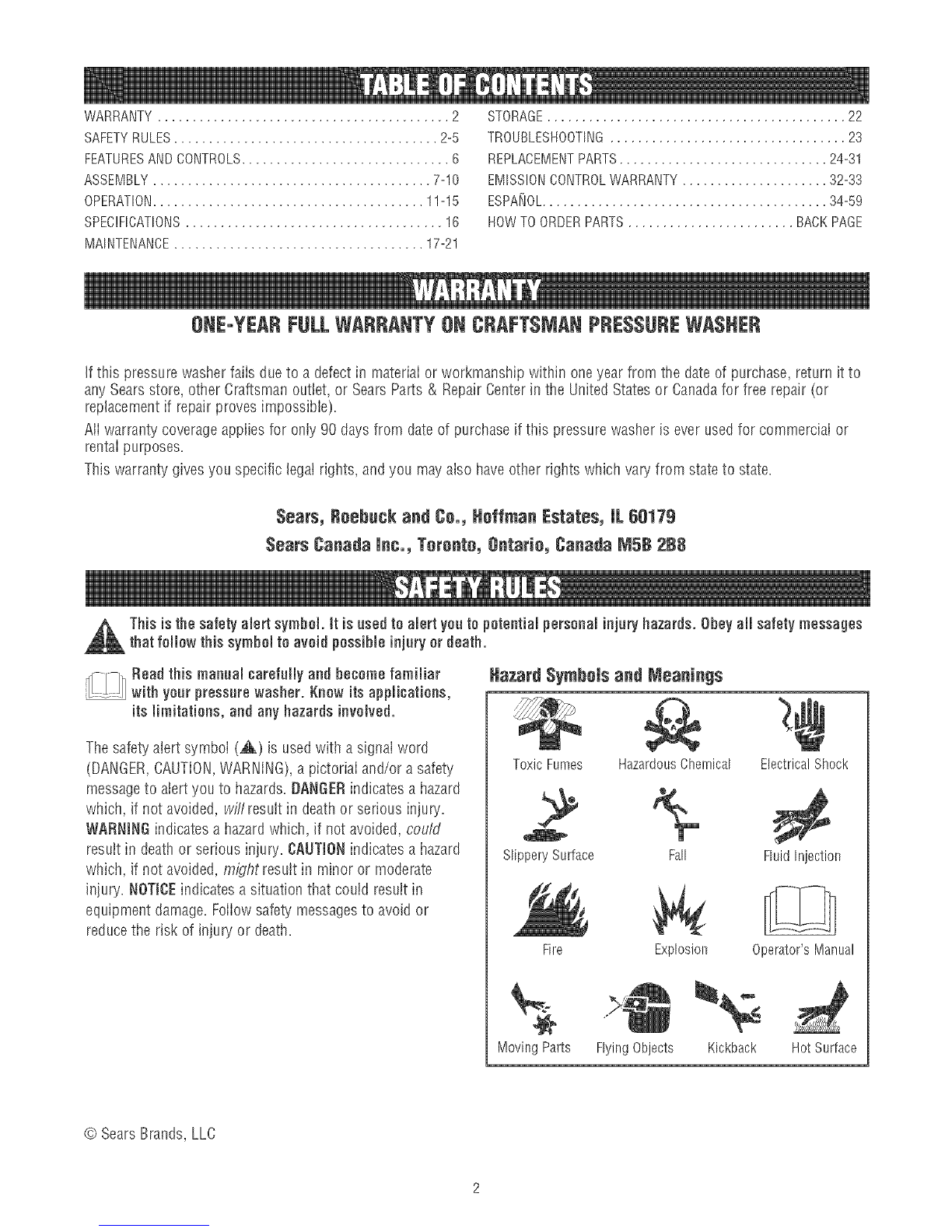

WARRANTY.......................................... 2
SAFETYRULES...................................... 2-5
FEATURESANDCONTROLS.............................. 6
ASSEMBLY........................................ 7-10
OPERATION....................................... 11-15

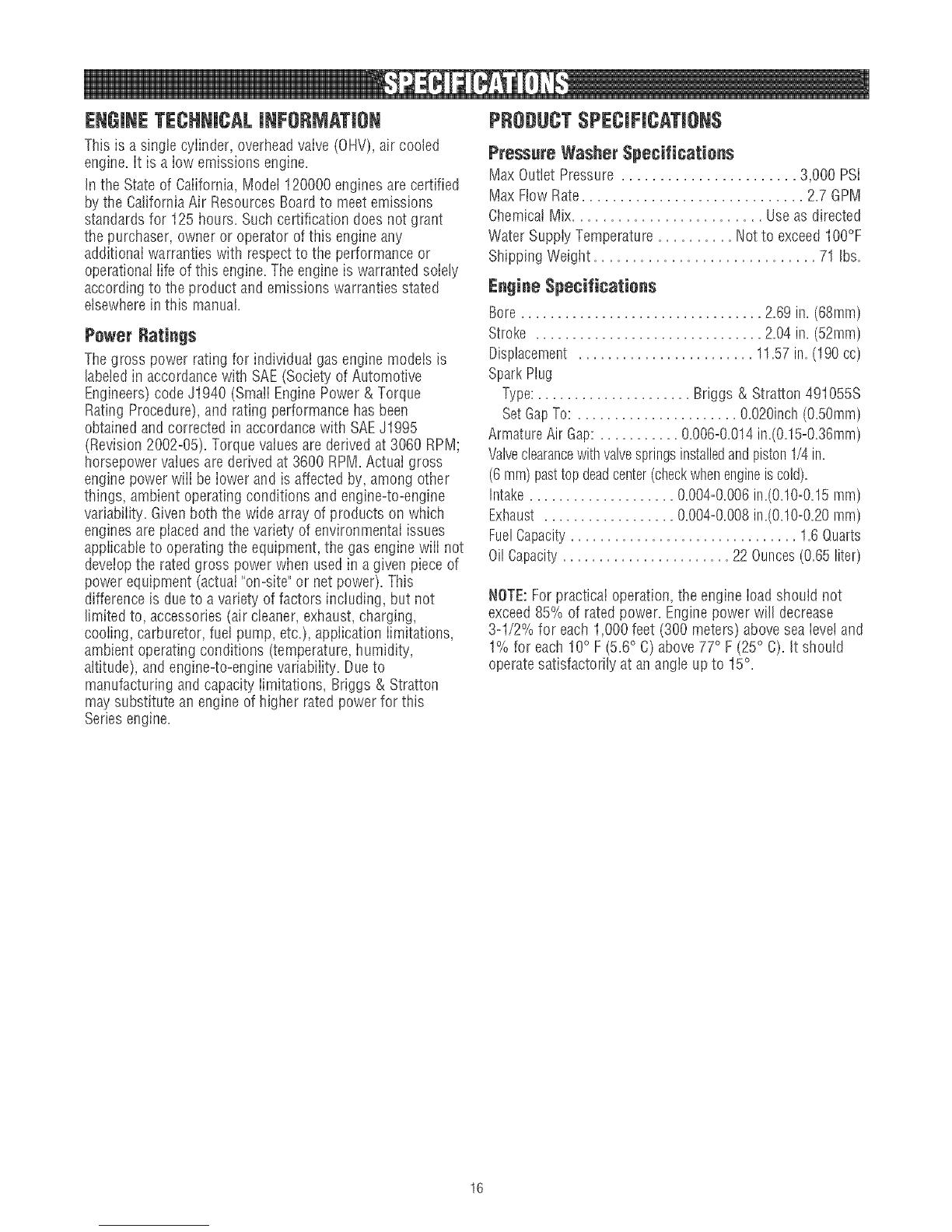

SPECIFICATIONS..................................... 16
MAINTENANCE.................................... 17-2!
STORAGE........................................... 22
TROUBLESHOOTH'_IG.................................. 23
REPLACEMENTPARTS.............................. 24-31
EMISSIONCONTROLWARRANTY..................... 32-33
ESPA__OL......................................... 34-59
HOWTO ORDERPARTS........................ BACKPAGE
If this pressurewasher faiis dueto a defectin materiai or workmanship within one year from the dateof purchase,return it to
any Searsstore, other Craftsman outlet, or SearsParts & RepairCenterin the UnitedStates or Canadafor free repair (or
replacementif repair proves impossible).
Ali warranty coverageapplies for only 90 days from dateof purchaseif this pressurewasher is ever usedfor commercial or
rentaipurposes.
This warranty gives you specific legal rights, and you mayalso haveother rights which vary from stateto state.
Sears, Roebuck and Ce,, Heffman Estates, JL68179
Sears Canada Jnc,, Terente, 8ntarie, Canada MSB 2B8
Thisis the safety alert symbol, tt is used to alert yea to potentialpersenaminjary hazards. ObeyaHsafety messages
that fellow this symbemto avoid pessiNe injuryor death.
_Read this manual carefully and become familiar
..... with yourpressurewasher. Knew its applications,
itslimitations, and any hazardsinvolved.
Thesafety alert symboi (,_) is usedwith a signal word
(DAr/GER,CAUTIOr/,WARNING),a pictorial and/or a safety
messageto alert you to hazards.BANGERindicatesa hazard
which, if not avoided, wi/'/resuIt in deathor serious injury.
WARNINGindicates a hazardwhich, if not avoided, cou/d
result in deathor serious injury. CAUTtONindicatesa hazard
which, if not avoided, might result in minor or moderate
injury. NOTICEindicatesa situation that could result in
equipment damage. Foiiow safety messagesto avoid or
reducethe risk of injury or death.
Hazard SymhoJsand Nteanings
ToxicFumes HazardousChemical
SlipperySurface
Fire
ElectricalShock
Moving Parts
Fall FluidInjection
Explosion Operator'sManual
FlyingObjects Kickback Hot Surface
© SearsBrands, LLC

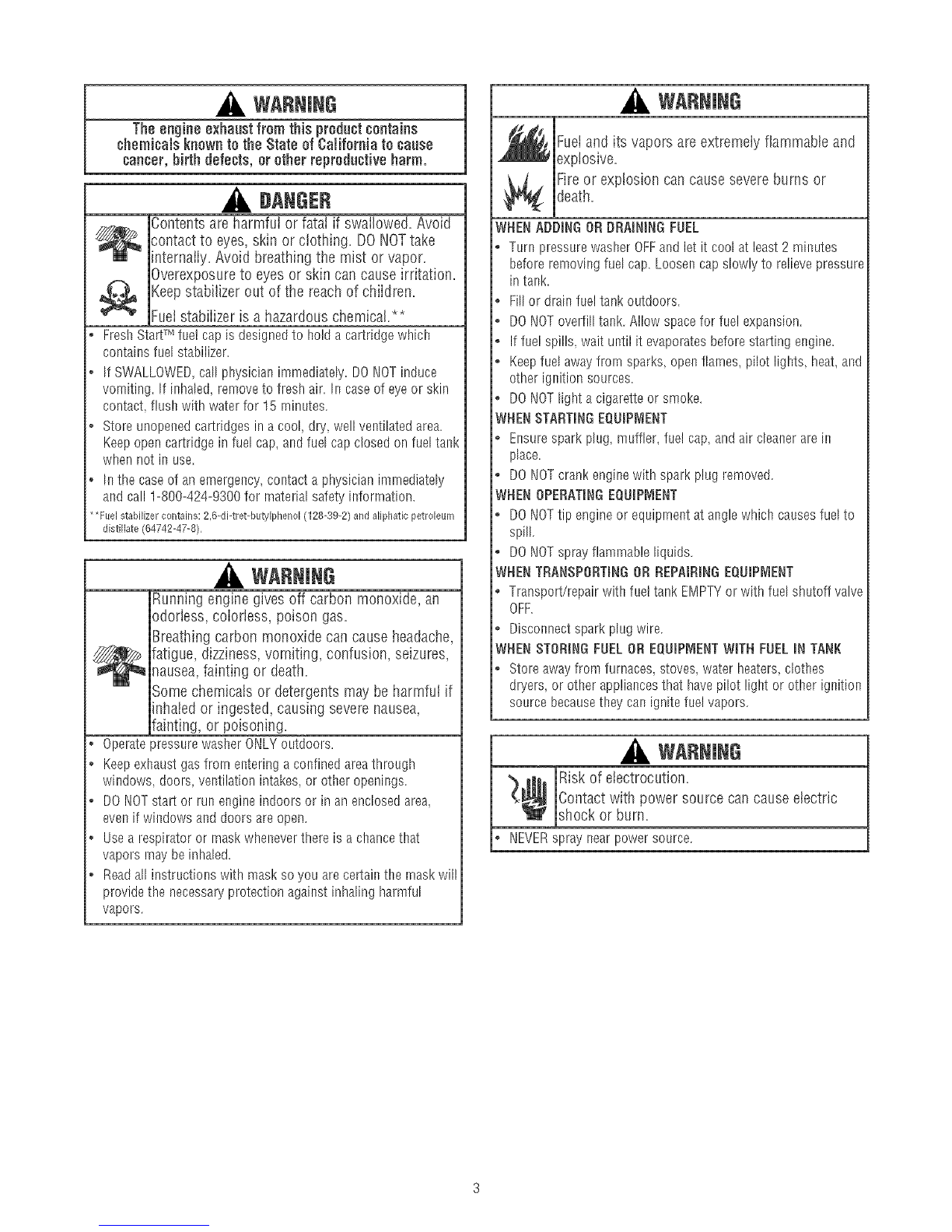

Contentsare harmful or fatai if swalIowed.Avoid
contact to eyes,skin or clothing. DONOTtake
internaliy. Avoid breathing the mist or vapor.
Overexposureto eyes or skin cancause irritation.
Keepstabilizer out of the reachof chiidren.
Fueistabiiizer is a hazardouschemical.**
FresbStartTM fue! cap is designed to hold a cartridge whicb
contains fuel stabilizer.
•If SWALLOWED,call pbysician immediately. DONOTinduce
vomiting. If inhaled removeto fresh air. h_caseof eye or skin
contacL flusb with water for 15 rninutes.
•Store unopenedcartridges in acool, dry_well ventilated area.
Keepopen cartridge in fuel cap, andfuel cap closed on fuel tank
when not in use.
• h_the caseof an emergency,contact a physician immediately
and call 1-800-424-9300 for materialsafety irfforrnation.
• *Fuel stabilizer contains: 2,6-di-tret-butylphenol (128-39-2) and aliphatic petroleum
distillate (64742-47-8),
WARNING
Runningengine gives off carbon monoxide, an
odoriess, coloriess, poison gas.
Breathingcarbon monoxide can cause headache,
fatigue, dizziness,vomiting, confusion, seizures,
nausea,fainting or death.
Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea,
fainting, or poisoning.
•OperatepressurewasherONLYoutdoors.
o Keepexhaustgasfromenteringaconfinedareathrough
windows,doors,ventilationintakes,or otheropenings.
o DONOTstartor runengineindoorsor in anenclosedarea,
evenif windowsanddoorsareopen.
•Usea respiratoror maskwheneverthereisa cbancetbat
vaporsrnaybeinhaled.
• Readall instructionswith masksoyouarecertaintbernaskwill
providethenecessaryprotectionagainstinhalingharmful
vapors.
WARNING
_'_ Fuet and its vapors are extremely flammable and
explosive.
Fire or explosion can cause severe burns or
death.
WHENARRmNG ORBRAINING FUEL
o Turn pressure wasber OFFand let it cool at least 2 minutes
before removing fuel cap. Loosen cap slowly to relievepressure
in tank.
o Fill or drain fuel tank outdoors.
• DONOTover% tank. Allow spacefor fue! expansion.
o If fuel spills, wait until it evaporatesbefore starting engine.
• Keepfuel away frorn sparks, openflames, pilot lights, heat,and
other ignition sources.
• DONOTlight a cigarette or smoke.
WHENSTARTINGEQUmPIVIENT
o Ensure spark plug, muffler, fuel cap, and air cleaner arein
place.
o DO NOTcrank enginewith spark plug removed.
WHENOPERATINGEQUIP_tENT
• DONOTtip engine or equiprnentat anglewhicb causesfuel to
spill
o DONOTspray'flamrnable liquids.
WHENTRANSPORTmNGOR REPAIRmNGEQNIPI_IENT
o Transport/repair witb fuel tank EMPTYor with fuel shutoff valve
OFF.
o Disconnect spark plug wire.
WHENSTORINGFUELOR EQUIPMENTWiTH FUELmNTANK
• Store away from furnaces, stoves_water heaters_dotbes
dryers, or other appliancesthat have pilot light or other ignition
source becausetbey can ignite fuel vapors.
WARNING
Risk of electrocution.
Contact with power source can cause electric
shock or burn.
• NEVERspray'near power source.

WARNING

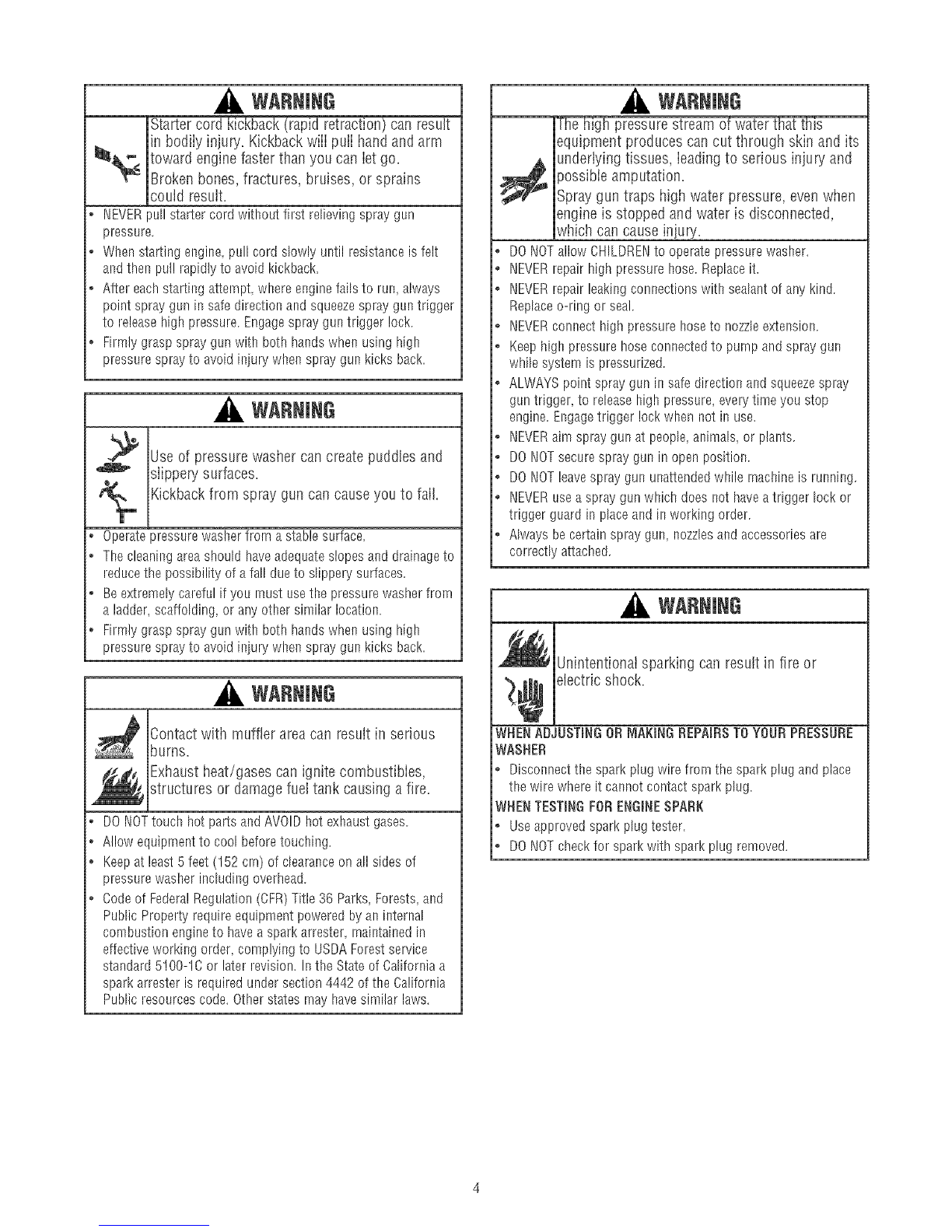

Startercord kickback(rapid retraction) can result
in bodily injury. Kickbackwill pulI handand arm
toward enginefaster than youcan Iet go.
Brokenbones, fractures, bruises, or sprains
could result.
• NEVERpullstartercordwithoutfirst relievingspraygun
pressure.
o Whenstartingengine pullcordslowlyuntilresistanceisfelt
andthenpul!rapidlyto avoidkickback.
o Aftereachstartingatternptwhereenginefailsto run,always
pointspraygunin safedirectionandsqueezesprayguntrigger
to releasehighpressure.Engagespraygutstriggerlock.
o Firmlygraspspraygunwith bothhandswhenusinghigh
pressuresprayto avoidiniurywhenspraygunkicksback.
WARNING
Useof pressure washer cancreate puddles and
slippery surfaces.
Kickbackfrom spray gun cancause you to fail.
*Operatepressurewasherfrornastablesurface.
o Thecleaningareashouldhaveadequateslopesanddrainageto
reducethepossibilityof afalldueto slipperysurfaces.
o Beextremelycarefulif yournustusethepressurewasherfrom
a ladder,scaffolding,or anyothersimilarlocation.
o Firmlygraspspraygunwith bothhandswhenusinghigh
pressuresprayto avoidinjurywhenspraygutskicksback.
WARNING
Contact with muffler area can result in serious
burns.
Exhaustheat/gases can ignite combustibles,
structures or damagefuel tank causing a fire.
*DONOTtouchhotpartsandAVOIDhotexlsaustgases.
o Allowequipmentto coolbeforetouching.
o Keepatleast5feet (152crn)ofclearanceonall sidesof
pressurewasherincludingoverhead.
o Codeof FederalRegulation(CFR)Title36 Parks,Forests,and
PublicPropertyrequireequipmentpoweredbyaninternal
combustionengineto haveasparkarrester rnaintainedin
effectiveworkingorder,complyingto USDAForestservice
standard5!00-16 or laterrevision.IntheStateofCaliforniaa
sparkarresteris requiredundersection4442oftheCalifornia
Publicresourcescode.Otherstatesrnayhavesimilarlaws.
pressure stream of water th_(ttlsJ_'_
equipment produces can cut through skin and its
_ ,underlying tissues, ieading to serious injury and
possible amputation.
_l '_- Spray gun traps h gl water pressure, even when
engine is stopped and water is disconnected,
which can cause injury.
DONOTallow CHILDRENto operate pressure washer.
NEVERrepair high pressure hose. Replaceit.
NEVERrepair leaking connections with sealantof any kind.
Replaceo-ring or seal.
NEVERconnect high pressure hoseto nozzle extension.
Keephigh pressure hoseconnectedto pump and spray gun
while system is pressurized.
ALWAYSpoint spray gun in safe direction and squeezespray
gun trigger to releasehigh pressure, everytime you stop
engine. Engagetrigger lockwhen not in use.
NEVERaim spray gutsat people, animals, or plants.
DO NOTsecure spray gun in open position.
DO NOTleavespray gun unattended while rnacbineis running.
NEVERusea spray gun wlsichdoes not have a trigger lock or
trigger guard in place andin working order.
Always be certain spray gun, nozzbs and accessories are
correctly attached.
WARNING
Unintentionalsparking can result in fire or
'_¢ electrb shock.
WHENADJNSTmNGORMAKINGREPAIRSTOYOURPRESSURE
WASHER
o Disconnectthe sparkplugwirefrornthesparkplugandplace
thewirewhereit cannotcontactsparkplug.
WHENTESTmNGFORENGINESPARK
oUseapprovedsparkplugtester.
• DONOTcheckfor sparkwith sparkplugremoved.

WARNING

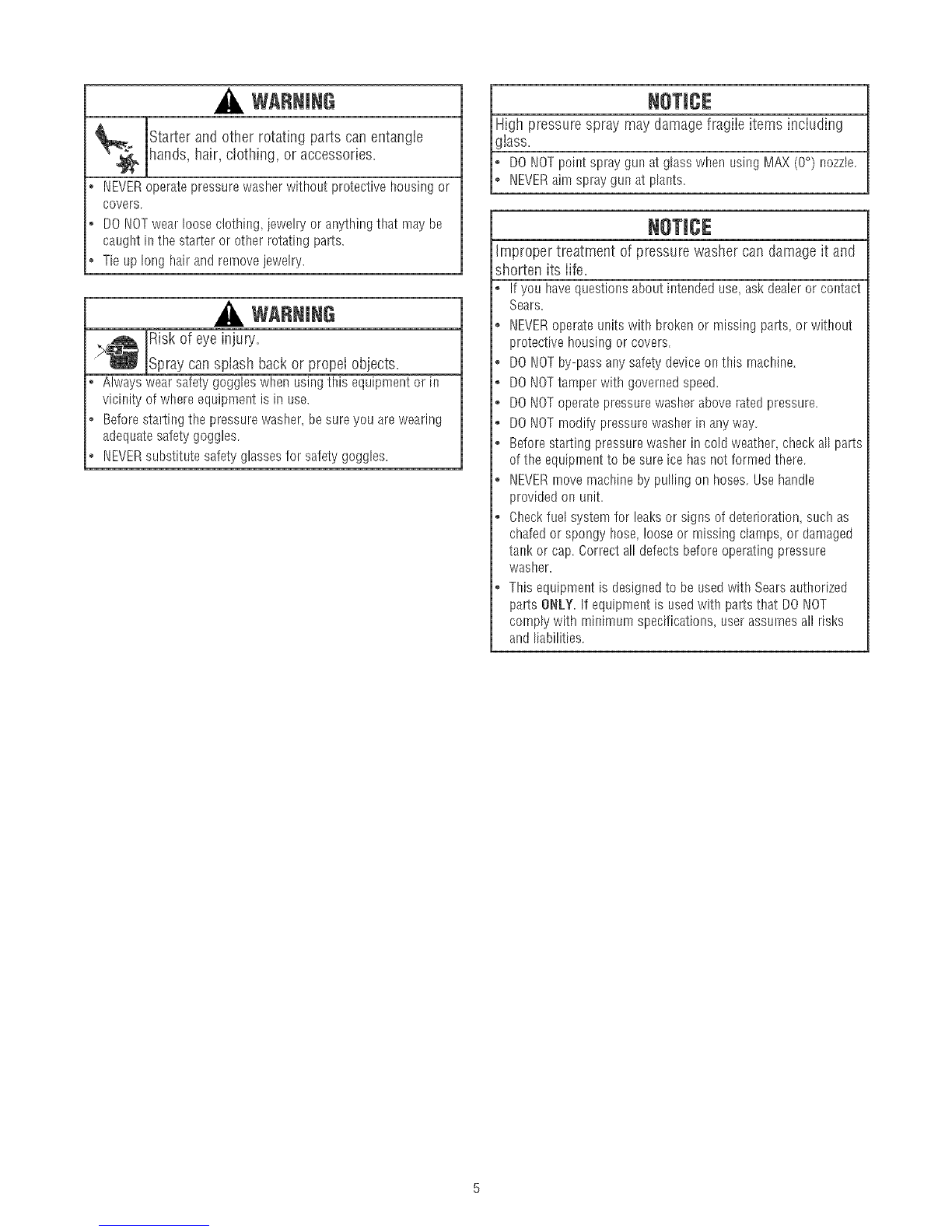

Starter and other rotating parts can entangie
sands, hair, clothing, or accessories.
•NEVERoperate pressure washer without protective housing or
covers.
o DO NOTwear loosedothing_ iewelry or anything that may be
caught in the starter or other rotating parts.
o Tie up long hai! and rernove jewelry.
WARNING
jRisk of eye injury.
..L..__JSpray can splash back or propel objects.
Always wear safetygoggles when using this equipment or in
vicinity of where equipment is in use.
Beforestarting the pressure washer, be sureyou are wearing
adequatesafety goggles.
NEVERsubstitute safety'glasses for safety'goggles.
i NOTICE
High pressure spray may damage fragiie items including
glass.
•DO NOTpoint spray gun at glasswhen using MAX (0°) nozzle.
NEVERaim spray gun at plants.
Improper treatment of pressure washer can damage it and
shorten its iife.
If you have questions about intended use, ask dealer or contact
Sears.
NEVERoperate units with broken or missing pa!ts, or without
protective housing or covers.
DO NOTby-pass any safetydevice on this rnachine.
DONOTtamper with governed speed.
DONOToperate pressure washer above rated pressure.
DONOT modify pressure washer in any'way.
Before starting pressure washer in cold weather,check all parts
of the equiprnentto besure ice has not formed there.
NEVERmove machine by pulling on hoses. Use handle
provided on unit.
Checkfuel system for leaksor signs of deterioration, such as
chafed or spongy hose,!oose or missing clamps_or damaged
tank or cap. Correct all defects beforeoperating pressure
washer.
This equipment is designed to be used with Searsauthorized
parts ONLY.If equipment is used with parts that DO NOT
comply with minimum specifications, userassumes all risks
and liabilities.

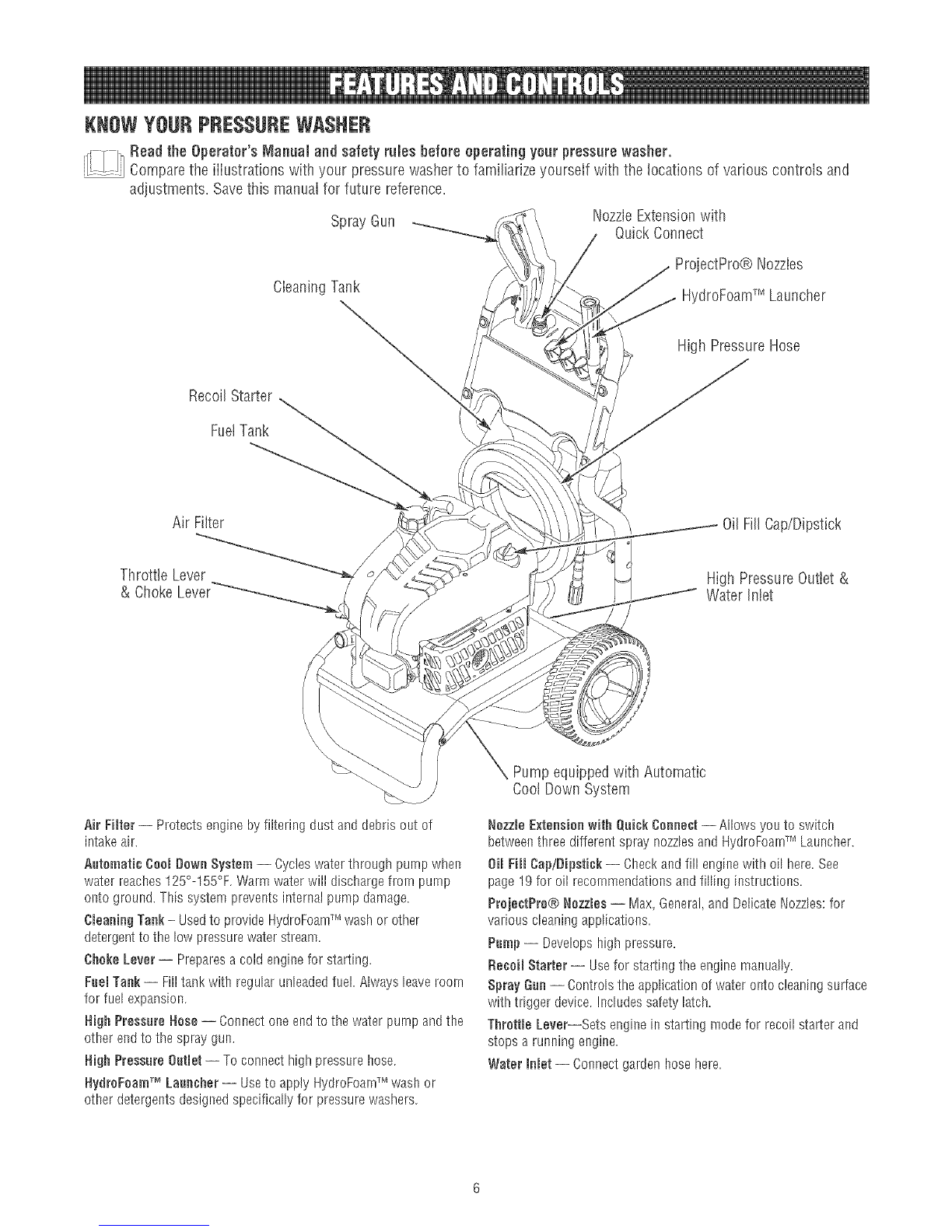

KNOWYOURPRESSUREWASHER
,r' F I_Read the Operator's Manual and safety rubs before operatingyourpressurewasher.
....Compare the illustrationswithyour pressurewasher to familiarizeyourselfwiththe locationsofvariouscontrolsand
adjustments. Save this manuaI for future reference,
Spray Gun Nozzle Extension with
Quick Connect
Recoil Starter
CleaningTank ProjectPro@Nozzles
HydroFoamTM Launcher
High PressureHose
FuelTank
Air Filter Oil FillCap/Dipstick
Throttle Lever
& Choke Level HigI1PressureOutlet &
Water Inlet
Air FHter-- Protectsengine by filtering dust anddebris out of
intakeair.
Autematb CeeJDawnSystem -- Cycles waterthrough pump when
water reaches125°-155°F. Warm water will discharge from purnp
onto ground. This system prevents internal pump damage.
Cbaeieg Tack - Usedto provide HydroFoamTM wash or other
detergentto the low pressurewater stream.
Choke Lever -- Preparesa cold engine for starting.
FaemTack -- Fill tank with regular unleadedfuel. Always leave room
for fuel expansion.
High Pressare Hese-- Connectone endto the water pump andthe
other endto the spray gun.
High Pressare Outbt -- To connect high pressure hose.
HydreFeamTM kauecher -- Use to apply HydroFoamTM wash or
other detergents designedspecifically for pressure washers.
Pumpequipped with Automatic
Cool Down System
Nezzb Exteesieewith Qabk Ceeeect-- Allows you to switch
between three different spray nozzlesand HydroFoarnTM Launcher.
OiJFiJJCap!Dipstick -- Checkand fill engine with oil here. See
page 19 for oil recommendations andfilling instructions.
PrejectPre® Nezzles-- Max General,and DelicateNozzles:for
various cleaningapplications.
Pump -- Developshigh pressure.
ReceiJStarter -- Usefor starting the engine manually.
Spray Qua -- Controls the application of water onto cleaning surface
with trigger device.Includes safety latch.
Thrattle Lever--Sets engine in starting mode for recoil starter and
stops a running engine.
Water leJet-- Connect garden hosehere.

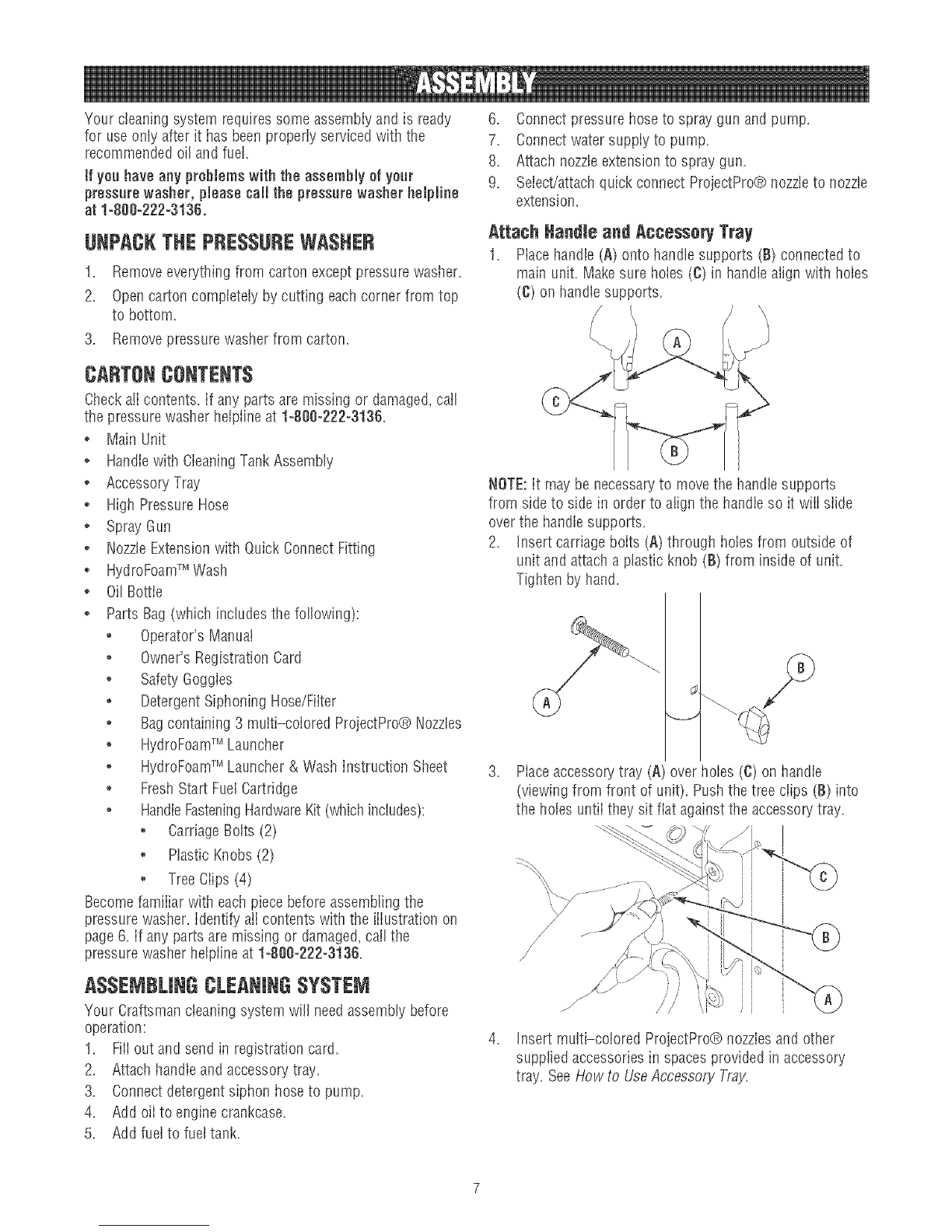

Your cleaningsystem requiressome assembIyand is ready
for useonly after it has been properiy servicedwith the
recommendedoil and fuel.
Jfyou haveany prohmemswith the assembly of your
pressurewasher, please call the pressurewasher hempline
at 1o800o222o3136.
UNPACKTHEPRESSUREWASHER
1. Removeeverything from carton exceptpressure washer.
2. Opencarton completely bycutting eachcorner from top
to bottom.
3. Removepressure washer from carton.
CARTONCONTENTS
Checkali contents, if any parts are missing or damaged,call
the pressure washer hetplineat 1=800=222=3136.
° Main Unit
*Handlewith 6ieaning TankAssembly
o AccessoryTray
° High PressureHose
*Spray Gun
o NozzleExtensionwith Quick ConnectFitting
, HydroFoamTM Wash
°Oil Bottle
o Parts Bag (which includes the following):
o Operator's Manual
, Owner's Registration Card
, SafetyGoggies
, DetergentSiphoning Hose/Filter
, Bagcontaining 3 multi-coiored ProjectPro@Nozzles
° HydroFoamTM Launcher
o HydroFoamTM Launcher & Wash Instruction Sheet
°FreshStart FuelCartridge
*HandleFasteningHardwareKit (whichincludes):
° CarriageBolts (2)
° Plastic Knobs (2)
° TreeClips (4)
Becomefamiiiar with eachpiecebefore assemblingthe
pressure washer. Identify ali contents with the iiiustration on
page 6. if any parts are missing or damaged,callthe
pressure washer helpline at 1=888=222=3136.
ASSEMBLINGCLEANINGSYSTEM
Your Craftsman cJeaning system wJJJneed assembJy before
operation:
1. Fiii out and send in registration card.
2. Attach handleand accessorytray.
3. Connectdetergent siphon hoseto pump.
4. Add oii to engine crankcase.
5. Add fuel to fuel tank.
6. Connectpressure hoseto spray gun and pump.
7. Connectwater supply to pump.
8. Attach nozzleextension to spray gun.
9. Select/attachquick connect ProjectPro@nozzleto nozzle
extension.
Attach Handle and Aecesse_ Tray
1. Placehandle (A) onto handlesupports (B) connectedto
main unit. Make sure holes (C) in handlealign with holes
(C) on handle supports.
NOTE:It may be necessaryto move the handle supports
from sideto side in order to align the handie so it wiii slide
overthe handiesupports.
2. Insert carriageboits (A) through holesfrom outside of
unit and attach a plastic knob (B) from inside of unit.
Tighten by hand.
3. Piaceaccessorytray (A) over hobs (C) on handle
(viewing from front of unit). Pushthe tree clips (B) into
the holes untii they sit fiat againstthe accessorytray.
/
/
Insert multi-colored ProjectPro@nozzlesand other
supplied accessories in spaces provided in accessory
tray. SeeHow to UseAccessory Tray.

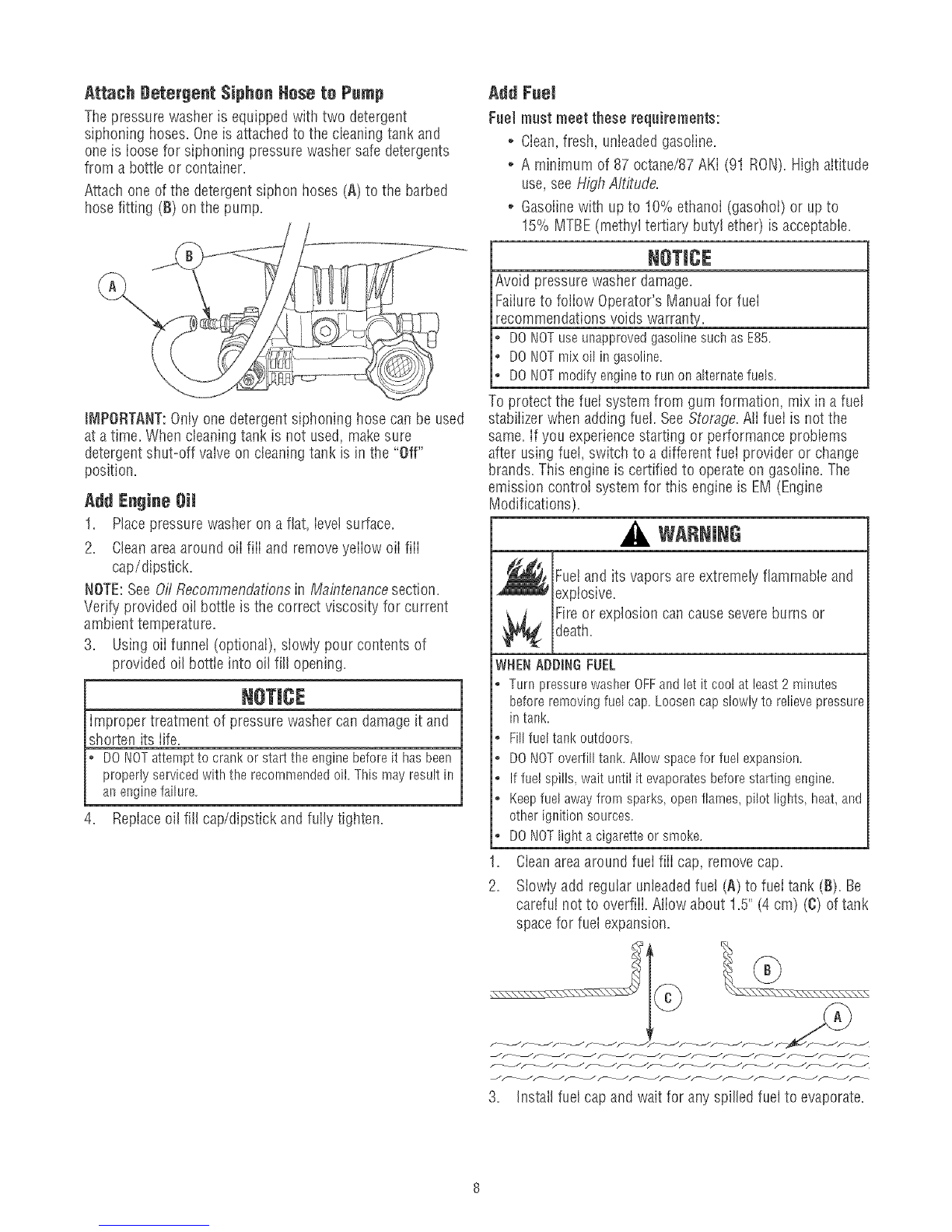

Attach Detergent Siphon Hose te Pemp
Thepressure washer is equipped with two detergent
siphoning hoses.One is attachedto the cleaningtank and
one is loosefor siphoning pressure washer safe detergents
from a bottle or container.
Attach one of the detergent siphon hoses (A) to the barbed
hose fitting (B) on the pump,
Add Fuel
Fuel must meet these requirements:
o Clean,fresh, unleadedgasoline.
.A minimum of 87 octane/87AKI (91 RON).High altitude
use,see High Altitude.
.Gasolinewith up to 10% ethanol (gasohot) or up to
15% MTBE(methyl tertiary butyl ether) is acceptable.
IMPORTANT:Onlyone detergent siphoning hosecan be used
at a time. When cleaningtank is not used, makesure
detergent shut-off valve on cleaningtank is in the "Off"
position.
Add Engine Oit
1. Placepressure washer on a flat, Ieveisurface.
2. Cleanarea around oii fiii and remove yeiiow oii fiii
cap/dipstick.
NOTE:See 0i/Recommendations in Maintenancesection.
Verify provided oil bottle is the correct viscosity for current
ambient temperature.
3. Using oiI funnel (optional), slowly pour contents of
provided oil bottie into oil fill opening.
improper treatment of pressurewasher can damageit and
shorten its iife.
DONOTattempttocrankor starttheenginebeforeit hasbeen
properlyservicedwiththerecommendedoil.Thismayresultin
anenginefailure.
4. Replaceoil fill cap/dipstick and fully tighten.
Avoid pressure washer damage.
Failureto follow Operator's Manualfor fuel
recommendations voids warrant,G
DONOTuseunapprovedgasolinesuchasE85.
DONOTmixoil in gasoline.
DONOTmodifyengineto runon alternatefuels.
To protect the fuei system from gum formation, mix in a fuel
stabiiizer when adding fuel. See Storage.Ali fuet is notthe
same. if you experiencestarting or performance problems
after using fuel, switch to a different fuei provider or change
brands. This engine is certified to operateon gasoline. The
emission control system for this engine is EM (Engine
Modifications).
WARNING
Fuetand its vapors are extremely flammable and
explosive.
Fireor explosion can causesevere burns or
death.
WHENADDmNGFUEL
o TurnpressurewasherOFFandletit coo[atleast2 minutes
beforeremovingfuelcap.Loosencapslowlyto relievepressure
in tank.
o Fillfueltankoutdoors.
• DONOTover%tank.Allowspaceforfue!expansion.
o Iffuelspills waituntilitevaporatesbeforestartingengine.
• Keepfuelawayfromsparks,openflames,pilotlights,heat,and
otherignitionsources.
DONOTlighta cigaretteorsmoke.
Cleanareaaround fuet filI cap, removecap.
Slowly add regular unleadedfuet (A) to fuel tank (B). Be
carefui not to overfiii. Aliow about 1.5" (4 cm) (C) oftank
space for fuel expansion.
o
1,
2,

CAUTJSN!AtcohoI-blendedfuels (caiiedgasohoi, ethanol or
methanoi) can attract moisture, which ieadsto separation and
formation of acids during storage.Acidic gascan damagethe
fuei system of an enginewhiie in storage.
Toavoidengineproblems,the fueI systemshouldbetreated
with afuet preserver or emptied beforestorageof 30 daysor
longer,if adding a fue! preserver,fiii the fue! tank with fresh
fuei. if only partialiy filied, air in the tank wiii promote fuel
deterioration during storage, if fueI preserver is not used,
drainthe fueItank, startthe engineand iet it run untiithe fuel
linesand carburetorareempty. Usefresh fueInext season.See
Storagefor additionaiinformation.
NEVERuseengine or carburetor cleanerproducts in the fuel
tank as permanent damagemay occur.
FreshStart FuelCap
Adding fuel preserver helps keepfueI fresh and carburetors
cleanfor easierstarting, ali season iong. This new fuei cap
automatically drips concentratedfuel preserver into your fuel
tank.
BANGER
Contentsare harmful or fatal if swallowed. Avoid
contact to eyes,skin or clothing. DONOTtake
internally.Avoid breathingthe mist or vapor.
Overexposureto eyesor skin can causeirritation.
Keepstabilizerout of the reachof shiidren.
Fueistabiiizer is a hazardouschemical.**
If SWALLOWED,callphysicianimmediately.
*h_thecaseof anemergency,contacta physicianimmediately
andcall1-800-424-9300for materialsafety[nforrnation.
**Fuel stabilizer contains: 2,6-dbtret-butylphenol (128-39-2) and aiiphatic petroleum
distillate (64742-47-8),
1. Placecartridge into fuet cap.
4. Reinstallfue! cap on fueltank.
5. Periodicaliy checkthe cartridge to ensurethere is stiii
fuei stabilizer inside. If it is empty, removecartridge and
replace.
Nigh,_Nitude
At altitudes over5,000 feet (1524 meters), a minimum
85 octane/85 AKI (89 RON)gasoline is acceptable.To
remainemissions compiiant, high aititude adjustment is
required. Operationwithout this adjustment wiii cause
decreasedperformance, increased fueI consumption, and
increasedemissions. Seea qualified Searsdealerfor high
altitude adjustment information. Operationof the engine at
altitudes below 2,500 feet (762 meters) with the high altitude
kit is not recommended.
Cennect Hese and Water Supply te Pump
NOTE:Removeand discardthe shipping caps from the
pump's high pressure outlet and water inlet beforeattaching
hoses.
DONOTrun the pump without the water supply connected
and turned on.
Damageto equipmentresultingfrom failureto followthis
instructionwillvoidwarranty
Uncoil high pressure hose and attach one end of hoseto
baseof spray gun. Tighten by hand.
.... j
j/ /
2. Pushto "snap" cartridge into piace.
3. Removetab to expose membrane.
iMPORTANT:DONOTremovethe silver foil sealon the
opposite side.
WARNING
Thehigh pressurestream of water that this
_ quipment produces cancut through skin and itsunderlyingtissues, ieadingto serious injury and
}ossibb amputation.
o NEVERconnecthighpressurehoseto nozzleextension.
• Keephighpressurehoseconnectedto purnpandspraygun
whilesystemis pressurized.
• Alwaysbecertainspraygun,nozzbsandaccessoriesare
correctlyattached.

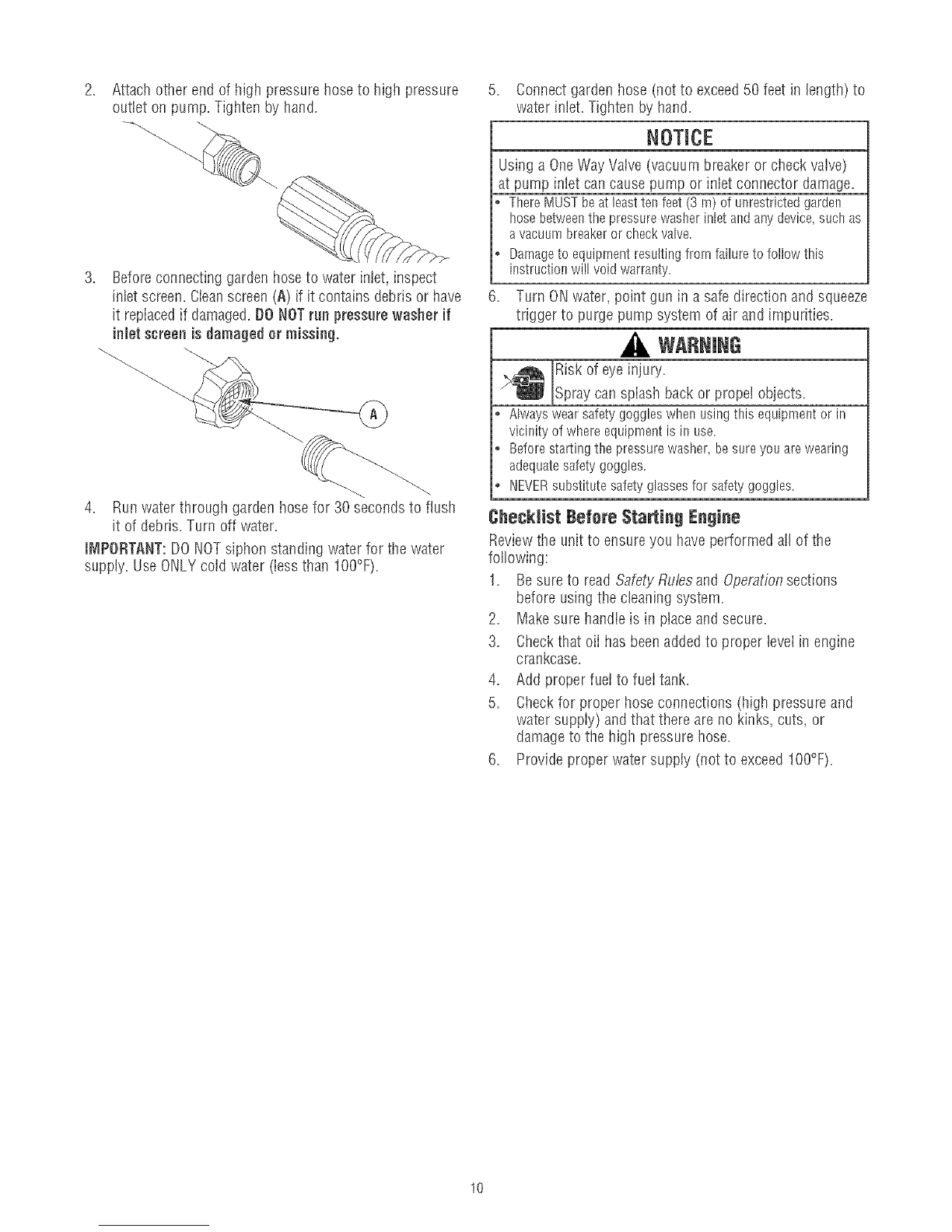

.Attach other end of high pressure hoseto high pressure
outlet on pump. Tighten by hand.
3. Beforeconnectinggarden hoseto water inlet, inspect
inlet screen.Cleanscreen (A) if it contains debris or have
it replacedif damaged.DONOTrun pressure washer if
inlet screen isdamaged or missing.
.Run water through garden hose for 30 secondsto flush
it of debris. Turn off water.
IMPORTANT:DONOTsiphon standing water for the water
supply. UseONLYcold water (less than 100%).
5. Connectgarden hose (notto exceed50 feet in length) to
water inlet. Tighten by hand.
NOTICE
Using a OneWay Valve(vacuum breakeror checkvalve)
at pump inlet cancause pump or inlet connector damage.
ThereMUSTbeatleasttenfeet(3 rn)ofunrestrictedgarden
hosebetweenthepressurewasherinletandany'device,suchas
avacuumbreakeror checkvalve.
Damageto equipmentresultingfromfailuretofollowthis
instructionwillvoidwarranty,
6, Turn ONwater, point gun in a safe direction and squeeze
trigger to purge pump system of air and impurities.
WARNING
IRisk of eyeinjury.
_Spray cansplash back or propel objects.
Alwayswearsafetygoggleswhenusingthis equipmentor in
vicinityof whereequipmentisin use.
Beforestartingthepressurewasher,besureyouarewearing
adequatesafetygoggles.
NEVERsubstitutesafetyglassesfor safetygoggles.
Checklist Befere Starting Engine
Reviewthe unit to ensureyou have performed all of the
following:
1. Besure to read SafetyRu/'esand Operationsections
before usingthe cleaning system.
2. Makesure handle is in placeand secure.
3. Checkthat oii has beenadded to proper levelin engine
crankcase.
4. Add proper fuelto fuei tank.
5. Checkfor proper hoseconnections (high pressure and
water suppiy) and that there are no kinks, cuts, or
damageto the higil pressure hose.
6. Provideproper water supply (not to exceedIO0°F).
10

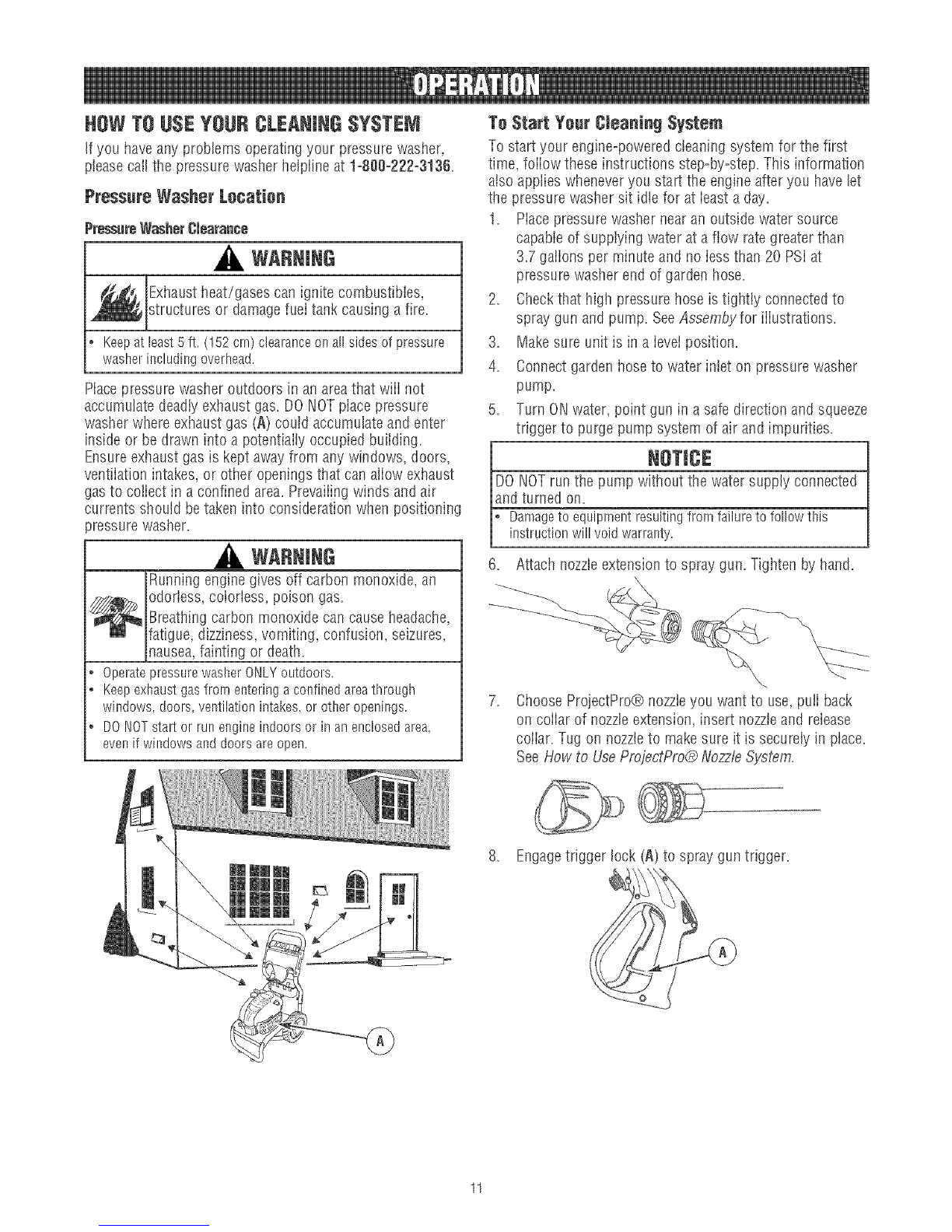

HOWTOUSEYOURCLEANINGSYSTEM
If you haveany probbms operatingyour pressure washer,
pleasecallthe pressure washer heJpfineat 1-800-222-3136,
Pressure Washer Lecation
PressureWasherCJearance
VANNING
Exhaustheat/gases can ignite combustibbs,
structures or damagefuei tank causing a fire.
o Keepatleast5ft. (152cm)clearanceonall sidesofpressure
washerincludingoverhead.
Macepressure washer outdoors in an areathat wiii not
accumulate deadtyexhaustgas. DONOTpiacepressure
washer where exhaustgas (A) could accumulateand enter
inside or be drawn into a potentiaily occupied building.
Ensureexhaustgas is kept awayfrom any windows, doors,
ventiiation intakes, or other openingsthat can aliow exhaust
gasto coiiect in a confined area. Prevaiiingwinds and air
currents should be taken into considerationwhen positioning
_ressurewasher.
WARNING
Runningengine gives off carbon monoxide, an
odorless, colorless, poison gas.
Breathingcarbon monoxide can causeheadache,
fatigue, dizziness,vomiting, confusion, seizures,
nausea,fainting or death.
° OperatepressurewasherONLYoutdoors.
o Keepexhaustgasfromenteringaconfinedareathrough
windows,doors,ventilationintakes,or otheropenings.
• DONOTstat or runengineindoorsor in anenclosedarea,
evenif windowsanddoorsareopen.
To Start Your Cleaning System
To start your engine=poweredcleaning system for the first
time, foiiow these instructions step=by=step.This information
also applies wheneveryou start the engine after you havelet
the pressure washer sit idle for at bast a day.
1. Placepressure washer nearan outside water source
capableof supplying water at a flow rategreater than
3.7 galions per minute and no iess than 20 PSi at
pressurewasher end of garden hose.
2. Checkthat higil pressure hose istightty connectedto
spray gun and pump. SeeAssemby for illustrations.
3. Makesure unit is in a ieveiposition.
4. Connectgarden hoseto water intet on pressure washer
pump.
5. Turn ONwater, point gun in a safe direction and squeeze
trigger to purge pump system of air and impurities.
[DONOTrun the pump without the water supply connected
and turned on.
t amageto equipmentresultingfrom failureto followthisinstructionwillvoidwarranty
6. Attach nozzleextension to spray gun. Tighten by hand.
X
ChooseProjectPro@nozzleyou want to use, puiI back
on coiiar of nozzleextension, insert nozzleand release
coliar. Tug on nozzleto makesure it is securely in place.
SeeHow to UseProjectPro@NozzleSystem.
8. Engagetrigger lock (A) to spray gun trigger.
11

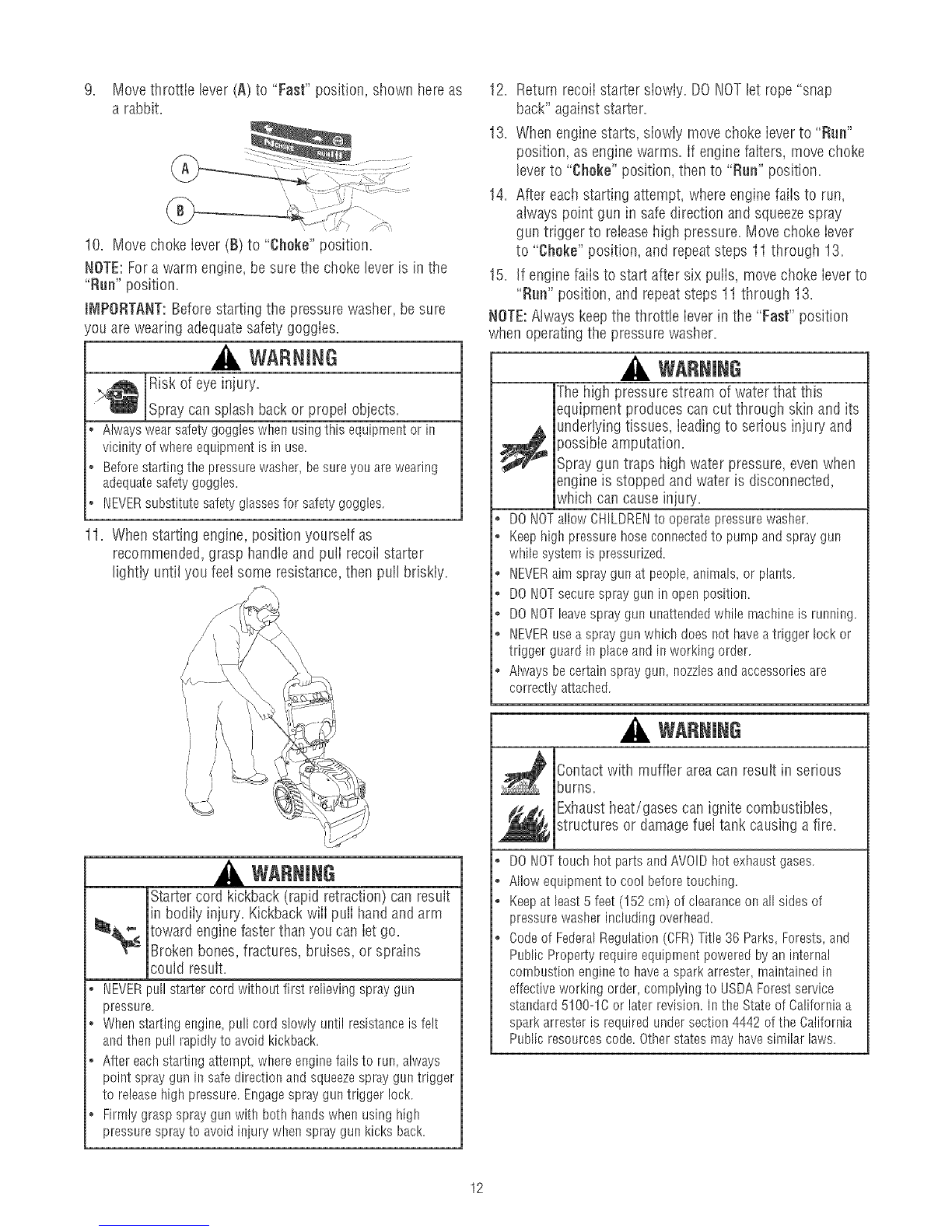

9. Move throttie lever (A) to "Fast" position, shown here as
a rabbit.
10=Move choke lever (B) to "Choke" position.
NOTE:Fora warm engine, be surethe choke lever is in the
"Run" position.
iMPORTANT:Beforestarting the pressure washer, be sure
'ou are wearing adequatesafety goggles.
WABNING
Risk of eyeinjury.
=_Spray cansp ash back or propel objects.
Alwayswearsafetygoggleswhenusingthis equiprnentor in
vicinityofwhereequipmentisin use.
Beforestartingthepressurewasher,besureyouarewearing
adequatesafetygoggles.
NEVERsubstitutesafetyglassesforsafetygoggles.
1. Whenstarting engine, position yourself as
recommended, grasp handle and pull recoii starter
lightly until you feel some resistance,then pulI briskly.
WARNING
Startercord kickback(rapid retraction) can result
in bodily injury. KickbackwilI pulI handand arm
toward enginefaster than youcan iet go.
Brokenbones, fractures, bruises, or sprains
could result.
o NEVERpullstartercordwithoutfirst relievingspraygun
pressure.
• Whenstartingengine_pullcordslowlyuntilresistanceisfelt
andthenpul!rapidlyto avoidkickback.
o Aftereachstartingattemptwhereenginefails1orun,always
pointspraygunin safedirectionandsqueezesprayguntrigger
to releasehighpressure.Engagesprayguntriggerlock.
o Firmlygraspspraygunwith bothhandswhenusinghigh
pressuresprayto avoidinjurywhenspraygunkicksback.
12. Return recoii starter siowiy. DOriOT let rope "snap
back" against starter.
13. When engine starts, siowiy movechoke ieverto "Run"
position, as engine warms, if engine falters, move choke
leverto "Choke" position, then to "Run" position.
14. After eachstarting attempt, where enginefails to run,
always point gun in safe direction and squeezespray
gun trigger to releasehigh pressure. Move choke lever
to "Choke" position, and repeatsteps 11 through 13.
15. If enginefaiis to start after six pulis, movechoke ieverto
"Run" position, and repeatsteps 11 through 13.
NOTE:Always keepthe throttle iever in the "Fast" position
when operatingthe pressure washer.
WARNING
Thehigh pressurestream of water that this
equipment produces can cut through skin and its
underlyingtissues, ieadingto serious injupj and
_ossibleamputation.
Spray gun traps high water pressure,evenwhen
engine is stopped and water is disconnected,
which can cause injury.
o DONOTa!lowCHILDRENtooperatepressurewasher.
• Keephighpressurehoseconnectedto pumpandspraygun
whilesystemis pressurized.
oNEVERaimspraygunatpeople,animals_or plants.
• DONOTsecurespraygun inopenposition.
o DONOTleavespraygununattendedwhilemachineis running.
o NEVERusea spraygunwhichdoesnothaveatriggerlockor
triggerguardin placeandin workingorder.
o Alwaysbecertainspraygun,nozzlesandaccessoriesare
correctlyattached.
WARNING
Contact with muffler area can result in serious
burns.
Exhaustheat/gases can ignite combustibles,
structures or damagefuel tank causing a fire.
o
®
o
DO NOTtouch hot parts and AVOIDhot exhaust gases.
Allow equipment to cool beforetouching.
Keepat least 5 feet (152 cm) of clearanceon all sides of
pressure washer including overhead.
Codeof FederalRegulation (CFR)Title 36 Parks Forests, and
Public Property require equiprnent powered by an internal
combustion engine1ohave aspark arrestor rnaintainedin
effective working order, complying to USDAForestservice
standard 5100-1C or later revision. Intl_eStateof California a
spark arrestor is required undersection 4442 of the California
Public resources code. Other states may have similar laws.
12

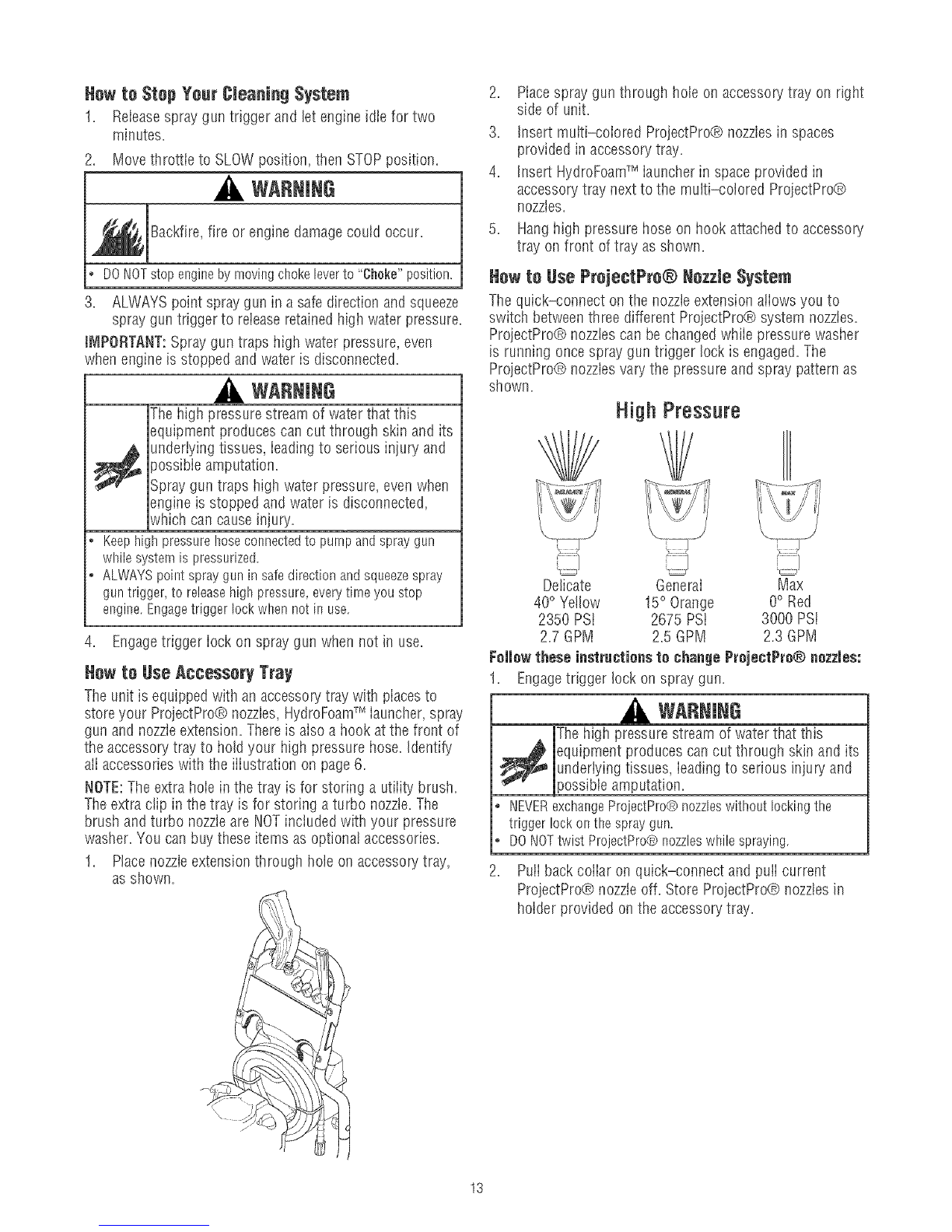

How to Stop Your CJeaningSystem
1= Reieasespray gun trigger and letengine idtefor two
minutes.
2. Move throttie to SLOWposition, then STOPposition.
WARNING
,,_ Backfire,fire or engine damagecouId occur.
o DONOTstope%inebymovingchokeleverto "Cheke"position.
3. ALWAYSpoint spray gun in a safe direction and squeeze
spray gun trigger to releaseretainedhigh water pressure.
Jt_PORTANT:Spraygun traps high water pressure,even
when engine is stopped and water is disconnected.
WANNING
The high pressure stream of water that this
equipment produces can cut through skin and its
_ nderlying tissues, ieadingto serious injury and
)ossibieamputation.
Spray gun traps high water pressure,evenwhen
engine is stopped and water is disconnected,
which can cause injury.
,Keephighpressurehoseconnectedto purnpandspraygun
whilesystemis pressurized.
oALWAYSpointspraygunin safedirectionandsqueezespray
guntrigger,to releasehighpressureeverytimeyoustop
engine.Engagetriggerlockwhennotinuse.
4. Engagetrigger iock on spray gun when not in use.
Hew ts Use Accesssry Tray
Theunit is equipped with an accessorytray with piacesto
store your ProjectPro@nozzles,HydroFoamTM iauncher, spray
gun and nozzleextension. Thereis aiso a hook at the front of
the accessorytray to hold your high pressure hose. Identify
ali accessorieswith the iiiustration on page6.
NOTE:Theextra hoie in the tray is for storing a utiiity brush.
Theextra clip in thetray is for storing a turbo nozzle.The
brush and turbo nozzleare NOTincludedwith your pressure
washer.You canbuy these items as optional accessories.
1. Placenozzleextensionthrough hole on accessorytray,
asshown.
.
3.
4.
.
Macespray gun through hole on accessorytray on right
side of unit.
Insert multi-coIored ProjectPro@nozzlesin spaces
provided in accessorytray.
Insert HydroFoamTM iauncherin spaceprovided in
accessorytray next to the multi-colored ProjectPro@
nozzles.
Hanghigh pressure hose oil hook attachedto accessory
tray oll front of tray as shown.
Hew ts Use PrsjectPrs@ Hszz!e System
Thequick-connect on the nozzleextensionatiows you to
switch betweenthree different ProjectPro@system nozzles.
ProjectPro@nozzlescan be changedwhile pressure washer
is running oncespray gun trigger lock is engaged.The
ProjectPro® nozzlesvary the pressure and spray pattern as
shown. High Pressure
Delicate General Max
40° Yellow 15° Orange 0° Red
2350 PSI 2675 PSI 3000 PSi
2.7 GPM 2.5 GPM 2.3 GPM
Fellewthese iestructieeste changePrejectPre@ nezzles:
1. Engagetrigger lock on spray gun.
WARNING
Thehigh pressurestream of water that this
_ quipment produces cancut through skin and its
underlyingtissues, ieadingto serious injup/and
}ossible amputation.
o NEVERexchangeProjectPro®nozzleswithoutlockingthe
triggerlockonthespraygun.
•DONOTtwist ProjectPro®nozzleswhilespraying.
2. PuIi backcoiiar on quick-connect and puli current
ProjectPro@nozzle off. Store ProjectPro@nozzlesin
holder provided oll the accessorytray.
13

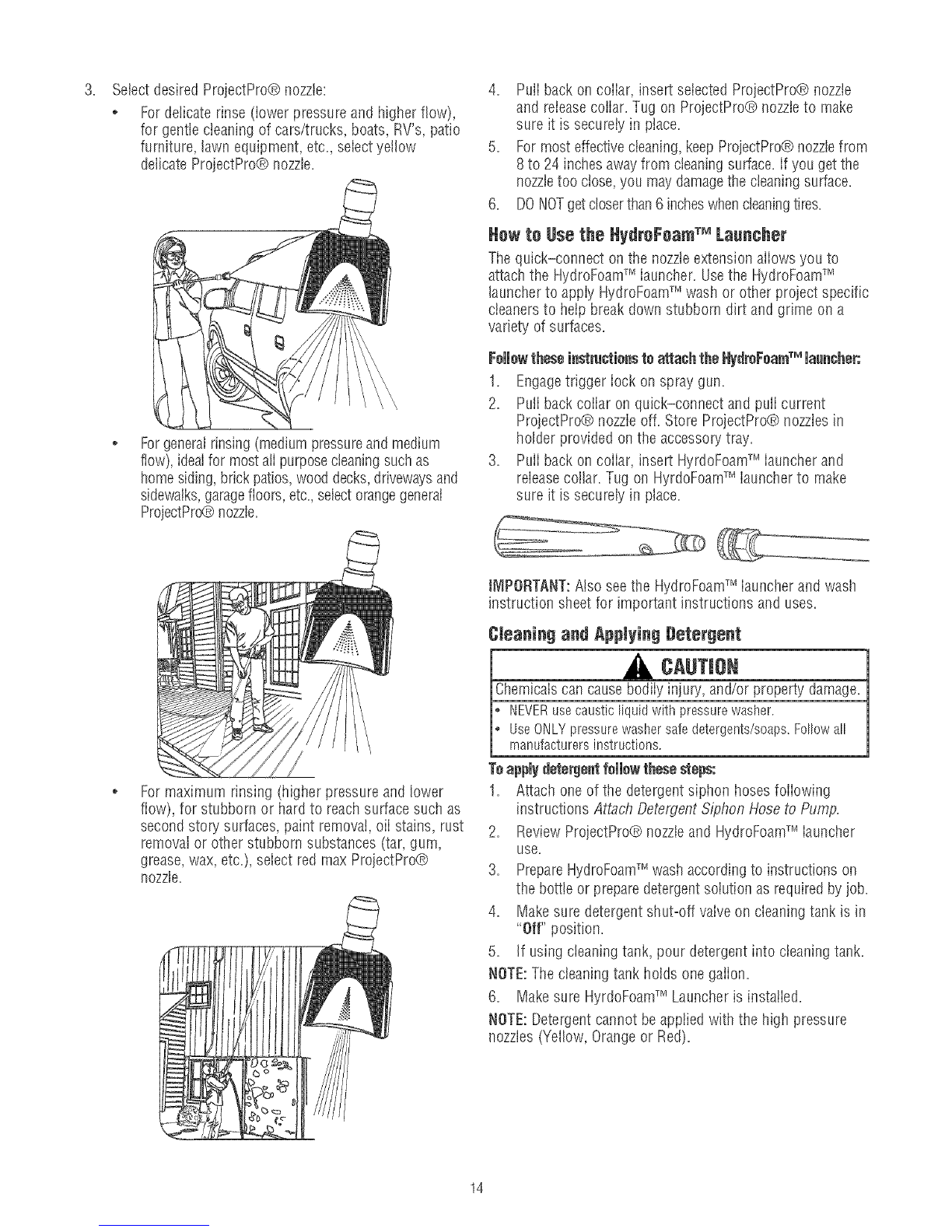

,Select desired ProjectPro® nozzle:
*Fordelicate rinse (lower pressure and higher flow),
for gentb cleaning of cars/trucks, boats, RV's, patio
furniture, lawn equipment, etc. selectyellow
delicate ProjectPro® nozzle.
Forgeneralrinsing(medium pressureand medium
flow), idealfor mostatI purposecleaningsuch as
homesiding,brick patios,wooddecks,drivewaysand
sidewalks,garagefloors, etc.,selectorangegeneral
ProjectPro@nozzle.
Formaximum rinsing (higher pressure and lower
flow), for stubborn or hard to reachsurfacesuch as
second story surfaces,paint removal,oii stains, rust
removalor other stubborn substances (tar, gum,
grease,wax, etc.), select red max ProjectPro@
nozzle.
4. Pull back on collar, insert selectedProjectPro@ nozzle
and releasecollar. Tug on ProjectPro@nozzleto make
sure it is secureiy in ptace.
5. Formost effectivecleaning,keepProjectPro@nozzlefrom
8to 24 inchesawayfrom cleaningsurface. If you get the
nozzietoo ctose,you may damagethe cleaningsurface.
6. DONOTgetcloserthan6 incheswhencleaningtires.
Hew te Use the HydroFoam TM Launcher
The quick-connect on the nozzleextension aliows you to
attach the HydroFoamTM launcher. Usethe HydroFoamTM
launcherto appiy HydroFoamTM wash or other project specific
cleaners to heip break downstubborn dirt and grime on a
variety of surfaces.
Fellowthese instru_,-tiansta attachthe HydrePeamTM launcher:
1. Engagetrigger iock oil spray gun.
2. Puli back coliar on quick-connect and puli current
ProjectPro@nozzleoff. Store ProjectPro@nozzlesin
holder provided on the accessorytray.
3. Puii back on coiiar, insert HyrdoFoamTM iauncherand
releasecollar. Tug on HyrdoFoamTM launcherto make
sure it is securely in place.
IMPORTANT:Also seethe HydroFoamTM launcherand wash
instruction sheet for important instructions and uses.
Cteanin9 and Applyin9 Detergent
injury, and/or property damage.
NEVERusecausticliquidwithpressurewasher.
UseONLYpressurewashersafedetergents/soaps.Followall
rnanufacturersinstructions.
l"eapplydetergentfallow thesesteps:
1. Attach oneof the detergent siphon hosesfollowing
instructions Attach OetergentSiphon Hoseto Pump.
2. ReviewProjectPro® nozzleand HydroFoamTM launcher
use.
3. PrepareHydroFoamTM washaccording to instructions on
the bottle or preparedetergentsoiution as requiredby job.
4. Makesure detergent shut-off valve on cleaning tank is in
"Off" position.
5. If using cleaningtank, pour detergent into cleaningtank.
NOTE:Thecleaningtank holds one galIon.
6. Makesure HyrdoFoamTM Launcher is instaibd.
NOTE:Detergentcannot be applied with the high pressure
nozzles(Yellow, Orangeor Red).
14

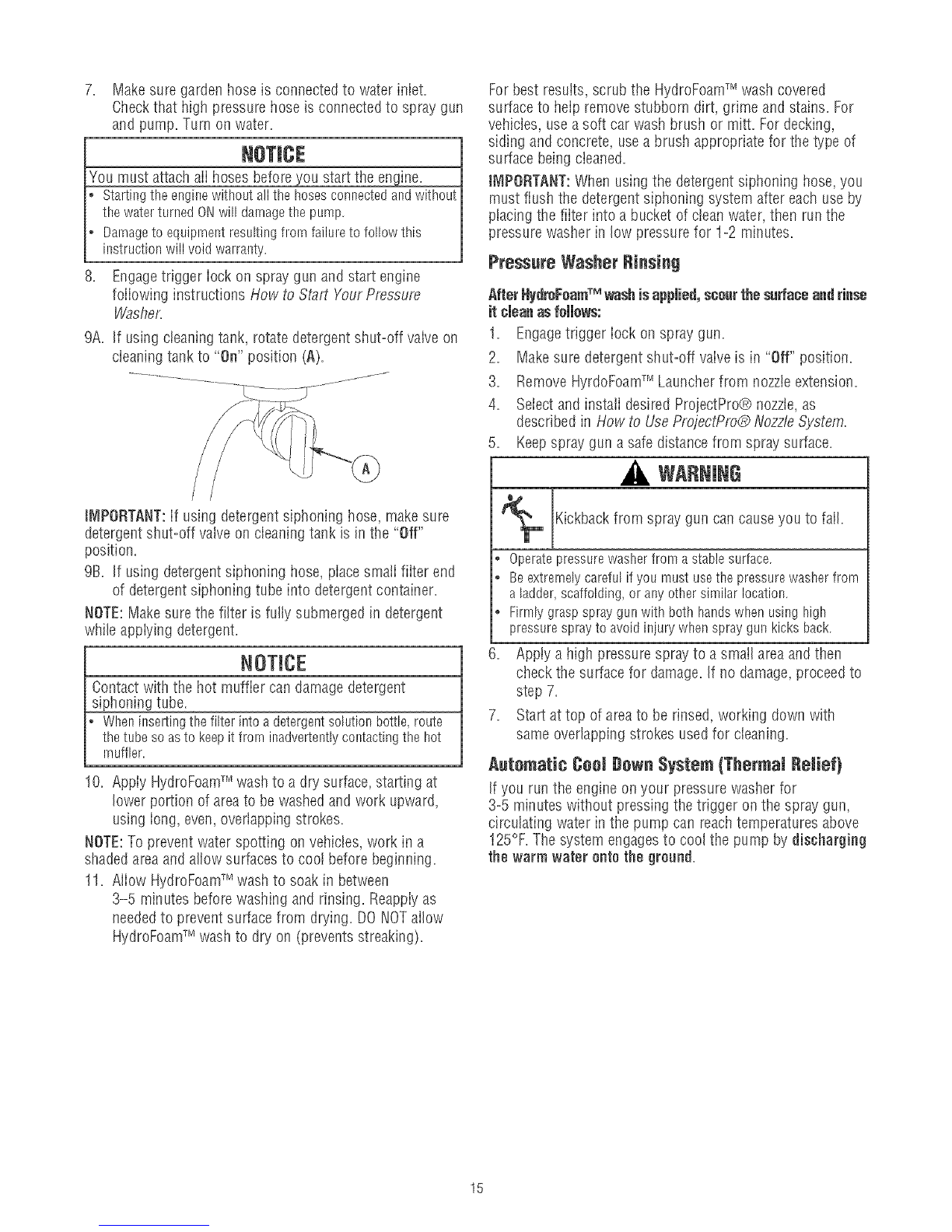

7. Makesuregardenhoseisconnectedtowaterinlet.
Checkthathighpressurehoseisconnectedtospraygun
andpump.Turnonwater.
You must attachalI hoses before
Starti_gtheenginewithoutallthehosesconnectedandwithout
thewaterturnedONwill damagethepump.
Darnageto eqdpmentresultingfrom failuretofollowthis
instructionwillvoidwarranty.
8. Engagetrigger iock on spray gun and start engine
foiiowing instructions How to Start Your Pressure
Washer.
9£ If using cteaningtank, rotate detergentshut-off valve on
cleaningtank to "On" position (A).
/
f
IMPORTANT:If using detergent siphoning hose, makesure
detergent shut-off valve ell cleaningtank is in the "Off"
position.
9B. If using detergentsiphoning hose, placesmall filter end
of detergentsiphoning tube into detergentcontainer.
NOTE:Makesure the filter is fully submerged in detergent
while applying detergent.
NOTICE
Contact with the hot muffler candamagedetergent
siphoning tube.
Wheninsqtingthefilterintoadetergentsolutionbottle,route
thetubesoasto keepit from inadvertently'contactingthehot
rnuffler.
10. Appiy HydroFoamTM washto a dry surface, starting at
lower portion of areato be washedand work upward,
using iong, even,overlapping strokes.
NOTE:To prevent water spotting on vehicles,work in a
shadedareaand allow surfacesto coot before beginning.
11. Allow HydroFoamTM wash to soak in between
3-5 minutes before washing and rinsing. Reappiyas
neededto prevent surfacefrom drying. DO NOTailow
HydroFoamTM wash to dry on (prevents streaking).
Forbest resuits, scrub the HydroFoamTM wash covered
surface to heip remove stubborn dirt, grime and stains. For
vehicles, usea soft car wash brush or mitt. Fordecking,
siding and concrete, use a brush appropriatefor the type of
surface being cleaned.
IMPORTANT:When using the detergent siphoning hose,you
must flush the detergentsiphoning system after ea@ useby
placingthe fiiter into a bucket of cleanwater, then run the
pressure washer in low pressure for 1-2 minutes.
Pressure Washer Rinsing
AfterNydroFoamTM washis applied,s¢onrthe surfaneand rinse
it deae asfdbwn:
1. Engagetrigger lock on spray gun.
2. Makesure detergent shut=off vaive is in "Off" position.
3. RemoveHyrdoFoamTM Launcherfrom nozzteextension.
4. Seiectand instaii desired ProjectPro@nozzle,as
described in How to Use ProjectPm@NozzleSystem.
5. Keepspray gun a safe distancefrom spray surface.
WARNING
Kickbackfrom spray gun cancauseyou to fail.
6.
*Operatepressurewasherfrom astablesurface.
, Beextremelycarefulifyou mustusethepressurewasherfrom
a ladder,scaffolding,or anyothersimilarlocation.
o Firmlygraspspraygunwithbothhandswhenusinghigh
pressuresprayto avoidinpry whenspraygunkicksback.
Apply a high pressure spray to a small areaand then
check the surface for damage.If no damage,proceedto
step 7.
Start at top of areato be rinsed, working down with
same overlapping strokes usedfor cleaning.
Autemati¢ Cod Dewu System (Thermal Relief}
If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray gun,
circulating water in the pump can reachtemperatures above
125°F.Thesystem engagesto cool the pump by discharging
the warm water onto the grennd.
15

ENGINETECHNICALiNFORtViATION
This is a single cylinder, overheadvalve (OHV),air cooled
engine, it is a iow emissions engine.
Inthe Stateof Caiifornia, Model 120000 enginesare certified
by the California Air Resources Boardto meet emissions
standardsfor 125 hours. Such certification does not grant
the purchaser, owner or operator of this engine any
additional warranties with respectto the performance or
operational life of this engine.Theengine is warranted soidy
according to the product and emissions warranties stated
elsewherein this manual=
Power Ratings
Thegross power rating for individuaI gas engine models is
labeledin accordancewith SAE(Societyof Automotive
Engineers)codeJ1940 (Small Engine Power & Torque
Rating Procedure),and rating performance hasbeen
obtained andcorrected in accordancewith SAEJ1995
(Revision2002=05).Torquevalues are derived at3060 RPM;
horsepower values are derivedat 3600 RPM.Actuai gross
engine power wiii be lower and is affected by, among other
things, ambient operating conditions and engine-to-engine
variabiiity. Givenboth the wide array of products on which
enginesare placedand the variety of environmental issues
appiicabb to operatingthe equipment, the gas engine wiii not
developthe ratedgross power when used in a given pieceof
power equipment (actual "on-site"or net power). This
difference is due to a variety of factors including, but not
limited to, accessories (air cteaner,exhaust,charging,
cooiing, carburetor, fuel pump, etc.), appiication iimitations,
ambient operating conditions (temperature,humidity,
altitude), and engine-to-engine variabiiity. Due to
manufacturing and capacity iimitations, Briggs & Stratton
maysubstitute an engine of higher ratedpower for this
Seriesengine.
PRODUCTSPECiFiCATiONS
PressureWasherSpecifications
Max Outbt Pressure ....................... 3,000 PSi
Max FtowRate............................. 2.7 GPM
ChemicatMix......................... Use asdirected
Water SupplyTemperature .......... Not to exceed IO0°F
Shipping Weiglst............................. 71 Ibs.
Engine Specifications
Bore ................................. £69 in. (68mm)
Stroke ............................... £04 in. (52ram)
Displacement ........................ 11.57in. (190 cc)
SparkPlug
Type:..................... Briggs & Stratton 491055S
SetGapTo: ...................... O.020inch(O.50mm)
ArrnatureAir Gap: ........... 0.006-0.014in.(O.15-0.36rnm)
Valveclearancewithvalvespringsinstalledand piston1/4in,
(6 turn)pasttopdeadcenter(checkwhenengineiscold),
Intake.................... 0.004°0.006in.(0.10=0.15ram)
Exhaust .................. 0.004-0.008in.(O.10-O.20turn)
FuelCapacity............................... 1.6Quarts
OilCapacity....................... 22 Ounces(0.65liter)
NOTE:Forpracticai operation, the engine ioad should not
exceed 85% of rated power. Enginepower will decrease
3-I/2% for each1,000 feet (300 meters) abovesea Ieveiand
1% for each 10° F(5.6° C) above77° F(25° C). It should
operatesatisfactorily at an angle up to 15°.
16

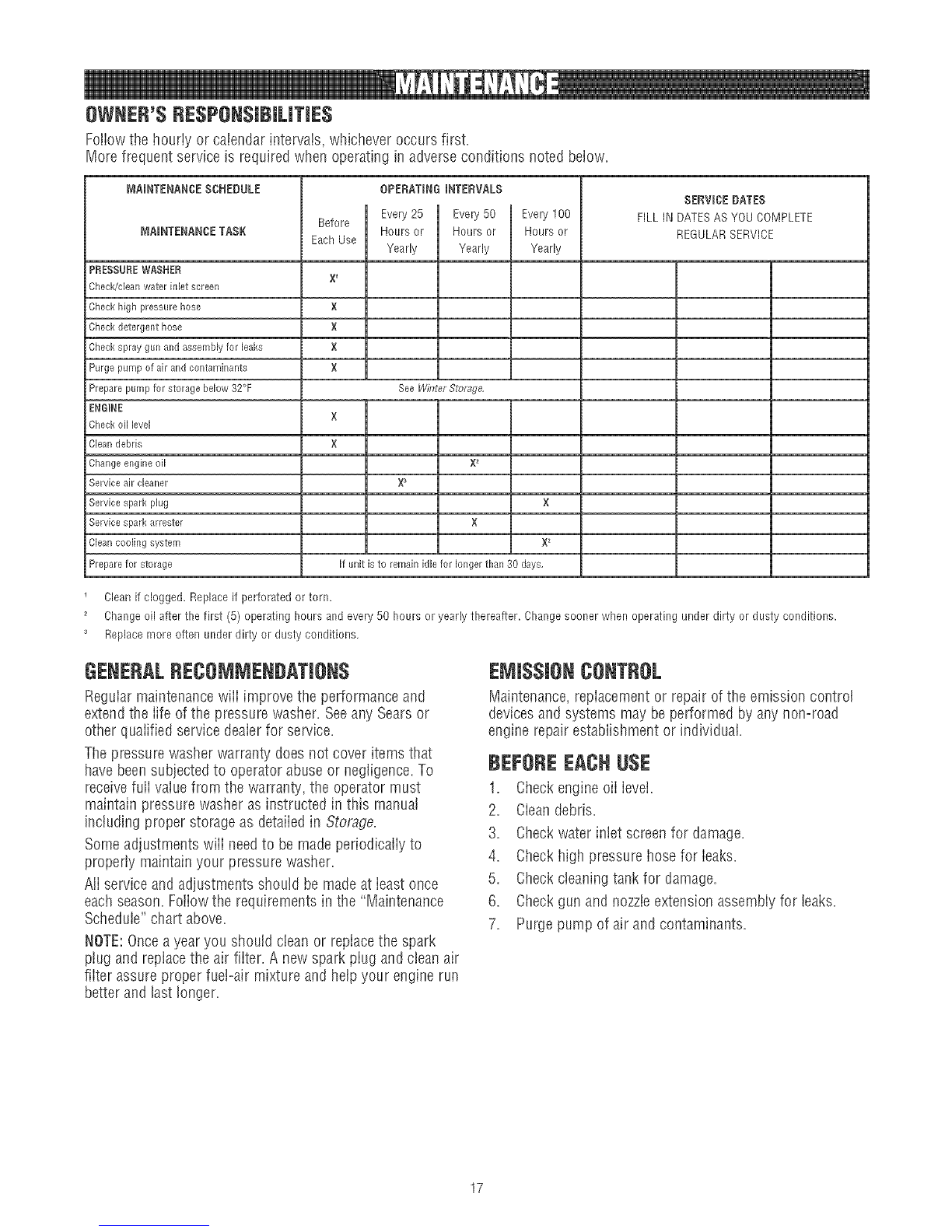

OWNER'SRESPONSiBiLiTIES
Followthe hourly or calendarintervals, whichever occurs first.
More frequent service is required when operating in adverse conditions noted below.
MABNTENANCESCHEBULE
_ABNTENANCETASK
PRESSUREWASHER
Chec_dcieanwater inlet screen
Check high pressure hose
Check detergent hose
Checkspray gun and assembly for leaks
Purge pump of air and contaminants
Prepare pump for storage below 32°F
ENGINE
Before
EachUse
X 1
X
X
X
X
OPERATINGINTERVALS
Every25 1 Evely 50
Hours or Hours or
Yearly Yearly
See WiRter Storage,
Every 1O0
Hours or
Yearly
SERVICEDATES
FILL IN DATESAS YOU COMPLETE
REGULARSERVICE
Check oil level
Clean debris
Changeengine oil
Service air cleaner
Service spark plug
Service spark attester
Clean cooling system
Prepare for storage
×
×
X_
X
×
X_
if unit is to remain idle for longer than 30 days,
Cleanif clogged. Replaceif perforated or torn.
Change oil after the first (5) operating hours and every 50 hours or yearly thereafter. Changesooner when operating under dirty or dusty conditions.
Replacemore often under dirty or dusty conditions,
GENERALRECOMMENDATIONS
Reguiarmaintenancewill improve the performanceand
extendthe life of the pressure washer. Seeany Searsor
other qualified service deaierfor service.
Thepressure washer warranty doesnot cover items that
havebeen subjectedto operator abuseor negligence.To
receivefuli valuefrom the warranty, the operator must
maintain pressure washer as instructed in this manual
including proper storage as detaiiedin Storage.
Someadjustments wili needto be madeperiodicaliy to
properly maintain your pressure washer.
Ali serviceand adjustments should be madeat ieast once
eachseason.Foliow the requirementsin the "Maintenance
Schedule" chart above.
NOTE:Oncea year you should clean or replacethe spark
ptug and replacethe air fiiter. A new spark piug and clean air
fiiter assure proper fuel-air mixture and hetpyour engine run
better and last longer.
EMISSIONCONTROL
Maintenance,replacementor repair ofthe emission control
devicesand systems may be performed by any non-road
engine repair establishment or individual.
BEFOREEACHUSE
1. Checkengine oil Ievei.
2. Cleandebris.
3. Checkwater inlet screen for damage.
4. Checkhigh pressure hose for ieaks.
5. Checkcleaningtank for damage.
6. Checkgun and nozzteextension assembly for leaks.
7. Purge pump of air and contaminants.
17

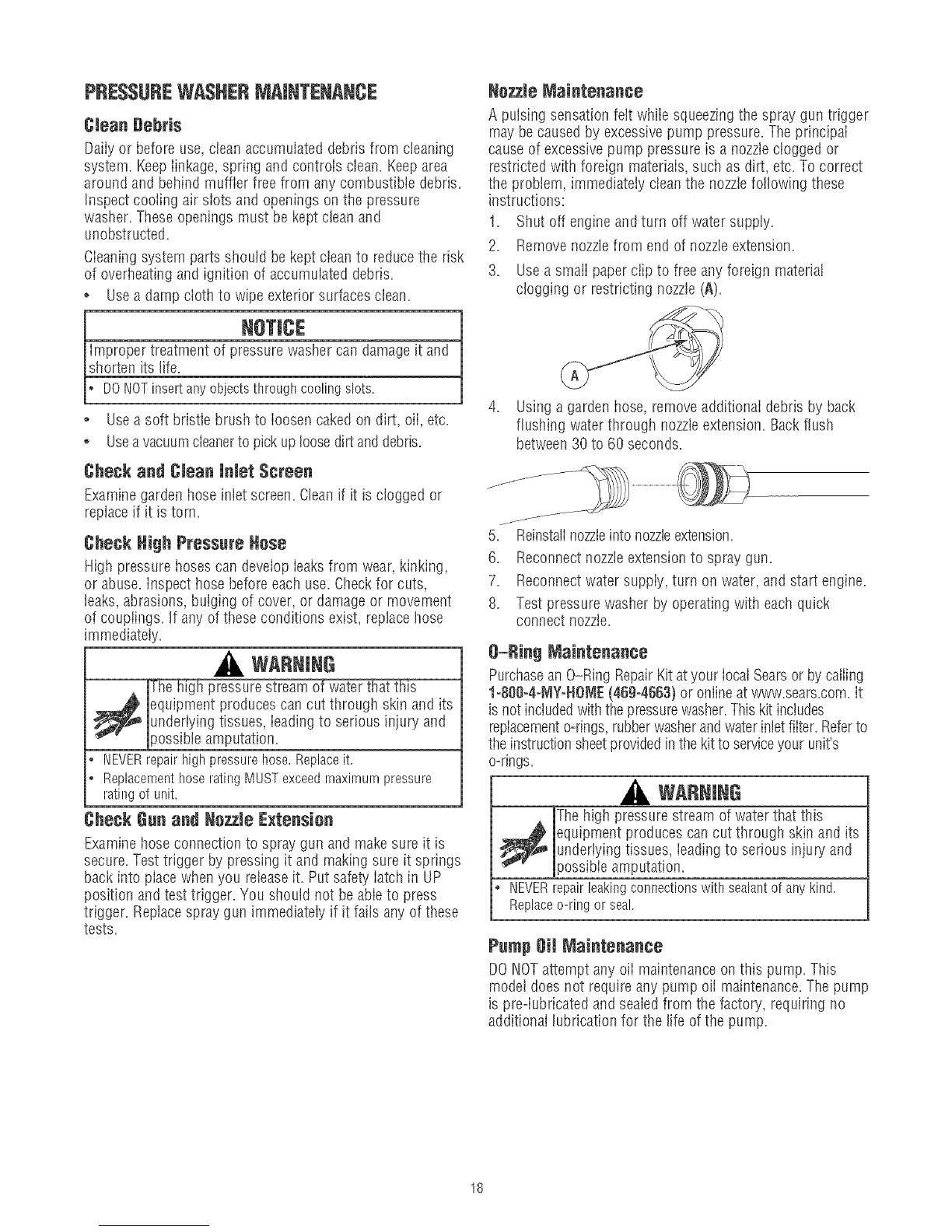

PRESSUREWASHERMAINTENANCE
CmeanDebris
Daily or before use, cleanaccumuiated debris from cleaning
system. Keepiinkage, spring and controis clean. Keeparea
around and behind muffler free from any combustibie debris.
Inspect cooiing air siots and openings on the pressure
washer.These openings must be kept cleanand
unobstructed.
Cieaningsystem parts should be kept cleanto reducethe risk
of overheatingand ignition of accumuiated debris.
. Usea damp cloth to wipe exterior surfaces clean.
NOTICE
jImproper treatment of pressurewasher can damageit and
_horten _ ....
_ts
L: DONOTinsertanyobjectsthroughcoolingslots.
, Usea soft bristle brush to ioosen cakedon dirt, oii, etc.
, Useavacuumcleanerto pickup loosedirtanddebris.
Check and Cmean[n_etScreen
Examinegarden hose inlet screen.Cleanif it is clogged or
replaceif it is torn.
Check High Pressnre Hese
High pressure hoses can developieaks from wear, kinking,
or abuse, inspect hose beforeeach use. Checkfor cuts,
leaks,abrasions, bulging of cover, or damageor movement
of couplings. If any of ttlese conditions exist, replacehose
immediately.
)ossible
WARNING
pressure stream l
mtation.
NEVERrepairhighpressurehose.Replaceit.
ReplacementhoseratingMUSTexceedmaximumpressure
ratingof unit.
Check Gnn and Hezzle Extensien
Examinehose connectionto spray gun and makesure it is
secure.Testtrigger by pressing it and making sure it springs
back into piacewhenyou releaseit. Put safety iatch in UP
position and test trigger. You should not beable to press
trigger. Replacespray gun immediately if it fails any of these
tests.
Hezzle Maintenance
A pulsing sensation felt while squeezingthe spray gun trigger
may be caused by excessivepump pressure.The principal
cause of excessivepump pressure is a nozzleclogged or
restricted with foreign materiais,such as dirt, etc. To correct
the problem, immediately cleanthe nozzlefollowing these
instructions:
1. Shut off engine andturn off water supply.
2. Removenozzlefrom end of nozzleextension.
3= Usea small paperclip to free any foreign material
clogging or restricting nozzle (A).
4= Using a garden hose, removeadditionai debris by back
flushing water througil nozzteextension. Backflush
between30 to 60 seconds.
5. Reinstaiinozzleinto nozzleextension.
6. Reconnectnozzleextensionto spray gun.
7. Reconnectwater supply, turn on water, and start engine.
8. Test pressure washer by operating with eachquick
connect nozzle.
O_Ring Maintenance
Purchasean O-Ring RepairKitatyour iocaiSearsor by caliing
1-See-4-MY-HOME(469-4663) or online atwww.sears.com,it
isnot includedwith the pressurewasher.Thiskit includes
replacemento-rings,rubberwasherandwater inletfilter=Referto
the instructionsheetprovidedin thekit to serviceyour unit's
o-rings.
WARNING
Thehigh pressurestream of water that this
_ quipment produces cancut through skin and its
underlyingtissues, ieadingto serious injury and
)ossible amputation.
o NEVERrepairleakingconnectionswith sealantof anykind.
Replaceo-ringor seal.
PrimpOiJ Maintenance
DONOTattempt any oil maintenanceon this pump. This
model doesnot require any pump oil maintenance.Thepump
is pre-iubricated and seaiedfrom the factory, requiring no
additional lubrication for the life of the pump.
18

ENGINEMAINTENANCE
WARNING
Unintentional sparking can result in fire or
_electric shock.
WHENADJUSTmNGORMAKmNGREPNRSTO YOURPRESSURE
WASHER
*Disconnectthe spark plug wire from the spark plug and place
the wire where it cannot contact spark plug.
WHENTESTINGFORENGmNESPARK
* Use approved spark plug tester.
o DO NOTcheckfor spark with spark plug rernoved.
Oil
oimRecommendations
NOTE:Usea high quality detergent oiIciassified "For Service
SF,SG,SH, SJ" or higher. DONOTusespecial additives.
1. Choosea viscosity according to the table below:
104 F
86
68
50
32
14
4
-22
40 C
o 30
20
10
_ 0
-10
-20
-30
NOTE:Synthetic oii meeting iLSACGF-2,APIcertification
markand APi service symboi with "SJ/CF ENERGY
CONSERVING"or higher, is an acceptabieoii at aii
temperatures. Useof synthetic oil does not alter required oil
changeintervals.
SAE30: 40°Fand higher (5°C and higher) isgood for aii
purpose useabove40°F, usebelow 40°F will cause hard
starting.
10Wo30:0 to !O0°F(=18to 38°C) is better for varying
temperatureconditions. This viscosity improves coid weather
starting, but may increase oil consumption above80%
(27%).
*Check oii ieveifrequently at higher temperatures,
Synthetic 5w-3g: =20to 120°F(=30to 40 °C) provides the
best protection at all temperatures as well as improved
starting with iess oii consumption,
5W-30: 40°Fand below (5°C and be/ow) is recommendedfor
winter useand works best in cold conditions.
CheckingOil Level
OiIlevelshould be checkedprior to each useor at least every
5 hours of operation. Keepoii ievei maintained.
1. Makesure pressure washer is on a ieveisurface.
2. Removeoii dipstick and wipe dipstick with cleancioth.
Reptaceand tigilten dipstick. Removeand and check oil
levei.
3. Verify oiI is at "FuIF' mark on dipstick. Replaceand
tighten dipstick.
1. Makesure pressure washer is on a Ieveisurface.
2. Checkoii ievei as described in CheckingOffLevel
3. If needed,siowiy pour oil into oil fiii openingto the
"Full" mark on dipstick. DONOToverfill.
Overfiiiing with oil may cause the engine to not start, or
hard starting.
DO NOToverfill.
Ifover the FULLmark on dipstick, drain off to reduceoil levelto
FULLrnark on dipstick.
4. Replaceand tigllten dipstick.
Changeengine oii after the first 5 hours and every 50 hours
thereafter, if you are usingyour pressure washer under
extremeiy dirty or dusty conditions, or in extremely hot
weather, changeoil more often.
CAUTION
Avoid proionged or repeatedskin contact with used motor
oil.
Usedmotoroil hasbeenshownto causeskincancerincertain
laboratoryanimals.
Thoroughlywashexposedareaswith soapandwater.
KEEPOUTOFREACHOFCHILDREN.DON'T
POLLUTE.CONSERVERESOURCES.RETURN
USEDOILTOCOLLECTIONCENTERS.
Changeoil whileengineisstill warmfrom running,asfollows:
1. Drainfuel tank by running pressurewasher until fuel
tank is empty.
2. Disconnectspark plug wire and keepit awayfrom spark
plug.
19

3. Cleanareaaroundoilfill,removeoilfillcap/dipstick.
Wipedipstickclean.
4. Tipyourpressurewashertodrainelifromelifiiiintoa
suitabiecontainermakingsureyoutipyourunitaway
fromsparkplug.Whencrankcaseisempty,return
pressurewashertouprightposition.
5. Slowlypourrecommendedoil(about20oz.)intooilfill
opening.Pausetopermitoiltosettle.Fillto"Full"mark
ondipstick.
6. Wipedipstickcleaneachtimeoillevelischecked.DO
NOToverfill.
7. Replaceandtiglltendipstick.
8. Wipeupanyremainingeli.
g. Reconnectsparkplugwiretosparkplug.
Service Air Cteaner
Your enginewiil not run properly and may be damagedif you
run it with a dirty air cteaner.
Servicethe air cleaneronce every 25 hours of operation or
once eachyear, whichever comes first. Service more often if
operating under dirty or dusty conditions. Replacementsare
availableatyour local Searsservicecenter.
Teservicethe air cleaner,follow these steps:
1. Loosentwo screws (A) and lift off cover (B).
2. Carefully removeair cleaner (C)from base(D).
3. Instati ciean (or new) air cleanerin base. Air cleaner
must fit securely in base.
4. Placecover over air cleanerand tighten screws.
NOTE:You can purchase newair filter elements by caIling
l=800o4=MY=HO_,IE(459-4663).
Service Spark Plu9
Servicethe spark piug every 1O0hours of operation or
yearly, whichever occurs first.
1. Cleanareaaround spark piug.
2. Removeand inspect spark piug.
3. Repiacespark plug if ebctrodes are pitted, burned or
porcelainis cracked. Usethe recommended replacement
plug. See Specifications.
4. Checkebctrode gap with wire feeiergauge and set spark
plug gap to .020 inch (.50 ram) if necessary.
j-
5. Instaii spark piug and tighten firmly.
NOTE:You canpurchase a new spark plug bycalling
l=800o4=MY=HOME(469o4663).
Spark AttesterService
Your engine is not factory=equippedwith a spark arrester. In
some areas,it is iiiegai to operatean engine without a spark
arrester. Checkiocai iaws and regulations. A spark attester is
avaiiablefrom your nearest Searsservicecenter, if you need
to order a spark arrester, pleasecall 1-800-4-MY-t-tOME
(469=4663).
Thespark arrester must be serviced every50 hours to keepit
functioning asdesigned.
If the engine hasbeen running, the muffler wiii be veryhot.
Ailow the muffler to cool before servicingthe spark arrester.
WARNING
_ ontact with muffler area can resuit in serious
burns.
Exhaustheat/gases can ignite combustibles,
structures or damagefuel tank causing a fire.
o DO NOTtouch hot parts and AVOIDhot exhaust gases.
•Allow equipment to cool beforetouchh]g.
o Keepat least5 feet (152 cm) of clearanceon all sides of
pressure washer including overhead.
•Codeof FederalRegulation (CFR)Title 36 Parks,Forests, and
Public Property require equlprnent powered by an inten]al
cornbustion engineto havea spark arrester rnaintainedin
effective working order, complying to USDAForestservice
stal]dard 5100-16 or later revbion. Inthe Stateof 6alifornia a
spark arrester is required undersection 4442 of the California
Public resources code. Other states may have similar laws.
Remove spark arrester screen for cleaning and inspection.
•Replace if screen is damaged.
2O
