OPERATOR'SMANUAL
®
1700 PSi*
1.3 GPIVl
ELECTRICPRESSUREWASHER
WiTHHOSEREEL
iViodelNo. 580.752850
HOURS: IVIon.- Fri. 8 a.m. to 5p.m. (CT)
WARNING
Beforeusing this product, readthis
manualand follow all Safety Rules
and OperatingInstructions.
ADVERTENCIA
Antes de utiiizar el producto, lea este
manualy siga todas las Reglasde
Seguridad e Instrucciones de Uso.
,, Safety
,, Assembly
,, Operation
,,Maintenance
,,Parts
,, EspaNol,p. 22
* This pressure washer is rated in accordance to the PressureWasher Manufacturers Association
(PWMA) standard PWl01 (Testing and Rating Performance of Pressure Washers).
* Esta limpiadora a presiOn est_ clasificada conforme a la norma PWI01 (comprobaciOny clasificaciOn de rendimiento de limpiadoras
a presiOn)de laAsociaciOn defabricantes de bombas a presiOn(Pressure Washer Manufacturers Association, PWMA).
SearsBrands ManagementCorporation, HoffmanEstates,IL 60179 U.S.A.
Visit our Craftsman website: www.craftsman.com
Part No. 315607GS - (10/19/2011 )

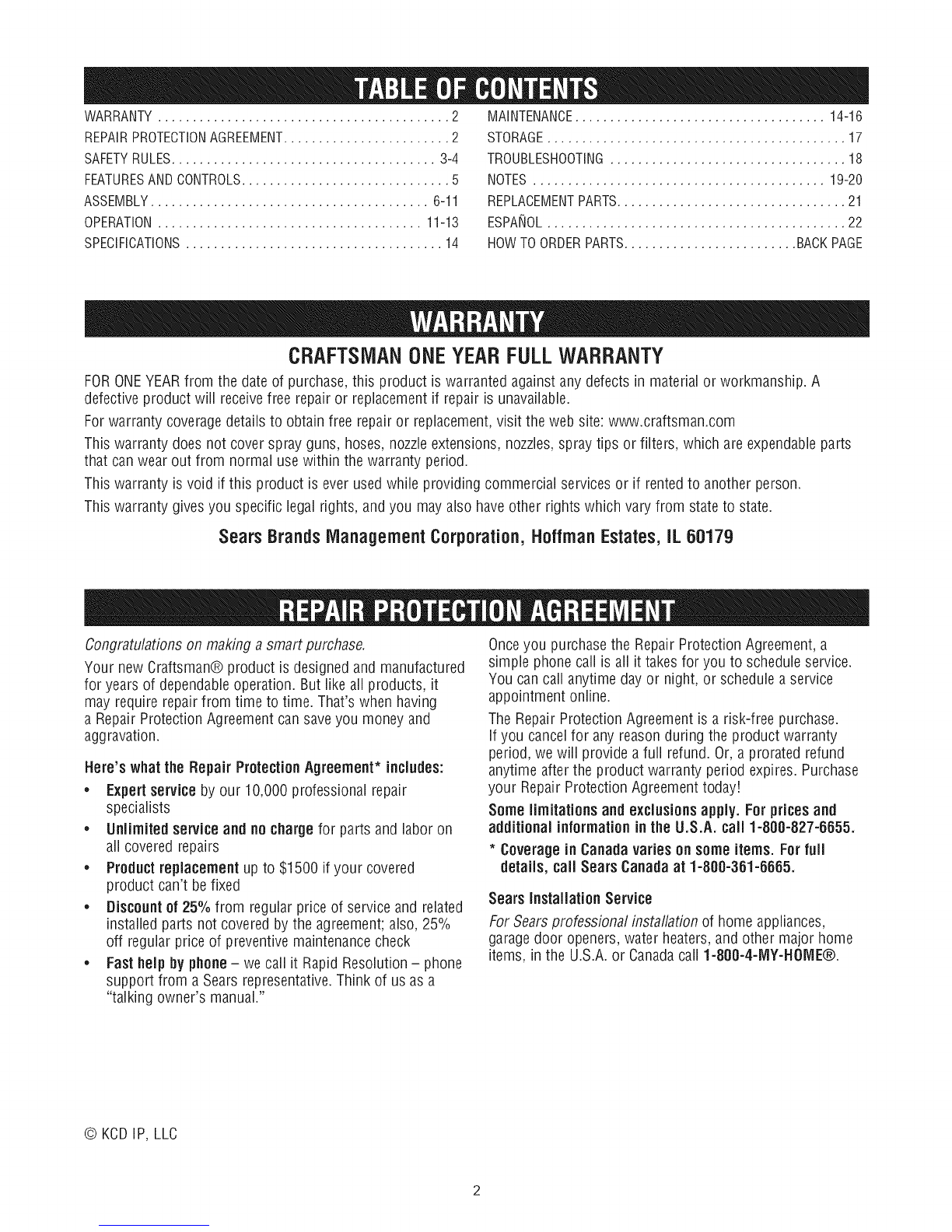

WARRANTY .......................................... 2
REPAIRPROTECTIONAGREEMENT........................ 2
SAFETYRULES...................................... 3-4
FEATURESAND CONTROLS.............................. 5
ASSEMBLY........................................ 6-11
OPERATION...................................... 11-13
SPECIFICATIONS..................................... 14
MAINTENANCE.................................... 14-16
STORAGE........................................... 17
TROUBLESHOOTING.................................. 18
NOTES.......................................... 19-20
REPLACEMENTPARTS................................. 21
ESPANOL........................................... 22
HOWTO ORDERPARTS......................... BACKPAGE
CRAFTSMANONEYEARFULLWARRANTY
FORONEYEARfrom the dateof purchase,this product is warranted against any defects in material or workmanship. A
defective product will receivefree repair or replacementif repair is unavailable.
Forwarranty coveragedetails to obtain free repair or replacement,visit the web site:www.craftsman.com
This warranty doesnot cover spray guns, hoses,nozzleextensions, nozzles,spray tips or filters, which are expendableparts
that canwear out from normal usewithin the warranty period.
This warranty is void if this product is ever usedwhile providing commercial services or if rentedto another person.
This warranty givesyou specific legalrights, and you may also haveother rights which vary from stateto state.
Sears Brands Management Corporation, Hoffrnan Estates, IL 60179
Congratulations on making a smart purchase.
Your new Craftsman® product is designed and manufactured
for years of dependableoperation. But likeall products, it
may require repair from time to time. That'swhen having
a RepairProtectionAgreement can saveyou money and
aggravation.
Here's whatthe Repair ProtectionAgreement* includes:
*Expert service by our 10,000 professional repair
specialists
*Unlimited serviceand no chargefor parts and labor on
all covered repairs
*Product replacement up to $1500 if your covered
product can't be fixed
* Discountof 25% from regular priceof serviceand related
installed parts not covered by the agreement;also, 25%
off regular price of preventivemaintenancecheck
*Fast help byphone-we caii it Rapid Resolution- phone
support from a Sears representative.Think of us as a
"talking owner's manual."
Onceyou purchasethe RepairProtection Agreement,a
simple phone carlis all it takes for you to schedule service.
You cancaii anytimeday or night, or schedule a service
appointment online.
The Repair ProtectionAgreement is a risk-free purchase.
Ifyou cancelfor any reasonduring the product warranty
period,we will provide a full refund. Or, a prorated refund
anytime after the product warranty period expires. Purchase
your RepairProtectionAgreement today!
Some limitationsand exclusions apply. Forpricesand
additional informationin the U.S.A. call 1-800-827-6655.
*Coverage in Canadavaries on someitems. Forfull
details, cail Sears Canadaat 1-800-361-6665.
Sears InstallationService
ForSearsprofessional installation of home appliances,
garagedoor openers, water heaters,and other major home
items, in the U.S.A.or Canadacall 1-800-4-MY-HOME@.
© KCDIP, LLC

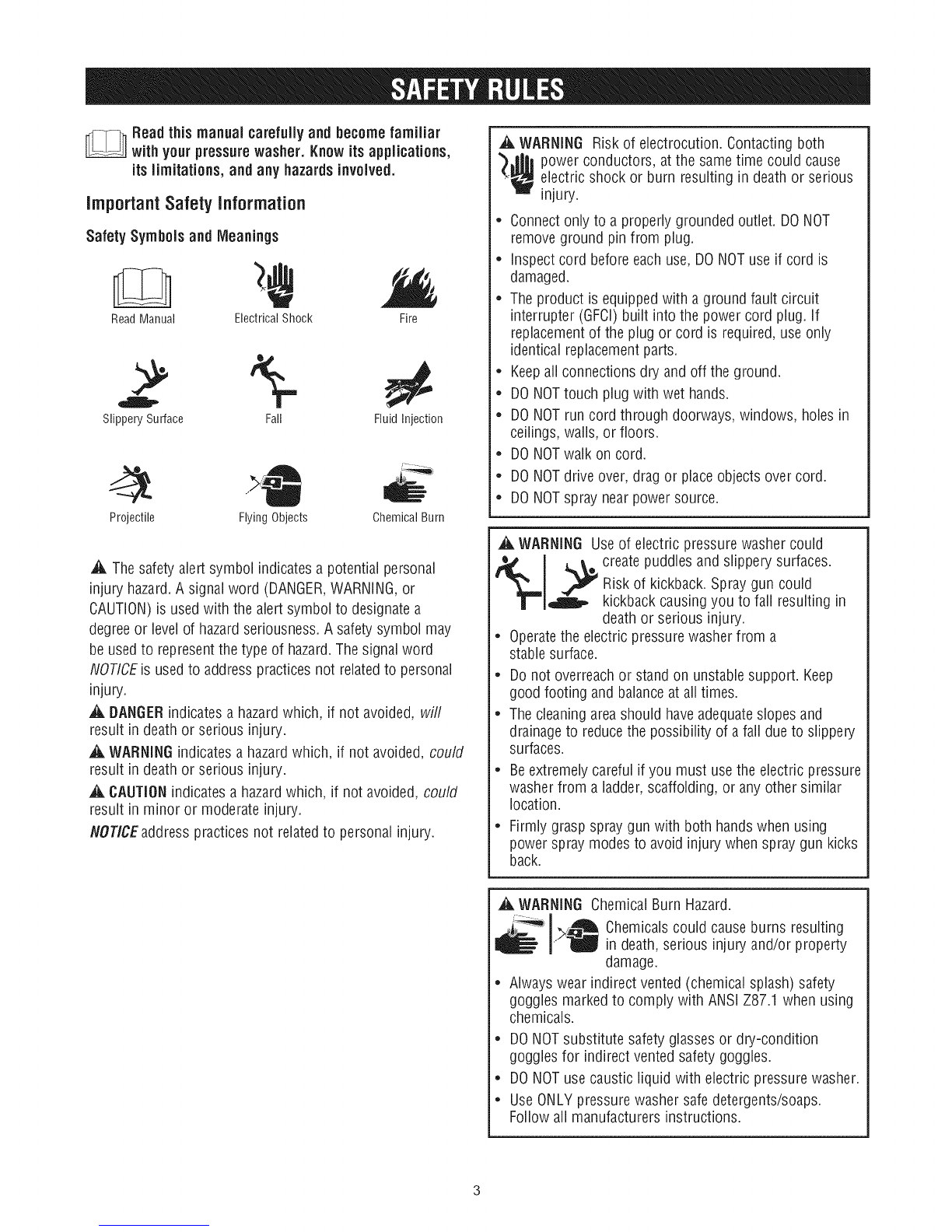

Readthis manual carefully and become familiar
with yourpressurewasher. Knowits applications,
itslimitations, and anyhazardsinvolved.
importantSafety information
Safety Symbols and Meanings
ReadManual Electrical Shock Fire
Slippery Surface Fall Fluid Injection
Projectile Flying Objects Chemical Burn
,_, Thesafety alertsymbol indicatesa potential personal
injury hazard.A signalword (DANGER,WARNING,or
CAUTION)is usedwith the alertsymbol to designatea
degreeor levelof hazardseriousness.A safety symbol may
be usedto representthe type of hazard.The signalword
NOTICEis usedto address practices not relatedto personal
injury.
,_, BANGERindicatesa hazardwhich, if not avoided, will
result in deathor serious injury.
,_, WARNINGindicatesa hazardwhich, if not avoided, could
result in deathor serious injury.
,_, CAUTIONindicates a hazardwhich, if not avoided, could
result in minor or moderate injury.
NOTICEaddress practices not relatedto personal injury.
_. WARNING Riskof electrocution. Contacting both
*_¢ power conductors, at the same time could cause
.electricshock or burn resulting in deathor serious
injury.
,Connectonly to a properly grounded outlet. DONOT
remove ground pin from plug.
,inspect cord before eachuse, DONOTuse if cord is
damaged.
,The product is equippedwith a ground fault circuit
interrupter (GFCI)built into the power cord plug. If
replacementof the plug or cord is required,useonly
identical replacementparts.
,Keepall connections dry and off the ground.
,DONOTtouch plug with wet hands.
,DONOTrun cord through doorways, windows, holes in
ceilings,wails, or floors.
,DONOTwalk on cord.
,DONOTdrive over, drag or placeobjectsover cord.
,DONOTspray nearpower source.
,A WARNING Useof electric pressure washer could
_l_iiRp_ reatepuddlesand slippery surfaces.
Risk of kickback.Spray gun could
kickback causingyou to fall resulting in
deathor serious injury.
•Operatethe electric pressurewasher from a
stable surface.
•Donot overreachor stand on unstablesupport. Keep
good footing and balanceat all times.
•Thecleaningareashould haveadequateslopes and
drainageto reducethe possibility of a fall due to slippery
surfaces.
•Beextremelycareful if you must usethe electric pressure
washer from a ladder,scaffolding, or anyother similar
location.
•Firmly grasp spray gun with both handswhen using
power spray modes to avoidinjury whenspray gun kicks
back.
,A WARNING ChemicalBurn Hazard.
_1 O Chemicalsc°uid cause burns resulting
> in death, serious injury and/or property
damage.
•Alwayswear indirect vented (chemical splash) safety
goggles marked to comply with ANSIZ87.1 when using
chemicals.
•DONOTsubstitute safety glassesor dry-condition
goggles for indirect vented safety goggles.
•DONOTuse caustic liquid with electric pressure washer.
•UseONLYpressurewasher safedetergents/soaps.
Follow all manufacturers instructions.

_, WARNINGRiskofeyeorbodilyinjury.Spraycould
i,_ splashback,propelobjectsorcause
internalharmresultinginseriousinjury.
• Alwayswearindirectvented(chemicalsplash)safety
gogglesmarkedtocomplywithANSIZ87.1whenusing
orinvicinityofthisequipment.NEVERsubstitutesafety
glassesordry-conditiongogglesforindirectvented
safetygoggles.
DONOTallowCHILDRENtooperatetheelectricpressure
washer.
• Keepoperatingareaclearofallpersons.
• inspecthighpressurehosebeforeeachuse.NEVER
repairhighpressurehose;replaceit.
• DONOTrepairleakingconnectionswithsealantofany
kind;replaceo-ringsandgaskets.
Keephoseconnectedtoelectricpressurewasherand
spraygunwhilesystemispressurized.
• ALWAYSpointsprayguninsafedirectionwhilesystem
ispressurizedandsqueezesprayguntriggertorelease
highpressure,everytimeyouturnofftheunit.
DONOTaimspraygunatpeopleoranimals.
DONOTdrinkfromhoseconnectedaccessories.
DONOTsecuresprayguninopenposition.
DONOTleavespraygununattendedwhiletheelectric
pressurewasherisinON(1)position.
DONOTuseaspraygunwhichdoesnothaveatrigger
lockortriggerguardinplaceandinworkingorder.
Alwaysbecertainspraygunandaccessoriesare
correctlyattached.
Stayalert- watchwhatyouaredoing.
DONOToperatetheproductwhenfatiguedorunderthe
influenceofalcoholordrugs.
_, WARNINGThehighpressurestreamofwaterthat
thisequipmentproducescouldcutthroughskin
anditsunderlyingtissues,resultinginserious
injuryandpossibleamputation.
Sprayguntrapshighwaterpressure,evenwhenmotoris
stoppedandwaterisdisconnected,whichcouldresultin
seriousinjury.
NEVERaimspraygunatpeople,animals,orplants.
ALWAYSpointsprayguninsafedirection,squeeze
sprayguntriggertoreleasehighpressure,everytime
youturnoffpressurewasher.
A WARNINGRiskoffire.Sprayingflammableliquids
couldresultindeath,seriousinjuryand/or
propertydamage.
• DONOTsprayflammableliquids.
A WARNINGRiskoffire.Overheatedcordcouldresult
indeath,seriousinjury,and/orpropertydamage.
Uncoilcordcompletelypriortouse.
DONOTcovercordwithanymaterial.
A WARNINGThisproductcontainsleadandlead
compounds,knowntotheStateofCaliforniatocause
birthdefectsorotherreproductiveharm.Washyour
handsafter handling this product.
IVOTIC,E High pressure spray could damagefragile items
including glass.
DONOTpoint spray gun at glass when using MAXspray
pattern in selector nozzle.
NEVERaim spray gun at plants.
NOTICE improper treatment of electric pressure washer
could damageit and shorten its life.
If you havequestionsabout intendeduse, ask dealeror
contact authorizedservice center.
• DONOToperateunits with broken or missing parts, or
without protective housingor covers.
• DONOTby-pass anysafety deviceon theelectric
pressurewasher.
• DONOTmodify the electric pressure washer in anyway.
Beforestarting the electricpressure washer in cold
weather, checkall parts of the equipment to be sure ice
hasnot formed there.
• DONOTmove the electric pressurewasher by pulling on
hoses.Move unit usingthe transport handlesupplied.
• This equipment is designedto be usedwith Sears
authorizedparts ONLY.if equipment is usedwith parts
that DONOTcomply with minimum specifications, user
assumesall risks and liabilities.

KNOWYOURPRESSUREWASHER
Readthe Operator's Manual andsafetyrules beforeoperating yourpressure washer.
Comparethe illustrations with your pressurewasher to familiarize yourself with the locations of various controls and
adjustments. Savethis manualfor future reference.
A-Spray Gun-- Controls the application of water onto
cleaningsurface with trigger device, includes trigger lock.
B-Master ON/OFFToggle Switch -- Pushtop of switch in
( I) to turn pressure washer ON. Push Bottom of switch
in (0) to turn pressure washer OFF.
C-Electric Cord with GFCI-- Theelectric pressure washer
and operator is protected by a ground fault circuit
interrupter (GFCI).
D- Water Supply Inlet -- Connectto water supply using a
50 ft. (15.24 m) maximum garden hose.
E-Warning Labels -- identifies hazardsto be avoidedwhen
using your pressure washer.
F- HoseReel -- Provides convenientstorage for high
pressure hose.
G- High Pressure Hose-- Connectone end to high
pressure water outlet and the other end to spray gun.
H-Accessory Tray -- Providesconvenient storage for
standard and optional accessories.
J - Foam Lance-- Usedwith adjustablefan jet wand to
apply detergent to surfaces.
I( -NozzleCleaner -- Usedto remove sediment and clogs
from nozzles.
L- Identification Label -- Provides model and serial
number of pressure washer. Pleasehavethese readily
availableif calling for assistance.
IVl-High Pressure Water Outlet -- Connectionfor high
pressure hose.
N-Turbo Wand -- Whirls a powerful pin-point jet of water
for intense cleaning.
P-Adjustable FanJet Wand-- Allows adjustment of spray
pattern for various high pressure applications.

Your electric pressure washer requires some assembly but is
quickly readyfor use
If you have any problemswith theassembly of your
pressurewasher, please caii the pressurewasher heJpJine
at 1=800-222-3136.
UNPACKTHEPRESSUREWASHER
1. Removeeverything from carton.
2. Ensureyou haveall included items prior to assembly.
CARTONCONTENTS
Checkaii contents. If anyparts are missing or damaged,call
the pressure washer helplineat 1-800-222-3136.
•Main unit
•Handle
•Hose reel (left and right side)
•Hose reel handle
•Hose reel retainers (left and right side)
•Decorative handlemolding
•Accessorytray
•Wheels (2)
•Decorativeshield
•Screws (9)
•Spraygun
•High pressure hose
•Turbo wand
•Adjustable fan jet wand
•Foam lance
•Water inlet coupling
•Parts bag (which includes the following):
•O-rings, spare: 2 for spray gun; 2 large and2 small
for high pressure hose
•Operator's manual
•Owner's registration card
Becomefamiliar with eachpiece beforeassembling the
pressure washer. Identify all contents with the illustration
on page5. If any parts are missing or damaged,call the
pressure washer helpline at 1-800-222-3136.
ASSEMBLINGPRESSUREWASHER
Your Craftsmanpressurewasher will needassembly before
operation:
1. Fill out and send in registration card.
2. Assemblemain unit.
3. Assemblehose reel.
4. Lubricate O-rings.
5. Connecthoses and water supply.
6. Connectwand.
7. Connectfoam lance.

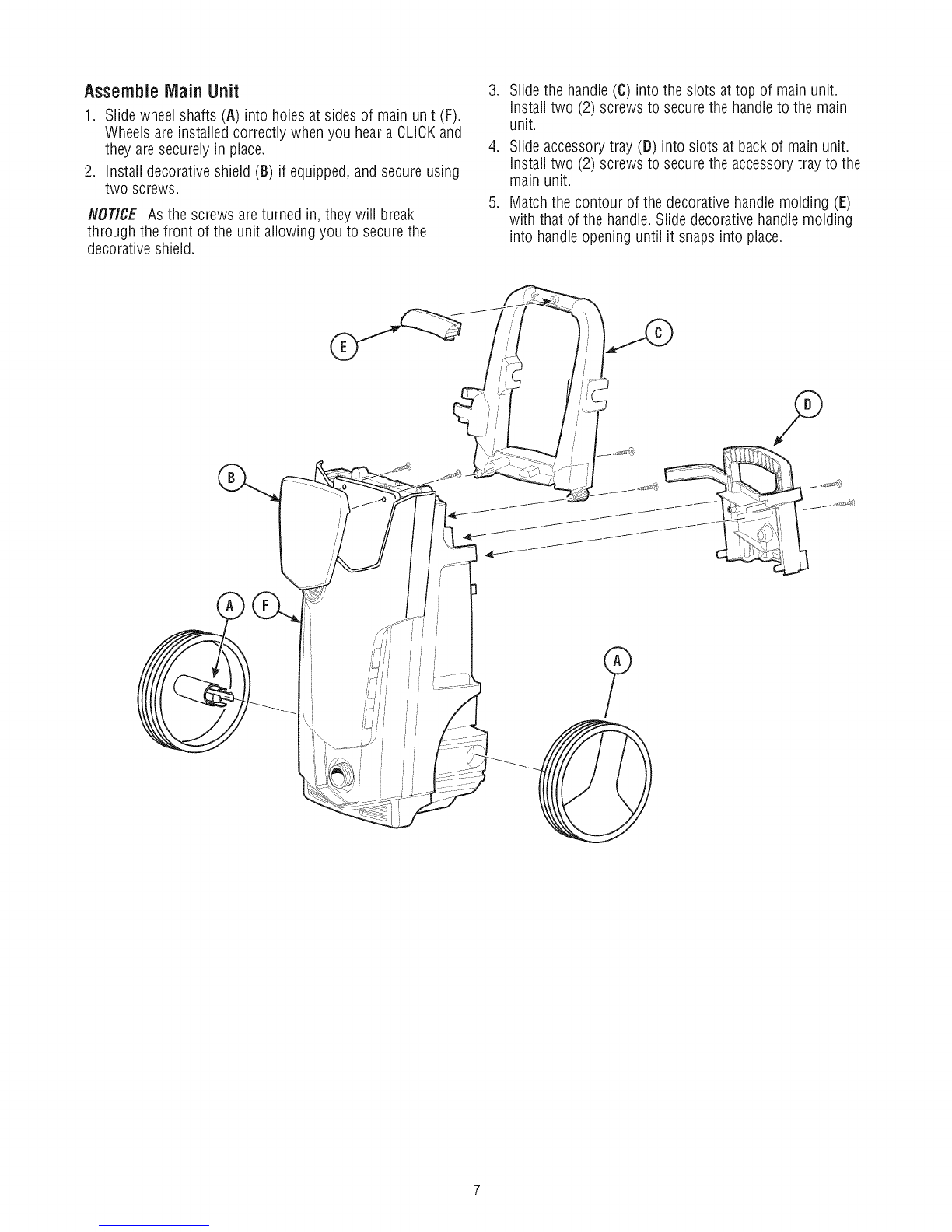

Assemble MainUnit
1. Slide wheelshafts (A) into holesat sides of main unit (F).
Wheels are installed correctly when you hear a CLICKand
they are securely in place.
2. install decorative shield (B) if equipped, and secure using
two screws.
NOTICE Asthe screws are turned in, they will break
through the front of the unit allowing you to secure the
decorativeshield.
.
.
.
Slide the handle(C) into the slots at top of main unit.
install two (2) screws to secure the handle to the main
unit.
Slide accessorytray (D) into slots at back of main unit.
Install two (2) screws to secure the accessorytray to the
main unit.
Match the contour of the decorative handlemolding (E)
with that of the handle.Slide decorative handle molding
into handle opening until it snaps into place.
?

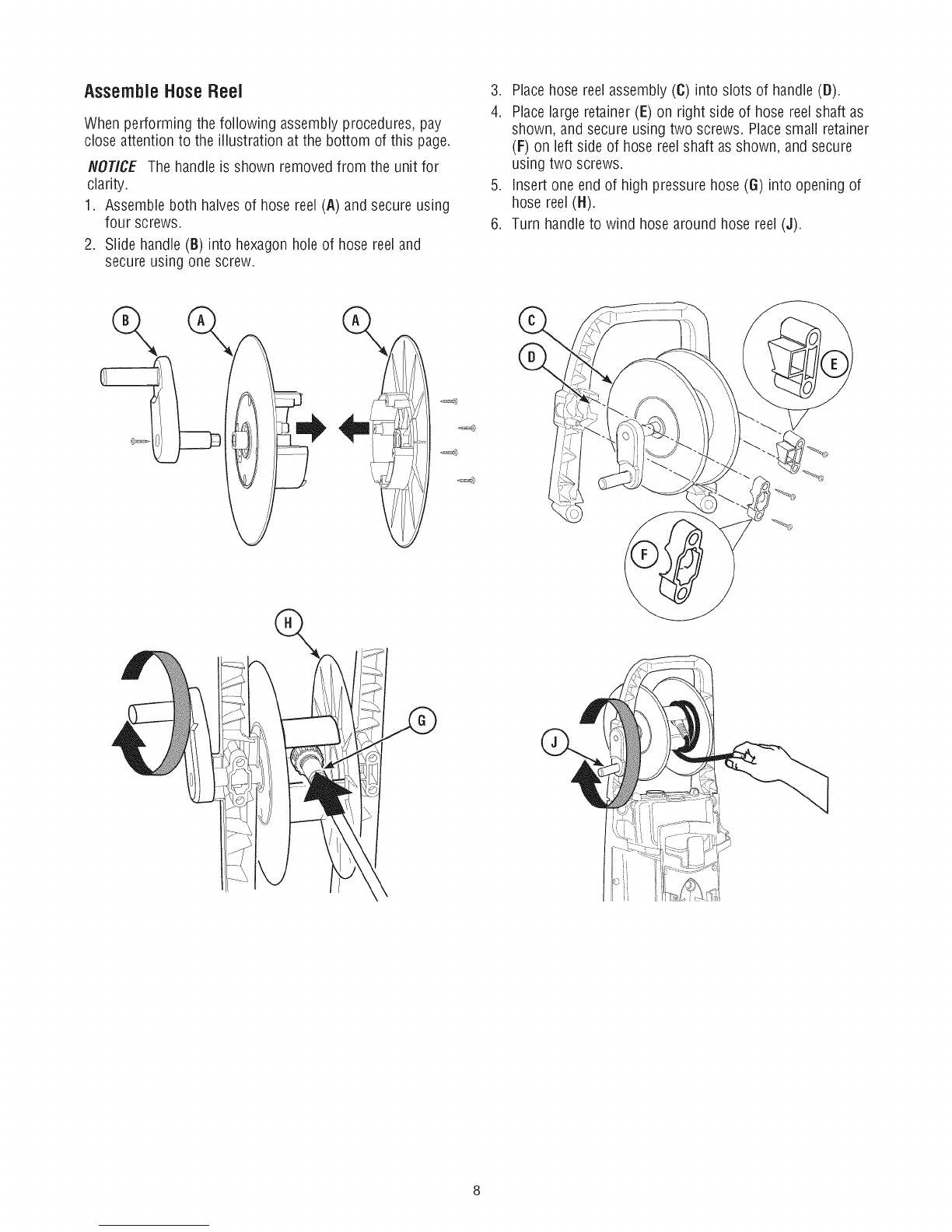

Assernble HoseReel
When performing the following assembly procedures, pay
close attention to the illustration at the bottom of this page.
NOTICE Thehandle isshown removedfrom the unit for
clarity.
1. Assemble both halves of hosereel (A) and secure using
four screws.
2. Slide handle (B) intohexagon hole of hose reel and
secure using one screw.
3. Placehosereel assembly (C) into slots of handle (B).
4. Placelarge retainer (E) on right sideof hose reel shaft as
shown, and secure using two screws. Placesmall retainer
(F) on left side of hose reel shaft as shown, and secure
using two screws.
5. insert one end of high pressure hose (6) into opening of
hose reel(H).
6. Turn handleto wind hosearound hose reel (J).
%
..... S

LubricateO-Rings
Lubrication of o-rings is extremely important for installation
and operation. Theuseof a lubricant (petroleum or synthetic
grease)during assembly helpsseat o-rings properly and
provides an improved seal. It also helps protect the o-ring
from damageby abrasion, pinching or cutting and extends
the life of the o-ring.
NOTICE ALWAYSapply a small amount of lubricant on
o-rings prior to assembling the garden hoseto the pump
(A), high pressure hose(pump end) (B), high pressure hose
(gun end) (C), turbo wand (gun end) (D), adjustable fan
jet wand (fan jet end) (E) and adjustablefan jet wand (gun
end) (F).
Lubricate all connectionsshown below, following these
instructions:
1. inspect and cleanconnecting surfaces prior to lubrication
and assembly.
2. Uselubricants sparingly during assembly;a light film is
all that is required.
3. Usea small brush or cotton swab to apply greasedirectly
to o-rings where they are not accessible (QCfitting, M22
fitting).

ConnectHosesandWater Supply
NOTICE Use ONLYcold water (less than 100°F).
1. Attach garden hose(50 ft. /15.24 m maximum) to water
supply.
2. Runwater through garden hosefor 30 secondsto flush
the hoseof debris. Turn off water.
3. Confirm that water inlet screen (A) is installed in water
inlet located at lower front of unit; Do Not removeexcept
for cleaning.
NOTICE If inlet screen is damagedor missing, DONOT
use electric pressure washer. Call1-800-222-3136 for
assistance.
NOTICE DONOT run the pump without thewater supply
connectedand turned on.
•Damageto equipment resulting from failure to follow
this instruction will void warranty.
4. Attach opposite end of garden hose(B) to the water inlet
coupling (C). Tighten by hand.
5. Completely removethe high pressure hosefrom hose
reel.Attach high pressure hose (B) to the unit's water
outlet (E) located at lower backof unit. Tighten by hand.
/
/
/
/
/
.Attach opposite end of high pressure hoseto the spray
gun. Press red button (F) on spray gun, then insert end
of high pressure hose (G) into gun until it SNAPSinto
place. Releasethe red button and makesure connection
is secure.
ConnectWand
1. Turn ONwater, point gun in a safe direction, press trigger
release(H), then squeezetrigger (J) to purge pump
system and spray gun of air and impurities.
.insert and twist desired wand (1()into spray gun (IVl).
Oncewand slides into gun, applyfurther inward pressure
to wand and twist 1/4 turn clockwise until securely in
place.
3. Turn OFFwater and releasetrigger. Point gun in a safe
direction and make suretrigger cannot be squeezed.
ConnectFoamLance
.insert the adjustablefan jet wand (N) into spray gun (P).
Oncewand slides into gun, applyfurther inward pressure
to wand and twist 1/4 turn clockwise until securely in
place.
10

.Slide thefoam lance(Q) onto the adjustablefan jet wand
(R). Apply further inward pressure to wand until you hear
a CLICKand the locking tab (S) falls into placeover the
lip (T) of the wand. Tug on foam lanceto make sure it is
securely in place.
HOWTOUSEYOURPRESSUREWASHER
if you haveany problems operatingyour pressure washer,
pleasecall the pressure washer helpline at 1-800-222-3136.
Howto Start YourElectricPressureWasher
A WARNING Risk of eyeinjury. Spraycould splash
back or propel objects resulting in serious injury.
Alwayswear indirect vented (chemicalsplash)
safety goggles markedto comply with ANSi
Z87.1 when using or in vicinity of this equipment. NEVER
substitute safety glassesor dry-condition gogglesfor
indirect ventedsafety goggles.
3. To removefoam lance, lift up on locking tab (R) and pull
it away from the wand.
ChecklistBeforeStarting Pump Motor
Reviewthe unit's assemblyto ensureyou haveperformed all
of the following.
1. Besure to read OperatorSafetyand Operationbefore
using the electric pressure washer.
2. Checkfor properly tightened hoseconnections.
3. Checkto makesure there are no kinks, cuts, or damage
to hoses.
4. Providea proper water supply atan adequateflow (not to
exceed 100°F).
5. Plug electrical cord into a properly grounded electrical
source.
1. Placethe electric pressurewasher near an outside water
source capableof supplying water at a flow rate greater
than 3 gallons per minute (11.4 I) and no less than 20 psi
(1.38 bars) at the electric pressurewasher end of garden
hose. DONOTsiphon supply water.
2. Connectgarden hoseto water inlet.
3. Checkthat high pressure hoseis tightly connectedto
spray gun. See ConnectHosesand WaterSupplyfor
illustrations.
NOTICE DONOTrun the pump without the water supply
connectedand turned on.
• Damageto equipment resulting from failure to follow
this instruction will void warranty.
4. Turn ONwater, point gun in a safe direction, press trigger
lock button and squeezetrigger to purge pump system of
air.
5. Removeany dirt or foreign matterfrom nozzles, install
desiredwand onto spray gun. See ConnectHosesand
WaterSupply and How to Use the Wandsfor details.
6. Pressthe master ON/OFFswitch (A) to the OFF(0)
position.
11

.Plug electrical power cord into an electrical circuit rated
for 120 Volts AC at 15 Amps that is properly installed
and grounded in accordancewith all local codes and
ordinances. Theindicator light on the GFCIshould appear.
NOTICE Theindicator light must be visible for the electric
pressure washer to operate.
8. PressTESTbutton (B). The indicator light (D) should
disappear.
Howto Stop YourElectricPressureWasher
The electricpressure washer motor runs only when the
trigger is engaged.To stop the electric pressure washer and
turn off the motor:
1. Releasespray gun trigger.
2. Pressthe master ON/OFFswitch to the OFF(0) position.
NOTICE Releasingthe trigger will shut off the motor but
does not shut off electrical power to the unit.
3. Turn off water supply.
4. ALWAYSpoint spray gun in a safe direction and squeeze
spray gun trigger to relievebuilt up pressure in the unit.
A WARNING The high pressure stream of water that this
_ equipment produces could cut through skin and
its underlying tissues, resulting in serious injury
and possible amputation.
Spray gun traps high water pressure,evenwhen motor is
stopped and water is disconnected,which could result in
serious injury.
•Keephigh pressure hoseconnectedto pump and spray
gun while system is pressurized.
•ALWAYSpoint spray gun in safe direction, squeeze
spray gun trigger to releasehigh pressure, everytime
you turn off pressure washer.
9. Press RESETbutton (C). Theindicator light (D) should
illuminate.
NOTICE DONOTusethe electric pressure washer if above
test fails.
10.Pressthe master ON/OFFswitch to the ON( I) position.
11.Point gun in a safedirection, presstrigger lock button
and squeezetrigger. The electricpressure washer motor
will start and stop as spray gun trigger is depressedand
released.
Theelectric pressurewasher is now readyfor use.
instructions for useof the supplied accessoriesare given
later in this section.
5. DisconnectGFCIplug from outlet and coil power cord.
6. Wrap high pressure hose on hose reel.
7. Flush detergent bottle (if used) by removing it from the
foam lanceand pouring out all remaining solution.
8. Rinsedetergent bottle out with fresh cleanwater and
reinstall onto foam lance.
9. Coil and store power cord, spray gun and accessorieson
the accessorytray.
Howto Usethe Wands
You should now be familiar with how to STARTand STOP
your electric pressure washer. If not, pleasereferto the
previous section to familiarize yourself with STARTINGand
STOPPINGthe system before continuing.
Thereare two wands supplied with the pressurewasher.
Theturbo wand whirls a powerful pin-point jet of water
for intense cleaning.The adjustablefan jet wand allows
you to adjust the spray pattern for various high pressure
applications.
UsageTips
*Formost effectivecleaning, keepnozzlefrom 8 to 24
inches awayfrom cleaning surface.
,if you get nozzletoo close, especiallyusing a high
pressure setting, you may damagesurface being
cleaned.
,Do Not get closer than 6 incheswhen cleaning tires.
12

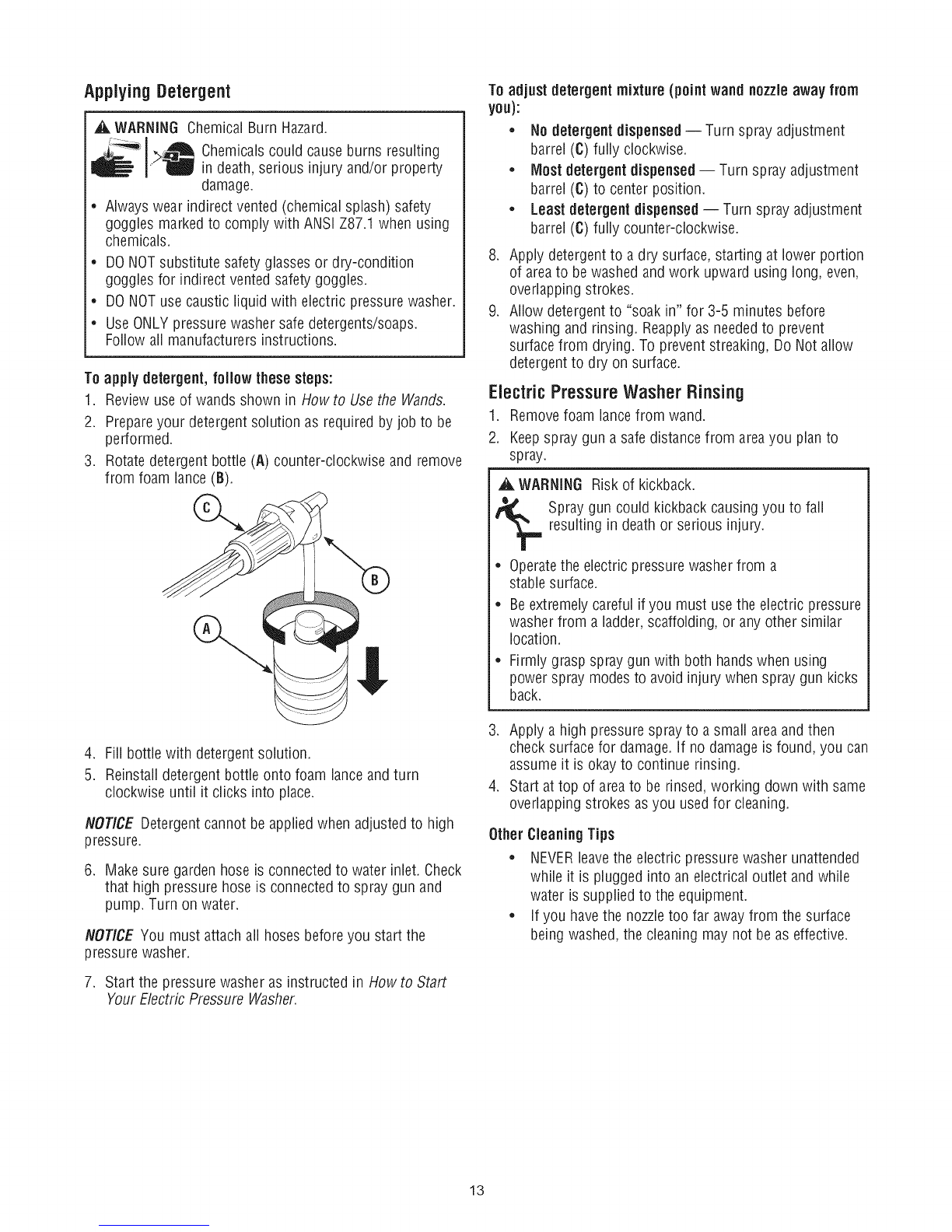

ApplyingDetergent
_, WARNING ChemicalBurn Hazard.
"in death, serious injury and/or property
damage.
*Always wear indirect vented (chemical splash) safety
goggles markedto comply with ANSi Z87.1 when using
chemicals.
*DONOTsubstitute safety glassesor dry-condition
gogglesfor indirect vented safety goggles.
*DONOTusecaustic liquid with electric pressure washer.
*Use ONLYpressure washer safe detergents/soaps.
Follow all manufacturers instructions.
To appJydetergent, follow these steps:
1. Reviewuseof wands shown in How to Usethe Wands.
2. Prepareyour detergent solution as required by job to be
performed.
3. Rotatedetergent bottle (A) counter-clockwise and remove
from foam lance(B).
Q
4. Fill bottle with detergent solution.
5. Reinstalldetergent bottle onto foam lanceandturn
clockwise until it clicks into place.
NOTICE Detergentcannot be applied when adjusted to high
pressure.
6. Makesure garden hoseis connectedto water inlet. Check
that high pressure hoseis connectedto spray gun and
pump. Turn on water.
NOTICE You must attach all hoses beforeyou start the
pressure washer.
7. Start the pressure washer as instructed in How to Start
YourElectric Pressure Washer.
To adjust detergent mixture (point wand nozzle away from
you):
*Nodetergent dispensed -- Turn spray adjustment
barrel (C) fully clockwise.
*IVlostdetergent dispensed -- Turn spray adjustment
barrel (C) to center position.
*Least detergent dispensed -- Turn spray adjustment
barrel (C) fully counter-clockwise.
8. Apply detergent to a dry surface, starting at lower portion
of areato bewashed andwork upward using long, even,
overlapping strokes.
9. Allow detergent to "soak in" for 3-5 minutes before
washing and rinsing. Reappiyas neededto prevent
surfacefrom drying. To prevent streaking, Do Not allow
detergent to dry on surface.
ElectricPressureWasher Rinsing
1. Removefoam lancefrom wand.
2. Keepspray gun a safedistance from areayou plan to
spray.
_.WARNING Risk of kickback.
_ Spray gun could kickbackcausing you to fall
resulting in death or serious injury.
*Operatethe electric pressurewasher from a
stable surface.
*Beextremelycareful ifyou must usethe electric pressure
washer from a ladder,scaffolding, or anyother similar
location.
*Firmly grasp spray gun with both handswhen using
power spray modes to avoidinjury whenspray gun kicks
back.
3. Apply a high pressure spray to a small area and then
check surfacefor damage, if no damageisfound, you can
assumeit is okayto continue rinsing.
4. Start attop of areato be rinsed, working down with same
overlapping strokes asyou usedfor cleaning.
Other Cleaning Tips
*NEVERleavethe electric pressure washer unattended
while it is plugged into an electrical outlet and while
water is supplied to the equipment.
* If you havethe nozzletoo far away from the surface
being washed,the cleaning may not be as effective.
13

PRODUCTSPECIFICATIONS
PressureWasherSpecifications
Outlet Pressure ............... 1700 PSi (117.2 BARS)*
Flow Rate ....................... 1.3 GPM (4.9 LPM)*
DetergentMix ................. See MFR's instructions
Water Supply Temperature.... Not to exceedIO0°F (38°C)
Motor ........................ Universal(brush) Type
RatedVoltage .......................... 120 Volts AC
Current ................................. 12.5 Amps
* This pressurewasher is ratedin accordanceto the
PressureWasher ManufacturersAssociation (PWMA)
standard PWl01 (Testing and Rating Performanceof
PressureWashers).
OWNER'SRESPONSIBILITIES
GeneralRecommendations
Regularmaintenancewiii improve the performance and
extend the life of the pressure washer. SeeanySearsor other
qualified service dealerfor service.
The pressurewasher warranty does not cover items that have
been subjectedto operator abuseor negligence.To receive
full valuefrom the warranty, the operator must maintain
pressure washer as instructed in this manualincluding
proper storage as detailedin Storage.
BeforeEachUse
1. Cleandebris.
2. Checkwater inlet screen for debris or damage.
3. Checkhigh pressure hosefor leaks.
4. Checkspray gun operation.
PRESSUREWASHERMAINTENANCE
Clean Debris
Dailyor beforeuse, clean accumulateddebris from electric
pressure washer. Inspect cooling air slots and openings on
the front, rear and bottom of the electric pressurewasher.
Theseopenings must be kept clean and unobstructed.
Theelectric pressurewasher parts should be kept cleanto
reducethe risk of overheating and ignition of accumulated
debris.
•Usea damp cloth to wipe exterior surfaces clean.
NOTICE Improper treatment of the electric pressure washer
can damageit and/or shorten its life.
•DONOTinsert any objects through cooling slots.
14

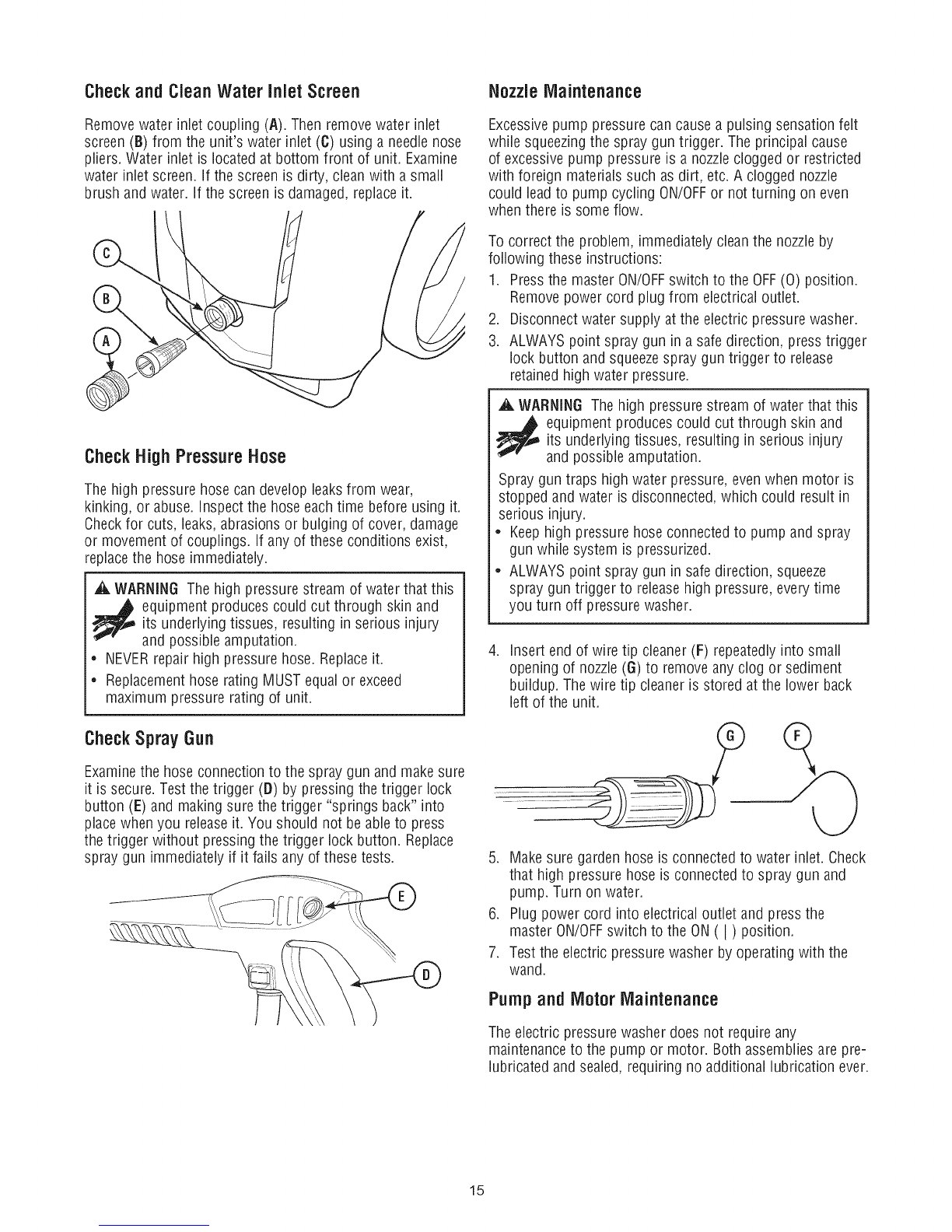

CheckandCleanWater Inlet Screen NozzleMaintenance
Removewater inlet coupling (A). Then removewater inlet
screen (B) from the unit's water inlet (C) using a needle nose
pliers. Water inlet is located at bottom front of unit. Examine
water inlet screen. If the screen is dirty, cleanwith a small
brush and water, if the screen is damaged, replaceit.
CheckHighPressureHose
The high pressure hosecan developleaksfrom wear,
kinking, or abuse, inspect the hoseeachtime beforeusing it.
Checkfor cuts, leaks,abrasions or bulging of cover, damage
or movement of couplings. If anyof these conditions exist,
replacethe hose immediately.
WARNING The high pressure stream of water that this
_ quipment produces could cut through skin and
its underlying tissues, resulting in serious injury
and possible amputation.
*NEVERrepair high pressure hose. Replaceit.
*Replacementhose rating MUSTequal or exceed
maximum pressure rating of unit.
CheckSprayGun
Examinethe hose connectionto the spray gun and makesure
it is secure.Test the trigger (B) by pressing the trigger lock
button (E) and making sure the trigger "springs back" into
placewhen you releaseit. You should not be able to press
the trigger without pressing the trigger lock button. Replace
spray gun immediately if it fails any of these tests.
Excessivepump pressure can causea pulsing sensation felt
while squeezingthe spray gun trigger. The principal cause
of excessivepump pressure is a nozzleclogged or restricted
with foreign materialssuch as dirt, etc. A clogged nozzle
could lead to pump cycling ON/OFFor notturning on even
when there is some flow.
To correct the problem, immediately cleanthe nozzleby
following these instructions:
1. Pressthe master ON/OFFswitch to the OFF(0) position.
Removepower cord plug from electrical outlet.
2. Disconnectwater supply at the electric pressure washer.
3. ALWAYSpoint spray gun in a safe direction, press trigger
lock button and squeezespray gun trigger to release
retainedhigh water pressure.
,A. WARNING The high pressure stream of water that this
_ equipment produces could cut through skin and
its underlying tissues, resulting in serious injury
and possible amputation.
Spray gun traps high water pressure,evenwhen motor is
stopped and water is disconnected,which could result in
serious injury.
*Keephigh pressure hoseconnectedto pump and spray
gun while system is pressurized.
*ALWAYSpoint spray gun in safe direction, squeeze
spray gun trigger to releasehigh pressure, everytime
you turn off pressure washer.
.insert end of wire tip cleaner(F) repeatedlyinto small
opening of nozzle(G) to removeany clog or sediment
buildup. The wire tip cleaneris stored at the lower back
left of the unit.
5. Make sure garden hose is connectedto water inlet. Check
that high pressure hose is connectedto spray gun and
pump. Turn on water.
6. Plug power cord into electrical outlet and press the
master ON/OFFswitch to the ON( I ) position.
7. Testthe electric pressurewasher by operating with the
wand.
PumpandMotor Maintenance
The electric pressure washer does not require any
maintenanceto the pump or motor. Both assembliesare pre-
lubricated and sealed, requiring no additional lubrication ever.
15

AFTEREACHUSE
Water should not remainin the unit for long periods of
time. Sedimentsor minerals can deposit on pump parts and
"freeze" pump action. Follow these procedures after every
use:
1. Turn off water supply, point gun in a safe direction, press
trigger lock button and squeezetrigger to relievetrapped
pressure.
2. Disconnectgarden hosefrom the water supply andthe
electric pressure washer.
3. Disconnecthose from spray gun and high pressure outlet
on pump. Drainwater from hose, gun, and wand. Usea
rag to wipe off the hose.
4. Drainwater from pump by tipping unit on its front side
(water inletfacing down).
5. Coilpower cord and store on accessorytray.
6. Wrap high pressure hoseon hose reel.
7. Store unit in a clean, dry area.
8. If storing for more than 30 days see Winter or Long Term
Storageon next page.
16

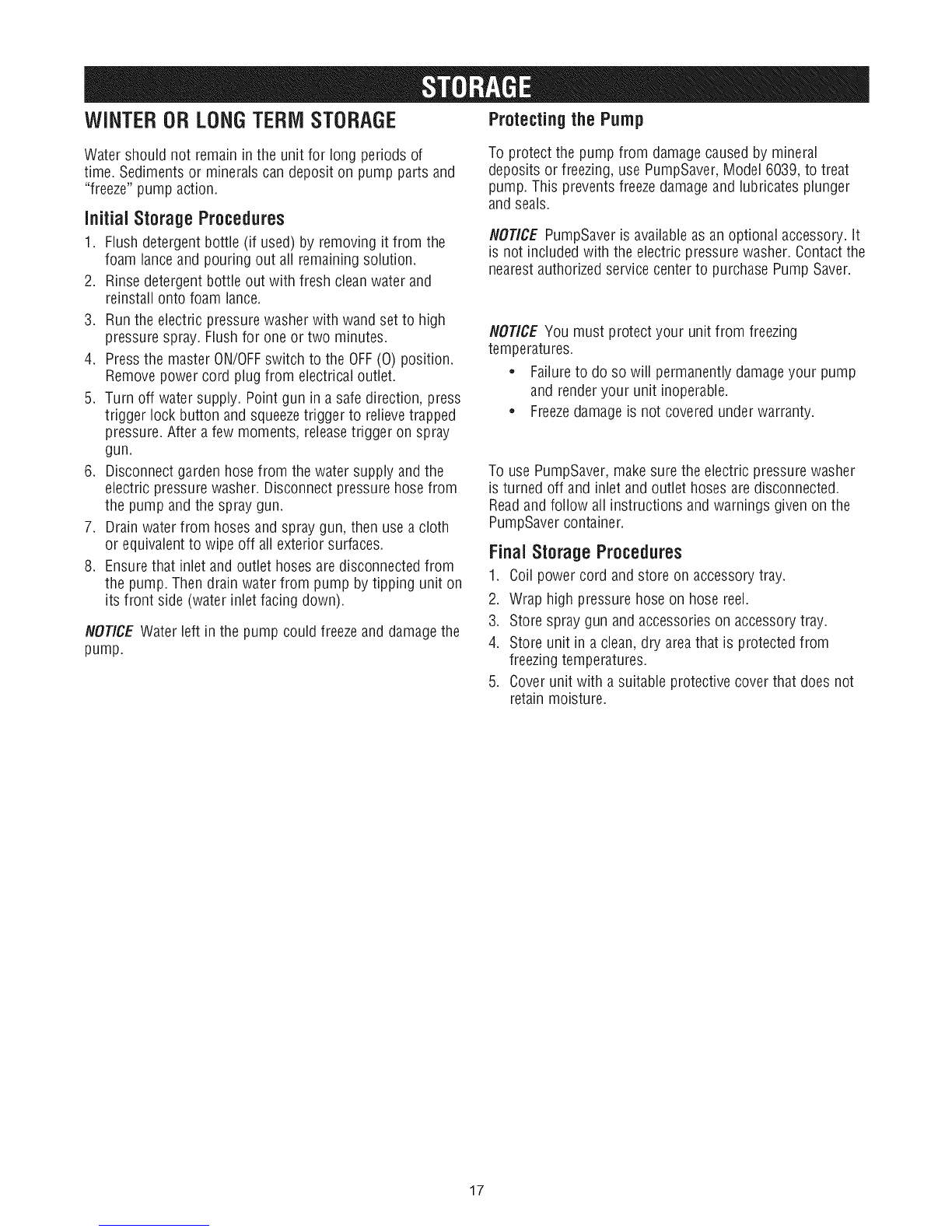

WINTERORLONGTERMSTORAGE Protectingthe Pump
Water should not remainin the unit for long periods of
time. Sedimentsor minerals can deposit on pump parts and
"freeze" pump action.
Initial Storage Procedures
1. Flushdetergent bottle (if used)by removing it from the
foam lance and pouring out all remainingsolution.
2. Rinsedetergent bottle out with fresh cleanwater and
reinstall onto foam lance.
3. Runthe electric pressurewasher with wand set to high
pressure spray. Flushfor one or two minutes.
4. Pressthe master ON/OFFswitch to the OFF(0) position.
Removepower cord plug from electricaloutlet.
5. Turn off water supply. Point gun in a safe direction, press
trigger lock button and squeezetrigger to relievetrapped
pressure.After a few moments, releasetrigger on spray
gun.
6. Disconnectgarden hosefrom the water supply andthe
electric pressure washer. Disconnectpressure hose from
the pump and the spray gun.
7. Drainwater from hosesand spray gun, then usea cloth
or equivalent to wipe off all exterior surfaces.
8. Ensurethat inlet and outlet hoses are disconnectedfrom
the pump. Then drain water from pump by tipping unit on
its front side (water inlet facing down).
NOTICE Water left in the pump could freezeand damagethe
pump.
To protect the pump from damagecaused by mineral
deposits or freezing, use PumpSaver,Model 6039, to treat
pump. This preventsfreeze damageand lubricates plunger
and seals.
NOTICE PumpSaveris availableas an optional accessory, it
is not includedwith the electric pressure washer. Contactthe
nearestauthorized service centerto purchase PumpSaver.
NOTICEYou must protect your unit from freezing
temperatures.
•Failureto do so will permanently damageyour pump
and render your unit inoperable.
• Freezedamageis not covered under warranty.
To usePumpSaver,make surethe electric pressure washer
is turned off and inlet and outlet hosesare disconnected.
Readand follow all instructions and warnings given on the
PumpSavercontainer.
Final Storage Procedures
1. Coil power cord and store on accessorytray.
2. Wrap high pressure hose on hose reel.
3. Store spray gun and accessorieson accessorytray.
4. Store unit in a clean, dry areathat is protectedfrom
freezing temperatures.
5. Cover unit with a suitable protective cover that does not
retainmoisture.
17

ProbJern
Pumphasfollowingproblems:failure
to producepressure,erraticpressure,
chattering,loss of pressure,low water
voJurne.
Unitfails to startwhen spraygun
trigger is squeezed.
Detergent faiJsto mixwith spray.
Cause
1. Water inlet is blocked.
2. inadequatewater supply.
3. Gardenhoseis kinked or leaking.
4. Cloggedwater inlet screen.
5. Water supply is over IO0°F (38°C).
6. High pressure hose is blocked or
leaks.
7. Nozzleis obstructed.
8. Pump is faulty.
1. Water supply is not turned on.
2. Unit is not turned on.
3. Gardenhoseis too long.
1. Siphon tube is clogged or cracked.
2. Siphon tube is looseor
disconnectedfrom tube connection
of foam lance.
3. Wand adjustment setting is
incorrect.
Correction
1. Clearinlet,
2. Provideadequatewater flow.
3. Straighten garden hoseor replace if
leaking.
4. Checkand cleanwater inlet screen.
5. Providecooler water supply.
6. Clearblocks in high pressure hose
or replacehose.
7. CleanNozzle.
8. ContactSearsservicefacility.
1. Turn on water supply.
2. Pressthe master ON/OFFswitch to
the Pressure WasherONposition
(I). ResetGFCI.
3. Useonly 50 ft. (15.24 m) maximum
garden hose.
1. Cleanor replacesiphon tube.
2. Connectsiphon tube securelyonto
tube connection of foam lance.
3. Adjust wand setting as instructed in
Applying Detergent.
18

19

20
