Craftsman 320.2966 User manual

Operator's Manual
lI:RRFTSMRN°I
12.0-VOLT LITHIUM-ION
CORDLESS MULTIPURPOSE
WORKLIGHT
Model No. 320. 2966
_IL WARNING: To reduce the risk of
injury, the user must read and
understand the Operator's manual
before using this product.
0_us
LISTED
25W6
E306356
•Warranty
•Safety
•Description
•Operation
•Maintenance
•Troubleshooting
•Espa_ol
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
www.craftsman.com

Warranty page 2
Safety Symbols page 3-4
Important Safety Instructions page 5-9
Unpacking page 9

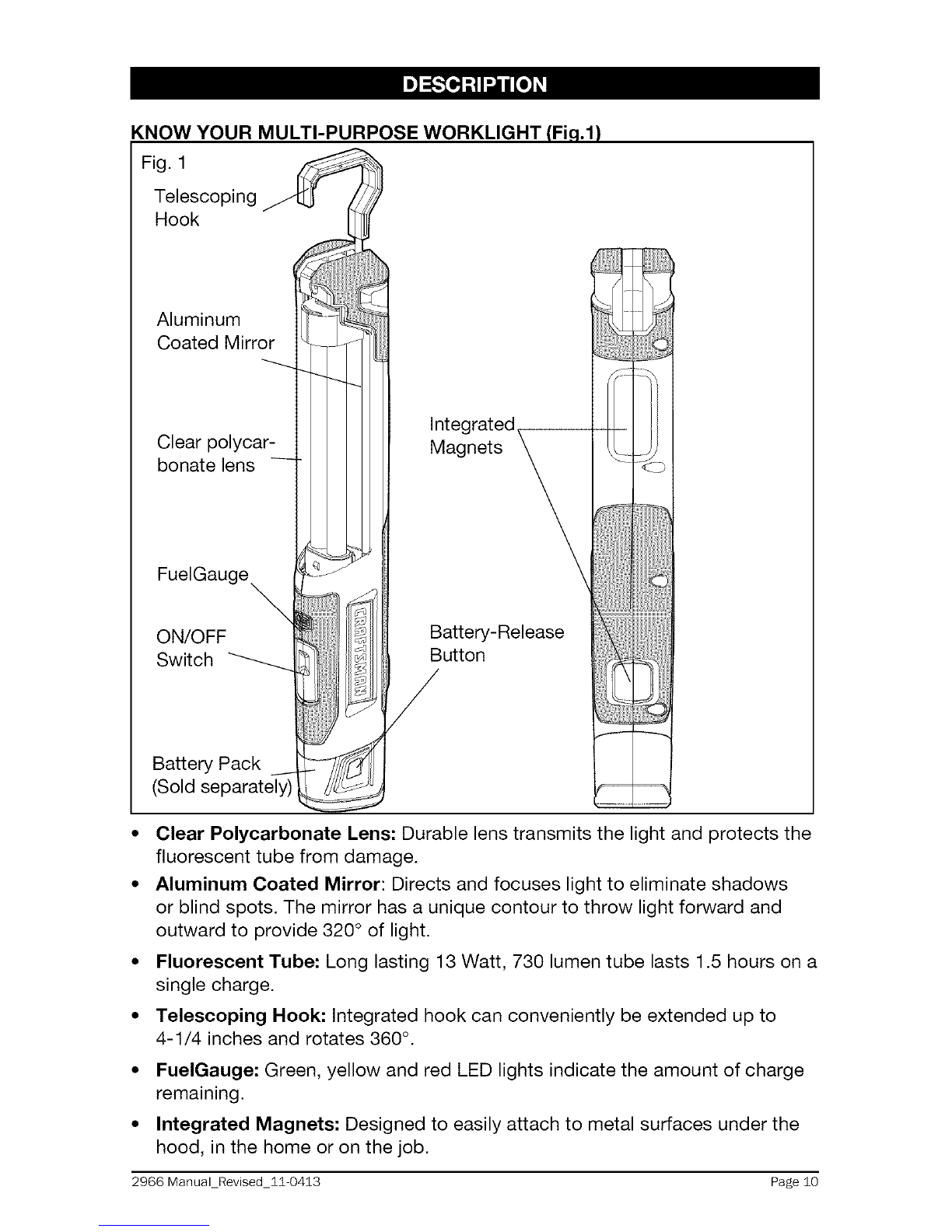

Description page 10-11
Operation page 12-17
Maintenance page 18-19

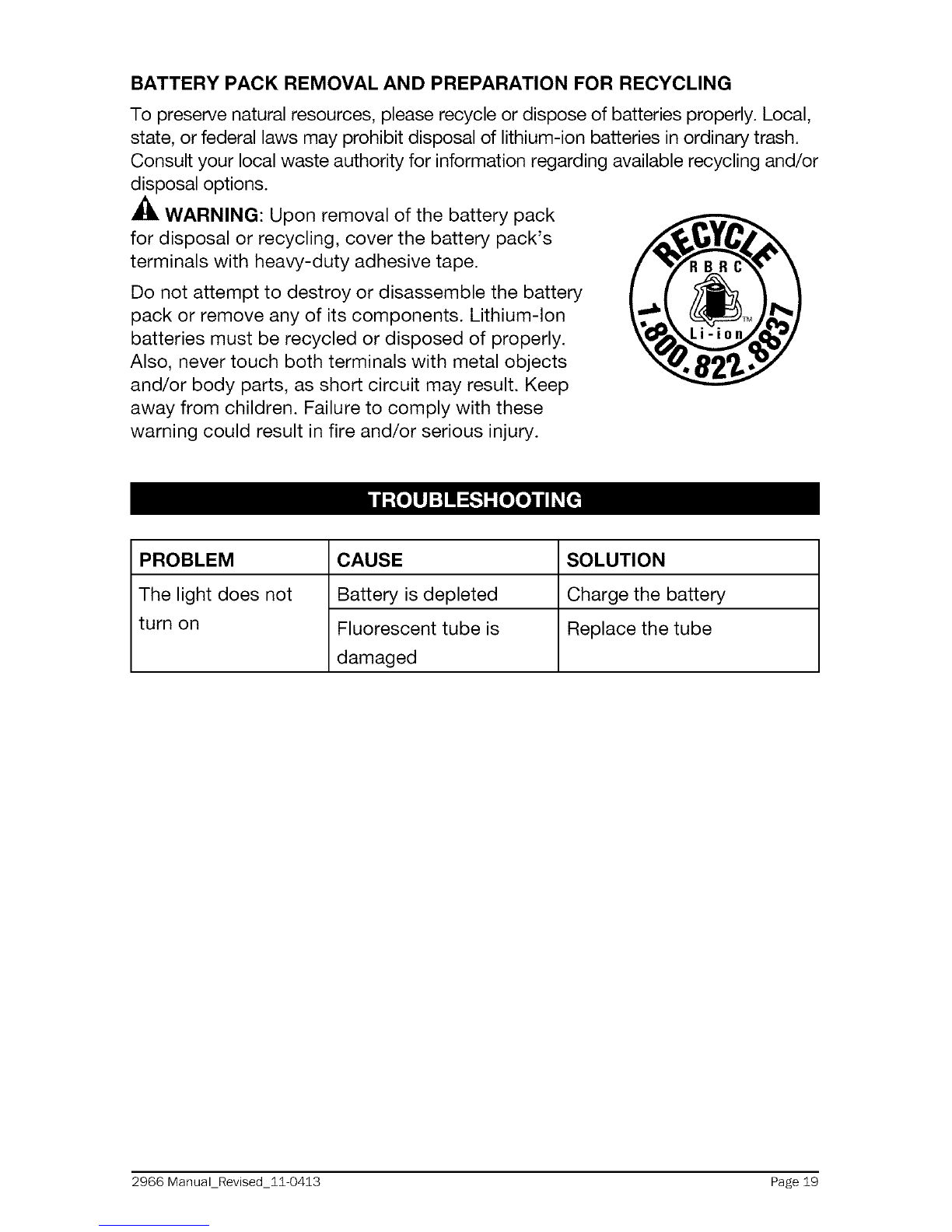

Troubleshooting page 19
Exploded View and Parts List page 20-21
Sears Repair Parts Phone Number Back Cover
CRAFTSMAN ONE YEAR LIMITED WARRANTY
FOR ONE YEAR from the date of purchase, this power tool is warranted
against any defects in material or workmanship. With proof of purchase,
defective product(s) will be replaced free of charge.
For warranty coverage details to obtain free replacement, visit the
web site: www.craftsman.com
This warranty does not cover the fluorescent tube, which is an
expendable part that can wear out from normal use within the warranty
period.
This warranty is void if this product is ever used while providing
commercial services or if rented to another person.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
SAVE THESE INSTRUCTIONS!
READ ALL INSTRUCTIONS!
This cordless 12V Multi-Purpose Worklight has many features for making its use
more pleasant and enjoyable. Safety, performance, and dependability have been
given top priority in the design of this product, making it easy to maintain and
operate.
2966 Manual_Revised_ii 04i3 Page 2

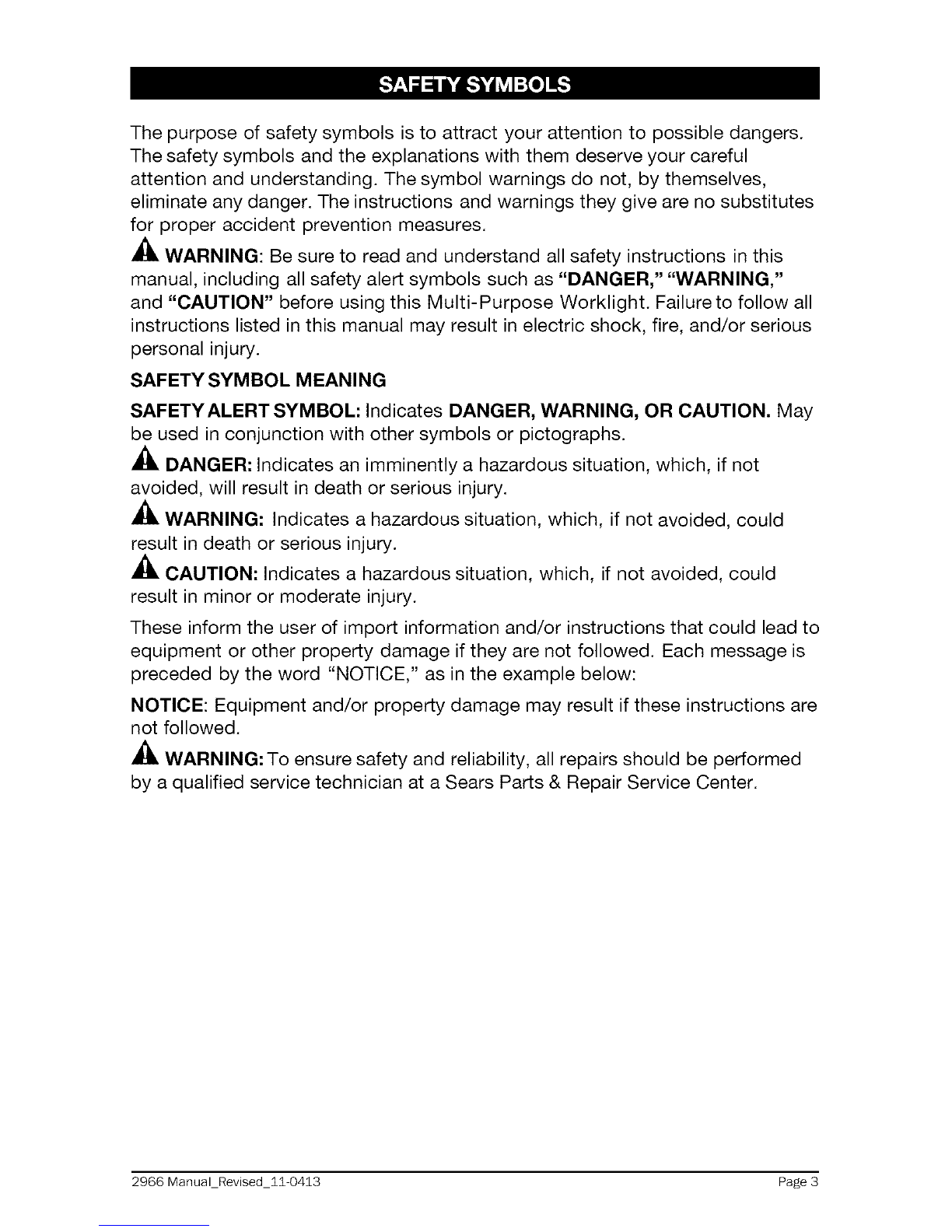

The purpose of safety symbols is to attract your attention to possible dangers.
The safety symbols and the explanations with them deserve your careful
attention and understanding. The symbol warnings do not, by themselves,
eliminate any danger. The instructions and warnings they give are no substitutes
for proper accident prevention measures.
_1_ WARNING: Be sure to read and understand all safety instructions in this
manual, including all safety alert symbols such as "DANGER," "WARNING,"
and "CAUTION" before using this Multi-Purpose Worklight. Failure to follow all
instructions listed in this manual may result in electric shock, fire, and/or serious
personal injury.
SAFETY SYMBOL MEANING
SAFETYALERT SYMBOL: Indicates DANGER, WARNING, OR CAUTION. May
be used in conjunction with other symbols or pictographs.
_L. DANGER: Indicates an imminently a hazardous situation, which, if not
avoided, will result in death or serious injury.
_lk WARNING: Indicates a hazardous situation, which, if not avoided, could
result in death or serious injury.
_, CAUTION: Indicates a hazardous situation, which, if not avoided, could
result in minor or moderate injury.
These inform the user of import information and/or instructions that could lead to
equipment or other property damage if they are not followed. Each message is
preceded by the word "NOTICE," as in the example below:
NOTICE: Equipment and/or property damage may result if these instructions are
not followed.
A_, WARNING: To ensure safety and reliability, all repairs should be performed
by a qualified service technician at a Sears Parts & Repair Service Center.
2966 Manual_Revised_l± 0413 Page 3

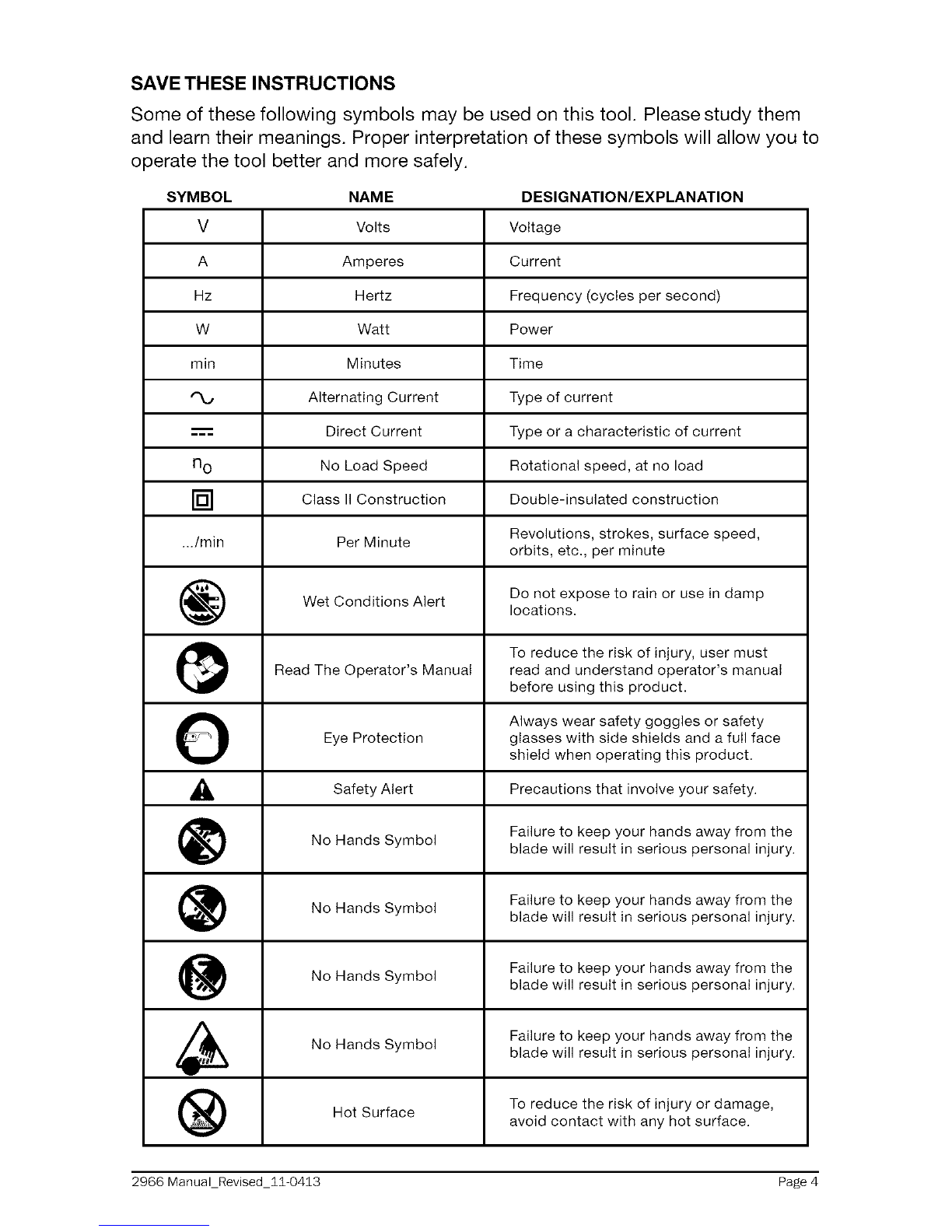

SAVE THESE INSTRUCTIONS
Some of these following symbols may be used on this tool. Please study them
and learn their meanings. Proper interpretation of these symbols will allow you to
operate the tool better and more safely.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
rain Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
n o No Load Speed Rotational speed, at no load
] Class II Construction Double-insulated construction
.../rain Per Minute Revolutions, strokes, surface speed,
orbits, etc., per minute
Wet Conditions Alert Do not expose to rain or use in damplocations.
To reduce the risk of injury, user must
Read The Operator's Manual read and understand operator's manual
before using this product.
Always wear safety goggles or safety
Eye Protection glasses with side shields and a full face
shield when operating this product.
,_ Alert Precautions that involve
Safety your safety.
Failure to keep your hands away from the
No Hands Symbol blade will result in serious personal injury.
No Hands Failure to keep your hands away from the
Symbol blade will result in serious personal injury.
No Hands Failure to keep your hands away from the
Symbol blade will result in serious personal injury.
Failure to keep your hands away from the
No Hands Symbol blade will result in serious personal injury.
Hot Surface To reduce the risk of injury or damage,avoid contact with any hot surface.
2966 Manual_Revised_11 0413 Page 4

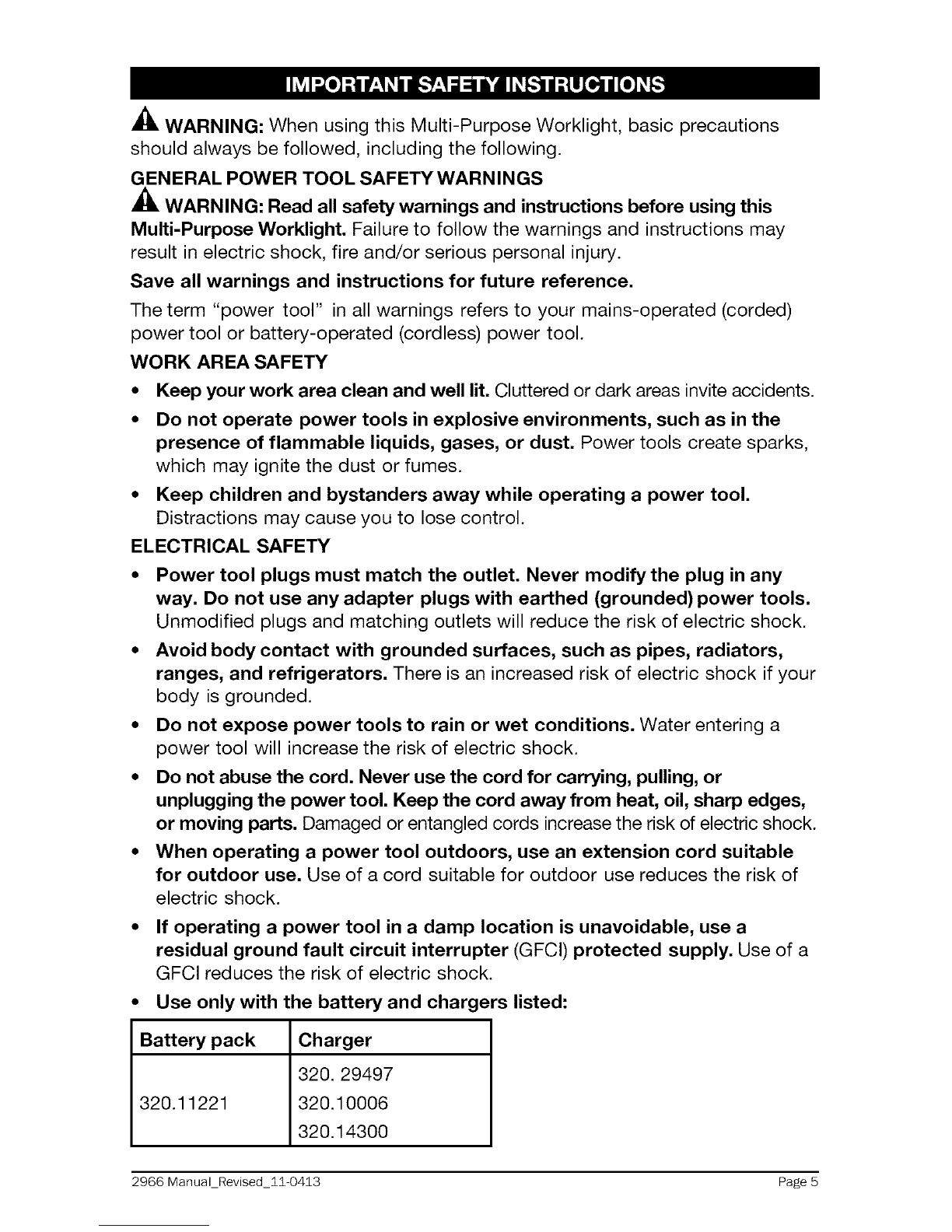

_, WARNING: When using this Multi-Purpose Worklight, basic precautions
should always be followed, including the following.
GENERAL POWER TOOL SAFETYWARNINGS
_, WARNING: Read all safety warnings and instructions before using this
Multi-Purpose Worklight. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious personal injury.
Save all warnings and instructions for future reference.
The term "power tool" in all warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
WORK AREA SAFETY
•Keep your work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive environments, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks,
which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool.
Distractions may cause you to lose control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce the risk of electric shock.
• Avoid body contact with grounded surfaces, such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if your
body is grounded.
• Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling, or
unplugging the power tool. Keep the cord away from heat, oil, sharp edges,
or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
If operating a power tool in a damp location is unavoidable, use a
residual ground fault circuit interrupter (GFCI) protected supply. Use of a
GFCI reduces the risk of electric shock.
Use only with the battery and chargers listed:
Battery pack Charger
320.29497
320.11221 320.10006
320.14300
2966 Manual_Revised_l± 0413 Page 5

PERSONAL SAFETY
• Stay alert, watch what you are doing, and use common sense when
operating a power the tool. Do not use a power tool while tired or under
the influence of drugs, alcohol, or medication. A moment of inattention
while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective
equipment, such as dust mask, non-skid safety shoes, hard hat, or hearing
protection, used for appropriate conditions, will reduce personal injuries.
•Prevent unintentional starting. Ensure that the switch is in the OFF
position before connecting to a power source and/or battery pack,
picking up, or carrying the tool. Carrying power tools with your finger on the
switch or energizing power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewelry. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewelry or
long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and
collection facilities, ensure that these are connected and properly used.
Use of these devices can reduce dust-related hazards.
POWER TOOL USE AND CARE
•Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and more safely at
the rate for which it was designated.
• Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
• Disconnect the plug from the power source and/or remove the battery
pack from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the
power tool's operation. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained power tools.
2966 Manual_Revised_l± 0413 Page 6

Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
Use the power tool, accessories, blades, etc. in accordance with
these instructions and in the manner intended for the particular type of
power tool, taking into account the working conditions and the work
to be performed. Use of the power tool for operations different from those
intended could result in a hazardous situation.
BATTERY TOOL USE AND CARE
• Recharge only with the charger specified by the manufacturer. A charger
that is suitable for one type of battery pack may create a risk of fire when
used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of
any other battery packs may create a risk of injury and fire.
• When the battery pack is not in use, keep it away from other metal
objects, such as paper clips, coins, keys, nails screws, or other small
metal objects that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery;
avoid contact. If contact accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
SERVICE
•Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
•Follow instructions in the Maintenance section of this manual. Use of
unauthorized parts or failure to follow Maintenance instructions may create a
risk of shock or injury.
SPECIFIC SAFETY RULES FOR MULTI-PURPOSE WORKI_IGHT
WARNING: If any part is broken or missing, do not attempt to plug in the
power cord, attach the battery pack or operate the Multi-Purpose Worklight
until the broken or missing part is replaced. Failure to do so could result in
possibly serious injury.
_, WARNING: Do not attempt to modify this Multi-Purpose Worklight or create
accessories not recommended for use with this tool. Any such alteration or
modification is misuse and could result in a hazardous condition leading to
ossible serious injury.
WARNING: To prevent accidental starting that could cause serious personal
injury, always remove the battery pack from the Multi-Purpose Worklight when
assembling parts.
2966 Manual_Revised_li 0413 Page 7

•Know your Multi-Purpose Worklight. Read operator's manual carefully.
Learn the applications and limitations, as well as the specific potential
hazards related to this tool. Following this rule will reduce the risk of electric
shock, fire or serious injury.
•To reduce the risk of injury, close supervision is necessary when the
Multi-Purpose Worklight is used near children.
•To reduce the risk of electrical shock, do not put the Multi-Purpose
Worklight and Battery Pack in water or other liquid. Do not place or store
the worklight where it can fall or be pulled into a tub or sink.
• Do not stare directly into the Multi-Purpose Worklight. Avoid direct eye
contact; never project the Worklight to another person's eyes. Failure to
observe this precaution will lead serious personal injury.
•Keep the Multi-Purpose Worklight away from sensitive electronics. The
magnets may disturb the normal work of the sensitive electronics.
•Do not use outdoors in rain, snow, damp or wet locations. Do not use
in explosive atmospheres (gaseous fumes, dust or flammable materials)
because sparks may be generated when inserting or removing the battery
pack, possibly causing fire.
•Battery tools do not have to be plugged into an electrical outlet;
therefore, they are always in operating condition. Be aware of possible
hazards when not using your battery tool or when changing accessories.
Following this rule will reduce the risk of electric shock, fire or serious
personal injury.
•Do not place battery tools or their batteries near fire or heat. This will
reduce the risk of explosion and possible injury.
•Do not crush, drop or damage the battery pack. Do not use a battery
pack or charger that has been dropped or received a sharp blow. A
damaged battery is subject to explosion. Properly dispose of a dropped or
damaged battery immediately.
• Batteries vent hydrogen gas and can explode in the presence of a source
of ignition, such as a pilot light. To reduce the risk of serious personal
injury, never use any cordless product in the presence of open flame. An
exploded battery can propel debris and chemicals. If exposed, flush with
water immediately.
•Do not charge a battery tool in a damp or wet location. Following this rule
will reduce the risk of electric shock.
For best results, your battery tool should be charged in alocation where
the temperature is more than 32°F (0°C) but less than 104°F (40°C).
Do not store outside or in vehicles.
2966 Manual_Revised_11 0413 Page 8

•Under extreme usage or temperature conditions, battery leakage may
occur. If liquid comes in contact with your skin, wash immediately with
soap and water, then neutralize with lemon juice or vinegar. If liquid gets
in your eyes, flush them with clean water for at least 10 minutes, then seek
immediate medical attention. Following this rule will reduce the risk of serious
personal injury.
• If the power supply cord is damaged, it must be replaced only by the
manufacturer or by an authorized service center to avoid risk.
This product has been shipped completely assembled.
• Carefully remove the tool and any accessories from the box. Make sure that
all items listed in the packing list are included.
• Inspect the tool carefully to make sure that no breakage or damage occurred
during shipping.
• Do not discard the packing material until you have carefully inspected and
satisfactorily operated the tool.
• If any parts are damaged or missing, please refer to the numbers listed on the
back page of operator's manual.
PACKING LIST
Multi-Purpose Worklight, operator's manual
2966 Manual_Revised_li 0413 Page 9

ID]_]i_ll_ll_e]_]
KNOW YOUR MULTI-PURPOSE WORKLIGHT (Fi.q.1)
Fig. 1
Telescoping
Hook
Aluminum
Coated Mirror
Clear polycar-
bonate lens
FuelGauge
ON/OFF
Switch
Battery Pack
(Sold separately)
Integrated
Magnets
Battery-Release
Button
/
• Clear Polycarbonate Lens: Durable lens transmits the light and protects the
fluorescent tube from damage.
• Aluminum Coated Mirror: Directs and focuses light to eliminate shadows
or blind spots. The mirror has a unique contour to throw light forward and
outward to provide 320 ° of light.
• Fluorescent Tube: Long lasting 13 Watt, 730 lumen tube lasts 1.5 hours on a
single charge.
• Telescoping Hook: Integrated hook can conveniently be extended up to
4-1/4 inches and rotates 360 °.
•FuelGauge: Green, yellow and red LED lights indicate the amount of charge
remaining.
• Integrated Magnets: Designed to easily attach to metal surfaces under the
hood, in the home or on the job.
2966 Manual_Revised_ll 0413 Page iO

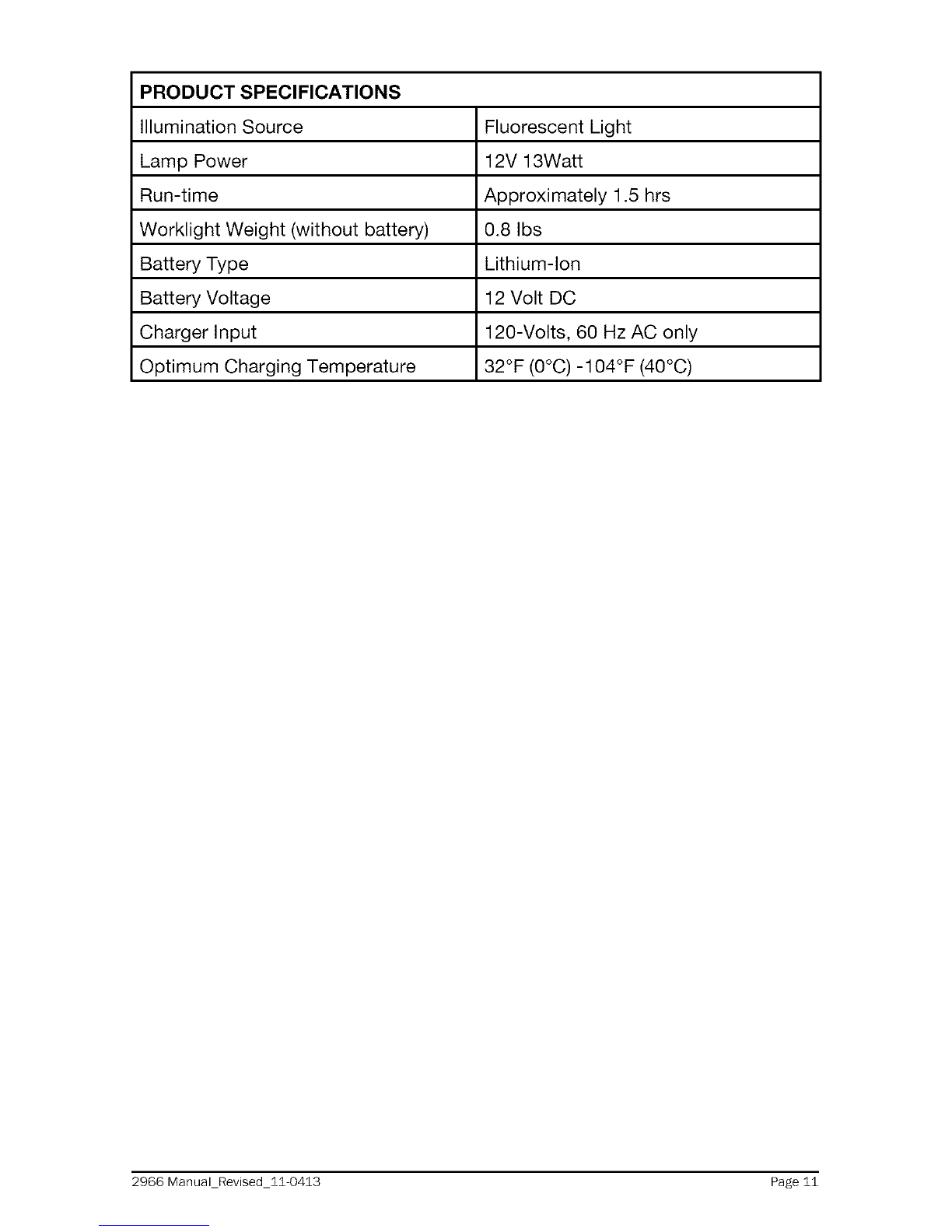

PRODUCT SPECIFICATIONS
Illumination Source Fluorescent Light
Lamp Power 12V 13Watt
Run-time Approximately 1.5 hrs
Worklight Weight (without battery) 0.8 Ibs
Battery Type Lithium-Ion
Battery Voltage 12 Volt DC
Charger Input 120-Volts, 60 Hz AC only
Optimum Charging Temperature 32°F (0°C) -104°F (40°C)
2966 Manual_Revised_11 0413 Page 11

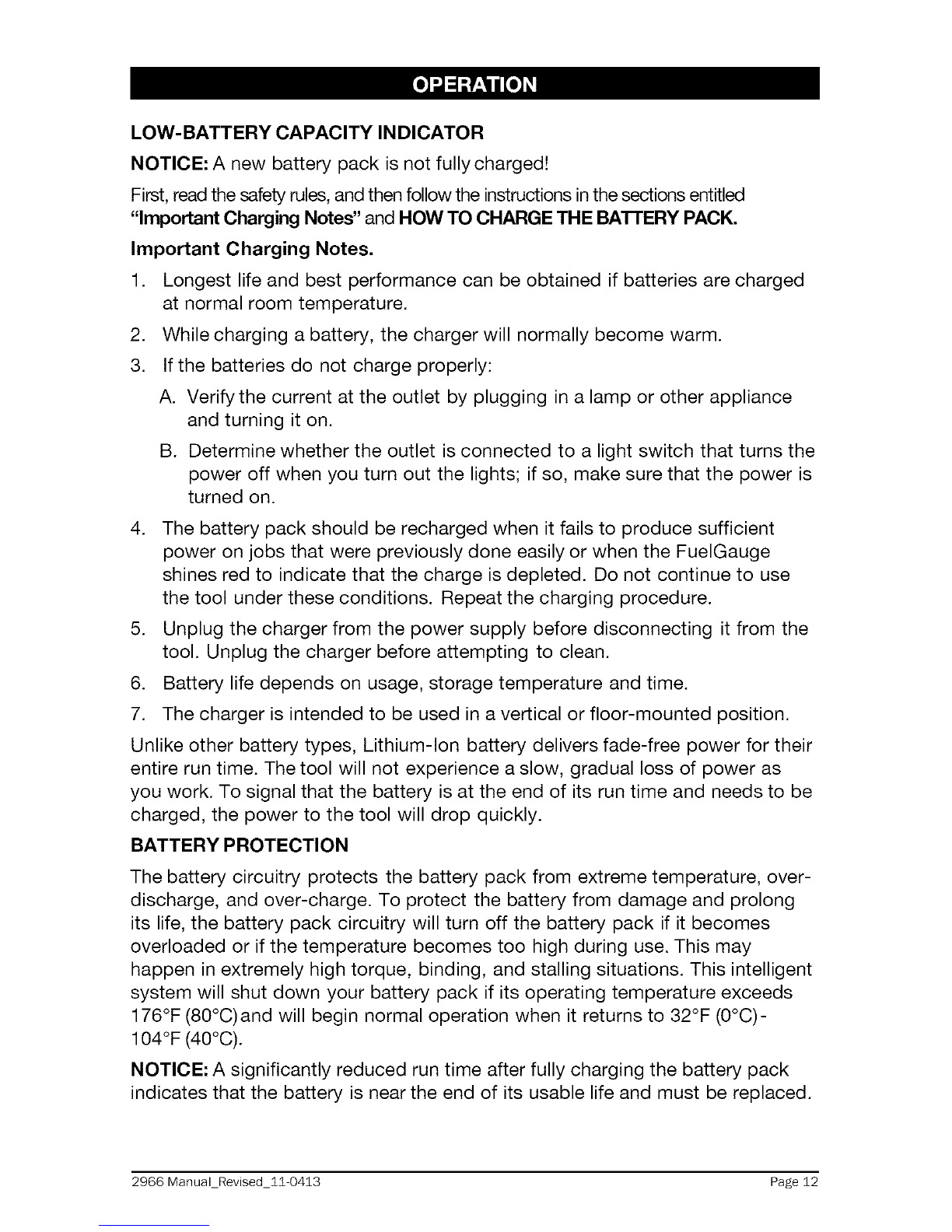

LOW-BATTERY CAPACITY INDICATOR
NOTICE: A new battery pack is not fully charged!
First, read the safety rules, and then follow the instructions in the sections entitled
"Important Charging Notes" and HOW TO CHARGE THE BA'n'ERY PACK.
Important Charging Notes.
1. Longest life and best performance can be obtained if batteries are charged
at normal room temperature.
2. While charging a battery, the charger will normally become warm.
3. If the batteries do not charge properly:
A. Verifythe current at the outlet by plugging in a lamp or other appliance
and turning it on.
B. Determine whether the outlet is connected to a light switch that turns the
power off when you turn out the lights; if so, make sure that the power is
turned on.
4. The battery pack should be recharged when it fails to produce sufficient
power on jobs that were previously done easily or when the FuelGauge
shines red to indicate that the charge is depleted. Do not continue to use
the tool under these conditions. Repeat the charging procedure.
5. Unplug the charger from the power supply before disconnecting it from the
tool. Unplug the charger before attempting to clean.
6. Battery life depends on usage, storage temperature and time.
7. The charger is intended to be used in a vertical or floor-mounted position.
Unlike other battery types, Lithium-Ion battery delivers fade-free power for their
entire run time. The tool will not experience a slow, gradual loss of power as
you work. To signal that the battery is at the end of its run time and needs to be
charged, the power to the tool will drop quickly.
BATTERY PROTECTION
The battery circuitry protects the battery pack from extreme temperature, over-
discharge, and over-charge. To protect the battery from damage and prolong
its life, the battery pack circuitry will turn off the battery pack if it becomes
overloaded or if the temperature becomes too high during use. This may
happen in extremely high torque, binding, and stalling situations. This intelligent
system will shut down your battery pack if its operating temperature exceeds
176°F (80°C)and will begin normal operation when it returns to 32°F (0°C) -
104°F (40°C).
NOTICE: A significantly reduced run time after fully charging the battery pack
indicates that the battery is near the end of its usable life and must be replaced.
2966 Manual_Revised_11 0413 Page 12

COLD WEATHER OPERATION
This Lithium-Ion battery pack will provide optimal performance in temperatures
between 32°F (0°C) and 104°F (40°C). When the battery pack is very cold, it
may "pulse" for the first minute of use to warm itself. Install the battery pack in
the tool and use the tool in a light application; after about a minute, the battery
pack will have warmed itself and will operate normally.
WHEN TO CHARGE THE BATTERY PACK
It is not necessary to run down the battery pack charge before recharging. The
Lithium-Ion battery can be charged at any time and will not develop a "memory"
when charged after only a partial discharge.
Remove the battery pack from the tool when it is convenient for you and your
job. "Top off" the battery pack charge by charging it for a time before starting a
big job or long period of use.
Due to Lithium-Ion fade-free properties, the only time it is necessary to charge the
Lithium-Ion battery pack is when the pack has reached the end of its charge.
The yellow LED on the FuelGauge indicates that the battery has used
approximately one half of its charge.
The red LED on the FuelGauge indicates the battery pack is depleted and needs
to be charged.
Charge the battery pack as needed.
HOW TO CHARGE THE BATTERY PACK (Fig. 2)
NOTICE: The Lithium-Ion battery pack (available separately) is shipped
partially charged. Before using it the first time, fully charge the battery pack.
A fully discharged battery pack will charge
in about 30 minutes in a surrounding Fig. 2
temperature between 32°F (0°C) and
104°F (40°C). _---'_
1. Charge the Lithium-Ion battery pack with
the correct charger.
2. Connect the charger to a power supply. !_. -_, ,_,_
3. Align the raised ribs of the battery pack -; _,,_b--_- J i
with the slot in the charger. _!_,_"--_= _,4==_U..........
4. Insert the battery pack into the charger .....-.......¢ _..-_J,........
(Fig. 2).
5. The charger will communicate with the battery pack to evaluate the condition
of the battery pack.
6. The green lights will flash while the battery pack is charging. After charging
is complete, the green LED on the charger will be on. The flickering red light
indicates a defective battery or a bad connection between the battery and
the charger.
7. The battery pack will fully charge if left on the charger, but it will not overcharge.
NOTICE: For your convenience, the charger can operate with most generators
and inverters rated at 300 watts or higher.
2966 Manual_Revised_11 0413 Page 13

LED FUNCTIONS OF CHARGER
BATTERY RED GREEN
LED INDICATOR ACTION
PACK LED LED
[i] Charging will begin
(_ HI/LO TEMP. Hot/Cold On Off when returns to
battery
(SEE MANUAL) battery 32°F (0°C)-104°F (40°C)
DEFECTIVE _ Battery pack or
BATTERY Defective Flashing Off Charger/Adapter is
defective
BATTERY
CHARGING Charging Off Flashing Charging
BATTERY _ Fully
FULL charged Off On Charging is complete
CHARGING A HOT BATTERY PACK
If the battery pack is above normal temperature range, the red LED will
illuminate and the green LED will be off. When the battery pack cools down to
approximately 104°F (40°C), the charger will automatically begin charging.
CHARGING A COLD BATTERY PACK
If the battery pack is below the normal temperature range, the red LED
will illuminate and the green LED will be off. When the battery warms to a
temperature of more than 32°F (0°C), the charger will automatically begin
charging.
DEFECTIVE BATTERY
If the charger detects a problem with the battery, the battery may be defective:
the red LED will begin flashing and the green LED will be off.
1. If registering as defective, remove and reinsert the battery pack in the
charger. If the LED status reads "defective" a second time, try charging a
different battery pack.
2. If a different battery pack charges normally, dispose of the defective battery
pack (see Maintenance section).
3. Ifa different battery pack also indicates "defective," the charger may be defective.
BATTERY CHARGING
If the battery pack is being charged within a normal surrounding temperature
range (32°F to 104°F), the green LED will begin flashing and the red LED will be
off. The battery pack will reach a full charge in 30 minutes.
BATTERY FULL
If the battery pack is within normal temperature range, the green LED will
illuminate and the red LED will be off. The battery pack is fully charged and
ready to use. The battery pack will fully charge, but will not overcharge, if left on
the charger.
2966 Manual_Revised_11 0413 Page 14

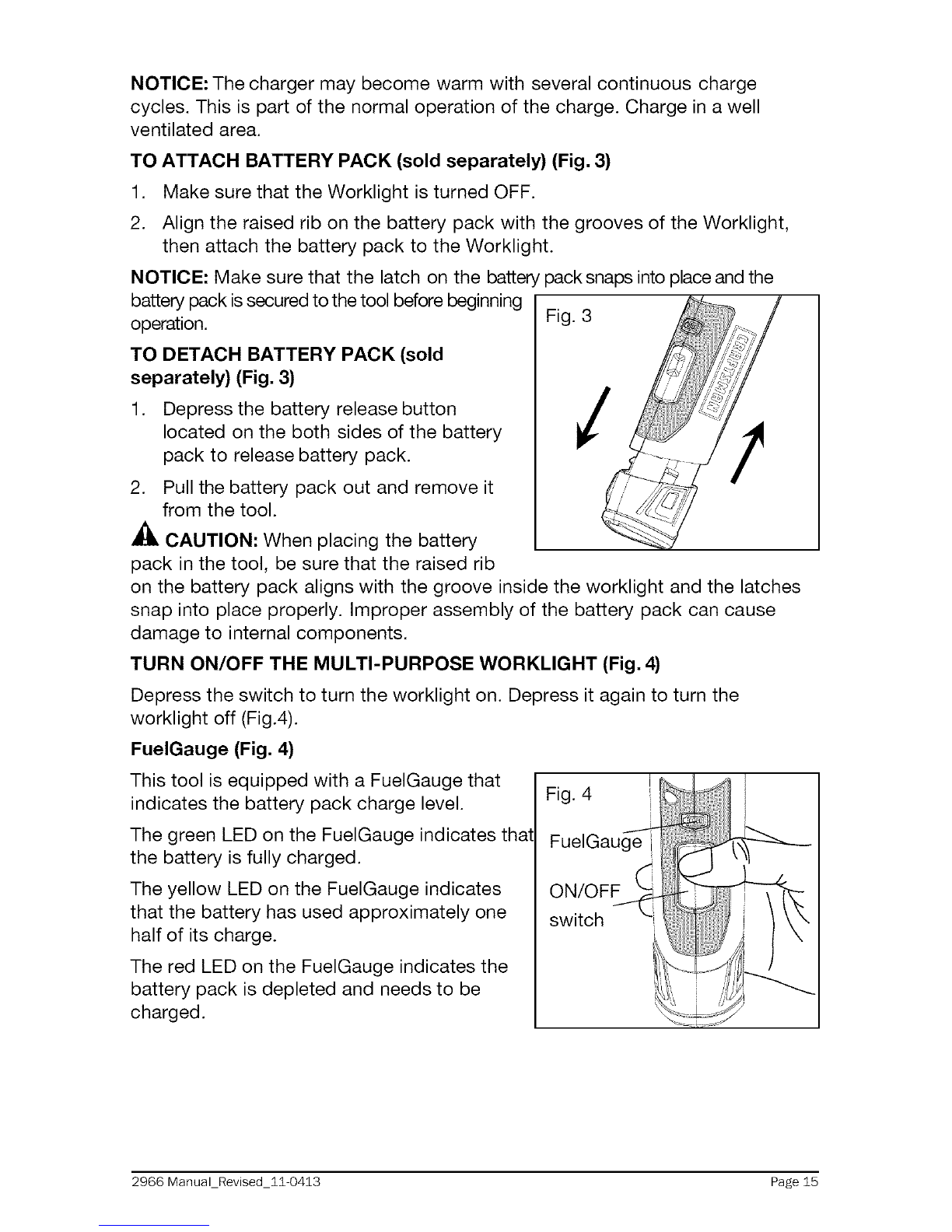

NOTICE: The charger may become warm with several continuous charge
cycles. This is part of the normal operation of the charge. Charge in a well
ventilated area.
TO ATTACH BATTERY PACK (sold separately) (Fig. 3)
1. Make sure that the Worklight is turned OFF.
2. Align the raised rib on the battery pack with the grooves of the Worklight,
then attach the battery pack to the Worklight.
NOTICE: Make sure that the latch on the battery pack snaps into place and the
battery pack is secured to the tool before beginning /
operation. Fig. 3 /
TO DETACH BATTERY PACK (sold
separately) (Fig. 3)
1. Depress the battery release button J
located on the both sides of the battery _-
pack to release battery pack. /
2. Pull the battery pack out and remove it
from the tool.
_lk CAUTION: When placing the battery
pack in the tool, be sure that the raised rib
on the battery pack aligns with the groove inside the worklight and the latches
snap into place properly. Improper assembly of the battery pack can cause
damage to internal components.
TURN ON/OFF THE MULTI-PURPOSE WORKLIGHT (Fig. 4)
Depress the switch to turn the worklight on. Depress it again to turn the
worklight off (Fig.4).
FuelGauge (Fig. 4)
This tool is equipped with a FuelGauge that
indicates the battery pack charge level.
The green LED on the FuelGauge indicates that
the battery is fully charged.
The yellow LED on the FuelGauge indicates
that the battery has used approximately one
half of its charge.
The red LED on the FuelGauge indicates the
battery pack is depleted and needs to be
charged.
Fig. 4
FuelGauge
ON/OFF
switch
2966 Manual_Revised_li 0413 Page 15

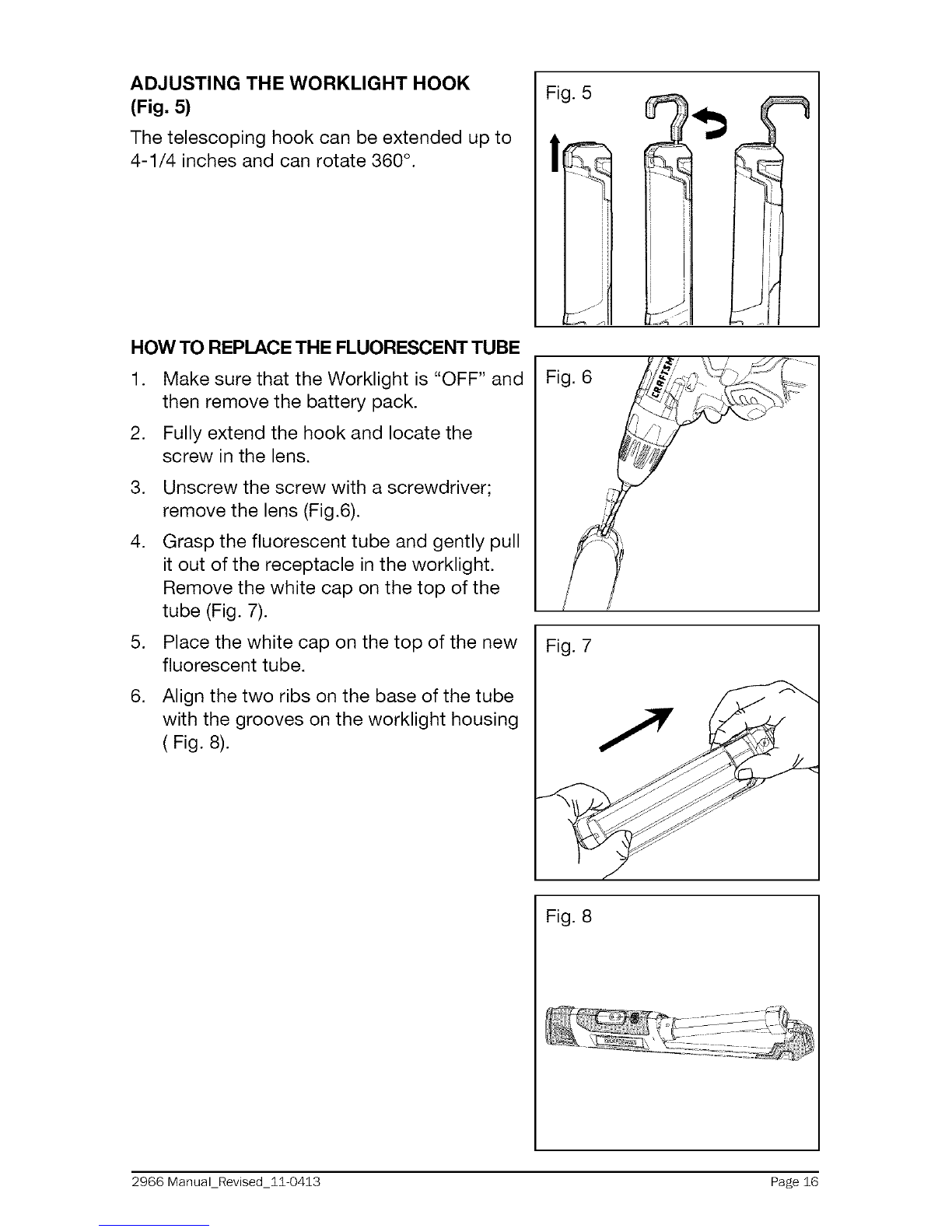

ADJUSTING THE WORKLIGHT HOOK
(Fig. 5)
The telescoping hook can be extended up to
4-1/4 inches and can rotate 360°.
HOWTO REPLACETHE FLUORESCENTTUBE
1. Make sure that the Worklight is "OFF" and
then remove the battery pack.
2. Fully extend the hook and locate the
screw in the lens.
3. Unscrew the screw with a screwdriver;
remove the lens (Fig.6).
4. Grasp the fluorescent tube and gently pull
it out of the receptacle in the worklight.
Remove the white cap on the top of the
tube (Fig. 7).
5. Place the white cap on the top of the new
fluorescent tube.
6. Align the two ribs on the base of the tube
with the grooves on the worklight housing
( Fig. 8).
Fig. 5
I
.....
Fig. 6
Fig. 7
Fig. 8
2966 Manual_Revised_11 0413 Page 16

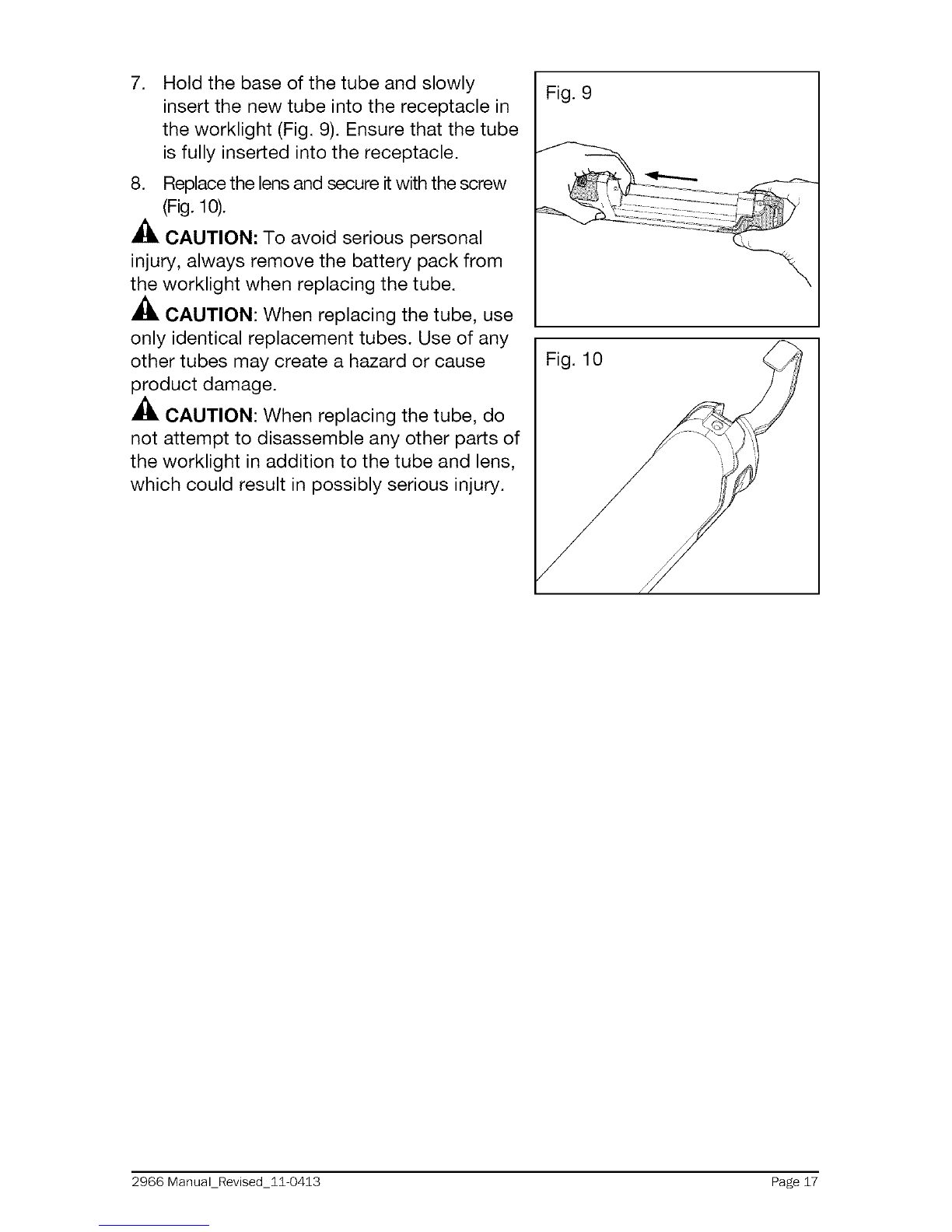

7. Hold the base of the tube and slowly
insert the new tube into the receptacle in
the worklight (Fig. 9). Ensure that the tube
is fully inserted into the receptacle.
8. Replace the lens and secure it with the screw
(Fig. 10).
CAUTION: To avoid serious personal
injury, always remove the battery pack from
the worklight when replacing the tube.
_, CAUTION: When replacing the tube, use
only identical replacement tubes. Use of any
other tubes may create a hazard or cause
product damage.
_, CAUTION: When replacing the tube, do
not attempt to disassemble any other parts of
the worklight in addition to the tube and lens,
which could result in possibly serious injury.
Fig. 9
Fig. 10
2966 Manual_Revised_11 0413 Page 17

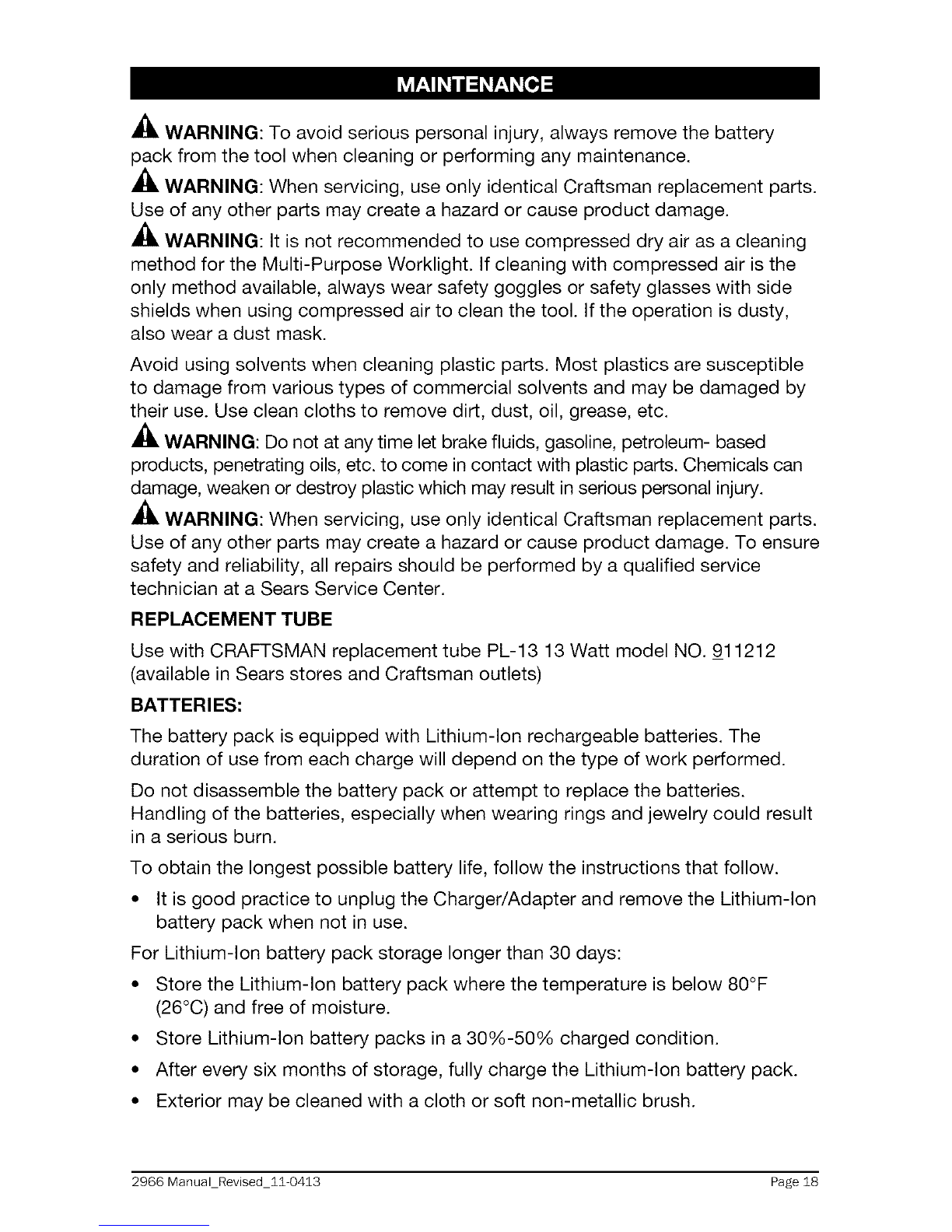

_h, WARNING: To avoid serious personal injury, always remove the battery
pack from the tool when cleaning or performing any maintenance.
_1, WARNING: When servicing, use only identical Craftsman replacement parts.
Use of any other parts may create a hazard or cause product damage.
_, WARNING: It is not recommended to use compressed dry air as a cleaning
method for the Multi-Purpose Worklight. If cleaning with compressed air is the
only method available, always wear safety goggles or safety glasses with side
shields when using compressed air to clean the tool. If the operation is dusty,
also wear a dust mask.
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible
to damage from various types of commercial solvents and may be damaged by
their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
_, WARNING: Do not at any time let brake fluids, gasoline, petroleum- based
products, penetrating oils, etc. to come in contact with plastic parts. Chemicals can
damage, weaken or destroy plastic which may result in serious personal injury.
_lk WARNING: When servicing, use only identical Craftsman replacement parts.
Use of any other parts may create a hazard or cause product damage. To ensure
safety and reliability, all repairs should be performed by a qualified service
technician at a Sears Service Center.
REPLACEMENT TUBE
Use with CRAFTSMAN replacement tube PL-13 13 Watt model NO. 911212
(available in Sears stores and Craftsman outlets)
BATTERI ES:
The battery pack is equipped with Lithium-Ion rechargeable batteries. The
duration of use from each charge will depend on the type of work performed.
Do not disassemble the battery pack or attempt to replace the batteries.
Handling of the batteries, especially when wearing rings and jewelry could result
in a serious burn.
To obtain the longest possible battery life, follow the instructions that follow.
• It is good practice to unplug the Charger/Adapter and remove the Lithium-Ion
battery pack when not in use.
For Lithium-Ion battery pack storage longer than 30 days:
• Store the Lithium-Ion battery pack where the temperature is below 80°F
(26°C) and free of moisture.
• Store Lithium-Ion battery packs in a 30%-50% charged condition.
• After every six months of storage, fully charge the Lithium-Ion battery pack.
• Exterior may be cleaned with a cloth or soft non-metallic brush.
2966 Manual_Revised_11 0413 Page 18

BATTERY PACK REMOVAL AND PREPARATION FOR RECYCLING
To preserve natural resources, please recycle or dispose of batteries properly. Local,
state, or federal laws may prohibit disposal of lithium-ion batteries in ordinary trash.
Consult your local waste authority for information regarding available recycling and/or
disposal options.
_h, WARNING: Upon removal of the battery pack
for disposal or recycling, cover the battery pack's ,_it,,_,_'_'_'_
terminals with heaw-duty adhesive tape.
Do not attempt to destroy or disassemble the battery
pack or remove any of its components. Lithium-Ion
batteries must be recycled or disposed of properly.
Also, never touch both terminals with metal objects
and/or body parts, as short circuit may result. Keep
away from children. Failure to comply with these
warning could result in fire and/or serious injury.
PROBLEM
The light does not
turn on
CAUSE
Battery is depleted
Fluorescent tube is
damaged
SOLUTION
Charge the battery
Replace the tube
2966 Manual_Revised_i$ 04i3 Page i9

8_
C
o
_._ (D
o___5"
g
>
I'-"
_z_
0
• r-
_- o
_Z
go
o_ 0
z _
r'-
-_ T"
o _ "0
_o
_ t_ I"11
o _ 0
5-0"17
_-n
