Universal Space FRUIT MANIA Extreme User manual























OperationManual
www.universal-space.com
CONTENT
Extreme

 Fruit Mania
1

IMPORTANT SAFETY INSTRUCTIONS.......................................................................................2
1. SPECIFICATIONS.....................................................................................................................4
2. PACKAGE CONTENTS.............................................................................................................5
3. PART NAME.............................................................................................................................6
4. SET UP & INSTALLATION.......................................................................................................7
5. HOW TO PLAY ...................................................................................................................... 10
6. GAME OPTIONS ................................................................................................................... 13
7. ERROR MESSAGE AND RECOVERY ...................................................................................16
8. MAINTENANCE & INSPECTION.......................................................................................... 19
9. OVERALL CONSTRUCTION ................................................................................................. 20











Thank you for purchasing Fruit Mania from Universal Space. We hope you enjoy the
Non-technical personnel who do not have technical knowledge and
Expertise should refrain from performing such work that this manual
require or perform tasks which are not explained in this manual.
Failing to comply can cause severe accidents such as electric shock
or other serious injuries. All repairs must be performed to original
manufacturer specifications.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the machine from the power supply before
servicing.

 Fruit Mania
2

product.
This manual contains valuable information about how to operate and maintain your game machine
properly and safely. It is intended for the owner and/or personnel in charge of product operation.
Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and troubleshooting guide.
If the product fails to function properly, non-technical personnel should under no circumstance attempt
to service the machine. Contact your distributor or manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and understand
these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may cause fire,
electric shock or personal injury.Unplug the game from the outlet when not in use, when moving from
one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending on the
potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.

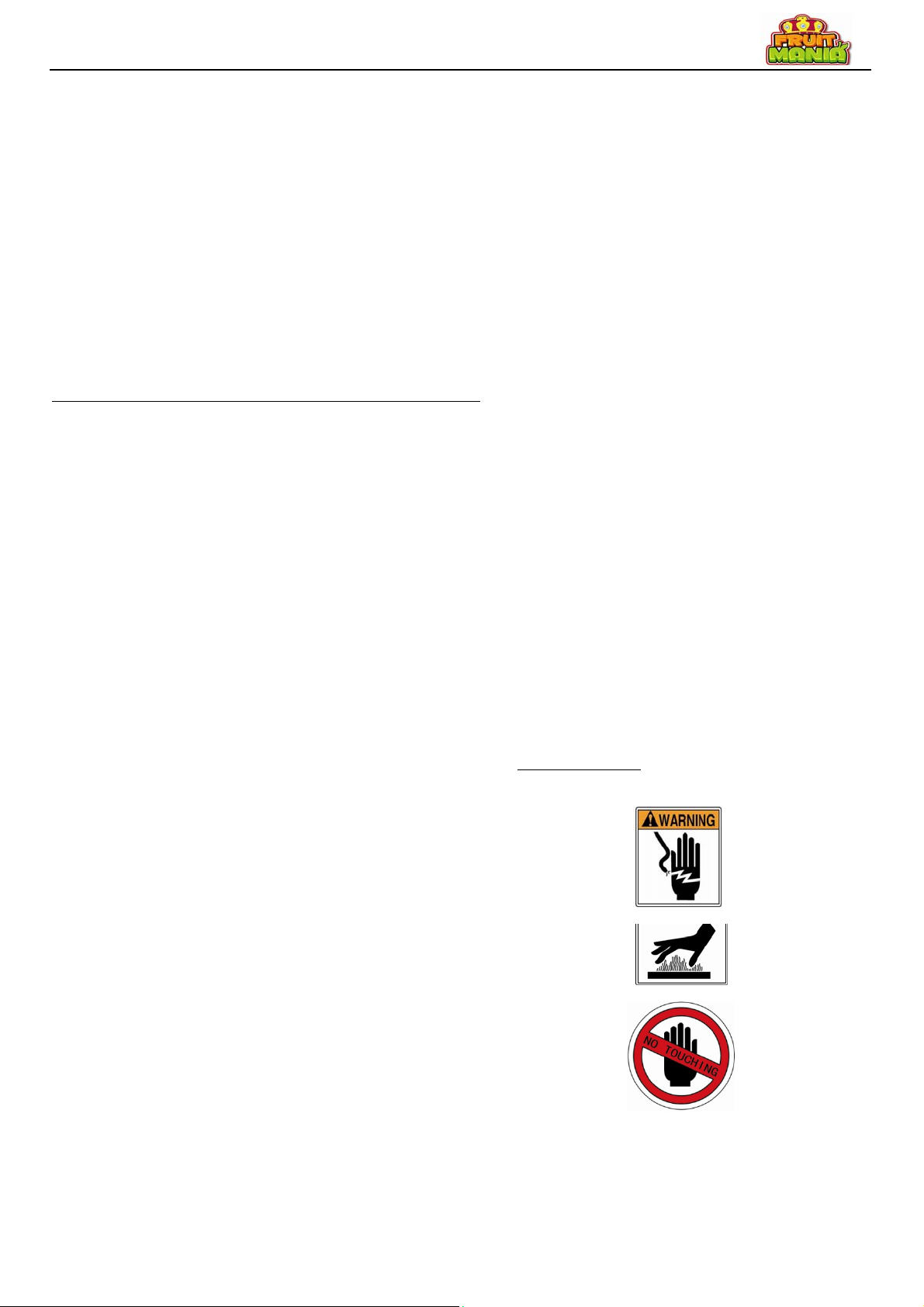

It is important to understand the meaning of the following HAZARD SIGNS before continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.
Use the following safety guidelines to help ensure your own personal safety and to help protect your



 Fruit Mania
3

equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury and/or
machine malfunctioning:
•Places subject to rain/moisture, or places subject to high humidity.
•Places subject to direct sunlight, or places subject to extremely hot or cold temperatures to ensure
that it is used within the specified operating range.
•Places where inflammable gas may be present or in the vicinity of highly inflammable/volatile
chemicals or items that can easily catch fire
•On unstable or sloped surfaces. The machine may topple or cause unforeseen accidents.
•Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS. FAILURE
TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL RISKS.
Note: The contents of this manual may be updated without notice.

 Fruit Mania
4

1. SPECIFICATIONS
Rated power supply: AC220-240V 50/60Hz
Min. Power consumption: 210W
Max. Power consumption：380W

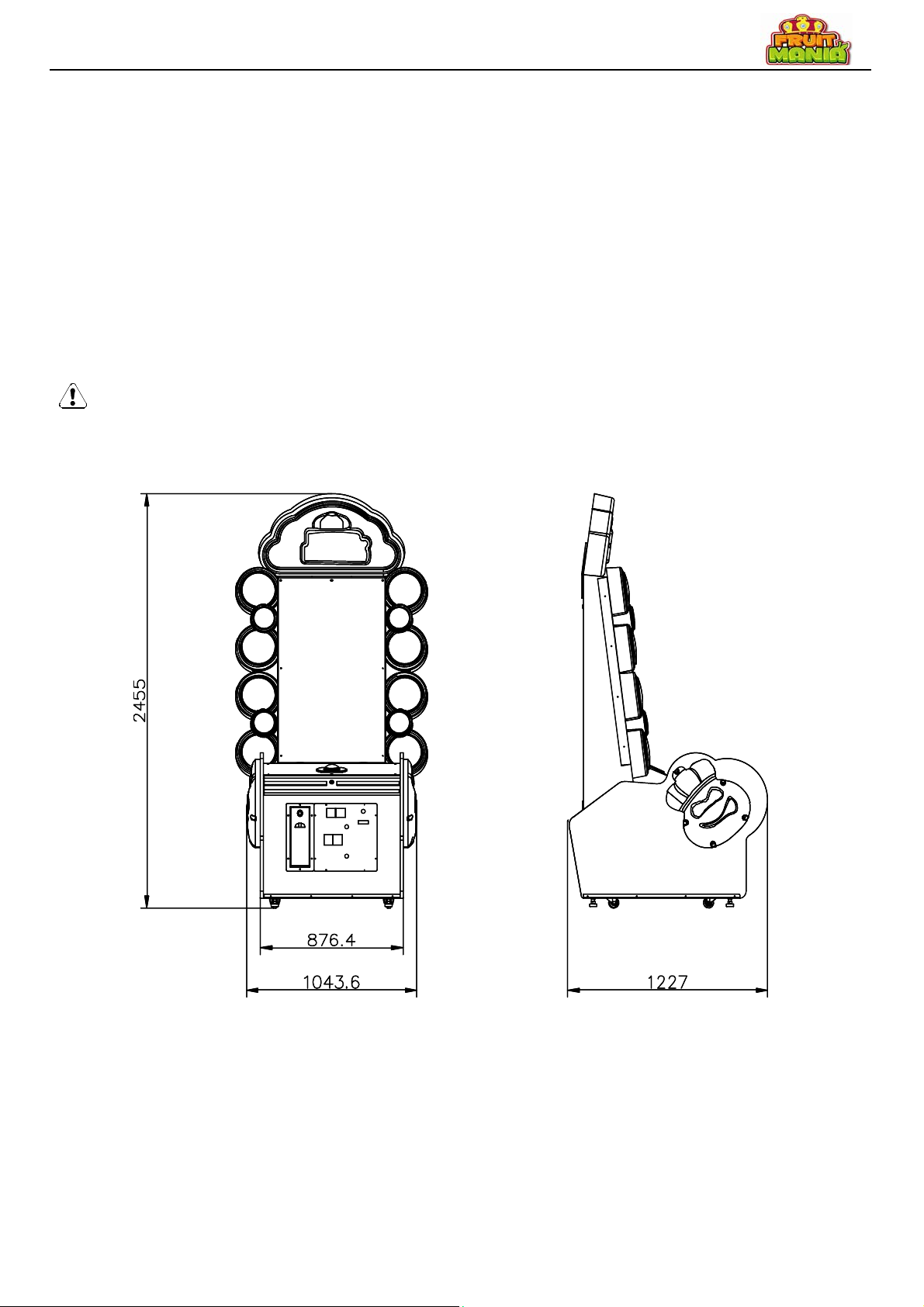

Dimensions：W1043.6×D1227×H2455(mm)
Weight：Approximately 180kg
NOTICE: After turning off the game, please wait at least 1 minute before
restarting again.


















Note: Game parameters are subject to change without notice.

 Fruit Mania
5

2. PACKAGE CONTENTS
Open the package and make sure all the items are included:
•1 x Body Assembly
•Following accessories

If any items are found to be missing, please contact your sales representative for help
immediately.
NOTE: Part models are subject to change without notice.
No. Part No. Code No. Name Spec. Qty Illustration
1 F124-425-000 23301000001 Power cord 10A/250V
1.8m 1
2 F124-724-000 41441202C Manual English 1
3 F124-404-000 25300171001 Door key 171 2
4 F124-408-000 25302222001 Coin box
door key 2222 2
5 F124-444-000 41300000003 USB Lenovo 2G 1
6 F124-429-000 21901000012 Fuse Φ5×20mm
T10A 250VAC 1

 Fruit Mania
6


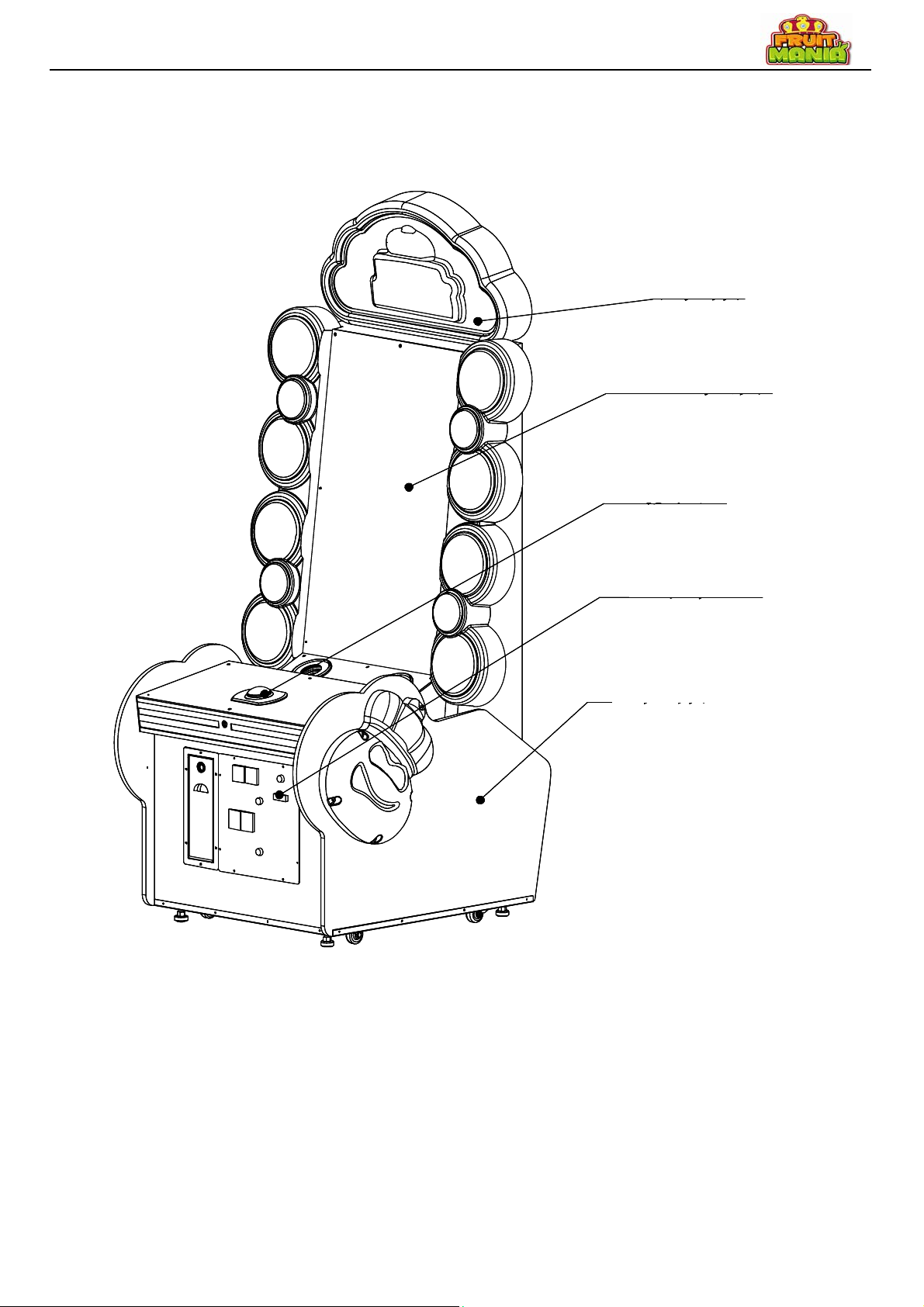

3. PART NAME



























灯箱
显示屏
按钮
木箱
出票口
灯箱
显示屏
按钮
灯箱
显示屏
按钮
木箱
出票口
木箱
出票口
Marquee
47” Monitor
Button
Ticket dispenser
Wooden box

 Fruit Mania
7

4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
zRefer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid
zPlace the unit on a dry level surface
zVentilation openings in the back of the unit must not be obstructed by objects or by wall.

4.1 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:


















Play Zone

 Fruit Mania
8

Make sure the machine is level with the ground and all the
adjustable legs should stick to the floor closely.
4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game. If
the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off the ground
by 5mm. Repeat the same for all levelers.










4.3 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position so the casters touch the
ground.






NOTICE
•Be careful not to damage the machine during transport.
•The machine should be handled with care when bringing it down from a higher level.
•Always unplug the game before moving.
•Keep the machine in upright position during transport.
•For longer distance transport, package the game properly to prevent damages
Leveler Caster
About 5mm
Move Fix
NOTICE

Leveler Caster
Move
Fix


 Fruit Mania
9

4.4 Connecting Power
WARNING: Check the voltage rating before you connect the equipment to an
electrical outlet to ensure that the required voltage and frequency match the available
power source. Please refer the label of the machine.
•Do not plug the equipment power cables into an electrical outlet if the power cable is damaged.
•Avoid putting many loads on one electrical outlet as it could generate heat and fire resulting
from overload.
•Connect the grounding conductor to the earth terminal (GND):








WARNING
Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does not sit on
the power cord as this could damage the cord and become hazardous.
To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the cord.
To prevent electric shock, do not touch the power plug when hand is wet.
Ensure that nothing rests on the power cord and that it is not located where it can be stepped on or
tripped over.

 Fruit Mania
10

5. HOW TO PLAY

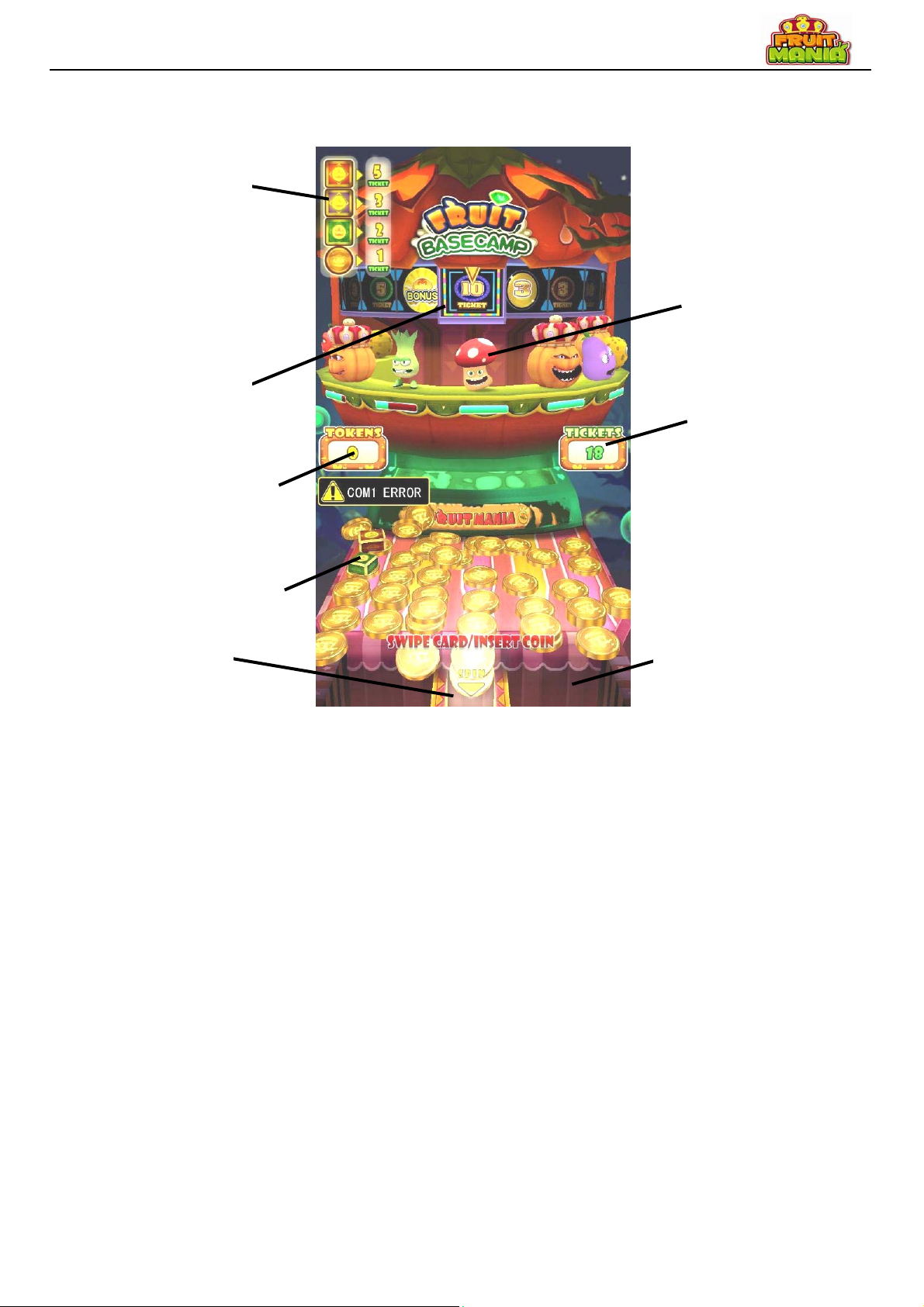

5.1 User Interface
A: The UI, display the current corresponding tickets of each box and gold coins.
B: Lottery draw runner，it’ll start to run when be active, there’s abundant rewards for players.
C: Target and target power: Shoot down the target can get different boxes with different tickets.
D: The UI, Display the rest of current gold coins.
E: The UI, Display the current tickets players have received.
F: SPIN Win Zone: players will get the corresponding value tickets when gold coins and boxes drop in
it, and gold coins will active lucky draw once.
G: Reward Zone: Tokens or boxes are falling down to win tickets.
H: Boxes: players will get different boxes when the targets are shot down.
A
B
C
D
E
F G
H

 Fruit Mania
11


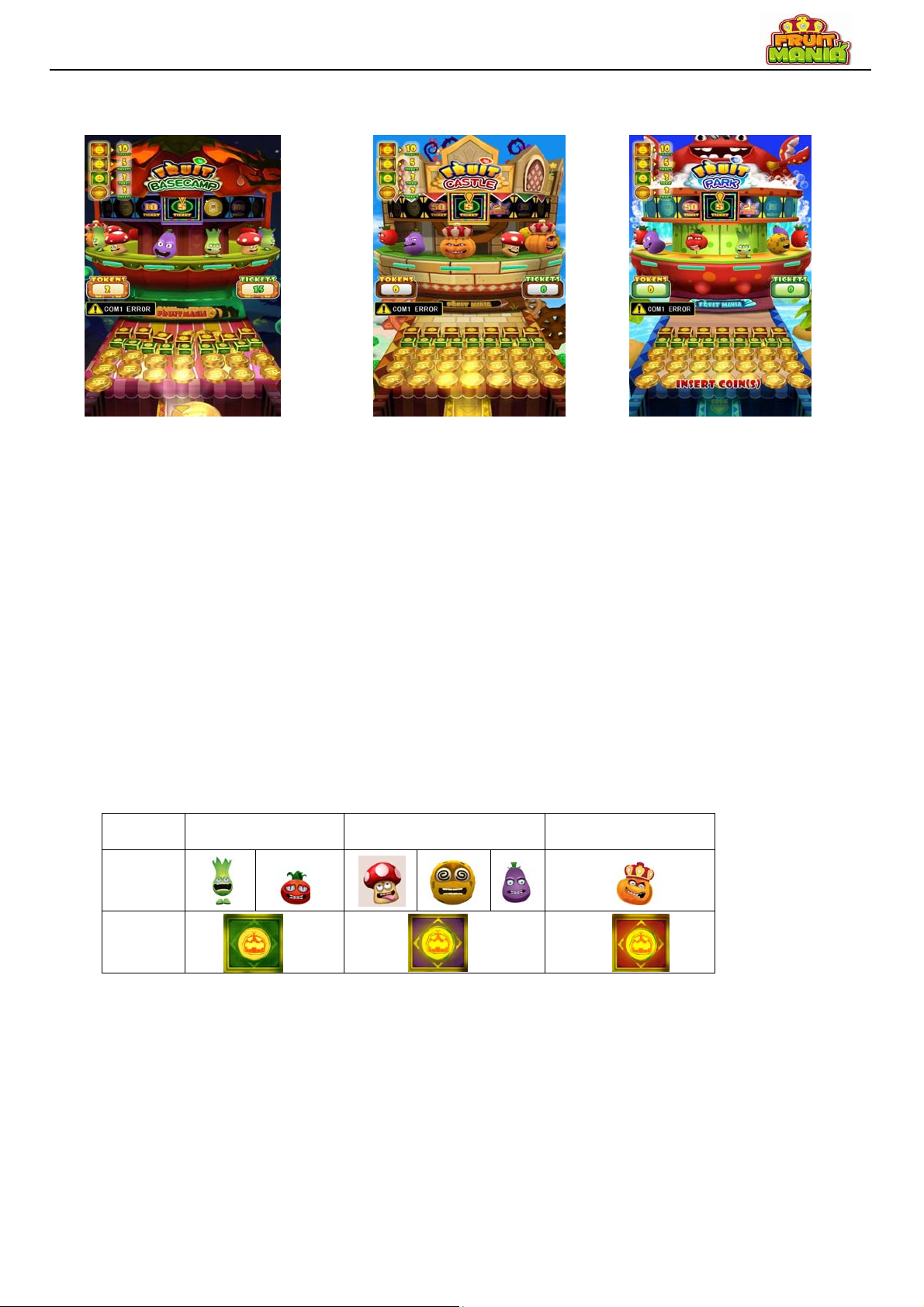

5.2 Game Scene
Three scenes are set for chosen
Scene0 Scene1 Scene2
5.3 Game Play Explanation
1) Player gain gold coins after inserting coins.
2) Player shoots monsters by launching gold coins. If hit, monster’s blood could be reduced.
3) When killing targets, different treasure boxes 1 fall down to the playfield and player gains tickets.
4) When pushing the prizes to front area, player gains tickets and prizes on both sides will disappear.
But when the tokens are pushed to F zone, player gain different tickets and active a chance of
lucky draw, it would also gain different rewards when the draw ends.
5) When turn table get to bonus，player gain bonus rewards.
5.4Reward explanation
A group (2 power) B group (4power) C group (6 power)
Roles
pictures
 
Reward
 




 Fruit Mania
12












Pic.Explanation
Green treasure box：1-30 tickets (adjustable).
Purple treasure box: 1-30 tickets (adjustable)
Orange treasure box：1-30 tickets (adjustable)
When the result is shown above, the rewards number of 1, 2, 3, 5, 10
dropping out the pusher.
When runner get to the pictures above,players can get such reward
directly, rewards were numbers of 1,3,5,10,20,30,50,100,200 tickets.
Pusher shock, the rewards and gold coins falling down front zone.
Baffles appear on the two sides of the playfield for a while to prevent the
item dropping down.
All items on the playfield will be pushed down for players.

 Fruit Mania
13

6. GAME OPTIONS
6.1 Button Distribution:
You can see setting button after you open the coin door under orange fishing mechanism. Press
setting button, and enter to setting menu.
6.2 Main Menu Options
Game Mode
In
p
ut Test
Output Test
Game Reset
Language
Date/Time Setting
Bookkeeping
Dail
y
Record
Exit& Without Save
Exit& Save

 Fruit Mania
14

Resetgamesetting
 Delete all records
Cleartickets
Back
6.2.1 Game mode

















6.2.2InputTest 6.2.3OutputTest





6.2.4 Game Reset




Shooting light
Back
CoinMech.1 Off
Manual option button off
Shootingbutton off
Input Test. Press Esc to exit
Test the hardware, if the hardware
can use normally, (Off) change to
(ON).
Test the shooting light; make
sure it can work normally.
Game Mode
Free Play Off
Tickets Out On
Demo Music On
Save Coin Off
Volume 10
Coins Per Round 1
Ticket Payout 10
Tokens Per Coin 5
Auto Fire time 25
Change scene 0
Change Token 0
Platform Speed 5
Ticket in red box 5
Ticket in purple box 3
Ticket in green box 2
Coin in bonus alley accumulate Yes
Mercy Ticket 0
Tickets per token 1
Even Ticket off
Back
ITEM SETTINGRANGE
FreePlay: ON/OFF
TicketsOut ON/OFF
DemoMusic ON/OFF
SaveCoin ON/OFF
Volume 0~10(10isthemax)
Coins Per Round 1coin
TicketPayout 1~100ticketspercoin
Tokens Per Coin 1~50tokens
AutoFiretime 0~30seconds
Changescene 0,1,2(3differentscenes)
ChangeToken 0,1,2,3,4(5differenttoken
appearance)
PlatformSpeed 1~10(10isthemax)
Ticket in red box 0~30tickets
Ticket in purple box 0~30tickets
Ticket in green box 0~30tickets
Coin in bonus alley YES/NO
accumulate
MercyTicket 0~10tickets
Tickets per token 0~15tickets
Even Ticket ON
/
OFF

 Fruit Mania
15


6.2.5Language 6.2.6Date/Timesetting



6.2.7 Bookkeeping:





6.2.8 Daily Record:












Date/Time Setting
Year 2012
Month 9
Date 21
Hour(24) 14
Minute
second
14
15
Save&Back
Back
Daily Record
Date
2012-09-06
2012-9-11
2012
-
9
-
21
Weekday
Thurs.
Tues.
Fri.
Run Time
00:01
00:05
00:14
Coins
93
6
6
Tickets
262
44
33
Payout
2.82
7.33
5.50
Reset
Back
 English
简体中文
 Bookkeeping
Player coinsticketspayout rate
1 0 0 0.00
Sum 0 0 0.00

 Fruit Mania
16

7. ERROR MESSAGE AND RECOVERY
7.1 Error Message 
Symptom: Screen displays message “Communication ERROR” (there is communication problem with
the game)
Possible Causes & Fixes:
•Communication data wire is damaged ÆReplace the data wire.
•SCM is not working ÆAsk your technician to check and repair
•PC COM port has been used ÆAsk your technician to check and repair
Symptom: Screen displays ““PLEASE CALL ATTENDENT”, “TICKET ERROR” (there is problem in the
ticket payout function)
Possible Causes & Fixes:
No tickets in the game ÆReplenish tickets and then press the TICKET RESET button.
Ticket dispenser is damaged ÆReplace with a new ticket dispenser.
Faulty connection ÆAsk the technician to check and repair.

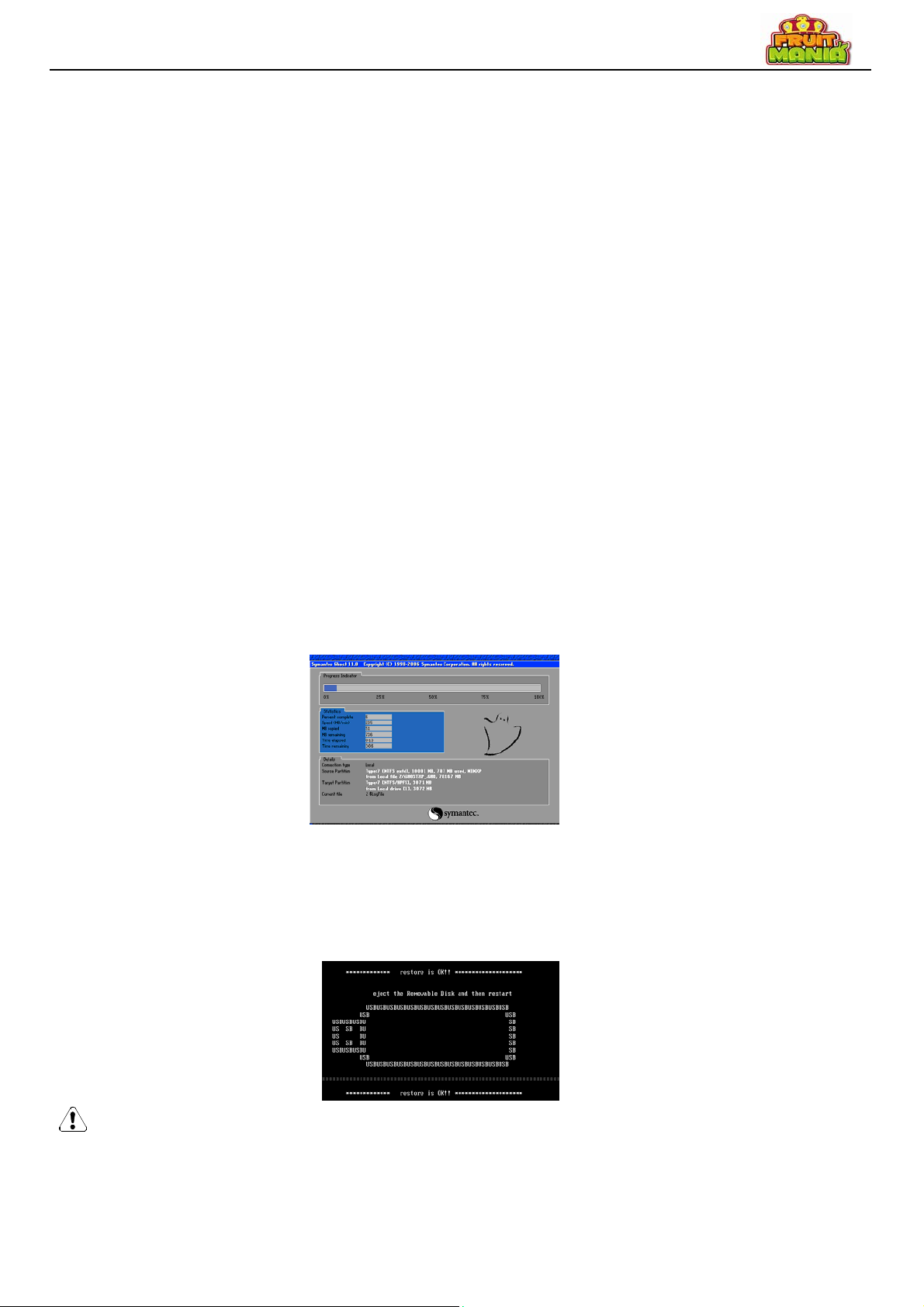

7.2 System Recover y Operation
1. Turn off the game. Insert the memory stick into the USB port at the back of the computer.
2. Restart PC to enter the system recovery screen as shown.
3. The game will automatically start recovery which will take last about 5 minutes. Please wait until
process is complete.
4. Once system recovery is finished (as shown below), remove the USB flash drive from the computer
and turn off the PC. Wait at least 30 seconds before restarting the PC.




WARNING: the USB flash drive should only be used to fix software errors. Using it for other
purposes may cause unexpected results and damages.

 Fruit Mania
17

7.3 Problem Analysis and Solution
Problem Reason Solution
Plugged machine
without reaction
1.Incongruent power
2. leakage protection
switch
3. No 110v voltage
1.Whether power is accord with the
machine
2.Detecting leakage switch is off, please
turn on
3.Change power voltage
After electrify，hear
WINDOWS startup voice
but no game interface
display and blank screen
1.VGA holding line is
loosen
2.Monitor damaged
3.Games reporting error
1. Check PC VGA holding wire is loosen，
If loose to pull plug this line .If it’s not this
port problem, continue to check display
VGA signal wire is loose.
2.Change monitor ，if monitor is
damaged, please dial this No.:
4006-020-321.
3. Update the game again
The power on ,display
blue-screen and no
sound
1.PC power is loosen
2. VGA holding wire
connects PC and
monitor is loosen
3. PC video card loosen
4. PC on safeguard
mode
1. Check PC power is loosen
2.Check VGA holding wire connects PC
and monitor is loosen
3. Take apart PC cover, insert video card
again
4.Open front cover，if boot lamp has been
flash, press start button for 30 seconds，
restart again then .If you cannot solve
problems, Please dial this
No.:8008108888
Operation can appear
system halted
sometimes
1. video card loosen or
bad connection
2. PC crash
1. Insert video card again
2. Restart or system restore
Coin mech. No reaction
1.Coin mech. damaged
2.holding wire loosen
3.No DC12V
4.IO control board
damaged
1. Change coin mech.
2. check holding line is loosen
3. change switching voltage
4. change IO control board

 Fruit Mania
18

7.4 Coin Mech. Instruction
1. Spec.：
Applicable coins diameter：21mm ~28mm
Apply thickness of coins：1.7mm ~2.0mm
Operating voltage：DC +12V
Operating temperature：-15℃～+75℃
2.Usage：
a. Insert coins into groove you need.
b. Cooperate the need with machine of receive signal to inset coins. Changing-over three time
switches—fast, medium, and slow, but the “medium” is the factory settings.
c. VR knob is to adjust the coins ‘sensitivity ， clockwise(+)to spin is loose ， otherwise, tight.
Adjust VR knob according to any kinds of coin ，no coin or less coin，towards to (+)，otherwise，towards to(-).
Problem Reason Solution
Can play the game
but there was no
voice
1. POT off
2. audio line is loosen
3. amplifier is damaged
4. speaker is damaged
1. Adapt the POT
2. Check audio line is loosen of
PC on picture 1
3. Send to factory to repair
4. change a speaker
The power is
on ,PC, display,
amplifier is normal,
but could not enter
the game screen
1. VGA serial port is loosen
2. IO control board is damaged
3. Dongle is damaged
1. Check PC and IO control
board’s VGA serial is loosen
2. Change IO control board
3. Change dongle
The interface bright
lights didn’t work
1. DC12V connecting line is loosen
2. switching voltage is damaged
3. DC12V connecting line is short
circuit
4. light control panel is damaged
1. check 12V connecting line is
loosen
2. change SW power
3. check 12Vconnecting line is
short circuit
4. change light control board

 Fruit Mania
19

8. MAINTENANCE & INSPECTION
8.1 Safety Check
Check the points listed before operating the machine. These checks are necessary for safe machine
operation:
1. Try to run the game before operation each day.
2. Conduct monthly routine checks of game components ensure good working condition
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to be kept running smoothly
8.2 Handling Precautions
When installing or inspecting the machine, be very careful of the following points and pay attention to
ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the cautionary
matters herein stated can cause personal injury or damage to the machine

• Before servicing the machine, be sure to turn power off. Servicing without turning the power
off can cause electric shock or short circuit.
• To avoid electric shock or short circuit, do not plug then unplug the power quickly
• Do not expose power cords and earth wires, these are susceptible to damage.
• Damaged cords and wires can cause electric shock or short circuit and should be replaced
immediately.
• When or after installing the product, avoid pulling the power cord to prevent unnecessary wear
and tear. Use the power button to disconnect power.
• In case the power cord is damaged, ask for replacement through where the product was
purchased from or replace locally. Continued usage of damaged cord can cause fire, electric
shock or leakage.
• Perform grounding appropriately. Inappropriate grounding can cause electric shock.
• Use fuses that meet specified rating. Fuses exceeding can cause an electric shock.
• Should a problem occur, turn off the power immediately and stop operating the machine. Unplug
the power cord of the service outlet. Operating the machine without correcting the problem may
cause a fire or injuries.
• Insert the power plug securely into the outlet. Poor contact may cause overheating, resulting in fire
or burns.
• To ensure the warning labels attached on the machine are visible and legible, install the machine
in a well-lit location, and keep the labels clean at all times. Make sure the labels are not hidden
behind other game machines.
WARNING
