Creality CR-10S Pro User manual

CR-10S Pro V2 3D Printer User Manual
V.2.2
CREALITY
This User Manual is for standard CR-1 OS ProV2.
Please plug the power cord into a three-hole power jack.
Detailed instructions
for use are available in the TF card.

Notes
1. Do not use the printer any way other than described herein in order to avoid
personal injury or property damage.
2. Do not place the printer near any heat source or flammable or explosive objects.
We suggest placing it in a well- ventilated, low- dust environment.
3. Do not expose the printer to violent vibration or any unstable environment, as this
may cause poor print quality.
4. Before using experimental or exotic filaments, we suggest using standard
filaments such as PLA to calibrate and test the machine.
5. Do not use any other power cable except the one supplied. Always use a
grounded three- prong power outlet.
6. Do not touch the nozzle or printing surface during operation as they may be hot.
Keep hands away from machine while in use to avoid burns or personal injury.
7. Do not wear gloves or loose clothing when operating the printer. Such cloths may
become tangled in the printers moving parts leading to burns, possible bodily
injury, or printer damage.
8. When cleaning debris from the printer hotend, always use the provided tools. Do
not touch the nozzle directly when heated. This can cause personal injury.
9. Clean the printer frequently. Always turn the power off when cleaning, and wipe
with a dry cloth to remove dust, adhered printing plastics or any other material
off the frame, guide rails, or wheels . Use glass cleaner or isopropyl alcohol to
clean the print surface before every print for consistent results.
1
11. This machine is equipped with a security protection mechanism. Do not manually
move the nozzle and printing platform mechanism manually while booting up,
otherwise the device will automatically power off for safety!
0. Children under 10 years of age should not use the printer without supervision.

CONTENTS
Dear Consumers,
Thank
you for choosing our products. For the best experience, please read the
instructions before operating the Printer. Our
3D team will always be ready to give
you the best service. Please contact
us via the phone number or e-mail address
provided at the
end when you encounter any problem with the Printer.
For a better experience
in using our product, you may learn how to use the
Printer
in the following ways:
1. View the accompanied instructions and videos in the TF card.
2.Visit our official website www.creality3d.cn You will find relevant
software/hardware information, contact details and operation and maintenance
instructions
on the website.
lntroduction.......................................1
General List......................................2
Device lnstallation..........................3
Cable Connection.............................4
Screen Information.........................5
Loading Filament.............................6
Bed Leveling ................................7
Software lnstallation.........................9
First Printing................................10
Circuit Wiring....................................
11

CR-10S Pro V2
Language Selection
Auto leveling
CRE~LllY' Shenz h en Cre ali ty 3DT ech nology CO . ,LTD.
1.Introduction
1. X Limit Switch
2. Nozzle Kit
3. Hot Bed
4. Touch Screen
5. TF slot & USB Port
1
6. Z-axis Motor (Z2)
7. Coupling (Z2)
8. Power Switch & Socket
9. Filament Holder
1
0. Y Limit Switch
11. Z-axis Motor (Z1)
12. Coupling (Z1)
1
3. XL Bed-leveling Nut
14. Extruder
(E) Motor
15. Filament Detector
16. X-axis Motor
Parameters
Model
Printing Size
Mo1aing Teen.
Nozzle Number
Slice Thickness
Nozzle Diameter
Precision
Fliament
File Format
Working Mode
Slice Software
Power Supply
Tota1 Power
Bed Temp.
Nozzle Temp.
Resume Print
Filament Detector
Daul
Z-Axis
Operating System
Printing Speed
300*300*400mm
FDM
1
0.1 mm-0.4mm
Standard 0.4mm
±0.1mm
cp1 .75mm PLA
::sTL!uBJ/AMF
Online or
TF Card Offline
Cura;Repetier-Host/Simclifv3D
lnput:AC 1
00-240V 50/60Hz
Output:DC 24V
4tJUW
,s;;1Q0C
,s;;25oc
Yes
Yes
Yes
Yes
EN/CN
Windows
XP /Vista/ 7/ 8/ 10
MAC/Linux
,s;;1 S0mm;s, Normal 30-
60mm/s

Power Cable
USB Cable
Filament Holder
Bracket
Filament Holder
Tube with Nuts
X-axis Spacer
She nz hen Creality 3D Technology CO.,L TD. CRE.ALITY'
2.General List
Tool Box
Base Frame Gantry Frame Filament(200g)
♦ Tool List
No. Image Name Qty
1 r
('
Wrench &Screw 1set
(I >--'
driver
L .c
2 I TF Card &Reader 1set
-7
II
12 -Feeler
3 Spade 1 8
,,oe
13
Spare Parts 1set
4 Pliers 1 9
a.
14
nn
M5X25 black Hex-Bolt
4set
and Lock Washer
5 / 0.4mm 1
Nozzle Cleaner
10
0 PTFE Tube
15
D M4X8 Screw and 2set
a
M4 T- nut
2

X-axis Spacer
CRE~LllY' Shenzh en Creali ty 3DTechnology CO .,LTD.
3.Device lnstalltion
4pcs-
♦ Gantry Frame Installation M5X25
♦ Filament Holder Installation
♦ X axis adjustment
l I
I i\ I
I.
M4X8 2pcs
M4 T-nut
M4X8 & T-nut
2pcs
-~----~
1
3
M5X25
4pcs
10

4.Cable Connection
Z2
*Plug the power cord into a
three-hole power jack.
Shenzhen Creality 3D Technology CO.,LTD. CRE.ALITY'
Ribbon Cable
4

29 0 29 0
CRE~LITY' Shenzhen Crea li ty 3DTechnology CO .,LTD.
5.Screen Information
Choose to Print
5
Automatic
Manual
Cooling
Fan
Leveling
Refuel
Moving
Motor
Printer info
Language
Current temperature
of the Hot Bed
Set temperature of
Nozzle
Current temperature
of Nozzle
Main Sub Menu
Menu
TF card Selected file
Automatic
Manual
Temp
Cooling
Fan
Leveling
Setting Refuel
Moving
Motor
off
Language
Printer
info
Screen Information
Explanation
Stop
Pause/Continue
Print speed
Nozzle temp.
Adjust
Hot-bed temp
Z offset
fan
PL.A \ABS ( 195°\240°)
Nozzle preheat
Hot
-bed preheat
Cool down? Yes\No
Turn on\Shut down
Z-axis: Z horne, +0.1mm,-0.1mm
AUX
Please click numbers to assist
leveling levelina (
ffi~(s))
AUTO
leveling Auto leveling, please wait...
Check
level (Measurement parameters)
Withdraw
Feed
X-axis Y-axis
IZ-axis I Z home
yes\no
English\Chinese
Machine type, Firmware version,
size, website Printing

0
0
38
81
200
0
0
38
81
29 0 29 0
29 0 29 0
29 0 29 0
29 0 29 0
6.Loading Filament
♦ Preheat
Method 1,
Method 2,
..
..
..
Shenzhen Creality 3D Technology C0.,L TD. CRE.ALITV'
♦ Feeding
)
Press and hold the extruder lever and insert the 1.75mm
filament through the filament detector
and through the
extruder motor. Continue feeding until you
see filament
extrude from the nozzle.
Replacing Filament During Printing:
1, Cutting the previous filament near the extruder and slowly
feed new filament though the filament sensor
and extruder, until
the new filament
is fed into the PTFE tube.
(Or)
2, Preheat the nozzle and withdraw the used filament. Feed the
new filament
as pictures above.
6

29 0 29 0
0.1324
0.1050
0.0400
0.0800
-0.0050
-0.0224
-0.0449
-0.0350
-0.0575
-0.0974
-0.0925
-0.0925
-0.0550
-0.1324
-0.0674
-0.0850
CRE~LllY' Shenzh en Creali ty 3DTechnology CO .,LTD.
7.Bed Leveling
7
1. Slightly tighten the four leveling nuts at the bottom of the platform before initial leveling.
2. Select "Settings" -"Level mode" , click on the number @.
- ■
•
II CREhLITY II
3. Adjust the platform height by turning the knob underneath. Use a
piece
of A4 paper (standard printer paper) to assist with the
adjustment, making sure that the nozzle lightly presses
on the paper.
4. Complete the adjustment on all 4 corners.
5. Click the number G) to test the platform height in the middle.
6. Repeat above steps one or two times if necessary.
The nozzle is
too far away from the
platform, so the consumables can not
adhere to the platform.
Filament are extruded evenly, just
sticking
on the platform.
CD
The nozzle is too close to the platform
and
the filament are not extruded
enough, even scraping the platform.

29 0 29 0
0.1324
0.1050
0.0400
0.0800
-0.0050
-0.0224
-0.0449
-0.0350
-0.0575
-0.0974
-0.0925
-0.0925
-0.0550
-0.1324
-0.0674
-0.0850
Shenzhen Creality 3D Technology CO.,LTD. CRE.ALITV'
♦ Automatic leveling
If you need to do automatic leveling ,you can change it in the following interface:
8

CRE~LITY
Shenzhen Creality 3D Technology CO .,LTD.
8.Software Installation cad1,1Lnfon
Wb:~rd
Custom RepRap information
9
Cre a. li ty
S
i: . c:er l. 2.3
1. Double click to
install the software.
CREALl1Y
[ii !111!1.ft!!
2, Double click to
open the software.
ccdg.r•dcinwlz~rd
Select yo 1
WI,.+ ~ml af m ■ d,in• ii,,)'<>" h ■-
Q (.l! - 100
OCll.-300
~o,>W'LL1 -, .---- -1 ~ ::~
O a:-Z~l-11
First ti
0
"'_,,.,,,,.._
W&l= D- m e. m:i ttl~~t:!I TorD"tno CGw"JII O a-ttLHI
~wa:_nl1dhg~n'411:l:11gupm Q CR-5D&ll
S~li!ttV1>1,irlil~l!la9E:~ ~
~O Cll-lDmlnl
Q 01-1W(JMOS
0 <Jl-10GP-ri,
QCJt.lDr-4
O Cfl.1:055
O Cll-l(
0 """
O ooom
QEl!der-l
Q E nd.r-9/End ■ r-l;'llr<>/E~~i;;
OEn00,-5
R.pit.,, ....,h:i-.,. un la ■ - LI , dilrwram, .., ~-- )"' U ..., Ht,..,.,,...,, -ii"9a
!e- 1ure ~ ~- ~ dl!Nult 1:irG'ti le befate runnir,;i it 11;1n ~ur rmcline,
II p'O'II lit• dd11uh 1ndle for /(>Or m1tdil"" u:tdied.
lho1111~aniuuei:in;Jhh
'f ,:,y .t i 11~~ lO rn1nwllr IMDI M, rlk or lptlntttlmt• ll'U e,
M ■ •~'n• ft ■ m ■ f c11.•lOS Prova I
Machl nt-..ldd-iX ( rnl'III ~
M~chlnt~h'f(ml'II) ~
Muh l nt hb51hc :i:: tmmJ ~
r-.ioalt~(.rrnB.) E:=J
Me ~bed 0
Ei..ilcw,u,r,;;11',IIJ](Ro!.lu~O
Th11a;illectian of"'-Ol'IJW>:tU~ Y1;1ge illfo/1'1\Mion "'!lp-: ¥lith ft r~ i m~ine<U.olOJ,n,
Tlllt du« 11,(]T ,~blffl~ modi!, od l l)'I oot g111h111n. "! ~ ,111 lawd Wl:im,.nlCll'I.
ful::rr!ll U III"~' Ula!Jt i,b:m;ri,;;,11"@
For full ~1 ~~ trnpl/,-,,,.,C'lls,r,3,;l.. ~gll'\1
3. Select language-->Next-->Select your machine-->Next-->Finish.
"

29 0 29 0
shugen test
1
huba
2/20
G
G
G
G
test
mini
Open Cancel
Shenzhen Creality 3D Technology CO.,LTD. CRE.ALITV'
9.First Printing
1.Slicing
Insert TF card into computer with Reader.
Load
..
CJ
..
Cr ea • li ty S lice r
Open the software-4Load-4Select the file-Wait for slicing to finish ,and save the geode file to TF card.
2. Print
CREhLITY ....
~
Se l o;:.r:i.f'd 1 11 "='
.. ..
~
~
l, S
ii
Pnr.t ►
T
Insert the TF card -4 Print -4 Select Model -4 Print
10

D11D12
A12
A11
CRE~LllY' Shenzh en Creali ty 3DTechnology CO .,LTD.
1a.Circuit Wiring
Touch screen
port2
Hot bed power
input
Power input
11 30PIN Cable port
EXP1
r---,,.---.1 2864 Screen port
EXP2
Reserved port

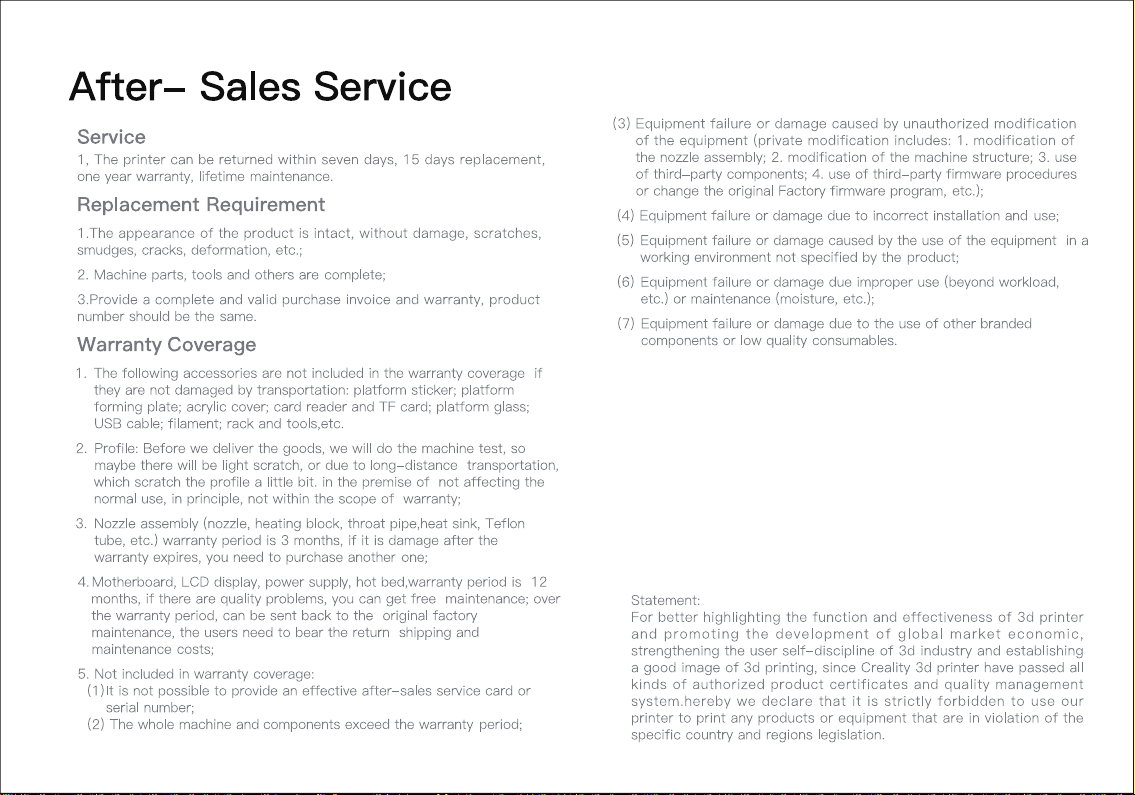

After- Sales Service
Service
1, The printer can be returned within seven days, 15 days replacement,
one year warranty, lifetime maintenance.
Replacement Requirement
1.The appearance of the product is intact, without damage, scratches,
smudges, cracks, deformation, etc.;
2. Machine parts, tools and others are complete;
3.Provide a complete and valid purchase invoice and warranty,
product
number should be the same.
Warranty Coverage
1. The following accessories are not included in the warranty coverage if
they are not damaged by transportation: platform sticker; platform
forming plate; acrylic cover; card reader and TF card; platform glass;
USB cable; filament; rack and tools,etc.
2. Profile: Before we deliver the goods, we will do the machine test, so
maybe there will
be light scratch, or due to long-distance transportation,
which scratch the profile a little bit.
in the premise of not affecting the
normal
use, in principle, not within the scope of warranty;
3. Nozzle assembly (nozzle, heating block, throat pipe,heat sink, Teflon
tube, etc.) warranty period is 3 months,
if it is damage after the
warranty expires, you need to purchase another one;
4. Motherboard, LCD display, power supp~, hot bed,warranty period is 12
months,
if there are quality problems, you can get free maintenance; over
the warranty period, can
be sent back to the original factory
maintenance, the users need
to bear the return shipping and
maintenance costs;
5. Not included in warranty coverage:
(1) It
is not possible to provide an effective after-sales service card or
serial number;
(2) The whole machine and components exceed the warranty period;
(3) Equipment failure
or damage caused by unauthorized modification
of the equipment (private modification includes: 1. modification of
the nozzle assembly; 2. modification of the machine structure; 3. use
of third-party components; 4. use of third-party firmware procedures
or change the original Factory firmware program, etc.);
(4) Equipment failure
or damage due to incorrect installation and use;
(5) Equipment failure or damage caused by the use of the equipment in a
working environment not specified by the product;
(6) Equipment failure
or damage due improper use (beyond workload,
etc.) or maintenance (moisture, etc.);
(7) Equipment failure or damage due
to the use of other branded
components or low quality consumables.
Statement:
For
better highlighting the function and effectiveness of 3d printer
and promoting the development of global market economic,
strengthening the user self-discipline of 3d industry and establishing
a good image
of 3d printing, since Creality 3d printer have passed all
kinds
of authorized product certificates and quality management
system.hereby we declare that it is strictly forbidden to use our
printer to print any products or equipment that are in violation of the
specific country and regions legislation.

The revision date:April 9,2020
SHENZHEN CREALITY 3D TECHNOLOGY CO .,LTD.
11 F & Room 1201,B l ock 3,JinChengYuan,Tongsheng Cornmunity,Dal
ang,Longhua District,Shenzhen,China,518109
Official Website: www.creality.com
Tel, [phone]
E- mail: [email protected] [email protected] -A
0
