DiO PROBO User manual

3D Printer
DIO PROBO
User Guide
Maximizing the clinic operational excellence

3D Printer
DIO PROBO
User Guide

CONTENTS
Applications
Workflow
CAMbridge Software
10
11
12
General Information
Unpacking and Installation
Product Specifications
Box Contents
16
16
17
Before use
Management of DIO PROBO
Management of Consumables
Warranty
36
37
39
Maintenance
How to use DIO PROBO
26
Using DIO PROBO
DIO PROBO Installation
Precautions
20
21
InstallationGreetings

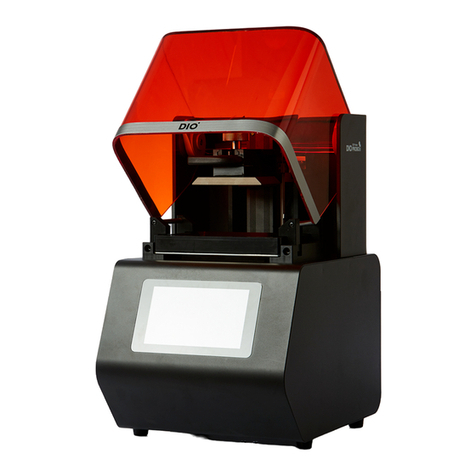

3D Printer DIO PROBO
User Guide

3D Printer DIO PROBO User Guide
7
GREETINGS
Thank you for purchasing 3D Printer DIO PROBO.
DIO offers Total Digital Solution for various digital treatments.
With 3D Printer DIO PROBO, you can output high-quality prosthesis
quickly with DLP method to increase productivity and efficiency.
This manual is designed to help you operate your printer.
Caution: Please familiarize yourself with this manual before
operating DIO 3D Printer.

9
1.
General Information
Applications
Workflow
CAMbridge Software
3D Printer DIO PROBO User Guide

3D Printer DIO PROBO User Guide
1110
General Information
WorkflowApplications
3D Printer DIO PROBO is designed to streamline the work to improve
the quality and productivity of the prosthesis. Intuitive and user-friendly
programs help you get things done quickly.
3D Printer DIO PROBO can be used for following applications.
Model / Oral Scanning
Dental Models
Ortho Models
Temporary Crown & Bridge
Surgical Guides
Casting Patterns
Complete Dentures
Scan the model / oral
using the scanner.
CAD Design
Design prosthesis using
CAD software.
Slicing Work
Convert prosthesis designed with
CAMbridge Software into slicing
data.
Output curing and finishing
Use the curing machine
to finalize the output and
proceed with the prosthesis
finishing work.
3D Printer Output
Input slicing data in
3D Printer DIO PROBO
to output prosthesis.

3D Printer DIO PROBO User Guide
1312
General Information
CAMbridge Software
Slicing Software CAMbridge optimizes the use of 3D Printer DIO PROBO
maximizes production efficiency through automated functions that enable
optimal placement and support creation with simple operation.

3D Printer DIO PROBO User Guide
15
2.
Before use
Unpacking and Installation
Product Specifications
Box Contents
3D Printer DIO PROBO User Guide

3D Printer DIO PROBO User Guide
1716
Before use
Unpacking and Installation
Basic Packing
Box Contents
③ Vat
⑦ Tray
⑤ Brush ④ Scraper
⑧ Cutting
nipper
⑥ Funnel
⑨ Silicone
Spatula
⑩ Power cable &
external adapter
The DIO PROBO box contains all the accessories to use printer.
It is also specially packaged for the purpose of protecting the printer
and accessories during transportation.
Caution: When opening the box, please check if there are any
accessories that are not included and check with your
supplier for accessories not included.
Product Specifications
Dimension 350 x 550 x 330 mm
Build Size 124.8 x 70.2 x 70 mm
Light Modulator DLP (FHD:1920 x 1080 Pixels)
Light Source UV LED (405 nm)
Data Connection LAN or Wifi
Material Confirm RFID
Resolution(axis) XY 65
µm / Z 100 µm
Weight 30 kg
①DIO PROBO ②Build Plate

3D Printer DIO PROBO User Guide
19
3.
Installation
DIO PROBO Installation
Precautions
3D Printer DIO PROBO User Guide

3D Printer DIO PROBO User Guide
2120
DIO PROBO Installation
Product Connection Guide
Precautions
General precautions
Only qualified persons should use machine.
Installation precautions
Install the machine in a place unexposed to water, high air pressure, high
temperature, high humidity, dust, salt, lons, and other environmaental factors.
Take care to protect your 3D printer from external hazards.
(e.g. sloped surface, vibrating surface, etc.)
Do not install the machine in a chemical storage area, or any place
where there are gas emissions.
Take special care regarding power frequency, voltage, and allowable
current (or power consumption).
Precautions before using the machine
Do not shock or vibrate the machine during use.
Do not turn the printer off while using 3D Printer.
If there is smoke or a strange smell, immediately turn off the power
switch, disconnect the power cord, and contact the manufacturer.
Remove the power cord from the machine if not in use for an extended time.
All repairs should be done by the manufacturer or a DIO approved repair
center. Users should not disassemble their 3D printer. Doing so will void
the warranty.
Do not modify this machine for any reason.
Main Power Switch
Power Port
LAN Port
①
Connet the power cable.
②
Turn on the power switch on the back of the 3D Printer.
Installation
USB Port

3D Printer DIO PROBO User Guide
2322
Precautions when using
When you print out the object, you may get a distinctive smell from the
resin, Please install it in the well-ventilated place.
Do not use volatile objects near the 3D printer as they may cause fire
or explosion.
When moving the 3D printer, be sure to completely shut off the
3D printer, and then remove the vat and move it so that the liquid resin
in the vat does not overflow or run.
If the printer is on, do not turn off the power switch located on the back
of the printer. This forced termination shortens the life of the printer
engine and can cause mechanical failure.
If foreign objects such as water or other liquids, metal chips, or other
conductive material are flowed in the 3D printer, it may adversely affect
the 3D printer, such as mechanical malfunction. In addition, since there
is a risk of electric shock, do not operate with wet hands, but wear nitrile
gloves and use the 3D printer.
If the 3D printer power cable is pulled or stepped on a rough surface and
it is damaged, a spark or voltage malfunction may occur. In addition, if a
lot of current flows through a wire or an outlet, there is a risk of fire due
to overheating.
If you disassemble or modify the 3D printer artificially, the warranty
benefits will be voided and you will be held liable for the problems
caused by the product.
If you have any inquiries regarding technical support or warranty, please
contact to DIO corporation.
Installation

3D Printer DIO PROBO User Guide
25
4.
Using DIO PROBO
How to use DIO PROBO
3D Printer DIO PROBO User Guide

3D Printer DIO PROBO User Guide
2726
Using DIO PROBO
How to use DIO PROBO
① Turn on the power switch ② Material recognition
>
Press the ‘Power’ button on the right side of the equipment.
>
Wait for the next screen after loading screen appears.
>
Touch the material container lid to the ‘RFID’ mark.
>
After recognizing the type of material, wait for the next screen.
Loading screen Material recognition screen

3D Printer DIO PROBO User Guide
2928
③ Material input ④ Fastening build plate
>
Put the recognized material into the vat.
>
‘OK’ button and proceed to the next step.
>
Align the build plate with the groove and push it all the way in.
>
Make sure that the build plate is pushed all the way, and fix the
silver bolt by turning clockwise.
>
Confirm the fastening of the build plate, press the ‘OK’ button on
the screen, and proceed to the next step.
Build plate preparation screen
Using DIO PROBO

3D Printer DIO PROBO User Guide
3130
Output completion screen
⑤ Select output file
>
Select the file you want to output and press the ‘OK’ button.
>
Check the output file name and output time and click ‘OK’ button .
>
The output starts and you can see the progress of the output.
⑥ Disjoint build plate
>
When the output is completed, press the ‘OK’ button.
>
Turn the bolt of the build plate counter clockwise to
dismantle the build plate.
>
Process post-processing of output.
Using DIO PROBO

3D Printer DIO PROBO User Guide
3332
⑦ Terminate Equipment
>
Press the ‘Shut down’ button on the bottom right.
Shotdown button
Using DIO PROBO

3D Printer DIO PROBO User Guide
35
5.
Maintenance
Management of DIO PROBO
Management of Consumables
Warranty
3D Printer DIO PROBO User Guide

3D Printer DIO PROBO User Guide
3736
Management of DIO PROBO
If you do not use the printer for a long
period of time, you can store the printer
in a shady place after removing the
power cable from the printer.
If the resin falls or flows into the printer,
wipe the industrial wiper with alcohol.
It is important to maintain well in order to use the printer for a long time.
In this regard, we will guide you through how to manage 3D printers
and consumables.
Management of consumables
Consumables related to the printer include a vat, liquid resin,
and basic components.
Vat management
If you want to remove the used liquid resin and use another liquid
resin, you should completely remove the liquid resin remaining in the
existing vat and wipe the remaining liquid resin completely using an
industrial wiper.
If you use a tissue other than an industrial wiper to wipe the liquid
resin, dust will get into the vat and affect the output. Mixing with
water or other types of liquid resins can adversely affect print quality.
In case there is a residue on the vat
- The rubber spatula included in the basic components can be used to
remove debris.
- When removing the residue using a rubber spatula, be careful not to
damage the film surface of the vat.
Film Surface
Liquid resin residue
Maintenance

3D Printer DIO PROBO User Guide
3938
For the warranty to be valid for a(1) year from the date of sale.
This warranty does not cover consumable products such as and
defected products arising from customer’s mistakes, incautious
treatment of product.
Please call to DIO coporation when you have any inquiries on
technical support.
Liquid resin management Warranty
Liquid resin waste treatment guide
Liquid resin is vulnerable to sunlight or
various light. Always keep it in a shady
place where it is not exposed to light, so it
can be used for a long time.
Please do not mix with other types of
liquid resin.
It should be handled by the waste disposal
company.
Liquid resin remaining in the vat is stored in
a plastic container using a funnel.
If there is a purification unit in the building,
it may be disposed in a drainage port, but
if there is no purification unit, it must be
entrusted to the waste company.
Liquid resin waste
Output cleaning
wastewater
Maintenance
