User’s Guide
SB1500 / SB1502 SB1506

Introduction
Congratulations on your purchase of Creative's latest audio revolution, Sound Blaster Z-Series! With
cutting edge technology from the leaders in PC audio, Sound Blaster Z-Series will give you years of
reliable entertainment on your PCIExpress(PCIe®) enabled personal computer.
This User Guide contains software installation and usage information for your audio card.
System Requirements
Minimum Requirements
lIntel®Core™2 Duo or AMD®processor equivalent (Core™2 2.0 GHz, AMD processor equivalent or
faster recommended)
lIntel or AMD compatible motherboard
lMicrosoft®Windows®8 32-bit or 64-bit; Windows 7 32-bit or 64-bit
l1 GB RAM
l>600 MB of free hard disk space
lAvailable PCI Express slot*
lCD or DVD drive for software installation
lHigh quality headphones or powered amplified speakers (available separately)
Additional Requirements (where applicable)
DVD-Video
l6x or faster DVD drive
lDVD player software such as InterVideo®WinDVD®or CyberLink®PowerDVD®(latest version
recommended) installed.
l5.1 speakers for optimal listening experience
Notes
l*Some motherboards reserve the PCI Express x16 slots for video cards only. Use a x1 or x4 slot
instead. For more information, consult the documentation of your motherboard.
lOther applications may have higher system requirements. For more information, consult the
documentation of your application.
Introduction 1

More Help
For the latest news and products for Sound Blaster, visit www.soundblaster.com. The site also includes
information on making purchases, technical help, and the latest driver updates.
Using Creative Software AutoUpdate
Locating, downloading, and installing updates for your Creative products is now simpler and faster with
the web-based Creative Software AutoUpdate system.
When you connect to Creative Software AutoUpdate via theInternet, the web site will analyze your
computer system to determine what operating system (OS), language, and Creative products are
installed in your system.
After the online analysis, you will be able to select from a list of only the most relevant software and
driver updates. The files will then be retrieved and installed on your system for you.
To learn more about Creative Software AutoUpdate, visit www.soundblaster.com/support.
Notes
lFirst-time users of Creative Software AutoUpdate may be prompted to authorize the download of a
browser component required for system inspection. Ensure that the content is signed by Creative
Labs, Inc., then click the Yes button.
lEnsure that all your Creative products are connected and installed on the same computer running
Creative Software AutoUpdate.
Introduction 2

About Your Hardware
For instructions on installing your Sound Blaster Z-Series, and any additional accessories, consult the
Quick Start leaflet.
To learn more about your product, consult the following sections:
lYour Sound Blaster Z-Series Audio card
lAudio Control Module
Notes
Actual products may differ slightly from those shown in this chapter.

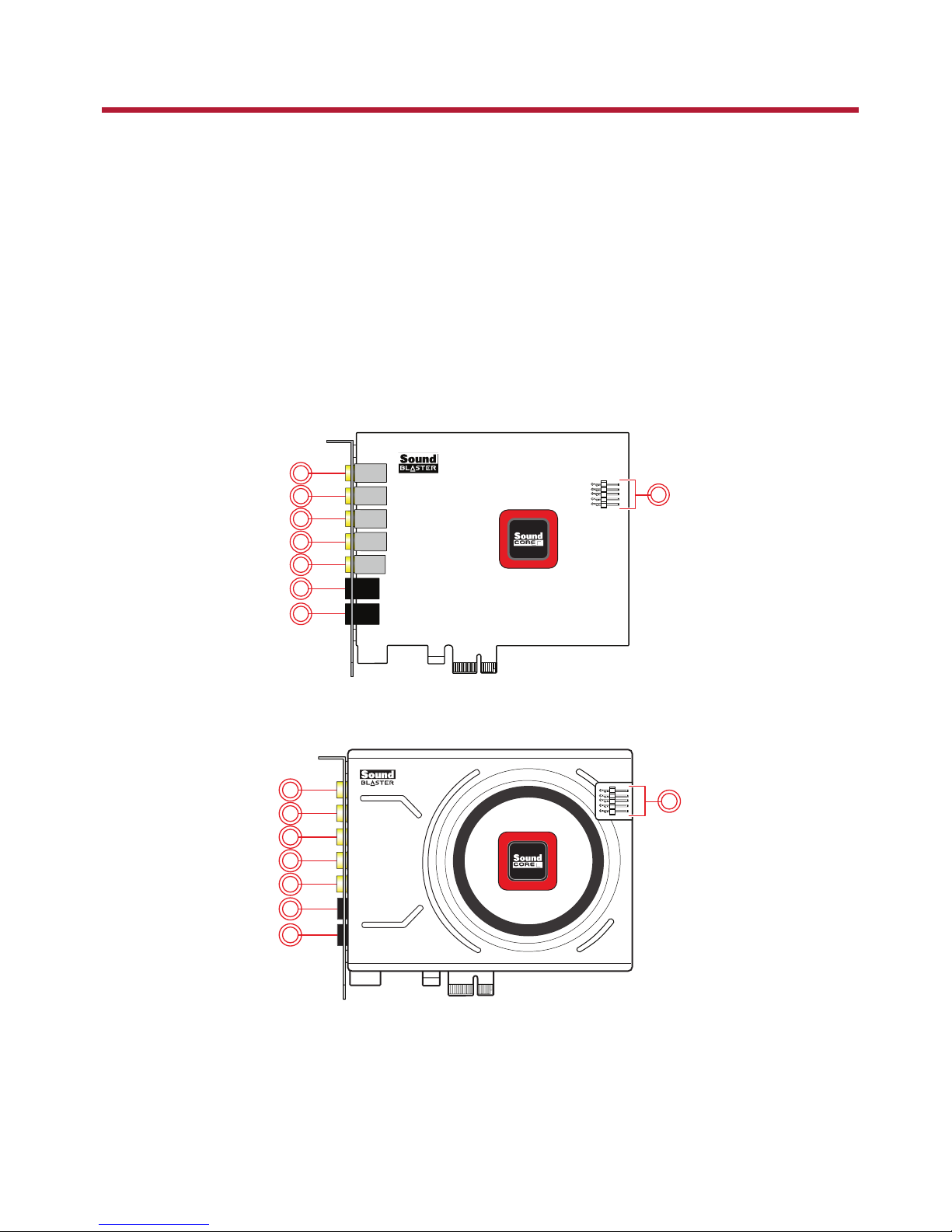

Your Sound Blaster Z-Series Audio card
Your Sound Blaster Z-Series audio card has the jacks and connectors below to enable the attachment of
a wide variety of devices.
SB1502
1
2
3
4
5
6
7
8
SB1500 / SB1506
1
2
3
4
5
6
7
8
About Your Hardware 3

Jack or Connector Description
1. Line In/Microphone In
jack
Connects to line-level sources(for example, MP3
players) or microphones with a 3.5mm (1/8-inch)
plug.
2. Headphone jack Connects to stereo headphones with a 3.5mm (1/8-
inch) plug.
3. Line Out 1 jack
(Front L/R)
Connects to the Front Left and Front Right inputs on
powered analog speakers or an A/V receiver.
4. Line Out 2 jack
(Rear L/R)
Connects to theRear Left and Rear Right inputs on
powered analog speakers or an A/V receiver.
5. Line Out 3 jack
(Center/Subwoofer)
Connects to theFront Center andSubwoofer inputs
on powered analog speakers or an A/V receiver.
6. Optical S/PDIFOut jack Connects to recording devices with optical
connectors (for example, Digital Audio Tape
recorders, MiniDisc recorders or external hard disk
recorders).
7. Optical S/PDIF In jack Connects to playback devices with optical
connectors (for example, Digital Audio Tape players,
MiniDisc players or DVD players).
8. Front Panel Header
Audio connector
Connects to one end of the Intel Front PanelAudio
cable (available separately). See Front Panel Header
Audio Connector for specifications.
Note:
Toggle to select the appropriate input device (for example, Microphone or Line-In) from the Sound
Blaster Z-Series Control Panel. Refer to Sound Blaster Z-Series Control Panel Mixer Settings for more
information.
About Your Hardware 4

Audio Control Module
An external ACM(Audio Control Module) provides a built-in beamforming microphone and
microphone/headphone I/Oconnections.
Note:
The ACM accessory is bundled with Sound Blaster Zx only.
1
3
4
5
2
6
Jack, Connector or Component Description
1. Volume Control Knob Controls the playback volume of the
sound card.
2. Beamforming Microphone Built-in Sound Blaster Beamforming
Microphone
3. 6.3mm Microphone In jack Connects to line-level sources(for
example, MP3 players) or
microphones with a 6.3mm plug.
4. 6.3mm Headphone jack Connects to stereo headphones or head-
sets with a 6.3mm plug.
5. 3.5mm Microphone In jack Connects to line-level sources(for exam-
ple, MP3 players) or microphones with a
3.5mm (1/8-inch) plug.
6. 3.5mm Headphone jack Connects to stereo headphones or head-
sets with a 3.5mm (1/8-inch) plug.
Note:
The 6.3mm Microphone In jack takes priority over the 3.5mm Microphone In jack.
When connected to the Sound Blaster Z-Series, the built-in beamforming microphone features
CrystalVoice technologies which is designed to deliver crystal clear vocal fidelity in multiplayer games,
online chats and video conferencing. It also enhances voice communications for popular VoIP solutions.
Voice effects can be controlled using the Sound Blaster Z-Series Control Panel. Simply toggle between
your headphone and speakers system with a flip of a switch in the control panel.
The options of 3.5mm and 6.3mm Microphone and Headphone jacks let you have choices of your own on
which headset or microphone to be used for recording, and audiophile grade connection through the
gold-plated jacks on the ACM and Sound Blaster Zx.
About Your Hardware 5

The Volume Control knob on the ACM controls the volume output to your headphones, giving you quick
control over the audio level from your games or music.
Note:
The ACM Volume Control Knob allows you to adjust headphone levels conveniently based on the
maximum level set by your computer's master volume control. We recommend that you determine
the desired maximum volume on your computer before using the ACM.
About Your Hardware 6

Connecting Speakers and Headphones
The connectors and associated components shown here may be different from that of your speaker
system. Consult the documentation of your speaker system to identify similar input connectors. You can
upmix your stereo sources (for example, CDAudio, MP3, WMA, MIDI and Wave) to enjoy multi-channel
sound on your speakers or headphones.
To learn how to connect different types of speaker systems to your audio card, consult the following
sections:
lConnecting Analog Speaker Systems
lConnecting Digital Speaker Systems
lConnecting Home Theater Systems
lConnecting Headphones and Headsets
lConnecting Audio Control Module
For tips on how to arrange your speakers, consult Positioning Your Speakers.
For a list of supported Creative speaker systems or interactive help on speaker connectivity, visit
www.soundblaster.com.
Note
lActual products may differ slightly from those shown in this chapter.
lSelect the correct speaker setup or headphone option in the Sound Blaster Z-Series Control Panel to
get the best experience. For more information, refer to their respective Online Help.
lThe cables shown in this chapter may be bundled with your peripheral or are available separately
from www.creative.com.
lFor more information on the Creative peripherals mentioned in this chapter, visit
www.creative.com.
Connecting Speakers and Headphones 7

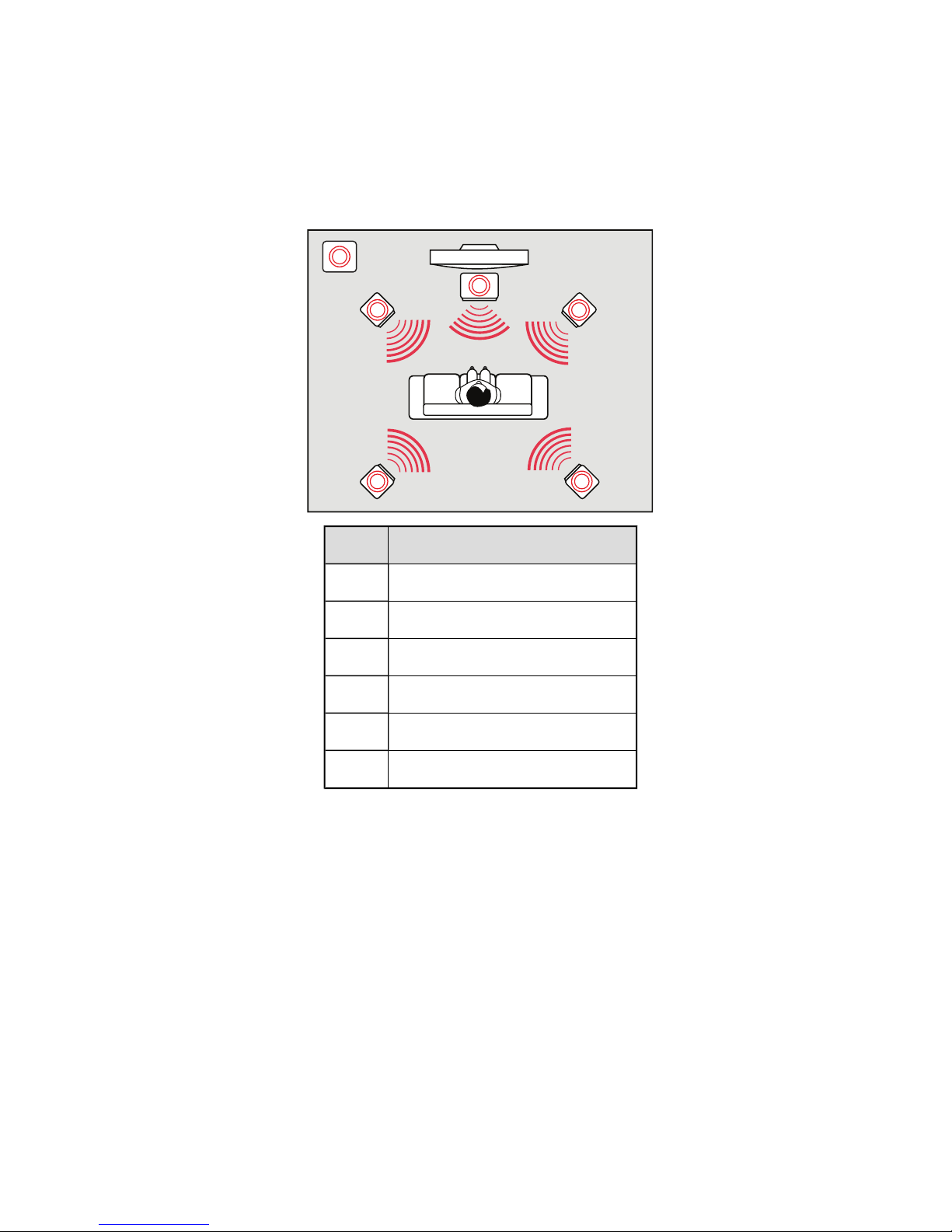

Positioning Your Speakers
Good speaker placement is crucial to getting optimal performance from your audio system and
achieving an enhanced listening experience. Below are our recommendation for 5.1 channel speakers.
For detailed speaker placement tips, consult the documentation of your speaker system.
For 5.1 channel speakers:
1
56
2 4
3
Speaker Component
1. Subwoofer
2. Front left
3. Front Center
4. Front Right
5. Rear Right
6. Rear Left
Connecting Speakers and Headphones 8

Connecting Analog Speaker Systems
Your audio card supports analog speaker systems of up to 5.1 channels. To learn more about connecting
different channel speaker systems, consult the following sections:
l2.1 channel analog speakers
l5.1 channel analog speakers
2.1 channel analog speakers
audio
inputs
speakers
audio
inputs
1
2
3
Jack, Connector or Cable
1. Line Out 1 jack (Front L/R)
2. 2 channel audio cable (available separately)
3. Audio Input jack
Connecting Speakers and Headphones 9

5.1 channel analog speakers
front rear center/
subwoofer
audio
inputs
center
speaker
front
speakers
rear
speakers
front rear center/
subwoofer
audio
inputs
2
3
1
4
756
Jack, Connector or Cable
1. Line Out 1 jack (Front L/R)
2. Line Out 2 jack (Rear L/R)
3. Line Out 3 jack (Center/Subwoofer)
4. 5.1 channel audio cable (available separately)
5. Front (Audio Input) jack
6. Rear (Audio Input) jack
7. Center/Subwoofer (Audio Input) jack
Connecting Speakers and Headphones 10

Connecting Digital Speaker Systems
Your Sound Blaster Z-Series comes with an Optical S/PDIF Out jack which allows you to connect your
digital speaker system. Most digital speakers systems connect the audio card to the subwoofer or an
external unit.
For more information on your digital speaker connections, consult the documentation of your digital
speaker system.
Connecting your digital speakers to the Sound Blaster Z-Series
1
OPTICAL
COAXIAL
REAR
16V AC IN
~
FRONT
CENTRE/
SUBWOOFER/
REAR CENTER
AUDIO
OUTPUTS
AUDIO INPUTS
ANALOG
LEFT RIGHT
1
2
3
1
2
3
SPEAKER
CONFIGURATION
-- 6.1/7.1
-- 5.1
MASTER CENTER SIDE REAR SUB TREBLE 5.1 6.17.17.1
UPMIX
MIN MAX
M-PORT
STANDBY/
POWERVOLUME
SELECT UPMIX
STANDBY/
POWER
CENTER
REAR
TREBLE SUB
SIDE
MUTE
UPMIX
VOL
2 3
Jack, Connector or Cable
1. Optical S/PDIF Out jack
2. Optical cable (available separately)
3. Optical S/PDIF In jack
Connecting Speakers and Headphones 11

Connecting Home Theater Systems
Your Sound Blaster Z-Series comes with an Optical S/PDIF jack which allows you to connect your home
theatre system. Most home theater systems connect the audio card to an A/V receiver.
For more information on your A/V receiver's speaker connections, consult the documentation of your
A/V receiver.
Connecting your A/V receiver to the Sound Blaster Z-Series
1
BASS TREBLE BALANCE
VOL
POWER
INPUTMODE PROGRAM
INPUTSELECTOR
VIDEO L R
EFFECT
PHONE
23
Jack, Connector or Cable
1. Optical S/PDIFOut jack
2. Optical cable (available separately)
3. Optical S/PDIF In jack
Connecting Speakers and Headphones 12

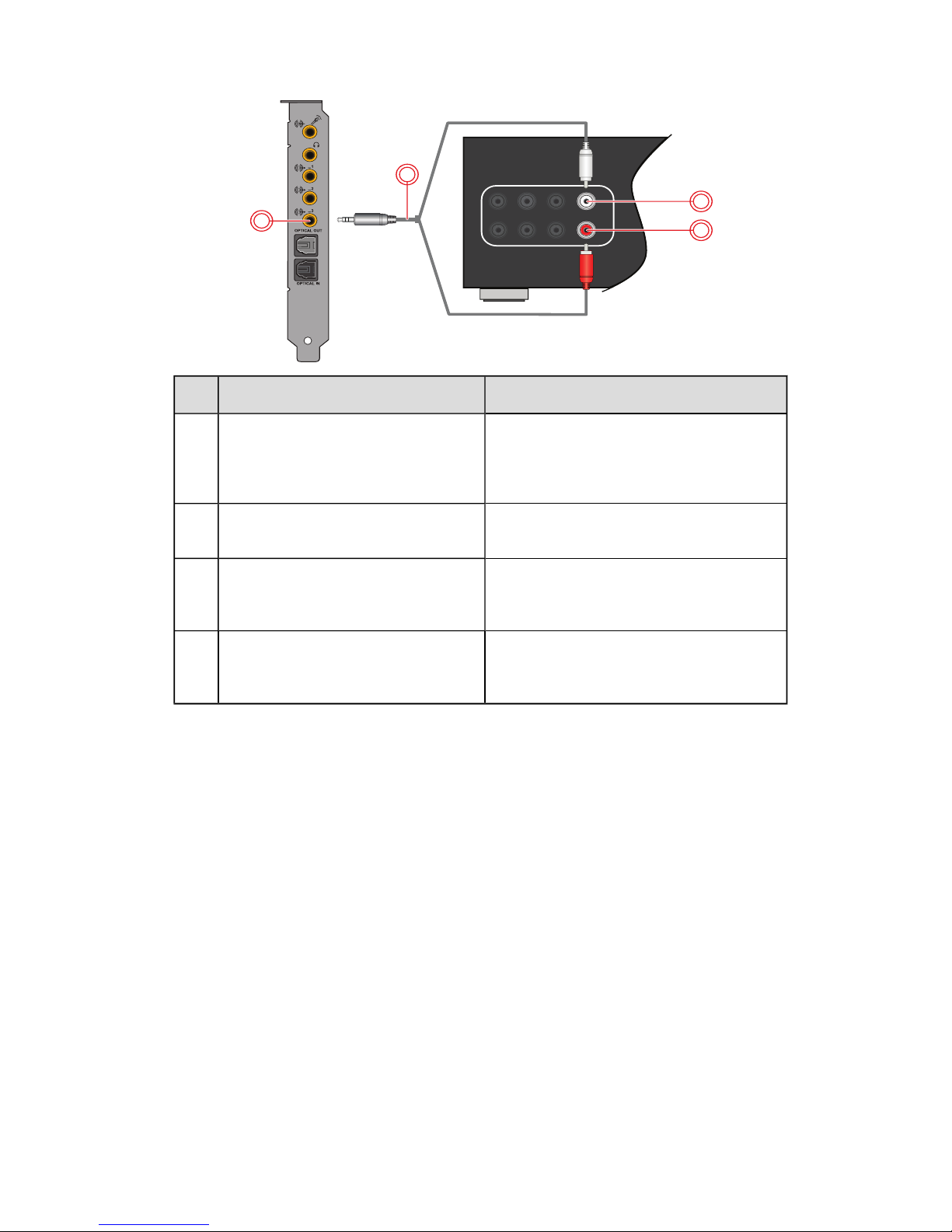

Connecting your A/V Receiver using Line Level inputs
If your A/V receiver supports multi-channel line-level inputs, you can connect them directly to your
audio card's Line Out jacks instead of the Optical S/PDIF Out jack as shown below.
Connect to Line Out 1 (Front L/R)
2
1
3
4
Jack, Connector or Cable Description
1. Line Out 1 jack (Front L/R) Connects to the Front left and Front Right
jacks on your A/V receiver, using a 3.5mm
(1/8-inch) stereo-to-RCA cable (available
separately).
2. 3.5mm (1/8-inch) stereo-to-
RCAcable (available separately)
Connects your audio card and A/V receiver.
3. Front Right jack Connects to the Line Out 1 jack on your
audio card, using a 3.5mm (1/8-inch)
stereo-to-RCA cable (available separately).
4. Front Left jack Connects to the Line Out 1 jack on your
audio card, using a 3.5mm (1/8-inch)
stereo-to-RCA cable (available separately).
Connecting Speakers and Headphones 13

Connect Line Out 2 (Rear L/R)
1
2
3
4
Jack, Connector or Cable Description
1. Line Out 2 jack (Rear L/R) Connects to the Rear Left and Rear Right
jacks on your A/V receiver, using a 3.5mm
(1/8-inch) stereo-to-RCA cable (available
separately
2. 3.5mm (1/8-inch) stereo-to-
RCAcable (available separately)
Connects your audio card and A/V receiver.
3. Rear Right jack Connects to the Line Out 2 jack on your
audio card, using a 3.5mm (1/8-inch)
stereo-to-RCA cable (available separately).
4. Rear Left jack Connects to the Line Out 2 jack on your
audio card, using a 3.5mm (1/8-inch)
stereo-to-RCA cable (available separately).
Connecting Speakers and Headphones 14

Connect Line Out 3 (Center/Subwoofer)
1
2
3
4
Jack, Connector or Cable Description
1. Line Out 3 jack (Center/Subwoofer) Connects to the Center and Subwoofer
jacks on your A/V receiver, using a 3.5mm
(1/8-inch) stereo-to-RCA cable (available
separately
2. 3.5mm (1/8-inch) stereo-to-
RCAcable (available separately)
Connects your audio card and A/V receiver.
3. Subwoofer jack Connects to the Line Out 3 jack on your
audio card, using a 3.5mm (1/8-inch)
stereo-to-RCA cable (available separately).
4. Center jack Connects to the Line Out 3 jack on your
audio card, using a 3.5mm (1/8-inch)
stereo-to-RCA cable (available separately).
Connecting Speakers and Headphones 15

Connecting Headphones and Headsets
Do not listen to audio on your headphones or headsets at high volumes for prolonged
periods of time as hearing loss may result.
Connecting your headphones and headsets to theSound Blaster Z-Series
For headphones:
1
Jack, Connector or Cable Description
1. Headphone jack Connects to stereo headphones with a
3.5mm (1/8-inch) plug.
For headsets:
1
2
Jack, Connector or Cable Description
1. Line In/Microphone In jack Connects to the 3.5mm (1/8-inch) micro-
phone plug of your headset.
2. Headphone jack Connects to stereo headphones with a
3.5mm (1/8-inch) plug.
Connecting Speakers and Headphones 16

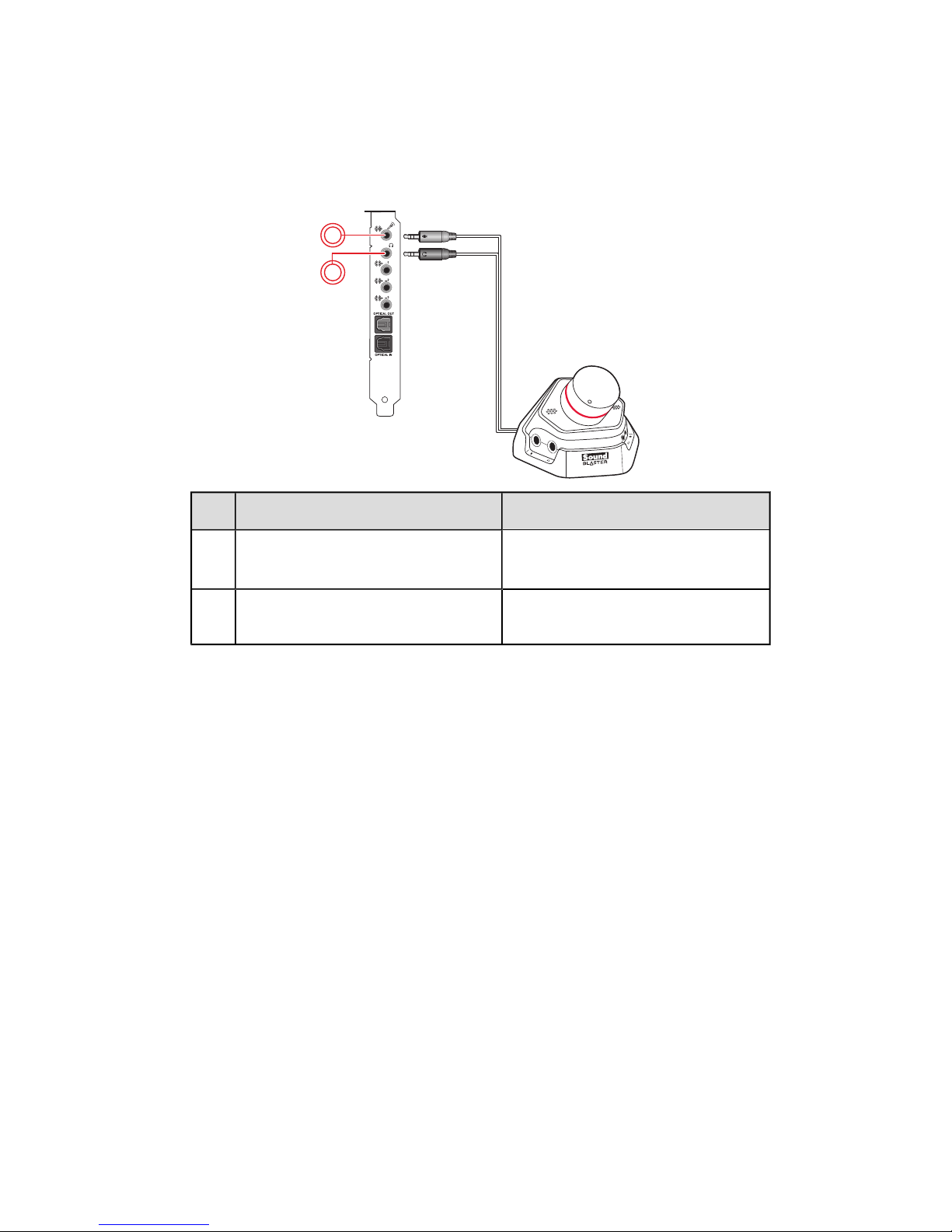

Connecting Audio Control Module
The ACM accessory is bundled with Sound Blaster Zx only.
Connecting your ACM to the Sound Blaster Z-Series
1
2
Jack, Connector or Cable Description
1. Line In/Microphone In jack Connects to the 3.5mm (1/8-inch)
microphone plug of your ACM.
2. Headphone jack Connects to your ACM with a 3.5mm
(1/8-inch) plug.
Connecting Speakers and Headphones 17

Connecting your headphones and headsets to the ACM
OR
1
2
Jack, Connector or Cable Description
1. 3.5mm Headphone jack Connects to stereo headphones or headsets
with a 3.5mm (1/8-inch) plug.
2. 3.5mm Microphone In jack Connects to line-level sources(for
example, MP3 players) or
microphones with a 3.5mm (1/8-inch)
plug.
Note:
When two headphones are being connected to the 6.3mm and 3.5mm Headphone jacks simultaneously,
you will be able to hear both headphones with the same output.
However, the Microphone In jacks on the ACM follow the below priority sequence:
lPriority 1: 6.3mm Microphone In jack
lPriority 2: 3.5mm Microphone In jack
lPriority 3: Built-in Beamforming Microphone
For example, when user plugs in external microphones to both 6.3mm and 3.5mm Microphone In jacks,
the 6.3mm Microphone In jack will take priority over the 3.5mm Microphone In jack and the built-in
Beamforming Microphone. However, when no microphone is connected to all Microphone In jacks, the
built-in Beamforming Microphone will function.
Connecting Speakers and Headphones 18

Installing and Uninstalling Software
To take full advantage of your Sound Blaster Z-Series audio card, you need to install device drivers and
applications. At times, you may also need to uninstall some or all of the device drivers and applications
to correct problems, change configurations, or upgrade outdated drivers or applications. To learn how to
do so in all supported Windows operating systems, consult the following sections:
lUninstalling Drivers and Applications
lInstalling Drivers and Applications
Uninstalling Drivers and Applications
Before you begin, close all running audio applications. Applications that are still
running during uninstallation will not be removed.
For Windows 7:
1. Click Start >Control Panel > Uninstall a Program.
2. Select the Sound Blaster Z-Series entry.
3. Click the Uninstall button or option.
If the User Account Control dialog box appears, click the Continue button.
4. Click the Yes button.
5. When prompted, restart your computer.
For Windows 8:
1. At the right toolbar, click Settings > Control Panel > Uninstall a Program.
2. Select the Sound Blaster Z-Series entry.
3. Click the Uninstall button or option.
4. Click the Yes button.
5. When prompted, restart your computer.
To complete the uninstallation, you will also need to remove the following components:
lDolby Digital Live Pack
lDTSConnect
To remove Dolby Digital Live:
Note
Carry out the following steps ONLYIF there are no other Creative applications on your system that
requires the Dolby Digital Live encoder.
For Windows 7:
1. Click Start > Control Panel > Uninstall a Program.
2. Select the Dolby Digital Live Pack entry.
3. Click the Uninstall button or option.
When the Confirm Uninstall dialog box appears, click the OK button.
For Windows 8:
1. At the right toolbar, click Settings > Control Panel > Uninstall a Program.
2. Select the Dolby Digital Live Pack entry.
3. Click the Uninstall button or option.
Installing and Uninstalling Software 19
