Creative Live! User manual

i
English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Deutsch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Italiano . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Nederlands . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Português . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Svenska . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Norsk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Dansk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Suomi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Česky. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Polski . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Русский . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Maple QSB_Multi_CLE.book Page i Tuesday, June 20, 2006 9:09 AM

ii
Ellinika . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
Magyar . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Lietuvis . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111
Slovensky . . . . . . . . . . . . . . . . . . . . . . . . . . .119
Maple QSB_Multi_CLE.book Page ii Tuesday, June 20, 2006 9:09 AM

Congratulations! 1
Congratulations!
Creative Live!®Cam Voice, the first webcam with adaptive array
microphones, has fantastic voice clarity and high quality video images for
you to video chat with your friends and loved ones.
To get the most out of your Live! Cam, also read the comprehensive User’s
Guide on your Installation CD.
Refer to the figure on the cover and match the numbers with those below to
learn more about your Live! Cam.
1. Snapshot button
Press to launch Live! Cam Center
(when Live! Cam Manager is
running in the background) and
capture images.
2. Microphones
Capture voices clearly during
video chats.
3. Power LED
Lights up green when your
Live! Cam is connected to your
computer’s USB port.
Lights up red when performing
video and/or audio capture.
4. Hinged lever
Use this to mount your Live! Cam
on an LCD display panel.
5. USB cable
Connect to your computer’s USB
port.
Maple QSB_Multi_CLE.book Page 1 Tuesday, June 20, 2006 9:09 AM

2 Getting Started
Getting Started
Step 1: Installing Your Live! Cam
You need to install device drivers and applications before using your
Live! Cam.
If you accidentally begin installation with your Live! Cam connected and the
Add New Hardware Wizard or Found New Hardware Wizard dialog box
appears, click the Cancel button.
1Insert the Installation CD into your CD-ROM/DVD-ROM drive.
Your CD should start automatically. If it does not, follow the steps below:
i. Double-click the My Computer icon.
Alternatively, click Start My Computer.
ii. Right-click the CD-ROM/DVD-ROM drive icon, and then click
Autoplay.
2Follow the instructions on screen to install drivers and applications.
DO NOT connect your Live! Cam to your computer before installing
the drivers.
Maple QSB_Multi_CLE.book Page 2 Tuesday, June 20, 2006 9:09 AM

Installing Your Live! Cam 3
3When prompted, connect your Live! Cam's USB cable to an available USB
port on your computer. Windows®automatically detects the device.

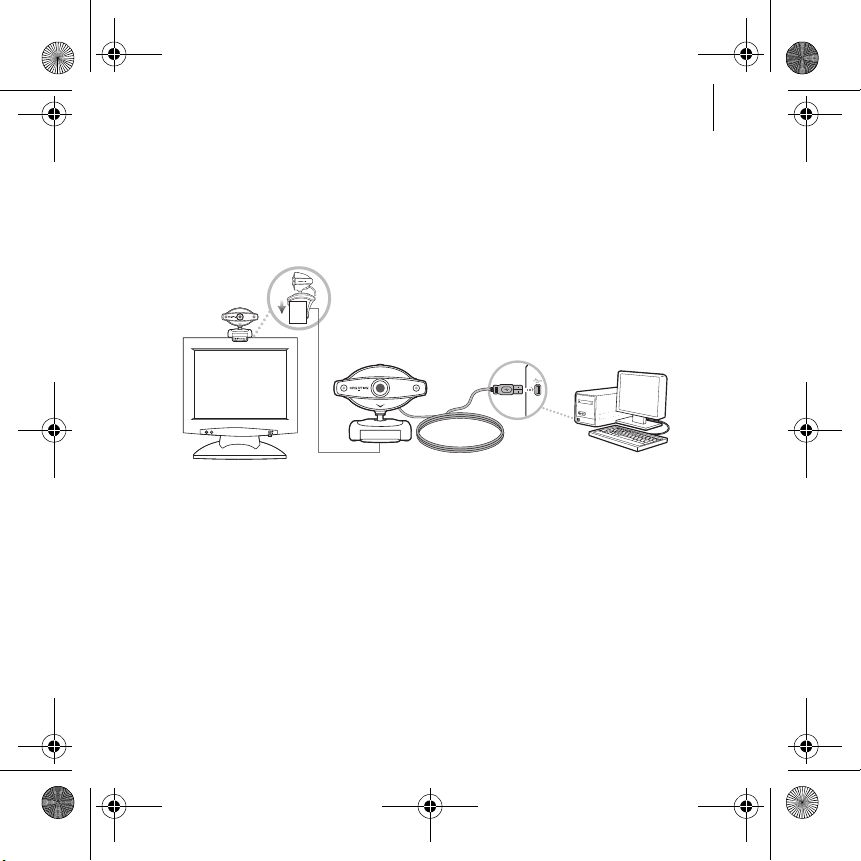

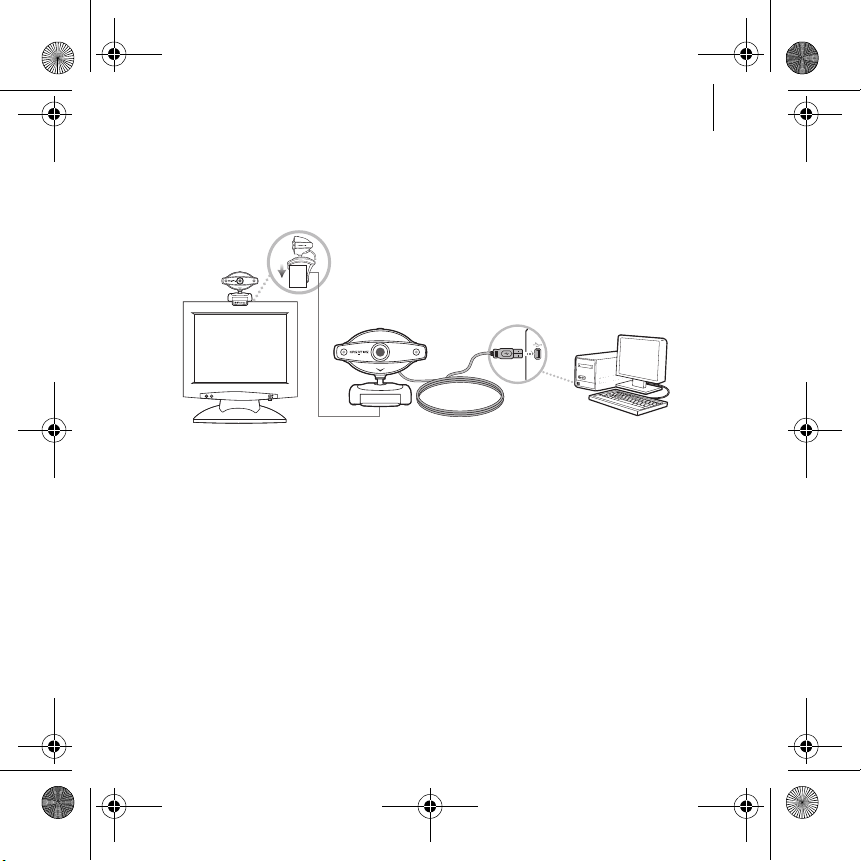

For LCD flat panel monitors or notebook computers, use the integrated
hinged lever to mount the Live! Cam (see figure below).
4To complete the installation, follow the appropriate steps below:
For Windows XP
When the Found New Hardware Wizard dialog box appears, select Install
the software automatically (Recommended), and then click the Next
button.
For Windows 2000
When a Digital Signature Not Found dialog box appears, telling you that
Live! Cam Voice has been detected, click the Yes button.
5Follow the instructions on the screen to complete the installation. You may
be asked, after the drivers have been successfully installed, if you want to
restart your computer. Select No until all the applications are installed.
6Restart your computer after all the applications have been installed.
Maple QSB_Multi_CLE.book Page 3 Tuesday, June 20, 2006 9:09 AM

4 Verifying the Installation
Step 2: Verifying the Installation
1Right-click the My Computer icon on your desktop or in the Windows Start
menu.
2On the menu that appears, click Properties.
3In the System Properties dialog box, click the Hardware tab.
4Click the Device Manager button. A window appears.
5Click the plus (+) sign next to the Imaging Device icon. The entry "Live! Cam
Voice" appears.
6Click the plus (+) sign next to the Sound, Video and Game controllers icon.
The entry “Live! Cam Voice (Mic)” appears.
For users with USB 2.0-equipped computers only
Creative Installation automatically checks that the software
components required for optimal USB 2.0 performance are installed
on your computer, and alerts you if these components are missing. If
you receive such a message, do one of the following to ensure that
your webcam always performs to its fullest potential over a USB 2.0
connection:
■download and install the latest Windows Service Pack for your
operating system
■if you are using Windows XP SP1, install Windows XP Hotfix
KB822603
■install the USB 2.0 driver provided by your hardware vendor
The latest Windows Service Packs and Windows Hotfix KB822603 can
be obtained from the Microsoft®Help and Support website or via
Windows Update.
Maple QSB_Multi_CLE.book Page 4 Tuesday, June 20, 2006 9:09 AM

Using Your Creative Live! Cam 5
Using Your Creative Live! Cam
Taking a Photo/Video
1Click Start Programs or All Programs Creative Creative Live! Cam
Creative Live! Cam Center.
2In the Creative Live! Cam Center window, click the Photo Capture/Video
Recording tab.
3Click the Photo/Video Resolution box and select the resolution that you
want.
4Click the Capture button to capture an image or the Record button to start
and stop a video recording.
Using Creative Live! Cam Console
You can adjust your Live! Cam video settings, and enable Smart Face
Tracking, Pan and Tilt, Advanced Video FX or Noise Cancellation using Live!
Cam Console.
1To launch Live! Cam Console, click Start Programs or All Programs
Creative Creative Live! Cam Voice Creative Live! Cam Console.
2If the section that you want is not displayed, click the Show/Hide Panel
button .
More Information
User’s Guide
Read the User's Guide found on your Installation CD to learn more about
your Live! Cam's many features. Go to d:\manual\<language>\manual.chm
(replace d:\ with the drive letter of your CD-ROM/DVD-ROM drive, and
<language> with a language that your User’s Guide is available in)
Maple QSB_Multi_CLE.book Page 5 Tuesday, June 20, 2006 9:09 AM

6 More Information
Creative Knowledge Base
Resolve and troubleshoot technical queries at Creative's 24-hour self-help
Knowledge Base. Go to www.creative.com, select your region and then
select Support.
Product Registration
Registering your product ensures you receive the most appropriate service
and product support available. You can register your product during
installation or at www.creative.com/register.
Please note that your warranty rights are not dependent on registration.
Customer Support Services and Warranty
You can find Customer Support Services, Warranty and other information in
the Installation CD.
(replace d:\ with the drive letter of your CD-ROM/DVD-ROM drive, <region>
with the region that you are in, and <language> with the language that your
document is in)
Customer Support Services d:\support\<region>\<language>\support.chm
Warranty d:\warranty\<region>\<language>\warranty.chm Please keep your Proof of Purchase for the duration of the warranty
period.
User’s Guide d:\manual\<language>\manual.chm
Waste Electrical and Electronic Equipment (WEEE) Symbol
The use of the WEEE Symbol indicates that this product may not be treated as
household waste. By ensuring this product is disposed of correctly, you will
help protect the environment. For more detailed information about the
recycling of this product, please contact your local authority, your household
waste disposal service provider or the shop where you purchased the product.
Copyright © 2006 Creative Technology Ltd. All rights reserved. The Creative logo is a registered
trademark of Creative Technology Ltd. in the United States and/or other countries. Microsoft, Windows
and the Windows logo are registered trademarks of Microsoft Corporation.
Maple QSB_Multi_CLE.book Page 6 Tuesday, June 20, 2006 9:09 AM

Félicitations ! 7
Félicitations !
Creative Live!®Cam Voice, la première webcam avec micro de gamme
adaptative, offre une clarté de voix et des images vidéo de haute qualité
pour vos vidéos par web chat avec vos amis et vos proches.
Pour profiter au mieux de votre Live! Cam, lisez également le guide complet
de l'utilisateur qui se trouve sur votre CD d'installation.
Reportez-vous à la figure sur la couverture et faites correspondre les
numéros avec ceux ci-dessous pour vous familiariser avec votre Live! Cam.
1. Bouton Vue
Appuyez pour démarrer le Live!
Cam Center (lorsque Live! Cam
Manager est exécuté en
arrière-plan) et capturer des
images.
2. Microphones
Capture clairement les voix
pendant les vidéos par Web chat.
3. Témoin d'alimentation
S’allume en vert lorsque votre
Live! Cam est connectée au port
USB de votre ordinateur.
S’allume en rouge lors de prises
vidéos et/ou de capture audio.
4. Levier à charnière
A utiliser pour fixer la Live! Cam
sur un écran LCD.
5. Câble USB
Connectez-le au port USB de
l'ordinateur.
Maple QSB_Multi_CLE.book Page 7 Tuesday, June 20, 2006 9:09 AM

8 Mise en route
Mise en route
Figure 1: Installation de votre Live! Cam
Vous devez installer les pilotes et les applications des périphériques avant
d’utiliser votre Live! Cam.
Si vous avez connecté votre Live! Cam par erreur avant l’installation et que
la boîte de dialogue Assistant Ajout de nouveau matériel ou Assistant
Nouveau matériel détecté s'affiche, cliquez sur le bouton Annuler.
1Insérez le CD d’installation dans votre lecteur de CD-ROM/DVD-ROM.
Le CD démarre automatiquement. Dans le cas contraire, effectuez les
étapes suivantes :
i. Double-cliquez sur l'icône Poste de travail.
Vous pouvez également cliquer sur Démarrer Poste de travail.
ii. Cliquez avec le bouton droit sur l'icône du lecteur de CD-ROM/
DVD-ROM, puis choisissez Exécution automatique.
2Suivez les instructions à l’écran afin d’installer les pilotes et applications
nécessaires.
NE connectez PAS la Live! Cam à votre ordinateur avant d’avoir
installé les pilotes.
