Creator CRT-571 Owner's manual

CRT-571
Card Issuing Machine
VER 1.0
PRODUCT SPECIFICATION
CREATOR (CHINA) TECH CO., LTD.
·2F, M-10 Building, Center Area, Hi-tech Industrial Park , Shenzhen Guangdong China
·TEL:[phone] FAX:[phone]
·Http://www.china-creator.com

CONTENTS
1. OVERVIEW………………………………………………….…………………... 1
2. PRODUCT MODULE NUMBER SPECIFICATION………….……………….……2
3. GENERAL SPECIFICATION…………………………………….…...…………...………3
4. CRT-571 DESIGN SPECIFICATION…………..…………….…...……….…... …4
4.1 CARD THICKNESS ADJUSTMENT……………………….…...……………..…4
5. SENSOR AND CARD STOP POSITION……………………………………………….5
6. MULTI-UNIT COMMUNICATION SETTING…………………………………….………6
6.1 SKETCH MAP OFMULTI-UNIT PCB…………………………………….…………..6
6.2 DIP SETTING OF UNIT ADDRESS………………………………...………..……….6
7. STRUCTURE AND DIMENSION DRAWINGS……………………………….…...7
8. MAINTENANCE AND CAUTIONS…… ………………..……..………………....8
8.1MAINTENANCE…………………………………………………..………….…………..8
8.2 CAUTIONS FOR SAFE USE……………………………………………...…..………8
8.3 WARRANTY……………………………………….…………………….…………..…..9

Revision Log
Version Revision Time Content
1.0 2010.1.25 First Release

Model No. CRT-571
SPECIFICATION Date 2010/01/10
Ver. 1.0
Card Dispenser Page 1/10
1. OVERVIEW
CRT-571 is card issuing machine with IC/RF card reader.
CRT-571 has the following features:
·Stacker: equiped with removable stacker. As well, can issue cards
independently without the removable stacker.
·Removeable stacker with lock: the cards can be locked in the
removable stacker.
·Removable stacker can be locked to the machine body to prevent
stolen.
·Concave style of card thickness adjustment.
·Two card reading type options: card reading independently or via
third-party device.
·Multi-units communication: support Max. 16 sets of CRT-571.
·Compact size and low cost: one of the most compact card issuing
machine in the market. An integrated design help to lower the
cost.

Model No. CRT-571
SPECIFICATION Date 2010/01/10
Ver. 1.0
Card Dispenser Page 2/10
2. Product Module Number Specification
CRT - 571 - ( X X X ) X X - X X X
NOTE: Type of CRT-571 series removeable stacker shows as below:
Long stacker with lock: CRT-500-X5L (Capability: 500pcs)
Long stacker without lock: CRT-500-X5N ( Capability: 500pcs)
Short stacker with lock: CRT-500-X2L ( Capability: 240pcs)
Short stacker without lock: CRT-500-X2N ( Capability: 240pcs)
Client Code
00: Standard Product
XX: Customized Product
Function
I: Contact IC Card
C: RF Card
E: IC Card + RF Card
N: No Module
W:Specified PCB Board
Communication
U: USB
R: RS-232
Collection
B: Card Bin
R: Channel Bezel
N: NO
J: J Type Bezel
Baffle at the bezel
position
N: No
S: Yes
（Only dispense card
from stacker）
Version&Serials Nnumber
1---9

Model No. CRT-571
SPECIFICATION Date 2010/01/10
Ver. 1.0
Card Dispenser Page 3/10
3. General Specification
·Power Supply:
DC 24V ±5%
·Current Comsumption:
Static Current: 0.1A
Peak Current During Operation: 1.5A
Normal Current Condition: 700mA
·Card Feeding-Out Speed:
> 1Cards/s
·Communication Interface:
RS232C
·Card Dimensions:
Size: 55×86mm
Thickness: 0.36~1.0m
·Weight:
2.0 Kg Approx.
·Dimensions:
Refer to Structure And Dimension Drawings
·Card Stacking Capability:
120pcs in case of 0.76mm standard card
( Available to set to 500pcs max.)
·Card Pre-Empty Detection:
7~50pcs ±2pcs ( Default setting: 15pcs)
·Enviromental Condition:
Operation: 0~50℃0~90% RH ( Without Condensing)
Storage: -10~75℃0~90% RH ( Without Condensing)
·Lift Time:
500 thousand times
( In the condition: 20±5%, 35~60%RH, ≥1pcs/min)
·Support ISP Download On Line
·Compliant To RoHS

Model No. CRT-571
SPECIFICATION Date 2010/01/10
Ver. 1.0
Card Dispenser Page 4/10
4. CRT-571 Design Specification
4.1 Card Thickness Adjustment
CRT-571 makes it more accurate and convenient to dispense the cards in
different thickness via rotating the turn-knob to different gear position so as
to adjust the gap between the upper and lower transmiting wheels, which
eliminates the inconvenient and inaccurate gap adjustment defects. With
this feature, CRT-571 is quite suitable for the unattended vending devices
to dispense various cards of distinct thickness.
There are several steps to adjust the thickness of cards:
1. Confirm the thickness of cards ( Raised type character are not
involved in)

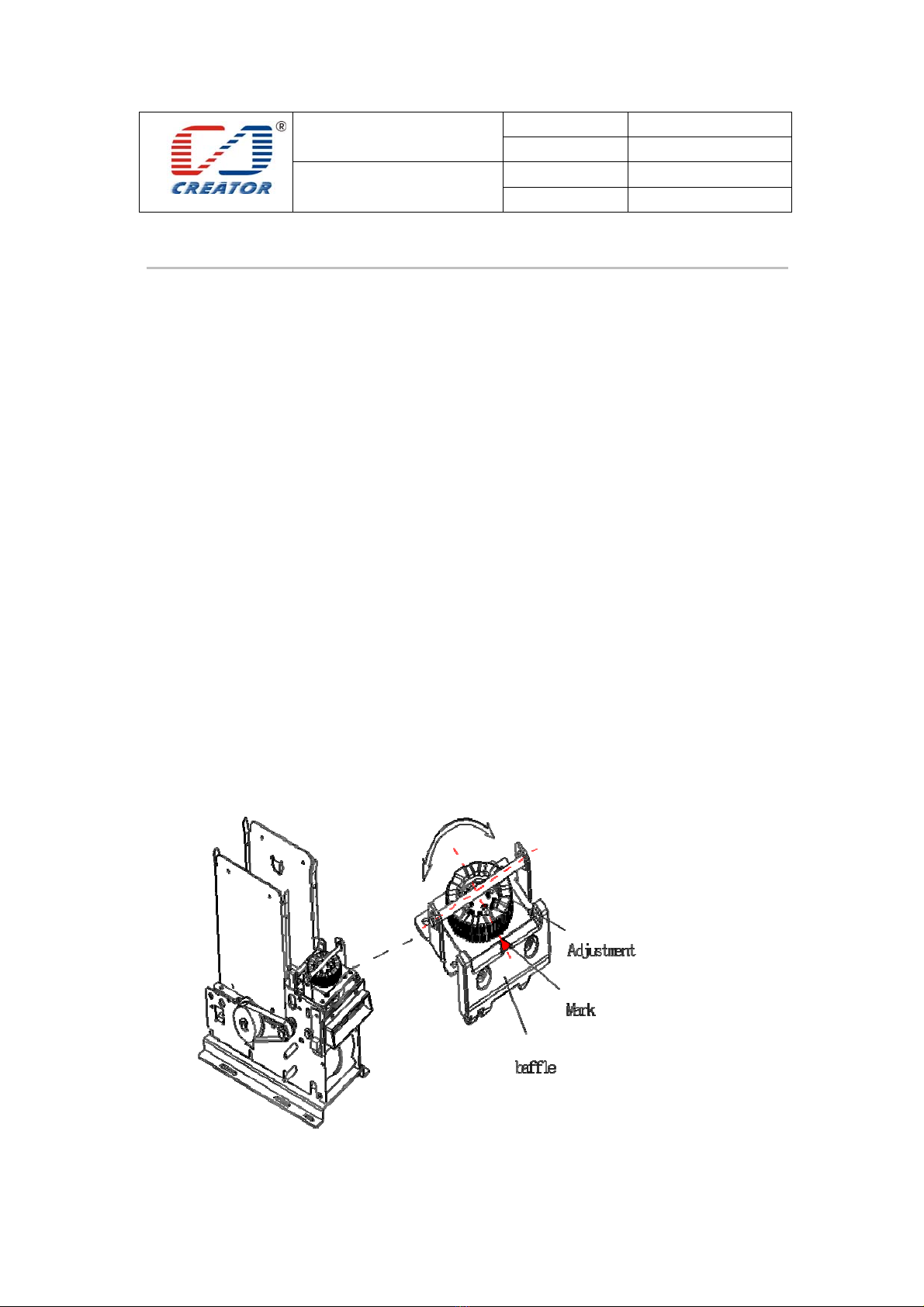

2. Press the turn-knob and turn around to the graducation pointed by
the red arrow. Seeing pictures below.
3. Make sure the adjustment on the right position by insert cards from
stacker. (Inserting one card from stacker will be smooth and two
cards simultaneously from behind can be impossible)

Model No. CRT-571
SPECIFICATION Date 2010/01/10
Ver. 1.0
Card Dispenser Page 5/10
5. Sensor And Card Stop Position
Sensors and card stop position show as below:
Front side without holding card
Front side holding card IC Contact
Card stacker
IC Card operation position
RF Card operation position
Sensor 6 Position 1 Sensor 6 Position 2
Card collection position
Collection Clips
IC Contact

Model No. CRT-571
SPECIFICATION Date 2010/01/10
Ver. 1.0
Card Dispenser Page 6/10
6. Multi-Unit Communication Setting
6.1 DIP Setting Of Unit Address
The following table shows the Dip setting of Unit Address.
Multi-switch
4 3 2 1 Corresponding address
ON ON ON ON ‘00’
ON ON ON OFF ‘01’
ON ON OFF ON ‘02’
ON ON OFF OFF ‘03’
ON OFF ON ON ‘04’
ON OFF ON OFF ‘05’
ON OFF OFF ON ‘06’
ON OFF OFF OFF ‘07’
OFF ON ON ON ‘08’
OFF ON ON OFF ‘09’
OFF ON OFF ON ‘10’
OFF ON OFF OFF ‘11’
OFF OFF ON ON ‘12’
OFF OFF ON OFF ‘13’
OFF OFF OFF ON ‘14’
OFF OFF OFF OFF ‘15’

Model No. CRT-571
SPECIFICATION Date 2010/01/10
Ver. 1.0
Card Dispenser Page 7/10

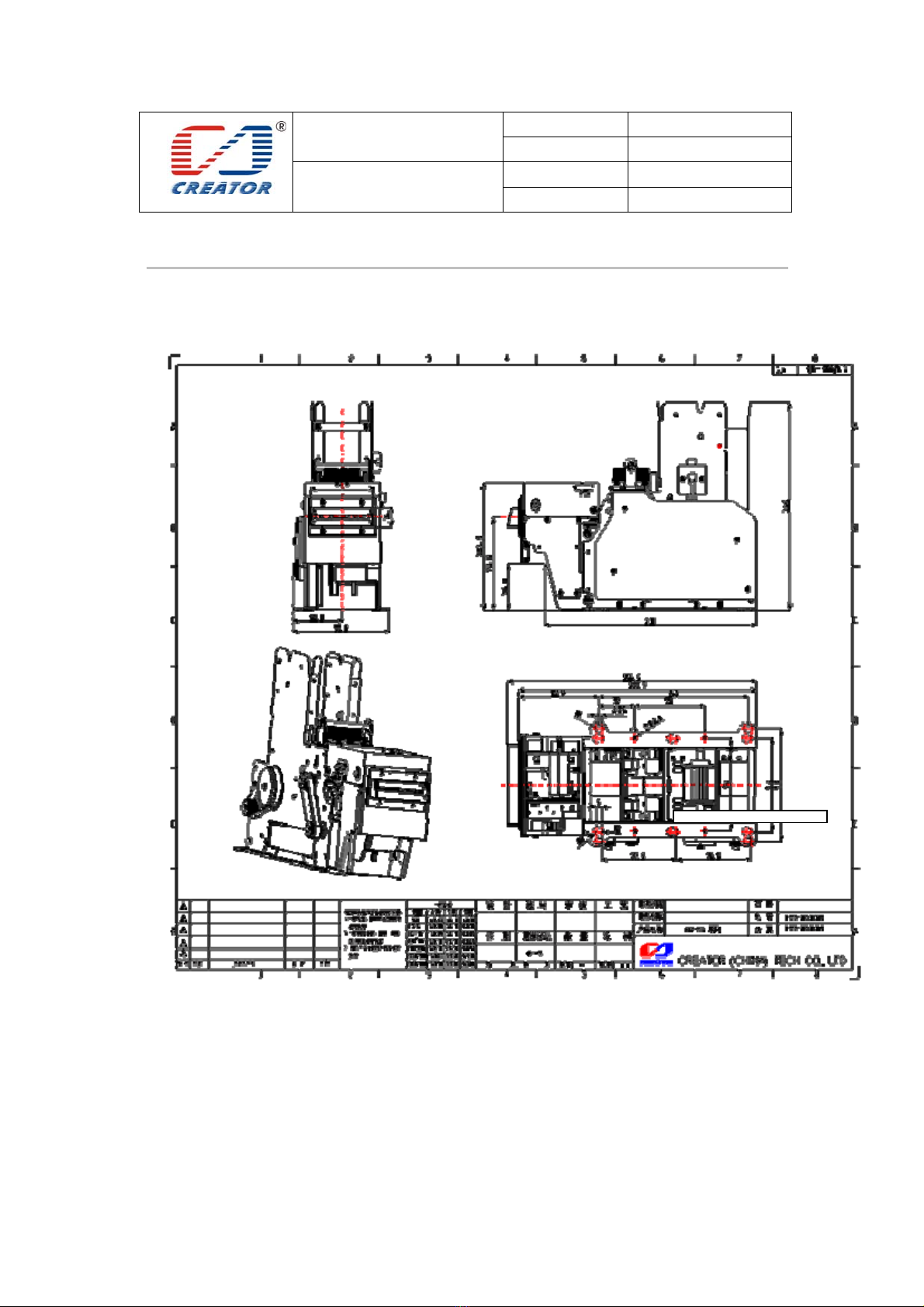

7. Structure And Dimension Drawings
The following diagram show the structure and dimension

Model No. CRT-571
SPECIFICATION Date 2010/01/10
Ver. 1.0
Card Dispenser Page 8/10
8. Maintenance And Cautions
8.1 Maintenance
After using for long some time or dispensing amount of cards, the dispenser
may be weared out, because of every part is running, so we need to do some
maintenance to the machine. The steps as follows:
1）Check the parts of the dispenser. If they become loose or abnormal,
tighten them.
2）Check the straps of drive wheels. If they become loose, calibrate the
position of the elasticity wheel.
3）Use cleaning card or soft cloth with alcohol to clean the dispenser
wheel in the bottom of the hopper and the drive wheel.
4）Use soft cloth with alcohol to clean the dirty cards and replace the
distortion cards
5) Check the graduation of knob to see whether they are corresponding.
8.2 Cautions For Safe Use
1）Ensure the power is off while repairing the whole machine.
2）Notice the cathode and anode of the machine power while power on for
the first time.
3）Notice the Specification of JUMP when using for the first time, because
improper JUMP will cause work off or unpredictable status.
4）Prohibit to inset or pull out the receptacle of the port when power on.
Otherwise, the circuit of the controller circuit may be spoiled
5) Ensure the dispenser out of smear. The smear will affect the capability
of the dispenser.
6) On the back of dispenser side board, there is a red soft manual “Reset”
keystoke. When error or abnormal situation occurs on spot, then
engineer can press this keystoke for reset. It is not used in general
situation.
7) Reset function: cards cleaning up in stacker and withdraw cards.
8) Reset over time protection: Motor will stop running to protect itself if
pressing the Reset bottom for a long time.

Model No. CRT-571
SPECIFICATION Date 2010/01/10
Ver. 1.0
Card Dispenser Page 9/10
8.3 WARRANTY
1) One year guarantee free of charge. Counting from the day that users
receive the goods;
2) User sends the goods to us for repairing;
3) Provide after-sale service after exceeding guarantee period. We will
take some material fee if need to replace fittings.And we will take some
upkeep in the follows situations although it is in guarantee period;
a) Damage and trouble caused artificially;
b) Damage and trouble caused by non-professional operation;
c) Damage and trouble caused by instability of user’s power supply;
d) Damage and trouble caused by force majeure, such as earthquake,
natural weather etc.
